MX SELECT - USER SAFETY PRECAUTIONSMX SELECT - USER SAFETY PRECAUTIONS
To avoid possible injury, all users should read and understand these
instructions before using any MX Select product.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Consult a medical doctor or healthcare professional to be cleared by them for exercise and to
determine the exercises appropriate for you, before undertaking exercise with MX Select Systems.
If you experience any pain or dizziness, stop exercise immediately and consult a medical doctor.
Perform any exercise with the correct technique – consult a personal trainer or healthcare
professional for guidance if unsure of technique or your personal exercise parameters.
MX SELECT Systems are designed for home use only and are not suitable or warranted for commercial
use.
Understand how to select the desired weight with the MX SELECT System, see page 2 following.
Never touch the weight selector release button or move the selector dial while the MX Select product
is out of the cradle, doing so may release weight plates from the handset and cause catastrophic
injury.
Never use MX Select Systems if they are not functioning properly.
Never drop, throw or strike together any MX Select System, this will void warranty and could cause
permanent damage.
Take personal responsibility to ensure your safety and the safety of those around you while using
and storing MX SELECT Systems.
US PATENT NUMBERS: 9643042 & 10166427 BRITISH PATENT NUMBERS: 2911752 & 2956218
BREVETT PATENT NUMBERS:. 502017000140462 & 502019000108103 UPDATED - 220322
ASSEMBLY & SYSTEM ADJUSTMENTS
BARBELL SYSTEM
Weight
Selector Dial
Ten x 4 lb / 1.8 kg
Weight Plates
per side
MX Patented
Weight
Cradle
Weight Selector
Release Button
Barbell Storage
for second
MX Barbell
Rubber Feet
MX Straight Barbell
MX EZ-Curl
Barbell
Steel Frame
MX100 Weight Legend
Weight
Legend

RAPID CHANGE WEIGHT SYSTEMS
RAPID CHANGE
WEIGHT SYSTEMS
[email protected] www.mxselect.com
SELECT
2
ASSEMBLY OF MX100 BARBELL SYSTEM & RACK
HOW TO SELECT DESIRED TRAINING WEIGHT
Turn weight selector
dial to desired weight
Lift Barbell from Cradle
and start training
Raised weight selector
release dial
Push selector dial in to
lock selected weight
Only adjust the Weight Selector Dial while the Barbell is in the Weight Cradle
Push weight selector
dial release button
BOX 1 - RACK
Straight Barbell
EZ Curl Barbell
Rack Components
Rack Hardware
DIM: L 1423 x W 545 x H 360 mm - 47.8 kg
BOX 2 - MX PLATES
18 x 4lb / 1.8kg
MX100 Weight Plates
2 x Weight Cradles
DIM: L 423 x W 335 x H 340 mm - 39.2 kg
STEP TWO - ASSEMBLE THE RACK
Lay the Stand Uprights on the floor (careful not to
damage the floor or stand coating) and place the
Rear Support in position to line up the bolt pattern
on both parts. Ensure the MX SELECT decal faces
outwards on both Stand Uprights and that the Warning
decal on the Stand Rear Support will face up when
assembled. Attach each Stand Upright to the Stand
Rear Support using (2) M6 x 25 bolts and washers.
DO NOT fully tighten until Step Four is complete.

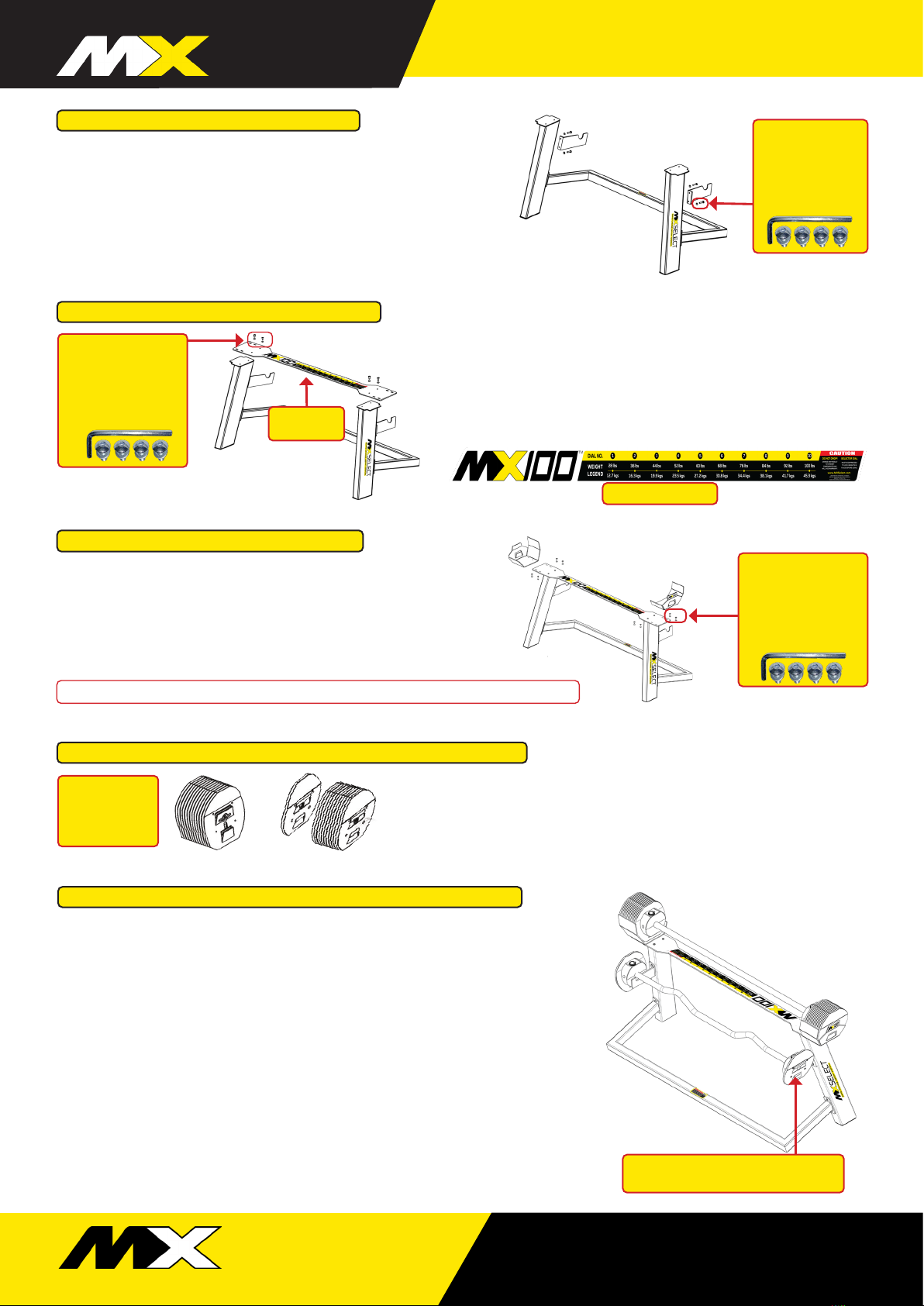

Using the
4mm Allen Key
attach Stand
Uprights to Rear
Support with M6
Bolts & Washers
Place BOX 1 on a flat, firm surface with the Up Arrow pointing up. Open the top of the box and
remove the Stand Top Plate, the Left and Right Stand Uprights, the Stand Rear Support, the Barbell
Storage Brackets and the Hardware Kit.
STEP ONE - UNPACKING BOX 1 - RACK
MX100 RACK & CRADLE - Hardware Kit
Stand Uprights
& Rubber Feet Stand Rear Support
Stand Top Plate
Barbell Storage
Brackets
4 x Top Plate Hardware
M5 x 10mm Bolts & M5 Washers
8 x Rack & Bar Support Hardware
M6 x 25mm Bolts
M6 Washers
4 x Weight Cradle Hardware
M5 x 10mm Bolts & M5 Washers
4mm Allen Key
Place Stand assembly on the floor as shown, checking to
make sure the Stand assembly sits evenly on the floor.
Adjust both ends of the Barbell to your desired training weight.

RAPID CHANGE WEIGHT SYSTEMS
RAPID CHANGE
WEIGHT SYSTEMS
[email protected] www.mxselect.com
SELECT
3
Using the
4mm Allen Key
attach Bar Storage
Brackets to Rear
Support with M6
Bolts & Washers
STEP THREE - BAR STORAGE
Attach the Left and Right Barbell Storage Brackets
to the rear of the Stand Uprights as shown, using
(2) M6 x 25 bolts and washers. Note that the hook
for the bar faces upwards and the bend in the
bracket is flush with the inside of the Stand Uprights.
Fully tighten these brackets in place now.
STEP FOUR - STAND TOP PLATE
Place the Stand Top Plate across the Stand Uprights as
shown. Ensure the Weight Legend can be read from the
front. Line up the holes in the Top Plate and attached
using (4) M5 x 10 bolts and (4) M5 x 10 washers.
Now fully tighten all stand bolts (All 12)
Weight Legend
Using the
4mm Allen Key
attach Stand Top
Plate to the top
of the Rack with
M5 Bolts & Washers Weight Legend
read from
the front
FRONT
STEP FIVE - WEIGHT CRADLES
Using the
4mm Allen Key
attach Weight Cradle
Base to the top
of the Rack with
M5 Bolts & Washers
Place the Weight Cradles on the Top Plate as shown. Ensure
the low side of the Weight Cradle is at the front and that
the closed ends are to the outside. Attach using (4) M5 x
10 bolts and (4) M5 x 10 washers for each Weight Cradle.
DO NOT fully tighten at this time.
Position your MX100 Barbell Stand in its desired location ready to load.
FRONT
STEP SIX - UNPACK BOX 2 - MX WEIGHT PLATES
Place BOX 2 on a flat, firm surface with the Up Arrow pointing up.
Open the top of the box and remove the 18 x MX Weight Plates,
ready to insert 9 x Weight Cradles at either end of your stand.
18 x
4lb / 1.8kg
MX100
Weight Plates
Place 1 x Weight Plate in each Weight Cradle so that it fits neatly into
the outside edge Cradle supports. Now stack 9 more MX Weight Plates to
each Weight Cradle, and confirm there are 10 plates in each Weight Cradle
fitting neatly together. Check that the Weight Selector Dial on both MX100
Barbells is SET to 1. Place one of the MX Barbells across the stand and
into the Weight Plates at either end of the stand. Check that the Barbell
fits neatly into the Weight Plates and adjust the Weight Cradle so that the
Weight Selector Dial at each end can be rotated smoothly 1 through to 10.
STEP SEVEN - LOAD YOUR BARBELL SYSTEM
REAR
FULLY TIGHTEN ALL BOLTS and re-check that the Weight Selector
Dial moves freely 1 through 10, adjust weight cradle as required.
Place the 2nd MX Barbell on
Storage Bracket when not in use.
Refer to page 4 for details on adjusting Weight Cradles for smooth
Weight Plate selection.

RAPID CHANGE WEIGHT SYSTEMS
RAPID CHANGE
WEIGHT SYSTEMS
[email protected] www.mxselect.com
SELECT
4
UPDATED - 250322

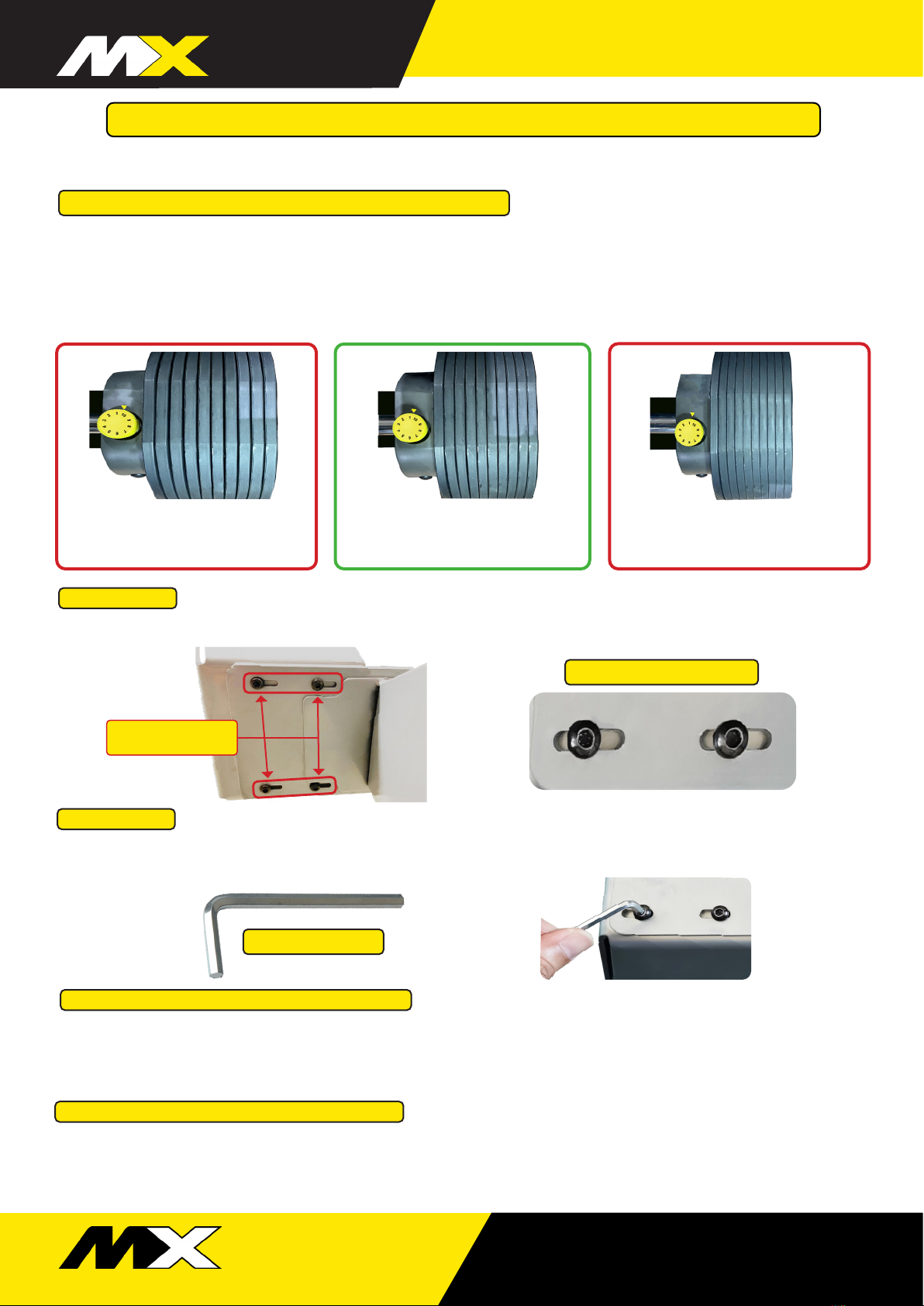

STEPS TO RESOLVE THE FOLLOWING
+ Selector dial will not push down and lock into place.
+ Selector dial feels tight or will not turn easily.
+ Extra weight plate sticks when the MX Barbell is removed from Cradle.
+ Weight plates are too widely spaced or too closely spaced.
FOR SMOOTH & ACCURATE WEIGHT PLATE SELECTION
MX BARBELL ADJUSTMENT GUIDE
Adjustment bolts
in slotted holes
IF CRADLE SPACING TOO WIDE
IF CRADLE SPACING TOO CLOSE
Push the floating Cradle end slightly inwards. Tighten Bolts and replace Barbell Handset and check
that the gap between the plates is the correct spacing and test on all dial settings 1 to 10. If not
correct, repeat adjustment steps.
With the Barbell still in weight cradle, locate adjustments bolts in the slots underneath Cradle.
Using a M4 Allen Key loosen the 4 Adjustment Bolts at one end of the Barbell Cradle just enough
to allow you to move the Cradle as required.
ADJUSTMENT SLOTS
STEP ONE
STEP TWO
M4 ALLEN KEY
CORRECT SPACINGCORRECT SPACING
Weight plates have a thin gap
but don’t move freely
CRADLE SPACING TOO WIDE
Weight plates move freely
when in Cradle
CRADLE SPACING TOO CLOSE
Cant remove weights and
selector dial won’t turn
Move slightly apart the floating Cradle end outwards, opening a slight gap between the plates. Tighten
bolts and replace Barbell Handset check that the gap between the plates is the correct spacing and
test on all dial settings 1 to 10. If not correct, repeat adjustment steps.
