MX-Select MX55 User manual
RAPID CHANGE WEIGHT SYSTEMS
RAPID CHANGE
WEIGHT SYSTEMS
SELECT
1
ASSEMBLY & SYSTEM ADJUSTMENTS
DUMBBELL USER GUIDE
MX SELECT - USER SAFETY PRECAUTIONS
To avoid possible injury, all users should read and understand these
instructions before using any MX Select product.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Consult a medical doctor or healthcare professional to be cleared by them for exercise and to
determine the exercises appropriate for you, before undertaking exercise with MX Select Systems.
If you experience any pain or dizziness, stop exercise immediately and consult a medical doctor.
Perform any exercise with the correct technique – consult a personal trainer or healthcare
professional for guidance if unsure of technique or your personal exercise parameters.
MX SELECT Systems are designed for home use only and are not suitable or warranted for commercial
use.
Understand how to select the desired weight with the MX SELECT System, see page 2 following.
Never touch the weight selector release button or move the selector dial while the MX Select product
is out of the cradle, doing so may release weight plates from the handset and cause catastrophic
injury.
Never use MX Select Systems if they are not functioning properly.
Never drop, throw or strike together any MX Select System, this will void warranty and could cause
permanent damage.
Take personal responsibility to ensure your safety and the safety of those around you while using
and storing MX SELECT Systems.
US PATENT NUMBERS: 9643042 & 10166427 BRITISH PATENT NUMBERS: 2911752 & 2956218
BREVETT PATENT NUMBERS:. 502017000140462 & 502019000108103 UPDATED - 280421
RAPID CHANGE WEIGHT SYSTEMS
RAPID CHANGE
WEIGHT SYSTEMS
SELECT
2

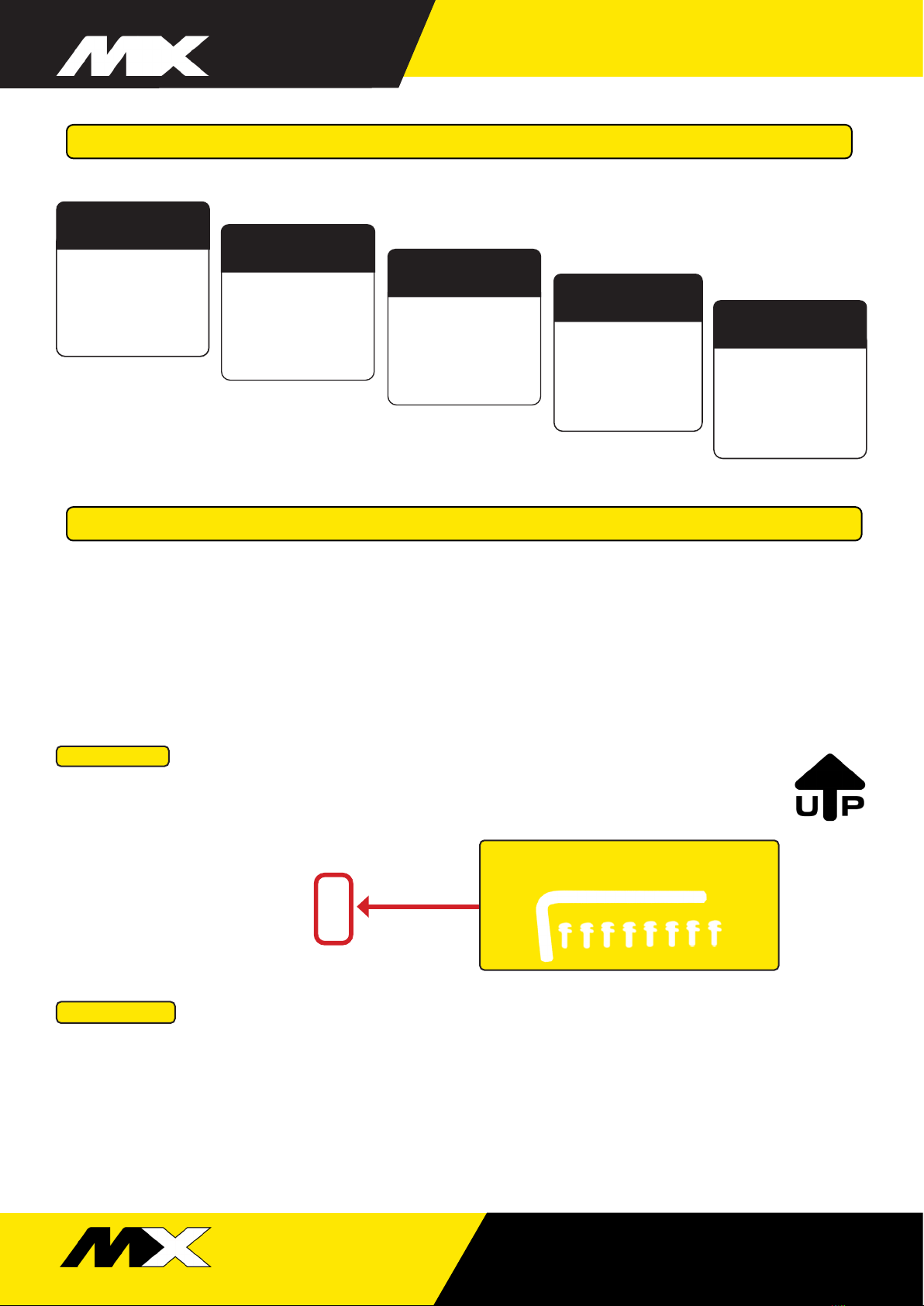

......................... Place the MX Dumbbell System box on a flat firm surface with the Up Arrow pointing
up. Open the top of the box. The owners guide and hardware kit is visible on top of Styrofoam
packaging. Remove the hardware kit from the plastic sleeve and put the Bolts aside.
ASSEMBLY INSTRUCTION - MX30, MX55 & MX85
MX - Hardware Kit
Cradle Bolts, Washers & 4mm Allen Key
......... ........ ... Remove the top Styrofoam protective cover and remove Cradle Feet packed under the MX
Dumbbell Handset. Put the four Cradle Feet aside.
Push weight selector
dial release button
Turn weight selector
dial to desired weight
Lift Dumbbells from
Cradle and start training
HOW TO SELECT DESIRED TRAINING WEIGHT
Raised weight selector
release dial
Push selector dial in to
lock selected weight
ONLY ADJUST WHILE THE HANDSET IS IN THE CRADLE
STEP ONE
STEP TWO
RAPID CHANGE WEIGHT SYSTEMS
RAPID CHANGE
WEIGHT SYSTEMS
SELECT
3
............................ Turn the Cradle over as pictured below, on a soft surface that will not damage Cradle finish.
Ensure the Cradle is stable.
..................................... Turn the Cradle over onto the Cradle Feet. Place Cradles where you intend to use them before
placing MX Dumbbell Handset into the Cradles.
PUSH FEET
FIRMLY
AGAINST
CRADLE
BEFORE
TIGHTENING
BO LT S
............................ Line up the holes in the first of the Cradle Feet with the holes in the Cradle. Put the Cradle Bolts and
washers in loosely. Push the Cradle Feet inwards firmly against the Cradle (direction of the arrow) and tighten the
Bolts. Repeat for each of the four Cradle Feet for each Cradle.
CHECK THAT ALL SCREWS ARE TIGHT.
......................... Remove the Cradle from the box and place on a flat surface.
Slotted holes in
Cradle Feet for
the Cradle Bolts
and washers.
Securing Cradle
Feet to Cradle
.............................. Check that the weight plate selector dial is set to 10, if not follow the “How to Select
desired training weight” instructions above, and set the dial to 10. Remove the MX Dumbbell Handset from
the Cradle, which will remain in the box. Place the MX Dumbbell Handset on a firm flat surface, being careful
not to damage the surface or the MX Dumbbell. CAUTION: The full weight (heavy) of the MX Dumbbell is
activated by Selecting 10 on the weight plate selector dial.
Threaded holes for
the Cradle Bolts
and washers.
Do NOT add the Cradle Feet if intending to install the MX SELECT Dumbbells on the Optional MX Dumbbell Stand.
Stop at Step 4 and then refer to the assembly instructions supplied with the MX Dumbbell Stand.
STEP THREE
STEP FOUR
STEP SIX
STEP FIVE
STEP SEVEN
RAPID CHANGE WEIGHT SYSTEMS
RAPID CHANGE
WEIGHT SYSTEMS
SELECT
4
CORRECT SPACINGCORRECT SPACING
Weight plates have a thin gap
but don’t move freely
CRADLE SPACING TOO WIDE
Weight plates move freely
when in Cradle
CRADLE SPACING TOO CLOSE
Cant remove weights and
selector dial won’t turn
IF CRADLE SPACING TOO WIDE
IF CRADLE SPACING TOO CLOSE
Push the floating Cradle end slightly inwards. Tighten Bolts and replace MX Dumbbell Handset and check
that the gap between the plates is the correct spacing and test on all dial settings. If not correct, repeat
adjustment steps.
Move slightly apart the floating Cradle end outwards, opening a slight gap between the plates. Tighten bolts
and replace MX Dumbbell Handset check that the gap between the plates is the correct spacing and test on all
dial settings. If not correct, repeat adjustment steps.
--------------------- Remove MX Dumbbell Handset and turn the Cradle over. Using an M4 Allen Key remove the Cradle
Feet Bolts and Cradle Feet to gain access to the Cradle adjustments Bolts.
--------------------- Using an M4 Allen Key loosen the Cradle Adjustment Bolts at one end of the Cradle just
enough to allow you to move the Cradle inwards or outwards as required.
STEP ONE
STEP TWO
M4 ALLEN KEY
STEPS TO RESOLVE THE FOLLOWING
+ Selector dial will not push down and lock into place
+ Selector dial feels tight or will not turn
+ Extra weight plate sticks when the MX Dumbbell Handset is removed from Cradle
+ Weight plates are too widely spaced or too closely spaced
FOR SMOOTH & ACCURATE WEIGHT PLATE SELECTION
Adjustment bolts
in slotted holes
MX DUMBBELL ADJUSTMENT GUIDE
