MYERS LVU-2 User manual

INSTRUCTION MANUAL 25B9
SAVE THIS INSTRUCTIONS
LVU-2/5
THIS PRODUCT CONTAINS A RECHARGEABLE NICKEL-CADMIUM BATTERY.
THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.
WWW.MYERSEPS.COM
Ni-cd
UNIVERSAL MICRO INVERTER
PURE SINUSOIDAL AC OUTPUT
OUTPUT VOLTAGE AUTO SETTING EQUAL TO INPUT VOLTAGE
AUTO DIMMING (1-10V) OF CONNECTED LOAD
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To prevent electric shock, switch off the mains power until installation is
complete and AC Input power is supplied to this product.
2. This product requires an unswitched AC power supply of 120-277V, 50/60Hz.
3. Make sure all connections are in accordance with the National or Canadian Electrical
code and any local regulations.
4. To reduce the risk of electrical shock, disconnect both normal power, emergency power,
unit and connector of this product before servicing.
5. For emergency operation of LED, incandescent, fluorescent, and screw-base
lamps.
6. Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta). To ensure
the emergency operating time over 90 minutes, the output emergency power of LVU-2/5
should be maximum of 25W for the LVU-2 and 50W for the LVU-5.
7. Use with grounded, UL Listed, damp location rated fixtures. Do not use outdoors. Do
not mount it near gas, heaters, air outlets or other hazardous locations.
8. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that
is not field replaceable. Contact the manufacturer for information or service.
9. The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition and void warranty.
10. Do not use this product for other than intended use.
11. Installation and service should be performed by qualified service personnel.
12. This product should be mounted in locations and at heights where it will not readily be
subjected to tampering by unauthorized personnel.

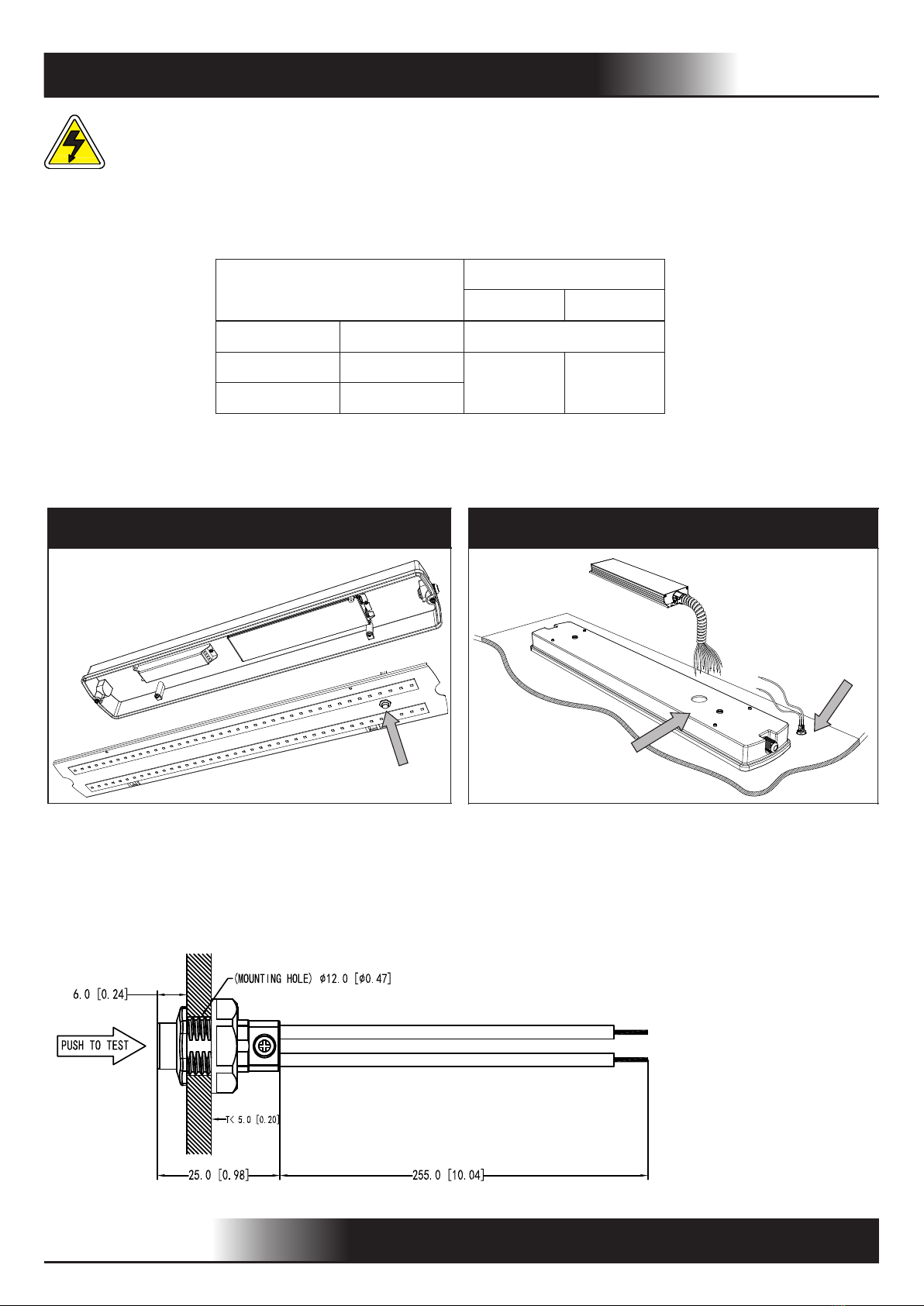

INSTALLATION
2/4
OUTSIDE THE LUMINAIRE
LED test switch
LVU-2/5
One 7/8" (22mm) hole with conduit
connector for 184600.
1. SPECIFICATION OF LVU-2/5
LVU-2/5 SPECIFICATION
2. INSTALLING THE LVU-2/5
The LVU-2/5 can be mounted inside or outside (nearby or on top of) the luminaire.
3. INSTALLING THE LED TEST SWITCH (LTS)
Select a convenient location for the LTS so that it can be seen after installation.
Drill a 1/2"(12 mm) hole for mounting the LTS. Connect the wires from LTS to the
LVU-2/5 model according to the wiring diagram on page 3.
INSIDE THE LUMINAIRE
LVU-2/5
LED test switch
CAUTION: MAKE CERTAIN THE AC POWER IS OFF AND THE LVU-2/5 UNIT CONNECTOR IS
DISCONNECTED UNTIL THE INSTALLATION IS COMPLETE.
LVU-2 LVU-5
Output Output Power
Voltage Model
Input
277V/50Hz
120V/60Hz 25W 50W
277V/60Hz
120V/60Hz
WWW.MYERSEPS.COM

3/4
WIRING
1. The LVU-2/5 requires an unswitched AC power supply of 120-277 volt, 50/60Hz.
2. Refer the wiring diagrams below for wiring in turns of ①②③ ...
3. Consult the factory for other wiring diagram.
CAUTION: DO NOT MATE UNIT CONNECTOR UNTIL INSTALLATION IS COMPLETE AND
AC POWER IS SUPPLIED.
WIRING DIAGRAM FOR NON-DIMMABLE EMERGENCY LIGHTING SYSTEM
LVU-2/5
TOTAL POWER LVU-2=25W
WHITE/RED
BLACK
YELLOW/GREEN
WHITE/BLACK
ANY QUANTITY
ORANGE (OUT HOT)
NEUTRAL
GROUND
SWITCH
HOT
LED Test Switch
RED (+)
WHITE (-)
RED (+)
WHITE (-)
120-277 VAC
120-277 VAC
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
DIM IN BLUE/WHITE (+)
DIM IN BLUE/RED (-)
0-10V
DIMMER
GRAY (OUT NEUTRAL)
①
①
②
②
③
④
⑤
⑤
⑥
VIOLET
VIOLET UNIT CONNECTOR
WIRING DIAGRAM FOR 1-10V DIMMABLE EMERGENCY LIGHTING SYSTEM
LVU-2/5
TOTAL DIMMABLE POWER LVU-2 UP TO 175W
WHITE/RED
BLACK
YELLOW/GREEN
WHITE/BLACK
ANY QUANTITY
DIM OUT BLUE (+)
DIM OUT BROWN (-)
ORANGE (OUT HOT)
NEUTRAL
GROUND
SWITCH
HOT
LED Test Switch
120-277 VAC
120-277 VAC
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
FOR E M ERGENCY
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
LED
FLUORESCENT
INCANDESCENT
LUMINAIRE
0-10V
DIMMER
GRAY (OUT NEUTRAL)
RED (+)
WHITE (-)
RED (+)
WHITE (-)
DIM IN BLUE/WHITE (+)
DIM IN BLUE/RED (-)
①
②
①
②
④
⑤
⑥
⑦
③
③
⑥
VIOLET UNIT CONNECTOR
VIOLET
* The max. linkable luminaire quantity for emergency
will be different due to different electrical appliances,
which needs to be verified by end users.
WWW.MYERSEPS.COM
LVU-5 UP TO 350W
LVU-5=50W

4/4
OPERATION / TESTING / MAINTENANCE
OPERATION
When AC power is applied, the LED test switch is illuminated, indicating that the batteries are being charged. When
AC power fails, the LVU-2/5 automatically switches to emergency power, operating the LED loads at rated power.
The LED test switch is switched off. When the AC power is restored the emergency module switches the system
back to normal mode and resumes battery charging. The minimum emergency operation time is 90 minutes. The
charging time for the fully discharged battery is 24 Hours.
TESTING AND MAINTENANCE
Following periodical tests are recommended to ensure the system is working well:
1. Visually inspect the LED test switch(LTS) monthly. It should be illuminated when AC power is applied.
2. Conduct a 30 seconds discharge test by switching off the mains power every month. The LTS is switched off .
3. Conduct a 90 minutes discharge test once a year.
AUTO TEST
The LVU-2/5 series has Auto Test function which save the cost of manually maintenance.
1. Instant Auto Test
When the system is connected and powered on, the LVU-2/5 model will Auto Test if the load and battery
pack are connected properly and if the battery is being charged normally. If there is any abnormal situation, the
LTS will flicker. When the abnormity is removed, the LTS indicates normally.
2. Preprogrammed scheduled Auto Test
1) Carry out first monthly Auto Test after Initial power on from 24 hours to 7 days, afterwards, carry out a
monthly Auto Test every 30 days.
2) Carry out an annual Auto Test every 52 weeks after first powered on.
3) Monthly Auto Test
Monthly Auto Test should be executed every 30 days and to test:
If the switchover of normal and emergency mode is normal;
If the emergency function and battery's charging and discharging condition is normal;
Auto Test time is about 30 seconds.
4) Annual Auto Test
Annual Auto Test will be executed every 52 weeks after 24 hours full charging and to test:
If the battery's voltage is equal or higher than the limit after 24 hours full charging;
If the emergency operation time is over 90 minutes;
If the battery voltage after 90 minutes emergency operation is equal or higher than 87.5% of the initial voltage.
5) During the Auto Test, in case a power failure happens and the power cannot be on till the Auto Test completes,
then the Auto Test will be executed again 24 hours later after the power is on.
6) If the emergency mode makes the battery discharged completely under the power off condition, then the
preprogrammed scheduled Auto Test will resume the first time when the power is connected.
MANUAL TEST
- Press LTS one time, the unit will transfer into emergency mode.
- Press LTS 2 times continuously within 5 seconds, the unit will enter monthly test. When complete, the next monthly
test will start counting from this date.
- Press LTS 3 times continuously within 5 seconds, the unit will enter on annual test, when complete, the next annual
test will start counting from this date.
- During the manual test, press LTS greater than 3 seconds, and the manual test will terminate (The preprogrammed
scheduled Auto Test time will not change).
LED test switch(LTS) INDICATION
- LTS slow flash: In charging
- LTS on: Battery fully charged (normal operation)
- LTS off: Power failure
- LTS gradual change: In testing
- LTS quick flickering: Abnormal
