USER MANUAL
Forza 150

1

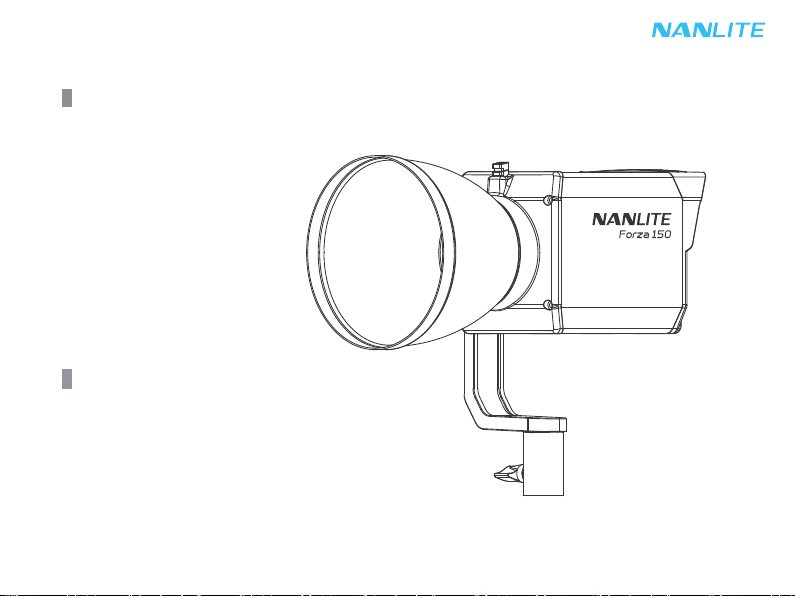

Product Diagram
Forza 150 LED Spot Light
Technical Data
Rated Power: 170W
Input voltage/current: DC24V/7.5A Max
AC100-240V 50/60Hz
CRI: 96
TLCI: 98
This user manual applies for both 5600K and 3200K color temperature LED fixture.

2

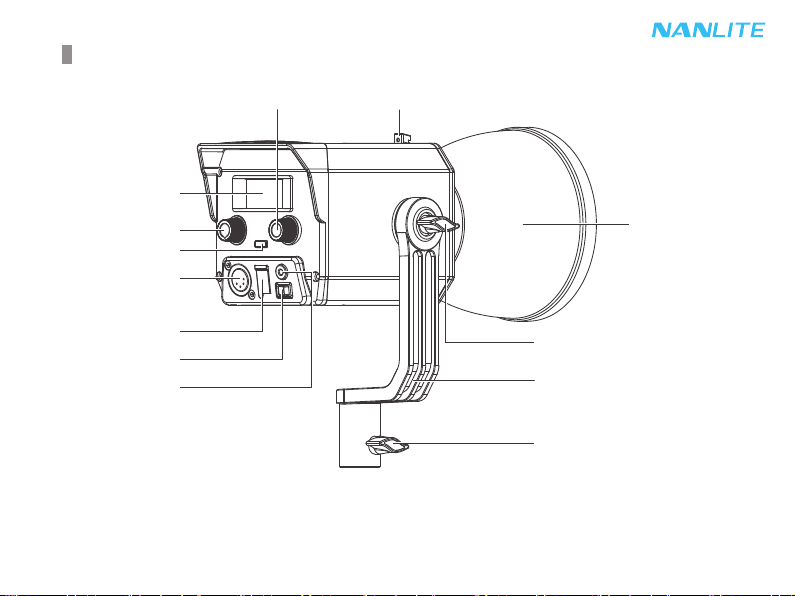

Product Details
8. Right Knob 9. Lock Catch
1. OLED Display
2. Left Knob
3. Mode Button
4. Power Socket
5. USB Port
6. Power Switch
7. DMX In/Out 12. L Bracket
13. Bracket Fixing Knob
11. Angle Fixing Knob
10. Reflector

3
Detailed Description
1. OLED Display: Display functions and lighting parameters.
2. Left Knob: Use to adjust dimming and set different parameters.
3. MODE Button: Use to switch between DAYLIGHT, EFFECT and MENU.
4. Power Socket: Connect DC power to the fixture.
5. USB Port: Use to update firmwares.
6. Power Switch: Switch on/off the fixture.
7. DMX In/Out: Use to plug in a DMX adapter cable for DMX signal in/out.
（Note: DMX adapter cable is sold separately).
8. Right Knob: Use to select various functions.
9. Lock Catch: Use to mount and dismount the reflector and other accessories.
10. Reflector: Converge rays of light to improve central illumination.
11. Angle Fixing knob: Tilt the fixture to different angles.
12. L Bracket: Connect the fixture on light stand.
13. Bracket Fixing knob: Fix the fixture on the yoke and pan it to different angles.

4
Installation
1. Mount and dismount the reflector as shown
①Align the reflector with the mount and rotate according to the sign to secure it onto the fixture.
Note: The fixture is compatible with accessories with FM mount, Bowens adapter need to be added for
accessories with Bowens mount.
②Press the lock catch and rotate the reflector according to the sign to release it from the fixture.
Lock catch

5

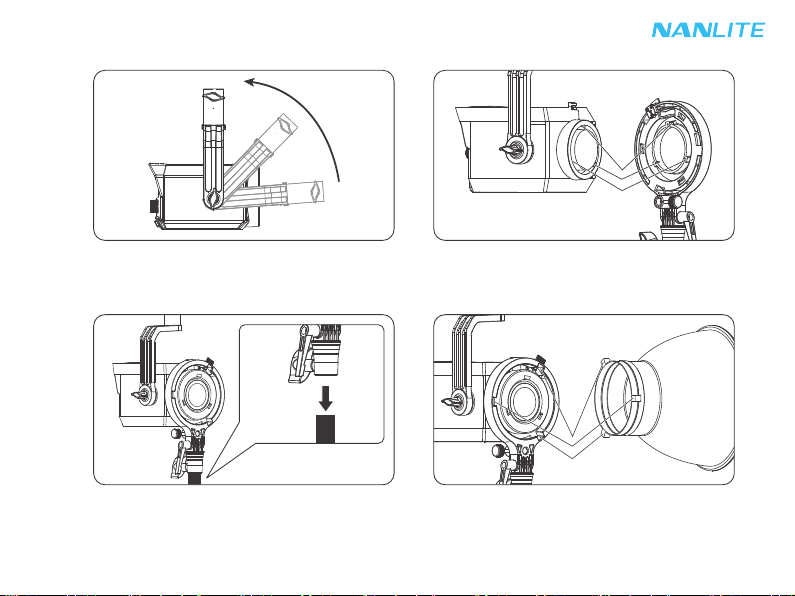

2. Mount and dismount the Bowens adapter as shown
①Adjust the L bracket to the overhead position first. ②Insert the adapter after aligning it with the mount
and rotate according to the sign to secure it into
place.
③Mount the adapter on the light stand. ④Align the accessory with Bowens mount with the
adapter and rotate according to the sign to secure
it into place.

6
1. CH and DMX Mode Setting
①CH Setting
Remote Control
·Forza 150 supports DMX, RDM, 2.4G remote control, and includes a built-in Bluetooth as well.
▲CH needs to be pre-set for DMX, RDM and 2.4G remote control solutions.
⑤Press the lock catch on the adapter and rotate
according to the sign to release the accessory
from the adapter.
⑥Press the lock catch on the fixture and rotate
according to the sign to release the adapter
from the fixture.
MODE
MENU
CH: 512
LANGUAGE: ENG
Press "MODE" button to select "MENU".

7

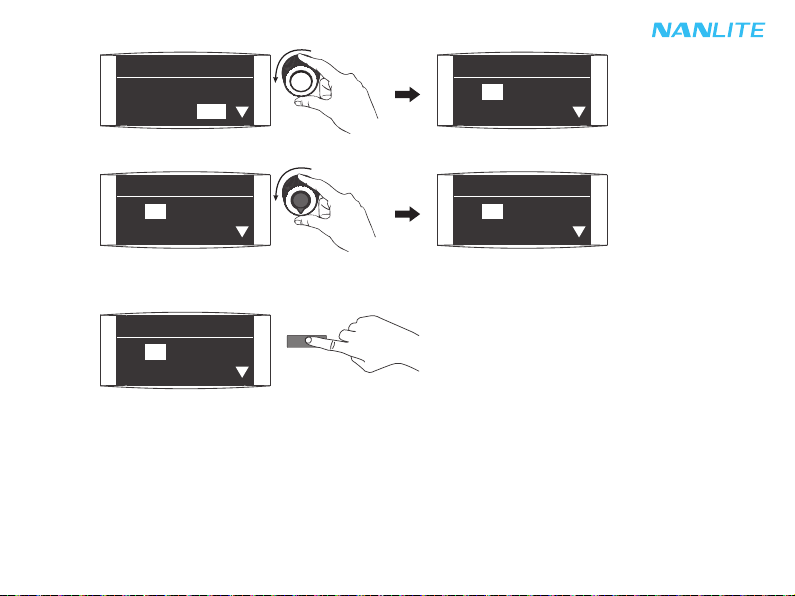

②DMX Mode setting
MODE
Rotate right knob to select "CH".
MENU
CH: 512
LANGUAGE: ENG
Rotate left knob to select desired address code.
Press "MODE" to select "MENU".
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 511
MENU
LANGUAGE: ENG
CH: 512

8
Rotate right knob to select "DMX MODE".
Rotate left knob to select desired DMX Mode ("DAYLIGHT" or "ULTIMATE").
2. DMX Remote Control
①Connect the fixture to the DMX/RDM consoles via DMX adapter cable as shown below:
DMX IN DMX OUT
1 GND
2 DATA-
3 DATA+
NC
NC
NC
NC
GND 1
DATA- 2
DATA+ 3
MENU
LANGUAGE: ENG
CH: 512
MENU
WIRELESS PR: V1.0
DMX MODE: ULTIMATE
MENU
WIRELESS PR: V1.0
DMX MODE: ULTIMATE
MENU
WIRELESS PR: V1.0
DMX MODE: DAYLIGHT

9
②DMX Terminator
ln DMX control mode, the DMX output of the last fixture should be connected with a DMX terminator
(Not included). This prevents interference caused by DMX signals in the transmitting process.
The terminator is connected with a 120Ω resistor across Pin 2 and Pin 3. (As shown below)
DMX Terminator Connection
Connect a 120Ω resistor across
Pin 2 and Pin 3 in an XLR plug
and insert into the DMX OUT
socket on the last fixture.
PIN 2PIN 3
③Set the channel of the fixture.
④Control the fixtures via DMX/RDM console by refering to the DMX reference guide (Also refer to DMX/RDM
console user manual for detailed operation).
Note: DMX reference guide "Forza 150_REFERENCE_GUIDE_EN" is downloadable by logging on
www.nanlite.com or scanning the QR code below.
120Ω
1
2
3
5
4
Please scan the QR code to check or download the latest DMX reference guide.

10
MODE
Press "MODE" to select "MENU".
4. 2.4G remote control
·Set the address of the 2.4G remote controller to be consistent with the light fixture, enabling the Forza 150 to be
remotely controlled by 2.4G remote controller or by APP via the transmitter box.
Note: ①2.4G remote controller and transmitter box are sold separately.
3. RDM Remote Control
①Connect the fixture to the console with RDM function via DMX adapter cable.
②Control the fixture via the console (Please refer to console user manual for detailed operation).
Note: fixture's UID format is as below shown:
0008 XXXX XXXX
serial number
0206：Forza 150
Manufacturer: NANGUANG
MENU
LANGUAGE: ENG
CH: 512
②The fixture supports the 2.4G wireless protocol V1.0 and V2.0. Set fixture to V2.0 while using
WS-RC-C1 or WS-RC-C2 remote controller. Set fixture to V1.0 while using other remote controllers.

11
1. Connection (as shown)
①Switch on the fixture, the display shows the current settings.
Operating Instructions
Rotate the right knob to select "WIRELESS PROTOCAL".
Rotate the left knob to select V1.0 or V2.0.
DAYLIGHT CH: 512
100%
MENU
WIRELESS PR: V1.0
DMX MODE: ULTIMATE
MENU
DMX MODE: ULTIMATE
WIRELESS PR: V1.0
MENU
DMX MODE: ULTIMATE
WIRELESS PR: V1.0
MENU
DMX MODE: ULTIMATE
WIRELESS PR: V2.0

12
②DAYLIGHT Mode Setting: Press "MODE" button to select "DAYLIGHT" , rotate the left knob clockwise to
increase brightness, rotate anti-clockwise to decrease brightness, dimming percentage is shown within the
range of 000% to 100%.
MODE
DAYLIGHT CH: 512
099%
DAYLIGHT CH: 512
099%
DAYLIGHT CH: 512
099%
DAYLIGHT CH: 512
100%
DAYLIGHT CH: 512
100%
Rotate the right knob clockwise to increase brightness.
Press "MODE" button to select "DAYLIGHT".
Rotate the right knob anti-clockwise to decrease brightness.
MENU
LANGUAGE: ENG
CH: 512

13

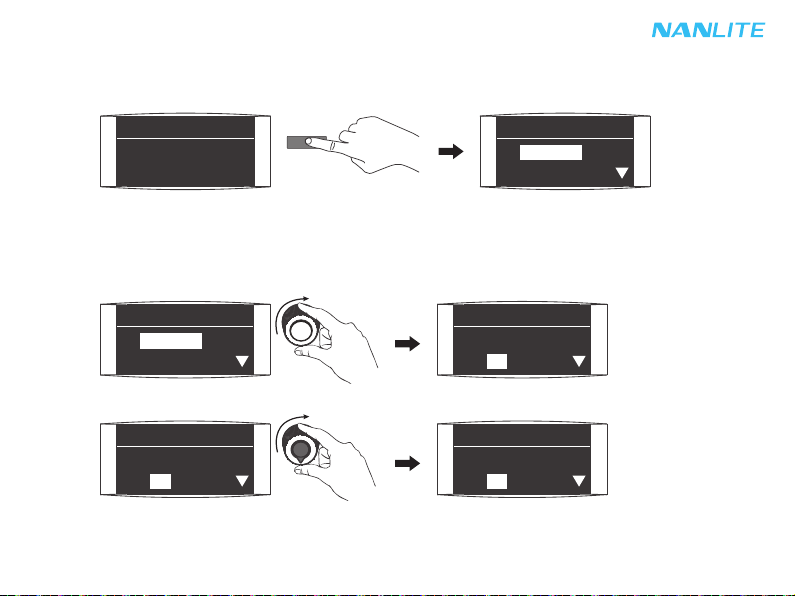

③EFFECT Setting:
Forza 150 includes 11 built-in effects: INT LOOP, FLASH, PULSE, STORM, TV, PAPARAZZl, CANDLE/FIRE,
BAD BULB, FIREWORK, EXPLOSION and WELDING.
MODE
EFFECT CH: 512
DIM: 000% - 100%
FX: INT LOOP
EFFECT CH: 512
DIM: 000% - 100%
FX: INT LOOP
DAYLIGHT CH: 512
100%
Press "MODE" to select "EFFECT".
(1)INT LOOP
INT LOOP setting: rotate the right knob to select "DIM" or "SPD" (Range: 2s-30s), then rotate the left knob to
set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM" or "SPD".
Rotate the left knob to set the parameter under the corresponding selection.
EFFECT CH: 512
FX: INT LOOP
DIM: 000% - 100%
EFFECT CH: 512
FX: INT LOOP
DIM: 000% - 100%
EFFECT CH: 512
FX: INT LOOP
DIM: 001% - 100%

14
EFFECT CH: 512
DIM: 100%
FX: FLASH
EFFECT CH: 512
DIM: 100%
FX: PULSE
(2)FLASH
FLASH setting: rotate the right knob to select "DIM" or "INTVL" (Range: 0.1s-10.0s), then rotate the left
knob to set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM" or "INTVL".
Rotate the left knob to set the parameter under the corresponding selection.
EFFECT CH: 512
FX: PULSE
DIM: 100%
EFFECT CH: 512
FX: FLASH
DIM: 100%
EFFECT CH: 512
FX: FLASH
DIM: 099%

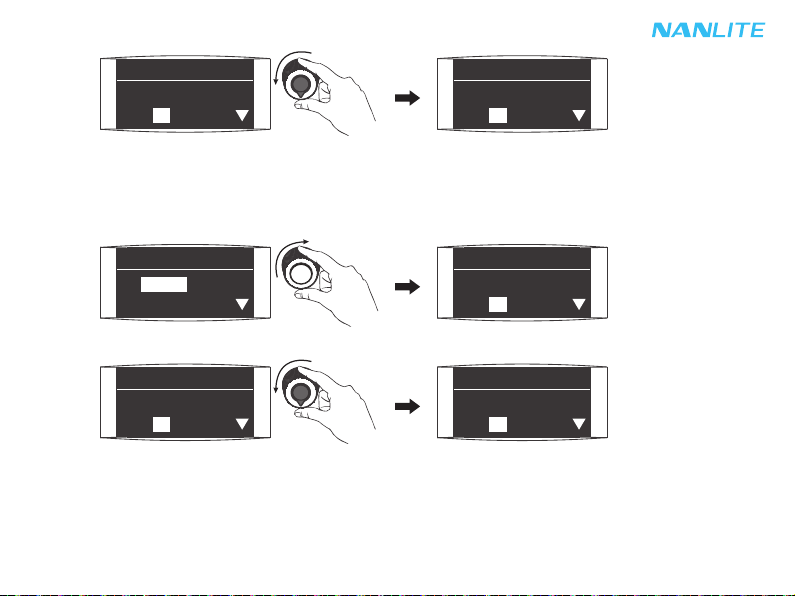

(3)PULSE
PULSE setting: rotate the right knob to select "DIM" or "PULSES/M" (Range: 1-240), then rotate the left knob to
set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM" or "PULSES/M".
EFFECT CH: 512
FX: FLASH
DIM: 100%

15
EFFECT CH: 512
DIM: 100%
FX: STORM
EFFECT CH: 512
FX: STORM
DIM: 100%
EFFECT CH: 512
FX: STORM
DIM: 100%
EFFECT CH: 512
FX: STORM
DIM: 099%
EFFECT CH: 512
FX: PULSE
DIM: 100%
EFFECT CH: 512
FX: PULSE
DIM: 099%

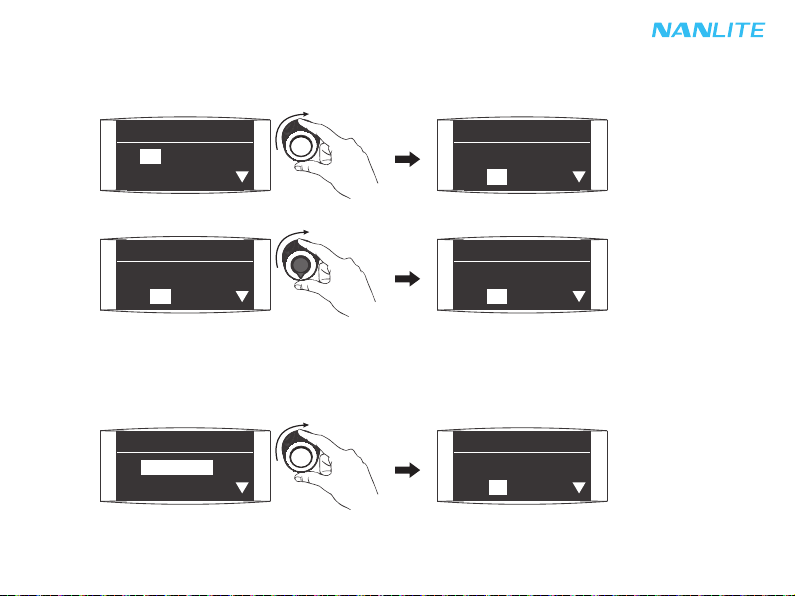

(4)STROM
STORM setting: rotate the right knob to select "DIM" or "INTVL" (Range: 1s -60s) , then rotate the left knob to
set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM" or "INTVL" .
Rotate the left knob to set the parameter under the corresponding selection.
Rotate the left knob to set the parameter under the corresponding selection.

16
EFFECT CH: 512
DIM: 000% - 100%
FX: TV
EFFECT CH: 512
DIM: 100%
FX: PAPARAZZI
EFFECT CH: 512
FX: PAPARAZZI
DIM: 100%

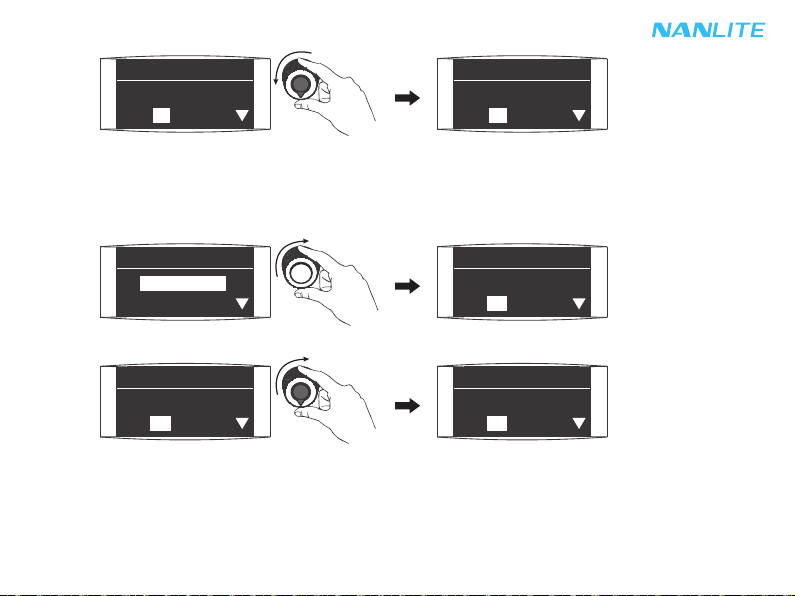

(5)TV
TV setting: rotate the right knob to select "DIM" or "SPD" (Range: 1-100), then rotate the left knob to set the
parameter under the corresponding selection.
(6)PAPARAZZI
PAPARAZZl setting: rotate the right knob to select "DIM" or "SPD" (Range: 1-100), then rotate the left knob to
set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM" or "SPD".
Rotate the right knob to select the "DIM" or "SPD".
Rotate the left knob to set the parameter under the corresponding selection.
EFFECT CH: 512
FX: TV
DIM: 000% - 100%
EFFECT CH: 512
FX: TV
DIM: 000% - 100%
EFFECT CH: 512
FX: TV
DIM: 001% - 100%

17
EFFECT CH: 512
DIM: 000% - 100%
FX: CANDLE/FIRE
EFFECT CH: 512
FX: PAPARAZZI
DIM: 100%
EFFECT CH: 512
FX: PAPARAZZI
DIM: 099%
(7)CANDLE/FIRE
CANDLE/FIRE setting: rotate the right knob to select "DIM" or "SPD" (Range: 1-100), then rotate the left knob
to set the parameter under the corresponding selection.
Rotate the left knob to set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM" or "SPD".
Rotate the left knob to set the parameter under the corresponding selection.
EFFECT CH: 512
FX: CANDLE/FIRE
DIM: 000% - 100%
EFFECT CH: 512
FX: CANDLE/FIRE
DIM: 000% - 100%
EFFECT CH: 512
FX: CANDLE/FIRE
DIM: 001% - 100%

18
EFFECT CH: 512
DIM: 100%
FX: BAD BULB
EFFECT CH: 512
DIM: 100%
FX: FIREWORK
(8)BAD BULB
BAD BULB setting: rotate the right knob to select "DIM", "INTENSITY" (Range: 1-100) or "SPD" (Range: 1-100),
then rotate the left knob to set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM", "INTENSITY" or "SPD".
Rotate the left knob to set the parameter under the corresponding selection.
(9)FIREWORK
RIREWORK setting: rotate the right knob to select "DIM", "SPD" (Range: 1-100) or "DECAY" (Range: 1-100),
then rotate the left knob to set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM", "SPD" or "DECAY".
EFFECT CH: 512
FX: BAD BULB
DIM: 100%
EFFECT CH: 512
FX: BAD BULB
DIM: 100%
EFFECT CH: 512
FX: BAD BULB
DIM: 099%
EFFECT CH: 512
FX: FIREWORK
DIM: 100%

19
Rotate the left knob to set the parameter under the corresponding selection.
EFFECT CH: 512
DIM: 100%
FX: EXPLOSION
(10)EXPLOSION
EXPLOSION setting: rotate the right knob to select "DIM", "SPD" (Range: 1-100) or "DECAY" (Range: 1-100),
then rotate the left knob to set the parameter under the corresponding selection.
Rotate the right knob to select the "DIM", "SPD" or "DECAY".
Rotate the left knob to set the parameter under the corresponding selection.
EFFECT CH: 512
FX: EXPLOSION
DIM: 100%
EFFECT CH: 512
FX: EXPLOSION
DIM: 100%
EFFECT CH: 512
FX: EXPLOSION
DIM: 099%
EFFECT CH: 512
FX: FIREWORK
DIM: 100%
EFFECT CH: 512
FX: FIREWORK
DIM: 099%
