NANLITE FS-150 User manual

Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
FS-150
FS-200
FS-300

1
Product Diagram
FS-150/FS-200/FS-300
LED Spot Light
This manual applies to the light fixtures in 5600K and 3200K.
Model No.: FS-150
Rated power: 185W
Input voltage/current: AC100-240V
50/60HZ
CRI: 96
TLCI: 98
Model No.: FS-200
Rated power: 240W
Input voltage/current: AC100-240V
50/60HZ
CRI: 96
TLCI: 98
Model No.: FS-300
Rated power: 350W
Input voltage/current: AC100-240V
50/60HZ
CRI: 96
TLCI: 98
Technical Data

2
7. USB port
6. Lamp body handle
5. Display
1. Lock catch
3. Reflector
2. Umbrella hole
4. Angle fixing knob
8. Right knob
9. Left knob
10. Power indicator
11. Power switch
12. Fuse base
13. Power socket
15. Bracket fixing knob
14. Yoke
Product Details

3
1. Lock catch: For installing and disassembling reflector and other accessories with Bowens mount.
2. Umbrella hole: For installing/removing an umbrella.
3. Reflector: For gathering light to improve centra illumination.
4. Angle fixing knob: Allows for vertical adjustments and fixing of the lamp.
5. Display: For showing related datas.
6. Lamp body handle: Be convenient for users to lift the lamps and adjust the direction of the light.
7. USB port: For updating the firmware.
8. Right knob: For selecting special effects/channel/language/ version.
9. Left knob: For adjusting the brightness.
10. Power indicator: For checking the status of the power input. If the indicator is always on, it means normal power.
If the indicator is flashing or off, it means abnormal power supply or no power input.
11. Power switch: For on/off the fixture.
12. Fuse base: For placing the fuse.
13. Power socket: DC power interface.
14. Yoke: Designed for connecting the lamp to the light stand and adjusting the beam angle.
15. Bracket fixing knob: For connenting the spot light and camera equipment , and adjusting the horizontal direction.
Detailed Description

4

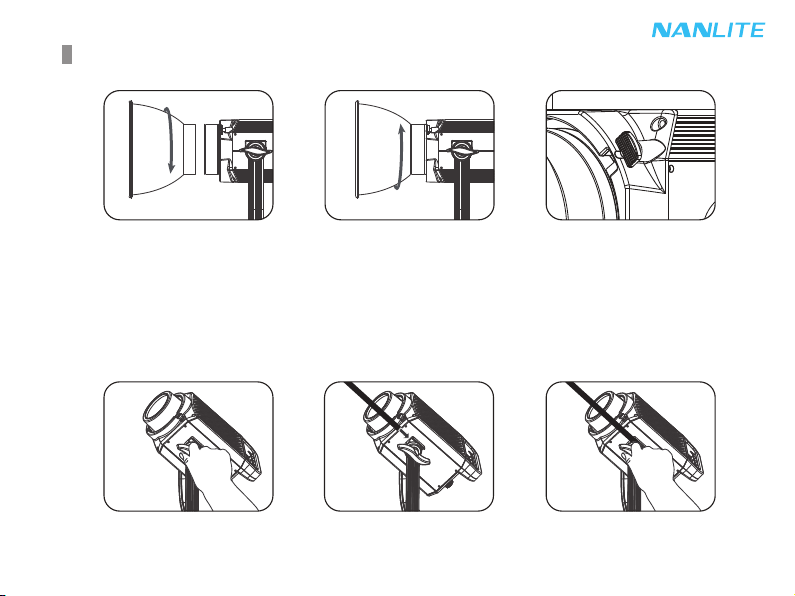

When installing the reflector,
ensure its mounting points align
with the slots on the light fixture.
When the mounting points and
slots are aligned, push the
reflector in place and rotate it in
the direction shown on the light
until you hear it click into place.
When removing the reflector,
push and hold the release
button and rotate until the
reflector is free to be removed
from the fixture.
Press the release button to
remove the reflector.
2. Installation of an Umbrella
Loosen the angle fixing knob. Put the umbrella into the
umbrella hole.
Tighten the angle fixing knob to
lock the umbrella in place.
1. Installation of the Reflector
Usage

5
3. 2.4G and Bluetooth Remote Control
The FS series has a built-in 2.4Ghz receiver, enabling it to be remotely controlled by remote controller or by APP via
the 2.4G transfer device. It also has built-in bluetooth function to connect with bluetooth for more control options.
Note: 2.4G remote controller or 2.4G transfer device sold separately.
(See separate instructions for remote controller or 2.4G transfer device.)
2. DIM setting:
Rotate "left knob", clockwise to increase brightness while counterclockwise to reduce brightness, the display shows
the percentage of brightness, the DIM range is from 0%-100%.
CH: 512
0%
FX: OFF
100%
CH: 512
FX: OFF
0%
.
.
.
100%
1. Make sure the power switch is in the "OFF" position, then connect the fixture to the adapter with power cable. Then
turn on the power switch, if the indicator is nomally on, the screen will display the relevant information for the fixture.
Operating Instructions
CH: 512
100%
FX: OFF

6
CH: 512
100%
FX: OFF
CH: 512
100%
FX: OFF
3. EFFECT Mode setting:
Rotate "right knob" to select the effects according to demands. FS-150/FS-200/FS-300 has built-in
special effects: OFF, INT LOOP, FLASH, PULSE, STORM, TV, PAPARAZZI, CANDLE/FIRE, BAD BULB,
FIREWORK, EXPLOSION, WELDING.
OFF
.
.
.
WELDING
①When the effect is OFF, it means the effect mode is in the "OFF" position.
Rotate "right knob" to select the effects
according to demands.

7

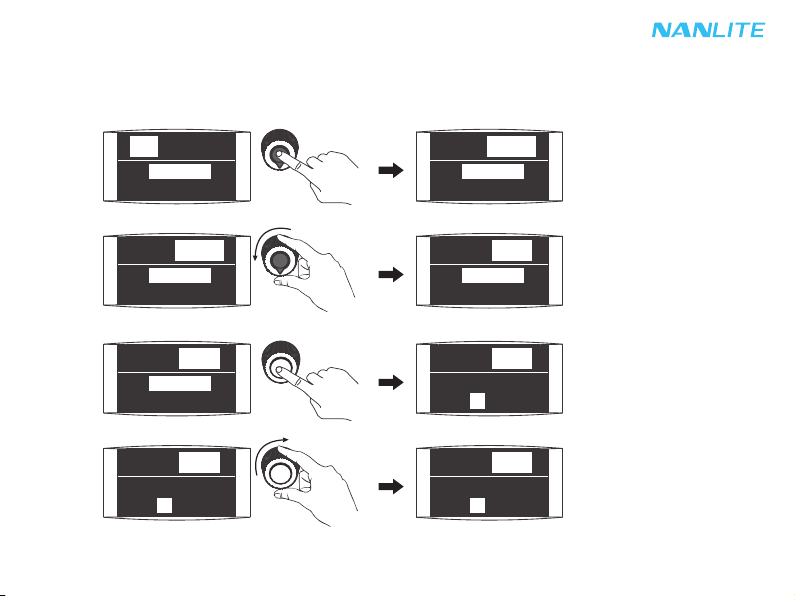

②INT LOOP
INT LOOP setting: Press "left knob" to select DIM 1, DIM 2, then rotate "left knob" to select corresponding value
according to demands; Press "right knob" to select SPEED, then rotate "right knob" to select corresponding value
according to demands, SPD range is from 2s-30s.
Press "left knob" to select DIM 1, DIM 2.
Rotate "left knob" to select corresponding value.
SPD: 8s
FX: INT LOOP
0% - 100%
Press "right knob" to select SPD.
Rotate "right knob" to select corresponding value.
SPD: 8s
FX: INT LOOP
0% - 100%
SPD: 8s
FX: INT LOOP
0% - 100%
SPD: 8s
FX: INT LOOP
0% - 99%
SPD: 8s
FX: INT LOOP
0% - 99%
SPD: 8s
FX: INT LOOP
0% - 99%
SPD: 8s
FX: INT LOOP
0% - 99%
SPD: 9s
FX: INT LOOP
0% - 99%

8
③FLASH
FLASH setting: Press "right knob" to select INTERVALS, then rotate "right knob" to select corresponding value
according to demands; INTVL range is from: 0.1s-10s.
④PULSE
PULSE setting: Press "right knob" to select PULSES/MIN, then rotate "right knob" to select corresponding value
according to demands; P/MIN range is from 1-240.
INTVL: 1.0s
FX: FLASH
100%
P/MIN: 40
FX: PULSE
100%
Press "right knob" to select INTVL.
Rotate "right knob" to select corresponding value.
Press "right knob" to select P/MIN.
FX: FLASH
100%
INTVL: 1.0s
FX: FLASH
100%
INTVL: 1.0s
FX: FLASH
100%
INTVL: 1.1s
FX: PULSE
100%
P/MIN: 40

9
INTVL: 2s - 6s
FX: STORM
100%

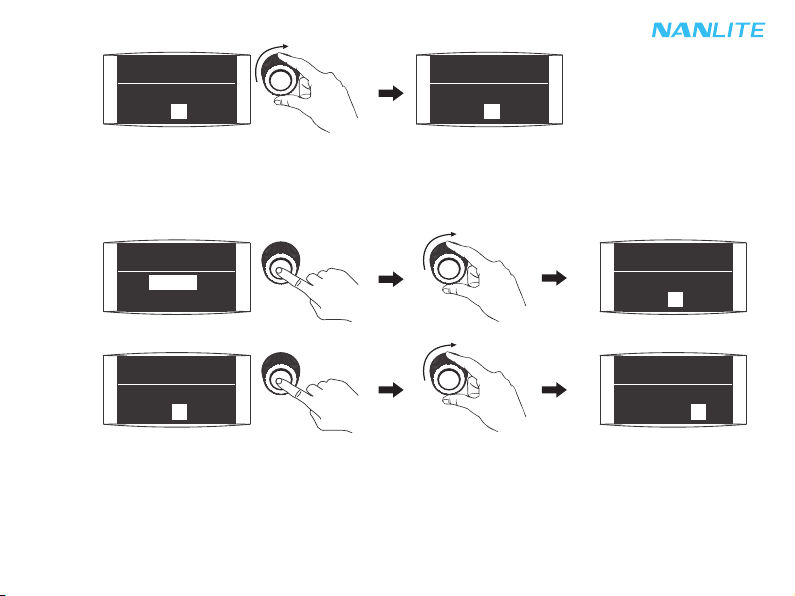

⑤STORM
STORM setting: Press "right knob" to enter INTVL range setting, then rotate "right knob" to select the
INTVL range; Press "right knob", then rotate "right knob" to select the INTVL range, INTVL range is from 1s-60s.
Press "right knob" to enter INTVL range setting, then rotate "right knob" to select INTVL range.
Press "right knob", then rotate "right knob" to select the INTVL range.
Rotate "right knob" to select corresponding value.
FX: PULSE
100%
P/MIN: 40
FX: PULSE
100%
P/MIN: 41
FX: STORM
100%
INTVL: 3s - 6s
FX: STORM
100%
INTVL: 3s - 6s INTVL: 3s - 6s
FX: STORM
100%

10
SPD: 50
FX: TV
0% - 100%
SPD: 50
FX: TV
0% - 100%
SPD: 50
FX: TV
0% - 100%
SPD: 50
FX: TV
0% - 99%
SPD: 50
FX: TV
0% - 99%
⑥TV
TV setting: Press "left knob" to select DIM 1, DIM 2, then rotate "left knob" to select corresponding value according
to demands; Press "right knob" to select SPEED, rotate "right knob" to select corresponding value according to
demands, SPD range is from 1-100.
Press "left knob" to select DIM 1, DIM 2.
Rotate "left knob" to select corresponding value.
Press "right knob" to select SPD.
Rotate "right knob" to select corresponding value.
FX: TV
0% - 99%
SPD: 50
FX: TV
0% - 99%
SPD: 50
FX: TV
0% - 99%
SPD: 51

11
SPD: 50
FX: PAPARAZZI
100%
⑦PAPARAZZI
PAPARAZZI setting: Press "right knob" to select SPEED, then rotate "right knob" to select corresponding value
according to demands, SPD range is from 1-100.
Press "right knob" to select SPD.
Rotate "right knob" to select corresponding value.
FX: PAPARAZZI
100%
SPD: 50
FX: PAPARAZZI
100%
SPD: 50
FX: PAPARAZZI
100%
SPD: 51

12
SPD: 50
FX: CANDLE/FIRE
0% - 100%

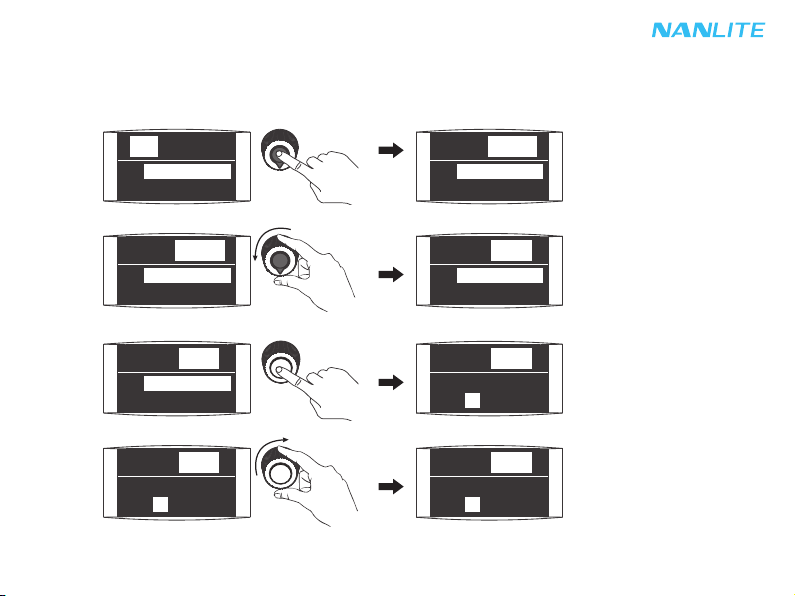

⑧CANDLE/FIRE
CANDLE/FIRE setting: Press "left knob" to select DIM 1, DIM 2, then rotate "left knob" to select corresponding
value according to demands; Press "right knob" to select SPEED, then rotate "right knob" to select corresponding
value according to demands, SPD range is from 1-100.
Press "left knob" to select DIM 1, DIM 2.
Rotate "left knob" to select corresponding value.
Press "right knob" to select SPD.
Rotate "right knob" to select corresponding value.
SPD: 50
FX: CANDLE/FIRE
0% - 100%
SPD: 50
FX: CANDLE/FIRE
0% - 100%
SPD: 50
FX: CANDLE/FIRE
0% - 99%
SPD: 50
FX: CANDLE/FIRE
0% - 99%
FX: CANDLE/FIRE
0% - 99%
SPD: 50
FX: CANDLE/FIRE
0% - 99%
SPD: 50
FX: CANDLE/FIRE
0% - 99%
SPD: 51

13
INT: 50
FX: BADBULB
100%
⑨BAD BULB
BAD BULB setting: Press "right knob" to enter INTENSITY setting, then rotate "right knob" to select corresponding
value according to demands, INTENSITY range is from 1-100; Press "right knob" to enter SPEED setting, then
rotate "right knob" to select corresponding value according to demands, SPEED range is from 1-100.
Press "right knob" to enter INTENSITY setting.
Rotate "right knob" to select corresponding value.
Press "right knob" to enter INTENSITY setting.
Rotate "right knob" to select corresponding value.
FX: BADBULB
100%
INT: 50
FX: BADBULB
100%
INT: 50
FX: BADBULB
100%
INT: 51
FX: BADBULB
100%
INT: 51 CH: 512
100%
SPD: 50
CH: 512
100%
SPD: 50
CH: 512
100%
SPD: 51

14
SPD: 50
FX: FIREWORK
100%
⑩FIREWORK
FIREWORK setting: Press "right knob" to enter SPEED setting, then rotate "right knob" to select corresponding
value according to demands, SPD range is from 1-100; Press "right knob" to enter DECAY setting, then rotate
"right knob" to select corresponding value according to demands, DECAY range is from 1-100.
Press "right knob" to enter SPD setting.
Rotate "right knob" to select corresponding value.
Press "right knob" to enter DECAY setting.
Rotate "right knob" to select corresponding value.
FX: FIREWORK
100%
SPD: 50
FX: FIREWORK
100%
SPD: 50
FX: FIREWORK
100%
SPD: 51
FX: FIREWORK
100%
SPD: 51 CH: 512
DECAY: 50
100%
CH: 512
DECAY: 50
100%
CH: 512
DECAY: 51
100%

15
SPD: 50
FX: EXPLOSION
100%

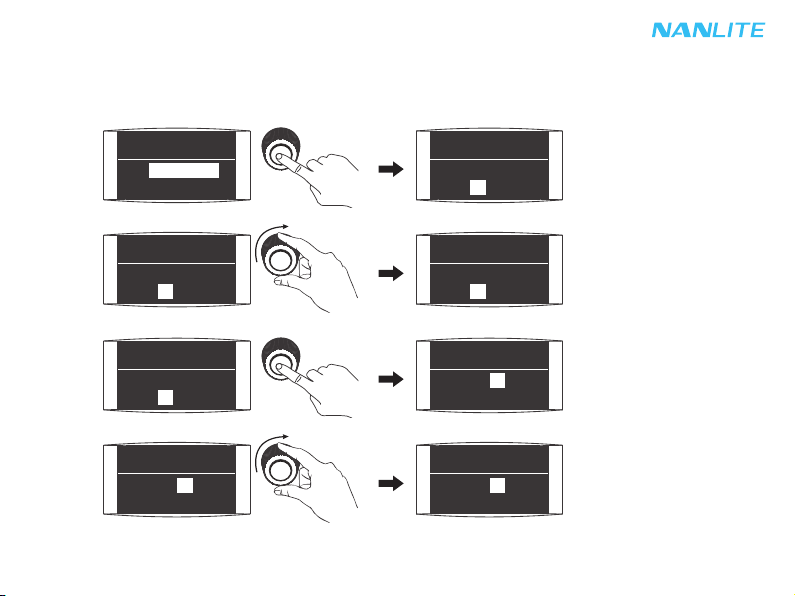

⑪EXPLOSION
EXPLOSION setting: Press "right knob" to enter SPEED setting, then rotate "right knob" to select corresponding
value according to demands, SPD range is from 1-100; Press "right knob" to enter DECAY setting, then rotate
"right knob" to select corresponding value according to demands, DECAY range is from 1-100.
Press "right knob" to enter SPD setting.
Rotate "right knob" to select corresponding value.
Press "right knob" to enter DECAY setting.
Rotate "right knob" to select corresponding value.
FX: EXPLOSION
100%
SPD: 50
FX: EXPLOSION
100%
SPD: 50
FX: EXPLOSION
100%
SPD: 51
FX: EXPLOSION
100%
SPD: 51 CH: 512
DECAY: 50
100%
CH: 512
DECAY: 50
100%
CH: 512
DECAY: 51
100%

16
SPD: 50
FX: WELDING
0% - 100%
Press "left knob" to select DIM 1, DIM 2.
Rotate "left knob" to select corresponding value.
Press "right knob" to select SPD.
Rotate "right knob" to select corresponding value.
·Lighting effects and additional functionality maybe added with future firmware releases, for details of these please
see www.nanlite.com.
⑫WELDING
WELDING setting: Press "left knob" to select DIM 1, DIM 2, then rotate "left knob" to select corresponding value
according to demands; Press "right knob" to select SPEED, then rotate "right knob" to select corresponding value
according to demands, SPD range is from 1-100.
SPD: 50
FX: WELDING
0% - 100%
SPD: 50
FX: WELDING
0% - 100%
SPD: 50
FX: WELDING
0% - 99%
SPD: 50
FX: WELDING
0% - 99%
FX: WELDING
0% - 99%
SPD: 50
FX: WELDING
0% - 99%
SPD: 50
FX: WELDING
0% - 99%
SPD: 51

17

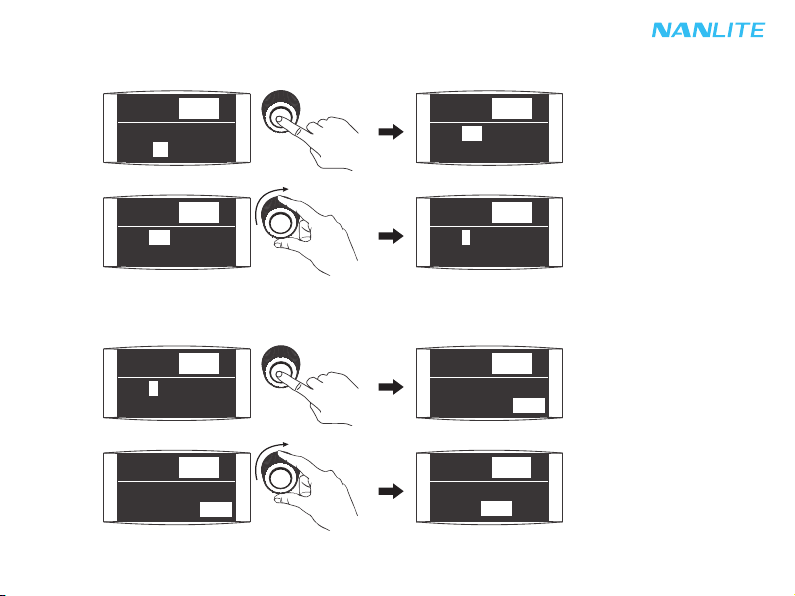

4. CHANNEL setting
Press "right knob" to select CHANNEL, rotate "right knob" to select the address.
Press "right knob" to select CHANNEL.
Rotate "right knob" to select the address.
5. LANGUAGE setting
Press "right knob" to enter LANGUAGE setting, rotate "right knob" to select the LANGUAGE according to demands.
Press "right knob" to enter the LANGUAGE setting.
Rotate "right knob" to select the LANGUAGE according to demands.
0% - 99%
通道：1
语言：
中文
FX: WELDING
0% - 99%
SPD: 51 LANGUAGE: ENG
0% - 99%
CH: 512
LANGUAGE: ENG
0% - 99%
CH: 512
LANGUAGE: ENG
0% - 99%
CH: 1
LANGUAGE: ENG
0% - 99%
CH: 1
0% - 99%
CH: 1
LANGUAGE:
ENG
0% - 99%
CH: 1
LANGUAGE:
ENG

18
SPD: 50
FX: WELDING
0% - 100%
6. VERSION
Press "right knob" to check the current VERSION.
7. Long press "right knob" to lock function, now adjustment knobs cannot change the current function, long press to
release the lock status.
8. Turn off the power when not in use.
Press "right knob" to check the current VERSION.
Long press "right knob" to lock the current function.
0% - 99%
LOCK
0% - 99%
LOCK
0% - 99%
LONG PRESS RIGHT
KNOB TO UNLOCK
In the "LOCK " position, long press "right knob" to release the lock status.
0% - 99%
CH: 1
LANGUAGE:
ENG
0% - 99%
VER: V0.00.02
0% - 99%
VER: V0.00.02

19
1. Please open the package to check for damage caused in transit, if damaged please do not use and contact place
of purchase or manufacturer as soon as possible.
2. Do not use a power cord with damaged insulation. Do not unplug hard or drag the power cord directly.
3. Make sure that the power supply voltage used matches the voltage specified by the light before installation.
4. When not using or cleaning the light, please turn it off.
5. Keep the light safely stored and away from children.
Safety Precautions
1. When the light is on do not look directly at the emitter.
2. Don't place objects on the light emitter or allow liquid to follow inside the fixture or the emitter.
3. Don't place the light near flammable substances like alcohol or gasoline.
4. When cleaning the fixture, please wipe off debris or dirt by using a dry cloth with clean water or neutral cleanser.
5. The light should be operated safely where it won't be at risk of getting wet or under extrem tempreature.
6. Don't repair the light by yourself. Attemps to self repair will void warranty, for repairs please return to place of
purchase.
7. For optimal cooling of the fixture, the vents should not be covered whening using, or will damage the equipment.
When using the fixture for a long time, the temperature of the fixture is high, please pay attention to anti-scalding.
8. When using the light, please take off the protective cap.
Notice
