NANLITE FS-300B User manual

Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
FS-300B

1

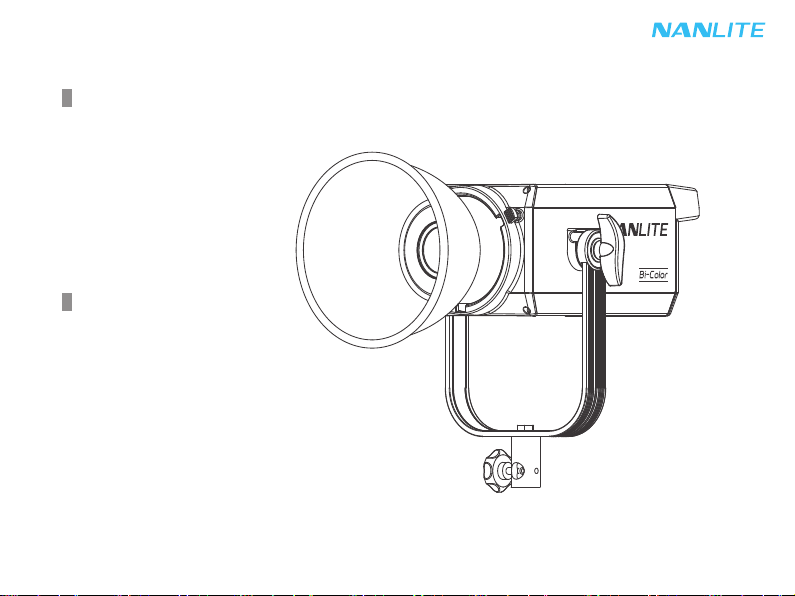

Product Diagram
Technical Data
FS-300B LED Bi-color Spot Light
Rated Power: 350W
Input voltage/current: AC100-240V
50/60Hz
Color Temperature: 2700K-6500K
CRI: Average 96
TLCI: Average 97
The FS-300B comes with Bowens mount and is compatible with
Bowens mount accessories.
FS-300B

2
Product Details
7. USB port
6. Lamp body handle
5. LCD screen
1. Lock catch
3. Reflector
2. Umbrella hole
4. Angle fixing knob
8. Right knob
9. MODE button
12. Left knob
10. Power switch
11. Fuse base
13. Power socket
15. Bracket fixing knob
14. Yoke

3
Detailed Description
1. Lock catch: For installing and disassembling reflector and other accessories.
2. Umbrella hole: For installing/removing an umbrella.
3. Reflector: For gathering light to improve the central illumination.
4. Angle fixing knob: Allows for adjusting and fixing the direction of light in tilt.
5. LCD screen: For displaying the data.
6. Lamp body handle: Be convenient for users to lift the lamps and adjust the direction of the light.
7. USB port: For updating the firmware.
8. Right knob: For selecting options and adjusting the color temperature under CCT mode.
9. MODE button: For switching between EFFECT mode, CCT mode and MENU.
10. Power switch: For switching on/off the fixture.
11. Fuse base: For placing the fuse.
12. Left knob: For adjusting the DIM and scrolling through different selections.
13. Power socket: AC power input socket.
14. Yoke: Designed for connecting the lamp to the light stand and adjusting the direction of light.
15. Bracket fixing knob: For locking the light fixture and stand, and adjusting the horizontal direction of light.

4
Usage
1. Installation of the Reflector
When installing the reflector,
ensure its mounting points align
with the slots on the light fixture.
When the mounting points and
slots are aligned, push the
reflector in place and rotate it in
the direction shown on the light
until it clicks into place.
When removing the reflector,
push and hold the lock catch
and rotate until the reflector is
free to be removed from the
fixture.
Press lock catch to release the
reflector.
2. Installation of an Umbrella
Loosen the angle fixing knob. Put the umbrella into the
umbrella hole.
Tighten the angle fixing knob to
lock the umbrella in place.

5
MENU
BT: RESET
WIRELESS PR : V1.0
MENU
BT: RESET
WIRELESS PR : V2.0
MENU
BT: RESET
WIRELESS PR : V1.0
3. 2.4G and Bluetooth Remote Control
The FS-300B is able to be remotely controlled by 2.4G remote controller, or by NANLINK APP via the WS-TB-1
transmitter box or via Bluetooth directly.
Note: 1. 2.4G remote controller and transmitter box are sold separately.
2.The fixture supports the 2.4G wireless protocol V1.0 and V2.0. Please set fixture to V2.0 while using
WS-RC-C1 or WS-RC-C2 remote controller. Please set fixture to V1.0 while using other remote controllers.
MODE
Rotate ''Right knob'' to WIRELESS PROTOCOL.
Press MODE button to enter the menu.
Rotate ''Left knob'' to select V1.0 or V2.0.
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512

6

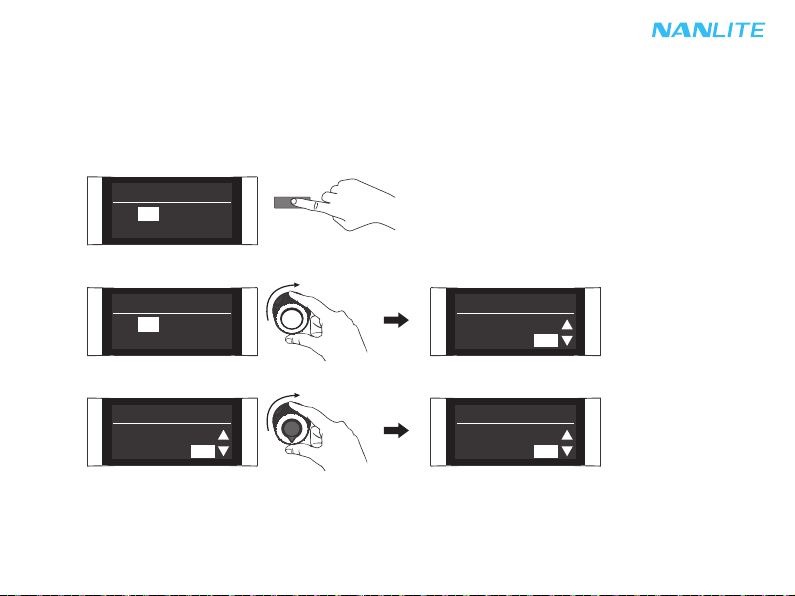

2. CCT Mode Setting
Press MODE button to CCT mode, rotate "Left knob" to set the DIM (DIM range: 000%…100%),
rotate "Right knob" to set the color temperature (CCT range: 2700K…6500K).
Press MODE button to CCT mode.
Operating Instructions
1. First ensure that the power switch of the fixture is off. Now turn on the light, the LCD screen will display all the
relevant information for the fixture.
CCT CH: 512
000% 5600K
MODE
CCT CH: 512
000% 5600K
CCT CH: 512
000% 5600K
CCT CH: 512
100% 5600K
Rotate "Left knob" to set the DIM.
0%
.
.
.
100%

7

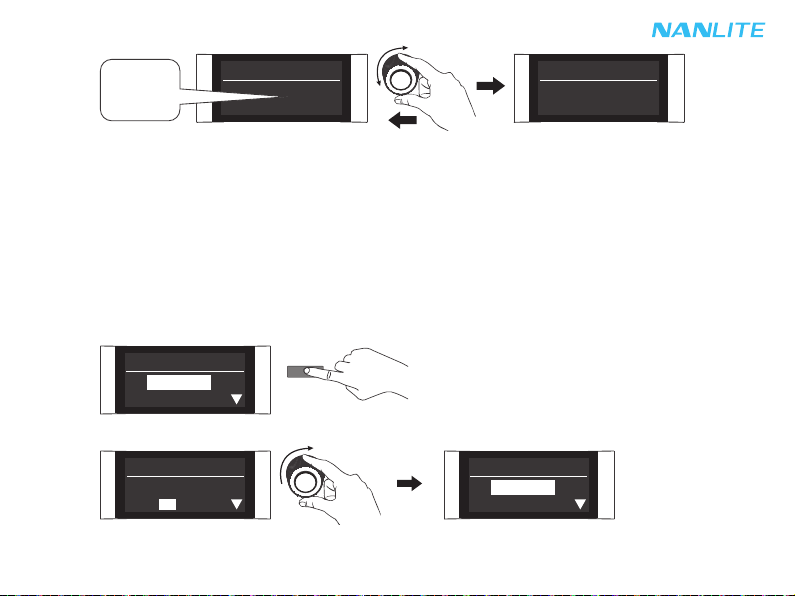

Press MODE button to EFFECT mode.
Rotate "Right knob" to FX.
3. EFFECT Mode setting
Press MODE button to EFFECT MODE. The FS-300B has built-in effects including CCT LOOP, INT LOOP, FLASH,
PULSE, STORM, TV, PAPARAZZI, CANDLE/FIRE, BAD BULB, FIREWORK, EXPLOSION and WELDING.
Note: 1. In effect mode, DIM range is the same as the CCT MODE.
2. In effect mode, the color temperature is not synchronized with the color temperature in CCT mode, and the
CCT adjustment range is the same as that in the CCT mode.
3. When the fixture function is unlocked, in any modes, press "Left knob" to turn off the light, the brightness
percentage on the screen is 000% in this case. Press again to restore the light to its previous state, and
press continuously to switch between on and off.
MODE
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP
rotate "Right knob" to set the color temperature.
CCT CH: 512
000% 2700K
CCT CH: 512
100% 6500K
2700K
.
.
.
6500K
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP

8
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP
Rotate "Left knob" to select the desired effect.
①CCT LOOP
CCT LOOP setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 02S…30S),
then rotate "Left knob" to adjust the value of DIM, CCT and SPD.
Rotate "Right knob" to select from DIM, CCT and SPD.
CCT LOOP
.
.
.
WELDING
Rotate "Left knob" to adjust the value of DIM, CCT and SPD.
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP
EFFECT CH: 512
DIM: 100%
FX: CCT LOOP
EFFECT CH: 512
DIM: 099%
FX: CCT LOOP

9
③FLASH
FLASH setting: rotate "Right knob" to select from DIM, CCT and INTERVALS (Range: 0.1S…10S),
then rotate "Left knob" to adjust the value of DIM, CCT and INTERVALS.
Rotate "Right knob" to select from DIM, CCT and INTERVALS.
②INP LOOP
INT LOOP setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 02S…30S),
then rotate "Left knob" to adjust the value of DIM, CCT and SPD.
Rotate "Right knob" to select from DIM, CCT and SPD.
EFFECT CH: 512
FX: INP LOOP
DIM: 000% - 100%
EFFECT CH: 512
FX: INP LOOP
DIM: 099% - 100%
Rotate "Left knob" to adjust the value of DIM, CCT and SPD.
EFFECT CH: 512
DIM: 000% - 100%
FX: INP LOOP
EFFECT CH: 512
FX: INP LOOP
DIM: 000% - 100%
EFFECT CH: 512
DIM: 100%
FX: FLASH
EFFECT CH: 512
DIM: 100%
FX: FLASH

10
Rotate "Left knob" to adjust the value of DIM, CCT and INTERVALS.
④PULSE
PULSE setting: rotate "Right knob" to select from DIM, CCT and PULSES/MIN (Range: 001…240),
then rotate "Left knob" to adjust the value of DIM, CCT and PULSES/MIN.
Rotate "Right knob" to select from DIM, CCT and PULSES/MIN.
Rotate "Left knob" to adjust the value of DIM, CCT and PULSES/MIN.
EFFECT CH: 512
DIM: 100%
FX: FLASH
EFFECT CH: 512
DIM: 099%
FX: FLASH
EFFECT CH: 512
DIM: 100%
FX: PULSE
EFFECT CH: 512
DIM: 100%
FX: PULSE
EFFECT CH: 512
DIM: 100%
FX: PULSE
EFFECT CH: 512
DIM: 099%
FX: PULSE

11

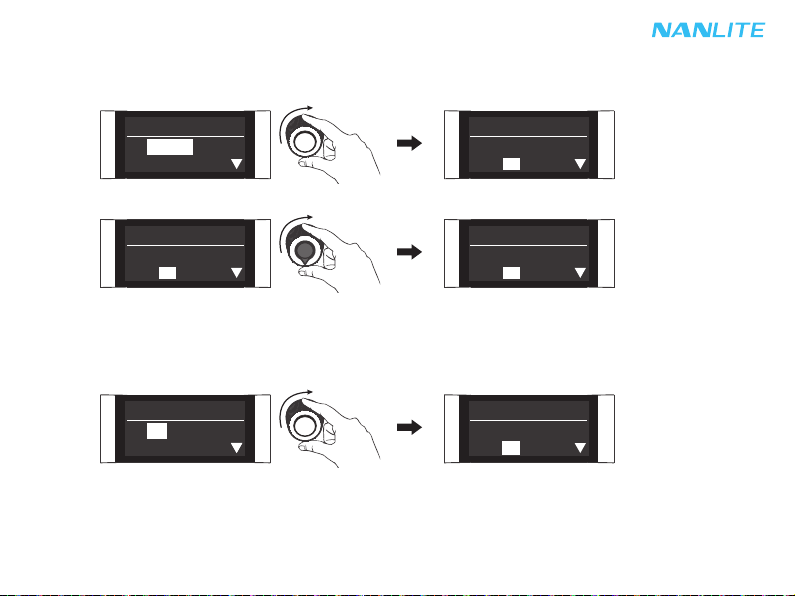

⑤STORM
STORM setting: rotate "Right knob" to select from DIM, CCT and INTERVALS (range: 1s ... 60s) ,
then rotate "Left knob" to adjust the value of DIM, CCT and INTERVALS.
Rotate "Right knob" to select from DIM, CCT and INTERVALS.
⑥TV
TV setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 001…100),
then rotate "Left knob" to adjust the value of DIM, CCT and SPD.
Rotate "Right knob" to select from DIM, CCT and SPD.
Rotate "Left knob" to adjust the value of DIM, CCT and INTERVALS.
EFFECT CH: 512
DIM: 100%
FX: STORM
EFFECT CH: 512
DIM: 100%
FX: STORM
EFFECT CH: 512
DIM: 100%
FX: STORM
EFFECT CH: 512
DIM: 099%
FX: STORM
EFFECT CH: 512
DIM: 000% - 100%
FX: TV
EFFECT CH: 512
FX: TV
DIM: 000% - 100%

12
EFFECT CH: 512
FX: TV
DIM: 000% - 100%
EFFECT CH: 512
FX: TV
DIM: 099% - 100%
Rotate "Left knob" to adjust the value of DIM, CCT and SPD.
⑦PAPARAZZI
PAPARAZZI setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 001…100),
then rotate "Left knob" to adjust the value of DIM, CCT and SPD.
Rotate "Right knob" to select from DIM, CCT and SPD.
Rotate "Left knob" to adjust the value of DIM, CCT and SPD.
EFFECT CH: 512
DIM: 100%
FX: PAPARAZZI
EFFECT CH: 512
DIM: 100%
FX: PAPARAZZI
EFFECT CH: 512
DIM: 100%
FX: PAPARAZZI
EFFECT CH: 512
DIM: 099%
FX: PAPARAZZI

13
EFFECT CH: 512
FX: CANDLE/FIRE
DIM: 000% - 100%
EFFECT CH: 512
FX: CANDLE/FIRE
DIM: 099% - 100%
Rotate "Left knob" to adjust the value of DIM, CCT and SPD.
⑧CANDLE/FIRE
CANDLE/FIRE setting: rotate "Right knob" to select from DIM, CCT and (Range: 001…100),
then rotate "Left knob" to adjust the value of DIM, CCT and SPD.
Rotate "Right knob" to select from DIM, CCT and SPD.
⑧BAD BULB
BAD BULB setting: rotate "Right knob" to select from DIM, CCT and SPD (Range: 001…100),
then rotate "Left knob" to adjust the value of DIM, CCT and SPD.
Rotate "Right knob" to select from DIM, CCT and SPD.
EFFECT CH: 512
DIM: 000% - 100%
FX: CANDLE/FIRE
EFFECT CH: 512
FX: CANDLE/FIRE
DIM: 000% - 100%
EFFECT CH: 512
DIM: 100%
FX: BAD BULB
EFFECT CH: 512
DIM: 100%
FX: BAD BULB

14

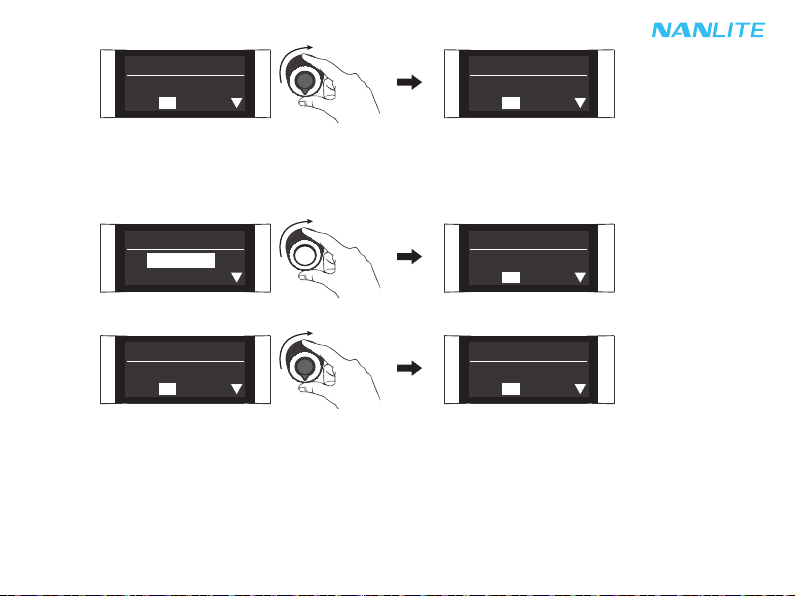

⑩FIREWORK
RIREWORK setting: rotate "Right knob" to select from DIM ,CCT, SPD (Range: 001…100) and
DECAY (Range: 001…100), then rotate "Left knob" to select from DIM ,CCT, SPD and DECAY.
Rotate "Right knob" to select from DIM, CCT, SPD and DECAY.
Rotate "Left knob" to select from DIM, CCT, SPD and DECAY.
Rotate "Left knob" to adjust the value of DIM, CCT and SPD.
EFFECT CH: 512
DIM: 100%
FX: BAD BULB
EFFECT CH: 512
DIM: 099%
FX: BAD BULB
EFFECT CH: 512
DIM: 100%
FX: FIREWORK
EFFECT CH: 512
DIM: 100%
FX: FIREWORK
EFFECT CH: 512
DIM: 100%
FX: FIREWORK
EFFECT CH: 512
DIM: 099%
FX: FIREWORK

15
⑫WELDING
WELDING setting: rotate "Right knob" to select from DIM, CCT, SPD (Range: 001…100) and PAUSE (ON/OFF),
then rotate "Left knob" to adjust the value of DIM, CCT, SPD and PAUSE.
Rotate "Right knob" to select from DIM, CCT, SPD and PAUSE.
⑪EXPLOSION
EXPLOSION setting: rotate "Right knob" to select from DIM, CCT, SPD (Range: 001…100) and
DECAY (Range: 001…100), then rotate "Left knob" to select from DIM ,CCT, SPD and DECAY.
Rotate "Right knob" to select from DIM, CCT, SPD and DECAY.
Rotate "Left knob" to select from DIM ,CCT, SPD and DECAY.
EFFECT CH: 512
DIM: 100%
FX: EXPLOSION
EFFECT CH: 512
DIM: 100%
FX: EXPLOSION
EFFECT CH: 512
DIM: 100%
FX: EXPLOSION
EFFECT CH: 512
DIM: 099%
FX: EXPLOSION
EFFECT CH: 512
DIM: 000% - 100%
FX: WELDING
EFFECT CH: 512
FX: WELDING
DIM: 000% - 100%

16
4. MENU setting
MODE
Press "Right knob" to select from CHANNEL, LANGUAGE, FAN, OUTPUT MODE, BLUETOOTH, WIRELESS
PROTOCOL, FIRMWARE UPDATE and VERSION.
EFFECT CH: 512
FX: WELDING
DIM: 000% - 100%
EFFECT CH: 512
FX: WELDING
DIM: 099% - 100%
Rotate "Left knob" to adjust the value of DIM, CCT, SPD and PAUSE.
·Special effects may be upgraded based on the firmware update. Please refer to the latest firmware function
description for reference.
Press MODE button to MENU.
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
CH: 512
LANGUAGE: ENG

17

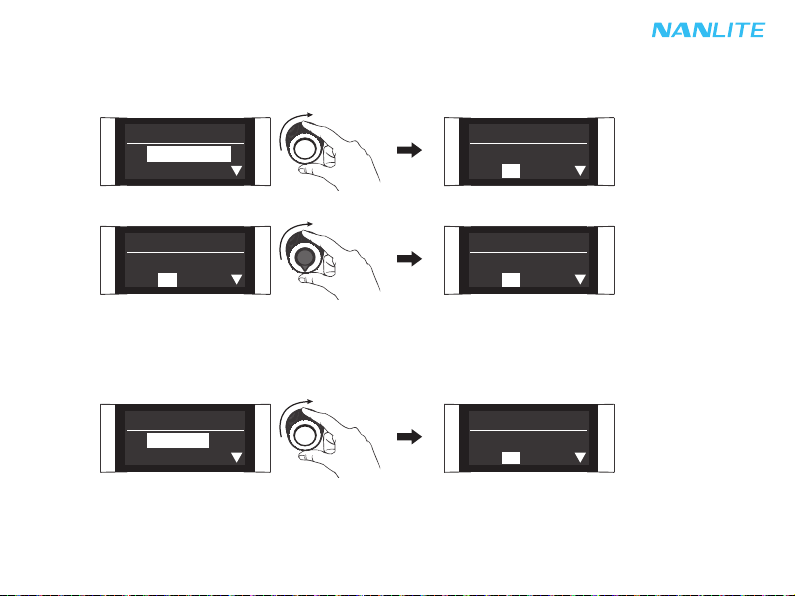

①CHANNEL
MODE
Rotate "Left knob" to set the channel.
Press "Right knob" to MENU.
②LANGUAGE
MODE
Rotate "Right knob" to the LANGUAGE and press in.
Press MODE button to MENU.
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 511
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
CH: 512
LANGUAGE: ENG

18
菜单
通道: 512
语言: 中文
MENU
CH: 512
LANGUAGE: ENG
Rotate "Left knob" to select Chinese or English.
③FAN
MODE
Rotate "Right knob" to FAN.
Press MODE button to MENU.
Rotate "Left knob" to select ON or OFF.
Note: When the fan is turned on, the maximum output of the light will be 100%.
When the fan is turned off, the maximum output of the light will be 25%.
MENU
OUTPUT MODE: MAX
FAN: ON
MENU
OUTPUT MODE: MAX
FAN: ON
MENU
FAN: OFF
OUTPUT MODE: MAX
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512

19
MENU
OUTPUT MODE: MAX
FAN: ON
MENU
OUTPUT MODE: MAX
FAN: ON
MENU
OUTPUT MODE: CONST
FAN: ON

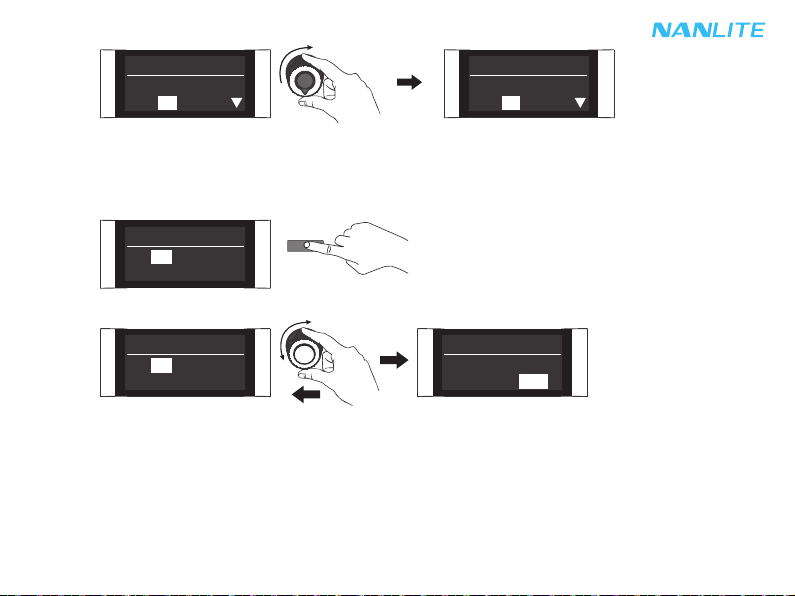

④OUTPUT MODE
MODE
Rotate "Right knob" to OUTPUT MODE.
Press MODE button to MENU.
Rotate "Left knob" to select MAX or CONSTANT.

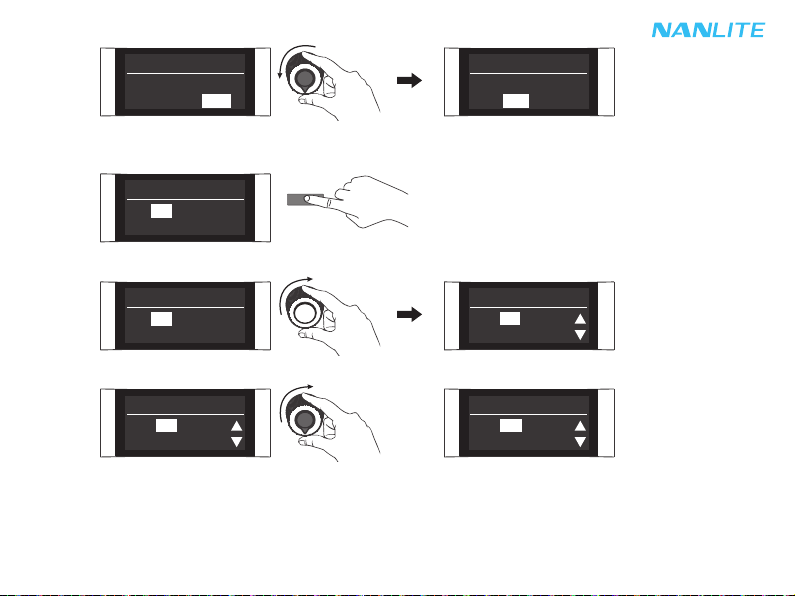

⑤BLUETOOTH
MODE
Press MODE button to switch to the MENU.
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
MENU
LANGUAGE: ENG
CH: 512
