NANLITE Forza 60B User manual

Guangdong NanGuang Photo&Video Systems Co., Ltd
USER MANUAL
Forza 60B

1
Forza 60B
LED Bi-Color Spot Light

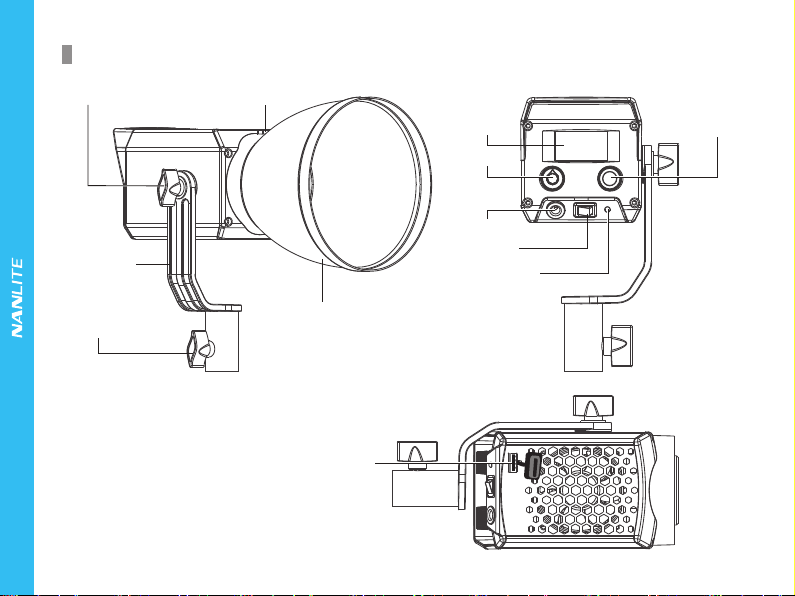

Product Diagram
Technical Data
LED total power: 60W
Rated power: 80W
Input voltage/current: 15V 6A
Color Temperature: 2700K - 6500K
CRI: Average 96
TLCI: Average 98

2
1. Angle fixing knob 4. Lock catch
2. L shaped
bracket
3. Bracket fixing knob
11. Reflector
5. LCD display
6. Left knob
8. Power socket
9. Power switch
10. LED indicator
7. Right knob
12. USB port
Product Details

3
Detailed Description
1. Angle fixing knob: Allows for vertical adjustments and fixing of the lamp.
2. L shaped bracket: Designed for connecting the lamp to the light stand and adjusting the beam angle.
3. Bracket fixing knob: For connenting the spot light and camera equipment , and adjusting the horizontal illumination
direction of fixture.
4. Lock catch: For installing and disassembling reflector and other accessories.
5. LCD display: For displaying various function operations and data.
6. Left knob: For adjusting the brightness and color temperature.
7. Right knob: For selecting the effect mode, channel, fan, language and version.
8. Power socket: DC power input input. .
9. Power switch: For on/off the fixture.
10. LED indicator: For determining the status of power input. Being on, power supply is normal. Flashing or being off,
power supply is abnormal or no power input.
11. Reflector: For gathering light to improve central illumination.
12. USB port: For updating the firmware.

4
Lock Catch
Usage
1. Installation of the Reflector
When installing the reflector,
ensure its mounting points
align with the slots on the
light fixture. When the
mounting points and slots
are aligned push the reflector
in place and rotate it in the
direction shown on the light
until you hear it click into place.
2. 2.4G and Bluetooth Remote Control
The Forza 60B has a built-in 2.4Ghz receiver, enabling it to be remotely controlled by remote controller or by APP
via the 2.4G transfer device. It also has built-in bluetooth function to connet with bluetooth for more control options.
NOTE: 2.4G remote controller or 2.4G transfer device sold separately.
(See separate instructions for remote controller or 2.4G transfer device)
When removing the reflector,
push and hold the release
button and rotate until the
reflector is free to be removed
from the fixture.
The reflector lock on/off mark.

5
FAN:ON
5600K0%
Operating Instructions
1. Connection between fixture and power adapter.
①First be sure that the power switch of the fixture is in the "off " position. Now it is safe to connect the power adapter
and power the unit on. If the LED indicator is on that means the power supply is normal. The LCD screen will
display all the relevant information for the fixture.
②DIM setting:
Rotate the "left knob", clockwise to increase the output while counterclockwise to reduce the output. Dim is
reference to the output percentage. DIM range: 0% --- 100%
0%
.
.
.
100%
FAN:ON
5600K100%
FX:OFF
FX:OFF
FAN:ON
5600K100%
FX:OFF

6

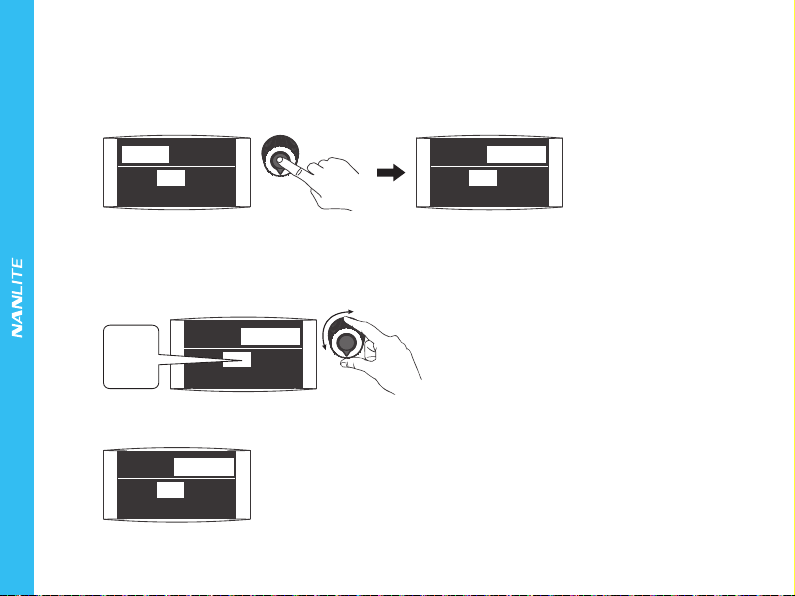

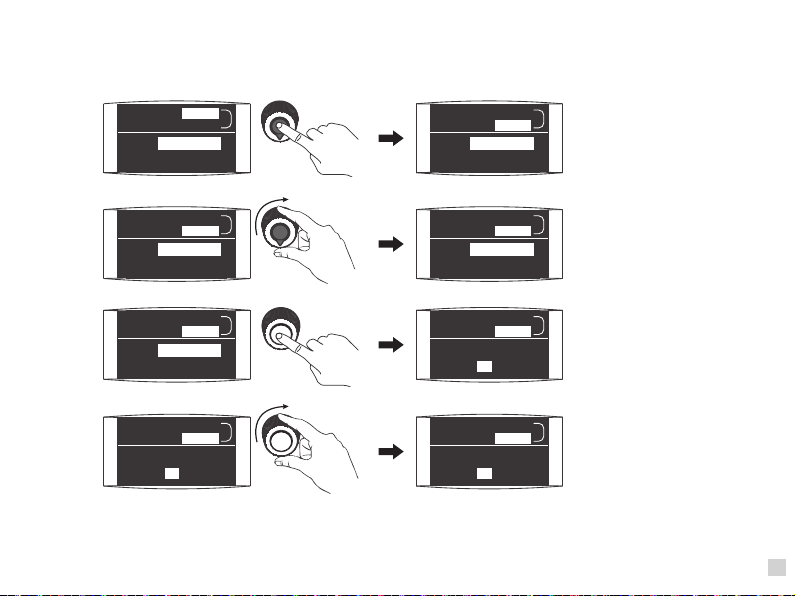

③Color Temperature setting:
Press in the "left knob" to enter the color temperature setting, rotate the"left knob", clockwise to increase the color
temperature while counterclockwise to reduce the temperature. Color Temperature range: 2700K - 6500K.
Note: If you wish to return to the DIM setting, press in the "left knob".
④FX setting:
Rotate the " right knob" to select the desired special effect. Forza 60B has a range of built-in effects - OFF,
CCT LOOP, INT LOOP, FLASH, PULSE, STORM, TV, PAPARAZZI, CANDLE/FIRE, BAD BULB, FIREWORK,
EXPLOSION and WELDING.
(1)If the FX is off that means the effect is inactive.
100%
FAN:ON
5600K
100%
FAN:ON
5600K
Press in the "left knob" to enter the color temperature setting.
Rotate the "right knob" to select the desired
special effect.
FX:OFF
OFF
.
.
.
WELDING
100%
FAN:ON
5600K
FX:OFF
FAN:ON
5600K100%
FX:OFF FX:OFF

7

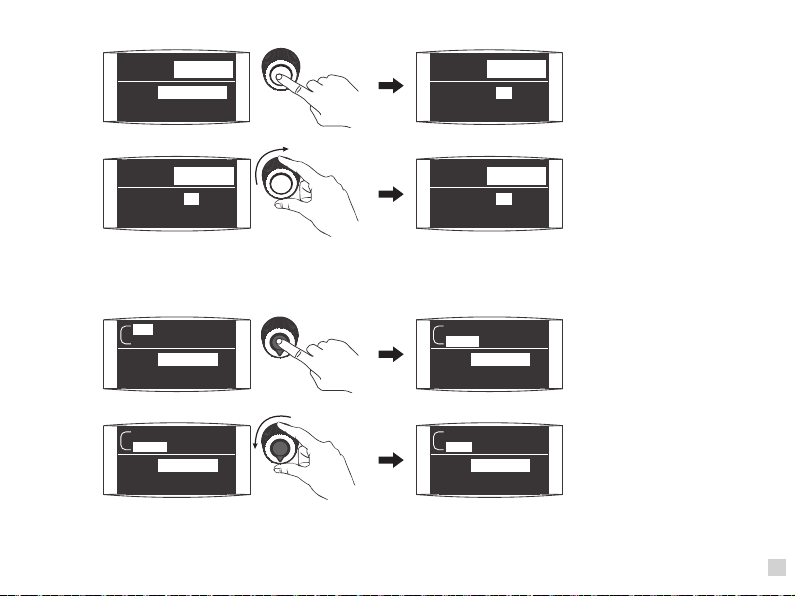

Press in the "right knob" to enter SPD setting.
(2)CCT LOOP:
Press in the "left knob" to select DIM, CCT1 and CCT2 , then rotate it to set the parameters;
Press in the "right knob" to enter SPD setting, then rotate it to set the SPD, SPD range: 2S ... 30S.
Press in the "left knob" to select DIM, CCT1 and CCT2.
Rotate the "left knob" to set the parameters.
100%
SPD:8s
3200K
5600K
FX:CCT LOOP
Rotate the "right knob" to set the SPD.
100%
3200K
5600K
SPD:8s
FX:CCT LOOP
100%
3200K
5600K
SPD:8s
FX:CCT LOOP
100%
3200K
5700K
SPD:8s
FX:CCT LOOP
100%
3200K
5700K
SPD:8s
FX:CCT LOOP
100%
3200K
5700K
FX:CCT LOOP
SPD:9s
100%
3200K
5700K
FX:CCT LOOP
SPD:8s
100%
3200K
5700K
FX:CCT LOOP
SPD:8s

8
(3)INT LOOP:
Press in the "left knob" to select DIM1, DIM2 and CCT, then rotate it to set the parameters;
Press in the "right knob" to enter SPD setting, then rotate it to set the SPD, SPD range: 2S … 30S.
Press in the "left knob" to select DIM1, DIM 2 and CCT.
Rotate the "left knob" to set the parameters.
5600K
0%
100%
Press in the "right knob" to enter SPD setting.
Press in the "right knob" to set the SPD.
SPD:8s
FX:INT LOOP
5600K
0%
100%
SPD:8s
FX:INT LOOP
5600K
0%
100%
SPD:8s
FX:INT LOOP
5600K
0%
99%
SPD:8s
FX:INT LOOP
5600K
0%
99%
SPD:8s
FX:INT LOOP
5600K
0%
99%
FX:INT LOOP
SPD:9s
5600K
0%
99%
FX:INT LOOP
SPD:8s
5600K
0%
99%
FX:INT LOOP
SPD:8s

9
Press in the "left knob" to select DIM and CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter INTVL setting.
Rotate the "right knob" to set the INTVL.
(4)FLASH:
Press in the "left knob" to select DIM and CCT, then rotate it to set the parameters;
Press in the "right knob" to enter INTVL setting, then rotate it to set the INTVL, INTVL range: 1s … 10s.
100% 5600K
INTVL:1.0s
FX:FLASH
100% 5600K
INTVL:1.0s
FX:FLASH
100% 5600K
INTVL:1.0s
FX:FLASH
100% 5700K
INTVL:1.0s
FX:FLASH
100% 5700K
INTVL:1.0s
FX:FLASH
100% 5700K
FX:FLASH
INTVL:1.1s
100% 5700K
FX:FLASH
INTVL:1.0s
100% 5700K
FX:FLASH
INTVL:1.0s

10
100% 5700K
P/MIN:40
FX:PULSE
100% 5600K
P/MIN:40
FX:PULSE
(5)PULSE:
Press in the "left knob" to select DIM and CCT, then rotate it to set the parameters;
Press in the "right knob" to enter P/MIN setting, then rotate it to set the P/MIN, P/MIN range: 1 … 240.
Press in the "left knob" to select DIM and CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter P/MIN setting.
Rotate the "right knob" and set the P/MIN.
100% 5600K
P/MIN:40
FX:PULSE
100% 5600K
P/MIN:40
FX:PULSE
100% 5700K
P/MIN:40
FX:PULSE
100% 5700K
FX:PULSE
P/MIN:41
100% 5700K
FX:PULSE
P/MIN:40
100% 5700K
FX:PULSE
P/MIN:40

11
(6)STORM:
Press in the "left knob" to select DIM and CCT, then rotate it to set the parameters. Press in the "right knob"
to enter INTVL range setting, then rotate it to set the INTVL range; Press in the "right knob" then rotate it to
set the INTVL range. INTVL range: 1S … 60S.
Press in the "left knob" to select DIM and CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter INTVL range setting, then rotate it to set the INTVL range.
Press in the "right knob" then rotate it to set the INTVL range.
100% 5600K
INTVL:2s - 6s
FX:STORM
100% 5600K
INTVL:2s - 6s
FX:STORM
100% 5700K
INTVL:2s - 6s
FX:STORM
100% 5700K
INTVL:2s - 6s
FX:STORM
100% 5700K
FX:STORM
INTVL:3s - 6s
100% 5700K
FX:STORM
INTVL:3s - 6s
100% 5600K
INTVL:2s - 6s
FX:STORM
100% 5700K
FX:STORM
INTVL:3s - 7s

12
(7)TV:
Press in the "left knob" to select DIM1, DIM2, and CCT, then rotate it to set the parameters;
Press in the "right knob" to enter SPD setting, then rotate it to set the SPD. SPD range: 1 … 100.
Press in the "left knob" to select DIM1, DIM2, and CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter SPD setting.
Rotate the "right knob" to set the SPD.
5600K
0%
100%
SPD:50
FX:TV
5600K
0%
100%
SPD:50
FX:TV
5600K
0%
100%
SPD:50
FX:TV
5600K
0%
99%
SPD:50
FX:TV
5600K
0%
99%
SPD:50
FX:TV
5600K
0%
99%
FX:TV
SPD:51
5600K
0%
99%
FX:TV
SPD:50
5600K
0%
99%
FX:TV
SPD:50

13
(8)PAPARAZZI:
Press in the "left knob" to select DIM and CCT, then rotate it to set the parameters;
Press in the "right knob" to enter SPD setting, then rotate it to set the SPD. SPD range: 1 … 100.
Press in the "left knob" to select DIM and CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter SPD setting.
Rotate the "right knob" to set the SPD.
100% 5600K
SPD:50
FX:PAPARAZZI
SPD:50
FX:PAPARAZZI
100% 5600K
SPD:50
FX:PAPARAZZI
100% 5600K
SPD:50
FX:PAPARAZZI
100% 5700K
SPD:50
FX:PAPARAZZI
100% 5700K
FX:PAPARAZZI
100% 5700K
SPD:51
FX:PAPARAZZI
100% 5700K
SPD:50
FX:PAPARAZZI
100% 5700K
SPD:50

14
(9)CANDLE/FIRE:
Press in the "left knob" to select DIM 1, DIM 2 and CCT, then rotate it to set the parameters;
Press in the "right knob" to enter SPD setting, then rotate it to set the SPD, SPD range: 1 … 100.
Press in the "left knob" to select DIM1, DIM2 and CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter SPD setting.
Rotate the "right knob" to set the SPD.
5600K
0%
100%
SPD:50
FX:CANDLE/FIRE
5600K
0%
100%
SPD:50
FX:CANDLE/FIRE
5600K
0%
100%
SPD:50
FX:CANDLE/FIRE
5600K
0%
99%
SPD:50
FX:CANDLE/FIRE
5600K
0%
99%
SPD:50
FX:CANDLE/FIRE
5600K
0%
99%
FX:CANDLE/FIRE
SPD:51
5600K
0%
99%
FX:CANDLE/FIRE
SPD:50
5600K
0%
99%
FX:CANDLE/FIRE
SPD:50

15
(10)BAD BULB:
Press in the "left knob" to select DIM and CCT, then rotate it to set the parameters;
Press in the "right knob" to enter INT setting, then rotate it to set the INT, INT range: 1 … 100.
Press in the "right knob" to enter SPD setting, then rotate it to set the SPD, SPD range: 1 … 100.
Press in the "left knob" to select DIM and CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter INT setting.
100% 5600K
INT:50
FX:BAD BULB
INT:50
FX:BAD BULB
100% 5600K
INT:50
FX:BAD BULB
100% 5600K
INT:50
FX:BAD BULB
100% 5700K
INT:50
FX:BAD BULB
100% 5700K
Rotate the "right knob" to set the INT.
FX:BAD BULB
100% 5700K
INT:51
FX:BAD BULB
100% 5700K
INT:50
FX:BAD BULB
100% 5700K
INT:50

16
(11)FIREWORK:
Press in the "left knob" to select DIM, CCT, then rotate it to set the parameters; Press in the "right knob"
to enter SPD setting, then rotate it to set the SPD, SPD range: 1…100. Press in the "right knob" to enter
DECAY setting, then rotate it to set the DECAY, DECAY range: 1…100.

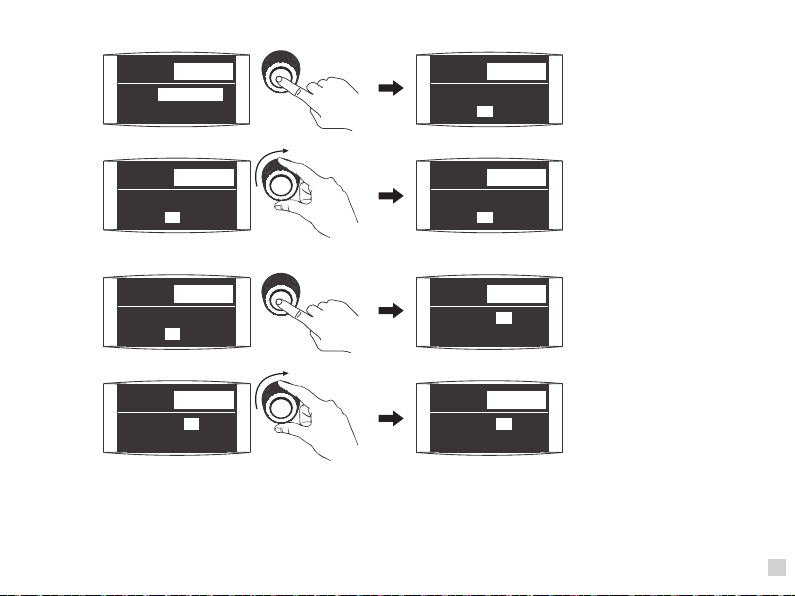

Press in the "left knob" to select DIM, CCT.
Rotate the "left knob" to set the parameters.
FX:BAD BULB
100% 5700K
INT:51
100% 5700K
FAN:ON
SPD:50
100% 5700K
FAN:ON
SPD:50
100% 5700K
FAN:ON
SPD:51
100% 5600K
SPD:50
FX:FIREWORK
SPD:50
FX:FIREWORK
100% 5600K
SPD:50
FX:FIREWORK
100% 5600K
SPD:50
FX:FIREWORK
100% 5700K
Press in the "right knob" to enter SPD setting.
Rotate the "right knob" to set the SPD.

17
Press in the "right knob" to enter SPD setting.
Rotate the "right knob" to set the SPD.
SPD:50
FX:FIREWORK
100% 5700K
FX:FIREWORK
100% 5700K
SPD:50
FX:FIREWORK
100% 5700K
SPD:51
FX:FIREWORK
100% 5700K
SPD:51 FAN:ON
100% 5700K
DECAY:50
FAN:ON
100% 5700K
DECAY:50
FAN:ON
100% 5700K
DECAY:51
FX:FIREWORK
100% 5700K
SPD:50
Press in the "right knob" to enter DECAY setting.
Rotate the "right knob" to set the DECAY.

18
(12)EXPLOSION:
Press in the "left knob" to select DIM, CCT, then rotate it to set the parameters; Press in the "right knob" to

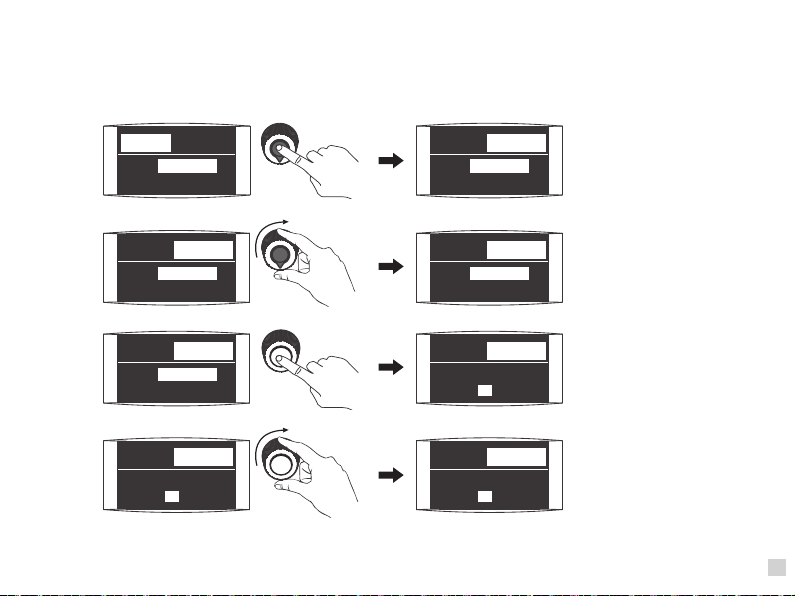

enter SPD setting, then rotate it to set the SPD, SPD range: 1…100. Press in the "right knob" enter DECAY
setting, then rotate it to set the DECAY, DECAY range: 1…100.
Press in the "left knob" to select DIM, CCT.
Rotate the "left knob" to set the parameters.
Press in the "right knob" to enter SPD setting.
Rotate the "right knob" to set the SPD.
100% 5600K
SPD:50
FX:EXPLOSION
SPD:50
FX:EXPLOSION
100% 5600K
SPD:50
FX:EXPLOSION
100% 5600K
SPD:50
FX:EXPLOSION
100% 5700K
SPD:50
FX:EXPLOSION
100% 5700K
FX:EXPLOSION
100% 5700K
SPD:50
FX:EXPLOSION
100% 5700K
SPD:50
FX:EXPLOSION
100% 5700K
SPD:51

19
(13)WELDING:

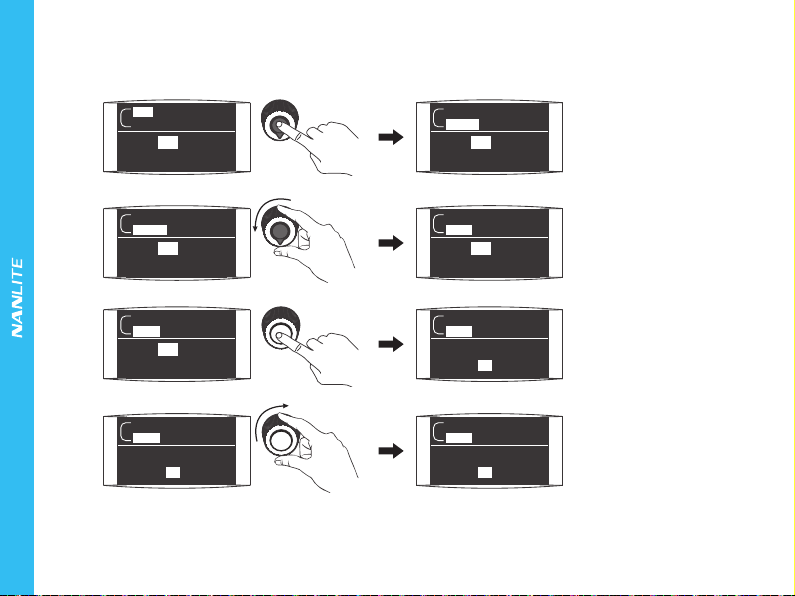

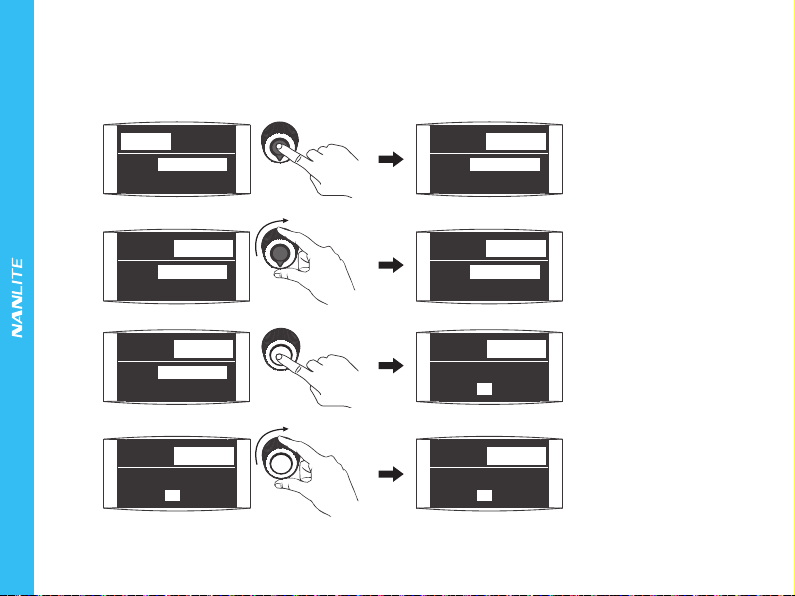

Press in the "left knob" to select DIM1, DIM2, CCT, then rotate it to set the parameters;
Press in the "right knob" enter SPD setting, then rotate it to set the SPD, SPD range: 1...100.
Press in the "left knob" to select DIM1, DIM2, CCT.
Rotate the "left knob" to set the parameters.
5600K
0%
100%
SPD:50
FX:WELDING
5600K
0%
100%
SPD:50
FX:WELDING
5600K
0%
100%
SPD:50
FX:WELDING
5600K
0%
99%
SPD:50
FX:WELDING
Press in the "right knob" to enter DECAY setting.
Rotate the "right knob" to set the DECAY.
SPD:50
FX:EXPLOSION
100% 5700K
FAN:ON
100% 5700K
DECAY:51
FAN:ON
100% 5700K
DECAY:50
FAN:ON
100% 5700K
DECAY:50
Table of contents
Other NANLITE Spotlight manuals

NANLITE
NANLITE Forza 300B User manual

NANLITE
NANLITE P-100 User manual

NANLITE
NANLITE Forza 150 User manual

NANLITE
NANLITE FS-60B User manual

NANLITE
NANLITE FS-300B User manual

NANLITE
NANLITE Forza 60 User manual

NANLITE
NANLITE FS-150 User manual

NANLITE
NANLITE FS-60B User manual

NANLITE
NANLITE Forza 720 User manual

NANLITE
NANLITE FS-150B User manual
Popular Spotlight manuals by other brands

Good Earth Lighting
Good Earth Lighting SE1303-WH3-00LFW-G manual

Anslut
Anslut 019960 operating instructions

Enercell
Enercell Enercell 270-019 quick start guide

Century
Century REGIA SHOP 180 quick start guide

JB-Lighting
JB-Lighting P9 Beamspot operating instructions

Parkside
Parkside PAS 10 A3 Installation, operating and safety information
