LIVARNO LUX 327293_1904 Installation and operating instructions

LED SOLAR SPOTLIGHT
Assembly and safety advice
NAPELEMES LED
REFLEKTOR
Használati- és biztonsági utasítások
SOLARNI LED-REFLEKTOR
Navodila za montažo in varnost
LED SOLÁRNÍ REFLEKTOR
Pokyny k montáži a bezpečnostní pokyny
LED SOLÁRNY REFLEKTOR
Pokyny pre montáž a bezpečnosť
LED-SOLARSTRAHLER
Montage- und Sicherheitshinweise
PROJECTEUR SOLAIRE LED
IAN 327293_1904

GB Assembly and safety advice Page 5
HU Használati- és biztonsági utasítások Oldal 24
SI Navodila za montažo in varnost Stran 43
CZ Pokyny k montáži a bezpečnostní pokyny Strana 62
SK Pokyny pre montáž a bezpečnosť Strana 81
DE/AT/CH Montage- und Sicherheitshinweise Seite
100

1.8-2.5m
5.0m 8.0m
90°
DC
B
A1
2
3
4
5
10
11
12
13
6
7
8
9

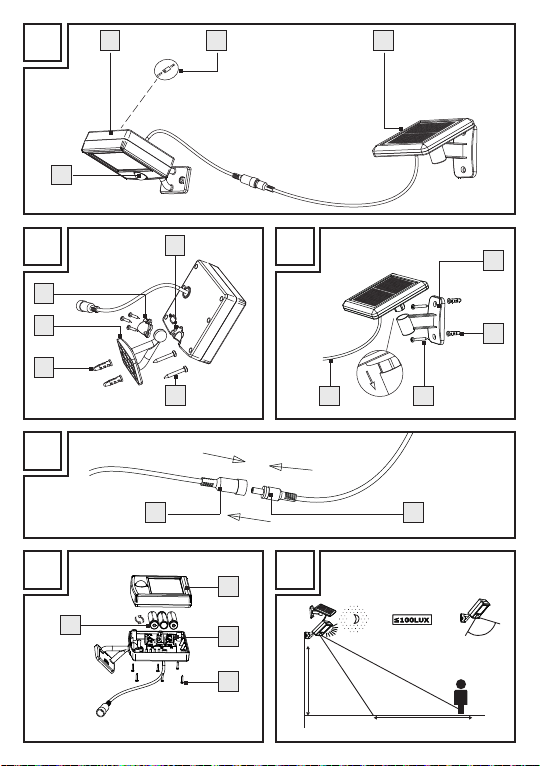

HG04465A

1.8-2.5m
5.0m 8.0m
90°
A
B C
D
E F
HG04465B
12
4
5
11 12
13
10
8
6
9
17
19 18
15
14
16
7
3

5GB
List of pictograms used ....................Page 6
Introduction.................................Page 7
Intended use ..................................Page 7
Description of parts.............................Page 7
Technical data.................................Page 8
Scope of delivery ..............................Page 9
General safety instructions ...............Page 9
Safety instructions for batteries/
rechargeable batteries ..........................Page 10
Before use...................................Page 12
Charging the rechargeable batteries ...............Page 12
Inserting / replacing batteries............Page 13
Installation ..................................Page 14
Start-up......................................Page 18
Maintenance and cleaning................Page 19
Disposal .....................................Page 20
Warranty....................................Page 21

6 GB
List of pictograms used
LED lifespan
Direct current
This product is suitable for extreme temperature up to
-21°C.
Motion detector range approx. 5 - 8 m
Detection angle of motion sensor: approx. 90º
Protection type: IP44 (splash-proof)
Batteries included
Illumination time (after activation): approx. 30seconds

7GB
LED SOLAR SPOTLIGHT
Introduction
We congratulate you on the purchase of your new product. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use
and disposal. Before using the product, please familiarise yourself
with all of the safety information and instructions for use. Only use the
product as described and for the specified applications. If you pass
the product on to anyone else, please ensure that you also pass on
all the documentation with it.
Intended use
The product is intended to illuminate outdoor areas without electrical
connection. The product is suitable for use in private household and is
not intended for commercial use or for use in other applications.
Not suitable for ordinary lighting in household room
illumination.
This product is suitable for extreme temperature up to -21°C.
Description of parts
1Solar panel
2ON/OFF switch
3Spotlight
4Sensor
5Dowel (mounting plate)

8 GB
6Mounting plate
7Ball joint cover
8Screw (mounting plate)
9Slot
10
Front cover
11
Rechargeable battery
12
Battery compartment
13
Fixing screw (front cover)
14
Mounting bracket (HG04465B only)
15
Dowel (for mounting bracket) (HG04465B only)
16
Screw (for mounting bracket) (HG04465B only)
17
Connection cable (HG04465B only)
18
Plug (HG04465B only)
19
Socket (HG04465B only)
Technical data
Model no.: HG04465A or HG04465B
LEDs: 6 x 0.5 W (LEDs not replaceable)
Operating voltage: 3.6 V
Rechargeable batteries: 3 x Ni-MH AA, 900 mAh,1.2 V
Degree of ingress protection:IP44 (splash-proof)
Motion sensor: Range: approx. 5 to 8 m
Detection angle: approx. 90º

9GB
Scope of delivery
Check immediately after unpacking that the parts are complete and
that the product is in proper condition.
1 LED solar powered spotlight, model HG04465A or HG04465B
1 Mounting bracket (for solar panel) (HG04465B only)
1 Solar panel (HG04465B only)
2 Dowels (mounting plate)
2 Screws (mounting plate)
2 Dowels (mounting bracket) (HG04465B only)
2 Screws (mounting bracket) (HG04465B only)
1 Assembly, operating and safety instructions
General safety instructions
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF
WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS
FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS,
PLEASE ALSO INCLUDE ALL THE DOCUMENTS!
This product can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
product in a safe way and understand the hazards involved.
Children shall not play with the product. Cleaning and user
maintenance shall not be made by children without supervision.

10 GB
Never leave children unsupervised with the packaging material.
The packaging material represents a danger of suffocation.
Children frequently underestimate the dangers.
Keep children out of the area you are working in. A large number
of screws and other small parts are included with the delivery.
These may prove life-threatening if swallowed or inhaled.
Do not use this product if you notice any damage!
The LEDs are not replaceable.
If the LEDs fail at the end of their life, the entire product must be
replaced.
Do not look directly into the light source (light bulb, LED etc.).
Do not look at the LED with an optical instrument (e.g. magnifier).
The external flexible cable of this luminaire cannot be replaced;
if the cord is damaged, the luminaire shall be destroyed
(HG04465B only).
Safety instructions for batteries/
rechargeable batteries
m DANGER TO LIFE! Keep batteries/ rechargeable batteries out
of reach of children. If accidentally swallowed seek immediate
medical attention.

11GB
DANGER OF EXPLOSION! Never recharge non-
rechargeable batteries. Do not short-circuit batteries/
rechargeable batteries and/ or open them. Overheating,
fire or bursting can be the result.
Never throw batteries/ rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/ rechargeable
batteries.
Risk of leakage of batteries/ rechargeable batteries
Avoid extreme environmental conditions and temperatures, which
could affect batteries/ rechargeable batteries, e.g. radiators/
direct sunlight.
If batteries/ rechargeable batteries have leaked, avoid contact
with skin, eyes and mucous membranes with the chemicals! Flush
immediately the affected areas with fresh water and seek medical
attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged
batteries/ rechargeable batteries can cause burns on
contact with the skin. Wear suitable protective gloves at all
times if such an event occurs.
In the event of a leakage of batteries/ rechargeable batteries,
immediately remove them from the product to prevent damage.
Only use the same type of batteries/ rechargeable batteries. Do
not mix used and new batteries/ rechargeable batteries.
Remove batteries/ rechargeable batteries if the product will not
be used for a longer period.

12 GB
Risk of damage of the product
Only use the specified type of battery/ rechargeable battery!
Insert batteries/ rechargeable batteries according to polarity
marks (+) and (–) on the battery/ rechargeable battery and the
product.
Clean the contacts on the battery/ rechargeable battery and in
the battery compartment before inserting!
Remove exhausted batteries/ rechargeable batteries from the
product immediately.
Before use
Note: Remove all packaging materials from the product.
Charging the rechargeable batteries
Note: The rechargeable batteries
11
inside the product are fully
charged at delivery. However, they may have lost charge during
transport from the manufacturer to the retail location. Therefore
charge the rechargeable batteries
11
prior to use. During summer,
initial charging will take at least 1 day in constant sunlight.
Set the ON/OFF switch 2to the “ON“ position.
Note: In constant sunlight (depending on the season) drained
rechargeable batteries
11
should take 2 to 10 days to charge.

13GB
Note: The built-in charging controller of the product prevents the
rechargeable batteries
11
from overcharging.
Replace the rechargeable batteries
11
if light output does not
improve after charging (Fig.C: HG04465A or Fig.E: HG04465B).
Inserting / replacing batteries
Note: The rechargeable batteries
11
are pre-installed. Only use
batteries as stated in the “Technical data” chapter. To remove the
rechargeable batteries
11
, switch the spotlight 3off using the ON/
OFF switch 2.
Open the battery compartment
12
on the back side of the
spotlight 3by loosening the fixing screws
13
counterclockwise
to remove the front cover
10
(Fig.C: HG04465A or
Fig.E:HG04465B).
Remove the old rechargeable batteries
11
.
Insert the new rechargeable batteries
11
. Use only batteries of
the specified type (see “Technical data”).
Note: When inserting the battery, ensure the correct polarity!
This is indicated in the battery compartment
12
.
Close the battery compartment
12
again with the front cover
10
and fix the front cover
10
by turning the fixing screws
13
clockwise.

14 GB
Installation
Note: The included mounting material is suitable for ordinary solid
concrete or masonry construction. Other wall substrates may require
other fastening materials. Seek specialist advice if necessary.
Note: You will need an electric drill.
m CAUTION! RISK OF INJURY! Read the operating instructions
for your drill.
m CAUTION! Ensure that you do not damage any electricity
cables in the wall or ceiling.
When selecting the mounting location, pay attention to the following:
Ensure that the spotlight 3illuminates the desired area. You can
swivel the spotlight 3into the desired position.
Ensure the sensor 4covers the desired area. The sensor 4
has a maximum coverage range of approx. 5 to 8 m, with a
coverage angle of about 90° (depending on the mounting
height – a height from 1.8 to 2.5 m is ideal) (Fig. D: HG04465A
or Fig. F: HG04465B).
Ensure the sensor 4is not illuminated at night by street lighting.
This can influence its functioning.
Ensure that the solar panel 1is mounted in a place with direct
sunlight.

15GB
Ensure that the solar panel 1is not installed where there are
strong temperature fluctuations, e.g. due to heating devices.
Ensure that the solar panel 1is installed far away from
unnatural light sources and in southern direction.
Ensure that the connection cable
17
of the solar panel 1can
reach the spotlight 3. Max. distance between the solar panel
1and the spotlight 3is approx. 2.5 m (HG04465B only).
For HG04465A:
Carefully fold the solar panel 1upwards.
Remove the mounting plate 6from the spotlight 3by
loosening the screws of the ball joint cover 7(Fig. B).
Use the slotted holes of the mounting plate 6intended for the
screws 8to mark the drill holes.
Now drill the fixing holes (Ø 8 mm, depth approx. 40 mm).
Before drilling the fixing holes, ensure there are no gas, water or
electrical lines that could be drilled into or damaged in the area
where you will be drilling.
Insert the dowels 5into the drill holes (Fig. B).
Attach the mounting plate 6using the screws 8provided
(Fig. B).
Ensure that the solar panel 1is orientated towards the sun.

16 GB
Now place the spotlight 3towards the mounting plate 6.
Ensure that the ball joint of the mounting plate 6is correctly
inserted into the slot 9of the spotlight 3. Then, close the ball
joint cover 7by tightening the screws clockwise (Fig. B).
Set the ON/OFF switch 2on the spotlight 3to the “ON“
position (Fig. A).
The rechargeable batteries
11
will now charge when there is
sufficient solar radiation.
For HG04465B:
Remove the mounting plate 6from the spotlight 3by
loosening the screws of the ball joint cover 7(Fig. B).
Use the slotted holes of the mounting plate 6intended for the
screws 8to mark the drill holes.
Now drill the fixing holes (Ø 8 mm, depth approx. 40 mm).
Before drilling the fixing holes, ensure there are no gas, water or
electrical lines that could be drilled into or damaged in the area
where you will be drilling.
Insert the dowels 5into the drill holes (Fig. B).
Attach the mounting plate 6using the screws 8provided
(Fig. B).
Now place the spotlight 3towards the mounting plate 6.
Ensure that the ball joint of the mounting plate 6is correctly
inserted into the slot 9of the spotlight 3. Then, close the ball
joint cover 7by tighten the screws clockwise (Fig. B).

17GB
Now use the slots in the mounting bracket
14
intended for
the screws
16
to mark the drill holes (Ø 8 mm, depth approx.
40 mm).
Ensure that you can connect the spotlight 3using the connection
cable
17
to the solar panel 1.
Now drill the fixing holes. Before drilling the fixing holes, ensure
there are no gas, water or electrical lines that could be drilled
into or damaged in the area where you will be drilling.
Insert the dowels
15
into the drill holes (Fig. C).
Attach the mounting bracket
14
using the screws
16
.
Place the solar panel 1into the mounting bracket
14
(Fig. C).
Ensure that the solar panel 1is orientated towards the sun.
Insert the plug
18
into the socket
19
(Fig. D).
Set the ON/OFF switch 2on the spotlight 3to the “ON“
position (Fig. A).
The rechargeable batteries
11
will now charge when there is
sufficient solar radiation.
When selecting the mounting location for the solar panel 1, pay
attention to the following:
The solar panel 1needs to be as directly exposed to sunlight as
possible. Even partial shading of the solar panel 1during the day
can have a significant influence on charging.

18 GB
Cardinal direction:
Orientation towards the south is optimum. Orientations with slight
deviations towards the west are preferable to those with slight
deviations towards the east.
Horizontal orientation:
The horizontal orientation of the solar panel 1depends on the
geographic latitude of the mounting location. In central Europe, an
angle of 30°to 40° is ideal.
Your product is now ready to use.
Start-up
The sensor 4is activated at an illumination level of approx.
<100 Lux.
The spotlight 3will automatically switch on in darkness as soon
as the sensor 4detects motion.
The light will automatically switch off after approx. 30 seconds if
motion is no longer detected.
If any motion is detected after it has been switched off, the light
will automatically switch on again for approx. 30 seconds.
To switch off the spotlight 3, the ON/OFF switch 2must be
set to the “OFF“ position. The rechargeable batteries
11
will no
longer be charged.

19GB
Maintenance and cleaning
WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!
Do not use solvents, petrol, etc. Otherwise the light will be
damaged.
Set the ON/OFF switch 2on the spotlight 3to the “OFF“
position.
Remove the rechargeable batteries
11
.
Loosen the connection between the plug
18
and the socket
19
(HG04465B only).
Clean the light with a dry, lint-free cloth. Reinsert the
rechargeable batteries
11
.
Insert the plug
18
into the socket
19
again (HG04465B only).
Set the ON/OFF switch 2on the spotlight 3to the “ON“
position.
Check the sensor 4and the solar panel 1for dirt regularly. If
dirt or is present, remove it to guarantee flawless function of the
product.
Especially during the winter, keep the product free from snow and
ice.

20 GB
Disposal
The packaging is made entirely of recyclable materials, which you
may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste
separation, which are marked with abbreviations (a) and
numbers (b) with following meaning: 1 – 7: plastics /
20 – 22: paper and fibreboard / 80 – 98: composite
materials.
The product and packaging materials are recyclable,
dispose of it separately for better waste treatment.
The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details
of how to dispose of your worn-out product.
To help protect the environment, please dispose of the
product properly when it has reached the end of its
useful life and not in the household waste. Information on
collection points and their opening hours can be obtained
from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in
accordance with Directive 2006/66/EC and its amendments. Please
return the batteries / rechargeable batteries and / or the product to
the available collection points.
