Nanoptix PayCheck Slim User manual

Service Manual
First Edition December 11, 2009
August 29, 2011
Document # 720006-0000

Document # 720006-0000
August, 2011
ii
Service Manual
Legal Notices
Disclaimer
Information in this document is subject to change without notice. Consult your Nanoptix Inc. sales
representative for information that is applicable and current. Nanoptix Inc. reserves the right to
improve products as new technology, components, software and firmware become available.
No part of this document may be reproduced or transmitted in any form or by any means,
electronic or mechanical, for any purpose without the express written permission of Nanoptix Inc.
Copyright
Copyright 2003 by Nanoptix Inc.
Dieppe, New Brunswick Canada
All rights reserved
Printed in Canada
Confidential, Unpublished
Property of Nanoptix Inc.
Trademarks
Epson is registered trademark of Epson Corporation.
Windows is registered trademark of Microsoft Corporation.
Nanoptix is a trademark. Other trademarks and registered trademarks are the property of their
respective holders.
Federal Communications Commission (FCC)
Radio Frequency Interference Statement
Warning
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.

Document # 720006-0000
August, 2011
iii
Service Manual
Information to the User
This equipment must be installed and used in strict accordance with the manufacturer's
instructions. However, there is no guarantee that interference to radio communications will not
occur in a particular commercial installation. If this equipment does cause interference, which can
be determined by turning the equipment off and on, the user is encouraged to contact Nanoptix
Inc. immediately.
Nanoptix Inc. is not responsible for any radio or television interference caused by unauthorized
modification of this equipment or the substitution or attachment of connecting cables and
equipment other than those specified by Nanoptix Inc. The correction of interferences caused by
such unauthorized modification, substitution or attachment will be the responsibility of the user.
In order to ensure compliance with the Product Safety, FCC and CE marking requirements, you
must use the power supply, power cord, and interface cable, which were shipped with this
product or which meet the following parameters:
Power Supply
UL Listed power supply with standard 60Hz-50Hz, 100-240VAC input and 24VDC output
equipped with AC line filtering, over-current and short-circuit protection.
Use of this product with a power supply other than the Nanoptix Inc. power supply will require you
to test the power supply and Nanoptix Inc. printer for FCC and CE mark certification.
Communication Interface Cable
An approved Nanoptix interface cable must be used with this product. Use of a cable other than
Nanoptix approved product will require that you test the cable with the Nanoptix Inc. printer and
your system for FCC and CE mark certification.
Power Cord
A UL listed, detachable power cord must be used. A power cord with Type SVT marking must be
used. For applications outside the North America, power cords that meet the particular country’s
certification and application requirements should be used.
Use of a power cord other than described here may result in a violation of safety certifications that
is in force in the country of use.
Industry Canada (IC)
Radio Frequency Interference Statement
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.

Document # 720006-0000
August, 2011
iv
Service Manual
Table of Contents
About the Printer............................................................................................................ 1
1.1 Description of Printer.................................................................................................. 1
1.2 General specifications.................................................................................................. 2
1.3 Paper Loading.............................................................................................................. 3
1.3.1 Paper Feed Button................................................................................................................ 4
1.4 Printer Controls ........................................................................................................... 5
1.4.1 Printer Reset (Service use only)........................................................................................... 5
1.4.2 LED........................................................................................................................................ 6
1.5 Printer Interface Ports................................................................................................. 7
1.5.1 LED........................................................................................................................................ 8
1.6 Testing the Printer....................................................................................................... 9
1.7 Clearing Jams............................................................................................................. 10
2Troubleshooting the Printer.................................................................................... 11
2.1 Basic Printer Operation............................................................................................. 11
2.1.1 Communication Cables Pin-Out........................................................................................ 12
2.2 Printing Problems...................................................................................................... 13
2.2.1 Troubleshooting with LED ................................................................................................ 14
3Media and Supplies Guide....................................................................................... 15
3.1 Thermal Paper Specifications................................................................................... 15
3.2 Ordering Thermal Paper........................................................................................... 17
3.3 Parts List..................................................................................................................... 18
4Mechanical Drawings.............................................................................................. 20
5Spare parts replacement instructions...................................................................... 25
6Printer Maintenance Instructions........................................................................... 32
7Service & Support.................................................................................................... 37
7.1 Returning printers back to Nanoptix for repairs (RMA)....................................... 37
7.2 Technical Support Contact Information.................................................................. 37

Document # 720006-0000
August, 2011
v
Service Manual
Figures
FIGURE 1: NANOPTIX PAYCHECK SLIM PRINTER.......................................... 1
FIGURE 2: TICKET STACK ORIENTATION...................................................... 3
FIGURE 3: PAPER FEED BUTTON................................................................. 4
FIGURE 4: PRINTER RESET ......................................................................... 5
FIGURE 5: INTERFACE PORTS ..................................................................... 7
FIGURE 6: LED POSITIONS ......................................................................... 8
FIGURE 7: SAMPLE TEST TICKET................................................................. 9
FIGURE 8: CLEARING JAMS....................................................................... 10
FIGURE 9: PERFORATION TEST ................................................................. 15
FIGURE 10: TICKET SPECIFICATIONS......................................................... 16
FIGURE 11: SIDE VIEW -MOUNTED IN POSITION A ..................................... 20
FIGURE 12: SIDE VIEW -MOUNTED IN POSITION B ..................................... 21
FIGURE 13: SIDE VIEW -MOUNTED IN POSITION C ..................................... 22
FIGURE 14: FRONT VIEW .......................................................................... 23
FIGURE 15: BACK VIEW............................................................................ 24
FIGURE 16: MOUNTING BRACKET (A)........................................................ 25
FIGURE 17: MOUNTING BRACKET (B)........................................................ 26
FIGURE 18: BACK PLATE.......................................................................... 26
FIGURE 19: PRINTER MECH. ..................................................................... 27
FIGURE 20: PCB REMOVAL (A)................................................................ 28
FIGURE 21: PCB REMOVAL (B)................................................................ 28
FIGURE 22: PAPER GUIDE SENSOR........................................................... 30
FIGURE 23: DISASSEMBLY ........................................................................ 31
FIGURE 24: REMOVE TOP PAPER GUIDE..................................................... 32
FIGURE 25: REMOVE ROLLER ................................................................... 32
FIGURE 26: CLEAN ROLLER...................................................................... 33
FIGURE 27: CLEAN PAPER GUIDE SENSOR USING COTTON SWAB................. 33
FIGURE 28: BOTTOM PAPER GUIDE INSPECTION ......................................... 34
FIGURE 29: INSPECT PAPER GUIDE........................................................... 35
FIGURE 30: CLEAR DUST OFF GEARS USING LIGHT BRUSH .......................... 35
FIGURE 31: CLEAN PRINT LINE ................................................................. 36

Document # 720006-0000
August, 2011
vi
Service Manual
Tables
TABLE 1: SPECIFICATIONS .......................................................................... 2
TABLE 2: INTERFACE PORTS....................................................................... 7
TABLE 3: LED INFORMATION ...................................................................... 8
TABLE 4: RS232 RECEPTACLE INTERFACE (FEMALE)................................. 12
TABLE 5: 14-PIN RS-232 UNIVERSAL INTERFACE PIN-OUT........................ 12
TABLE 6: PIN-OUT AND SIGNALS OF FRONT MOLEX (FOR BEZEL)............... 12
TABLE 7: TROUBLESHOOTING PRINTING PROBLEMS .................................. 13
TABLE 8: TROUBLESHOOTING WITH LED................................................... 14
TABLE 9: PAPER SPECIFICATIONS............................................................. 15
TABLE 10: ORDERING THERMAL PAPER.................................................... 17
TABLE 11: PARTS LIST............................................................................. 19

Document # 720006-0000
August, 2011
1
Service Manual
About the Printer
1.1 Description of Printer
The Nanoptix PayCheck Slim printer, is extremely fast, quiet, and very reliable. With thermal
printing technology, there is no ribbon cassette to change, and paper loading is extremely
simple. The printer’s intuitive design enables it to fit in very narrow cabinets.
Figure 1: Nanoptix PayCheck Slim Printer

Document # 720006-0000
August, 2011
2
Service Manual
1.2 General specifications
Print Method Direct Thermal
Resolution 8 dot/mm (203 dpi)
Print Width 64mm
Paper Width 65mm
Cartridge Size 200
Operating Temperature 0° to 50° C
Storage Temperature -20° to 60° C
Operating Relative Humidity 5 to 90% RH at 50°C (non-condensing)
Communication Interface Options Serial and USB
Memory/Firmware 8MB RAM, 2MB Flash and 1MBit EEPROM
Resident Character Sets Arial Bold (6 sizes)
Note: Other Character sets can be programmed
quickly
Integrated Bar Codes Interleaved 2 of 5, Code 39, Code 93, UPC-A &
UPC-E, Codabar, EAN 8 & EAN 13, Code 128.
Note: Other Bar Codes can be programmed
quickly
Speed Up to 200 mm/second (monochrome)
Up to 125 mm/second (two-color mode)
Sensors Paper in
Tray open
Top of form
Paper low
Human Interface Drop-in paper loading, status LED, paper feed
button
Dimensions 120mm width x 248.5mm height x 129mm depth
Weight 1.215 Kg
Table 1: Specifications

Document # 720006-0000
August, 2011
3
Service Manual
1.3 Paper Loading
Change the paper when the paper is low or out.
Caution: Do not operate the printer or host computer if the printer runs out of paper. The printer
will not operate without paper, but it may continue to accept data from the host computer.
Because the printer cannot print any transactions, the data may be lost.
1) Remove ticket cartridge.
2) Drop ticket stack into ticket cartridge. The maximum stack that will fit in the ticket cartridge is
200.
3) Replace ticket cartridge.
4) Feed ticket into printer mechanism until resistance is met.
5) Paper will feed automatically; paper is loaded and printer is ready to print.
Ticket stack orientation:
The stack must be oriented so
that it’s top of form mark is on the
leading edge of the ticket.
Figure 2: Ticket Stack Orientation

Document # 720006-0000
August, 2011
4
Service Manual
1.3.1 Paper Feed Button
Press on the Paper Feed Button to advance the paper. The paper will automatically feed.

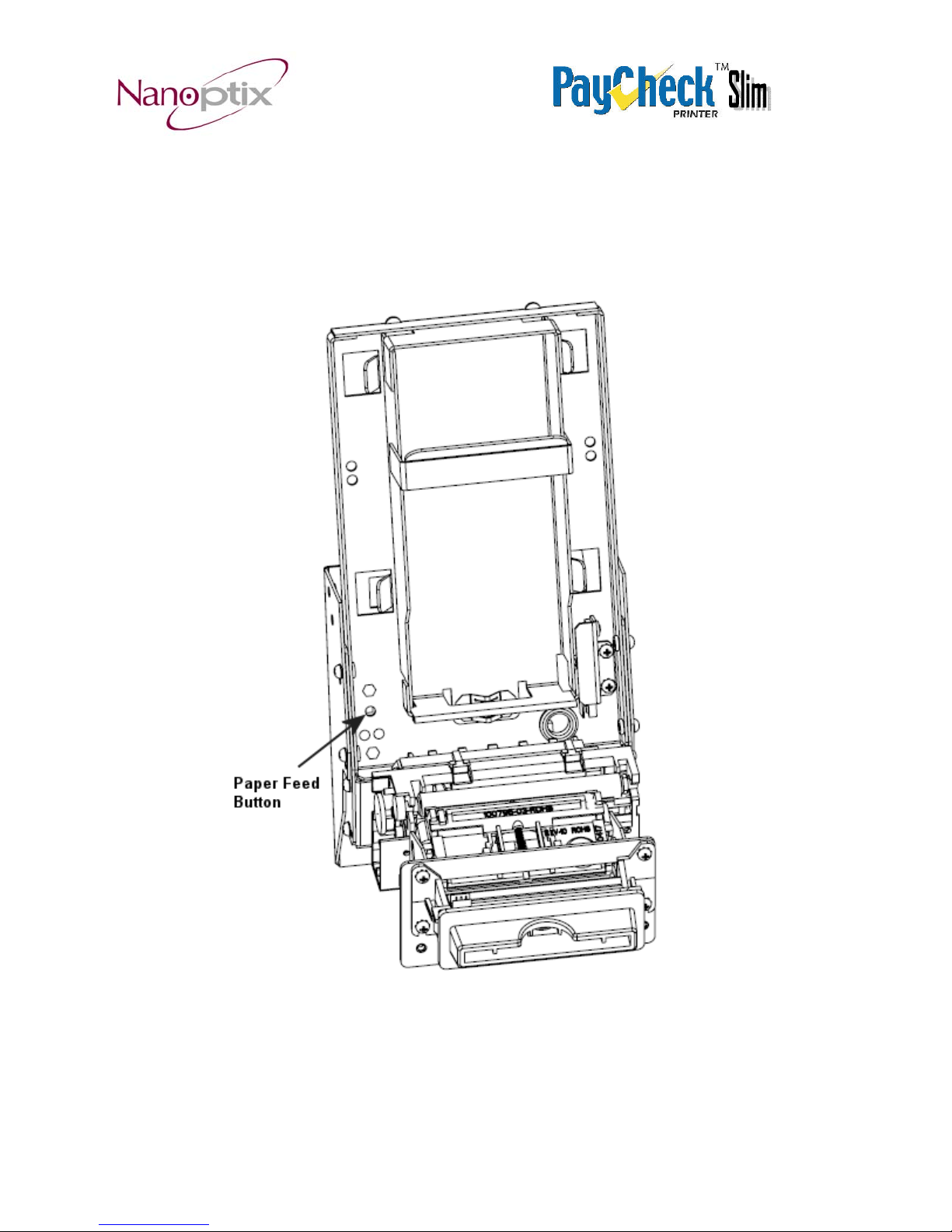

Figure 3: Paper Feed Button

Document # 720006-0000
August, 2011
5
Service Manual
1.4 Printer Controls
1.4.1 Printer Reset (Service use only)
To reset the printer, simply unplug and plug the cable. Once plugged in, the printer goes
through a startup routine and resets itself.
Figure 4: Printer Reset

Document # 720006-0000
August, 2011
6
Service Manual
1.4.2 LED
The LED on the main controller board shows the printer status. Please refer to section 1.5.1 for
LED status and troubleshooting with LED. An optional external LED bezel can be connected
through the front 3-pin Molex connector. The pin-out is described in section 2.1.1.

Document # 720006-0000
August, 2011
7
Service Manual
1.5 Printer Interface Ports
Port Identification Connector Type Function
A 24V DC Jack Power Receptacle
B USB type mini B USB Communication
C Serial Port 9-pin Serial Interface
D 3 pin “Molex type” Bezel LED
Table 2: Interface Ports
Figure 5: Interface Ports
(D)
3 pin
“Molex” type
(C)
Serial Port
(A)
24V DC Jack
(B)
USB type B

Document # 720006-0000
August, 2011
8
Service Manual
1.5.1 LED
Note: An external LED bezel can be connected through the front 3-pin Molex connector.
(Pin-out is described in section 2.1.1.)
Error LED
(Red) Status LED (Green) Voltage LED (Red)
(PayCheck 2 only) Condition
OFF ON OFF Printer Ready
ON OFF OFF Paper Out
MED BLINK OFF OFF Temperature Error
SLOW BLINK OFF ON (Bright) Voltage Error (Over 26.2
VDC)
FAST BLINK ON OFF Print Head Error
FAST BLINK ON OFF Missing Black Index Mark
FAST BLINK ON OFF Paper Jam
Table 3: LED Information
Figure 6: LED Positions

Document # 720006-0000
August, 2011
9
Service Manual
1.6 Testing the Printer
This test can be used to verify the correct operation of the printer. The test prints a resident
ticket listing the current printer settings. This ticket can also be used to verify the printing quality.
To print the test ticket, power-on the printer while pressing and holding the Paper Feed Button
(figure 3) for approximately 3 seconds. A test ticket similar to the one below will be printed
approximately 5 seconds later. Press the paper feed button once more and the ticket will feed.
Pressing the button again will result in blank tickets.
Figure 7: Sample Test Ticket
Model: PAYCHECK 3
Firmware: PAY-1.79U
Protocol: NTL
COMMUNICATION
Interface: Serial
Baud Rate: 9600
Data Bits: 8
Parity: NONE
Handshaking: PRT+RTS
Print mode: NTL
Aux Port: Disabled
PRINT CONTROL
Print Method: No HPQ
Speed: 150 mm/sec
Black Bar Index: Right
No HPQ Burn time: 275 us
Motor Current: 2
Real-Time Command: Enabled
Auto Reset Status: Enabled
PRINTER ENVIRONMENT CONDITIONS
Voltage: 23.8 Volts
Temperature: 24 Celcius
SYSTEM RESOURCES
FLASH: -Used: 0
-Free: 65535
LIBRARY INVENTORY
Templates: 0,1,2,3,4,5,6,7,8,9,A,B
Regions:1,2,3,4,5,6,7,8,h,9,A,B,C,D,E,F,G,I,J,K,L,N,O,P,Q,R,
S,T, U,Z,X,a,b,c,d,e,f,g,i,j,k,l,m,n,o,p,q,
Fonts:0,1,2,3,4,5,7,8,9,P,E,A,B
Graphics:
MANUFACTURING INFORMATION
Printer ID:
Date Code: ffffffff
A to D: 03b4, 020e, 01cc, 03fe
Dip Switch Config (1234) : 0000
STATUS:
*s|0|PAY-1.79U|@|@|@|H|@|P|*

Document # 720006-0000
August, 2011
10
Service Manual
1.7 Clearing Jams
The Nanoptix PayCheck Slim printer’s paper guide and printing mechanism roller are easily
removed, providing full access to the paper path. With the roller removed, simply clear any
debris in the gears or printer mechanism.
Figure 8: Clearing Jams

Document # 720006-0000
August, 2011
11
Service Manual
2 Troubleshooting the Printer
2.1 Basic Printer Operation
Although the Nanoptix PayCheck Slim printer is a complex device, its operation is quite simple.
The printer requires two consumables to operate, (1) a regulated 24 VDC power source and
(2) thermal paper. The printer is equipped with two communication interface ports: one mini
USB port and one serial port both located at the top rear of the unit. A 3-pin I/O connector
situated at the front of the unit can be used to control an external illuminated bezel.
A reflective optical sensor situated at the front of the ticket tray is used to detect a low paper
condition. A second optical sensor is used in the printing mechanism assembly to detect the
presence of paper and start the feeder motor when loading paper. This sensor also works in
conjunction with a third optical sensor situated in the paper chute to realign paper back to its
“ready” position.
When the sensors are not reporting any errors and a recognized data stream is sent to the
printer, a printed ticket will result.

Document # 720006-0000
August, 2011
12
Service Manual
2.1.1 Communication Cables Pin-Out
RS-232 (DB-9) receptacle
Pin Signal Name Printer I/O Host I/O Printer Function
1 AUX_PWR 5V Output n/a Aux Power (100mA)
2 RS232_TXD Output Input Data transmit
3 RS232_RXD Input Output Data receive
4 RS232_CTS Input Output Handshaking
5 DGND Ground Ground Signal Ground/Aux Ground
6 RS232_RTS Output Input Handshaking
7 RS232_CTS Input Output Handshaking
8 RS232_RTS Output Input Handshaking
9 NC or PWR No connect No connect Reserved
Table 4: RS232 receptacle Interface (female)
The tables below detail the connection pin-out for the Serial interface on the printer side.
Pin Signal Name Printer I/O Host I/O Printer Function
1 Reset Input Output Resets Printer
2 PRT_AUX_RXD Input Output Auxiliary Receive
3 VAUX Input Output Auxiliary Power
4 PRT_AUX_TXD Output Input Auxiliary Transmit
5 Signal Ground Signal Ground Signal Ground Signal Ground
6 24V Power Input n/a Power Input
7 Signal Ground Signal Ground n/a Signal Ground
8 24V Power Input n/a Power Input
9 Bezel_pwm 24V Output n/a Bezel Driver
10 Signal Ground Signal Ground Signal Ground Signal Ground
11 PRT_RS232_RXD Input Output Data Receive
12 PRT_RS232_TXD Output Input Data Transmit
13 PRT_Status Output Input Pinter Ready
14 PRT_RS232_RTS Output Input Handshake
Table 5: 14-Pin RS-232 Universal Interface Pin-Out
The tables below detail the connection pin-out for the front Bezel Connector
(3-pin Molex). Pin Signal Printer I/O
1 Bezel PWM Output
2 24VDC Output
3 GND GND
Table 6: Pin-Out and signals of Front Molex (for Bezel)

Document # 720006-0000
August, 2011
13
Service Manual
2.2 Printing Problems
The table below can be used to determine the cause and resolution of the most common
problems that may occur. If the information in this section does not correct the problem, contact
a Nanoptix service representative.
Problem Possible Causes What to Do
Check that printer cables are properly
connected at both ends
Printer Does Not
Function When Turned
On
Printer not plugged in
Check that the host and power supply
are getting power
Paper width out of specification Test paper width for compliance
Debris or partial ticket stuck in
paper path Open paper guide and detach roller, remove debris
Paper jam
Paper’s perforation burst strength
out of spec Test paper perforation for compliance
Noisy Feeder Motor (paper
disengaged) Printer is meant to be operated with paper engaged in the printing
mechanism, failing to do so will
cause gears to grind and slip,
noise may result
Do not operate printer without any paper
engaged in the printing mechanism
Note: Never lubricate gears or any other
part of the printer
Paper does not realign itself
when a ticket is printed Paper’s alignment mark, (which is the black dot printed on the non-
sensitive side of thermal paper)
may be out of specification
The maximum reflectance of the
alignment mark is 15% (infrared). Simply
put, this means that the alignment mark’s
color should be an even/crisp black. If
any white or gray is visible, it is an
indication that the reflectance could be
more than 15%
Paper’s thermal coating
inconsistent Change the paper stack to make sure the thermal coating is not the source
Line of print or section missing
lengthwise on entire ticket Thermal printing mechanism
damaged Contact customer service representative
Thermal print head is dirty Clean print head at recommended
intervals
Print is light or spotty Paper’s thermal coating
inconsistent Change the paper stack to make sure the thermal coating is not the source
Table 7: Troubleshooting Printing Problems

Document # 720006-0000
August, 2011
14
Service Manual
2.2.1 Troubleshooting with LED
Error LED (Red) Status LED (Green) Condition
OFF ON Printer Powered or Ready
ON ON Paper Out
MED BLINK ON Temperature Error
SLOW BLINK ON Voltage Error (Over 26.2 VDC)
FAST BLINK ON Print Head Error
FAST BLINK ON Missing Black Index Mark
FAST BLINK ON Paper Jam
Table 8: Troubleshooting with LED
