Napoleon EPI3 User manual

EN
W415-1773 / A / 11.23.17
FR
PG
41
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • www.napoleonfireplaces.com • [e-mail]
1.8A
$10.00
SAFETY INFORMATION
If the information in these instructions are not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
Please read entire manual before you install and use
your appliance.
This heater has not been tested with an unvented gas
log set. To reduce risk of fire or injury, do not install an
unvented gas log set into the heater.
- This heater can be very hot when burning.
- Combustible materials such as firewood, wet clothing,
etc. placed too close can catch fire.
- Children and pets must be kept from touching the heater
when it is hot.
- The chimney must be sound and free of cracks. Before
installing this appliance, contact the local building or fire
authority and follow their guidelines.
- Operate only with the doors tightly closed.
-
Burn wood behind the log retainer directly on the firebricks.
- Do not use an elevated grate or otherwise raise the fire.
- This appliance is designed to burn natural wood only.
Higher efficiencies and lower emissions generally result
when burning air dried seasoned hardwoods, as compared
to softwoods or to green or freshly cut hardwoods.
- Do not start a fire with chemicals or fluids such as
gasoline, engine oil, etc.
- Do not burn trash or garbage, lawn clippings / waste,
rubber, waste petroleum products, paints or paint
thinners / solvents, plastic, materials containing asbestos,
construction debris, railroad ties or treated wood,
manure or animal remains, salt water driftwood or salted
materials, unseasoned wood, coal, charcoal, coloured
paper, cardboard, plywood or particleboard. Burning these
materials may result in release of toxic fumes or render the
appliance ineffective and cause smoke.
- Do not let the appliance become hot enough for any part
to glow red.
Wood Stoves ONLY
- At least 14 square inches (90.3 square centimeters) of
outside air must be admitted to the room or directly to the
appliance through a 4” (101.6mm) diameter pipe.
- KEEP THE STOVE TOP TEMPERATURE BELOW 700°F (371°C).
Attempts to achieve heat output rates that exceed design
specifications can result in steel distortion and damage.
!WARNING
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
DANGER
!
AVERTISSEMENT
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Une barriére conçu à réduire le risque de brûlures
causées par le verre chaud est fourni avec l’appareil
et sera installé pour la protection des enfants et
d’autres personnes à risque.
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
!
AVERTISSEMENT
ADD ETL,
OMNI or CSA
LOGO HERE
ADD SAFETY STANDARD INFORMATION...
ADD
PRODUCT
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
This wood appliance needs periodic inspection and repair. It is against United States federal regulations to
operate this wood appliance in a manner inconsistent with the operating instructions in this manual.
FOR INDOOR USE ONLY!
EPI3
WOOD INSERT
MODEL EPI3 MEETS THE 2015 U.S ENVIRONMENTAL PROTECTION AGENCY (E.P.A.) CRIB WOOD EMISSION LIMITS FOR WOOD STOVES SOLD AFTER
MAY 15, 2015, 40 C.F. R. PART 60. THESE APPLIANCES HAVE BEEN TESTED AND LISTED BY OMNI-TEST LABORATORIES, INC. TO
STANDARDS: ULC-S628, UL1482.

W415-1773 / A / 11.23.17
2
EN
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS (COMPLETE WITH CAST SURROUND) 5
2.2 SPECIFICATIONS 5
2.3 GENERAL INSTRUCTIONS 6
2.4 GENERAL INFORMATION 6
2.5 E.P.A. COMPLIANCE 7

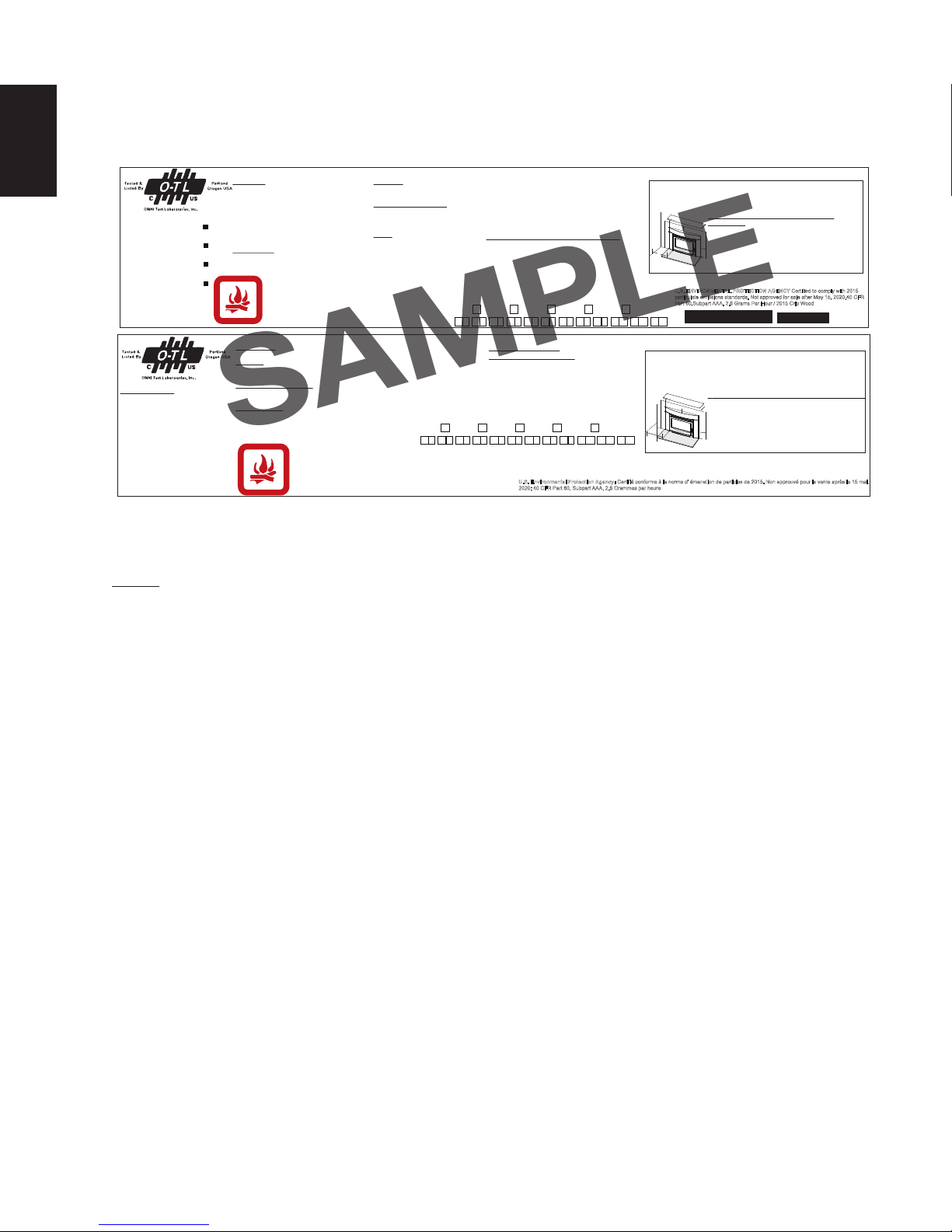

2.6 RATING PLATE INFORMATION 8
3.0 PRE-INSTALLATION PREPARATION 9
3.1 MINIMUM CLEARANCE TO COMBUSTIBLES 9
3.2 HEARTH EXTENSION/FLOOR PROTECTION 10
4.0 INSTALLATION 11
4.1 TYPICAL EXISTING MASONRY 12
4.2 INSTALLING THE EPI3 13
4.3 FACTORY BUILT FIREPLACE 14
5.0 FINISHING 14
5.1 SECONDARY AIR TUBES 14
5.2 BRICKS AND BAFFLE INSTALLATION 15
5.3 SURROUND INSTALLATION, TRADITIONAL CAST 16
5.4 SURROUND INSTALLATION,
CONTEMPORARY CAST 17
6.0 OPERATION 18
6.1 OPTIMUM BURN METHOD 19
6.2 AIR CONTROL 20
6.3 FIRE EXTINGUISHERS / SMOKE & CARBON
MONOXIDE DETECTORS 20
6.4 FUEL 21
6.5 LIGHTING A FIRE 21
6.5.1 FLASH FIRE 21
6.5.2 EXTENDED FIRE 22
6.6 SMOKING 22
6.7 BLOWER OPERATION 23
NOTE: The camera icon indicates video tutorials are available as additional reference. Visit
http://mynapoleon.napoleonproducts.com/download/index/44/1
7.0 MAINTENANCE 24
7.1 ASH REMOVAL PROCEDURES 24
7.3 CREOSOTE FORMATION AND REMOVAL 25
7.2 RUNAWAY OR CHIMNEY FIRE 25
7.4 CHIMNEY CLEANING 26
7.5 DOOR REMOVAL 26
7.6 LATCH BLOCK MECHANISM REPLACEMENT 27
7.7 DOOR GLASS REPLACEMENT 28
7.8 CARE OF GLASS 29
7.9 CARE OF PLATED PARTS 29
7.10 BLOWER SERVICE OR REPLACEMENT 30
7.11 WOOD 31
8.0 REPLACEMENTS 32
8.1 EPI3C OVERVIEW 33
8.2 EPI3C DOOR ASSEMBLY 34
8.3 EPI3T OVERVIEW 35
8.4 EPI3T DOOR ASSEMBLY 36
8.5 EPI3C/T BLOWER ASSEMBLY 37
9.0 TROUBLESHOOTING 38
10.0 WARRANTY 39

W415-1773 / A / 11.23.17
3
EN
1.0 INSTALLATION OVERVIEW
Rating plate, see
“RATING PLATE
INFORMATION”
section. Blower, see “BLOWER
OPERATION” section.
Door, see “DOOR
REMOVAL AND HANDLE
REPLACEMENT” section.
Flashing, see “SURROUND
INSTALLATION” section. Draft, see “AIR
CONTROL” section.

W415-1773 / A / 11.23.17
4
EN
2.0 INTRODUCTION
3.17H
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND
IS PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance
according to operating instructions could cause fire or injury.
• Before installing this appliance, contact the local building or fire authority and follow their guidelines.
• This appliance must be installed by a qualified installer.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not operate without fully assembling all components.
• Do not let the appliance become hot enough for any part to glow red.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves, safety glasses, and boots/shoes during installation. Sheet
metal edges may be sharp.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid
burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access to an appliance or stove, install an adjustable safety gate to
keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance. Objects placed in front of the
appliance must be kept a minimum of 4 feet (1.2m) away from the front face of the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measures to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and / or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe servicing a separate solid fuel burning appliance.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should
be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• If the appliance is not properly installed, a house fire may result. Do not expose the appliance to the elements (ex.
rain, etc.) and keep the appliance dry at all times. Wet insulation will produce an odour when the appliance is used.
• The chimney must be sound and free of cracks. Clean your chimney a minimum of twice a year and as required.
• Do not start a fire with chemicals or fluids such as gasoline, engine oil, etc.
• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to smoke
spillage in your home.
• Lower emissions generally result when burning air dried seasoned hardwoods, as compared to softwoods or too
green or freshly cut hardwoods. Burning wet unseasoned wood can cause excessive creosote accumulation.
When this is ignited it can cause a chimney fire that may result in a serious house fire.
• This appliance is designed to burn natural wood only. Do not burn trash or garbage, lawn clippings / waste,
rubber, waste petroleum products, paints or paint thinners / solvents, plastic, materials containing asbestos,
construction debris, railroad ties or treated wood, manure or animal remains, salt water driftwood or salted
materials, unseasoned wood, coal, charcoal, coloured paper, gift wrapping, cardboard, plywood or particleboard.
Burning these materials may result in release of toxic fumes or render the appliance ineffective and cause smoke.
• Burn wood directly on the firebricks. Do not elevate grate or otherwise raise the fire.
• Do not store wood within appliance installation clearances or within the space required for re-fueling and ash removal.
• Ashes must be disposed in a metal container with a tight lid and placed on a non-combustible surface well away
from the home or structure until completely cool.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage to
decorations, a T.V. or other electronic components.
• If equipped, the catalyst must be installed and in good working order. It is recommended that the catalyst is
inspected at least 3 times per heating season.

W415-1773 / A / 11.23.17
5
EN
2.1 DIMENSIONS (COMPLETE WITH CAST SURROUND)
EPI3T TRADITIONAL MODEL
EPI3C CONTEMPORARY MODEL
29 1/2"
749mm
21 5/16"
541mm
18"
457mm
17 5/16"
440mm
5 1/8"
130mm
42 1/2"
1080mm
26 1/2"
673mm
21 1/2"
546mm
6"
152mm
28 1/2"
724mm
21 5/16"
541mm
18"
457mm
17 5/16"
440mm
5 1/8"
130mm
42 1/2"
1080mm
26 1/2"
673mm
21 1/2"
546mm
6"
152mm
* As tested using test method 28
** Figures will vary considerably with individual conditions.
*** Wolf Steel Ltd. estimated realistic BTU/hr with cordwood logs and regular refueling.
Specifications EPI3
CHAMBER (D.W.H) 13 3/4” x 20 7/8” x 11 1/2”
(349.3mm) x (530.3mm) x (292.1mm)
CAPACITY 1.8 ft3 (0.05 m3)
APPROX. AREA HEATED** 1500 ft2 (139.4 m2)
MAXIMUM HEAT OUTPUT*** 55,000 BTU/Hr
HEAT OUTPUT* 11,000 - 28,000 BTU/Hr
DURATION LOW FIRE** 8 Hours
WEIGHT COMPLETE 400 lbs (181.4 kg)
WEIGHT OF BRICKS 80 lbs (36.3 kg)
WEIGHT WITHOUT CAST SURROUND (COMPLETE WITH
DOOR) AND BRICKS
250 lbs
(113.4 kg)
2.2 SPECIFICATIONS

W415-1773 / A / 11.23.17
6
EN
2.3 GENERAL INSTRUCTIONS
Before beginning installation, consult with local building code agencies / fire officials and insurance
representatives to ensure compliance.
Non-toxic smoke will be emitted during the paint curing process. To help dissipate smoke, open windows or
doors near the appliance.
Remove any dust or debris off the top of the appliance before firing the appliance, as the paint will become
soft as the appliance heats up and will harden as the appliance cures. To cure the paint on the appliance,
burn the appliance moderately hot during the first few fires.
To keep the gasket from sticking to the appliance as the paint is curing, open the door every 5 to 10 minutes.
For the first 2 weeks, use generous amounts of fuel and burn the appliance with the damper wide open for
30 minutes as the appliance goes through the process of eliminating moisture in the steel and firebricks. The
initial heat output will be minimal while the moisture is being drawn from the appliance. For this reason, it will
be necessary to build several hot fires to remove the moisture. DURING THIS PROCESS, DO NOT OVER
FIRE THE APPLIANCE. REDUCE THE AMOUNT OF AIR COMING INTO THE APPLIANCE IF IT OR THE
CHIMNEY BECOMES RED.
This appliance was specifically designed to meet the July 1990 particulate emission standards and has been
extensively tested in Canadian and US laboratories to be efficient, simple, and trouble free.
The appliance uses clean-burning technology found in all Napoleon EPA certified stoves equipped with a heat
circulating blower. External modifications have been made to allow its installation as a “functional insert” with a heat
circulating blower system, as well as a means of enclosing the solid fuel burning fireplace cavity for greater heating
efficiency.
The appliance must only be installed into a solid fuel burning fireplace that is at least 18” (45.7cm) deep, 27”
(68.6cm) wide, and 22” (55.9cm) high with an approved lined chimney at least 15’ (4.6m) high and a hearth at least
18” (45.7cm) wide for Canada and 16” (40.6cm) wide for USA. This minimum recess can only be achieved if the
opening height is sufficient enough to allow the connector to fit under the non-combustible facing. The appliance and
chimney must be constructed in accordance with all national and local building code standards.
2.4 GENERAL INFORMATION
4.7
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH
LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
THE UNITED STATES.
THIS APPLIANCE HAS NOT BEEN TESTED WITH ANY VENTED OR UNVENTED GAS LOG SET. TO
REDUCE RISK OF FIRE OR PREVENT INJURY, DO NOT INSTALL A VENTED OR UNVENTED GAS LOG
SET INTO THE APPLIANCE.
BURNING YOUR UNIT WITH THE ASH DUMP DOOR OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN DISCOLOURATION TO THE GOLD PLATED DOOR, INTERNAL DAMAGE TO THE
APPLIANCE OR A HOUSE CHIMNEY FIRE.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
THIS APPLIANCE AND IT’S COMPONENTS ARE DESIGNED TO BE INSTALLED AND OPERATED AS A
SYSTEM. ANY ALTERATION TO OR SUBSTITUTION FOR ITEMS IN THIS SYSTEM, UNLESS ALLOWED
BY THESE INSTALLATION INSTRUCTIONS, WILL VOID THE LISTING AND MAY VOID THE PRODUCT
WARRANTY. IT MAY ALSO CREATE A HAZARDOUS INSTALLATION. READ THROUGH THESE
INSTRUCTIONS THOROUGHLY BEFORE STARTING YOUR INSTALLATION AND FOLLOW THEM
CAREFULLY THROUGHOUT YOUR PROJECT.
!
WARNING

W415-1773 / A / 11.23.17
7
EN
2.5 E.P.A. COMPLIANCE
CALIFORNIA PROP 65 WARNING:
Use of this product may produce smoke which contains
chemicals known to the State of California to cause cancer, birth
defects, or other reproductive harm.
If the appliance begins smoking, open a door or window, or
supply the appliance with combustion air in some other way.
We suggest that our woodburning hearth products
be installed and serviced by professionals who are
certified in the U.S. by the National Fireplace
Institute® (NFI) as NFI Woodburning Specialists or
who are certified in Canada by
Wood Energy Technical
Training (WETT).
AIR INLET PATH
EXHAUST PATH
The chimney vent system used on this wood burning
appliance should be designed with the least amount of
restriction possible to enable the flow of exhaust products.
Chimney vent systems that are too short or too long can also
have an adverse affect on the flow of exhaust.
The wood burning appliance and chimney vent system
require a sufficient supply of combustion air, not only to
support the combustion in the combustion chamber, but to
replace the outbound exhaust.
Secondary air from the side intake openings travels up to
the secondary air housing, and then to the manifold located
across the top. Finally, it flows out laterally to oxidize the
gases below the smoke exit.
The combustion chamber is lined with high temperature
refractory firebricks on the sides, back, and bottom. A
fibre baffle on top helps maintain a high temperature in
the combustion chamber so that gases mixing with the
preheated air from the secondary air manifold tubes are
easily ignited and burned.
There are many other appliances in the home competing
with the appliance for air, such as kitchen range hoods,
forced air heating devices, and bathroom exhaust fans.
Therefore, in order to avoid fire hazards and/or injuries, be
sure to provide sufficient combustion air to the appliance.
Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.
After extended periods of non-operation (i.e. vacation, warm weather season, etc.), the appliance may emit
a slight odour for a few hours as a result of dust particles in the firebox burning off. If this happens, open a
window to sufficiently ventilate the room.
Model EPI3 meets the 2015 U.S. Environmental Protection Agency (E.P.A.) Crib Wood Emission limits for
wood stoves sold after May 15, 2015, 40 C.F. R. Part 60. These appliances have been tested and listed by
Omni-Test Laboratories, Inc. to standards: ULC-S628, UL1482.

W415-1773 / A / 11.23.17
8
EN
2.6 RATING PLATE INFORMATION
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information. For
the French, remove the rating plate, flip it over, and re-attach.
NOTE: The rating plate must remain with the appliance at all times. It must not be removed.
For rating place location, see “Installation Overview” section.
WOLF STEEL LTD.
TITLE: LABEL, RATING PLATE EPI3
REVISION: B: DELETED "MEASURED FROM INSERT BODY" STATEMENT || 11.13.17_
DWG #: W385-2033
DATE #: 05.16.16
EPI3 , LISTED SOLID FUEL BURNING FIREPLACE INSERT. TESTED TO ULC S628-93 / UL 1482-2011
DANGER: RISK OF ELECTRICAL
SHOCK. DISCONNECT POWER
BEFORE SERVICING UNIT.
CHIMNEY CONNECTOR: 6” (152mm)
DO NOT CONNECT THIS UNIT TO A
CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.
FUEL: FOR USE WITH SOLID WOOD
FUEL ONLY. DO NOT USE GRATE OR
ELEVATE FIRE - BUILD WOOD FIRE
DIRECTLY ON HEARTH.
WARNING: RISK OF SMOKE SPILLAGE.
OPERATE ONLY WITH DOOR FULLY CLOSED.
REPLACE GLASS ONLY WITH THE CERAMIC
GLASS. DO NOT OVERFIRE. IF HEATER OR
CHIMNEY CONNECTORS GLOW, YOU ARE
OVERFIRING. INSPECT AND CLEAN CHIMNEY
FREQUENTLY. UNDER CERTAIN CONDITIONS
OF USE, CREOSOTE BUILD UP MAY OCCUR
RAPIDLY.
BLOWER KIT: 115V, 60HZ, 1.5AMP. ROUTE
CORD AWAY FROM UNIT.
INSTALL AND USE ONLY IN ACCORDANCE WITH
THE MANUFACTURER’S INSTALLATION AND
OPERATION INSTRUCTIONS. INSTALL AND USE
ONLY IN MASONRY FIREPLACE OR FACTORY
BUILT FIREPLACE. CONTACT LOCAL BUILDING
OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION IN YOUR AREA.
HEARTH EXTENSION/FLOOR PROTECTION:
MUST BE NON COMBUSTABLE AND HAVE A
MINIMUM THICKNESS OF 0.5” WITH A THERMAL
CONDUCTIVITY FACTOR (K) 0.84 AND RESISTANCE
VALUE (R) 0.59.
CAUTION:
HOT WHILE IN OPERATION. DO NOT TOUCH.
KEEP CHILDREN AND CLOTHING AND
FURNITURE AWAY. CONTACT MAY CAUSE SKIN
BURNS.
MINIMUM CLEARANCE TO COMBUSTIBLE
MATERIALS
A ADJACENT SIDEWALL A) 12”/305mm
B MANTEL B) 16”/406mm
C TOP FACING C) 16”/406mm
D SIDE FACING D) 6”/152mm
EPI3
DATE CODE
W385-2033 / B
Pour le français, l'étiquette arrière.
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5 IN / 38MM ABOVE
AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PROTECT-
ED BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 16 in / 450MM (US), 18 IN /
456MM (CAN) TO FRONT AND (G) 8 IN / 205 MM TO SIDES FROM FUEL DOOR. FOR
ADDITIONAL MANTEL INFORMATION SEE OWNER’S INSTRUCTION MANUAL
NAC GUANGZHOU P.R.C.
NO.69 HEFENG ROAD,
GUANGZHOU,CHINA
24 NAPOLEON ROAD, BARRIE, ON,
L4M 0G8 CANADA
WOLF STEEL LTD.
NAC
214 BAYVIEW DRIVE, BARRIE, ON
L4N 4Y8 CANADA
103 MILLER DRIVE
CRITTENDEN, KY 41030-7560
WOLF STEEL USA
MAXIMUM SIZE: 14" x 3"
SILVER ON BLACK BACKGROUND
MATERIAL: CLASS III A-1 PERMANENT LABEL COMPUCAL
SPECIFICATIONS: WATERPROOF, NON-WATER-SOLUBLE ADHESIVE CAPABLE OF WITHSTANDING 250° TEMPERATURES
SERIAL NUMBER ASCENDING FROM 020661
“CAUTION” MINIMUM LETTERING SIZE 18PT AND 8.64PT FOR THE REMAINDER OF THAT WARNING
415-S-11-2
A
D
B
U.S. ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2015
particulate emissions standards. Not approved for sale after May 15, 2020. 40 CFR
Part 60,Subpart AAA. 2.6 Grams Per Hour / 2015 Crib Wood
MANUFACTURE DATE:
YEAR: 2016 2017 2018
MONTH:
2019 2020
2 43 65 87 109 12111
C
THIS WOOD APPLIANCE NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER OPERATION. CONSULT THE OWNER’S MANUAL FOR FURTHER
INFORMATION. IT IS AGAINST UNITED STATE FEDERAL REGULATIONS TO OPERATE THIS WOOD APPLIANCE IN A MANNER INCONSISTENT WITH THE
OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.
B
WOLF STEEL LTD.
TITLE: LABEL, RATING PLATE EPI3 FRENCH
REVISION: B: DELETED EQUIVALENT FRENCH TRANSLATION OF “MEASURED FROM INSERT BODY” STATEMENT || 11.13.17_
DWG #: W385-2067
DATE #: 05.16.16
MAXIMUM SIZE: 14” x 3”
SILVER ON BLACK BACKGROUND
MATERIAL: CLASS III A-1 PERMANENT LABEL COMPUCAL
SPECIFICATIONS: WATERPROOF, NON-WATER-SOLUBLE ADHESIVE CAPABLE OF WITHSTANDING 250° TEMPERATURES
“CAUTION” MINIMUM LETTERING SIZE 18PT AND 8.64PT FOR THE REMAINDER OF THAT WARNING
EPI3, FOYER ENCASTRÉ À COMBUSTIBLE SOLIDE HOMOLOGUÉ. TESTÉ SELON LES NORMES ULC S628-93 / UL 1482-2011
AVERTISSEMENT : RISQUE
D’ÉCHAPPEMENT DE FUMÉE. TENIR LA
PORTE FERMÉE LORSQUE LE POÊLE
FONCTIONNE. EMPLACEZ LA VITRE
PAR UNE VITRE EN CÉRAMIQUE
SEULEMENT. NE SURCHAUFFEZ PAS
L’APPAREIL. SI L’APPAREIL OU LES
RACCORDS ROUGEOIENT, L’APPAREIL
SURCHAUFEE. INSPECTEZ ET
NETTOYEZ LA CHEMINÉE
FRÉQUEMMENT. DANS CERTAINES
CONDITIONS, DES DÉPÔTS DE
CRÉOSOTE PEUVENT SE FORMER
RAPIDEMENT.
INSTALLER ET UTILISER SELONS LES
INSTRUCTIONS DU FABRICANT.
INSTALLER ET UTILISER DANS UN FOYER
DE MACONNERIE OU PRÉFABRIQUÉ.
APPELER VOTRE INSPECTEUR DE
BÂTIMENT OU LE DÉPARTMENT
D’INCENDIE LOCAL POUR LES CODES
LOCAUX ET POUR INSPECTÉE VOTRE
INSTALLATION ET FOYER.
INSTALLER SUR UN ÂTRE DE MATÉRIAUX INCOMBUSTIBLE SURÉLEVÉ (F) 1,5
POUCES / 38MM DESSUS DU PLANCHER COMBUSTIBLE ADJACENT. LE PLANCHER
COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR LE MATERIAUX INCOMBUSTIBLE QUI
ÉTENDRE. (E) 16 IN / 405MM (ETATS-UNIS) 18 IN / 457MM (CAN) EN AVANT ET (G) 8IN
/ 205MM LES CÔTÉ DE LA PORTE. POUR DE PLUS AMPLES RENSEIGNEMENTS SUR
LE MANTEAU, CONSULTEZ LE MANUEL D’INSTRUCTIONS.
BDÉGAGEMENTS AUX MATÉRIAUX COMBUSTIBLES:
A CÔTÉ A) 12”/305mm
B DESSUS B) 16”/406mm
C TABLETTE C) 16”/406mm
D MUR LATÉRAL D) 6”/152mm
For English see Reverse
Pour la date et le numéro de série, voir le revers.
415-S-11-2
SOUFFLERIE: 115V, 60HZ, 1.5AMP. TENEZ LE
CORDON ÉLECTRIQUE LOIN DE L’APPAREIL.
DANGER: RISQUE DE SECOUSSE
ÉLECTRIQUE. DÉBRANCHEZ AVANT DE
PROCÉDER À L’ENTRETIEN.
RACCORD DE CHEMINÉE : 6” (152mm)
NE
PAS RACCORDER À LA CHEMINÉE D’UN AUTRE
APPAREIL.
COMBUSTIBLE : POUR USAGE AVEC LE
BOIS CHENET OU NE SURÉLEVEZ PAS
SOLIDE SEULEMENT. N’UTILISEZ PAS DE
LE BOIS -PRÉPAREZ LE FEU DIRECTEMENT
SUR L’ÂTRE.
BASE DE PROTECTION/
PROTECTION DE PLANCHER: DOIT
ÊTRE INCOMBUSTIBLE ET AVOIR
UNE ÉPAISSEUR MINIMALE DE 0,5”
AVEC UN COEFFICIENT DE
CONDUCTIVITÉ THERMIQUE (K) DE
0,84 ET UN COEFFICIENT DE
RÉSISTANCE THERMIQUE (R) DE
0.59.
A
C
D
DATE DE FABRICATION:
YEAR: 2016 2017 2018
MONTH:
2019 2020
2 43 65 87 109 12111
ATTENTION :
QUAND L’APPAREIL FONCTIONNE, LA SURFACE DEVIENT
CHAUDE. NE PAS TOUCHER. TENIR LES ENFANTS, LES
VÊTEMENTS ET LES MEUBLES À L’ÉCAR. LE CONTACT PEUT
CAUSER DES BRÛLURES À LA PEAU. W385-2067 / B
U.S. Environmental Protection Agency: Certifié conforme à la norme d’ émanation de particles de 2015. Non approuvé pour la vente après le 15 mai,
2020 : 40 CFR Part 60, Subpart AAA. 2.6 Grammes par heure
CET APPAREIL AU BOIS DOIT FAIRE L’OBJECT D’UNE INSPECTION ET D’UN ENTRETIEN PÉRIODIQUES POUR UN FONCTIONNEMENT ADÉQUAT. CONSULTEZ LE MANUEL
D’INSTRUCTIONS POUR PLUS D’INFORMATION. LES RÈGLEMENTS FÉDÉRAUX DE L’ÉTATS-UNIS INTERDISENT D’UTILISER CET APPAREIL DE CHAUFFAGE D’UNE MANIÈRE ALLANT
À L’ENCONTRE DES INSTRUCTIONS DE FONCTIONNEMENT CONTENUES DANS CE MANUEL.
B
SAMPLE

W415-1773 / A / 11.23.17
9
EN
3.0 PRE-INSTALLATION PREPARATION
Clean all ashes from the inside of the existing appliance opening. Ensure the chimney and appliance are
free of cracks, loose mortar, creosote deposits, blockages, or other signs of deterioration. If necessary, have
repair work done by a qualified professional before installing the appliance.
Do NOT remove bricks or mortar from the appliance. In case of an outside air inlet or ash dump, fill with
fiberglass insulation. Adhere to minimum clearances as illustrated.
MINIMUM CLEARANCES
ASidewall 12" (30.5cm)
BMantel 16" (40.6cm)
12" (30.5cm) Projection
CTop facing 16" (40.6cm)
DSide facing 6" (152mm)
EHearth (front) Canada 18" (45.7cm)
USA 16" (40.6cm)
FHearth (side) 8" (203mm)
GIn front of
insert 48" (121.9cm)
MINIMUM APPLIANCE OPENING
HWidth (rear) 23" (58.4cm)
IWidth (front) 28" (71.1cm)
JHeight (front) 22" (55.9cm)
KHeight (rear) 19" (48.3cm)
LDepth 18" (45.7cm)
MHearth depth Canada 22" (55.8cm)
USA 20" (50.8cm)
NHearth width 46" (116.8cm)
OFacing width 54 1/2" (138.4cm)
PFacing
height
Contemporary 45 1/2"
(115.5cm)
Traditional 44 1/2”
(113 cm)
QMantel Contemporary 45 1/2”
(115.5cm)
Traditional 44 1/2”
(113cm)
RHeight of top
surface
Contemporary 29 1/2”
(74.9cm)
Traditional 28 1/2”
(72.3cm)
SSide facing 13 1/4” (33.6cm)
THearth (side) 9” (22.8cm)
USidewall 13” (33cm)
A
E
G
B C
D
N
F
R
TOP
SURFACE
O
P
Q
SIDEWALL
I
L
J
K
HS
S
M
T
U
3.1 MINIMUM CLEARANCE TO COMBUSTIBLES

W415-1773 / A / 11.23.17
10
EN
99.2C
THERMAL PROTECTOR:
This appliance must be installed on a non-combustible thermal protector that extends to the front, sides
and back of the appliance as per the minimum requirements below.
NOTE: Floor protection is required for spark and ash shielding, and for limiting fl oor
temperatures from the radiant heat of the appliance.
J
J
I
L
K
J
J
I
L
The thermal protector must have an overall R-Value of 1.0. For multiple layers, add
R-Values for each layer to determine the overall R-Value.
CONVERTING MATERIAL SPECIFICATIONS TO R OR K VALUES
R = Thickness / K-Value
K = Thickness / R-Value
MINIMUM FLOOR PROTECTION
FRONT (I) SIDES (J) VENT (L)
6” (152mm) 6” (152mm) 2” (51mm)
COMMON K and R VALUES CHART
MATERIAL K-VALUE R-VALUE
Per inch Per inch
Micore 300 0.43 2.33
Wonderboard (cement board) 1.92 0.52
Common Brick 5.00 0.20
Cement Mortar 5.00 0.20
Ceramic Tile 12.50 0.08
Marble 11.00 0.09
Air Space (ventilated) 0.70 1.43
Sand and Gravel 1.70 0.59
Drywall (gypsum) 1.00 1.00
Rockwool or Fiberglass Batts 0.30 3.33
With K values, the lower value is a better insulator. With R values, the higher number is better.
K-Value Example:
A wood stove may call for thermal protection which has a K factor of 1 or less. A product
such as Micore 300 Board from USG has a K-Value of approximately .43 per inch.
Therefore, a 1/2” (12.7mm) thickness of this board would have a K-Value of .86, which
meets the requirement of our example stove.
R-Value Example:
This fi replace calls for thermal protection with an R-Value of 0.59. This same board
above is rated as having an R-Value of 2.33 for a 1” (25.4mm) thickness. Therefore,
1/2” (12.7mm) of the Micore 300 Board would have a R-value of 1.165, which meets
the specifi cations for this fi replace.
3.2 HEARTH EXTENSION/FLOOR PROTECTION
Hearth extensions / floor protection must be made of non-combustible materials. They must meet the
following specifications:
• Minimum extension to the front of the insert:
- Canada: 18” (45.7cm)
- USA: 16” (40.6cm)
• Minimum 8” (203mm) extension to the sides of the insert
• Minimum 0.5” (13mm) thickness
• Minimum (K*) 0.84 thermal conductivity factor; and
• Minimum (R*) 0.59 resistance value
* See chart below for more information.

W415-1773 / A / 11.23.17
11
EN
4.0 INSTALLATION
It is extremely important that this appliance be installed according to the manufacturer's specifications, as
well as local and national codes.
In Canada, the installation codes are:
• CSA B365 and
• CSA C22
In USA, the installation codes are:
• ANSI NFPA 70 and
• ANSI NFPA 211
NOTE: Before beginning installation, ensure chimney and liner are in good condition. They must be
kept clean.
68.3D
!
WARNING
WEAR PROTECTIVE GLOVES, SAFETY GLASSES, AND BOOTS/SHOES.
CAREFULLY FOLLOW THE INSTRUCTIONS FOR ASSEMBLY OF THE PIPE AND OTHER PARTS
NEEDED TO INSTALL THE APPLIANCE. FAILURE TO DO SO MAY RESULT IN A FIRE, ESPECIALLY IF
COMBUSTIBLES ARE TOO CLOSE TO THE APPLIANCE OR CHIMNEY AND AIR SPACES ARE
BLOCKED, PREVENTING THE FREE MOVEMENT OF COOLING AIR.
DO NOT DRAW OUTSIDE AIR FROM GARAGE SPACES. EXHAUST PRODUCTS OF GASOLINE ENGINES
ARE HAZARDOUS. DO NOT INSTALL OUTSIDE AIR DUCTS SUCH THAT THE AIR MAY BE DRAWN
FROM ATTIC SPACES, BASEMENTS OR ABOVE THE ROOFING WHERE OTHER HEATING APPLIANCES
OR FANS AND CHIMNEYS EXHAUST OR UTILIZE AIR. THESE PRECAUTIONS WILL REDUCE THE
POSSIBILITY OF APPLIANCE SMOKING OR AIR FLOW REVERSAL. THE OUTSIDE AIR INLET MUST
REMAIN CLEAR OF LEAVES, DEBRIS ICE AND/OR SNOW. IT MUST BE UNRESTRICTED WHILE
APPLIANCE IS IN USE TO PREVENT ROOM AIR STARVATION WHICH CAN CAUSE SMOKE SPILLAGE
AND AN INABILITY TO MAINTAIN A FIRE. SMOKE SPILLAGE CAN ALSO SET OFF SMOKE ALARMS.
NEGATIVE PRESSURE WITHIN YOUR HOME MAY INADVERTENTLY AFFECT YOUR APPLIANCE.
TO PREVENT CONTACT WITH SAGGING OR LOOSE INSULATION, THE APPLIANCE MUST NOT BE
INSTALLED AGAINST VAPOUR BARRIERS OR EXPOSED INSULATION. LOCALIZED OVERHEATING
COULD OCCUR AND A FIRE COULD RESULT.
DO NOT USE MAKESHIFT COMPROMISES DURING INSTALLATION. DO NOT BLOCK OR RESTRICT
AIR, GRILLE OR LOUVRE OPENINGS. DO NOT ADD A HOOD.
TO PREVENT PERSONAL INJURY KEEP HAND TOOLS IN GOOD CONDITION, SHARPEN CUTTING
EDGES AND MAKE SURE TOOL HANDLES ARE SECURE.
ALWAYS MAINTAIN THE MINIMUM AIR SPACE REQUIRED TO THE ENCLOSURE TO PREVENT FIRES.

W415-1773 / A / 11.23.17
12
EN
4.1 TYPICAL EXISTING MASONRY
You can install your appliance using your existing masonry chimney. To do
so, follow the guidelines below. If you are using a masonry chimney, it
is important that it be built in compliance with the specifi cations of the
Building Code in your region. It must normally be lined with fi re clay
bricks, metal or clay tiles sealed together with fi re cement. (Round
fl ues are the most effi cient).
62.2
FOLLOW MANUFACTURER’S
INSTRUCTIONS FOR
MAXIMUM LINER EXTENSION
ABOVE CHIMNEY
FLOOR
PROTECTOR
DAMPER PLATE
REMOVED OR
FASTENED IN OPEN
POSITION
SEAL WITH NON-
COMBUSTIBLE
MATERIAL
MASONRY
CHIMNEY MUST
HAVE
STRUCTURAL
INTEGRITY LISTED
CHIMNEY
LINER
A. Remove the fireplace damper or fasten it permanently open.
NOTE: It is recommended to follow the method of sealing off the damper area around the liner.
B. Measure the throat of the fireplace and mark this shape on a piece of 24 gauge (0.6mm) sheet metal
(flue cover). Cut a 6” (152.4mm) hole to lie directly below the fireplace flue opening. Allow 2” (50.8mm)
of material on all sides (to act as flanges) and cut to these measurements. Bend down the flanges.
TIP: If inexperienced in doing this, make and test a cardboard pattern first.
Fasten this flue cover in position as high as possible. Using 2 masonry screws per side, insert them
through the flanges into the fireplace.
C. Permanently seal any openings between the fireplace masonry and the facing masonry.
In Canada: This fireplace insert must be installed with a continuous chimney liner of 6” (152.4mm) diameter
extending from the fireplace insert to the top of the chimney. The chimney liner must conform to the Class 3
requirements of CAN/ULC-S635, Standard for Lining Systems for Existing Masonry or Factory-Built Chimneys
and Vents, or CAN/ULC-S640, Standard for Lining Systems for New Masonry Chimneys. It must be installed as
follows:
A. Attach a stainless steel liner connector or elbow to the liner, and insert onto the flue collar.
B. Fasten with 3 screws.
C. Secure the top of the liner to the chimney cap using a liner support and chimney flashing.
D. Cap the top of the chimney liner assembly using an approved rain cap.
This appliance can be installed using an
existing masonry chimney. To do so, follow the
guidelines below.
If using a masonry chimney, ensure it is
built in compliance with local building code
specifications.
It is recommended to line the chimney with fire
clay bricks, or metal or clay tiles sealed together
with fire cement.
TIP: Round flues are most efficient
for this purpose.

W415-1773 / A / 11.23.17
13
EN
4.2 INSTALLING THE EPI3
A. Flue collar orientation
Prior to installation, determine the type of orientation that works best with this appliance.
The flue collar’s orientation can be vertical. It can also be a 30° backwards angle by rotating the flue collar
180° at the top of the appliance.
It is recommended to clean the chimney from the top downwards. This will ensure that the centre bar of the
flue collar protects the inside baffle from any damages caused by the chimney brush. However, if cleaning
must be done from inside the home, use a reciprocating metal cutting saw or hack saw to cut the centre bar
inside the flue collar.
B. Installing a venting system
NOTE: It is recommended that the connector or flue liner be installed before continuing with the
installation. See Figure 1 for venting system components.
1. Remove the front air tube to gain access to the fiber baffle, and then remove the fiber baffle.
2. Remove the iron flue collar from the appliance. Ensure gasket is in place and in good condition.
3. Drill 3 holes into the adapter pipe or flue liner, using the holes in the iron collar as a guide. Secure
the adapter pipe (or flue liner) to the flue collar. Ensure the studs on the flue collar are properly
aligned to their respective holes on the insert.
4. Repeat Step 3 to secure the flexible pipe to the pipe adaptor.
5. The finished height measurements from the hearth surface to the center bar of the flue collar should
be 19” (482.6mm). See Figure 2 for details on the installation of the connector pipe or liner. This
allows for an easy connection once the appliance is in place.
FLEXIBLE FLUE LINER
FLEX LINER ADAPTER
(IF REQUIRED)
ADJUSTABLE (30” (762mm) OR
VERTICAL) FLUE COLLAR WITH
INTEGRATED DRAW-DOWN BAR
TOP OF INSERT
AROUND FLUE OPENING
WASHERS (1/4” (6.4mm) DIAMETER)
1/4 - 20 HEX NUTS
30°
18
7
/
8
”
(479.4mm)
FIG. 1 FIG. 2
In USA: Though not required, it is recommended that a chimney liner that is continuous from the insert to
the top of the chimney be installed, particularly when the insert is installed in a basement. For this type of
connection, use the “In Canada” installation instructions above.
If a continuous liner is not installed, a “direct flue connection” must be made. The direct flue connection
requires a non-combustible connector that extends from the insert into the chimney flue liner. The installed flue
cover must be sealed below the entry point of the connector to prevent dilution of combustion products in the
chimney flue. This room heater must be connected to a code-approved masonry chimney with a flue liner. Cap
the top of the chimney using an approved rain cap.
The installation requirements that follow must be observed when installing solid fuel burning inserts into factory-
built fireplaces.

W415-1773 / A / 11.23.17
14
EN
4.3 FACTORY BUILT FIREPLACE
The following installation requirements must be observed when installing solid fuel burning inserts into factory
built fi replaces.
A.
The factory built fi replace must be listed per UL 127 or ULC S610.
B.
Clearances to any combustible material surrounding this insert as identifi ed must be followed. These
clearance requirements supersede any pre-existing facing material clearances listed for the factory
built fi replace.
C.
Installation must include a full height listed chimney liner meeting HT requirements (2100°F/1149°C)
as required in UL 1777 (U.S.) or ULC S635 (Canada). The liner must be securely attached to the insert
fl ue collar and the chimney top.
D.
Means must be provided to prevent room air passage to the chimney cavity of the fi replace. This may
be accomplished by sealing the damper area around the chimney liner, or sealing the appliance front.
E.
The air fl ow within and around the appliance shall not be altered by the installation of the insert (i.e.
no louvres or cooling air inlet or outlet ports are blocked), unless specifi cally tested as such for each
factory built fi replace manufacturer and model line. NOTE: Using a louvered face plate (surround)
complies with this requirement.
F.
Alteration of the appliance in any manner is not permitted with the following exceptions;
A. External trim pieces which do not affect the operation of the appliance may be removed providing
they can be stored on or within the fi replace for reassembly if the insert is removed.
B. The chimney damper may be removed to install the chimney liner.
G.
Circulating air chambers (i.e. in a steel fi replace liner or metal heat circulator) shall not be blocked.
H.
Means must be provided for removal of the insert to clean the chimney fl ue.
I.
Inserts that project in front of the fi replace must be supplied with appropriate support means.
J.
A permanent metal warning label must be attached to the back of the fi replace stating that the fi replace
must be restored to its original condition for safe use without the insert.
80.2B
5.0 FINISHING
5.1 SECONDARY AIR TUBES
A. Starting at the back with the shortest tube and working forward, install the secondary air tubes by
first inserting the tube into the hole on the left side of the firebox and then into the corresponding hole
on the right side. Next, align the notch with tab, and slide the tube all the way to the right (FIG 1).
B. Insert the cotter pin to secure the tube in place (FIG 2).
FIG. 1
FIG. 2
NOTE: It is recommended to leave the front tube out until the fibre baffle has been installed.

W415-1773 / A / 11.23.17
15
EN
!
WARNING
5.2 BRICKS AND BAFFLE INSTALLATION
A. Install the 2 side bricks (W090-0191, W090-0192) against the sides of the firebox, secure using the
retainers.
B. Install the back brick (W090-0190) by sliding it under and behind the rear secondary air tubes. Secure
with retainers.
C. Install the 2 bottom bricks (W090-0193, W090-0194).
D. Slide the front brick (W090-0196) into place in front of the bottom bricks, ensuring the angled edge
sits flush with the bottom bricks.
E. Install the front ledge brick (W090-0195), ensuring the notches line up with the fire grate slots.
F. Place the baffle (W018-0133) on top of the secondary air tubes and slide it all the way to the rear of
the firebox.
OPERATION OF THE APPLIANCE WITHOUT THE BAFFLES CAN RESULT IN EXCESSIVE
TEMPERATURES THAT COULD DAMAGE THE APPLIANCE, CHIMNEY AND THE SURROUNDING
ENCLOSURE.
W018-0133
W090-0190
W090-0191
W090-0192
W090-0194
W090-0193
W090-0195
W090-0196
W361-0189
NOTE: Ensure the firebox insulation (W361-0189) is in good condition before proceeding. Replace if
necessary.
NOTE: Step F may require the front secondary air tube to be removed.

W415-1773 / A / 11.23.17
16
EN
A. Place the 2 side castings and the centre casting face down on a protected surface and assemble as
shown (FIG 1).
B. Line up the casting holes with the casting bracket holes and secure in place using the screws. Secure
the casting support to the casting bracket using the screws (FIG 1, A).
C. Loosely secure the screws to the holes in the side casting (FIG 1, B). Repeat on the other side.
D. Using screws, secure the 4 retaining brackets in place (FIG 2, C).
E. Lift the casting, place the screws into the retaining brackets, and tighten fully (FIG 2, D).
NOTE: To ensure the joints are flush, adjustment may be necessary. To adjust the cast components,
loosen the screws and then align the casting to desired position.
5.3 SURROUND INSTALLATION, TRADITIONAL CAST
A
D
B
C
FIG. 1
FIG. 2

W415-1773 / A / 11.23.17
17
EN
A. Line up the casting holes with the right retaining bracket holes and secure in place using
the 1/4-20 hex-head screws. Repeat on the left side, using the left retaining bracket (FIG 1, A).
B. Thread the 1/4-20 round-head screws approximately half their length into the keyed
bracket (FIG 1, B).
C. Place the casting pieces face down on a protected surface and assemble as shown (FIG 2).
D. Fasten the securing brackets using the screws (FIG 2, C).
E. Secure the corner brackets into place on both sides of the casting using the
screws (FIG 2, D).
F. Lift the casting, place the keyed holes onto the 1/4-20 round head screws, and rest the casting into
place (FIG 2). Adjust screws as necessary to stabilize.
NOTE: To ensure the joints are flush, adjustment may be necessary. To adjust the cast components,
loosen the screws and then align the casting to desired position.
5.4 SURROUND INSTALLATION, CONTEMPORARY CAST
1/4-20 ROUND
HEAD SCREWS
RETAINING
BRACKET
A
B
KEYED BRACKET
(LEFT & RIGHT)
CORNER
BRACKET
SECURING
BRACKET C
D
FIG. 1
FIG. 2
A
B

W415-1773 / A / 11.23.17
18
EN
6.0 OPERATION
!
WARNING
ALWAYS OPERATE THIS APPLIANCE WITH THE DOOR CLOSED AND LATCHED EXCEPT DURING
START UP AND RE-FUELING. ALWAYS WEAR GLOVES TO PREVENT INJURY. DO NOT LEAVE THE
FIRE UNATTENDED WHEN THE DOOR IS UNLATCHED AS UNSTABLE WOOD COULD FALL OUT OF
THE FIRE CHAMBER CREATING A FIRE HAZARD TO YOUR HOME.
NEVER LEAVE CHILDREN UNATTENDED WHEN THERE IS A FIRE BURNING IN THE APPLIANCE.
NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID,
OR SIMILAR LIQUIDS TO START OR ‘FRESHEN UP’ A FIRE IN THIS APPLIANCE. KEEP ALL SUCH
LIQUIDS WELL AWAY FROM THE APPLIANCE WHILE IT IS IN USE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE SHOULD BE KEPT A MINIMUM OF 48”
FROM THE FRONT FACE.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE
TESTING AUTHORITY IS CONSIDERED BREACHING CSA B365 (CANADA) AND ANSI NFPA 211 (USA).
OPEN AIR CONTROL (AND DAMPER WHEN FITTED) BEFORE OPENING FIRING DOOR.
HOT WHILE IN OPERATION, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY
CAUSE SKIN BURNS. WEAR GLOVES TO OPERATE YOUR APPLIANCE.
BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD
THAT MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
THIS WOOD APPLIANCE HAS A MANUFACTURER-SET MINIMUM LOW BURN RATE THAT MUST
NOT BE ALTERED. IT IS AGAINST FEDERAL REGULATIONS IN THE UNITED STATES TO ALTER THIS
SETTING OR OTHERWISE OPERATE THIS WOOD APPLIANCE IN A MANNER INCONSISTENT WITH
OPERATING INSTRUCTIONS IN THIS MANUAL.
This Napoleon EPA listed product is designed with the most advanced technology. The appliance is extremely airtight.
NOTE: The first fire(s) in this appliance will be difficult to get and keep going with minimal heat being
generated. This is a result of the moisture being driven out of the fire brick. During the break-in period (i.e.
the first 2 or 3 fires), create only small fires using kindling, as this will allow the firebrick to cure.
WARNING: Creating a brisk fire during the break-in period could result in fire hazards, including explosions.
Use caution.
Do not be alarmed if small hairline cracks develop in the firebrick. This is a normal occurrence and does not pose
a safety hazard. The paint may also emit an odour for the first few fires as a result of the curing process. If this
happens, open a window or door to ensure adequate ventilation.
CREATING A BRISK FIRE (AFTER APPLIANCE HAS CURED)
A. Place loosely crumpled paper on the bottom of the appliance and cover with dry kindling.
B. Open the air control fully by sliding it all the way to the left.
C. Light the paper and leave the door slightly ajar (no more than 1” (25.4mm)) until all kindling is burning.
NOTE: To maintain a brisk fire, a hot coal bed must be established and sustained.
D. Slowly add larger pieces of wood (i.e. 2x4” pieces). Lay them lengthwise in the hot coal bed with a shallow
trench between, as this will allow air to flow into the trench and ignite the fuel.
E. When the fire has reached its peak, begin adding medium-sized logs. When these logs have caught fire,
carefully close the door.
NOTE: Closing the door too quickly after refueling will reduce the firebox temperature and result in an
unsatisfactory burn.

W415-1773 / A / 11.23.17
19
EN
TIP: It is more efficient to burn medium-sized wood briskly and to refuel frequently than to burn large logs and
refuel infrequently. Large logs create smoulding, inefficient fires that dirty the glass.
NOTE: As soon as the door is closed, a change will occur in the flame pattern. The flames will get smaller and
lazier because less oxygen is getting into the combustion chamber. The flames, however, are more efficient.
The flames will remain lazy but become larger again as soon as the firebricks have been heated thoroughly,
and the chimney becomes heated and provides a good draft. At this point, the roaring fire that is visible when
the door is opened is wastefully drawing heated room air up the chimney. Always operate with the door fully
closed once the medium-sized logs have caught fire. Operating the appliance with the door open for extended
periods of time may result in damages to the appliance.
E. Begin adding larger pieces of wood, as the appliance can operate normally at this point.
F. The firebox can be safely filled with wood to the top of the door opening if a 1/4” (6.4mm) space to
secondary air tubes is maintained.
NOTE: Once the appliance is entirely hot, it will burn very efficiently with little smoke from the chimney. There
will be a bed of orange coals in the firebox and secondary flames flickering just below the top baffles.
6.1 OPTIMUM BURN METHOD
A. Maintain a hot, glowing, red coal bed that is 2” (50.8mm) deep.
B. Burn dry seasoned wood.
TIP: To ensure the glass door remains clean, wood should have less than 20% moisture
content.
C. A minimal trace of smoke coming from the chimney is acceptable when the appliance is burning as
intended.
D. Inspect and replace all necessary components (i.e. gaskets, manifolds, glass, etc.) as they may affect
the appliance’s overall performance.
E. Adjust the air control for adequate draft. This will control the burn rate and temperature of the
appliance.
Refer to “OPERATION” and “MAINTENANCE” sections for detailed information.
Refer to “TROUBLESHOOTING” section if encountering problems with operation.

W415-1773 / A / 11.23.17
20
EN
Draft is the force which moves air from the firebox up through the chimney. The amount of draft in the chimney
depends on the length and diameter of the chimney, local geography, nearby obstructions, etc.
Adjusting the air control all the way to the right reduces the temperature. The draft can be adjusted from low
to high by moving the handle from right to left. Inadequate draft may cause back-puffing into the room through
the appliance and chimney connector points and may cause plugging of the chimney.
Too much draft may cause the appliance to become too hot. Glowing red appliance parts or chimney
connectors, as well as uncontrollable burns, can lead to chimney fires or permanent damage to the appliance.
Do not operate the appliance for longer than 30 minutes with the air control on “HIGH” (fully open).
AIR CONTROL
!
WARNING
THIS WOOD APPLIANCE HAS A MANUFACTURER-SET MINIMUM LOW BURN RATE THAT MUST
NOT BE ALTERED. IT IS AGAINST FEDERAL REGULATIONS IN THE UNITED STATES TO ALTER THIS
SETTING OR OTHERWISE OPERATE THIS WOOD APPLIANCE IN A MANNER INCONSISTENT WITH
OPERATING INSTRUCTIONS IN THIS MANUAL.
6.2 AIR CONTROL
91.1A
All homes with a solid fuel burning appliance should have at least one fi re extinguisher in a central location,
known to all and at least one smoke detector and carbon monoxide (CO) detector in the room containing the
appliance. If the smoke detector sounds an alarm, correct the cause but do not de-activate or relocate the
smoke detector. If the carbon monoxide detector sounds an alarm, immediately vent the area, evacuate and
call your local fi re department.
NOTE: Always check that smoke and CO detectors are working properly.
6.3 FIRE EXTINGUISHERS / SMOKE & CARBON MONOXIDE DETECTORS
