Napoleon GDIZC - N User manual
EN
W415-1366 / 10.15.14
FR
PG
33
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
1.28E
$10.00
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
!
AVERTISSEMENT
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with the appliance and
shall be installed.
Une barrière conçu à réduire le risque de brûlures à
partir de le chaude la vitre est à condition que avec
l’appareil et sera être installés.
SAFETY INFORMATION
!WARNING
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
instructions.
If you cannot reach your gas supplier, call the
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
SAFETY
BARRIER
APPROVED
BARRIER
English for Marketing
French for Marketing
R&D BCL’s
ÉCRAN DE
PROTECTION
ÉCRAN DE
PROTECTION
SAFETY BARRIER
ÉCRAN DE PROTECTION
GDIZC-N
NATURAL GAS
GDIZC-P
PROPANE
Table of conTenTs
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 MINIMUM OPENING 5
3.0 INSTALLATION 9
3.3 GAS INSTALLATION 11
4.0 FINISHING 12
4.1 MINIMUM MANTEL CLEARANCES 13
4.3 LOG PLACEMENT 15
4.4 GLOWING EMBERS 15
5.0 OPERATION 17
6.0 ADJUSTMENTS 18
7.0 MAINTENANCE 19
7.1 ANNUAL MAINTENANCE 20
7.4 DOOR GLASS REPLACEMENT 21
7.5 REPLACEMENT BLOWER INSTALLATION 22
8.0 REPLACEMENTS 23
9.0 OVERVIEW 24
10.0 ACCESSORIES 25
11.0 VALVE TRAIN ASSEMBLY 27
12.0 TROUBLESHOOTING 28
13.0 WARRANTY 30
14.0 SERVICE HISTORY 31
W415-1366 / 10.15.14
2
EN
NOTE:
Venting, see “CHIMNEY
CONNECTION” section.
Trim, see “ALUMINUM EXTRUSION
TRIM KIT INSTALLATION” section.
Door, see “SAFETY
SCREEN & DOOR
REMOVAL AND
INSTALLATION” section.
Rating Plate, see
“RATING PLATE
INFORMATION” section.
Logs, see “LOG PLACEMENT”
section.
SAFETY BARRIER
W415-1366 / 10.15.14
3
EN
1.0 insTallaTion overview
W415-1366 / 10.15.14
4
EN
2.0 inTroducTion
3.1D
!
WARNING
THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
or clothing ignition.
surfaces.
appliance.
installed.
Ltd.
W415-1366 / 10.15.14
5
EN
36 1/2"
[927mm]
ALUMINUM TRIM
4 SIDED BACKER PLATE
44 7/8" [1140mm]
SAFETY BARRIER
SAFETY BARRIER
ALUMINUM TRIM
3 SIDED BACKER PLATE
44 7/8" [1140mm]
27"
[686mm]
20 3/4"
[527mm]
15 1/2"
[394mm]
14"
[356mm]
24 1/8"
[613mm]
15 1/2"
[394mm]
10 9/16"
[268mm]
4 15/16"
[125mm]
36" [914mm]
5 1/2"
[140mm]
25" [635mm]
15 1/2" [394mm]
11 5/8" [295mm]
7 3/8"
[187mm]
3" [76mm] Ø EXHAUST
AIR
INLET
2.1 dimensions
) ) DEPTH 11
2.2 minimum oPeninG
3 & 4 SIDED BACKER PLATES - SIDE VIEWS
TOP VIEW
FRONT VIEW
FRONT VIEW
W415-1366 / 10.15.14
EN
4.1B
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER
to
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
®
(NFI) as NFI Gas
Specialists
www.ncertied.org
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” (1219mm) FROM
THE FRONT FACE OF THE APPLIANCE.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35 mb).
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING
2.3 General insTrucTions
W415-1366 / 10.15.14
7
EN
2.4 General informaTion
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY!
GDIZC
NG LP
0-4,500 0-4,500
24,000 24,000
20,400 20,400
85% 85%
65.5%
GDIZC
65.5%
CDIZC
W415-1366 / 10.15.14
8
EN
2.5 raTinG PlaTe informaTion
INSTALLER:
NOTE:
TITLE: RATING PLATE, GDIZC/CDIZC (SB)
REVISION:
DWG#: W385-1984
DATE: 09.24.14
W385-1984
NOT FOR USE WITH SOLID FUEL
GDIZC
GDIZC-N
NATURAL GAS MODEL
PAGE 1 OF 2
CONFORMS TO / CONFORME AUX: ANSI Z21.50-2014, CERTIFIED TO / CERTIFIE CSA 2.22-2014 VENTED GAS FIREPLACE / FOYER À GAZ VENTILÉ.
THIS FIREPLACE USES AND REQUIRESA FAST ACTING THERMOCOUPLE. REPLACE ONLY WITH A FASTACTING
THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD. APPROVED FOR BEDROOM, BATHROOM & BEDSITTING ROOM
INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE WITH THE CURRENT
STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADAOR IN THE UNITED STATES THE
MANUFACTURED HOME CONSTRUCTIONAND SAFETY STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US
STANDARD IS NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIAFOR MANUFACTURED HOME
INSTALLATIONS, SITES AND COMMUNITIES,ANSI / NFPA501A.
MANIFOLD PRESSURE: 3.5 INCHES W.C. (NG)
PRESSION AU COLLECTEUR: 3.5" D'UNE
COLONNE D'EAU(GN)
MIN SUPPLY PRESSURE: 4.5" W.C.(NG)
PRESSION D'ALIMENTATION MIN: 4.5" D'UNE
COLONNE D'EAU (GN)
MAX. SUPPLY PRESSURE: 7" W.C. (NG)
PRESSION D'ALIMENTATION MAX: 7" D'UNE
COLONNE D'EAU (GN)
MANIFOLD PRESSURE: 10 INCHES W.C.(LP)
PRESSION AU COLLECTEUR: 10" D'UNE
COLONNE D'EAU (P)
MIN SUPPLY PRESSURE: 11" W.C. (LP)
PRESSION D'ALIMENTATION MIN: 11" D'UNE
COLONNE D'EAU (P)
MAX. SUPPLY PRESSURE: 13" W.C. (LP)
PRESSION D'ALIMENTATION MAX: 13" D'UNE
COLONNE D'EAU (P)
FOR USE WITH GLASS DOORS CERTIFIED
WITH THIS UNIT ONLY. FOR USE ONLY WITH
BARRIER W565-0181. FOLLOW THE
INSTALLATION INSTRUCTIONS LOCATED IN
THE INSTALLATION MANUAL.
WARNING: DO NOTADD ANY MATERIAL TO THE
APPLIANCE, WHICH WILL COME IN CONTACT
WITH THE FLAMES, OTHER THAN THAT SUPPLIED
BY THE MANUFACTURER WITH THE APPLIANCE.
UTILISER AVEC LES PORTES VITREES
HOMOLOGUEES SEULEMENT AVEC CETTE
UNITE. POUR UNE UTILISER SEULMENT AVEC
BARRIÈRE W565-0181. SUIVEZ LES INSTRUCTIONS
D'INSTALLATION SE TROUVENT DANS LE MANUEL
D'INSTALLATION.
AVERTISSEMENT: N'AJOUTEZ PAS A CET APPAREIL
AUCUN MATERIAU DEVANT ENTRER EN CONTACT
AVEC LES FLAMMES AUTRE QUE CELUI QUI EST
FOURNI AVEC CET APPAREIL PAR LE FABRICANT.
UN COMBUSTIBLE SOLIDE NE DOIT PAS ETRE UTILSE AVEC CET APPAREIL
SERIAL NUMBER / NO. DESERIE
WOLF STEEL LTD.
C
DIZC-N GDIZC-P
C
DIZC-P
PROPANE MODEL
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
CE FOYER UTILISE ET REQUIERT UN THERMOCOUPLE À ACTION RAPIDE. REMPLACEZ UNIQUEMENT AVEC UN
THERMOCOUPLE À ACTION RAPIDE DE WOLF STEEL LTÉE. HOMOLOGUE POUR INSTALLATION DANS UNE CHAMBRE
ACOUCHER, UNE SALLE DE BAIN ET UN STUDIO. APPROPRIE POUR INSTALLATION DANS UNE MAISON MOBILE SI SON
INSTALLATION CONFORME AUX EXIGENCES DE LANORME CAN/CSA Z240MH SERIE DE MAISONS MOBILES EQUIPEES
AU GAZ, EN VIGUEUR AU CANADAOU AUX ETATS-UNIS DE LA NORME DE SECURITE ET DE CONSTRUCTION DE MAISONS
MANUFACTUREES, TITRE 24 CFR, SECTION 3280. DANS LE CAS OU CETTE NORME D'ETATS-UNIS NE PEUT ETRE
APPLIQUEE, SE REFERER ALA NORME RELATIVE AU CRITERE DE MESURES DE SECURITE CONTRE L'INCENDIE POUR
LES INSTALLATIONS DANS LES MAISONS MANUFACTURES, LES SITES ET LES COMMUNAUTES, ANSI/NFPA 501A.
0 - 4500FTALTITUDE/ELEVATION 0 - 4500FT
24,000 BTU/h INPUT / ALIMENTATION 24,000 BTU/h
14,000 BTU/h REDUCED INPUT / ALIMENTATION REDUITE 15,000 BTU/h
17,160 BTU/h OUTPUT / RENDEMENT 17,160 BTU/h
P4: 65.5%
PRODUIT DÉCORATIF: NE PAS UTILISER COMME
APPAREIL DE CHAUFFAGE
DECORATIVE PRODUCT: NOT FOR USE AS A HEATING
APPLIANCE
ELECTRICAL RATING:115V 1.5AMP 60HZ
THE APPLIANCE MUST BE VENTED USING THE
APPROPRIATE WOLF STEEL VENT KITS. SEE OWNERS
INSTALLATION MANUAL FOR VENTING SPECIFICS.
PROPER REINSTALLATION AND RESEALING IS
NECESSARY AFTER SERVICING THE VENTAIR
INTAKE SYSTEM.
CLASS: 115V 1.5AMP 60HZ
L'APPAREIL DOIT EVACUER SES GAZ EN UTILISANT
L'ENSEMBLE D'EVACUATION PROPRE AWOLF STEEL.
REFERER AU MANUEL D'INSTALLATION DE PROPRIETAIRE
POUR L'EVACUATION PRECISE. IL EST IMPORTANT DE BIEN
REINSTALLER ET RESCELLER L'EVENT APRES A VOIR
ASSURE LE MAINTIEN DU SYSTEME DE PRISE D'AIR.
WARNING:FOR INSTALLATION INTO A VENTED NON-
COMBUSTIBLE FIREPLACE ONLY. THE MINIMUM FIREPLACE
SIZE IS: HEIGHT 14 1/2”, DEPTH 11”, WIDTH 25”. THE MINIMUM
INSIDE FLUE SIZE IS 7”. THE MINIMUM DISTANCE, FROM THE
BOTTOM OF A COMBUSTIBLE MANTLE PROJECTING AMAXIMUM
3” FROM THE WALL TO THE TOP OF THE STANDARD TRIM IS 3”.
SEE OWNERS MANUAL FOR GREATER EXTENSIONS.
ATTENTION :POUR INSTALLATION DANS UN FOYER
VENTILE EN MACONNERIE.LES DIMENSIONS MINIMUMS
SONT: HAUTEUR 14 1/2”, PROFONDEUR 11”, LARGEUR 25”.
LE DIAMETRE INTERIEUR MINIMUM DE CONDUIT
D’EVACUATION EST DE 7”.LA DISTANCE MINIMALE, DU BAS
DU MANTEAU COMBUSTIBLE FORMANT UNE PROJECTION
MAXIMALE DE 3” DU MUR AU DESSUS DE LAGARNITURE
NORMALE EST 3”. REFERER AU MANUEL D’INSTALLATION
POUR DES EXTENSIONS PLUS GRANDES.
MATERIAL: CLASS IIIA-2, PERMANENT LABEL, WATERPROOF, 10MIL VELVET GLOSS LEXAN
HOLE TO BE 0.250" Ø
BLACK LETTERING ON WHITE BACKGROUND
MAX OVERALL DECAL SIZE: 8" x 4.75"
SERIAL NUMBERS TO BE ASCENDING FROM GDIZC 017850
MINIMUM AND MAXIMUM VERTICAL VENT LENGTHS
ARE 7 FEET AND 35 FEET RESPECTIVELY. LES LONGUEURS VERTICALES MINIMALES ET MAXIMALES
SONT 7 PIEDS ET 35 PIEDS RESPECTIVEMENT.
SAMPLE
W415-1366 / 10.15.14
EN
3.0 insTallaTion
3.1 levellinG THe aPPliance
68.4B
not be cut.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
WOLF STEELDIMS:INCHES
TITLE:FIREPLACE WARNING TAG - ULC S628DWG #: W385-0199
DATE:07.25.00
CLASS IIA-2 LABEL
21/2" x 6" C/W2 HOLES 0.188" DIAMETER
BLACK LETTERING ON WHITEALUMINUM
WARNING LETTERING TO BE NO LESS THAN 0.240"
OTHER LETTERING TO BE NO LESS THAN 0.120”
CDIZC / GDIZC
W385-0199_B
REVISION: A: 02.02.07 II ADD NOTE B: 01.15.08 II ADD SPANISH_RICH
WARNING: THIS FIREPLACE HAS BEEN CONVERTED FOR USE WITH A GAS FIREPLACE
INSERT ONLY AND CANNOT BE USED FOR BURNING WOOD OR SOLID FUELS UNLESS ALL ORIGINAL
PARTS HAVE BEEN REPLACED AND THE FIREPLACE IS RE-APPROVED BY THE AUTHORITY HAVING
JURISDICTION.
ATTENTION: CE FOYER A ETE CONVERTI AFIN D’ETRE UTILISE SEULEMENT
COMME FOYER ENCASTRE AU GAZ ET NE PEUT ETRE UTILSE POUR BRULER DU BOIS OU
TOUT AUTRE COMBUSTIBLE SOLIDE, SANS QUE TOUTES LES PIECES ORIGINALES AIENT
ETE REMPLACEES ET QUE LE FOYER SOIT APPROUVE DE NOUVEAU PAR LES AUTORITES
AYANT JURIDICTION.
ADVERTENCIA: ESTA CHIMENEA SE REMODELÓ PARA USARSE SOLO CON UNA
INSERCIÓN DE CHIMENEA A GAS Y NO PUEDE USARSE PARA QUEMAR MADERA NI COMBUSTIBLES
SÓLIDOS, A MENOS QUE SE HAYAN REEMPLAZADO TODAS LAS PIEZAS ORIGINALES, Y LA AUTORI-
DAD JURISDICCIONAL LA HAYA VUELTO A APROBAR.
67.2
W415-1366 / 10.15.14
10
EN
A. OUTSIDE:
NOTE:
B.
C. INSIDE:
ensuring that the marked exhaust liner is attached to
the exhaust collar.
D.
FLASHING
PLATE
2” (50.8mm)
OVERLAP
MILL-PAC
INTAKE
EXHAUST
3.2 cHimney connecTion
EXHAUST
SEALANT
HI-TEMP
INTAKE
VENT
CONNECTION
ASSEMBLY
2” (50.8mm)
OVERLAP
VENT
CONNECTOR
E.
RESTRICTOR
PLATE
STUDS
W415-1366 / 10.15.14
11
EN
3.3 Gas insTallaTion
30.1A
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.
SECURING
HOLES
W415-1366 / 10.15.14
12
EN
4.0 finisHinG
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.1A
3.4 oPTional wall swiTcH
50.5
P
I
L
O
T
TP
!
WARNING
DO NOT CONNECT THE WALL SWITCH OR GAS VALVE DIRECTLY TO 110 VOLT ELECTRICITY.
1
3
W415-1366 / 10.15.14
13
EN
!
WARNING
RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE
TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE
CLEARLY MAINTAINED.
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION.
73.1
4.1 minimum manTel clearances
D
A
BC
6” (152mm) MANTEL
B
D
C
A = 6” (152mm)
B = 5” (127mm)
C = 4” (102mm)
D = 3” (76mm)
MANTEL WIDTH
HEIGHT
MANTEL
1
1” (25mm)
2 3 4 5 67
2” (51mm)
3” (76mm)
4” (102mm)
5” (127mm)
6” (152mm)
7” (178mm)
0
W415-1366 / 10.15.14
14
EN
LOWER DOOR BRACKET
!
WARNING
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO
NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.
FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR
OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR
SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.
BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO
THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.
75.1
!
WARNING
THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO
NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.
FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR
OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR
SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.
BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO
THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.
75.1
THIS WARNING FOR ELECTRICS ONLY:
4.2 safeTy screen & door removal and insTallaTion
W415-1366 / 10.15.14
15
EN
4.3 loG PlacemenT
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
76.1A
PHAZERTM
A.
B.
Keep slightly back of the
front row of ports.
C.
thin,
The ember material will only glow
when exposed to direct ame; however, care should
be taken to not block the burner ports.
PHAZERTMPHAZERTM
4.4 GlowinG embers
GLOWING EMBERS
b
ba
c
W415-1366 / 10.15.14
EN
97.1A
loGo
4.5 loGo PlacemenT
4.6 aluminum eXTrusion Trim KiT insTallaTion
GIZBP6-3 or GIZBP6-4
GIZBRKT, are
precaution: Any circulation air opening may be covered (with noncombustible material) but not sealed!
drop into place. If installing the optional 3- or 4-sided backer plate (GIZBP6-3
or GIZBP6-4), it must be hung prior to the trim kit installation using the same
keyholes.
There is also a very slight in/out adjustment that can be made.
Note: Since the side panels open and close, to access the controls, a gap is
necessary at the mitre joint.
FIRE VIEWING DOOR
VALVE
CONTROL
DOOR
LOOSEN
SCREWS
SLIDE TO
ADJUST
W415-1366 / 10.15.14
17
EN

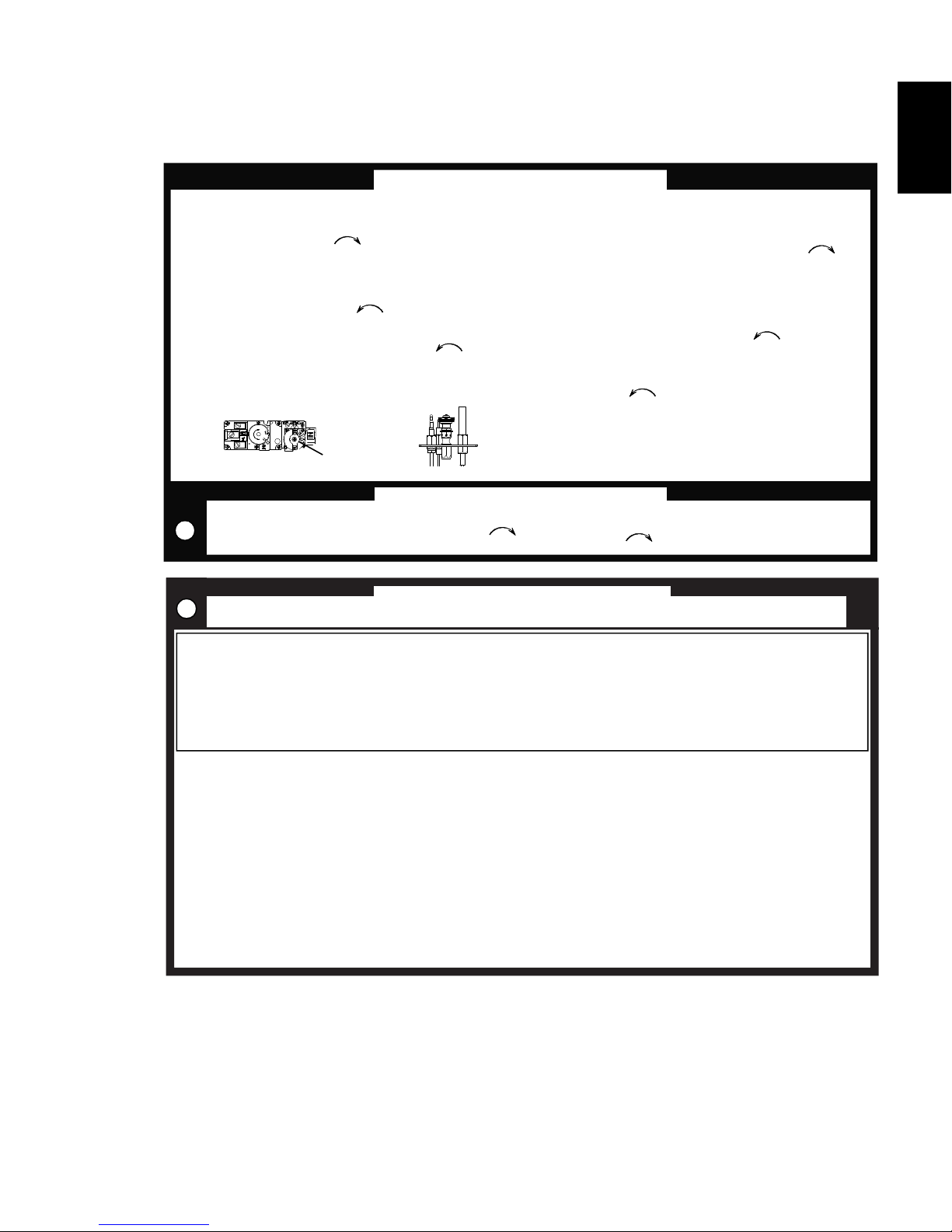

5.0 oPeraTion
TITLE: LABEL #: W385-0201
DATE:
Page 1 of 2
GAS KNOB TO OFF
BOUTON DU GAZ A
“OFF”
LIGHTING INSTRUCTIONS / INSTRUCTIONS D'ALLUMAGE
1. STOP!
STOP!
7. TURN GAS KNOB COUNTER-CLOCKWISE TO PILOT.
POSITION TO IGNITE BURNER.
PAS
1. ARRETEZ!
TOUT LES
ARRETEZ!
ILLEUSE NE RESTE PAS AL
ETAPES DE 3 A 7.
AREIL EST
DISTANCE,
LE BRULEUR PRINCIPAL
DISTANCE DOIT ETRE
12. R
AND TURN CLOCKWISE
MATERIAL:
CLASS IIIA-2 PERMANENT LABEL, WAT
SPECIFICATIONS:
LETTERING:
TITLES: and “FOR
YOUR SAFETY READ BEFORE OPERATING/POUR VOTRE SECURITE LISEZ-CES
AVENT DE FAIRE FONCTIONNER” and “WARNING/ATTENTION”LIGHTING
,“TO TURN OFF GAS/COUPER
REVISION: C: || 11.11.11_CL
Page 2 of 2
A
W385-0201 / C
A
A
A
A
OPERATING INSTRUCTIONS / INSTRUCTIONS D'OPERATION
FOR YOUR SAFETY READ BEFORE OPERATING / POUR VOTRE SECURITE LIRE AVANT DE FAIRE FONCTIONNER
ATTENTION:
ENTRAÎNANT DES DOMMAGES, DES BLESSURES OU LA MORT.
WHAT TO DO IF YOU SMELL GAS:
QUE FAIRE SI VOUS SENTEZ UN ODEUR DE GAZ :
IES.
MATERIAL:
CLASS IIIA-2 PERMANENT LABEL, WAT
SPECIFICATIONS:
LETTERING:
TITLES: and “FOR
YOUR SAFETY READ BEFORE OPERATING/POUR VOTRE SECURITE LISEZ-CES
AVENT DE FAIRE FONCTIONNER” and “WARNING/ATTENTION”LIGHTING
,“TO TURN OFF GAS/COUPER
TITLE:
REVISION: C: || 11.11.11_CL
LABEL #: W385-0201
DATE:
WARNING:
SEE INSTALLATION INSTRUCTIONS.
B
C
C
W415-1366 / 10.15.14
18
EN
6.0 adjusTmenTs
6.1 PiloT burner adjusTmenT
AFTER TAKING PRESSURE READINGS, TIGHTEN SCREWS
FIRMLY TO SEAL. DO NOT OVER TORQUE. LEAK TEST.
39.6B
PILOT
BURNER
THERMOCOUPLE
THERMOPILE
P
I
L
O
T
P
I
L
O
T
PILOT SCREW
AB
Pressure
Inlet
Outlet
Natural Gas
(inches)
Natural Gas
(millibars)
Propane
(inches)
Propane
(millibars)
7"
(MIN. 4.5")
3.5"
13"
(MIN. 11")
10"
17.4mb
(MIN. 11.2mb)
8.7mb
32.4mb
(MIN. 27.4mb)
24.9mb
6.2 venTuri adjusTmenT
This appliance has an air shutter that has been factory set open according
to the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carboning. Opening the air shutter will cause a
more blue flame, but can cause flame lifting from the burner ports. The
flame may not appear yellow immediately; allow 15 to 30 minutes for the
final flame colour to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.1
AIR SHUTTER SETTING
NG
LP
W415-1366 / 10.15.14
EN
54.2A
3/8” - 1/2”
FLAME MUST
ENVELOP UPPER
3/8" TO 1/2"
(12.7mm - 9.5mm) OF
THERMOCOUPLE &
THERMOPILE
(9.5mm - 12.7mm)
6.3 flame cHaracTerisTics
6.4 resTricTinG verTical venTs
traditional appearance.
7.0 mainTenance
CAUTION:
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
40.1D
MAINTENANCE
MAINTENANCE
MAINTENANCE
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.
APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.
DO NOT USE ABRASIVE CLEANERS.
DO NOT PAINT THE PILOT ASSEMBLY.
!
WARNING
W415-1366 / 10.15.14
20
EN
5.1
DO NOT CLEAN GLASS WHEN HOT! DO NOT USE
ABRASIVE CLEANERS TO CLEAN GLASS.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
!
WARNING
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU’ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
!
AVERTISSEMENT
6.1
NOTE:
source.
7.1 annual mainTenance
7.2 care of Glass
7.3 care of PlaTed ParTs
37.1C
!
WARNING
COMPLETELY OR WEAR HEAT RESISTANT GLOVES BEFORE CONDUCTING SERVICE.
NEVER VACUUM HOT EMBERS.
DO NOT PAINT THE PILOT ASSEMBLY.
NOTE
5.5.1
Napoleon® dealer. DO NOT SUBSTITUTE MATERIALS.
Other manuals for GDIZC - N
3
This manual suits for next models
1
Table of contents
Languages:
Other Napoleon Indoor Fireplace manuals
Napoleon
Napoleon HDX40NT-1 User manual
Napoleon
Napoleon NEFL50B User manual
Napoleon
Napoleon STARfire Series User manual
Napoleon
Napoleon Vittoria GD19N User manual
Napoleon
Napoleon GDS60-1NSP User manual
Napoleon
Napoleon Oakville X3 User manual
Napoleon
Napoleon Park Avenue Series User manual
Napoleon
Napoleon B46NTRE User manual
Napoleon
Napoleon JAYDEN NEFL50B-CTC User manual
Napoleon
Napoleon HD35NT-1 User manual
Napoleon
Napoleon BGD42N User manual
Napoleon
Napoleon EPI 1101 User manual
Napoleon
Napoleon Torch GVFT8N User manual
Napoleon
Napoleon Ascent X 70 Series User manual
Napoleon
Napoleon 1100ML User manual
Napoleon
Napoleon NZ-26 User manual
Napoleon
Napoleon GVF42-1N User manual
Napoleon
Napoleon GVF42P User manual
Napoleon
Napoleon Ascent NEFB33H User manual
Napoleon
Napoleon NEFE30-3620RLB User manual
Popular Indoor Fireplace manuals by other brands
Stone Age Fireplaces
Stone Age Fireplaces NA 36 Installation and operation instructions
Astria Fireplaces
Astria Fireplaces Sentinel Series Operation instructions
Montigo
Montigo E34-BV Installing and operating instructions
Glen Dimplex
Glen Dimplex Masport Geneva2 Installation and operating instructions
Harman Stove Company
Harman Stove Company Harman Clarity 828i Installation and operating manual
Heatilator
Heatilator ECLIPSE Series owner's manual
Lopi
Lopi 4415 HO owner's manual
Bluegrass Living
Bluegrass Living B500RTN OWNER'S OPERATION AND INSTALLATION MANUAL
bewello
bewello BW2019 user manual
Desa
Desa Comfort Glow LFP33PRA OWNER'S OPERATION AND INSTALLATION MANUAL
Bellfires
Bellfires HORIZON BELL XS 3 CF Installation instructions & manual for maintenance
Rinnai
Rinnai Symmetry RDV3611 Maintenance instructions
