USER GUIDE
NI SMB-2145/2146/2147/2148
Shielded Signal Accessories for NI 5751/5752 Adapter Modules
The NI SMB-2145/2146/2147/2148 (NI SMB-214x) devices are shielded
signal accessories for NI FlexRIO™digitizer adapter modules (NI 5751
and NI 5752). NI SMB-214x accessories provide easy connections to other
devices for testing and debugging. The following table describes each of
the accessories.
This guide explains how to set up and use NI SMB-214x signal accessories
with NI 5751/5752 adapter modules.
Contents
Conventions ............................................................................................ 2
What You Need to Get Started ............................................................... 2
Related Documentation........................................................................... 3
Parts Locator ........................................................................................... 3
Installing Cables...................................................................................... 5
Connecting Signals ................................................................................. 8
NI SMB-2145 .................................................................................. 9
NI SMB-2146 .................................................................................. 10
NI SMB-2147 .................................................................................. 11
NI SMB-2148 .................................................................................. 12
Cleaning the Accessory........................................................................... 13
Table 1. NI 214x Signal Accessories
Accessory Description
NI SMB-2145 NI 5752 analog input accessory
NI SMB-2146 NI 5752 digital I/O accessory
NI SMB-2147 NI 5751 analog input accessory
NI SMB-2148 NI 5751 digital I/O accessory

NI SMB-2145/2146/2147/2148 User Guide 2 ni.com
Specifications...........................................................................................13
NI SMB-2145 ...................................................................................13
NI SMB-2146 ...................................................................................14
NI SMB-2147 ...................................................................................14
NI SMB-2148 ...................................................................................15
Compliance and Certifications ................................................................16
Environmental Management ............................................................16
Technical Support Resources ..................................................................17
Conventions
The following conventions are used in this manual:
This icon denotes a note, which alerts you to important information.
This icon denotes a caution, which advises you of precautions to take to
avoid injury, data loss, or a system crash. When this symbol is marked on a
product, refer to the Specifications section for information about
precautions to take.
italic Italic text denotes variables, emphasis, a cross-reference, or an introduction
to a key concept. Italic text also denotes text that is a placeholder for a word
or value that you must supply.
monospace Text in this font denotes text or characters that you should enter from the
keyboard, sections of code, programming examples, and syntax examples.
This font is also used for the proper names of disk drives, paths, directories,
programs, subprograms, subroutines, device names, functions, operations,
variables, filenames, and extensions.
What You Need to Get Started
To set up and use the NI SMB-214x, you need the following items:
❑NI 5751R or NI 5752R, installed in a PXI/PXI Express or CompactPCI
chassis
Note The NI 5751R and NI 5752R are comprised of an NI FlexRIO FPGA module and an
NI FlexRIO adapter module (NI 5751 or NI 5752).

©National Instruments Corporation 3 NI SMB-2145/2146/2147/2148 User Guide
❑The appropriate cable assembly for your adapter module:
❑At least one 50 Ωcable with SMB connectors
Related Documentation
You may find the following documents helpful as you use the
NI SMB-214x.
• NI 5751R User Guide and Specifications
• NI 5752R User Guide and Specifications
• NI FlexRIO FPGA Module Installation Guide and Specifications
These printed documents provide the specifications for your adapter
module and your FPGA module. These documents are also available at
ni.com/manuals.
Parts Locator
Figures 1-4 show the connectors on each of the NI SMB-214x accessories.

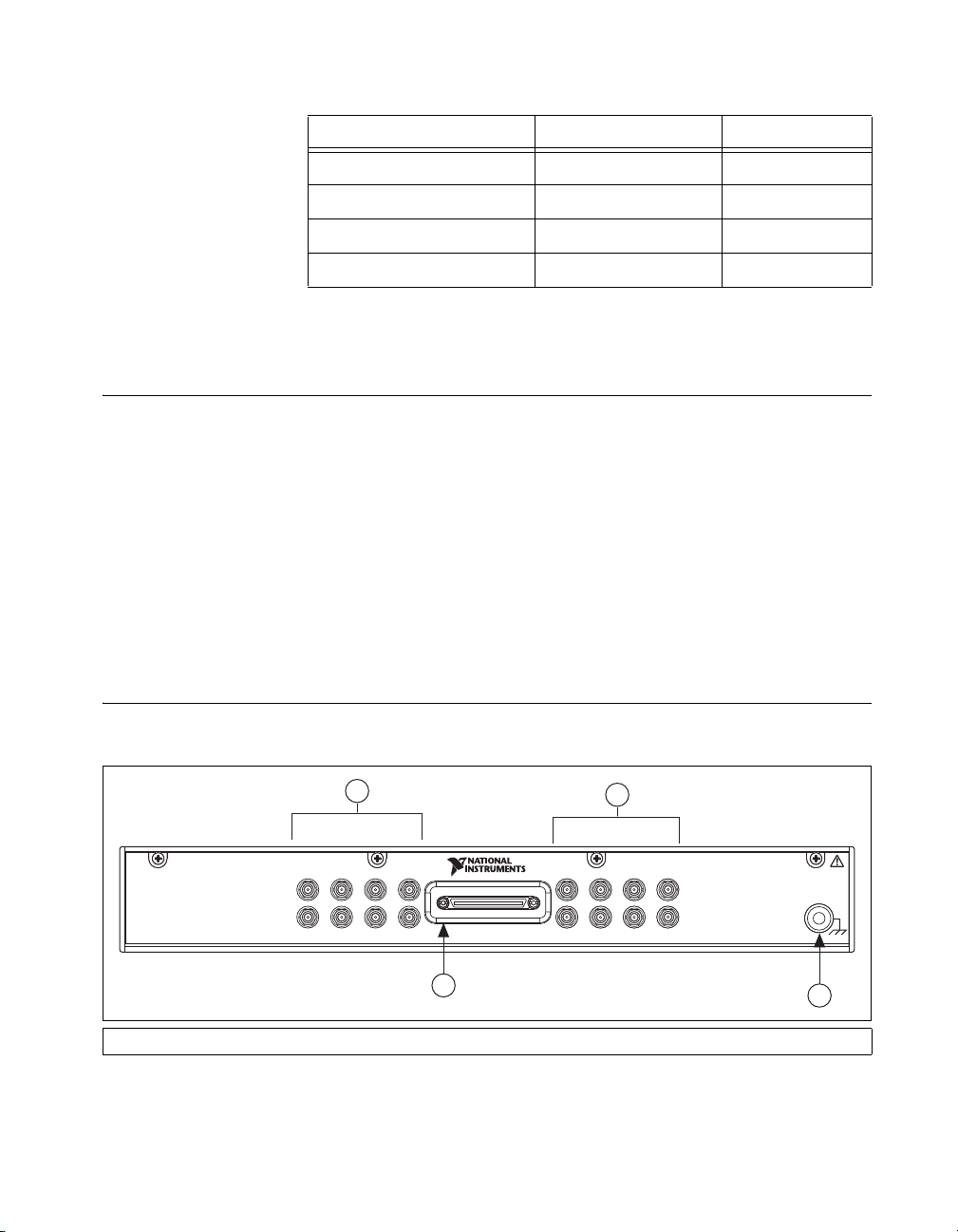

Figure 1. NI SMB-2145 Parts Locator Diagram
Table 2. NI SMB-214x Cables
Adapter Module/Signal Cable Description Part Number
NI 5751 Analog SHC68-C68-D4 196275A-01
NI 5751 Digital SHC68-C68-D4 196275A-01
NI 5752 Analog SHC68-C68-D3 188143B-01
NI 5752 Digital SHC68-C68-D4 196275A-01
1 Analog Inputs <0..31> 2 VHDCI Connector 3 Shield Ground Lug
SMB-2145
SMB-2145
Analog Input Accessory
Analog Input Accessory
AI 0/16
AI 0/16
AI 4/20
AI 4/20
AI 1/17
AI 1/17
AI 5/21
AI 5/21
AI 2/18
AI 2/18
AI 6/22
AI 6/22
AI 3/19
AI 3/19
AI 7/23
AI 7/23
AI 8/24
AI 8/24
AI 12/28
AI 12/28
AI 9/25
AI 9/25
AI 13/29
AI 13/29
AI 10/26
AI 10/26
AI 14/30
AI 14/30
AI 11/27
AI 11/27
AI 15/31
AI 15/31
11
3
2

NI SMB-2145/2146/2147/2148 User Guide 4 ni.com
Figure 2. NI SMB-2146 Parts Locator Diagram
Figure 3. NI SMB-2147 Parts Locator Diagram
Figure 4. NI SMB-2148 Parts Locator Diagram
1 Digital Outputs <0..15>
2 Digital Inputs <0..1>
3 VHDCI Connector
4 Shield Ground Lug
1 Analog Inputs <0..15> 2 VHDCI Connector 3 Shield Ground Lug
1 Digital Outputs <0..7>
2 Digital Inputs <0..7>
3 VHDCI Connector
4 Shield Ground Lug
SMB-2146
SMB-2146
Digital I/O Accessory
Digital I/O Accessory
DO 8
DO 8
DO 0
DO 0
DO 1
DO 1
DO 9
DO 9
DO 2
DO 2
DO 10
DO 10
DO 3
DO 3
DO 11
DO 11
DO 4
DO 4
DO 12
DO 12
DO 5
DO 5
DO 13
DO 13
DO 6
DO 6
DO 14
DO 14
DO 7
DO 7
DO 15
DO 15
DI 0
DI 0
DI 1
DI 1
4
3
12
SMB-2147
SMB-2147
Analog Input Accessory
Analog Input Accessory
AI 3
AI 3
AI 7
AI 7
AI 2
AI 2
AI 6
AI 6
AI 5
AI 5
AI 1
AI 1
AI 0
AI 0
AI 4
AI 4
AI 11
AI 11
AI 15
AI 15
AI 14
AI 14
AI 10
AI 10
AI 13
AI 13
AI 9
AI 9
AI 12
AI 12
AI 8
AI 8
3
2
1
SMB-2148
SMB-2148
Digital I/O Accessory
Digital I/O Accessory
DI 0
DI 0
DO 0
DO 0
DO 1
DO 1
DI 1
DI 1
DO 2
DO 2
DI 2
DI 2
DO 3
DO 3
DI 3
DI 3
DO 4
DO 4
DI 4
DI 4
DO 5
DO 5
DI 5
DI 5
DO 6
DO 6
DI 6
DI 6
DO 7
DO 7
DI 7
DI 7
4
3
1
2

©National Instruments Corporation 5 NI SMB-2145/2146/2147/2148 User Guide
Installing Cables
Caution Disconnect power from the adapter module, accessory, and any other connected
hardware before connecting the cable to prevent personal injury or damage to the hardware.
NI is not liable for damage resulting from improper connections.
Complete the following steps to install the cable and any 50 ΩSMB cables.
1. Install the NI 5751R or NI 5752R by following the installation
procedure described in the NI FlexRIO FPGA Module Installation
Guide and Specifications.
2. Remove power from the adapter module by powering down the
PXI/PXI Express or CompactPCI chassis or by programmatically
removing power from the adapter module. Power down any external
hardware intended for connection to this system.
3. Attach either end of the cable assembly to the VHDCI connector on the
front panel of the adapter module and secure the cable with the captive
screws on the cable connector.
Note Do not use cables other than the cables listed in Table 2 with these accessories.
4. Attach and secure the other end of the cable assembly to the VHDCI
connector of the NI SMB-214x and secure them together with the
captive screws on the cable connector.

NI SMB-2145/2146/2147/2148 User Guide 6 ni.com
Figures 5 and 6 show how to connect your NI SMB-214x accessory to your
NI FlexRIO system.
Figure 5. Connecting the NI 5752R to the NI SMB-2145 and NI SMB-2146
1 PXI Chassis with NI 5752R
2 NI SMB-2145
3 NI SMB-2146
4SHC68-C68-D4 Cable Assembly
5SHC68-C68-D3 Cable Assembly
NI PXI-1042
NATIONAL NATIONAL
INSTRUMENTS INSTRUMENTS
NATIONAL NATIONAL
INSTRUMENTS INSTRUMENTS
1
2
4
5
3

©National Instruments Corporation 7 NI SMB-2145/2146/2147/2148 User Guide
Figure 6. Connecting the NI 5751R to the NI SMB-2147 and NI SMB-2148
5. Make signal connections by connecting SMB cables to NI SMB-214x
signal terminals. Refer to the Connecting Signals section for more
information.
Note To ensure a solid ground connection, tighten the SMB connectors by gently
snapping them into place.
1 PXI Chassis with NI 5751R
2 NI SMB-2147
3 NI SMB-2148
4SHC68-C68-D4 Cable Assemblies
NI PXI-1042
NATIONAL NATIONAL
INSTRUMENTS INSTRUMENTS
NATIONAL
INSTRUMENTS
SMB-2147 SMB-2147
AnalogInputAccessoryAnalogInputAccessoryAI3
AI3
AI7 AI7
AI 2 AI 2
AI6 AI6AI5
AI5
AI1 AI1 AI0
AI0
AI 4 AI 4
AI11 AI11
AI15 AI15AI14
AI14
AI 10 AI 10
AI 13 AI 13
AI 9 AI 9
AI12 AI12
AI 8 AI 8
1
2
3
44

NI SMB-2145/2146/2147/2148 User Guide 8 ni.com
6. Apply power to the adapter module by powering on the PXI/PXIe or
Compact PCI chassis or by programmatically applying power to the
adapter module.
7. Power on any external hardware intended for use with this system.
Connecting Signals
The NI SMB-214x provides signal connectivity to the NI 5751/5752
adapter module. You can connect to these signals from the labeled SMB
connectors on the NI SMB-214x.
Caution Connections that exceed any of the maximum ratings for the NI SMB-214x
or the NI 5751/5752 adapter module can damage the device and the computer. Maximum
input ratings are provided in the specifications document that shipped with the adapter
module. NI is not liable for any damages resulting from such signal connections.
Figures 7 through 10 show the pinouts of the VHDCI connectors of
NI SMB-214x accessories. The analog inputs, digital inputs, and digital
outputs are connected to corresponding pins on the NI SMB-214x. Refer
to Table 3 for the pin descriptions.
Table 3. VHDCI Connector Pinout Descriptions
Pin Signal Description
AI <0..31> Analog input channels 0 through 31
DI <0..15> Digital input channels 0 through 15
DO <0..15> Digital output channels 0 through 15
GND Ground reference for signals
RSVD Reserved for system use. Do not connect
signals to these channels.

©National Instruments Corporation 9 NI SMB-2145/2146/2147/2148 User Guide
NI SMB-2145

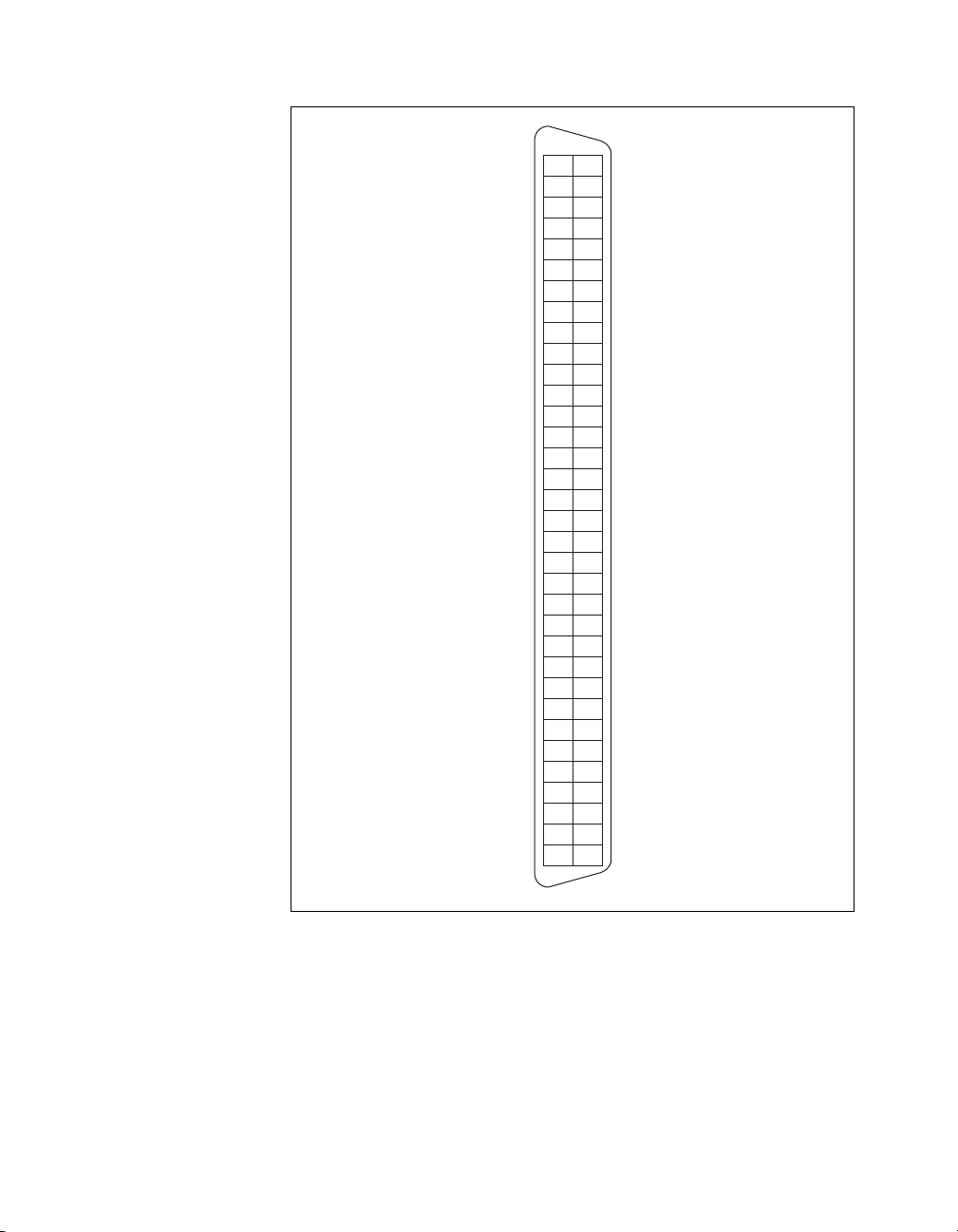

Figure 7. NI SMB-2145 VHDCI Connector Pinout
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
GND
AI 0/16
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
AI 2/18
GND
GND
AI 4/20
GND
AI 6/22
GND
AI 8/24
AI 10/26
GND
AI 12/28
AI 14/30
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
AI 1/17
AI 3/19
AI 5/21
AI 7/23
AI 9/25
AI 11/27
AI 13/29
AI 15/31
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

NI SMB-2145/2146/2147/2148 User Guide 10 ni.com
NI SMB-2146
Figure 8. NI SMB-2146 VHDCI Connector Pinout
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
RSVD
RSVD
GND
RSVD
GND
RSVD
GND
DI 1
GND
DO 15
GND
DO 13
GND
DO 11
GND
DO 9
GND
DO 7
RSVD
DO 5
GND
DO 3
RSVD
DO 1
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
DI 0
GND
DI 14
RSVD
DO 12
GND
DO 10
GND
DO 8
GND
DO 6
RSVD
DO 4
GND
DO 2
RSVD
DO 0
GND
RSVD
GND

©National Instruments Corporation 11 NI SMB-2145/2146/2147/2148 User Guide
NI SMB-2147
Figure 9. NI SMB-2147 VHDCI Connector Pinout
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
AI 0
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
RSVD
GND
AI 2
GND
GND
RSVD
RSVD
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
RSVD
GND
GND
GND
GND
RSVD
RSVD
AI 4
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
AI 6
AI 8
AI 10
AI 12
AI 14
RSVD
RSVD
AI 1
AI 3
AI 5
AI 7
AI 9
AI 11
AI 13
AI 15
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD

NI SMB-2145/2146/2147/2148 User Guide 12 ni.com
NI SMB-2148
Figure 10. NI SMB-2148 VHDCI Connector Pinout
Note For additional shielding, you can connect the shield ground connector on the
NI SMB-214x to earth/hard ground. This terminal is connected to the shielded enclosure
ground. The shield ground lug is shown in Figures 1 through 4.
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
RSVD
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
DI 7
GND
DI 5
GND
DI 3
GND
DI 1
GND
DO 7
RSVD
DO 5
GND
DO 3
RSVD
DO 1
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
RSVD
GND
DI 6
RSVD
DI 4
GND
DI 2
GND
DI 0
GND
DO 6
RSVD
DO 4
GND
DO 2
RSVD
DO 0
GND
RSVD
GND

©National Instruments Corporation 13 NI SMB-2145/2146/2147/2148 User Guide
Cleaning the Accessory
Disconnect all cables to the NI SMB-214x before cleaning. To remove
light dust, use a soft, nonmetallic brush. To remove other contaminants, use
alcohol wipes. The unit must be completely dry and free from contaminants
before returning to service.
Specifications
These specifications are characteristic at 25 °C unless otherwise noted.
NI SMB-2145
Analog Input
Analog input channels............................ 16, single-ended
Typical propagation delay
through NI SMB-2145 ........................... 1.2 ns
Typical channel-to-channel skew........... ±35 ps
Typical trace
characteristic impedance ........................ 50 Ω
Maximum voltage rating........................ 5.5 V or the maximum input
voltage of the NI 5752 analog
inputs, whichever is less
Physical
Dimensions............................................. 30.5 cm ×4.5 cm ×26.5 cm
(12.0 in. ×1.77 in. ×10.43 in.)
Weight.................................................... 1,380 g (48.7 oz.)
I/O connectors ........................................ One 68-pin VHDCI connector,
16 SMB jack connectors,
one banana-style connector

NI SMB-2145/2146/2147/2148 User Guide 14 ni.com
NI SMB-2146
Digital I/O
Digital output channels ...........................16, single-ended
Digital input channels .............................2, single-ended
Typical propagation delay
through NI SMB-2146............................1.2 ns
Typical channel-to-channel skew ...........±35 ps
Typical trace
characteristic impedance.........................50 Ω
Maximum voltage rating ........................5.5 V or the maximum input
voltage of the NI 5752 digital
inputs, whichever is less
Physical
Dimensions .............................................30.5 cm ×4.5 cm × 26.5 cm
(12.0 in. ×1.77 in. ×10.43 in.)
Weight ....................................................1,380 g (48.7 oz.)
I/O connectors.........................................One 68-pin VHDCI connector,
18 SMB jack connectors,
one banana-style connector
NI SMB-2147
Analog Input
Analog input channels ............................16, single-ended
Typical propagation delay
through NI SMB-2147............................1.2 ns
Typical channel-to-channel skew ...........±35 ps
Typical trace
characteristic impedance.........................50 Ω
Maximum voltage rating ........................5.5 V or the maximum input
voltage of the NI 5751 analog
inputs, whichever is less

©National Instruments Corporation 15 NI SMB-2145/2146/2147/2148 User Guide
Physical
Dimensions............................................. 30.5 cm ×4.5 cm ×26.5 cm
(12.0 in. ×1.77 in. ×10.43 in.)
Weight.................................................... 1,380 g (48.7 oz.)
I/O connectors ........................................ One 68-pin VHDCI connector,
16 SMB jack connectors,
one banana-style connector
NI SMB-2148
Digital I/O
Digital input channels ............................ 8, single-ended
Digital output channels .......................... 8, single-ended
Typical propagation delay
through NI SMB-2148 ........................... 1.2 ns
Typical channel-to-channel skew........... ±35 ps
Typical trace
characteristic impedance ........................ 50 Ω
Maximum voltage rating........................ 5.5 V or the maximum input
voltage of the NI 5751 digital
inputs, whichever is less
Physical
Dimensions............................................. 30.5 cm ×4.5 cm ×26.5 cm
(12.0 in. ×1.77 in. × 10.43 in.)
Weight.................................................... 1,380 g (48.7 oz.)
I/O connectors ........................................ One 68-pin VHDCI connector,
16 SMB jack connectors,
one banana-style connector

NI SMB-2145/2146/2147/2148 User Guide 16 ni.com
Compliance and Certifications
Environmental Management
National Instruments is committed to designing and manufacturing
products in an environmentally responsible manner. NI recognizes that
eliminating certain hazardous substances from our products is beneficial to
the environment and to NI customers.
For additional environmental information, refer to the NI and the
Environment Web page at ni.com/environment. This page contains the
environmental regulations and directives with which NI complies, as well
as other environmental information not included in this document.
Waste Electrical and Electronic Equipment (WEEE)
EU Customers At the end of the product life cycle, all products must be sent to a WEEE
recycling center. For more information about WEEE recycling centers, National
Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on
Waste Electrical and Electronic Equipment, visit ni.com/environment/weee.
⬉ᄤֵᙃѻક∵ᶧ᥻ࠊㅵ⧚ࡲ⊩ ˄Ё೑
RoHS
˅
Ё೑ᅶ᠋ National Instruments ヺড়Ё೑⬉ᄤֵᙃѻકЁ䰤ࠊՓ⫼ᶤѯ᳝ᆇ⠽䋼ᣛҸ (RoHS)DŽ
݇Ѣ National Instruments Ё೑ RoHS ড়㾘ᗻֵᙃˈ䇋ⱏᔩ ni.com/environment/rohs_chinaDŽ
(For information about China RoHS compliance, go to ni.com/environment/rohs_china.)

©National Instruments Corporation 17 NI SMB-2145/2146/2147/2148 User Guide
Technical Support Resources
The National Instruments Web site is your complete resource for technical
support. At ni.com/support you have access to everything from
troubleshooting and application development self-help resources to email
and phone assistance from NI Application Engineers.
National Instruments corporate headquarters is located at
11500 North Mopac Expressway, Austin, Texas, 78759-3504.
National Instruments also has offices located around the world to help
address your support needs. For telephone support in the United States,
create your service request at ni.com/support and follow the calling
instructions or dial 512 795 8248. For telephone support outside the United
States, contact your local branch office:
Australia 1800 300 800, Austria 43 662 457990-0,
Belgium 32 (0) 2 757 0020, Brazil 55 11 3262 3599,
Canada 800 433 3488, China 86 21 5050 9800,
Czech Republic 420 224 235 774, Denmark 45 45 76 26 00,
Finland 358 (0) 9 725 72511, France 01 57 66 24 24,
Germany 49 89 7413130, India 91 80 41190000, Israel 972 3 6393737,
Italy 39 02 41309277, Japan 0120-527196, Korea 82 02 3451 3400,
Lebanon 961 (0) 1 33 28 28, Malaysia 1800 887710,
Mexico 01 800 010 0793, Netherlands 31 (0) 348 433 466,
New Zealand 0800 553 322, Norway 47 (0) 66 90 76 60,
Poland 48 22 328 90 10, Portugal 351 210 311 210,
Russia 7 495 783 6851, Singapore 1800 226 5886,
Slovenia 386 3 425 42 00, South Africa 27 0 11 805 8197,
Spain 34 91 640 0085, Sweden 46 (0) 8 587 895 00,
Switzerland 41 56 2005151, Taiwan 886 02 2377 2222,
Thailand 662 278 6777, Turkey 90 212 279 3031,
United Kingdom 44 (0) 1635 523545

LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle
logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at
ni.com/trademarks for other National Instruments trademarks. Other product and company
names mentioned herein are trademarks or trade names of their respective companies. For patents
covering National Instruments products/technology, refer to the appropriate location: Help»Patents
in your software, the patents.txt file on your media, or the National Instruments Patent Notice
at ni.com/patents.
© 2010 National Instruments Corporation. All rights reserved. 375568A-01 May10
