26306 Mini Flash Trigger for Olympus
(Compatible with NA EM1/EM5II)
Instruction Manual
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recogni e the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximi e
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authori ed
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authori ed
service center(s). Please note that this warranty only applies when the product
is purchased in the territory where the service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthori ed modifications and/or repairs of our products will automatically
invalidate the warranty.
P
RECAUTIONS
•Use only batteries approved for use in this product, do not mix old and new
batteries.
•Check the battery terminals before installing into the product.
•Remove batteries for storage, do not store the product in an environment
of high humidity.
•Do not leave the product in direct sunlight for prolonged periods.
•Keep out of reach of children, failure to do so could result in injury.
•Defective products should be shipped to our distributors for service,
unauthori ed disassembling and/or modifications could result in mal-
function.

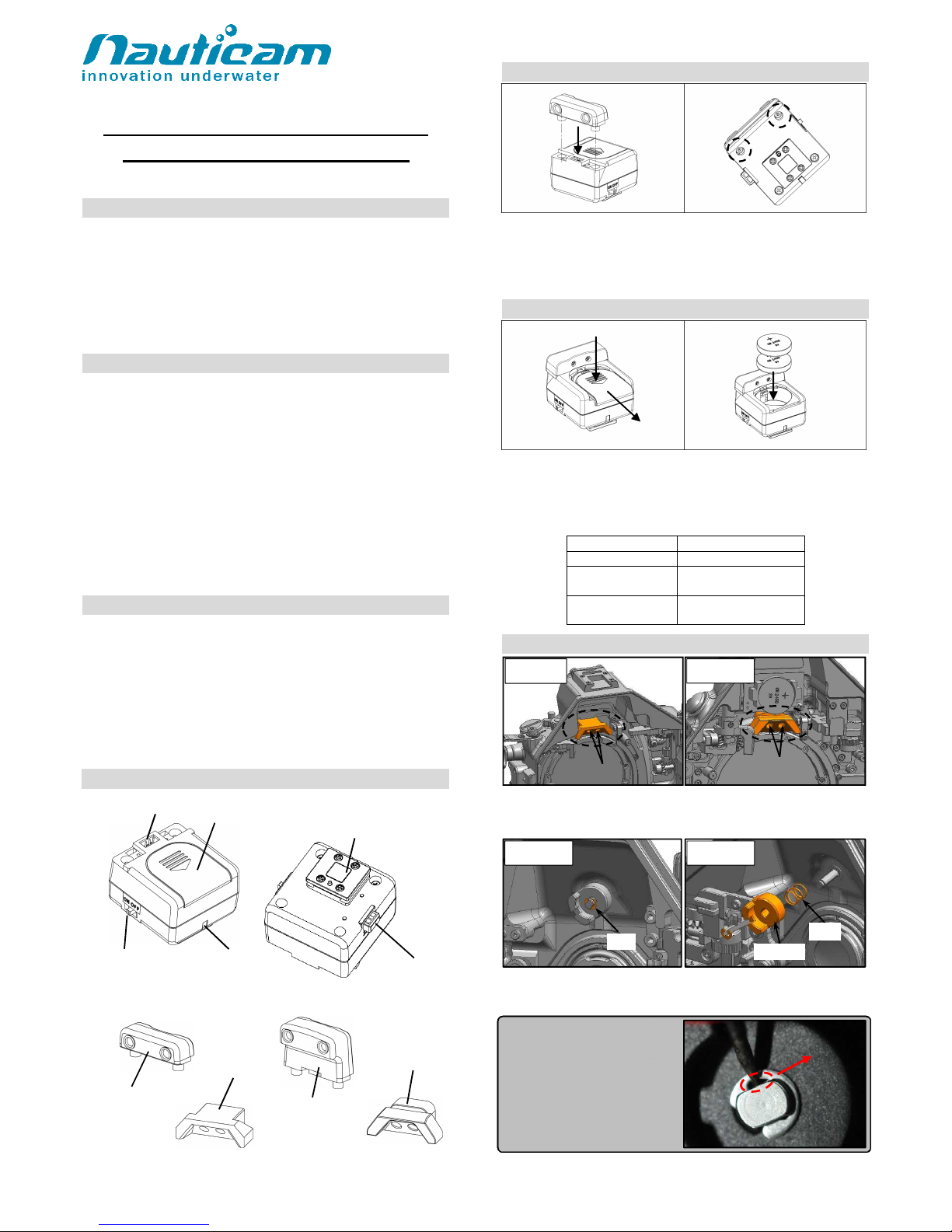

I
DENTIFICATION OF
P
ARTS
LED
M
ODULE
I
NSTALLATION
Choose the required LED module and attach it to the flash trigger base with
the LEDs facing outwards. Make sure the connector on the bottom of the LED
module correctly plug-in to the socket on the flash trigger base.
Secure the LED module by tightening the two supplied screws at the bottom
of the flash trigger.
B
ATTERIES
I
NSTALLATION
Make sure the On/Off switch is in the OFF position. Remove the battery
compartment cover by sliding it outwards.
Install the batteries (CR2450 x2pcs) with +ve terminal facing up as shown
above. Close the battery compartment cover and then switch the trigger unit
on. The indicator will turn green.
Indicator
Status of flash trigger
Green light
Start up.
Flashing Green light
(1 flash/sec)
Ready to use, normal
operation.
Flashing Red light
(1 flash/sec)
Low battery warning,
replace batteries.
H
OUSING
P
REPARATION
Replace the holder as indicated above with the supplied new holder. Remove
the two screws to detach it.
For NA-EM5II, remove the inner part of the flash on/off lever.
In the rear housing of NA-EM5II, locate the flash on/off inner mechanism (on
top of the viewfinder) and then remove the c-clip as indicated above. Detach
the flash on/off inner part and spring from the shaft.
Tip: To remove the c-clip, insert a
nail or a small flat head screwdriver
into the gap as shown below, then
pull it out.
Attention: Keep these parts for
restoring to use with internal flash.
continue on next page
On/off
switch
Indicator
Battery
compartment cover
Hotshoe connector
Release button
L
ED modules attachment socket
EM1 LED module
EM5II LED module
EM1 holder
EM5II holder
Press
Slide
NA
-
EM1
NA
-
EM5II
Screws
Screws
NA
-
EM5II
NA
-
EM5II
C
-
clip
Spring
Inner part

Current as of 20 6-02-02
continued from front page
To restore, align the inner part to the shaft with the extruded part on the left
hand side and install the spring and inner part back to the shaft. Then push the
c-clip to the groove on the shaft with a pliers or similar to secure.
Attention: Extra c-clips are provided in the package, DO NOT reuse the c-clip.
C
ONNECT TO THE
C
AMERA
Align the flash trigger hotshoe connector to the camera hotshoe and slide in
until it cannot go in any further. Test the flash trigger by pressing the shutter
release button of the camera, the LEDs in the front should turn on
instantaneously.
To detach the flash trigger from the camera, press and hold the release button
and slide it out.
S
PECIFICATIONS
Construction:
Body: PC+ABS
Dimensions:
NA
-
EM1: Approx.
37 x 36 x
40
mm
NA-EM5II: Approx. 37 x 49 x 42mm
Weight:
NA
-
EM1: Approx
. 4
2
g (w/ batteries installed)
NA-EM5II: Approx. 45g (w/ batteries installed)
Battery:
CR2450 x2pcs
Operation:
This a manual flash trigger only and has no TTL
function.
Flash Capacity
:
Approx.
10
000times
Compatible housings:
NA
-
EM1 / NA
-
EM5II
Compatible strobes:
INON: Z240 type 4, D2000 type 4, S2000
Sea&Sea: YS-250, YS-D1, YS-01
