Nautilus Hyosung Monimax 5300SE User manual

Installation Manual
MONiMAX5300SE System
V01.00.00 (2016. 3. 14)
© 2016 Nautilus Hyosung Inc. All Rights Reserved.

© 2016 Nautilus Hyosung Inc. All Rights Reserved. I
Revision History
Installation Manual –MX5300SE System
No.
Version
Date
Description of Change
Chapter
1
V01.00.00
2016/03/14
New Publication
All
© 2016 Nautilus Hyosung All Rights Reserved.
The content of this specification is protected by copyright laws.
2016. 3. 14. 1st Release

© 2016 Nautilus Hyosung Inc. All Rights Reserved. II
Contents
Chapter1. Preface...........................................................................................................................1-1
Purpose.........................................................................................................................................................1-1
Audience .......................................................................................................................................................1-1
Support Information.......................................................................................................................................1-1
What is in This Manual...................................................................................................................................1-1
Terminologies................................................................................................................................................1-2
Abbreviations ................................................................................................................................................1-2
Safety Precautions (English).........................................................................................................................1-4
Précautions pour la sécurité (French)...........................................................................................................1-6
Related Document.........................................................................................................................................1-8
Chapter2. Introduction...................................................................................................................2-1
About the MX5300SE ...................................................................................................................................2-1
Chapter3. Installation Information ................................................................................................3-1
Installation Condition and Space...................................................................................................................3-1

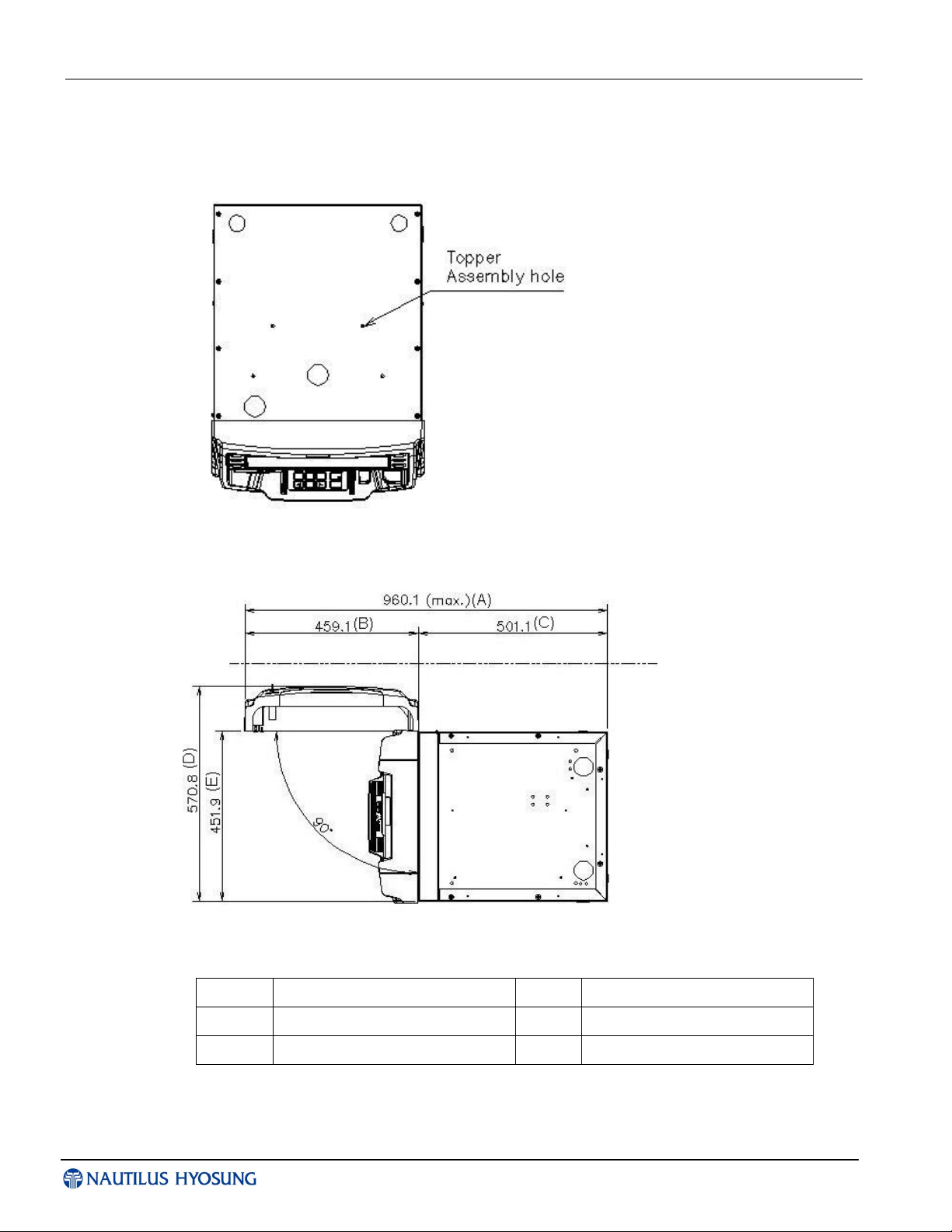

Exterior Dimensions......................................................................................................................................3-2
Biz Type...................................................................................................................................................3-2
Level-1 Type............................................................................................................................................3-6

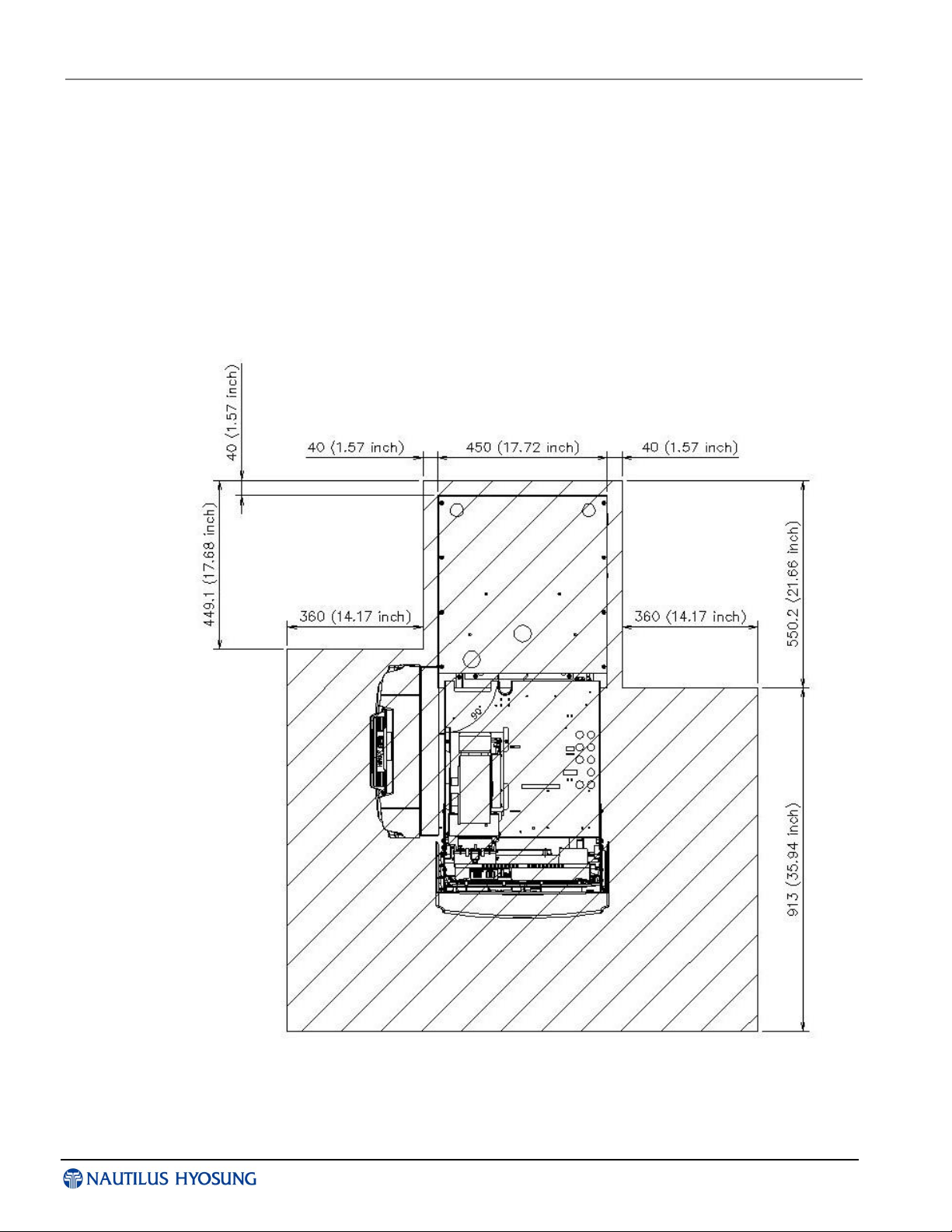

Installation and Service Clearance ...............................................................................................................3-8
Biz Type...................................................................................................................................................3-8
Level-1 Type..........................................................................................................................................3-10
Chapter4. System Installation .......................................................................................................4-1
Unpacking the ATM.......................................................................................................................................4-1
Bolting Down the MX5300SE........................................................................................................................4-2
Notes.......................................................................................................................................Notes-1

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-1
Chapter1. Preface
Purpose
▶This manual is produced to provide the guidelines for installers to comply with while
installing it.
▶This manual describes how to prepare for and to proceed the installation of MX5300SE
in advance.
Audience
▶This manual is for persons related to installing MX5300SE in branches of banks, such
as designers and construction workers of the branches and ATM installers, to work
efficiently and conveniently.
Support Information
▶If any question or installation error occurs while preparing for and installing MX5300SE
in compliance with this manual, please contact maintenance staffs of Nautilus Hyosung.
For the contact of maintenance staffs of Nautilus Hyosung, see the E-mail addresses
and telephone numbers provided separately.
What is in This Manual
▶MONiMAX referred to as “MX”
▶This manual is designed to provide the installation guide for the MX5300SE and the
detailed description of the following:
▪Important Warnings
▪Information for installation
▶All measurements in this manual are in metric and ( ) is inch scale.
▶All information described in this manual is a licensed product of Nautilus
Hyosung.
Some of the information in this manual may differ according to the network processor
to be connected and may be subsequently updated by the bank’s needs or the
improvement by Nautilus Hyosung.
It is the policy of Nautilus Hyosung to improve products as new technology,
components, software, and firmware become available. Therefore Nautilus Hyosung.
reserves the right to change specifications without notice.

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-2
Terminologies
►In this document the terminology listed below is used as follows:
▪Customer and consumer refer to any person who transacts business through the
ATM.
▪Device and unit refer to the standard and optional ATM equipment, such as monitor,
card reader, printer and dispenser.
▪Fascia refers to the entire front portion of the unit, including the portion where the
customer transacts business.
▪Module refers to a plug-in device that can be serviced or replaced.
▪Note(s) and bill(s) refer to the individual documents loaded into and dispensed from
the dispenser.
▪Servicing and maintenance refer to the supervisor, operator and technician’s tasks
performed to keep the ATM operational.
▪Screen refers to the text appearing on the customer display.
Abbreviations
►In this document the abbreviations listed below is used as follows:
#
Abbreviations
Description
1
AD board
Analog to Digital conversion Board
2
ADA
The American Disabilities Act
3
AP
Application Program
4
Assy
Assembly
5
BATT S/W
Battery Switch
6
CAM
Camera Unit
7
CDU
Cash Dispenser Unit
8
CE
Control Electronics
9
Earphone Jack
Voice Converter for Visually Disabled Persons (ADA)
10
EMV
Europay, Mastercard, Visa
11
EP
Elementary Program
12
EPP
Encryption PIN Pad
13
H/W
Hardware
14
I/F
Interface
15
ISO
International Standard Organization
16
JPR
Journal Printer
17
LCD
Liquid Crystal Display
18
MCU
Magnetic Card Unit
19
OPL
Operation Panel for Customers to Operate
20
OSD board
On Screen Display Board

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-3
#
Abbreviations
Description
21
P/S
Power Supply
22
PIN
Personal Identification Number
23
PNC
Panel Control Board
24
PTR
Printer (mainly Receipt Printer)
25
S/W
Switch
26
SIU
Sensor and Indications Unit
27
SP
Service Provider
28
SPR
Slip Printer (Receipt Printer)
29
TTU
Text Terminal Unit (OPL or SPL)
30
VFD
Vacuum Fluorescent Display

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-4
Safety Precautions (English)
▶Common Safety Precaution
Precautions outlined this manual provide information on safe
and proper handling of the product. Non-compliance of the
precautions may result in injury or damage to the product.
This precaution symbol with sample term tells you safety
warnings during equipment handlings.
▶Please read the following instructions before operating equipment.
▪Operate equipment in the order outlined in this manual.
▪Follow precautions indicated in this manual, as well as the equipment itself.
Failure to properly address these precautions may lead to injury or damage to the
product.
▪Avoid operations not addressed in this manual.
▪If you cannot remedy system problems using the methods outlined in this manual,
please refer to contact information listed in the manual.
▪Any change or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
<Note!>
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
▶Description of Precaution Symbols
Symbol
Description
Electrical Shock Warning
▪Do not remove cover. Only a maintenance engineer is
allowed to open the cover.
▪Do not touch. You may receive electric shock.
▪Make sure to turn off the power when servicing the
equipment.
High Temperature Warning
▪Do not touch the equipment when it is running.
▪The equipment can get extremely hot and may cause a
burn.
▪Make sure to close the cover before running the
equipment.

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-5

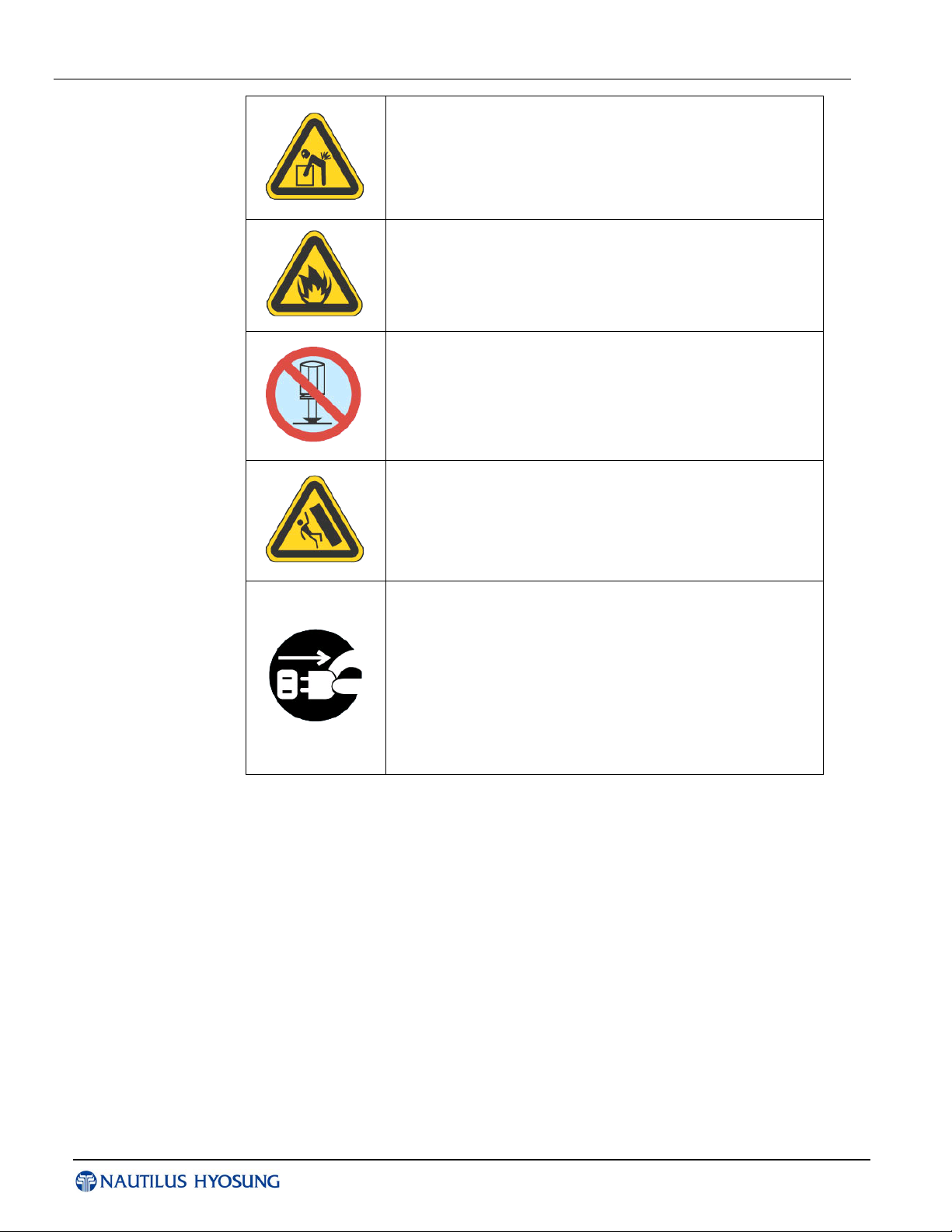

Use Precaution when Moving
▪The equipment is heavy. Make sure at least 2 people lift or
move the equipment.
▪Do not attempt to move the equipment alone. You may be
injured from dropping the heavy equipment.
Fire Hazard
▪Place the equipment in an area away from any
combustible materials.
▪The equipment may catch on fire from overheating or short
circuit of the power supply unit.
Disassembly Warnings
▪Do not disassemble or modify the equipment unless you
are a certified engineer.
▪Contact the service center for maintenance, adjustments
and repairs.
▪Improper disassembly may cause fire or electrical shock.
Collapse Precautions
▪Do not place the equipment where the floor cannot sustain
the weight of the equipment, or on slanted or unstable
surface.
▪Equipment may fall and cause injury or damage.
Unplug the Equipment
▪Stop using the equipment immediately if it smokes, emits
an unusual smell, makes abnormal sounds, or if liquids or
other foreign materials enter the equipment.
▪If the above-mentioned abnormalities occur, immediately
turn off the power, unplug the equipment and contact the
service center.
▪If you ignore these symptoms, the equipment may catch on
fire or cause electric shock.
<CAUTION>
1. TO REDUCE THE RISK OF FIRE, USE ONLY No. 26 AWG OR LARGER
TELECOMMUNICATION LINE CORD
2. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSED OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
3. FOR PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED
NEAR THE EQUIPMENT AN SHALL BE EASILY ACCESSIBLE
4. THE EQUIPMENT IS TO BE SECURED TO THE BUILDING STRUCTURE BEFORE
OPERATION

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-6
Précautions pour la sécurité (French)
►Précaution générale pour la sécurité
Précautions décrits de ce manuel fournissent des informations
sur une manipulation sûre et appropriée du produit. Le non-
respect des précautions peut causer des blessures ou
endommager le produit.
Ce symbole de précaution avec le terme d’example vous
indique des consignes de sécurité lors de la manipulation de
l'équipement.
►Veuillez lire des instructions suivantes avant d'utiliser l'équipement
▪Fonctionner l'équipement dans l'ordre indiqué dans ce manuel.
▪Suivre les précautions indiquées dans ce manuel, ainsi que l'équipement lui-même.
Le défaut de traiter correctement de ces précautions peut entraîner des blessures ou
endommager le produit.
▪Évitez des opérations non traitées dans ce manuel.
▪Si vous ne pouvez pas résoudre des problèmes du système en utilisant des méthodes
décrites dans ce manuel, veuillez se référer aux informations de contact figurant dans
le manuel, s’il vous plaît.
▪Certain changement ou des modifications dans la construction de ce dispositif qui ne
sont pas expressément approuvés par la partie responsable de la conformité
pourraient annuler l'autorité de l'utilisateur de faire fonctionner l'équipement.
<REMAQUE!>
Cet équipement a été testé et fondé pour se conformer aux limites pour un équipement
numérique de classe A, conformément à la partie 15 des règles FCC. Ces limites sont
conçues pour fournir une protection raisonnable contre des interférences nuisibles
lorsque l'équipement est utilisé dans un environnement commercial. Cet équipement
génère, utilise et peut émettre des fréquences radios et, s'il n'est pas installé et utilisé
conformément aux instructions de ce manuel, peut causer des interférences nuisibles
aux communications radios.
Le fonctionnement de cet équipement dans une zone résidentielle est susceptible de
provoquer des interférences nuisibles dans le cas, l'utilisateur devra corriger ces
interférences à ses propres frais.
►Description des symboles de précaution
Symbole
Description
Choc électrique
• Ne pas retirer le couvercle. Seul le technicien d'entretien est
autorisé à ouvrir
le couvercle.
• Ne pas toucher. Vous pouvez avoir un choc électrique.
• Assurez-vous d'éteindre l'appareil lors de l'entretien de
l'équipement.

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-7
À haute temperature
• Ne pas toucher l’équipement quand il est en marche.
• L’équipement peut devenir extrêmement chaud et peut
provoquer une brûlure.
• Assurez-vous de fermer le couvercle avant de lancer
l'équipement.
Soyez prudent lors du déplacement
• L'équipement est lourd. Assurez-vous d'au moins 2
personnes pour soulever ou déplacer l'équipement
• N'essayez pas de déplacer l’équipement seul. Vous pouvez
être blessés par la chute de l'équipement lourd.
Risque d'incendie
• Placer l’équipement dans une zone éloignée de tous les
matériaux combustibles.
• L'équipement peut s'enflammer de surchauffe ou de court-
circuit de l'unité d'alimentation.
Démontage
• Ne pas démonter ou de modifier l'équipement, sauf si vous
êtes ingénieur certifié.
• Contacter le centre de service pour l'entretien, le réglage et
la réparation.
• Le mauvais démontage peut provoquer un incendie ou un
choc électrique.
Tomber
• Ne pas placer l'équipement dont le sol ne peut pas
supporter le poids de l'équipement, ou sur une surface
inclinée ou instable.
• L'équipement peut tomber et provoquer des blessures ou
des dommages.
Débrancher l'équipement
• Cessez d'utiliser l’équipement immédiatement si il fume,
émet une odeur inhabituelle, fait des bruits anormaux ou si
des liquides ou d'autres matériaux étrangers dans
l'équipement.
• Si les anomalies mentionnées ci-dessus se produisent,
éteignez immédiatement la puissance, débranchez
l'appareil et contactez le centre de service.
• Si vous ignorez ces symptômes, l’équipement peut prendre
feu ou provoquer un choc électrique.
AVERTISSEMENT :
1. POUR RÉDUIRE LES RISQUES D'INCENDIE, UTILISEZ UNIQUEMENT AWG n °26 OU
LA LIGNES DE TELECOMMUNICATION PLUS GROSSE
2. RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACEE PAR UN TYPE
INCORRECT. DISPOSER POUR UTILISATION DES BATTRIES SELON LES
INSTRUCTIONS
3. POUR LES APPAREILS RACCORDES, LA PRISE DOIT ETRE INSTALLEE PRES
D’EQUIPEMENT POUR ÊTRE FACILEMENT ACCESSIBLE

Installation Manual Chapter1.Preface
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 1-8
4. L’EQUIPEMENT DOIT ETRE SECURISE A LA STRUCTURE DU BATIMENT AVANT
D'UTILISER
Related Document
▶The related documents are listed as follows. If needed, please contact staffs of our
technical support team and maintenance team.
▪Operator Manual
▪Service Manual

Installation Manual Chapter2.Introduction
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 2-1
Chapter2. Introduction
About the MX5300SE
►MX5300SE is designed to meet the everyday demands of immediate cash needs for
individuals with a compact size to fit in virtually any place. This Automated Teller
Machine (ATM) is connected to a network processor to verify accounts and any other
inquires through the insertion of a customer’s card. MX5300SE is easy to use, easy to
service and able to support customer’s needs.
►The benefits that the new concept MX5300SE provides are as follows.
Removes inconvenience which occurs when bank clerks directly handle cash with
customers and relieves workload upon tellers by processing withdrawal of cash
automatically.
Allows tellers to calculate and close amount faster than the existing manual
calculation.
Allows easy and quick installation and maintenance.

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-1
Chapter3. Installation Information
Installation Condition and Space
►When you determine the location of your MX5300SE ATM, ensure that the physical
environment, including the temperature and humidity, meets the requirements. Following
conditions should be met before installing equipment.
1. Avoid locations where intense direct light is reflected off the LCD screen.
2. Avoid locations where strong static electricity can occur.
3. The floor must allow easy wheelchair access from the front or the side.
4. Space required for servicing the machine should be considered before installation.

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-2
Exterior Dimensions
Biz Type
►Front View

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-3
►Side View

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-4
►Top View
1. Out Door Bezel Opened
<Note!> The measurements of above picture are in metric. For inch scale, see the table below.
A
960.1mm (37.8inch)
D
570.8mm (22.47inch)
B
459.1mm (18.07inch)
E
451.9mm (17.79inch)
C
501.1mm (19.73inch)

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-5
2. Front Door Opened
<Note!> The measurementsof above picture are in metric. For inch scale, see the table below.
A
909.4mm (35.80inch)
D
631.3mm (24.85inch)
B
460.4mm (18.12inch)
E
448.2mm (17.64inch)
C
449.1mm (17.68inch)

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-6
Level-1 Type
►Front View

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-7
►Side View

Installation Manual Chapter3. Installation Information
© 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-8
Installation and Service Clearance
Biz Type
►Following diagram is describing the areas required for installing and servicing the MX5300SE
(Biz type).
Hyosung recommends it is more convenient for your service personnel to have enough
maintenance space as described below to service this ATM.
1. Top View
