Setting up the Ingenico 3070 Pinpad
via a Serial Connection
The following documentation will provide instructions for configuring Ingenico 3070 Pinpad with
CRE/RPE, using a serial connection connected via COM1.
Note: To use Ingenico 3070 Pinpad you must be using version 12.0 or above.
Note: The pinpad MUST have the RBA application (version 2.4.0.4) running.

2 | P a g e
Setting up CRE/RPE for the Ingenico 3070 Pinpad
In order for the Ingenico 3070 pinpad to be setup correctly, the pinpad must be plugged into
the computer via serial and turned off –no power plugged in. A payment processor must also
be setup in the Setup Screen.
1. Open CRE/RPE.
2. Select the Manager or Options button.
3. Enter the administrator password (default: admin)
where applicable.
4. Select Setup then, Setup Screen.
1. While at the setup screen we will need to go to the Hardware tab.
2. Under PinPad Port select COM1.
3. Under PinPad Type select Ingenico3070.
4. Under PinPad Connection select Serial.
5. Select Update to save your changes.
6. At this point we will need to completely exit the software.

3 | P a g e
Initialize PinPad for Use with CRE/RPE
1. Plug in the power for the PinPad and wait until the
screen (pictured left) is shown.

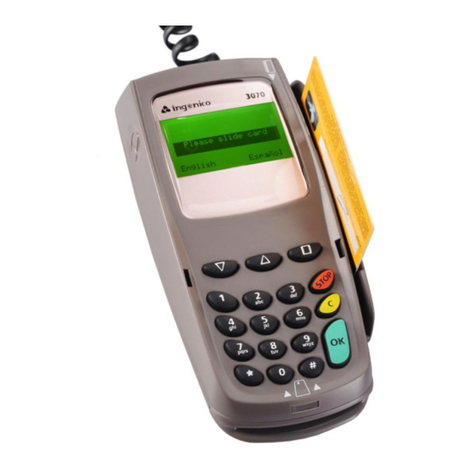

2. We will then want to open CRE/RPE and we will
have to wait until the screen says Please slide card
(pictured left).
3. At this point in the installation you should login
and perform a test transaction to verify that you
are able accept credit cards using the processor
you selected.
