Nav TV NTV-KIT558 User manual

NNG-Ford V1
3950 NW 120th Ave, Coral Springs, FL 33065 TEL [phone] FAX [phone]
Navigation interface for FORD vehicles equipped with 8.4”MyTouch
NTV-KIT558
NTV-DOC218

SoftTouch Navigation System
2011-2013 Ford Edge Installation Instructions
INSTALLATION PERFORMED ON FORD EDGE FOR REFERENCE ONLY!
Parts Identification Page 1
Vehicle Preparation Page 2
2egaPsgnitteShctiwSgnimmargorP
Installation Page 3
Parts Identification
Item Qty. Description
1 1 Navigation interface module
2 1 Vehicle interface harness
3 1 Stylus
4 1 Navigation interface board
5 1 LCD IN harness and LCD IN harness
6 1 GPS antenna with magnetic base
7 1 Audio Break-Open Module, with harnesses
8 1 Speaker and reverse camera input harness
9 1 VHB tape
NTV-KIT558: FORD V1
NTV-KIT585: FORD V2
Compatibility
NTV-DOC218

STOP – Install At Your Own Risk
YOU MUST READ THESE WARNINGS AND NOTICE BEFORE PRODUCT
HANDLING AND INSTALLATION!
PRODUCT AND VEHICLE APPLICATION WARRANTY DISCLAIMER
WARNING! The Navigation Electronic Components are sensitive to Electro-Static
Discharge (ESD). DO NOT HANDLE THE NAVIGATION ELECTRONIC
COMPONENTS WITHOUT PROPER ESD GROUNDING DURING
INSTALLATION. FAILURE TO USE PROPER ESD PROTECTION WHEN
HANDLING THE NAVIGATION COMPONENTS WILL VOID THE PRODUCT
WARRANTY.
WARNING! Installation of this Navigation Electronics product in the vehicle radio
head unit must be performed by a professional technician that is experienced with
proper work methods, ESD handling requirements, and knowledgeable of specific
procedures for radio disassembly, Navigation Electronics installation, and re-
assembly of the vehicle Radio Head Unit as well as proper handling requirements of
all components involved. FAILURE TO FOLLOW PROPER DISASSEMBLY,
INSTALLATION, AND REASSEMBLY PROCEDURES AND PROPER
COMPONENT HANDLING REQUIREMENTS MAY RESULT IN
IRREVERSIBLE DAMAGE TO THE VEHICLE RADIO HEAD UNIT AND/OR
THE NAVIGATION ELECTRONICS AND WILL VOID THE PRODUCT
WARRANTY!
WARRANTY DISCLAIMER NOTICE! Radio removal, disassembly, installation
of Navigation Electronics, and Radio re-assembly/re-installation is the
responsibility of the installer. It is recommended that you contract a professional
installer that is experienced with proper work methods involving electronics and
knowledgeable of specific procedures for radio disassembly, Navigation
Electronics installation, and re-assembly/re-installation of the Radio Head Unit in
the vehicle.
NTV-DOC218

WARNING
To avoid dangerous distractions that may lead to an accident, the driver should never operate
the system while the vehicle is in motion. Before installing this product, the seller should
inform the end-user of proper use and compliance with the proper instructions and all state and
federal laws.
Vehicle Preparation
Before beginning your installation, familiarize yourself with the installation instructions and the
SoftTouch Navigation system components.
To ensure your safety, (A) apply the emergency brake and (B) read this entire manual before
beginning.
CAUTION: It is advisable to disconnect the negative battery cable for 3 minutes before
beginning installation, to avoid unintended air bag deployment. Note and record any anti-theft
radio codes prior to disconnecting.
Default Programming Switch (Dip Switch) Settings
Default Programming Switch Settings
1 – Off 2 – Off 3 – On 4 – Off 5 – On 6 – On 7 – Off 8 – On
Factory or Aftermarket Camera Settings
To use an aftermarket camera – Place switch #1 in OFF position.
To use the vehicle’s factory camera – Place switch #1 in ON position.
NTV-DOC218

Installation

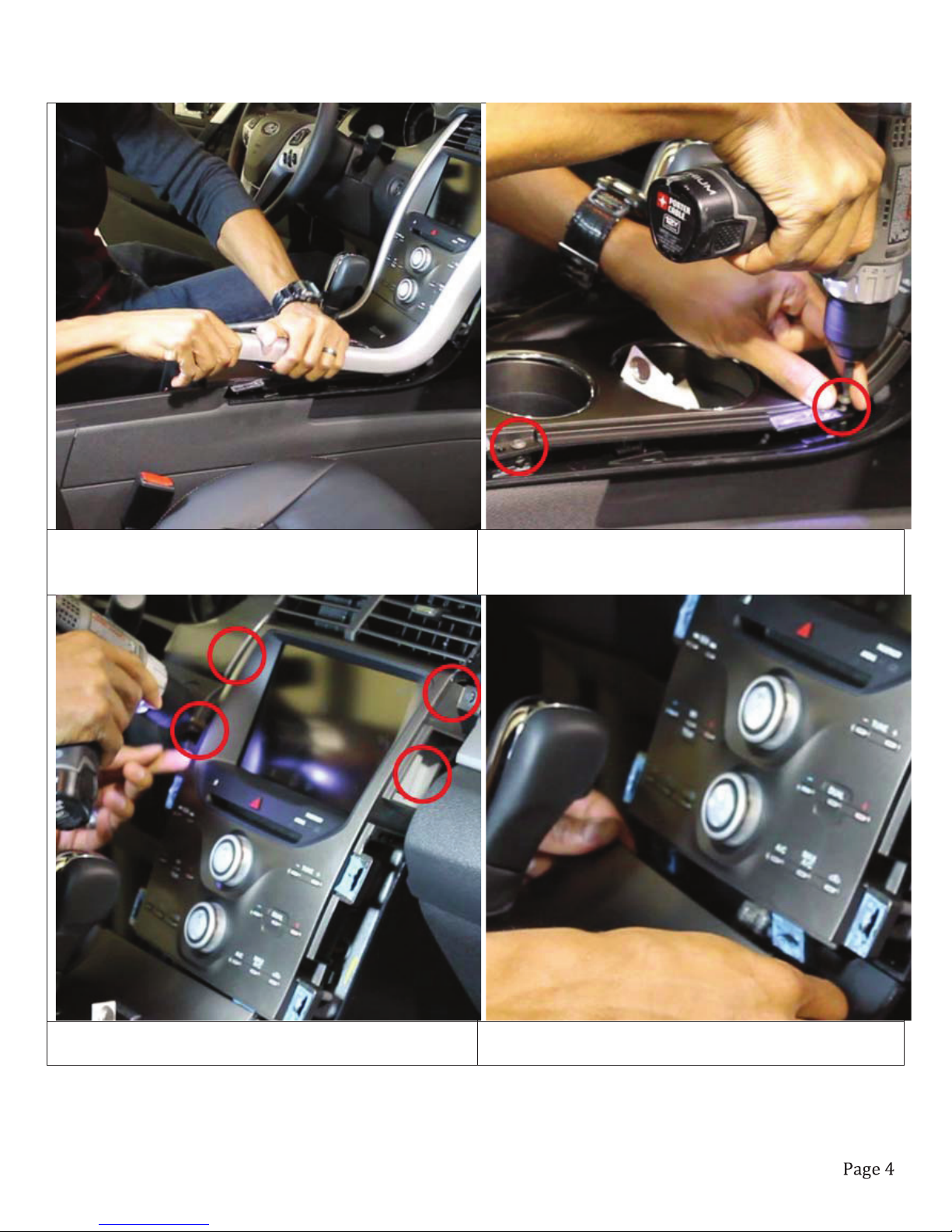

Using even pressure, gently remove the trim strips
running from the center console to the dashboard by
lifting them away.
Remove the four screws from both sides of the trim
surrounding the vehicle’s shift lever.
Remove the four screws attaching the factory radio
trim to the dashboard.
Decouple the clips attaching the radio trim to the shift
lever trim.
NTV-DOC218
NTV-DOC218

Remove the radio trim from the vehicle making sure to
unplug the wire harness for the air conditioning
controls.
Remove the four screws securing the factory touch
screen to the dashboard. Place them somewhere
where they will not be lost.
Gently turn the touch screen unit towards the driver’s
side of the vehicle to easily access the factory wiring
harnesses.
Gently remove these harnesses (Note: the large
factory harness includes a locking retainer clip.)
NTV-DOC218
NTV-DOC218
NTV-DOC218
NTV-DOC218
NTV-DOC218
NTV-DOC218
NTV-DOC218
NTV-DOC218

Gently lift the touch screen unit from the vehicle’s
dashboard.

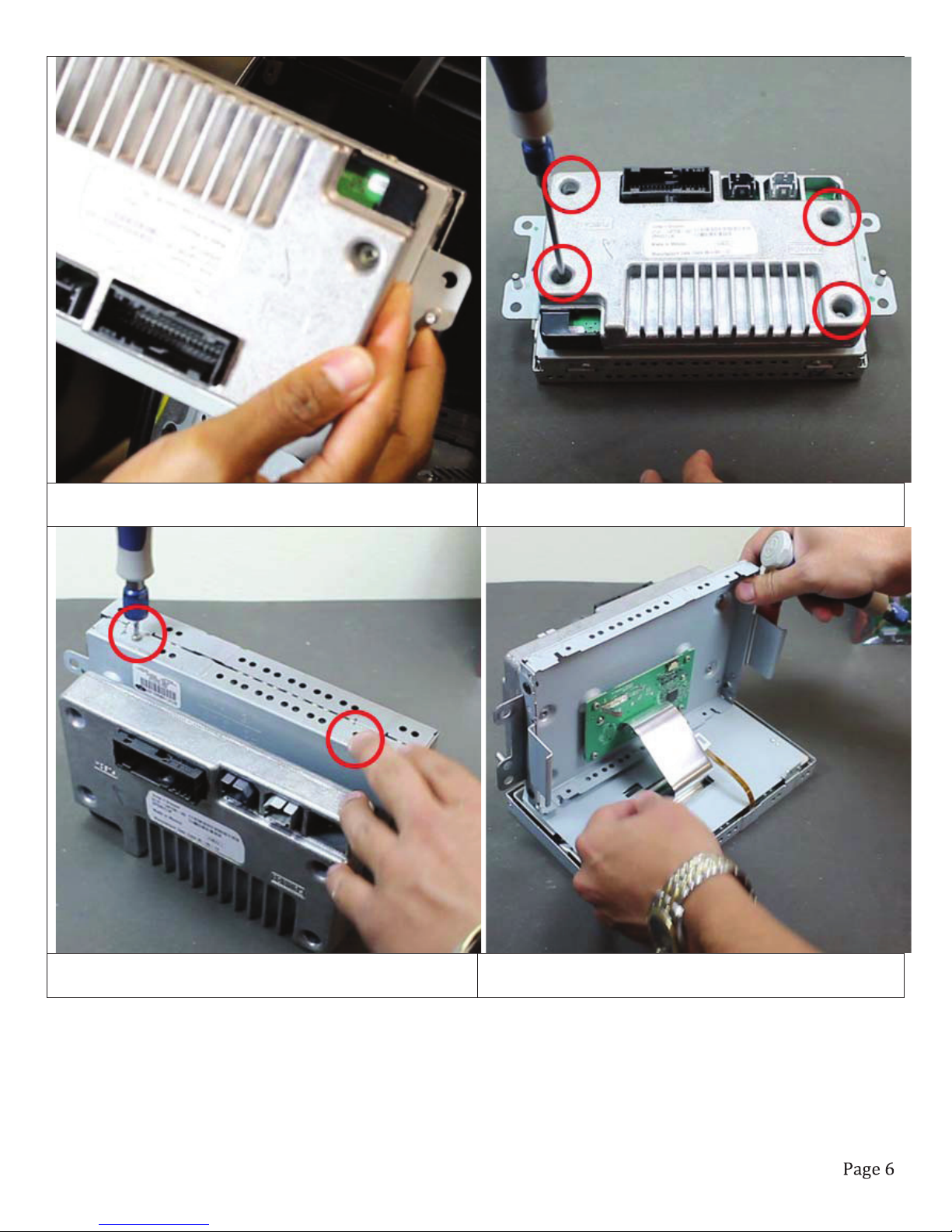

Remove the four screws from the backside of the
touch screen unit.
Remove the four screws surrounding the outside of the
touch screen unit.
Gently lift open the casing of the touch screen unit to
gain access to the ribbon cables on the interior.
NTV-DOC218

Using a small pry tool, gently release the large ribbon
cable tab.
Gently remove the small ribbon cable from the board
as well.
Remove the four screws securing the touch screen
interface board to the touch screen unit…
…this exposes the interface plug underneath.
NTV-DOC218

Lift away the backside casing and route the LCD-IN
and TP-IN harnesses through the opening.
Reapply the interface board making sure to properly
align the factory connector on its backside to the touch
screen.
Connect the ribbon cables from the navigation interface board to the touch screen interface board and re-secure
the four mounting screws.
NTV-DOC218

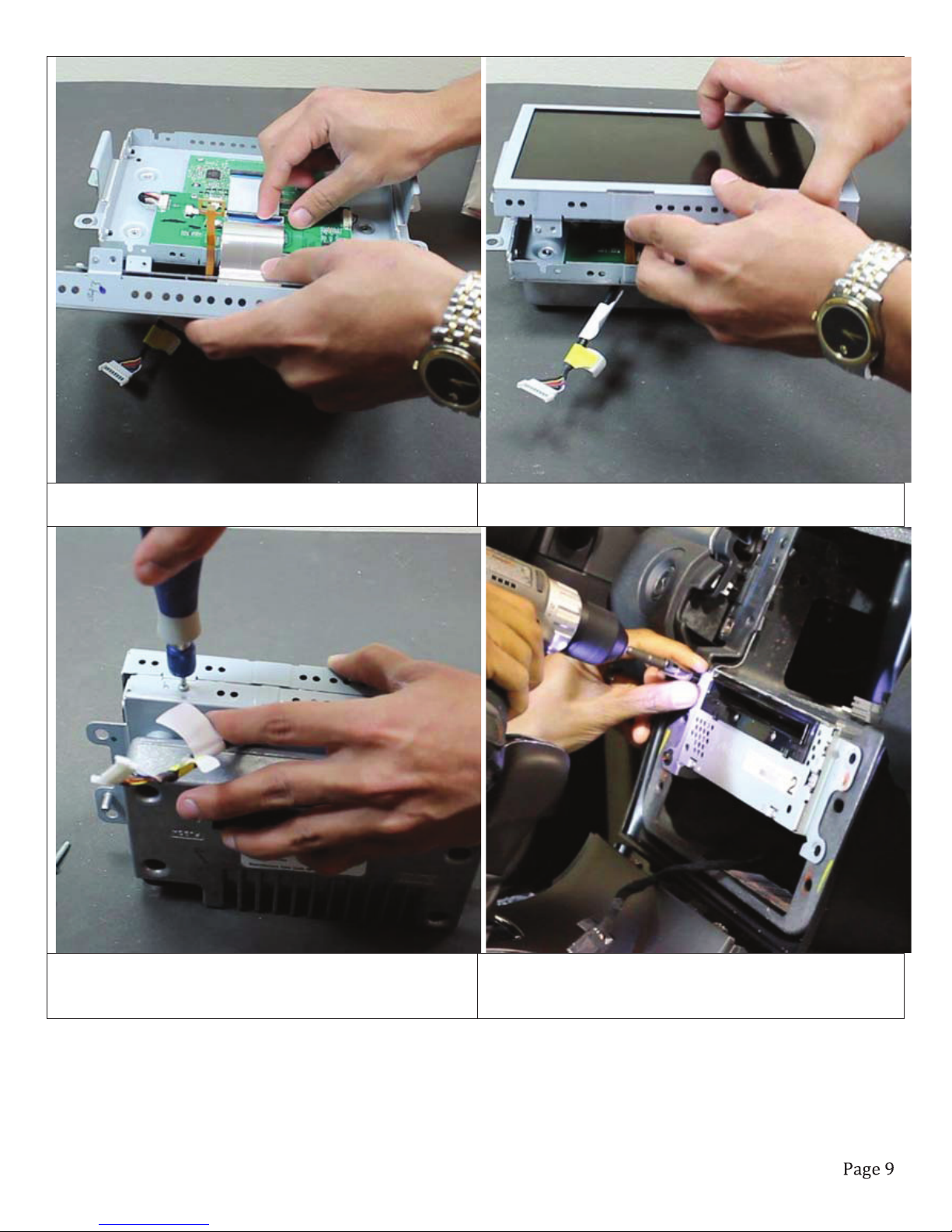

Connect the ribbon cables from the touch screen unit
to the newly installed navigation interface board.
Replace the touch screen unit making sure no ribbon
cables are pinched during the process.
Secure the touch screen unit to its carriage frame by
replacing the four previously removed screws.
Remove the four screws securing the factory CD
player to the dashboard and gently lift it out of the
way.
NTV-DOC218

Remove the protective layer from the adhesive backing
on the GPS speaker and attach it to the interior
dashboard frame behind the touch screen.
Mount the GPS antenna to the top-rear of the vehicle
allowing it to attach using its magnetic base.
Route the GPS antenna extensions harness to the front
of the vehicle above the headliner, down the
passenger-side A-pillar, and behind the glovebox.
Connect the TP-IN and LCD-IN harness to the PINK
and YELLOW ports on the navigation control module.
NTV-DOC218

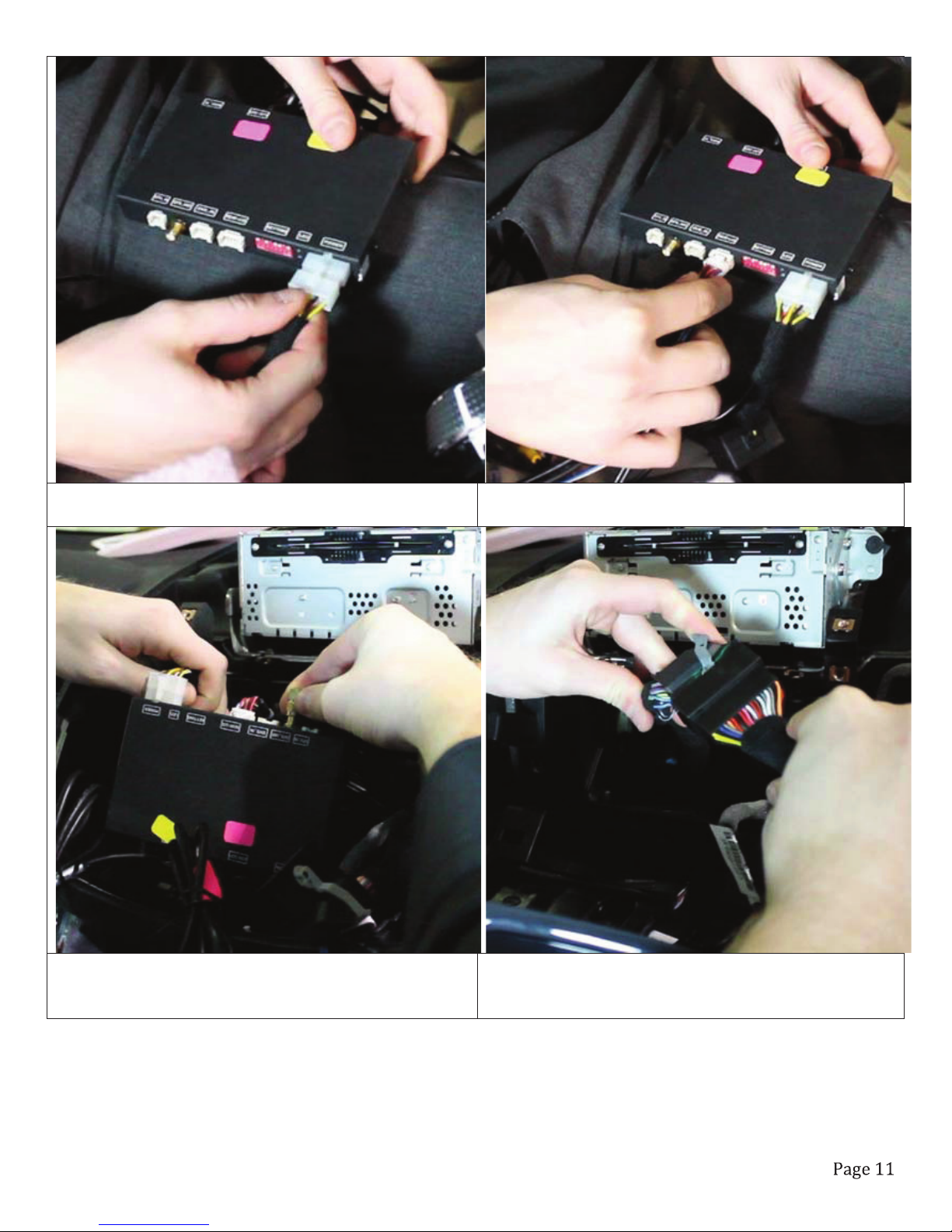

Connect the power harness from the vehicle interface
harness to the navigation control module.
Connect the speaker interface harness to the
navigation control module.
Find the threaded end of the GPS antenna and connect
it to the navigation control module.
Connect the vehicle interface harness to the factory
wiring harness on the car. (Note: the large factory
harness includes a locking retainer clip.)
NTV-DOC218

Apply the included VHB tape to the bottom side of the
navigation control module.
Attach the navigation control module to the dashboard
in the open cavity below the factory CD player.
Attach the vehicle interface harness to the backside of
the touch screen unit.
Connect the TP-IN and LCD-IN harnesses previously
routed through the backside of the touch screen unit’s
casing to the TP-IN and LCD-IN harnesses from the
navigation interface module.
NTV-DOC218

Replace the touch screen unit and factory CD player.
Make sure no wires are pinched in the process.
If indoors, start the vehicle and move it outside so that the
GPS antenna has a clear view of the sky. Press the
mute/call decline button to switch from the factory
interface to the iGo Navigation interface.
Reassembly
1. Reinstall all trim pieces taking special care to ensure harnesses and wiring connections are properly secured.
2. Make sure no harnesses are bent or pinched by trim pieces.
3. Reconnect all disconnected bulbs and check for function.
Installation Tips
tConfirm proper cable extension connector orientation and always verify proper ends are routed in correct direction.
tIt is a good idea to dry-fit all pieces in this kit before permanently attaching them to ensure proper orientation and
operation before beginning installation for familiarization with components.
tAlways treat any metal exposed during installation with a rust preventative compound to prevent system failure due to
rust and/or corrosion.
tAlways seal any holes drilled with the provided sealing putty to prevent water infiltration through unprotected areas.
tConfirm integrity of mechanical and electrical connections before moving to next installation sequence.
Installation Notes
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
NTV-DOC218

1 | P a g e
Ford Audio Integration Supplementary Manual
This is a supplementary installation manual for FORD Navigation
system with factory speaker integration. Please carefully refer to
the main installation instruction for navigation system.
WARRANTY DISCLAIMER NOTICE!Radio removal, disassembly, installation of
Navigation Electronics, and Radio re-assembly / re-installation is the responsibility of the
installer. It is recommended that you contact a professional installer that is experienced with
proper work methods involving electronics and knowledgeable of specific proceduresfor radio
disassembly, Navigation Electronicsinstallation, and re-assembly / re-installation of the Radio
Head Unit in the vehicle. INSTALLATION DAMAGE TO THE VEHICLE RADIO
HEAD UNIT IS EXPRESSLY NOT COVERED UNDER THE PRODUCT
WARRANTY.
To avoid dangerousdistractions that may lead to an accident, the driver should never operate
the system while thevehicle is in motion. Before installing the product, the seller should
informtheend-user of proper use and compliance with the proper instructions and all states and
federal laws.
Before beginning your installation, familiarize yourself with the installation instructions andthe
Navigation system components.
CAUTION:It is advisable to disconnect the negative battery cable for 3 minutes before
beginning installation, to avoid unintended air bag deployment. Note and record any anti-theft
radio codes prior to disconnecting.
Overall connection diagram
main harness
FD-AUDSPK-02
AUD-6PIN-01
to REAR-LCD
to main harness
power
to dash speakerto GPS module
Audio BOX

2 | P a g e
Ford Audio Integration Supplementary Manual (cont.)
Components for audio integration:
1. GPS Audio Box
2. Wiring (FD-AUDSPK-02)
3. Wiring (AUD-6PIN-01)
4. Main Harness (same harness used in main install)
5. Rear-LCD (connected to GPS box from main install)
Steps:
1. Connect both FD-AUDSPK-02 and AUD-6PIN-01 to GPS Audio Box
2. Connect white power plug to Main Harness
3. Insert green wire with pin to Main Harness (See figure 1)
Figure 1 Figure 1a
4. Connect 2-pin speaker plug to Rear-LCD speaker plug
5. Locate the dash center speaker
6. AUD-6PIN-01 has (4) wires labelled as SPK IN+, SPK IN-, SPK OUT+ and SPK OUT-
7. Cut the dash center speaker wire and connect radio side wires to SPK IN+ and SPK IN-
8. Connect speaker side wires to SPK OUT+ and SPK OUT-
** Normally, radio audio will by-pass audio box. When GPS talks, audio box
will mute factory audio output and provide GPS audio to the dash speaker. **
insert pin here
green wire from
FD_AUDSPK-02
If center dash top speaker is not available, connect
supplied external speaker to REAR-LCD for gps audio.
(Alternatively, use 2-1/4” speaker with gps audio box)

WEAK /NO GPS SIGNAL?
Tips to Improve GPS Antenna Signal if vehicle equipped Metallized Windshield*
“GPS MONITOR Tools”
Exit IGO MAP by press SHUT DOWN BUTTON
Console> SETUP GPS MONITOR
Locate the Antenna with minimum 5 bars in dark blue or Gray bar
(Always suggest mounting the GPS antenna on the roof)
Press “!” icon to reset GPS signal and change the Antenna position

PROPER GPS ANTENNA POSITION
if vehicle equipped *Metallized Windshield
SUV/Coupe
Sedan
TRUCK (Shown as Tundra)
Alternatively, installer might choose to mount Antenna inside the headliner or inside
vehicle using GPS monitor tools (see instruction). However, stay away from the
windshield.
*Windshields with metal particles can interfere with radio waves, dash-mount satellite radio receivers, and GPS
receivers may be affected external transmitters and receivers may be required.

IGOPRIMOMAPPATHSETTING
1. PressSetup‐>NavigateSetup
2. PressontheFolderIcon
3. SelectthefollowingpathinStorageCard‐>cyb_navi.exe
4. PressHOMEbuttononthetopleftcornerandpress
NAVIGATION
5. Systemshouldabletoruninto“IGOPRIMO”
