NEC IW77 User manual

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 1 of 10
Contents
Product Description, Lens Specs, Notes and Formulas Page 1
Diagrams and Distance Charts
Wall Mounted Side View Installation Page 2
Wall Mounted Front View Installation Page 3
Whiteboard Dimensions
Front Page 4
Back and Left Side Page 5
Cabinet Dimensions
Front, Top, Mirror Opened and Mirror Closed Page 6
Back, Right Side and Bottom Page 7
Optional Wall Mount Dimensions Page 8
Control Codes Page 9
Product Description
Type: Whiteboard Dimensions: 62.0”(W) x 78.0”(H) x 30.9”(D)
1chipDMD
TM Lens-less projector Weight: 92.1 lbs
Native Resolution: 1024 x 768 (1024x576 for 16:9 screens) Screen Range: 77” Diagonal (4:3)
Brightness: 2000 lumens
Screen/Aspect Ratio_
Both 4:3 and 16:9 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. By selecting the screen type in the menus, Aspect Ratio control is reconfigured for that screen type.
Notes
•For screen sizes not indicated on the projection charts, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.
•All calculations are based on 4:3 aspect ratio.
•Distances are in inches, for millimeters multiply by 25.4.
•Distances may vary ±5%.
Formulas
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug the screen width in for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3.
Definitions: 4:3 Screen Formulas:
W= Screen width W=Hx4/3
H= Screen height H=Wx3/4
B= Vertical distance between projector foot and screen center Screen Diagonal = W x 5/4
C=Throwdistance
D= Vertical distance between projector foot and screen bottom
(screen top for ceiling mounted application) 16:9 Screen Formulas:
W=Hx16/9
H=Wx9/16
Projection Formulas: Screen Diagonal = W x 18.358/16
B= 0.6882W + 3.935
C= 0.4874W - 13.056
D(4:3) = 0.3132W + 3.935
D(16:9) = 0.407W + 3.935
Vertical Position for a 16:9 screen: The Vertical Position adjustment moves the 16:9 image up and down in the unused portion of
the 4:3 DLP panel. This adjustment is only available when the projector is set for 16:9 in the “Screen” menu. The range of Vertical
Position is dependent on aspect ratio and 3D Reform used. If 3D Reform is not used, the approximate range of vertical position is
+/-0.167H (H=Screen Height) when using a 16:9 screen. (See “Screen Type” and “Position” in user manual)

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 2 of 10

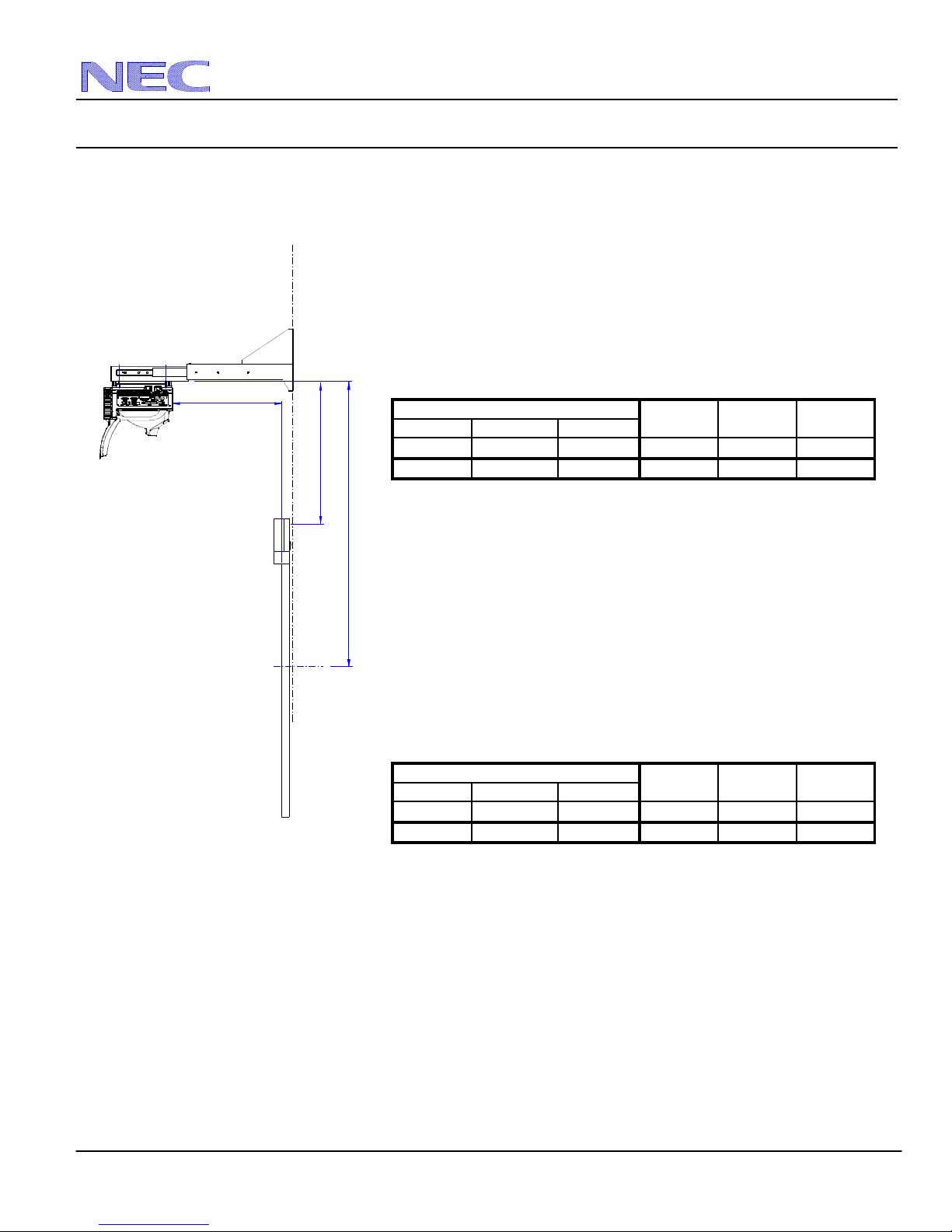

Wall Mounted Installation
The following diagram shows the relationship between projector position and the screen. Refer to the charts below for data.
Distances are in inches. For millimeters multiply by 25.4.
Distance chart for popular 4:3 screen sizes
Distance chart for popular 16:9 screen sizes
17.00
23.20
46.30
WTIW77 Installation
Diagonal Width (W) Height (H)
inches inches inches inches inches inches
77 61.6 46.2 46.3 17.0 23.2
Image Size (4:3) B C D (4:3)
Diagonal Width (W) Height (H)
inches inches inches inches inches inches
71 61.6 30.0 46.3 17.0 29.0
Image Size (16:9) B C D (16:9)
Vertical Position for a 16:9 screen: The Vertical Position adjustment moves the 16:9 image
up and down in the unused portion of the 4:3 DLP panel. This adjustment is only available when
the projector is set for 16:9 in the “Screen” menu. The range of Vertical Position is dependent
on aspect ratio and 3D Reform used. If 3D Reform is not used, the approximate range of
vertical position is +/-0.167H (H=Screen Height) when using a 16:9 screen. (See “Screen Type”
and “Position” in user manual)
Note: For screen sizes not indicated in the distance charts, use the formulas on page 1.

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 3 of 10

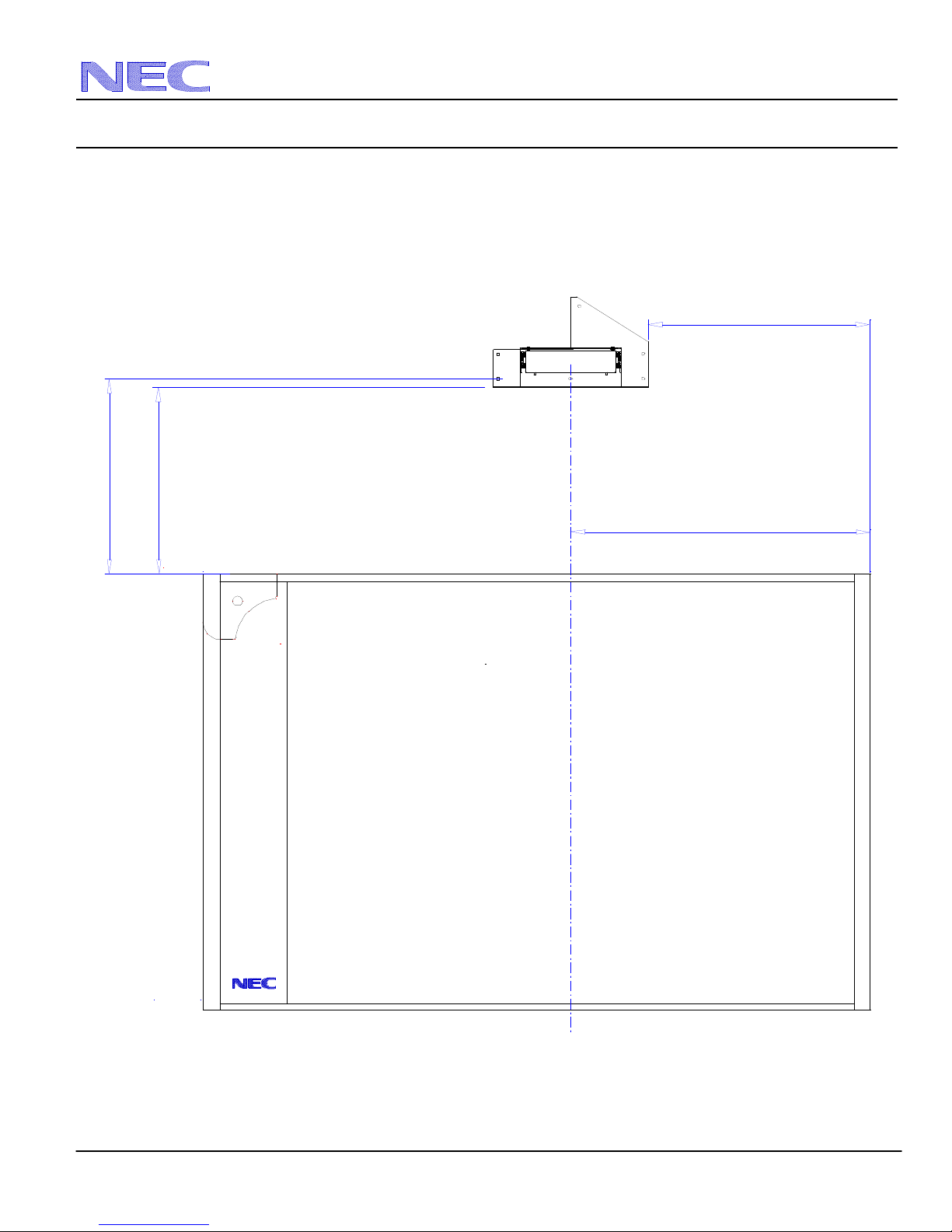

Wall Mounted Installation cont.
The following diagram shows the relationship between projector position and the screen. Refer to the charts below for data.
Distances are in inches. For millimeters multiply by 25.4.
20.83
32.97
24.60
21.57

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 4 of 10
Ceiling Mounted Installation
The following diagram shows the relationship between projector position and the screen. Refer to the charts below for data.
Distances are in inches. For millimeters multiply by 25.4.
Distance chart for popular 4:3 screen sizes
Distance chart for popular 16:9 screen sizes
17.00
23.20
46.30
WT60CM Installation
4.1"
5.1"
Diagonal Width (W) Height (H)
inches inches inches inches inches inches
77 61.6 46.2 46.3 17.0 23.2
Image Size (4:3) B C D (4:3)
Diagonal Width (W) Height (H)
inches inches inches inches inches inches
71 61.6 30.0 46.3 17.0 29.0
Image Size (16:9) B C D (16:9)
Vertical Position for a 16:9 screen: The Vertical Position adjustment moves the 16:9 image
up and down in the unused portion of the 4:3 DLP panel. This adjustment is only available when
the projector is set for 16:9 in the “Screen” menu. The range of Vertical Position is dependent
on aspect ratio and 3D Reform used. If 3D Reform is not used, the approximate range of
vertical position is +/-0.167H (H=Screen Height) when using a 16:9 screen. (See “Screen Type”
and “Position” in user manual)
Note:For screen sizes not indicated in the distance charts, use the formulas on page 1.

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 5 of 10
Whiteboard Dimensions
The following drawings show the cabinet dimensions for the IW77.
Dimensions are in inches. For millimeters multiply by 25.4.
48.62
74.00
0.88
0.88
1.88 1.88
9.38

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 6 of 10

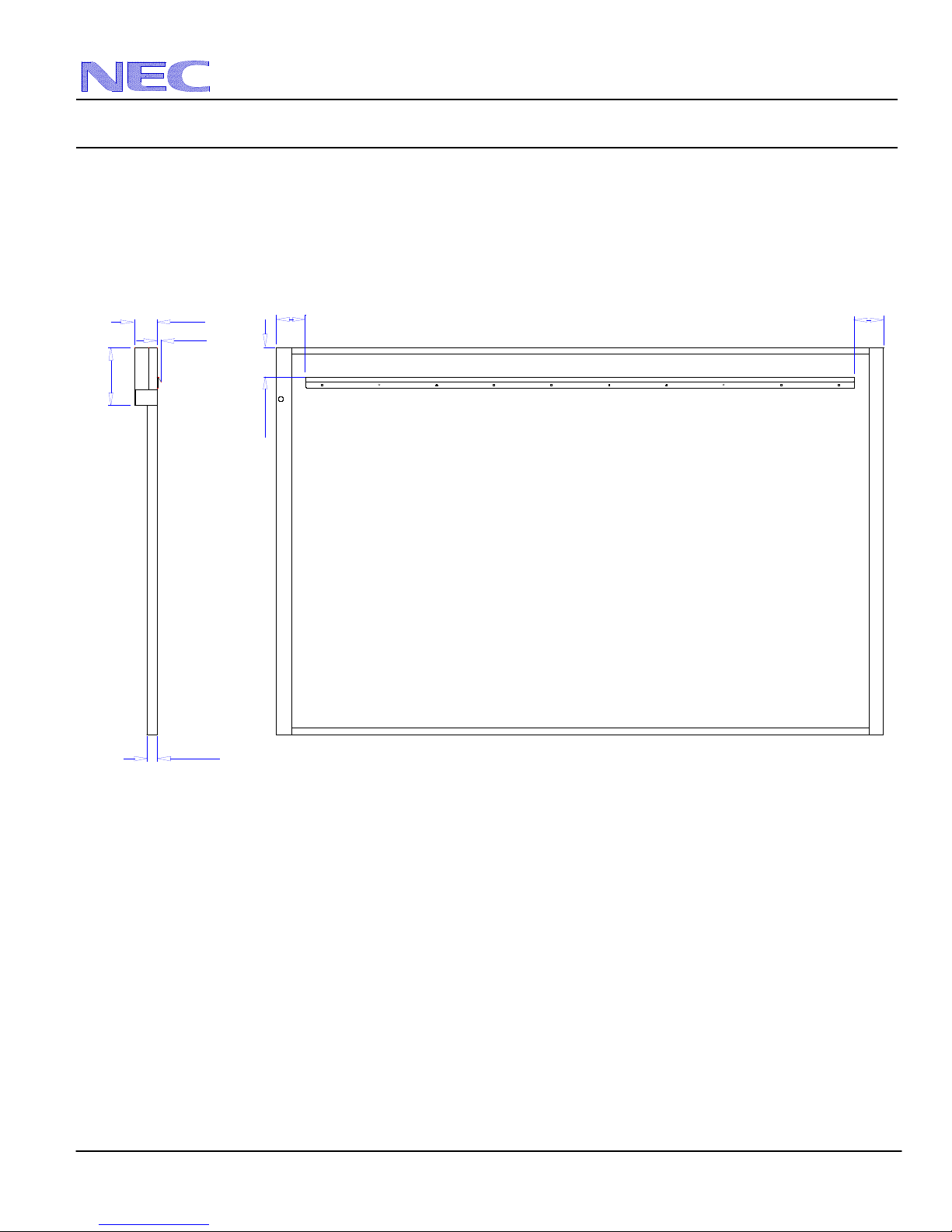

Whiteboard Dimensions (continued)
The following drawings show the cabinet dimensions for the IW77.
Dimensions are in inches. For millimeters multiply by 25.4.
3.66
7.32
2.79
0.51
1.34
3.58 3.58

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 7 of 10

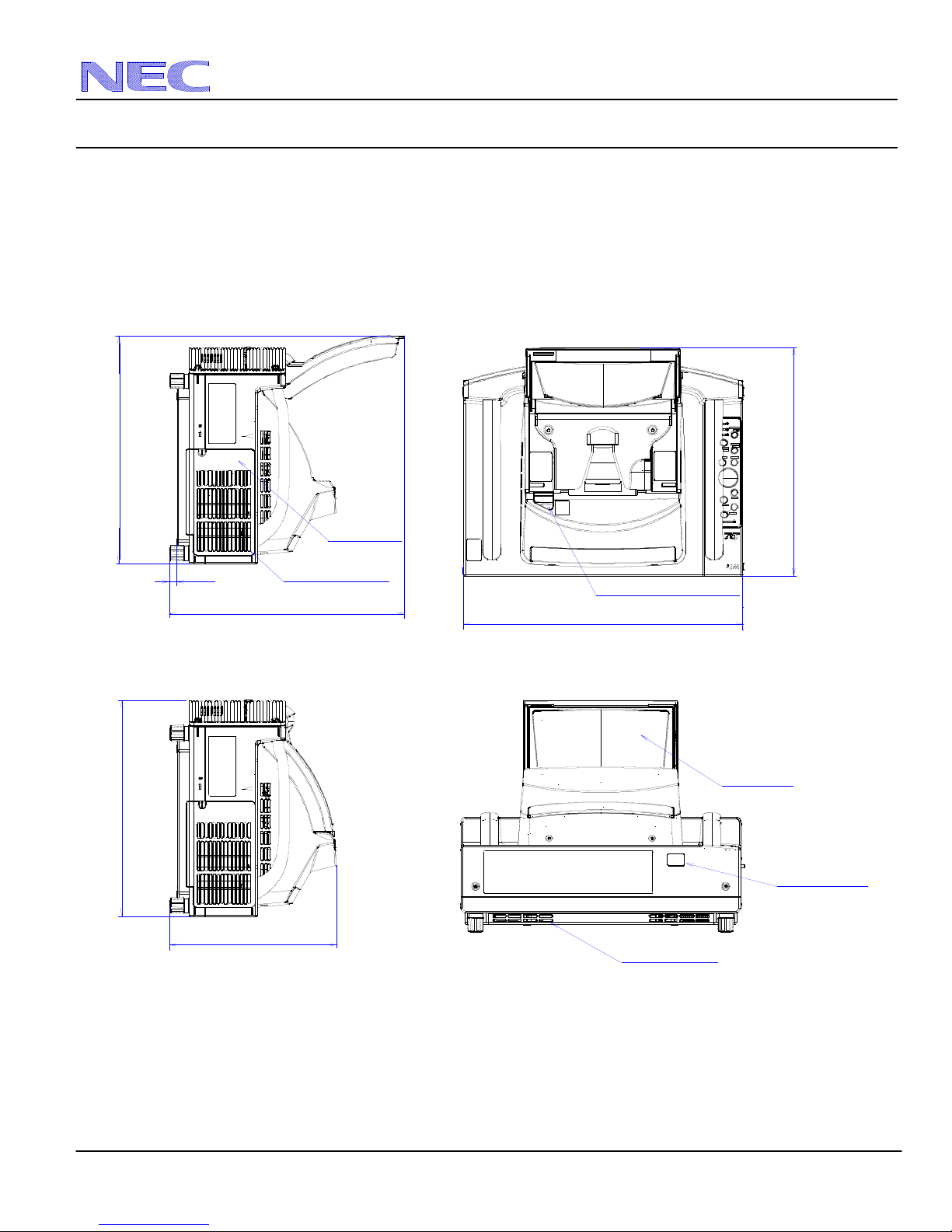

Cabinet Dimensions
The following drawings show the cabinet dimensions for the WT610.
Dimensions are in inches. For millimeters multiply by 25.4.
10
Mirror cover lock switch
14.96
12.32
mount standoff
Final mirror
Remote sensor
Ventilation outlet
Mirror cover closed
Lamp cover
Ventilation outlet
Mirror cover open
12.32
0.378
12.32
8.94
11.62

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 8 of 10

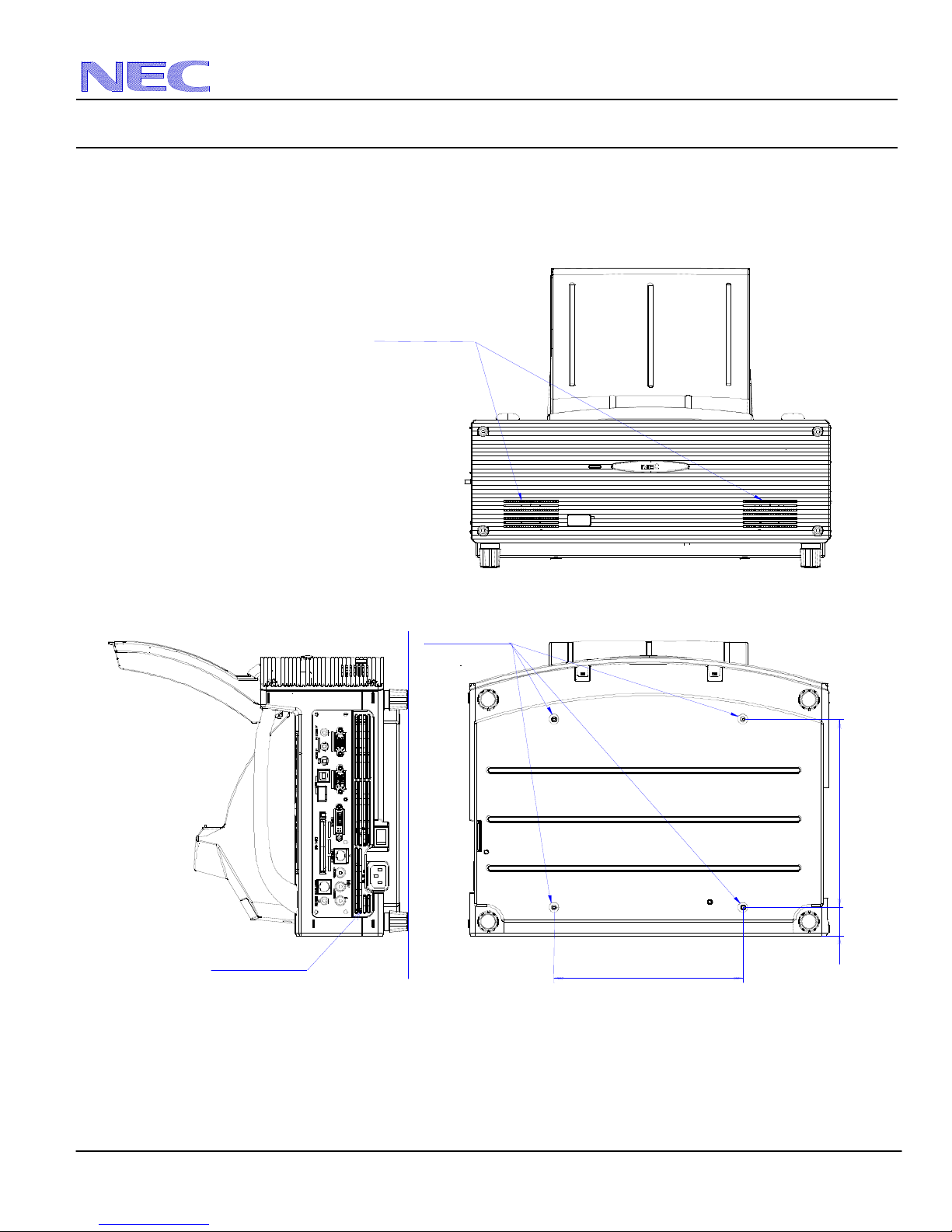

Cabinet Dimensions (continued)
The following drawings show the cabinet dimensions for the WT610.
Dimensions are in inches. For millimeters multiply by 25.4.
7.87
7.87
Ventilation inlet
1.18
M4*8 MAX
For Mount
Speakers

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 9 of 10
Optional Wall Mount Dimensions (Model #: WT60WM)
30.76
10.00
17.00
8.93
3.69
0.92
0.92
3.69
16.497.48
0.52
18.94
Opened Closed
8.50

NEC Display Solutions of America, Inc.
WTIW77™ Installation Guide
v1.1
www.necdisplay.com WTIW77 Page 10 of
10

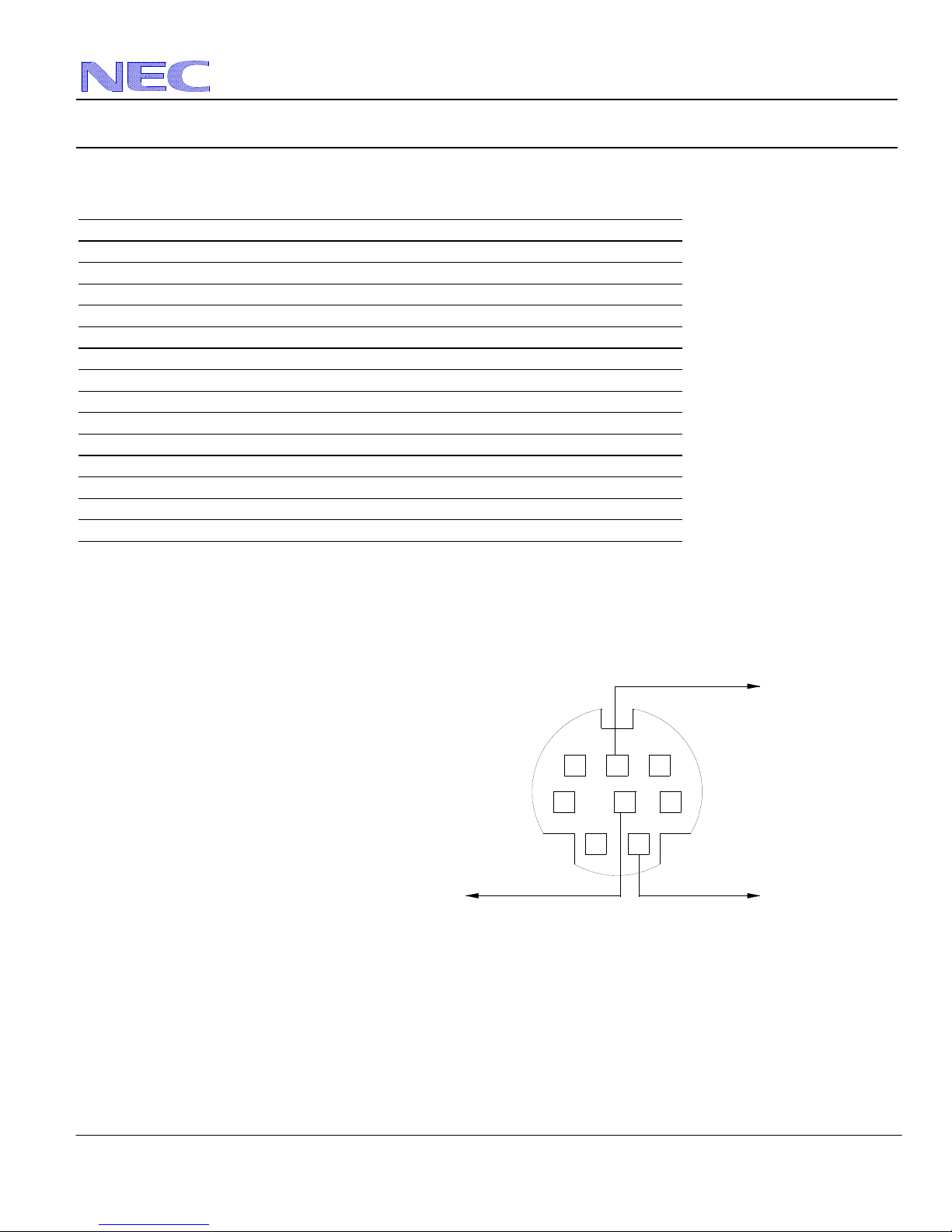

Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT RGB 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT DVI (ANALOG) 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT DVI (DIGITAL) 02H 03H 00H 00H 02H 01H 1AH 22H
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
ON SCREEN MUTE ON 02H 14H 00H 00H 00H 16H
ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H
Note: Contact your NEC rep for codes not listed.
Cable Connection
Communication Protocol: PC Control Connector (DIN-8P)
Baud Rate: 38400 bps
To RxD of PC
12
345
678
To TxD of PC
To GND of PC
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex
NOTE 1: It is recommended to set the projector to “Idle Mode” in the Setup menu for best Power ON response.
NOTE 2: Pins 2, 3, 5, 6 and 8 are used inside the projector.
NOTE 3: For long cable runs it is recommended to set communication speed in the Setup menu to 9600 bps.
