NEC Univerge SV8100 User manual

System Configuration Guide
SV8100 (R3)
Nov 2009
NECIC-AP-010
Issue3.02

Revision Table
Issue Date Description Approved by Prepared by
1.0 2008/9/22 1st release H.Yamashita T.Tagawa
1.2 2008/10/29 Add Asia version H.Yamashita T.Tagawa
2.0 2009/2/5 Add 9.5 inch GW to US/AU H.Yamashita H.Yamashita
3.0 2009/10/16 Add 9.5 inch B/E to US H.Yamashita H.Yamashita
3.01 2009/11/10 Update CD-LTA capacity H.Yamashita H.Yamashita
3.02 2009/11/19
Update 19 inch Stand Mount Kit
configuration, etc and
add VM Configuration table
H.Yamashita H.Yamashita
2

3
Table of Contents
1. General Information ......................................................................................................4
2. Equipment List ..............................................................................................................8

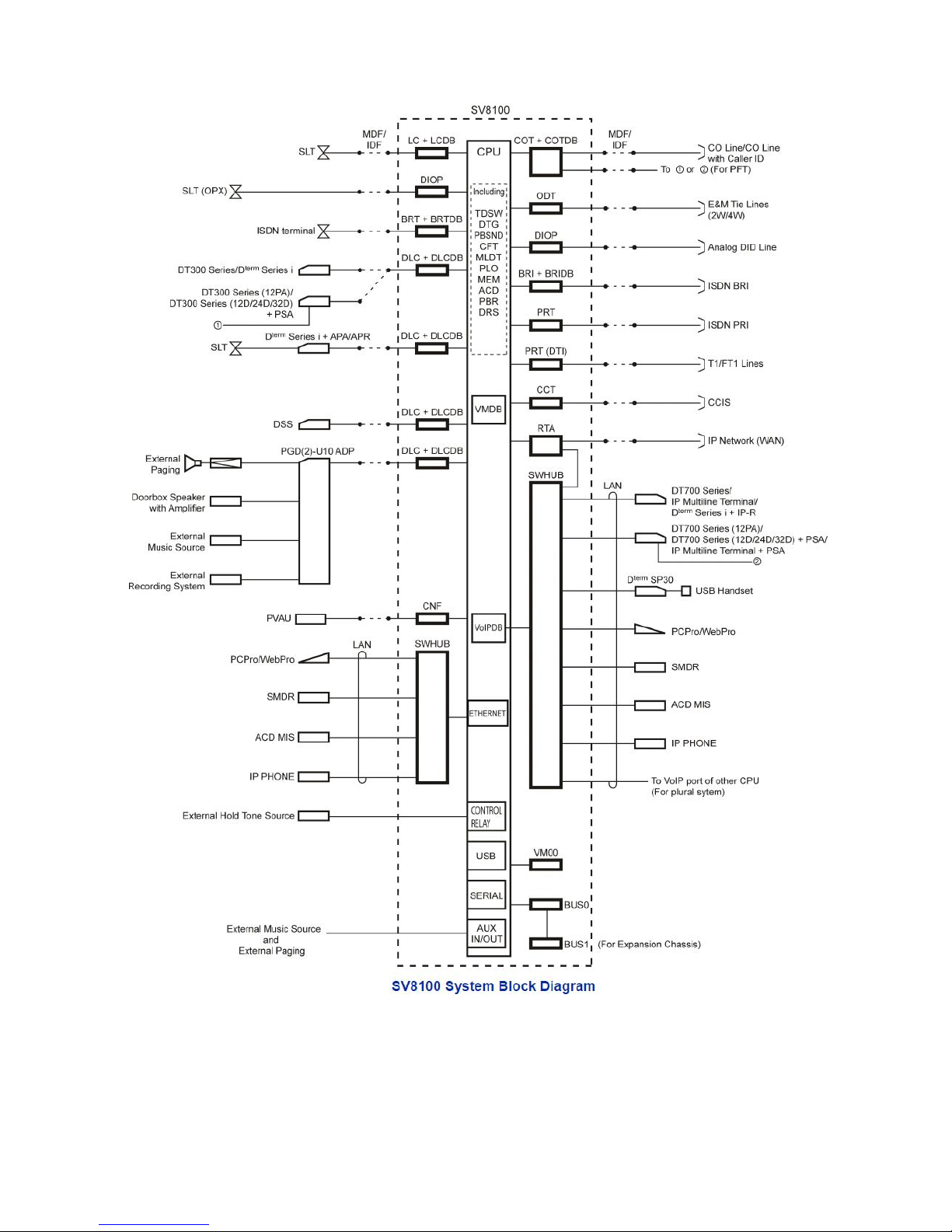

3. System Block Diagram................................................................................................11
4. Maximum System Capacities .....................................................................................14
4.1 System Configuration ............................................................................................................15
4.2 Maximum System Capacities - Boards .............................................................................16
5. Power-Based Calculator Chart...................................................................................20
6. Power requirement......................................................................................................21
6.1 Power supply specification ..................................................................................................21
6.2 Power Supply Consumption ................................................................................................22
7. CHS2U-xx 19-inch KSU ...............................................................................................23
7.1 Floor Mounting the 19” KSU ................................................................................................24
7.2 Stand Mounting the 19” KSU ...............................................................................................25
7.3 Wall Mounting the 19” KSU ..................................................................................................26
7.4 Rack Mounting the 19” KSU.................................................................................................27
8. CHS2U-GW-xx / CHS2U B-xx / CHS2U E (9.5 inch KSU) ..........................................28
8.1 Wall mounting the 9.5 inch KSU..........................................................................................29
8.2 Stand mounting the 9.5 inch KSU.......................................................................................30
8.3 Rack mounting the 9.5 inch Base and Expansion Chassis ........................................31
9. Battery type..................................................................................................................33
9.1 Internal Battery Mounting Kit (19 inch KSU) ...................................................................34
9.2 Attaching CHSGW SMALL BATT BOX (9.5 inch KSU)..................................................35
9.3 Long Term Battery Box ..........................................................................................................36
10. VoIP daughter board (VoIPDB) ................................................................................38
11. VM Configuration .....................................................................................................39
12. License......................................................................................................................40
13. Limitation without MEMDB(PZ-ME50).....................................................................43
14. DSP Resources.........................................................................................................44

1. General Information
The SV8100 is a full-featured IP based communications system providing a rich feature set of
existing system, with pure Voice over IP (VoIP) communications, across corporate Local and Wide
Area Networks (LAN and WAN).
DT700 series telephones are designed to provide a converged infrastructure at the desktop, with a
10/100BASE-TX connection to the LAN and built-in hub for a PC connection to the telephone itself.
The SV8100 can provide peer-to-peer connections between DT700 series telephones with voice
compression, offering existing Dterm IP telephone features with enhanced user interface. On the
WAN side, the system can provide peer-to-peer connections over IP networks with the voice
compression, on a CCIS basis (CCIS over IP).
Besides, the SV8100 can provide legacy line / trunk interfaces to support the existing Time
Division Multiplexing (TDM) based infrastructure, such as analog telephones, digital telephones
(DT300 series), analog networks and digital networks.

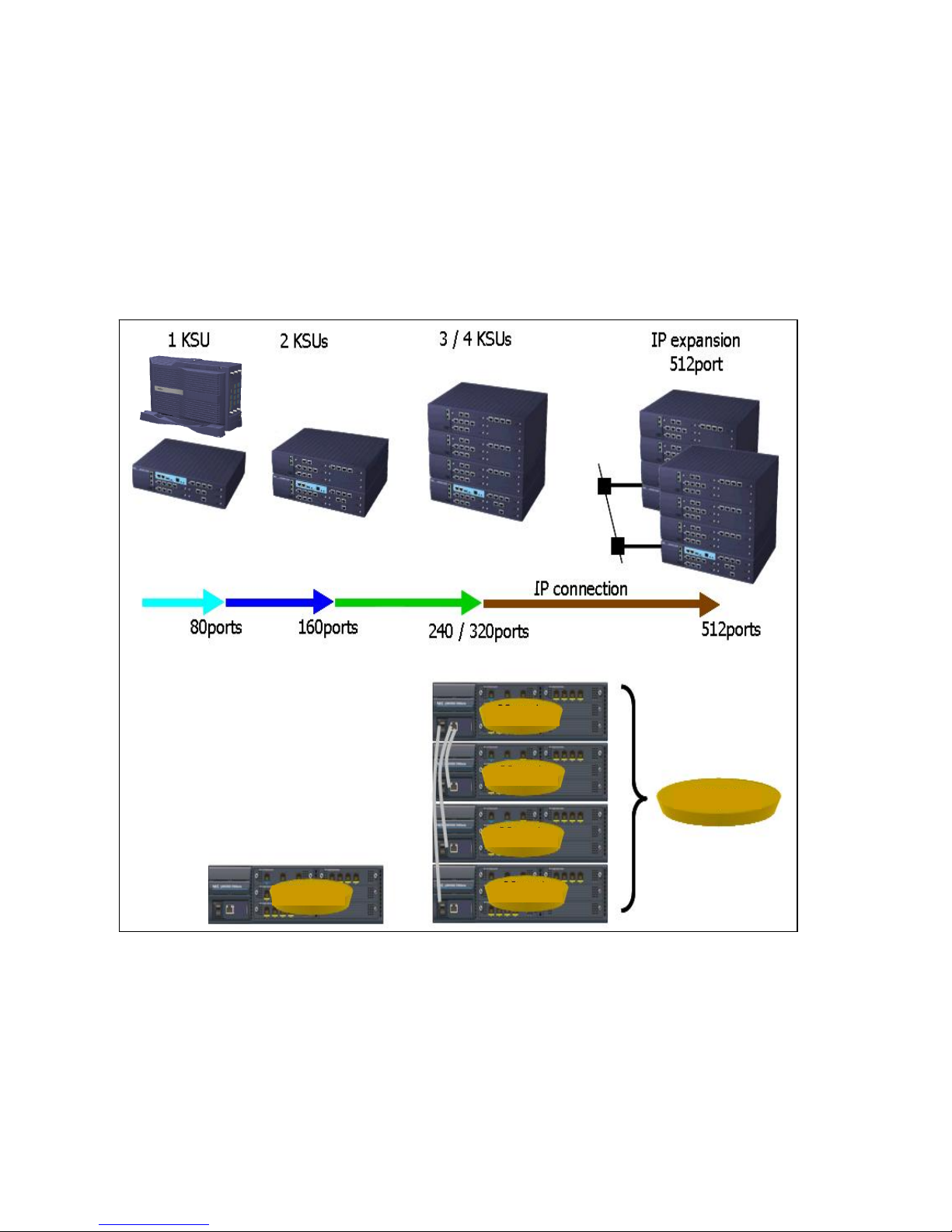

The new compact 19” KSU provides 104 (u-law) /111 (A-law) timeslots (80 digital terminals) and
can be expanded, using three additional 19” KSU, for a maximum of 416 (u-law) /444 (A-law)
timeslots (368 digital terminals). Through IP connection and four additional 19” KSU, the system
can be expanded to a maximum of 512 ports.
Also small compact 9.5” 3 Slot KSU (CHS2U GW-xx and CHS2U B-xx) provides 48 total ports (32
digital terminals) and supports any combination of existing stations and trunks between this
number. 9.5” KSU requires over version 2.0 software. CHS2U GW-xx does not have expandability
to use Expansion chassis. When PZ-BS10 is installed to the KSU, the system will not boot up.
The other hand CHS2U B-xx (Base Chassis) has the capability to expand 3 more slots by side
connection of CHS2U E (Expansion Chassis).
Communications between legacy stations / trunks and DT700 series telephones / IP networks are
made using a VoIP board, which converts packet-based voice data to TDM-based voice data, and
vice versa. Both peer-to-peer connections and TDM-based connections are controlled by the CPU
board. The CPU incorporates a built-in Device Registration Server (DRS) and a single interface
point of IP connection to IP telephone, PCPro and OAI / ACD servers.
4

(via TCP/IP)
SP310 Soft
p
hone

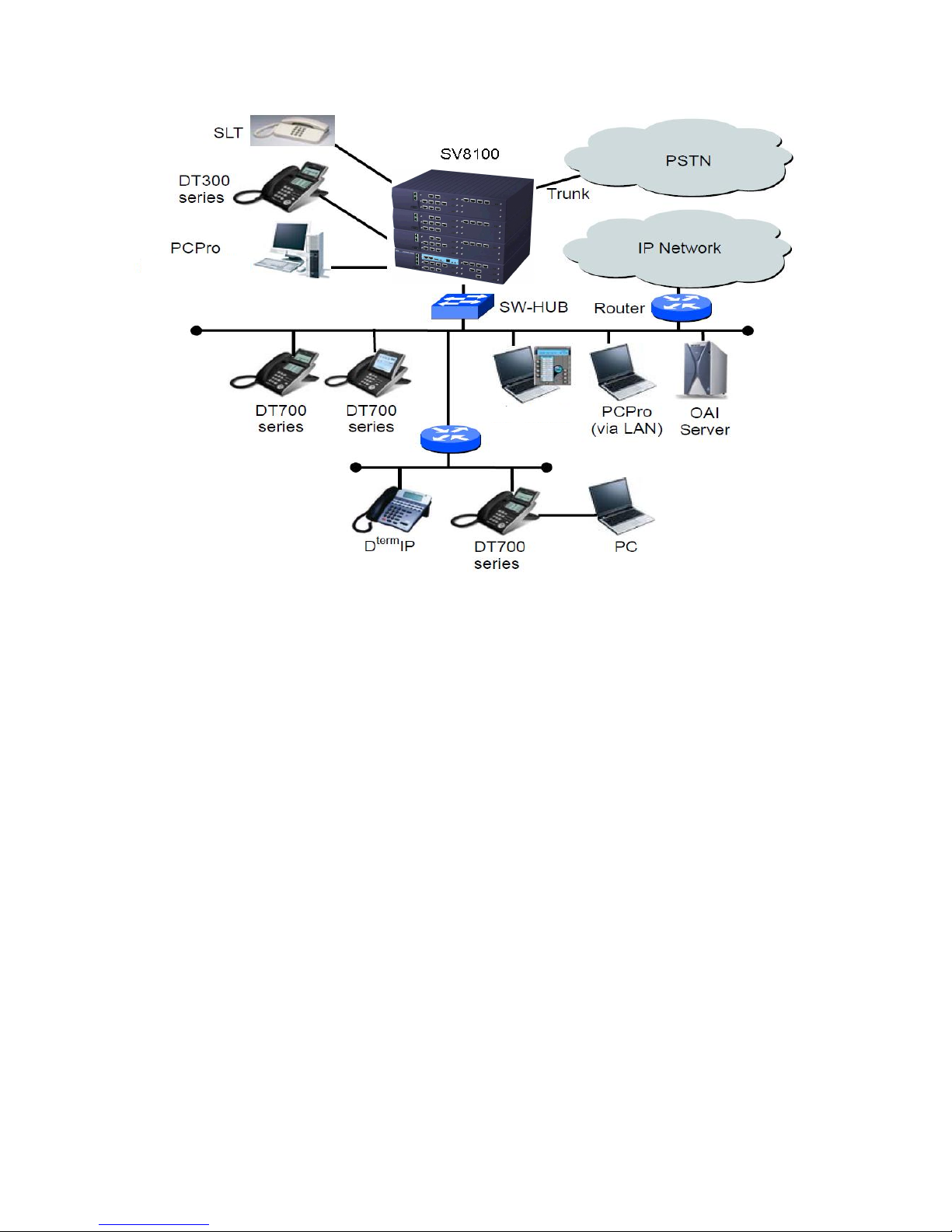

Fig 1 Simplified View of SV8100 System Connectivity
5

Highlights of the SV8100/SV8300 are as follows:
Pure IP System capable TDM configuration
The SV8100 supports both pure IP switching (peer-to-peer connections) and Time Division
Switching. The pure IP switching is provided for communications between DT700 series
telephones and for CCIS connections with other SV8100/SV8300/SV7000. On the other hand,
the TDM switching is provided for communications between legacy stations/trunks. Connection
between IP network and legacy network is made via VoIP board on the CPU board, which
converts packet-based voice data to TDM-based voice data, and vice versa.
Powerful CPU Board with Built-in Functionalities
The CPU board of SV8100 is a heart of pure IP connections and TDM-based connections. The
CPU board employs a 32 bits microprocessor. With this processing power and DSP technology,
it integrates the following functions.
DTMF receivers
Caller ID receivers
Caller ID senders
MF senders / receivers
In-Mail (VMDB)
VoIPDB
* DB = Daughter Board
In addition, by means of today's advanced LSI technology, size of the CPU board is minimized,
O&M NIC port (10/100M) is built in and VoIPDB which has VoIP NIC port (Gigabit Ethernet) is
mountable without additional slots in the KSU. The O&M NIC port is linked with LAN / WAN for
inter-work with PCPro, SMDR, OAI server, and the VoIP NIC port is linked with LAN / WAN for
control signaling and voice signaling (RTP) for DT700 series, etc.
CPU Board Interface :
- O&M Ethernet port （10/100M）-1port
- USB V1.1 (HOST) -1port
- Audio In/Out （External MOH/BGM Input / External Paging out）- 2 port
- General Porpous relay contact - 2 port
IPLA (VoIPDB) Board Interface : 32/64/128 channel VoIP gateway
- G711,G729,sRTP (G729+sRTP ; max 24/48/96 channel)
- VoIP Ethernet port(Giga-bitEther) -1port
High Density Legacy Line / Trunk Boards
Major legacy line/trunk boards used in SV8100 is provided with main board + daughter board
architecture. When the main board is only mounted in an initial supply, line/trunk interfaces can
be easily expanded by adding the daughter board. The maximum number of ports for the line /
trunk boards is 16/8 ports with daughter Board, respectively. This allows the physical system
size to be compact.
Universal Board Slot (9.5” KSU and 19” KSU)
9.5” KSU and 19” KSU is used for legacy line / trunk boards. One 9.5” KSU provides 3 board
slots and 19” provides 6 slots. Also, these board slots can be used for in-skin application boards
without complicated limitation. As this makes easy quotation and installation.
6

Easy Installation (Front Cabling and Enhanced O&M Tool)
Cable connectors (RJ-45 or RJ-61) are located on the front panel of each KSU and Board. It
increases efficiency of the cabling work. Also, PCPro provides enhanced user interface. Quick
Setup tool provides easy setup (system data programming) for a basic system configuration in
shorter time.
7

2. Equipment List
The following table lists all equipment for the SV8100 system.
Table 2 Equipment List
Category Item Name Item Description Note
CHS2U-US 19-inch KSU (6-slot) for US/LASC
CHS2U-AU 19-inch KSU (6-slot) for AU
CHS2U-EU 19-inch KSU (6-slot) for EU/OT/HK EU, OT and HK
common chassis.
19 inch Chassis
(KSU)
CHS2U-CH 19-inch KSU (6-slot) for China China independent
CHS2U GW-US 9.5-inch Chassis (3-slot) for US
CHS2U GW-AU 9.5-inch Chassis (3-slot) for AU No expandability
CHS2U B-US 9.5-inch base Chassis (3-slot) for US
CHS2U B-EU 9.5-inch base Chassis (3-slot) for EU
9.5 inch chassis
(KSU)
CHS2U E 9.5-inch expand Chassis (3-slot) for EU/US EU and US
SV8100 Basic
Package CHS2U-US, CD-CP00-US, CD-8DLCA
SV8100 Basic
Package EU CHS2U-EU, CD-CP00-EU, CD-8DLCA
SV8100 Basic
Package AU CHS2U-AU, CD-CP00-AU, CD-8DLCA
SV8100 Basic
Package (LASC) CHS2U-US, CD-CP00-OT, PZ–VM21
SV8100 Starter
Package EU CHS2U-EU, CD-CP00-EU
SV8100 Entry
Package EU
CHS2U B-EU, CD-CP00-EU, CD-LTA,
PZ-2BRIA, PZ-VM21, AKS InMail EU
SV8100 Entry
Package AU CHS2U GW-AU, CD-CP00-AU, CD-LTA
SV8100 32 IP
Package CHS2U-US, CD-CP00-US, PZ-32IPLA
SV8100 64 IP
Package CHS2U-US, CD-CP00-US, PZ-64IPLA
SV8100 128 IP
Package CHS2U-US, CD-CP00-US, PZ-128IPLA
SV8100 IP Package
(LASC)
CHS2U-US, CD-CP00-OT, PZ–VM21,
PZ-32IPLA, 8xLK-SYS-IP-TERMINAL-1-LIC
Bundle KIT
CD-CP00-US Main Processor Board for US U-Law and US S/W
CD-CP00-AU Main Processor Board for AU A-Law and AU S/W
CD-CP00-EU Main Processor Board for EU A-Law and EU S/W
CD-CP00-OT Main Processor Board for
OT/China/HK/LASC/Mexico
R1:A-Law OT S/W
R2: A-law/ u-law
selection and
HK/Mexico PRI
selection are added
PZ-BS10 System Expansion I/F for 1st base KSU Chassis expansion
board for Base
PZ-BS11 System Expansion I/F for 2nd, 3rd, 4th
Expansion KSU
Chassis expansion
board for Expansion
PZ-VM21 16 ch Voice Mail with V90 Modem for
CD-CP00-xx
PZ-ME50-US Memory Expansion Board for CD-CP00-US
PZ-ME50-AU Memory Expansion Board for CD-CP00-AU
Common
Control Boards
PZ-ME50-EU Memory Expansion Board for CD-CP00-EU
Mounted on each
CD-CP00-xx.
8

Category Item Name Item Description Note
PZ-ME50-OT Memory Expansion Board for
CD-CP00-OT/China/HK(R1)/LASC.
PZ-ME50-HK Memory Expansion Board for CD-CP00-HK
(R2)
PZ-32IPLA 32 ch VOIP for CD-CP00-xx
PZ-64IPLA 64 ch VOIP for CD-CP00-xx
PZ-128IPLA 128 ch VOIP for CD-CP00-xx
CD-4COTA 4 Loop Start Interface for
EU/OT/CH/HK/LASC
2 PF circuit
provided.
PZ-4COTE 4 Loop Start Interface Daughter Board for
EU/OT/CH/HK/LASC.
No PF circuit
provided. Mounted
on 4COTA.
CD-4COTB 4 Loop/GND Start Interface for US.2 PF circuit
provided.
PZ-4COTF 4 Loop/GND Start Interface Daughter Board
for US.
No PF circuit
provided. Mounted
on 4COTB.
CD-4COTC 4 Loop Start Interface for AU. 2 PF circuit
provided.
PZ-4COTG 4 Loop Start Interface Daughter Board for
AU.
No PF circuit
provided. Mounted
on 4COTC.
CD-2BRIA 2 Basic Rate Interface
PZ-2BRIA 2 Basic Rate Interface Daughter Board Mounted on 2BRIA.
CD-PRTA PRI Trunk Interface
CD-CCTA CCIS Trunk Interface
CD-4DIOPA 4 DID/OPX Trunk Interface for US.
CD-4DIOPB 4 DID/OPX Trunk Interface for
AU/EU/OT/CH/HK/LASC.
CD-4ODTA 4 E&M Tie-line Trunk Interface for US.
Trunk Interface
Boards
CD-4ODTB 4 E&M Tie-line Trunk Interface for
AU/EU/OT/CH/HK/LASC.
CD-8DLCA 8 Digital Station Interface
PZ-8DLCB 8 Digital Station Interface Daughter Board Mounted on
CD-8DLCA.
CD-16DLCA 16 Digital Station Interface
CD-LTA 8 Digital Station and 2 SLT Station Interface
CD-4LCA 4 SLT Interface
CD-LTB 2 SLT Interface
PZ-4LCA 4 SLT Interface Daughter Board
Mounted on
CD-4LCA and
CD-8LCA.
CD-8LCA 8 SLT Interface
Station Interface
Boards
PZ-8LCE 8 SLT Interface Daughter Board
Mounted on
CD-4LCA and
CD-8LCA
CD-RTB In-skin Router
CD-VM00 In-skin Voicemail / Application Server
CD-ETIA In-skin PoE Switching Hub
Other Optional
Boards
CD-PVAA Conference Bridge
IP1E-1SLT AD SLT Adapter for EU/OT/CH/HK/LASC
SLTII(1)-U10 ADP SLT Adapter for US
SLTII(1)-U13 ADP SLT Adapter for AU
IP1WW-2PGDAD Doorphone/Paging I/F Adapter for
EU/OT/CH/HK/LASC
System Option
Module
PGD(2)-U10 ADP Doorphone/Paging I/F Adapter for US
9

Category Item Name Item Description Note
PGD(2)-U13 ADP Doorphone/Paging I/F Adapter for AU
DP-D-1A Doorphone
CHSGW SMALL
BATT BOX Internal Battery Box for 9.5-inch KSU.
CHSGW SMALL
BATT SET
Short term battery set for CHSGW SMALL
BATT BOX.
2 x 0.8AH-12V
Locally provided
CHS2U BATT MTG
KIT
Internal Battery Mounting Kit for 19-inch
KSU.
CHS2U BATT SET Batteries for BATT MTG KIT 2 x 2.3AH-12V
Locally provided
CHS2U BATT CA INT Battery Cable of Built-in Battery Set
CHS LARGE BATT
BOX Long term Battery Box
CHS BATT CA EXT-A Batter Cable when installing batteries w/o
using LARGE BATT BOX
External/Internal
Batteries
CHS LARGE BATT
SET Long term Battery Set 2 x 7AH-12V Locally provided
CHS BASE UNIT Floor mount set for 19-inch KSU
CHS2U RACK
MOUNT KIT Rack mount set for 19-inch KSU
CHS2U WALL
MOUNT KIT Wall mount set for 19-inch KSU
CHS2U STAND
KIT(K) Stand set for 19-inch KSU
CHS2U STAND
KIT(EXT) Stand set for expansion 19-inch KSU
CHS2U JOINT
BRACKET KIT Upper joint bracket set for 19-inch KSU
Bracket and
Stand
10

3. System Block Diagram
SV8100 System Block Diagram shows the Boards that can be installed in the KSU and the number
of channels supported when the Board is installed. List of Abbreviations lists abbreviations used in
the diagram.
Table 3 List of Abbreviations
Abbreviation Description
ACD Automatic Call Distribution
ADA Analog Recording Adapter
APA Analog Port Adapter (without ringer)
APR Analog Port Adapter (with ringer)
AUX IN/OUT BGM/MOH Port (on CPU)
BCH Bluetooth Cordless Handset
BHA Bluetooth HUB Adaptor
BRI Basic Rate Interface
BRIDB Expansion Basic Rate Interface Board on BRI
BRT Basic Rate Interface Board/ISDN Terminal Interface Board
BUS0 BUS Interface Board (for 1U KSU)
BUS1 BUS Interface Board (for 2U KSU)
CCT CCIS Interface Board
CF Compact Flash
CFT Conference Trunk (on CPU)
CNF Conference Bridge Board
COT Central Office Trunk
COTDB Central Office Trunk Daughter Board on COT
CPU Central Processing Unit
DID Direct Inward Dialing
DIOP DID/OPX Board
DLC Digital Multiline Terminal Interface Board
DLCB Expansion Digital Multiline Terminal Interface Board on DLC
DRS Device Registration Server (on CPU)
DSS Direct Station Selection Console
DTI Digital Trunk Interface
DTG Digital Tone Generator (on CPU)
ETHERNET Ethernet Port (on CPU)
FT1 Fractional T1
GBA Gigabit Adapter
GSWU Power over Ethernet Gigabit Switch
IDF Intermediate Distribution Frame
IPT IP Trunk (P2P CCIS) (on CPU)
ISDN Integrated Service Digital Network
LAN Local Area Network
LC Single Line Telephone Interface Board
LCDB Expansion Single Line Telephone Interface Board on LC
MDF Main Distribution Frame
MEM Main Memory (on CPU)
MIS Management Information System
MOH Music On Hold
OAI Open Application Interface (on CPU)
ODT Tie Line Interface Board (2W/4W E&M)
OPX Off-Premise Extension
11

Abbreviation Description
PBR PB Receiver (on CPU)
PBSND PB Sender (on CPU)
PCPro PC Programming
PFT Power Failure Transfer
PLO Phase Locked Oscillator (on CPU)
PMS Property Management System
PRI Primary Rate Interface
PRT Primary Rate Interface Board
PS Personal Station
PSA PSTN Adapter (analog)
PVA Packet Voice Application
RTB In-Skin Router Board
SERIAL Serial Port (on CPU)
SLT Single Line Telephone
SMDR Station Message Detail Recording
TDSW Time Division Switch (on CPU)
USB Universal Serial Bus (on CPU)
CD-VM00 UMS Blade Server Board
PZ-VM21 VMS Daughter Board with V34 Modem
VMS Voice Mail System
VoIP Voice over Internet Protocol
VoIPDB VoIP Daughter Board (on CPU)
VRS Voice Response System
WAN Wide Area Network
WebPro Web-Based PC Programming
12

Fig 3 SV8100 System Block Diagram
13

4. Maximum System Capacities
The CHS2U-xx is a compact 19” KSU that has six universal slots and one power supply unit. When
the CD-CP00-xx is installed in the first CHS2U-xx, it is referred to as the Controlling KSU.
Additional KSU, referred to as Expansion KSU, can be installed to increase the capacity of the
system to meet the customer’s business needs.
The system can be expanded from 104 (u-law) /111 (A-law) timeslots to 416 (u-law) /444 (A-law)
timeslots by vertically stacking a maximum of three additional KSU onto the controlling KSU. This
provides a maximum of 24 slots and 368 digital terminals. To obtain a maximum port capacity of
512 ports, two systems can be linked together via an IP connection.
Table 4 SV8100 Maximum System Capacities (Trunks/Ports/Channels)
9.5” GW 9.5” KSU(B+E) / 19” KSU
Number of: x1
(CPU+
2Slots)
x 1
(6 Slots)
x 2
(12 Slots)
x 3
(18 Slots)
x 4
(24 Slots)
System
Maximum
PCM 48 104 208 312 416 416
Number of Timeslots
(U-law) Data
*1 7 7 14 21 28 28
Number of Timeslots (A-law) 64 111 222 333 444 444
Dterm 32 80 176 272 368
SLT (-28V) 32 80 176 272 368
SLT (-48V) 8 20 44 68 92
Dterm IP 512
SIP/WLAN 512
Total 512
Analog Trunks (COT) 16 40 88 136 184
BRI 16 40 88 136 184
PRI (24B) 48 96 192 192 192
PRI (30B) 60 90 180 180 180
IP Trunk (SIP) 200
Total 200
VoIP Channels 128
Conference Circuits 64 (32 parties max per Conference)
Voice Mail Channels on CPU 16 channels
V34 Modem 1 channel
*1 For Mu-law countries 104 timeslots per chassis are assigned the G711 PCM communications (e.g., voice
communications) and 7 timeslots per chassis are assigned for the Data communications (e.g., HDLC over
ISDN). Thus the simultaneous data communications are limited up to seven per chassis. For A-law countries
111 timeslots per chassis can be used either PCM or Data communication dynamically.
14

4.1 System Configuration
The SV8100 19” KSU provides 104 (u-law) /111 (A-law) timeslots (80 digital terminals) and can be
expanded, using three additional 19” KSU, for a maximum of 416 (u-law) /444 (A-law) timeslots
(368 digital terminals). Through IP connection and four additional 19” KSU, the system can be
expanded to a maximum of 512 ports. The 19” KSU consists of a controlling KSU (KSU with CPU
board), and the ability to expand the system using expansion boards depending on system
configuration.
Also new small compact 9.5” 3 Slot KSU (CHS2U GW-xx /CHS2U B-xx) provides 48 total ports (32
digital terminals) and supports any combination of existing stations and trunks between this
number.
48ports (9.5inch)
96 ports
96 ports
96 ports
368 ports
80 ports
80 ports
272/368ports176 ports
Fig 4-1 SV8100 System Configuration
15

4.2 Maximum System Capacities - Boards
The system’s universal architecture gives you great flexibility when installing Package Boards.
You can install a Package Board in any slot, provided you follow the guidelines in the chart below.
Table 4-2-1 Common Control Boards
9.5” B+E 9.5” B+E 9.5”
B+E x 4
Hardware 9.5” GW
19” KSU 19” KSU 19” KSU
x 4
Network
ed KSUs
Number of Slot(s) for
Interface Package
2 Slots
w/ CPU
5 Slots
w/ CPU
6 Slots
w/o CPU 23 Slots 240 slots
Comments
CD-CP00-xx 1 1 0 1 16
Virtual slot in
NetLink is limited
to maximum of
240
PZ-BS10 (for Controlling
KSU) 0 1 0 1 16
PZ-BS11 (for Expansion
KSU) 0 0 1 3
48
(3 x 16
sites)
PZ-32IPLA
(32-port VoIP Daughter Board) 1 1 0 1 16
PZ-64IPLA
(64-port VoIP Daughter Board) 1 1 0 1 16
PZ-128IPLA
(128-port VoIP Daughter
Board)
1 1 0 1 16
PZ-ME50-xx
(Memory Expansion Board) 1 1 0 1 16
PZ-VM21
(Voice Expansion Board) 1 1 0 1 1
16

Table 4-2-2 Station Boards
9.5” B+E 9.5” B+E 9.5”
B+E x 4
Hardware 9.5” GW
19” KSU 19” KSU 19” KSU
x 4
Network
ed KSUs
Number of Slot(s) for
Interface Package
2 Slots
w/ CPU
5 Slots
w/ CPU
6 Slots
w/o CPU 23 Slots 240 slots
Comments
CD-8DLCA
(8 Digital Station Interface) 2 5 6 23 32
PZ-8DLCB
(8 Digital Station Interface
Daughter Board)
2 5 6 23 32
CD-16DLCA
(16 Digital Station Interface) 2 5 6 23 32
Extensions:512
(16 x 32)
CD-LTA *1
(8 Digital / 2 Single Line) 2 2 2 8 23
An optional
PZ-4COTx or
PZ-2BRIA can be
installed
CD-LTB *1
(2 Single Line)
2 2 2 8 23
An optional
PZ-4COTx or
PZ-2BRIA can be
installed
CD-4LCA
(4 Single Line Telephone
Interface)
2 5 6 23 32
Extensions:256
(8 x 32)
PZ-4LCA
(4 Single Line Telephone
Interface Daughter Board)
2 5 6 23 32
CD-8LCA
(8 Single Line Telephone
Interface)
2 5 6 23 32
Extensions:512
(16 x 32)
PZ-8LCE
(8 Single Line Telephone
Interface Daughter Board)
2 5 6 23 32
CD-4DIOPA/4DIOPB
(4DID/OPX) 2 5 6 23 128
Extensions:512
(4 x 128)
*1 From R3 enhancement in case of PZ-ME50 is installed Software limitation for number of
CD-LTA/LTB is removed. If PZ-ME50 is not installed CD-LTA/LTB is limited to max 1 per system.
17

Table 4-2-3 Trunk Boards
9.5” B+E 9.5” B+E 9.5”
B+E x 4
Hardware 9.5” GW
19” KSU 19” KSU 19” KSU
x 4
Network
ed KSUs
Number of Slot(s) for
Interface Package
2 Slots
w/ CPU
5 Slots
w/ CPU
6 Slots
w/o CPU 23 Slots 240 slots
Comments
CD-4COTA/4COTB/4COTC
(4 analog Trunk) 2 5 6 23 25
PZ-4COTE/4COTF/4COTG
(4 analog Trunk, Daughter
Board)
2 5 6 23 25
Trunk:200
(8 x 25)
CD-4DIOPA/4DIOPB
(4 DID/OPX) 2 5 6 23 50
Trunk:200
(4 x 50)
CD-4ODTA/4ODTB
(4 E&M) 2 5 6 23 50
Trunk:200
(4 x 50)
CD-2BRIA
(2 Basic Rate Interface) 2 5 6 23
PZ-2BRIA
(2 Basic Rate Interface
Daughter Board)
2 5 6 23
T-Bus
(TRK):25
S-Bus
(EXT):64
T-Bus
Trunks:50
(2 x 25)
Channels:100
(2B x 50)
S-Bus
Extensions:128
(2 x 64)
Channels:256
(2B x 128)
CD-PRTA (23B)
(1 Primary Rate Interface) 2 4 4 8
TRK: 8
EXT:21
Trunks:192
(24B x 8)
Extensions:504
(24 x 21)
CD-PRTA (30B)
(1 Primary Rate Interface) 2 3 3 6
TRK: 6
EXT:17
Trunks:180
(30B x 6)
Extensions:510
(30 x 17)
18

Table 4-2-4 Optional Boards
9.5” B+E 9.5” B+E 9.5”
B+E x 4
Hardware 9.5” GW
19” KSU 19” KSU 19” KSU x
4
Network
ed KSUs
Number of Slot(s) for Interface
Package
2 Slots
w/ CPU
5 Slots
w/ CPU
6 Slots
w/o CPU 23 Slots 240 slots
Comments
CD-PVAA
(Conference Bridge) 2 5 6 23 32
CD-ETIA
(Switching Hub with Power over
Ethernet)
2 3 3 12 64
CD-CCTA
(CCIS Trunk Interface/Common
Channel Handler)
2 4 4 4 4
CD-RTB
(Router) 1 1 2 7 50
CD-VM00
(Voice Mail and Server) 1 1 1 1 1
Maximum of one
per system
The following chart shows each main board and associated daughter board combinations.
The daughter boards that can be mounted on specific boards are indicated by a checkmark.
For example, the CD-LTA can have a PZ-2BRIA or the PZ-4COTF daughter board mounted.
Table 4-2-5 Daughter board Combination
Daughter Board
Controlling
Board PZ-2BRIA PZ-4COTE PZ-4COTF PZ-4COTG PZ-4LCA PZ-8LCE PZ-8DLCB
CD-LTA
(8 Digital/2
Single Line)
✔✔✔✔―――
CD-LTB
(2 Single Line) ✔✔―✔―――
CD-4COTA
(4 Loop Start) ―✔―――――
CD-4COTB
(4 Loop / GND
Start)
――✔――――
CD-4COTC
(4 Loop Start) ―――✔―――
CD-4LCA
(4 Single Line
Interface)
――――✔✔―
CD-8LCA
(8 Single Line
Interface)
――――✔✔―
CD-8DLCA
(8 Digital
Station
Interface)
――――――✔
CD-16DLCA
(16 Digital
Station
Interface)
―――――――
CD-2BRIA
(2 Basic Rate
Interface)
✔――――――
― = Does not apply ✔ = Does apply
19

5. Power-Based Calculator Chart
The SV8100 system uses two types of power factors. For a single KSU chart refer to Table 1 Board
Power Factor. For the maximum number of specific boards per package, see Table 2 Maximum
Number of Package Installed. Refer to Table 3 Terminal Power Factor below, for the Terminal/
Adapter power chart.
Table 5-1 Board Power Factor
Board Power Factor
Total = < 7
Item Power Factor
CD-CP00-xx 1
CD-RTB 2
CD-VM00 2
CD-ETIA 2
CD-PVAA 1
PZ-32IPLA 1
PZ-64IPLA 2
PZ-128IPLA 2
Table 5-2 - Maximum Number of Package Installed
Maximum Number of Package Installed
Board
(Power Factor) 9.5 inch
Gateway
9.5”
Base+Exp
19 inch
with
CD-CP00
19 inch
without
CD-CP00
4 x 19 inch
CD-ETIA (2) 2 3 3 12
CD-PVAA (1) 2 5 6 23
CD-RTB (2) 1 2 2 8
Table 5-3 - Terminal Power Factor
Terminal Power Factor
19 inch KSU = < 80
Item Power Factor
DTL-24D-1* TEL 0.8
DTL-8LD-1* TEL 0.8
BHA-L* UNIT 2
ADA-L* UNIT 2
APR-L* UNIT DT300 series : 2
Dterm series i : 3
BCH-L (BK) UNIT 2
PSA-L* UNIT 1.2
8LK-L* UNIT 0
DCL-60-1* CONSOLE 2
ITL-320C-1* TEL 6
ITL-24D-1* TEL 4
ITL-2E-1* TEL 4
ITL-6DE-1* TEL 4
SLT 1
PGD(2)-U1x ADP 2
SLT Adapter Standard (-28V) : 0.8
Long Line (-48V) : 2
20
