NEC NP-PX800X User manual

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 1 of 12
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
N
otes Pg 1
Distance Charts and Formulas Pg 2-4

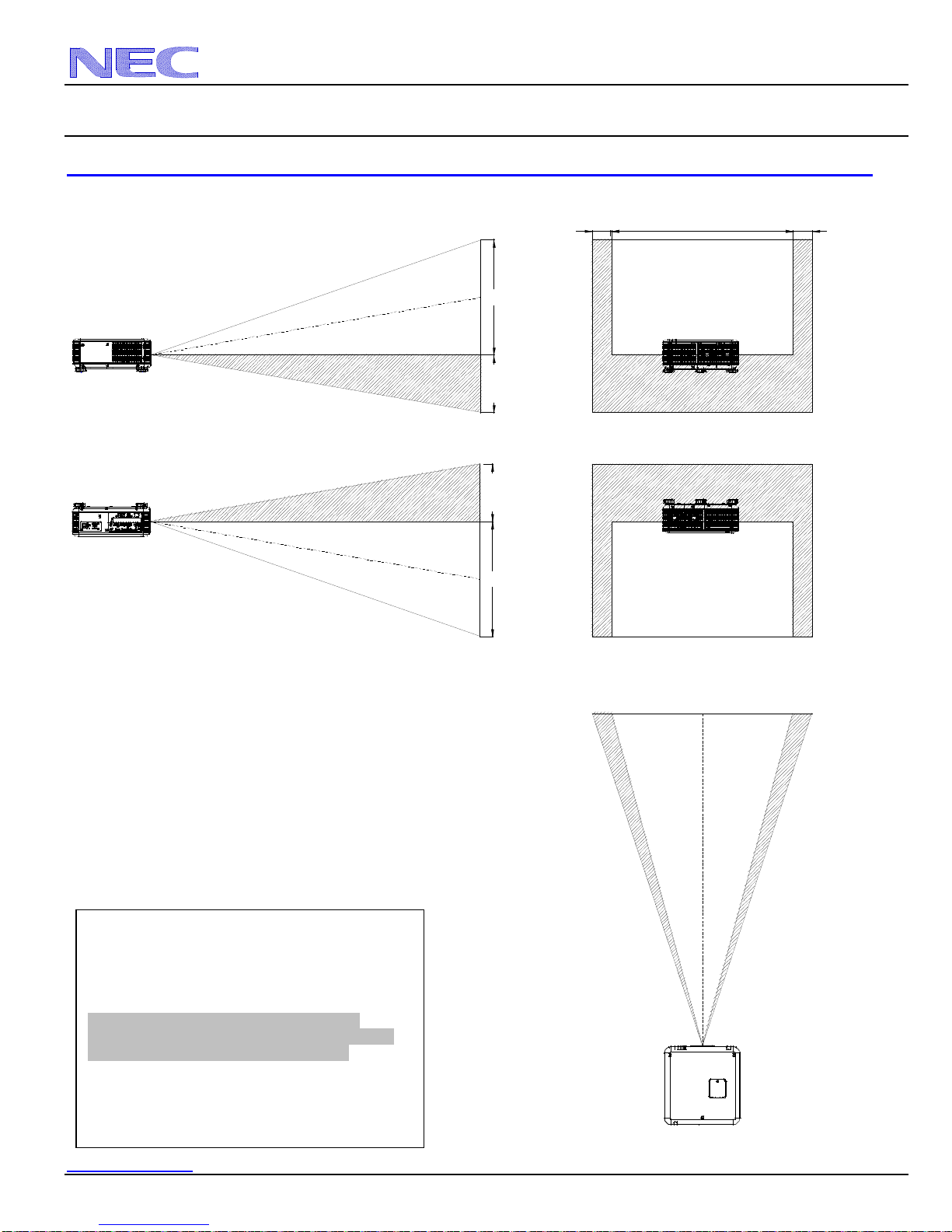

Ceiling Mount/Desktop Installation Pg 5
Lens Shift Adjustable Range Pg 6

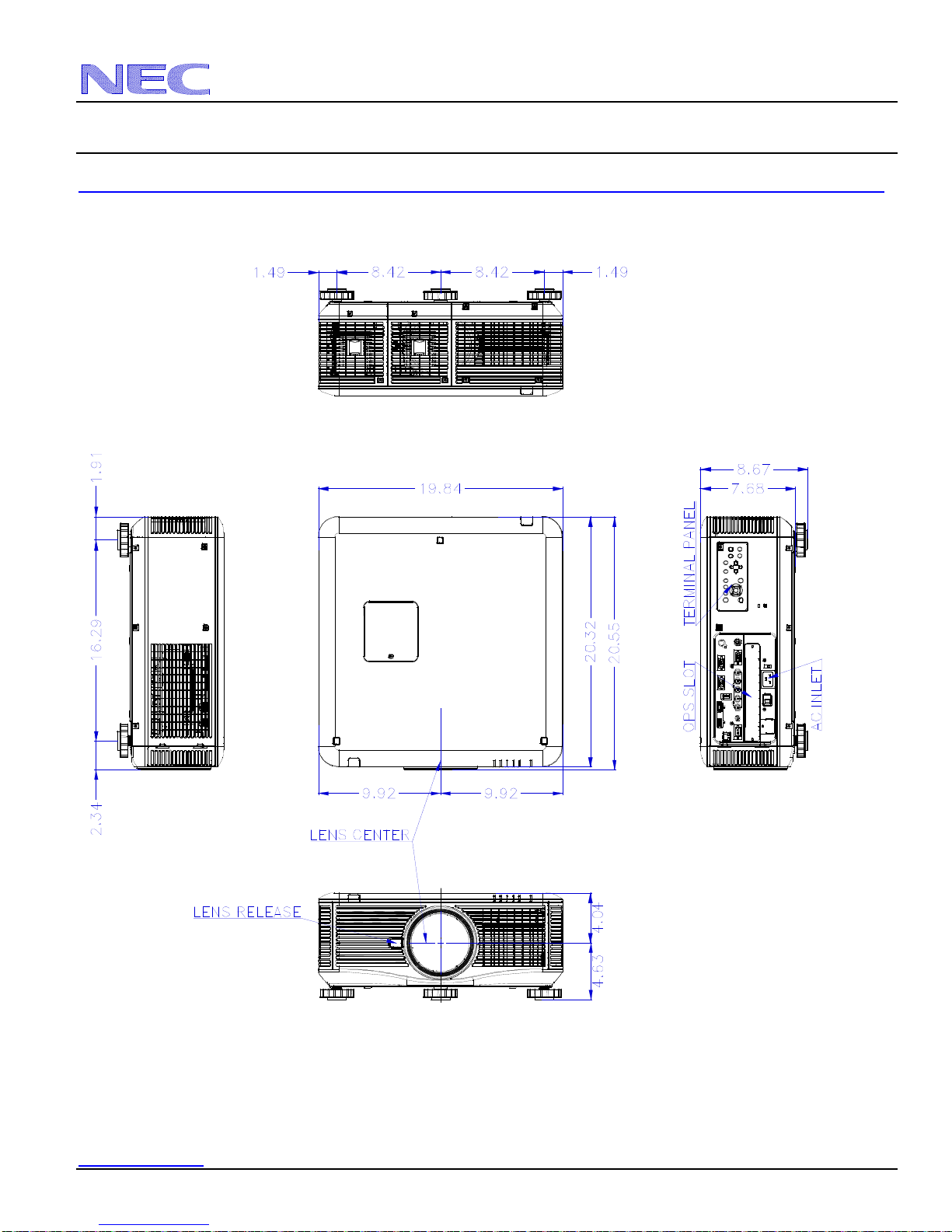

CabinetDimensions Pg 7
CabinetDimensions Pg 8

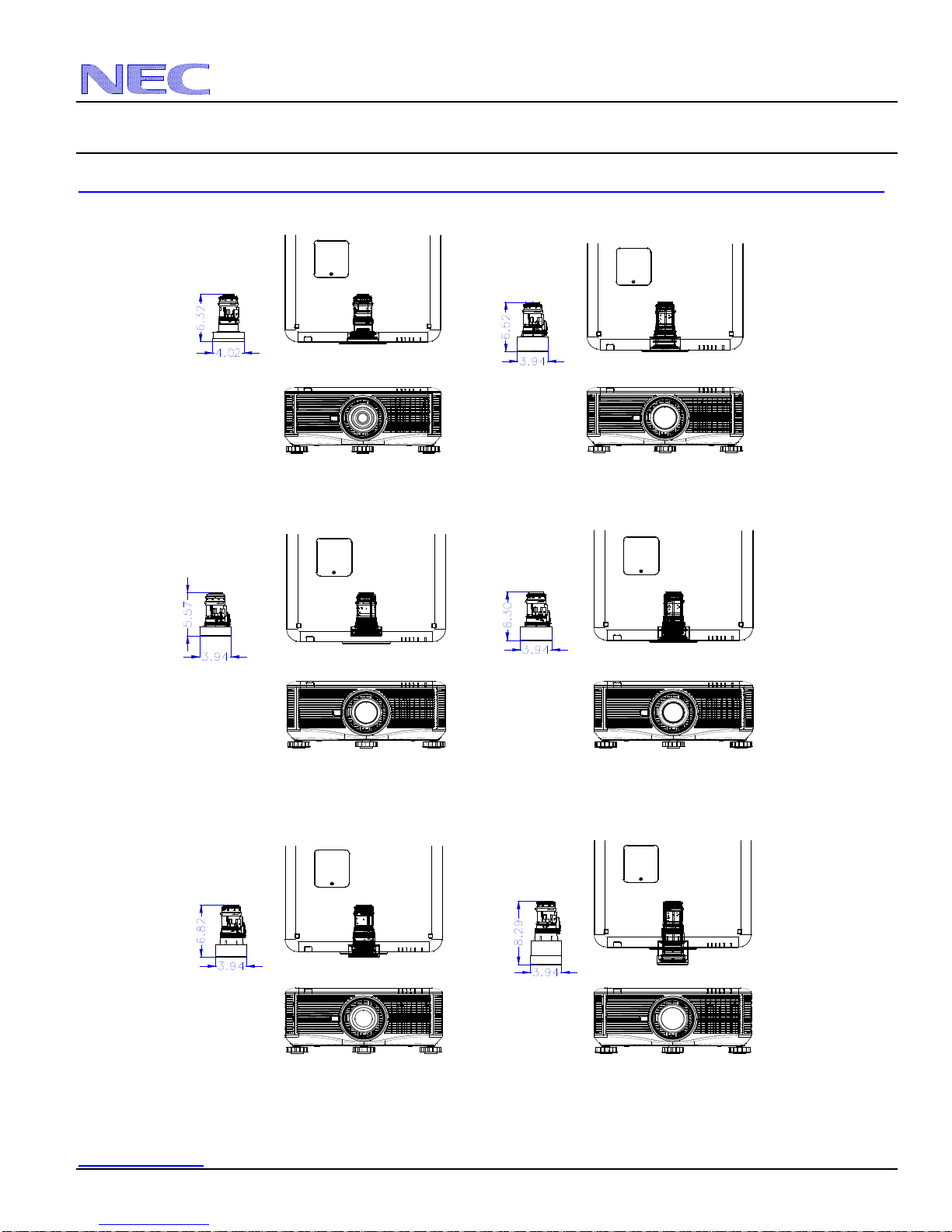

Optional Lens Dimensions Pg 9
Ventilation Requirements Pg 10
Input Panel and Button Panel Pg 11

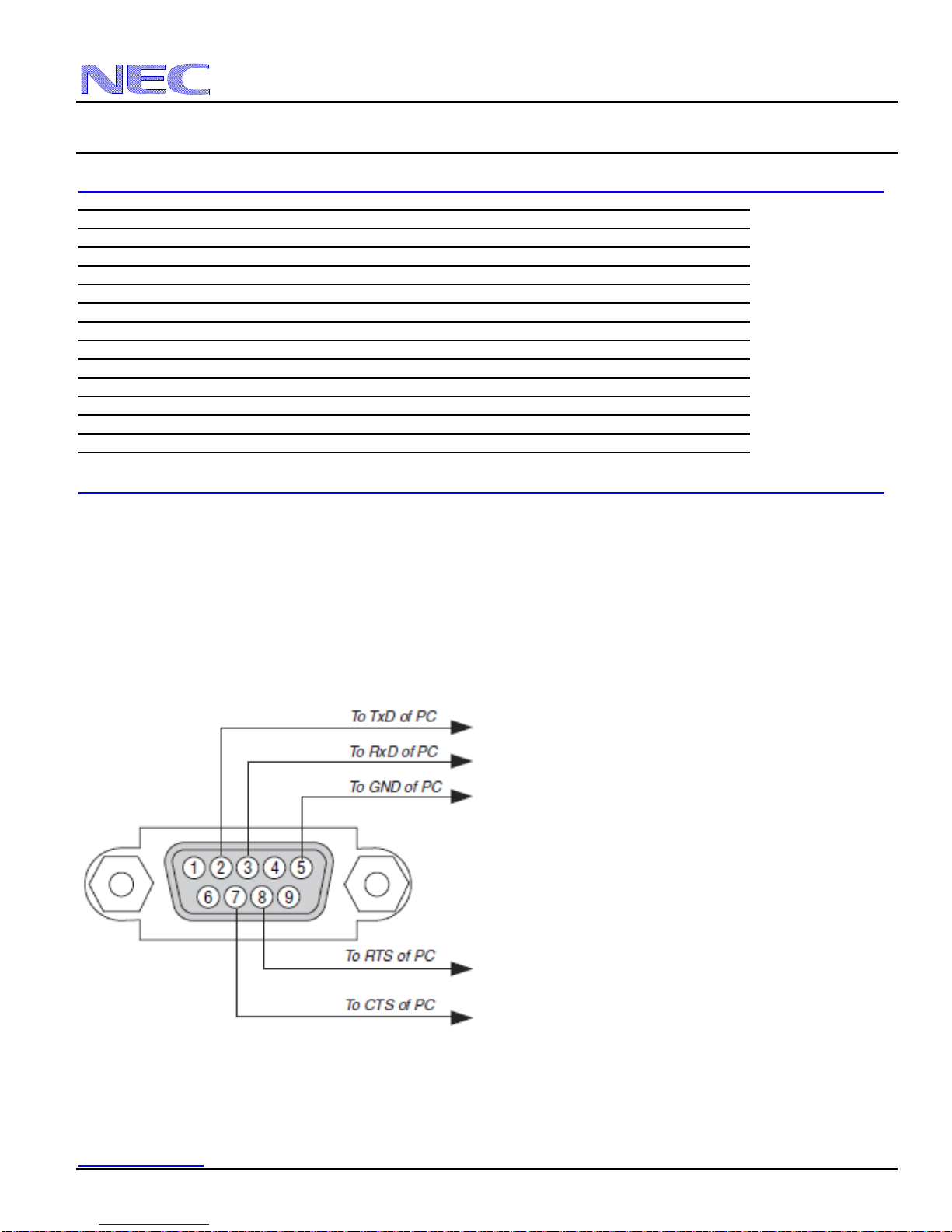

Control Codes Pg 12
Product Description
Type: 1chipDMDReflectionType Dimensions: 19.84”(W) x 8.67”(H) x 20.55”(D)
0.65 in. 2x LVDS DMD (PX700W)
0.67 in. 2x LVDS DMD (PX750U) Weight: PX Series: 19.7kg / 43.3 lbs
0.7in.2xLVDSDMD(PX800X)
Resolution: 1920 x 1200 (16:10) Brightness: PX700W: 7000 Lumens
1280 x 800 (16:10) PX750U: 7500 Lumens
1024 x 768 (4:3) PX800X: 8000 Lumens
Fan Noise: PX Series: 43 dB / 39dB @ 1 meter
Power Consumption: PX Series: 1008W (max) BTU’s: PX Series: 3439.44 BTU/hour
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP06FL: Throw Ratio: ~ 0.77:1 Focal Length: 11.4mm NP09ZL: Throw Ratio: ~2.22 - 4.43:1 Focal Length: 32.0 – 63.0mm
Screen Sizes: 50”-200” F/#:2.0 Screen Sizes: 40” - 500” F/#:2.1 – 2.9
NP07ZL: Throw Ratio: ~1.33 - 1.79:1 Focal Length: 19.3 - 25.8mm NP10ZL: Throw Ratio: 4.43 -8.3:1 Focal Length: 63.5 – 117.4mm
Screen Sizes: 40” - 500” F/#:1.8 – 2.3 Screen Sizes: 40” - 500” F/#:2.2 – 3.1
NP08ZL:Throw Ratio: ~1.78 - 2.35:1 Focal Length: 26.0 - 34.0mm
Screen Sizes: 40” – 50 ” F/#:1.7 – 1.90
NP16FL: Throw Ratio: ~ 0.76:1 Focal Length: 11.6mm NP19ZL: Throw Ratio: 2.22 -3.67:1 Focal Length: 32.9 – 54.2mm
Screen Sizes: 50”-300” F/#: 1.85 Screen Sizes: 50-300” F/#: 1.86 – 2.48 ___
NP17ZL: Throw Ratio: 1.29 - 1.79:1 Focal Length: 18.7 – 26.5mm NP20ZL: Throw Ratio: 3.60 – 5.40:1 Focal Length: 52.8 – 79.1mm
Screen Sizes: 50-300” F/#: 1.85-2.5 _________ Screen Sizes: 50-300” F/#: 1.85-2.41 ___
NP18ZL: 21.9mmThrow Ratio: 1.73. – 2.27:1 Focal Length: 25.7 – 33.7mm NP21ZL: Throw Ratio: 5.30 – 8.30:1 Focal Length:78.5 -1
Screen Sizes: 50-300” F/#: 1.64 – 1.86 Screen Sizes: 50-300” F/#: 1.85 – 2.48
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling
technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
ulas, use the figures in the table..
millimeters multiply by 25.4.
Distances may vary 5%.
If the figures on the tables do not match the results of form For screen sizes not indicated on the projection tables, use the formulas below.
Distances are in inches, for


NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 2 of 12
Formulas: 16:10 Aspect Ratio (PX700W—WXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image siz
varies. For proper projector placement, determine the image width for a desired screen size. e Use the Screen Formulas below to
tion Formulas.calculate all screen dimensions. Plug in the image width for “W” in the Projec

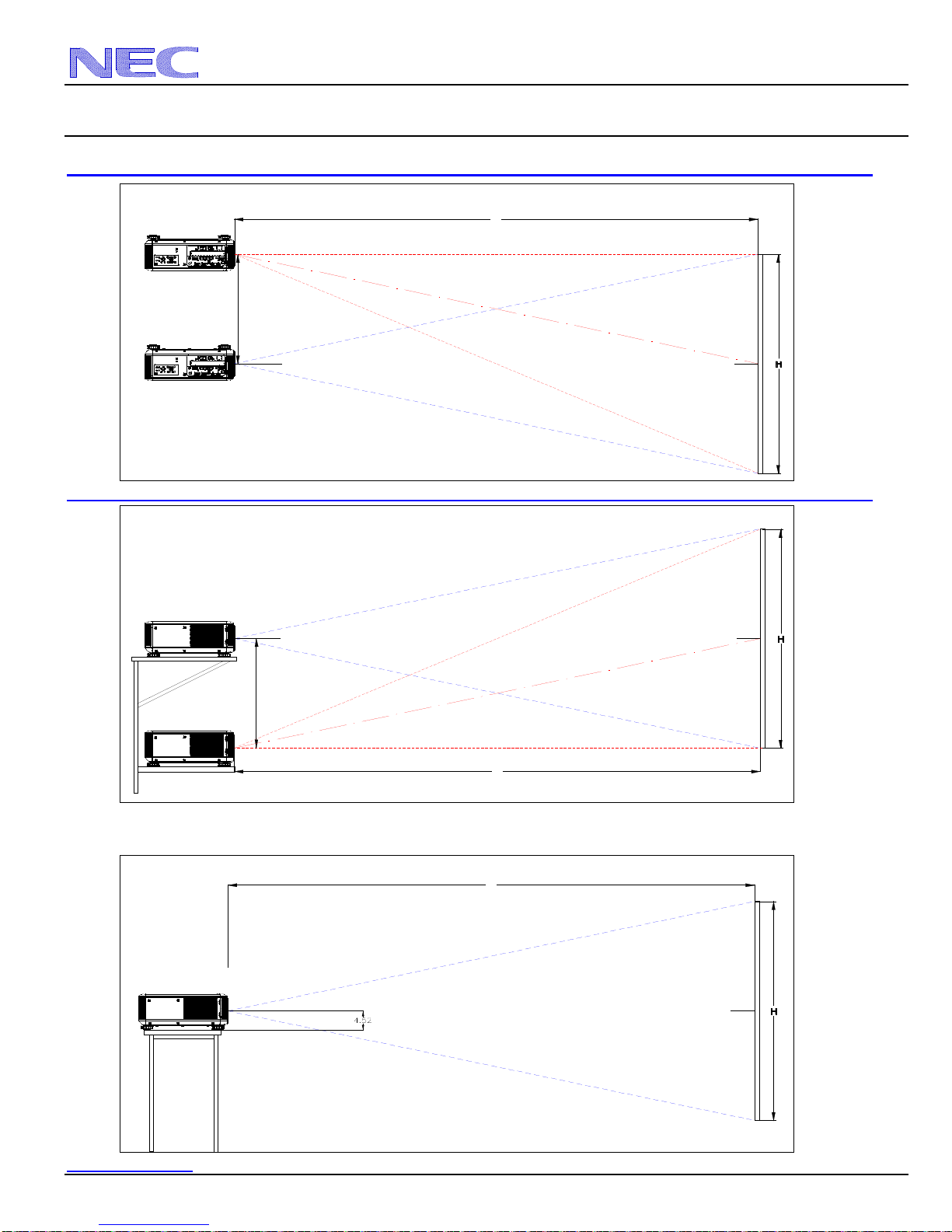

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas: Definitions: 16:10 Screen Formulas
e) 68/16
ulas
NP16FL: C = 0.812W – 1.961 W = Image Width W = H x 16/10
NP17ZL: C(Wide) = 1.346W – 2.201 ------ C(Tele) = 1.917W – 2.008 H = Image Height (siz H = W x 10/16
NP18ZL: C(Wide) = 1.852W – 2.811 ------ C(Tele) = 2.428W – 2.772 C = Throw distance Screen Diagonal = W x 18.8
NP19ZL: C(Wide) = 2.372W – 3.307 ------ C(Tele) = 3.937W – 3.272 16:9 Screen Form
Screen Diagonal = W x 18.358/16
istance Chart for popular 16:10 Screens (WXGA)
NP20ZL: C(Wide) = 3.840W – 5.587 ------ C(Tele) = 5.771W – 5.567 W = H x 16/9
NP21ZL: C(Wide) = 5.743W – 12.213 ------ C(Tele) = 8.896W – 12.110 H = W x 9/16
D
Rear Lens
NP16FL
Diagonal Width(W) Height (H) 0.76:1
inches inches inches inches
40 34 21 25.32 40.8 - 62.4 59.4 - 78.8 76.4 129.0 123.4 188.3 222.3 286.8
60 51 32 39.61 63.4 - 96.1 92.0 - 121.5 118.1 - 198.3 191.0 289.9 351.8 443.4
67 58 36 44.81 71.6 - 108.4 103.9 - 137.1 133.3 - 223.5 215.6 326.8 398.9 500.3
72 61 38 47.41 75.7 - 114.5 109.8 - 144.9 140.9 - 236.1 227.9 345.3 422.4 528.8
84 72 45 56.50 90.0 - 136.0 130.5 - 172.0 167.5 - 280.2 270.9 - 409.9 504.8 - 628.4
90 77 48 60.40 96.2 - 145.2 139.4 - 183.7 178.9 - 299.1 289.3 - 437.6 540.1 - 671.1
100 85 53 66.90 106.4 - 160.6 154.2 - 203.1 197.8 - 330.6 320.0 - 483.8 599.0 - 742.3
120 102 64 81.19 129.0 - 194.3 186.8 - 245.9 239.6 - 399.9 387.6 - 585.4 728.5 - 898.8
150 126 79 100.68 159.7 - 240.3 231.3 - 304.1 296.5 - 494.4 479.8 - 723.9 905.0 - 1112.3
180 152 95 121.46 192.5 - 289.4 278.7 - 366.3 357.2 - 595.2 578.1 - 871.6 1093.4 - 1340.1
210 178 111 142.25 225.3 - 338.5 326.1 - 428.4 418.0 - 695.9 676.4 - 1019.4 1281.7 - 1567.8
240 203 127 163.04 258.1 - 387.5 373.5 - 490.6 478.7 - 796.7 774.7 - 1167.1 1470.0 - 1795.6
270 229 143 183.82 290.9 - 436.6 420.9 - 552.8 539.4 - 897.5 873.0 - 1314.8 1658.4 - 2023.3
NP21ZL
5.30-8.30:1
inches
ZoomLenses
inches inches
1.29-1.79:1 1.73-2.27-1
inchesinches
Screen Size (16:10)
3.60-5.40:1
NP17ZL NP18ZL NP19ZL NP20ZL
2.22-3.67:1
300 254 159 204.61 323.7 - 485.7 468.3 - 614.9 600.1 - 998.3 971.3 - 1462.6 1846.7 - 2251.0
Distance Chart for popular 16:9 Screens (720p)
Rear Lens
NP16FL
Diagonal Width(W) Height (H) 0.76:1
inches inches inches inches
43 37 21 28.35 48.0 - 66.3 - 87.9 85.2 143.7 137.8 209.9 263.6 320.0
65 57 32 44.23 70.8 - 107.0 97.7 - 128.9 125.5 - 210.0 202.6 307.1 394.3 494.0
73 64 36 50.01 79.9 - 114.9 110.2 - 145.4 141.6 - 236.7 228.5 346.2 446.6 557.2
78 68 38 52.89 84.4 - 121.4 116.5 - 153.6 149.6 - 250.0 241.5 365.7 472.8 588.9
92 80 45 63.00 100.4 - 144.1 138.4 - 182.4 177.7 - 296.6 287.0 - 434.1 564.3 - 699.6
98 85 48 67.33 107.2 - 153.8 147.9 - 194.7 189.8 - 316.6 306.5 - 463.4 603.5 - 747.0
108 94 53 74.55 118.6 - 170.0 163.5 - 215.3 209.9 - 349.9 339.0 - 512.2 668.9 - 826.1
131 114 64 90.43 143.7 - 205.7 198.0 - 260.5 254.1 - 423.2 410.4 - 619.6 812.8 - 1000.1
161 140 79 112.08 177.8 - 254.4 245.1 - 322.2 314.4 - 523.1 507.9 - 766.0 1009.0 - 1237.3
194 169 95 135.18 214.3 - 306.3 295.2 - 388.0 378.7 - 629.7 611.8 - 922.2 1218.2 - 1490.3
226 197 111 158.27 250.7 - 358.2 345.4 - 453.8 443.0 - 736.3 715.7 - 1078.5 1427.5 - 1743.4
NP21ZL
5.30-8.30:1
259 226 127 181.37 287.1 - 410.1 395.6 - 519.6 507.3 - 842.9 819.7 - 1234.7 1636.8 - 1996.4
i
nc
h
es
Zoom Lenses
i
nc
h
es
i
nc
h
es
1.29-1.79:1 1.73-2.27-1
i
nc
h
es
i
nc
h
es
Screen Size (16:9)
3.60-5.40:1
NP17ZL NP18ZL NP19ZL NP20ZL
2.22-3.67:1

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 3 of 12
Formulas: 16:10 Aspect Ratio (PX750U—WUXGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas: Definitions: 16:10 Screen Formulas
NP16FL: C = 0.794W – 1.85 W = Image Width W = H x 16/10
NP17ZL: C(Wide) = 1.281W – 2.094 ------ C(Tele) = 1.825W – 1.913 H = Image Height (size) H = W x 10/16
NP18ZL: C(Wide) = 1.764W – 2.677 ------ C(Tele) = 2.313W – 2.638 C = Throw distance Screen Diagonal = W x 18.868/16
NP19ZL: C(Wide) = 2.261W – 3.150 ------ C(Tele) = 3.747W – 3.114 16:9 Screen Formulas
NP20ZL: C(Wide) = 3.654W – 5.319 ------ C(Tele) = 5.492W – 5.299 W = H x 16/9
NP21ZL: C(Wide) = 5.469W – 11.626 ------ C(Tele) = 8.527W – 11.531 H = W x 9/16
Screen Diagonal = W x 18.358/16
Distance Chart for popular 16:10 Screens (WUXGA)
Rear Lens
NP16FL
Diagonal Width(W) Height (H) 0.76:1
inches inches inches inches
40 34 21 24.83 40.9 - 59.4 56.6 - 75.1 72.8 122.8 117.5 179.2 212.3 275.0
60 51 32 38.80 63.5 - 91.5 87.6 - 115.8 112.6 - 188.7 181.8 275.9 335.6 425.1
67 58 36 43.88 71.7 - 103.2 98.9 - 130.6 127.1 - 212.7 205.2 311.0 380.5 479.6
72 61 38 46.43 75.8 - 109.0 104.6 - 138.0 134.3 - 224.7 216.8 328.6 402.9 506.9
84 72 45 55.32 90.1 - 129.5 124.3 - 163.9 159.6 - 266.7 257.8 - 390.1 481.3 - 602.4
90 77 48 59.13 96.3 - 138.2 132.8 - 175.0 170.5 - 284.7 275.3 - 416.5 515.0 - 643.3
100 85 53 65.48 106.5 - 152.8 146.9 - 193.5 188.6 - 314.6 304.5 - 460.4 571.0 - 711.6
120 102 64 79.46 129.1 - 185.0 178.0 - 234.2 228.4 - 380.6 368.9 - 557.1 694.3 - 861.6
150 126 79 98.51 159.8 - 228.8 220.3 - 289.7 282.6 - 470.5 456.5 - 688.9 862.5 - 1066.3
180 152 95 118.84 192.6 - 275.5 265.5 - 348.9 340.5 - 566.4 550.1 - 829.5 1041.8 - 1284.6
210 178 111 139.16 225.4 - 322.2 310.6 - 408.2 398.4 - 662.4 643.6 - 970.1 1221.2 - 1502.9
240 203 127 159.49 258.2 - 368.9 355.8 - 467.4 456.3 - 758.3 737.2 - 1110.7 1400.5 - 1721.2
270 229 143 179.82 291.0 - 415.6 400.9 - 526.6 514.2 - 854.2 830.7 - 1251.3 1579.8 - 1939.4
300 254 159 200.14 323.8 - 462.4 446.1 - 585.8 572.0 - 950.1 924.3 - 1391.9 1759.2 - 2157.7
Screen Size (16:10)
3.60-5.40:1
NP17ZL NP18ZL NP19ZL NP20ZL
2.22-3.67:1 NP21ZL 5.30-8.30:1
i
nc
h
es
ZoomLenses
i
nc
h
es
i
nc
h
es
1.29-1.79:1 1.73-2.27-1
i
nc
h
es
i
nc
h
es
Distance Chart for popular 16:9 Screens (1080p)
Rear Lens
NP16FL
Diagonal Width(W) Height (H) 0.76:1
inches inches inches inches
43 37 21 27.79 45.7 - 66.2 63.2 - 83.7 81.3 136.8 131.1 199.7 238.5 306.8
65 57 32 43.32 70.8 - 101.9 97.7 - 128.9 125.5 - 210.0 202.6 307.1 375.5 473.6
73 64 36 48.97 79.9 - 114.9 110.2 - 145.4 141.6 - 236.7 228.5 346.2 425.3 534.2
78 68 38 51.79 84.4 - 121.4 116.5 - 153.6 149.6 - 250.0 241.5 365.7 450.2 564.5
92 80 45 61.67 100.4 - 144.1 138.4 - 182.4 177.7 - 296.6 287.0 - 434.1 537.4 - 670.6
98 85 48 65.90 107.2 - 153.8 147.9 - 194.7 189.8 - 316.6 306.5 - 463.4 574.7 - 716.1
108 94 53 72.96 118.6 - 170.0 163.5 - 215.3 209.9 - 349.9 339.0 - 512.2 637.0 - 791.9
131 114 64 88.49 143.7 - 205.7 198.0 - 260.5 254.1 - 423.2 410.4 - 619.6 774.0 - 958.7
161 140 79 109.66 177.8 - 254.4 245.1 - 322.2 314.4 - 523.1 507.9 - 766.0 960.8 - 1186.0
194 169 95 132.25 214.3 - 306.3 295.2 - 388.0 378.7 - 629.7 611.8 - 922.2 1160.1 - 1428.6
226 197 111 154.83 250.7 - 358.2 345.4 - 453.8 443.0 - 736.3 715.7 - 1078.5 1359.4 - 1671.1
259 226 127 177.42 287.1 - 410.1 395.6 - 519.6 507.3 - 842.9 819.7 - 1234.7 1558.7 - 1913.7
292 254 143 200.00 323.6 - 462.0 445.8 - 585.4 571.6 - 949.5 923.6 - 1390.9 1757.9 - 2156.2
324 283 159 222.59 360.0 - 514.0 495.9 - 651.2 636.0 - 1056.0 1027.5 - 1547.1 1957.2 - 2398.8
Screen Size (16:9)
3.60-5.40:1
NP17ZL NP18ZL NP19ZL NP20ZL
2.22-3.67:1 NP21ZL 5.30-8.30:1
i
nc
h
es
ZoomLenses
i
nc
h
es
i
nc
h
es
1.29-1.79:1 1.73-2.27-1
i
nc
h
es
i
nc
h
es

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 4 of 12
Formulas: 4:10 Aspect Ratio (PX800X—XGA)
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas: Definitions: 4:3 Screen Formulas
NP16FL: C = 0.822W – 1.866 W = Image Width W = H x 4/3
NP17ZL: C(Wide) = 1.358W – 2.094 ------ C(Tele) = 1.934W – 1.913 H = Image Height (size) H = W x 3/4
NP18ZL: C(Wide) = 1.828W – 2.681 ------ C(Tele) = 2.397W – 2.642 C = Throw distance Screen Diagonal = W x 5/4
NP19ZL: C(Wide) = 2.343W – 3.154 ------ C(Tele) = 3.883W – 3.118
NP20ZL: C(Wide) = 3.789W – 5.323 ------ C(Tele) = 5.689W – 5.299
NP21ZL: C(Wide) = 5.664W – 11.638 ------ C(Tele) = 8.834W – 11.535
Distance Chart for popular 4:3 Screens (XGA)
Rear Lens
NP16FL
Diagonal Width(W) Height (H) 0.76:1
inches inches inches inches
40 32 24 24.4 41.4 - 60.0 55.8 - 74.1 68.6 121.1 115.9 176.7 222.6 271.2
60 48 36 37.6 63.1 - 90.9 85.1 - 112.4 104.5 - 183.3 176.5 267.8 345.7 412.5
67 54 40.2 42.2 70.7 - 101.7 95.3 - 125.8 117.1 - 205.0 197.8 299.6 388.8 462.0
72 58 43.2 45.5 76.1 - 109.5 102.6 - 135.4 126.0 - 220.5 212.9 322.4 419.5 497.3
84 67 50.4 53.4 89.2 - 128.1 120.2 - 158.4 147.6 - 257.8 249.3 - 377.0 493.4 - 582.1
90 72 54 57.3 95.7 - 137.3 128.9 - 169.9 158.3 - 276.5 267.5 - 404.3 530.3 - 624.5
100 80 60 63.9 106.5 - 152.8 143.6 - 189.1 176.3 - 307.5 297.8 - 449.8 591.8 - 695.2
120 96 72 77.0 128.3 - 183.8 172.8 - 227.5 212.2 - 369.7 358.4 - 540.8 714.9 - 836.5
150 120 90 96.8 160.9 - 230.2 216.7 - 285.0 266.0 - 462.8 449.4 - 677.4 899.5 - 1048.5
180 144 108 116.5 193.5 - 276.6 260.6 - 342.5 319.8 - 556.0 540.3 - 813.9 1084.1 - 1260.6
210 168 126 136.2 226.1 - 323.0 304.4 - 400.1 373.7 - 649.2 631.2 - 950.5 1268.7 - 1472.6
240 192 144 156.0 258.6 - 369.4 348.3 - 457.6 427.5 - 742.4 722.2 - 1087.0 1453.3 - 1684.6
NP21ZL
5.30-8.30:1
i
nc
h
es
ZoomLenses
i
nc
h
es
i
nc
h
es
1.29-1.79:1 1.73-2.27-1
i
nc
h
es
i
nc
h
es
Screen Size (16:10)
3.60-5.40:1
NP17ZL NP18ZL NP19ZL NP20ZL
2.22-3.67:1

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 5 of 12
CeilingMountInstallation
Screen Center
Screen Top
Shift Range
C
Desktop Installation
ScreenCenter
Shift Range
Screen Bottom
C
Note: Lens Shift Feature is not available to NP16FL. This lens should only be used for “zero degree”/”no-offset” applications. See
below
Screen Center
C

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 6 of 12
Lens Shift Adjustable Range
Lens Shift Range for Desktop and Ceiling Mount
Application
The diagram below shows the location of the image
position in the lens. The lens can be shifted within
the shaded area as shown using the normal
projection position as a starting point.
Note: Lens shift feature is not available with
NP16FL (rear lens). NP16FL should be used only
for “zero degree” / “no-offset” applications.
Note: Projector is set out of the box at maximum
lens shift, which is how it is depicted above.
(W: width of projected image, H: height of projected
image)
CEILING FRONT
DESKTOP FRONT
VERTICAL
VERTICAL
HORIZONTAL
H
H0.5H
0.5H
W0.1W 0.1W

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 7 of 12
Cabinet Dimensions
The following diagrams show the cabinet dimensions for the PX750U.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown with the NP18ZL lens

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 8 of 12
Cabinet Dimensions

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 9 of 12
Optional Lens Dimensions
NP16FL NP17ZL
Max Depth: 20.55 Max Depth: 20.79
NP18ZL NP19ZL
Max Depth: 20.55Max Depth: 20.55
NP20ZL NP21ZL
Max Depth: 21.33 Max Depth: 23.02
Note: Depth for the PX750U will remain at 20.55” if the NP16FL, NP18ZL or NP19ZL are utilized.

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 10 of 12
Ventilation Requirements
If there are walls on boths sides of the projector :
If there’s a wall behind the projector :
For ceiling mounting :

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 11 of 12
Input Panel
ControlPanel

NEC Display Solutions of America, Inc.
PX700W/PX750U/PX800X Installation Guide
Desktop and Ceiling Mount Rev 1.0
www.necdisplay.com PX700W/PX750U/PX800X Page 12 of 12
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 1 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT COMPUTER 2 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT COMPUTER 3 02H 03H 00H 00H 02H 01H 03H 0BH
INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H 1AH 22H
INPUT SELECT DisplayPort 02H 03H 00H 00H 02H 01H 1BH 23H
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H
INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 20H 28H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
Cable Connection
Communication Protocol:
Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex
PC Control Connector (D-Sub 9P)
Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.
Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
