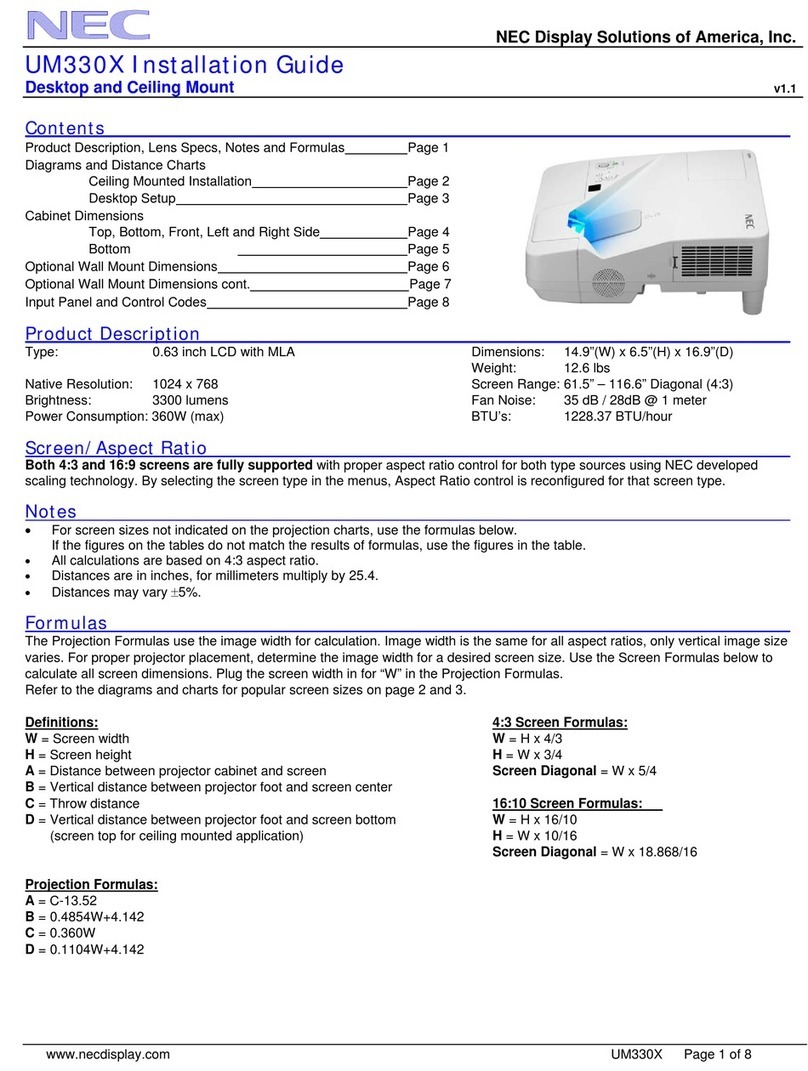

UM330X and UM330W ultra short throw projectors
The UM330X and UM330W ultra short throw projectors
tout advancements such as an integrated pen system
and were designed with a feature set that makes them
ideal for use in educational settings.
Essential Features for
Ease of Use
• Bright images can be easily viewed in most
applications
• Intuitive remote control provides one-touch source
changes and complete menu control
• Integrated RJ45 connection for quick connection to
the LAN (10/100 base-T capability
• Wireless LAN (optional) allows for image
transmission from a computer or directly from an
iPad, lowering the cost of the installation while
providing collaboration with your audience
• Remote diagnostics enable the user to monitor and
make adjustments to the projector remotely
• Plug and Play setup and operation optimizes images
displayed from computers and video sources
Versatile Features and
Powerful Performance
• Powerful 16-watt speaker provides volume needed
for large rooms
• Variable audio-out enables remote control to be
used to adjust volume of self-powered external
speakers that are connected to the projector. In
stand-by mode, the audio-out stays active, allowing
the last input used to pass to the self-powered
external speakers.
• Virtual Remote™ (DDC/CI) over the VGA cable or via
the network connection (wired/wireless) allows you
to control the projector directly from a computer
without the need for additional control cables
• Native XGA and WXGA resolution projectors
automatically sync with higher-resolution computers
• Flexible input panel connects with dual HDMI,
computer, composite video, S-Video and component
video (using optional 15-pin adapter cable)
• USB input allows for connection directly from your
computer to the projector using a standard USB cable
• USB Viewer uses the presentation conversion
software included with your projector to convert
presentations into .jpgs for playback using a USB
flash drive (not included)
Bring Interactivity to
the Classroom
• The optional interactive eBeam module (NP02Wi)
connects between the eBeam module and the computer,
and uses IR to determine the included pen’s position
within the image for accurate control and annotation.
• A complete software package designed specifically for
the NP02Wi includes the eBeam Education Suite, eBeam
Scrapbook, eBeam Tool Palette and eBeam Home.
eBeam Workspace is ideal for corporate customers.
Designed with the
Environment in Mind
• Extended lamp life with ECO Mode™ technology
increases lamp life up to 6000 hours, while lowering
power consumption and maintenance costs
• Power management enables projector to
automatically turn off when an incoming signal is
not detected from any of the inputs
• Auto Power On, using the Direct Power On mode,
turns on the projector when AC power is supplied
• Quick start (20 seconds) lets you begin presenting
in seconds while quick shutdown (immediate power
off with no cooling required after shutdown) ensures
efficient energy usage

NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
ECO Mode is a trademark of NEC Display Solutions. HDMI, the
HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC. All other brand
or product names are trademarks or registered trademarks of their
respective holders. Product specifications subject to change
©2012 NEC Display Solutions of America, Inc. All rights reserved.
25.NEC.80.GL.UN.128 rev. 120112
ORDERING MODEL NUMBERS
NP-UM330X
NP-UM330W
Wall mount (NP04WK1)
This mount is available separately or as a bundle
(NP-UM330X-WK1 and NP-UM330W-WK1).
Specifications for UM330X/UM330W
OPTICAL
Display Technology
Light Output (lumens)
Resolution
Native
Maximum
Contrast Ratio (up to)
Lamp Type
Lamp Life (up to)
Screen Size (diagonal)
Throw Ratio
Projection Distance
Projector Angle
Lens*
Zoom
Focus
F-#, f-#
Keystone Correction
UM330X: 0.63" LCD with MLA
UM330W: 0.59” LCD with MLA
3300
UM330X: XGA 1024 x 768
UM330W: WXGA 1280 x 800
UXGA 1600 x 1200
3000:1
265W AC
3000 hours normal / 6000 hours eco
UM330X: 61.5 to 116.6 in. / 1562 to 2962mm
UM310W: 58 to 110 in. / 1473 to 2794mm
0.36:1
17.6 to 33.6 in. / 448 to 854mm
UM330X: 53.1°
UM330W: 49.2°
1 - 1.4
Manual
F=1.80, f=4.78mm
+/- 10°
SIGNAL COMPATIBILITY/CONNECTIVITY
Scan Rate
Horizontal
Vertical
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB1 (analog)
RGB2 (digital)
RGB3 (digital)
RGB4 (digital)
Video 1
Video 2
Audio 1
Audio 2
Audio 3
Audio Out
Monitor Out
Microphone
Wireless LAN
Audio
External Control
Sync Compatibility
15 - 100 kHz
50 - 120 Hz
NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Yes
15-pin, component video using ADP-CV1E adapter
HDMI
HDMI
USB A Type
RCA
S-Video
1/8 in. stereo
1/8 in. stereo
L/R RCA (shared by video sources)
Yes (variable)
Yes
1/8 in. stereo
Optional
16W speaker
RS-232, IR, Wired LAN, Wireless LAN (optional), USB
Separate Sync / Composite Sync / Sync on G
ELECTRICAL
Power Requirements
Input Current
Power Consumption
Normal Mode / ECO Mode / Standby
100 – 240V AC, 50/60 Hz
4.0A / 2.0A
344W / 233W / 8W / 0.2W
MECHANICAL
Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations
Table/Front, Table/Rear, Ceiling/Front, Ceiling/Rear
16.9 x 23.3 x 4.4 / 429 x 592 x 112mm
12.6 lbs. / 5.7 kg
35 dB normal / 32 dB eco
USA UL 60950-1 FCC Class B, C-UL CSA 60950-1 ICES-003
Class B
ENVIRONMENTAL
Operational Temp
Humidity
Storage
41° – 104°F / 5° – 40°C
20-80% non-condensing
-4° – 122°F / -20° – 50°C
OPTIONAL ACCESSORIES
NP02LM1
NP17LP-UM
SPKR30
NP02Wi
NP04WK1
RMT-PJ31
SC200
SCP200
ADP-CV1E
PWRCRD-PJPX
RGBCBL-PJPX
NECEW1-MP
NECEW2-MP
ADVEXON1-MP
ADVEXON2-MP
802.11b/g/n wireless LAN adapter
Replacement lamp
Amplified 30-watt speaker
Interactive eBeam module and pen
Wall mount
Replacement remote control
Security cable for connection to projector
Lightweight adjustable suspended ceiling plate for use with NEC
ceiling mounts
Component video adapter converts component video to D-sub
15-pin
Power cable
RGB cable
Extends term of parts and labor warranty to 3 years
Extends term of parts and labor warranty to 4 years
Extends term of InstaCare service program to 2 years
Extends term of InstaCare service program to 3 years
UNIQUE FEATURES
ECO Mode technology extends lamp life,
lowers audible noise and reduces total cost of
ownership.
Built-in closed captioning enables decoding and
display of text information from a video
Kensington lock slot enables security cable to
be attached to projector.
10-step image magnification with location
control
WARRANTY
Registered owners receive a 2-year parts
and labor warranty including the first year of
InstaCare. The lamp is covered for one year or
500 hours - whichever comes first. InstaCare
provides the original owner one year of either
limited 3-business-day repair/return or next-
business-day exchange.
SHIPS WITH
Remote control, batteries, RGB cable, power
cord, user’s manual, product registration card
Ultra short throw
creates a 77” standard
or 87” widescreen
diagonal image from
a mere 23 inches,
eliminating shadows on
the screen along with
projected light in the
presenter’s eyes created
by traditional front
projection systems.
16.9”
(429mm)
23.3”
(592mm)
4.4”
(112mm)
