Necchi EX60 User manual

Instruction Book

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the
following:
This sewing machine is designed and manufactured for household use only.
Read all instructions before using this sewing machine.
DANGER— To reduce the risk of electric shock:
1. An appliance should never be left unattended when plugged in. Always unplug
this sewing machine from the electric outlet immediately after using and before
cleaning.
WARNING—To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used
by or near children.
2. Use this appliance only for its intended use as described in this owner’s manual.
Use only attachments recommended by the manufacturer as contained in this owner’s manual.
3. Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if
it has been dropped or damaged, or dropped into water.
Return this sewing machine to the nearest authorized dealer or service center for examination,
repair, electrical or mechanical adjustment.
4. Never operate the appliance with any air opening blocked. Keep ventilation openings of this
sewing machine and foot controller free from accumulation of lint, dust and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
8. To disconnect, turn all controls to the off (“O”) position, then remove plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep fingers away from all moving parts. Special care is required around the sewing machine
needle and/or cutting blade.
11. Always use the proper needle plate. The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
14. Switch this sewing machine off (“O”) when making any adjustment in the needle area, such as
threading the needle, changing the needle, threading the bobbin or changing the presser foot, and
the like.
15. Always unplug this sewing machine from the electrical outlet when removing covers, lubricating, or
when making any other adjustments mentioned in this owner’s manual.
SAVE THESE INSTRUCTIONS
Please note that on disposal, this product must be safely recycled in accordance with relevant
National legislation relating to electrical/electronic products. If in doubt please contact your
retailer for guidance. (European Union only)
For Europe only:
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
For outside Europe (except U.S.A and Canada):
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

TABLE OF COTENTS
NAMES OF PARTS
Names of Parts.............................................................. 1

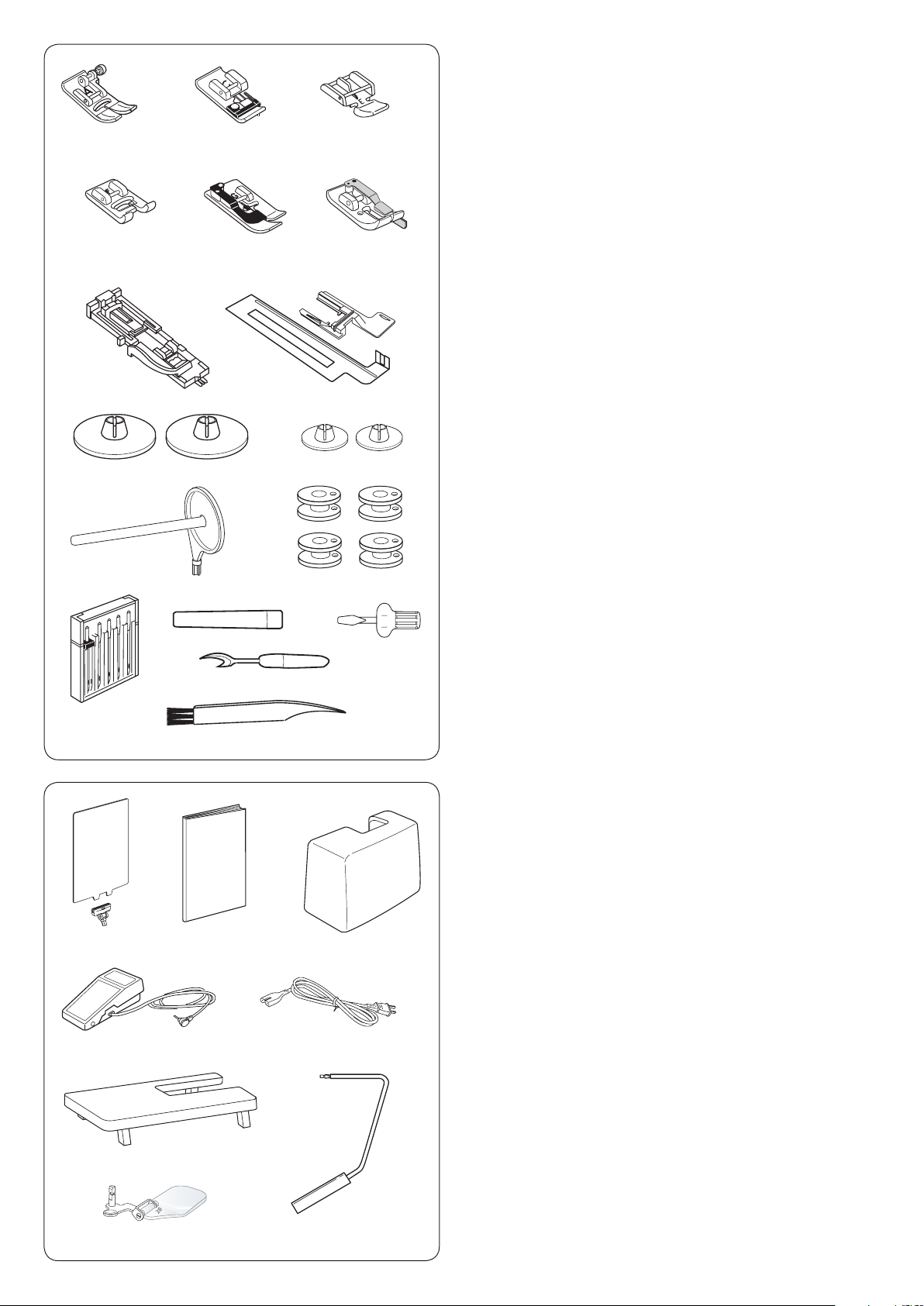

Standard Accessories ................................................... 2
GETTING READY TO SEW
Connecting the Power Supply ....................................... 3
Before Using Your Sewing Machine.............................. 3
Operating Instructions ................................................... 3
Controlling Sewing Speed............................................. 4
Speed control slider ................................................. 4
Foot control .............................................................. 4
Extension Table............................................................. 4
Free-arm sewing ........................................................... 4
Accessory storage......................................................... 4
Large Extension Table................................................... 5

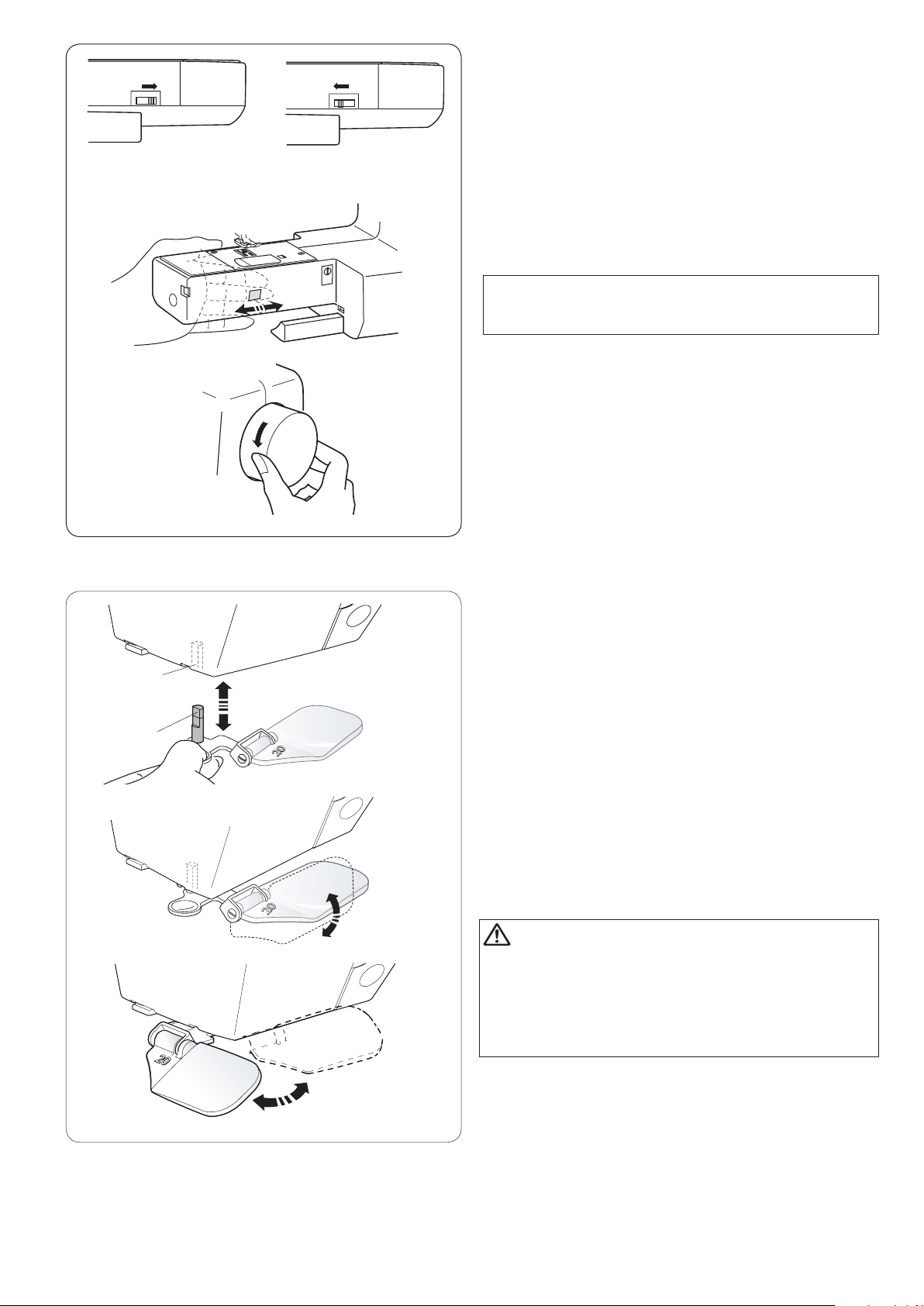

Attaching the Knee Lifter (only for applicable model) ... 5
Stitch Chart.................................................................... 5

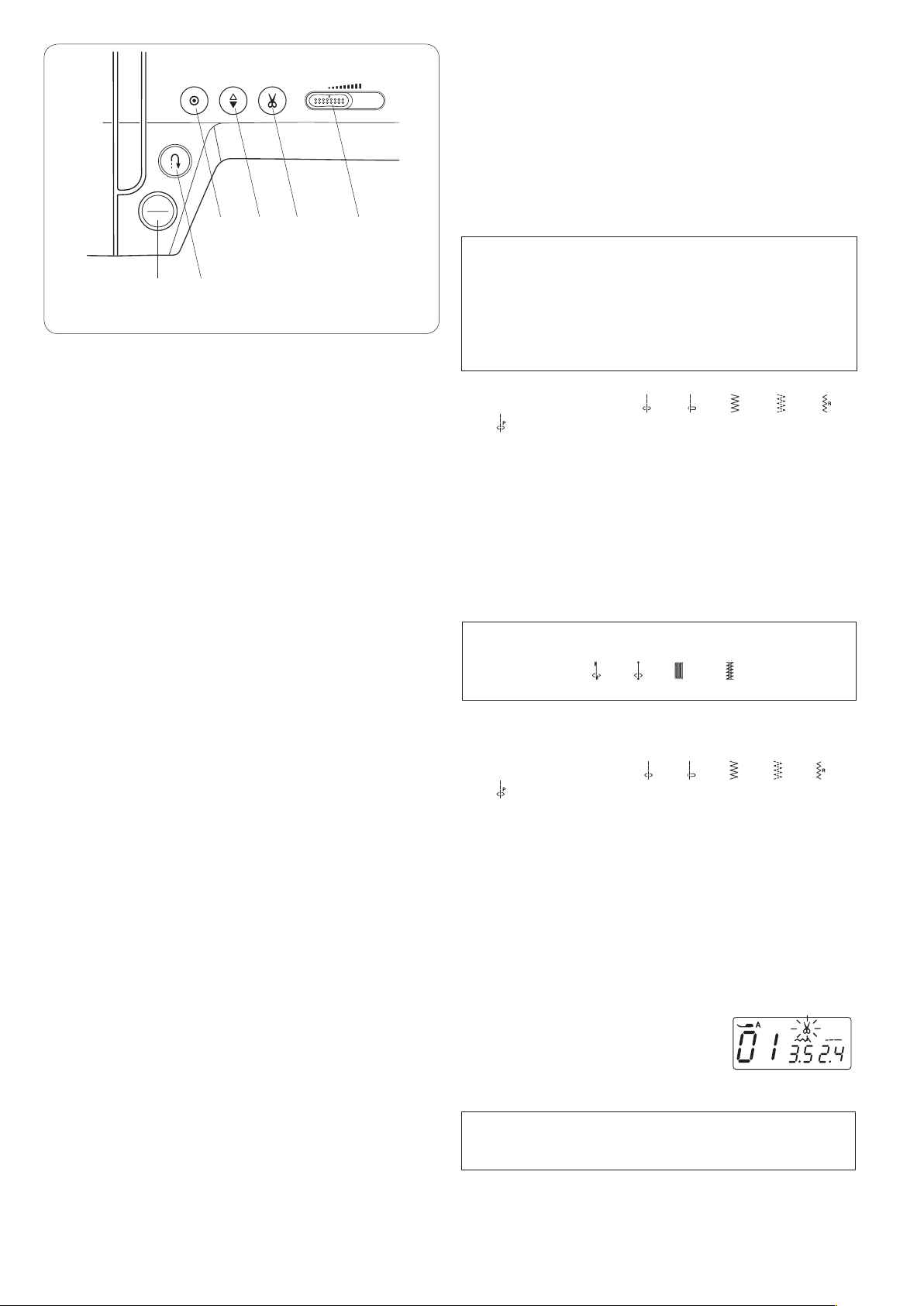

Machine Operating Buttons........................................... 6
Selecting Patterns ......................................................... 7

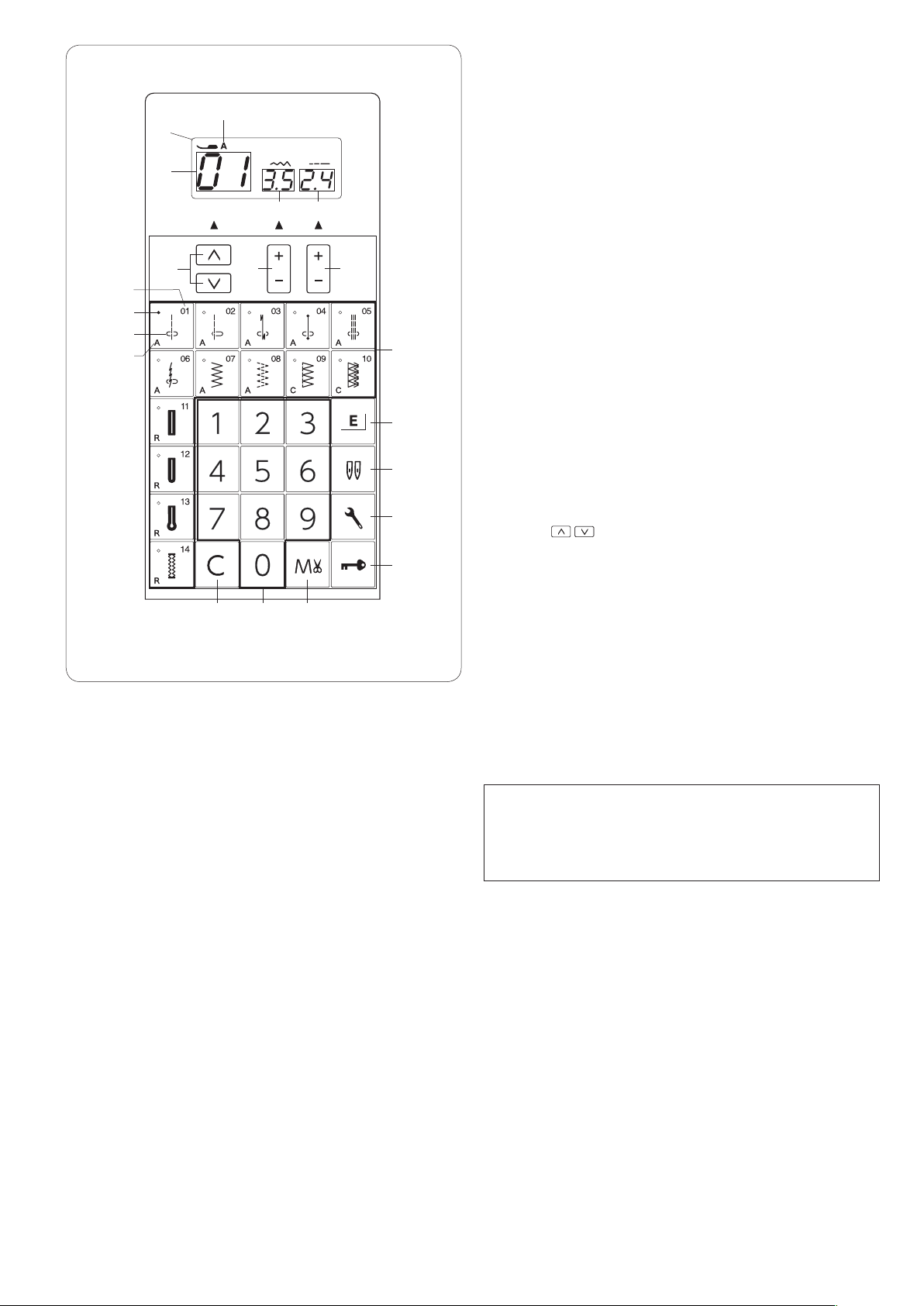

Function keys and LCD Display .................................... 7
Presser Foot Lifter......................................................... 8
Changing the Presser Foot ........................................... 8
Removing and Attaching the Foot Holder ..................... 8
Presser Foot Pressure Dial ........................................... 8

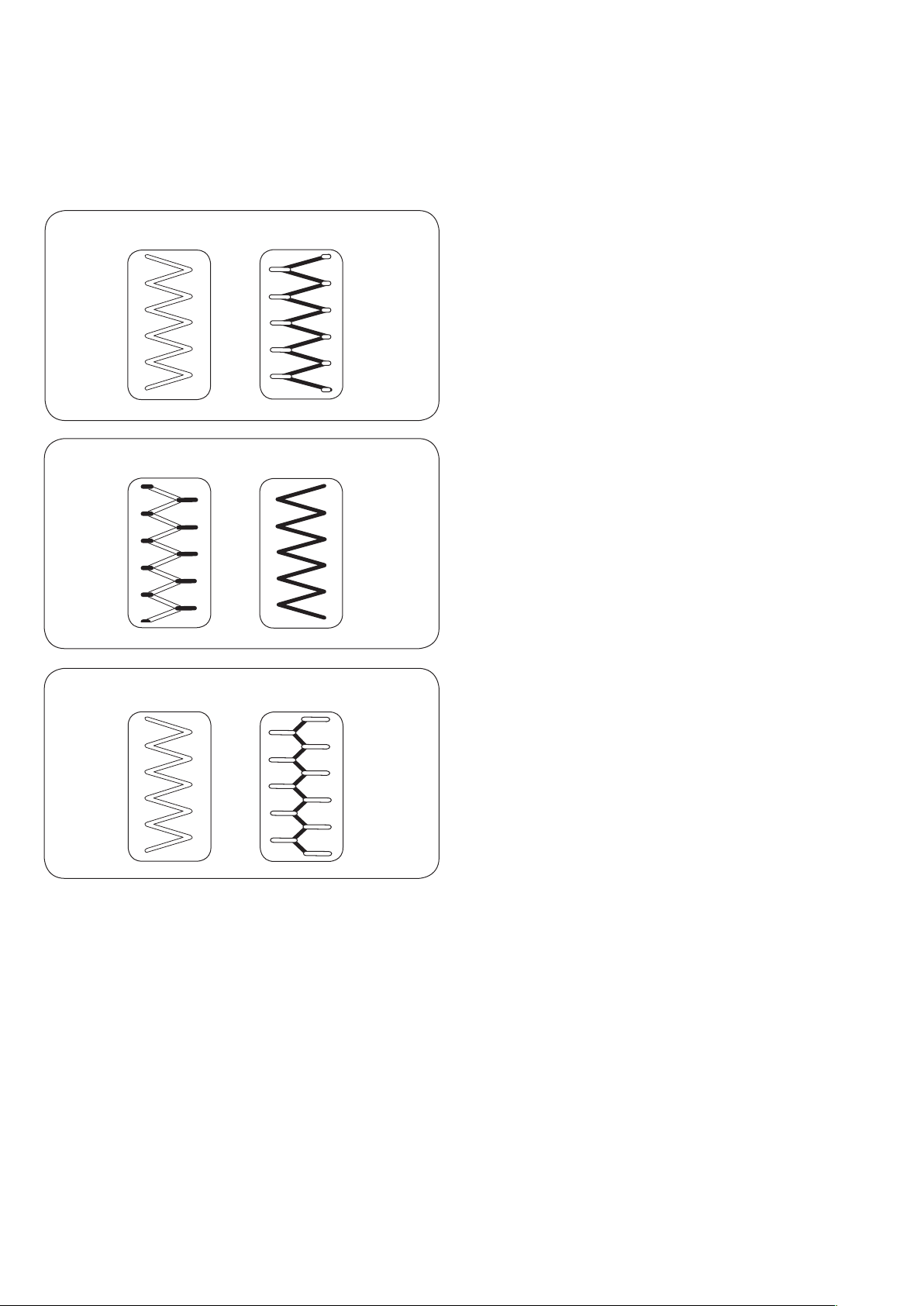

Adjusting the Needle Thread Tension ...................... 9-10
Straight stitch............................................................ 9
Zigzag stitch ........................................................... 10
Dropping or Raising the Feed Dog.............................. 11
Optic Magnifier ............................................................ 11

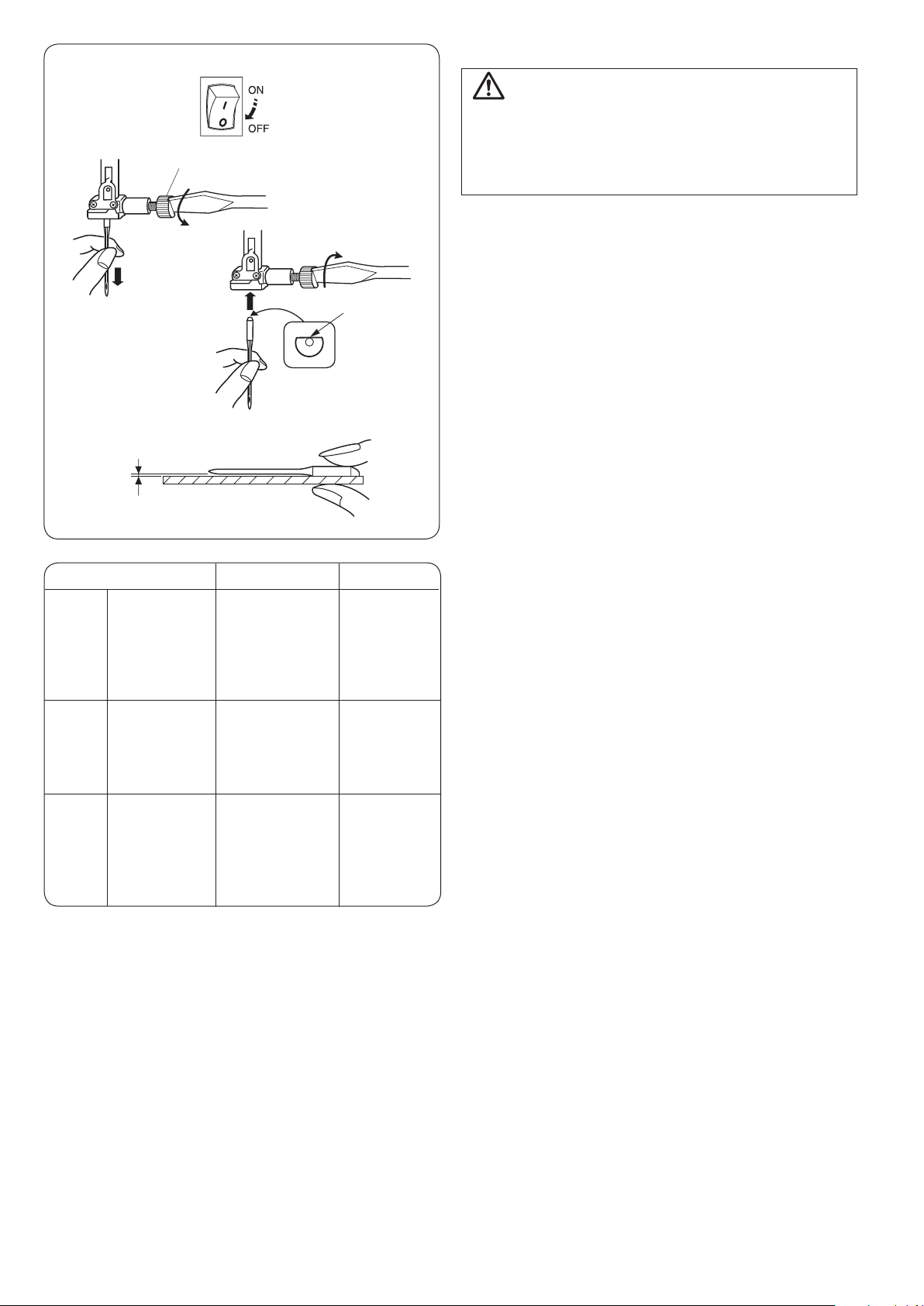

Changing the Needle................................................... 12
Selecting Thread and Needles.................................... 12

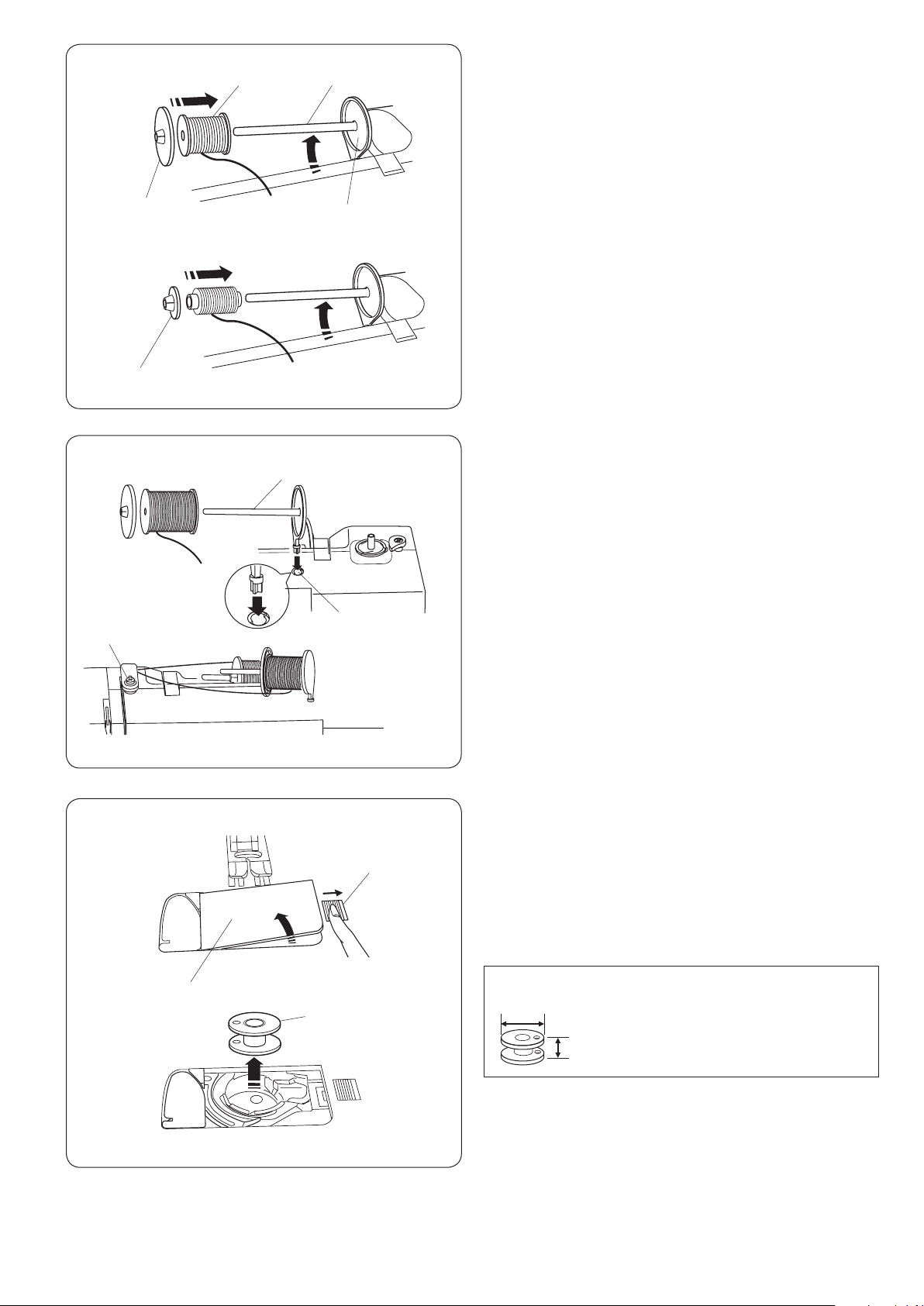

Setting the Spool of Thread ........................................ 13
Extra spool pin ............................................................ 13
Bobbin Winding ........................................................... 13
Winding the bobbin...................................................... 14
Inserting the bobbin..................................................... 15
Threading the Machine................................................ 16
Needle Threader ......................................................... 17
Drawing up the Bobbin Thread.................................... 18
BASIC SEWING
Straight Stitch Sewing ................................................. 19
Starting to sew ....................................................... 19
Sewing from the edge of thick fabric...................... 19
Changing sewing direction ..................................... 20
Securing seam ....................................................... 20
Auto Thread Cutting .................................................... 20
Using Seam Guides .................................................... 21
Turning a square corner ......................................... 21
Altering the Needle Drop Position ............................... 22
Altering the Stitch Length ............................................ 22
Straight Stitch.............................................................. 23
Lock-a-matic Stitch...................................................... 23
Locking Stitch.............................................................. 23
Triple Stretch Stitch ..................................................... 24
Stretch Stitch ............................................................... 24
Saddle Stitch ............................................................... 24
Zigzag Stitches............................................................ 25
Altering the Stitch Width.............................................. 25
Altering the Stitch Length ............................................ 25
Overcasting with Zigzag Stitch.................................... 26
Multiple Zigzag Stitch .................................................. 26
Overedge Stitch........................................................... 26
Double Overedge Stitch .............................................. 27
Knit Stitch .................................................................... 27
Attaching Elastic.......................................................... 27
Buttonholes ................................................................. 28
Square Buttonhole..................................................28-32
Using the stabilizer plate ........................................ 31
Adjusting the width and density for buttonholes..... 32
Round-end Buttonhole ................................................ 32
Keyhole Buttonhole ..................................................... 32
Stretch Buttonhole....................................................... 32
Corded Buttonhole ...................................................... 33
Darning Stitch.............................................................. 34
Tacking ........................................................................ 35
Eyelet........................................................................... 36
Zipper Sewing ........................................................ 37-39
Blind Hemming ............................................................ 40
Button Sewing ............................................................. 41
Gathering..................................................................... 41
DECORATIVE STITCHING
Patchwork Piecing....................................................... 42
Shelltuck...................................................................... 43
Applique ...................................................................... 43
Fringing........................................................................ 44
Drawn Work................................................................. 44
Cross Stitch ................................................................. 45
Fagoting....................................................................... 45
Scallop Stitch .............................................................. 46
Smocking..................................................................... 46
Stippling....................................................................... 47
Clasp Stitches ............................................................. 47
Pintucking.................................................................... 48
Satin Stitches .............................................................. 48
Twin Needle Sewing...............................................49-50
MACHINE SETTINGS
Machine Setting Mode ................................................ 51
Entering the setting mode ...................................... 51
Buzzer sound setting.............................................. 51
Needle stop position setting................................... 51
Correcting Deformed Stitch Patterns .......................... 51
CARE OF YOUR MACHINE
Cleaning the Hook Race and Feed Dog ..................... 52
Installing the Bobbin Holder ........................................ 52
Problems and Warning Signs...................................... 53
Troubleshooting ........................................................... 54
Stitch Chart.................................................................. 55

1
#7
#9
$0
$1
$2
$3
$4
$5
$6
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@4
@5
@6
@7
@8
@9
#0
#1
#2
#3
#4
#5
#6
#7
#8
#9
$0
$1
$2
$3
$4
$5
$6
$7

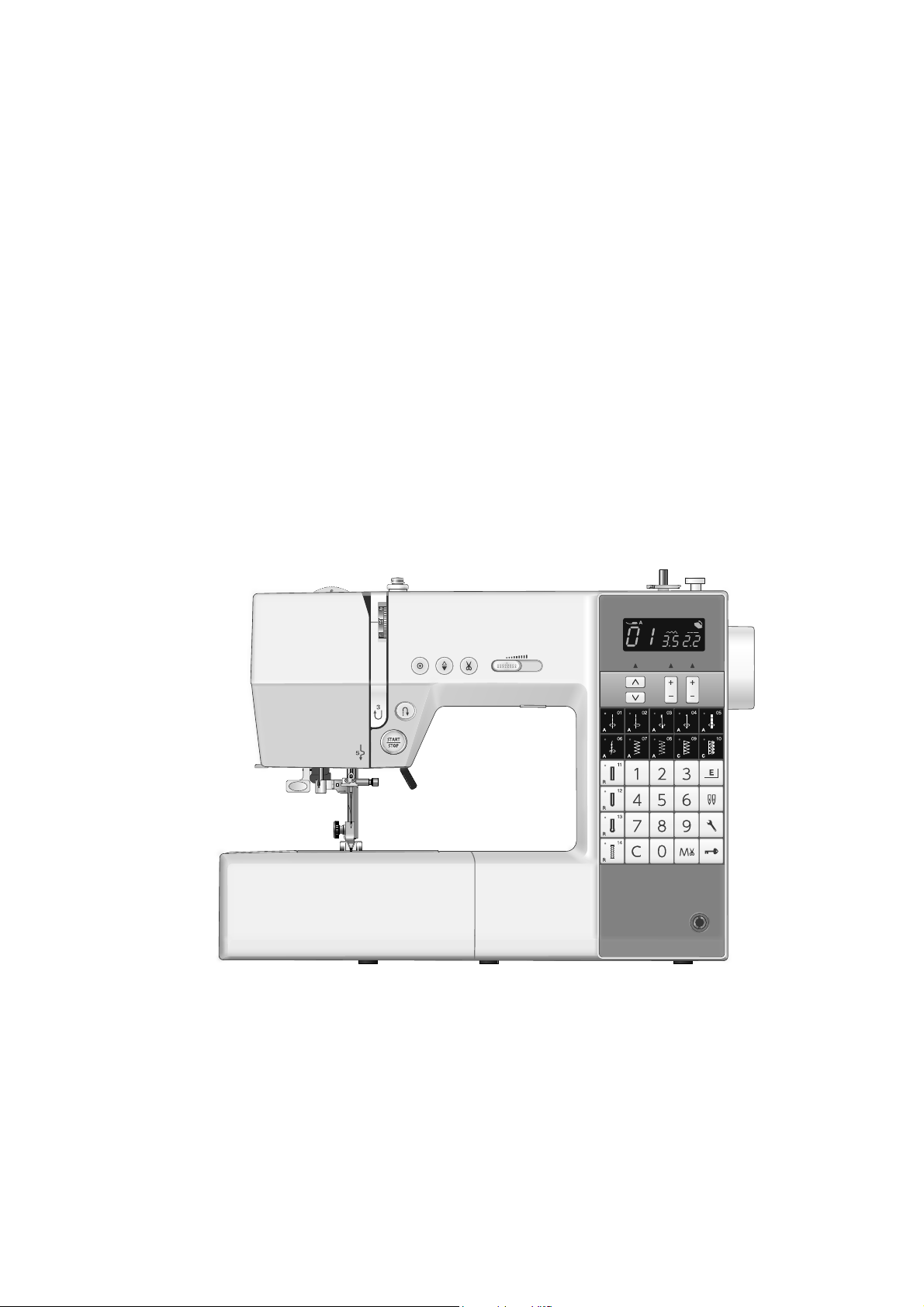

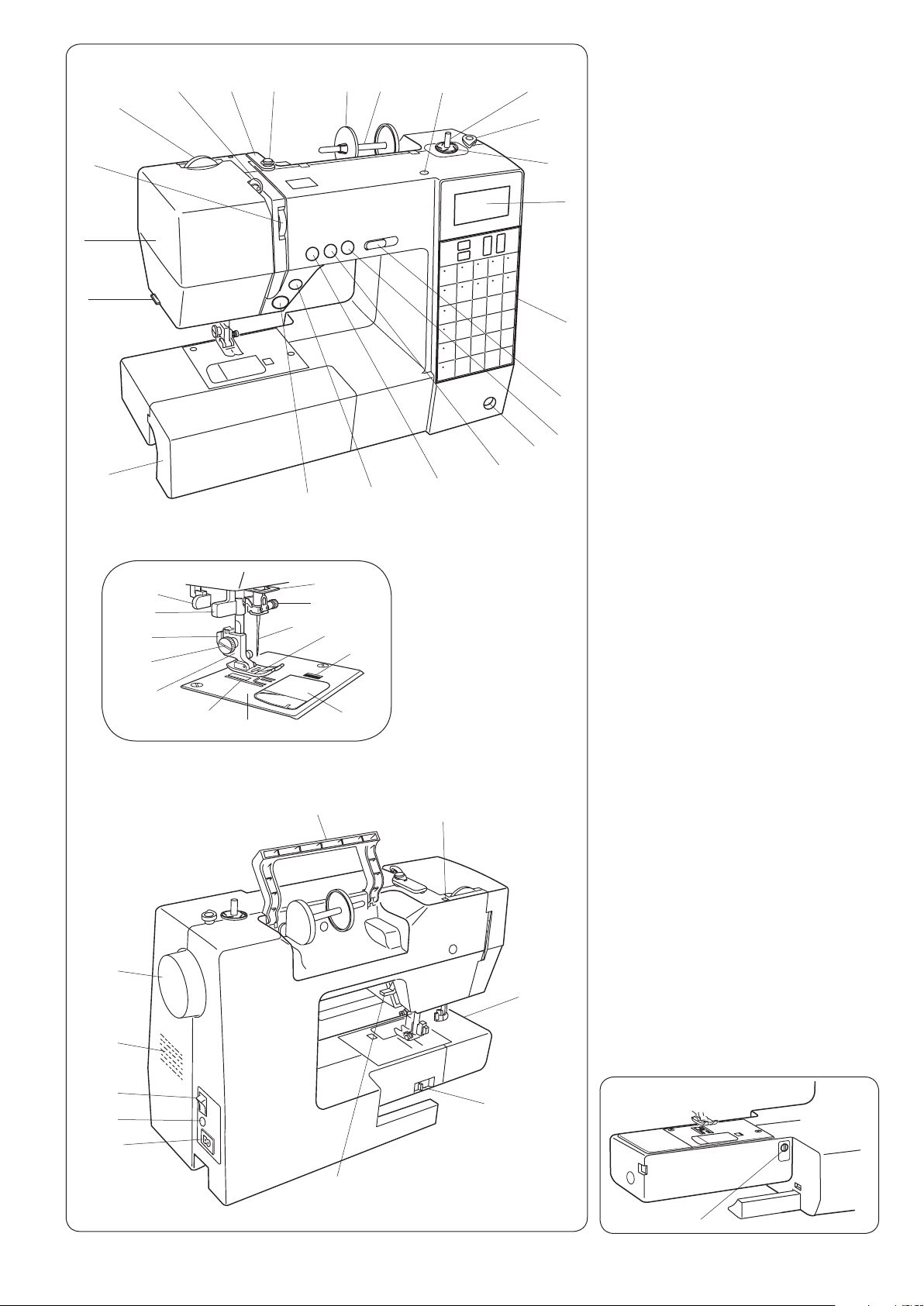

NAMES OF PARTS
Names of Parts
Upper thread guide
Bobbin winding tension disk
Spool holder (large)
Spool pin
Hole for additional spool pin
Bobbin winder spindle
Bobbin winder stopper
Bobbin thread holder/cutter
LCD display
Function keys
Speed control slider
Thread cutter button
Knee lifter hole (applicable models
only)
Needle up/down button
Auto-lock button
Reverse button
Start/stop button
Extension table (Accessory box)
Thread cutter
Face cover
Thread tension dial
Presser foot pressure dial
Thread take-up lever
Lower thread guide
Needle clamp screw
Needle
Presser foot
Hook cover release button
Hook cover plate
Needle plate
Feed dogs
Foot holder
Thumbscrew
Lever
Needle threader
Buttonhole lever
Carrying handle
Hole for stitch chart
Free-arm
Drop feed lever
Presser foot lifter
Machine socket
Foot control jack
Power switch
Ventilation openings
Handwheel
Feed balancing dial
q w e r t y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@5
@6 @7
@8
@9
#0
#1
#2
#5
#6
$7
@4
#3
#4
* Design and specifications are subject to change without prior notice.
#8

2
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
Standard Accessories
Zigzag foot: A (set on the machine)
Overedge foot: C
Zipper foot: E
Satin stitch foot: F
Blind hem foot: G
1/4˝ seam foot: O
Automatic buttonhole foot: R
Buttonhole stabilizer plate
Spool holder ( X 2) (large) (1 set on the machine)
Spool holder ( X 2) (small)
Additional spool pin
Bobbins ( X 4) (1 set on the machine)
Assorted needle set
Seam ripper (Buttonhole opener)
Lint brush
Screwdriver
qwe
rty
ui
o!0
!1
!2
!3
!4
!5
!6
!8
@4
@0 @1
!7
!8
!9
@0
@1
@2
@3
@4
Stitch chart
Instruction book
Hard cover
Foot control
Power cable
Large extension table
Knee lifter (applicable models only)
Optic magnifier
@3
@2
!9
!7

3
•Usingthestart/stopbutton
Turn off the power switch.
Insert the machine plug into the power inlet.
Insert the power supply plug into the wall outlet.
Turn on the power switch.
qPower switch
wMachine plug
ePower inlet
rPower supply plug
tWall outlet
yStart/Stop button
NOTE:
The start/stop button does not work when the foot
control is connected.
GETTING READY TO SEW
WARNING:
While in operation, always keep your eyes on the
sewing area and do not touch any moving parts such
as the thread take-up lever, handwheel or needle.
Always turn off the power switch and unplug from the
power supply:
- when leaving the machine unattended.
- when attaching or removing parts.
- when cleaning the machine.
Do not place anything on the foot control.
q
e
r
t
y
u
i
w
w
r
t
e
y
q
START
STOP
OperatingInstructions:
The symbol “O” on the switch indicates the “off” position
of the switch.
Foot control model 21371 or YC-485EC-1 is used with
this sewing machine.
FortheU.S.AandCanadaonly:
For appliances with a polarized plug (one blade wider
than the other): To reduce the risk of electric shock, this
plug is intended to fit in a polarized outlet only one way.
If it still does not fit, contact a qualified electrician to
install the proper outlet. Do not modify the plug in any
way.
ConnectingthePowerSupply
•Usingthefootcontrol
Turn off the power switch.
Insert the pin connector into the jack.
Insert the machine plug into the power inlet.
Insert the power supply plug into the wall outlet.
Turn on the power switch.
qPower switch
wPin connector
eJack
rMachine plug
tPower inlet
yPower supply plug
uWall outlet
The foot control sign will be displayed when the foot
control is connected to the machine.
iFoot control sign
BeforeUsingYourSewingMachine
Before using your sewing machine for the first time,
place a scrap of fabric under the presser foot and run the
machine without thread for a few minutes. Wipe away
any oil which may appear.

4
ControllingSewingSpeed
Speedcontrolslider
Sewing speed can be varied by the speed control slider
according to your sewing needs.
To increase sewing speed, move the slider to the right.
To decrease sewing speed, move the slider to the left.
ExtensionTable
The extension table provides an extended sewing area
and can be easily removed for free-arm sewing.
Detachingthetable
Pull the table away from the machine, as illustrated.
qExtension table
Attachingthetable
Slide the extension table along the free-arm and insert
the guides into the holes until the table snaps into the
machine.
wFree-arm
eGuide
rHole
Free-armsewing
Free-arm is useful for sewing tubular garments and for
darning knee or elbow areas.
wFree-arm
t
y
q
w
e
r
e
r
w
START
STOP
Footcontrol
Depress the foot control to start the machine.
The further down you press on the foot control, the faster
the machine runs.
The maximum sewing speed can be varied by the speed
control slider.
Accessorystorage
Accessories are stored inside the extension table. Pull
the lid towards you to open the accessory storage.
tLid
yAccessory storage

5
e
AttachingtheKneeLifter(onlyforapplicable
model)
The knee lifter is extremely helpful when sewing applique,
patchwork and quilting since it allows you to handle the
fabric while your knee controls the presser foot.
Match the ribs on the knee lifter with the notches in the
knee lifter socket and insert the knee lifter.
qKnee lifter
wKnee lifter socket
eNotch
rRib
LargeExtensionTable
Attachingthetable
Pull the table away from the machine.
Spread the legs of large extension table.
Holding the table with both hands and slide it gently to
the right.
Adjustthetableheight
Turn setscrews of the table legs with a screwdriver
(optional).
StitchChart
Attach the stitch chart to the chart holder.
Insert the pin into the hole for the stitch chart as
illustrated. Be sure that the vertical line of the pin is facing
the back of the machine when inserting.
qStitch chart
wChart holder
ePin
rHole for stitch chart
tVertical line
q
w
r
You can flip the chart to the back of the machine when it
is not in use.
q
w
r
e
NOTE:
When attaching the hard cover, always remove the
stitch chart from the machine.
t
w
Front
Back

6
START
STOP
qw
e r t y
MachineOperatingButtons
qStart/Stopbutton
Press this button to start or stop the machine.
The machine starts running slowly for the first few
stitches, and it then runs at the speed set by the speed
control slider.
The machine runs slowly as long as this button is being
pressed.
The button turns red when the machine is running, and
green when it stops.
NOTE:
•Thestart/stopbuttoncannotbeusedwhenthefoot
control is connected to the machine.
•Themachinewillnotrunandthepresserfootmark
will blink if you start the machine with the presser
foot in the up position. Lower the presser foot and
press the start/stop button.
wReversebutton
•Whenstitchpattern01,02,07,08,19or
 27isselected;
The machine will sew in reverse as long as the reverse
button is pressed. Release the button to sew forward.
When the machine is stopped and foot control is
disconnected, the machine will sew in reverse slowly as
long as the reverse button is pressed. Release the button
to stop the machine.
•Whenanyotherstitchesareselected;
If you press the reverse button when sewing any other
patterns, the machine will immediately sew locking
stitches and automatically stop.
NOTE:
There will be particular functions of the reverse button
when pattern 03 , 04 , 15 or 16 is selected.
Refer to page 23, 34 and 35 for instructions.
eAuto-lockbutton
•Whenstitchpattern01,02,07,08,19or
 27isselected;
Press the auto-lock button to sew a locking stitch
immediately. The machine will automatically stop.
•Whenanyotherstitchesareselected;
Press the auto-lock button to sew a locking stitch at the
end of current pattern. The machine will automatically
stop.
rNeedleup/downbutton
Press the needle up/down button to bring the needle up
or down.
tThreadcutterbutton
Press the thread cutter button to cut the threads after
sewing.
The thread cutter mark will blink while
the machine cuts the threads.
You can continue sewing without pulling the bobbin
thread up after trimming the threads.
NOTE:
Use the thread cutter on the face cover if the thread is
30 or thicker.
ySpeedcontrolslider
Maximum sewing speed can be adjusted with the speed
control slider. Refer to page 4.

7
SelectingPatterns
FunctionkeysandLCDDisplay
qDirectstitchpatternselectionkeys
You can select stitch patterns from 01 to 14 directly by
pressing the corresponding direct stitch pattern selection
key.
A pattern number and pattern image along with an
identification letter of the recommended foot are indicated
on each key.
When the pattern is selected, a green light on the key will
turn on.
wGreen light
eStitch image
rPattern number
tIdentification letter of recommended foot
yNumerickeys
Enter the number of the desired stitch pattern to select the
stitch pattern. To refer to the available stitch patterns and
pattern numbers, check the stitch chart.
If you want to cancel the input, press the cancel key while
the pattern number on the LCD display is blinking.
u Cancel key
iArrowkeys
To select the desired stitch pattern with the arrow keys,
press the keys until pattern number of the desired
stitch is indicated.
oElongationkey
Satin stitches, patterns from 50 to 57 can be elongated up
to five times their normal length by pressing the elongation
key. Refer to page 48.
!0 Twinneedlekey
Press this key when using a twin needle.
The twin needle key will appear and the maximum stitch
width will be limited to 3.0.
To cancel or finish the twin needle sewing, press the twin
needle key twice.
NOTE:
When the twin needle mark is blinking, all the other
buttons and keys will not respond. Press the twin
needle key again.
For twin needle sewing, refer to pages 49 and 50.
!1 Settingmodekey
Press this key to enter the machine setting mode.
In the setting mode, the buzzer sound and needle position
can be set to your preference. Refer to page 51.
!2 Lockoutkey
Press this key to lock out the machine when threading the
machine, replacing the accessories etc.
The LCD display shows “SAFE”, and all the buttons and
keys except for the lockout key are deactivated.
To unlock the machine, press the lockout key again.
!3Threadcutmemorykey
To cut the threads automatically after locking stitches,
press the thread cutter memory key (Refer to page 20).
!5
!6
!7
!8
!9 @0
i !4
w
tq
y
o
!0
!1
!2
!3u
r
e
!4 Stitchwidthadjustingkey
Press “+” or “–” to change the stitch width !9. Refer to
pages 22, 25 and 32
!5 Stitchlengthadjustingkey
Press “+” or “–” to change the stitch length @0. Refer to
pages 22, 25 and 32.
!6 LCDDisplay
The LCD display shows the following information when
the machine is turned on:
!7 Pattern number
!8 Identification letter of recommended foot
!9 Stitch width
@0 Stitch length

8
PresserFootLifter
The presser foot lifter raises and lowers the presser foot.
You can raise the foot about 1/4˝ (0.6 cm) higher than the
normal up position for easy removal of the presser foot,
or to help you place thick material under the foot.
qPresser foot lifter
wNormal up position
eHighest position
q
w
e
w
e
ChangingthePresserFoot
  C A U T I O N :
Turn OFF the power switch before changing the foot.
Always use the proper foot for the selected pattern.
The wrong foot can cause the needle to break. Each
foot is marked with an identification letter.
qIdentification letter
Removingthepresserfoot
Raise the needle to its highest position by turning the
handwheel counterclockwise. Raise the presser foot, and
press the lever on the back of the foot holder.
Attachingthepresserfoot
Place the selected presser foot so that the pin on the foot
lies just under the groove in the foot holder.
Lower the presser bar to lock the foot into the place.
wLever
eGroove
rPin
RemovingandAttachingtheFootHolder
  CAUTION:
Turn OFF the power switch before detaching or
attaching foot holder.
Removingthefootholder
Remove the thumbscrew by turning it counterclockwise
with a screwdriver.
Attachingthefootholder
Align the hole in the foot holder with the threaded hole in
the presser bar.
Fit the thumbscrew into the hole.
Tighten the thumbscrew by turning it clockwise with a
screwdriver.
qThumbscrew
wFoot holder
ePresser bar
PresserFootPressureDial
Foot pressure can be adjusted by turning the presser foot
pressure dial.
Set the pressure between “3” and “6” for ordinary fabrics.
Set the pressure between “1” and “3” for fine fabrics and
applique sewing.
Set the pressure between “5” and “6” for heavyweight
fabrics.
qPresser foot pressure dial
q
w
e
r
q
w
e
q
w
e
q

9
AdjustingtheNeedleThreadTension
Straightstitch
•Balancedtension
The ideal straight stitch has threads locked between two
layers of fabric, as illustrated (magnified to show detail).
If you look at the top and bottom of the seam, notice that
the stitches are evenly balanced.
qNeedle thread (top thread)
wBobbin thread (bottom thread)
eTo loosen
rTo tighten
When adjusting the needle thread tension, the higher the
number, the tighter the top thread tension.
Results depend on:
- stiffness and thickness of the fabric
- number of fabric layers
- type of stitch
q
w
e
r
r
q
w
t
e
•Tensionistooloose
The needle thread shows through on the wrong side of
the fabric, and the stitch feels bumpy. Turn the dial to a
higher number to tighten the needle thread tension.
qNeedle thread (top thread)
wBobbin thread (bottom thread)
eTo tighten tension
rRight side (top side) of fabric
tWrong side (bottom side) of fabric
r
q
w
t
e
•Tensionistootight
The bobbin thread shows through on the right side of the
fabric, and the stitch feels bumpy. Turn the dial to a lower
number to loosen the needle thread tension.
qNeedle thread (top thread)
wBobbin thread (bottom thread)
eTo loosen tension
rRight side (top side) of fabric
tWrong side (bottom side) of fabric

10
Zigzagstitch
For an ideal zigzag stitch, the bobbin thread does not
show on the right side (top side) of the fabric, and the
needle thread shows slightly on the wrong side (bottom
side) of the fabric.
See the illustrations for the correct appearance.
To match this appearance, adjust the needle tension as
necessary.
•Balancedtension
Minimize the amount of needle thread visible on the
wrong side (bottom side) of the fabric without causing
excessive puckering, or causing the bobbin thread to
show on the right side (top side) of the fabric.
Results vary with fabric, thread and sewing conditions.
qRight side (top side) of fabric
wWrong side (bottom side) of fabric
q w
q w
q w
•Tensionistootight
The corner of each zigzag pulls together on the right side
of the fabric
qRight side (top side) of fabric
wWrong side (bottom side) of fabric
•Tensionistooloose
The corner of each zigzag point pulls together on the
wrong side of the fabric.
qRight side (top side) of fabric
wWrong side (bottom side) of fabric

11
DroppingorRaisingtheFeedDog
The drop feed lever is located underneath the free arm
bed on the back of the machine.
To drop the feed dog, push the lever in the direction of
the arrow q.
To raise the feed dog, push the lever in the direction
of the arrow w, as illustrated, and turn the handwheel
toward you.
The feed dog must be up for normal sewing.
NOTE:
Set the stitch length value at the minimum when
lowering the feed dog.
Viewfromtherear
qw
qw
OpticMagnier
Use the magnifier to get a larger view of the needle area.
Attachingthemagnier
Hold the knob with your fingers and insert the pin into the
hole in the bottom of the face plate.
Push the magnifier up until it snaps to fit.
Adjust the angle to get the best view.
qPin
wHole
Removingthemagnier
If the magnifier is not in use, turn it to the left out of sight
or pull it down to remove.
CAUTION:
Do not use or leave the magnifier in the direct sunlight,
otherwise it may cause a fire or burn.
Do not look at the sun, it can damage your eyes.
Do not hit or exert excessive force to the optic magnifier
to avoid damaging it when it is attached.
w
q

12
ChangingtheNeedle
 CAUTION:
Turn OFF the power switch before changing the
needle.
Raise the needle to its highest position by turning the
handwheel counterclockwise, and lower the presser
foot.
Loosen the needle clamp screw by turning it
counterclockwise. Remove the needle from the needle
clamp.
Insert a new needle into the needle clamp with the flat
side to the rear. When inserting the needle into the
needle clamp, push it up as far as it will go.
Tighten the needle clamp screw firmly by turning it
clockwise.
qNeedle clamp screw
wFlat side
To see if the needle is in good condition, place the flat
side of the needle onto something flat (needle plate,
glass etc.). The gap between the needle and the flat
surface should be consistent. Never use a bent or blunt
needle.
A damaged needle can cause permanent snags or runs
in knits, fine silks and silk-like fabrics.
SelectingThreadandNeedles
•Forgeneralsewing,useneedlesize11/75or14/90.
•Anethreadandneedleshouldbeusedforsewing
lightweight fabrics, so the fabric will not be marred.
•Heavyfabricsrequireaneedlelargeenoughtopierce
the fabric without fraying the needle thread.
•Alwaystesttheneedlesizeonasmallscrapofthe
fabric that will be used for actual sewing.
•Ingeneral,usethesamethreadfortheneedleand
bobbin.
•Whensewingstretchfabrics,verynefabricsand
synthetics, use a blue tip needle. The blue tip needle
effectively prevents skipped stitches.
Fabric
Light
Thread Needle
Medium
Heavy
Lawn
Georgette
Tricot
Wool
Polyester
Cotton
Polyester
Fine jersey
Wool
Denim
Jersey
Coating
Quilting
Silk #80-100
Cotton #80-100
Synthetic #80-100
Silk #50
Cotton #50-80
Synthetic #50-80
Silk #30-#50
Cotton #40-50
Synthetic #40-50
# 9 / 6 5 –11 / 75
Blue tip needle
# 11/ 7 5 –14 / 9 0
#14/90–16/100
q
w

13
SettingtheSpoolofThread
Horizontalspoolpin
Lift up the spool pin. Place a spool of thread on the spool
pin.
Attach the large spool holder, and press it firmly against
the spool of thread so that the spool rests on the
supporter.
qSpool pin
wSpool of thread
eLarge spool holder
rSupporter
The small spool holder is used with narrow or small
spools of thread.
tSmall spool holder
q
w
e
BobbinWinding
Removingthebobbin
Gently slide the hook cover release button to the right
and remove the hook cover plate.
Lift out the bobbin.
qHook cover release button
wHook cover plate
eBobbin
NOTE:
q
w
er
t
y
u
i
Extraspoolpin
The extra spool pin is for twin needle sewing, or winding
bobbins without unthreading the machine.
Insert the extra spool pin into the hole.
The extra spool pin should point to the bobbin winder
tension disk.
yExtra spool pin
uHole for additional spool pin
iBobbin winder tension disk
20.6 mm
11.8 mm
Use the Janome plastic bobbins. Using
other bobbins such as prewound paper
bobbins, may cause stitching problems or
damage to the bobbin case.

14
Windingthebobbin
NOTE:
Set the speed control slider at its fastest position for
bobbin winding.
e
q
w
r
t
y
e q w
r
z
x
c
v
b
n
m
zPut the bobbin on the bobbin winder spindle.
qBobbin
wBobbin winder spindle
xDraw the thread from the spool and pass the thread
around the bobbin winding tension disk.
eBobbin winding tension disk
cPass the thread to the bobbin.
Hold the thread with both hands and wind it around
the bobbin clockwise several times.
vInsert the thread into one of the slits of the flange
plate and pull the thread to cut.
rFlange plate
tSlit
bPush the bobbin to the right.
The bobbin icon appears on the LCD display.
yBobbin icon
nStart the machine. When the bobbin is fully wound, it
will stop spinning automatically.
Stop the machine and return the bobbin winder to its
original position by moving the spindle to the left.
mRemove the bobbin. Insert the thread into the slit and
pull it to cut as shown.

15
Insertingthebobbin
  CAUTION:
Turn OFF the power switch or press the lockout key
before inserting the bobbin and threading the bobbin
holder.
zPlace a bobbin in the bobbin holder with the thread
running off counterclockwise as shown on the hook
cover plate.
qEnd of thread
wBobbin holder
eHook cover plate
t
y
u
i
o
!0
r
e
w
q
u
z
x
c
v
b
xHold the bobbin with your fingertip so it does not
rotate.
Guide the thread into the front notch of the bobbin
holder.
Pull the thread to the left to pass it under the guide.
rFront notch
tGuide
cDraw the thread to the left to pass it into the guide
path marked “1”.
Make sure that the thread comes out from the side
notch of the bobbin holder.
yGuide path 1
uSide notch
NOTE:
If the thread does not come out from the side notch,
rethread from step z.
vContinue to draw the thread along the guide path
marked “2” and pull the thread to the right through the
slit. The thread will be cut to a proper length and held
in place.
iGuide path 2
oSlit (Thread cutter)
bSet the left edge of the hook cover plate into opening.
Push down the hook cover plate to fit in place.
!0 Hook cover plate
NOTE:
Unless otherwise noted, you can start sewing without
drawing up the bobbin thread.
Refer to page 18 for how to draw up the bobbin
thread.

16
ThreadingtheMachine
Raise the presser foot. Press the needle up/down button
to raise the thread take-up lever to its highest position.
CAUTION:
Turn off the power switch or press the lockout key
before threading the machine.
q
w
e
t
y
u
i
z
x
c
v
b
n
m
z
x
c
v
b
n
m
r
zTurn the power switch off. Draw the thread around the
upper thread guide.
qUpper thread guide
xWhile holding the thread near the spool, draw the
thread down along the right channel.
wRight channel
cPull the thread up around the bottom of the thread
guide plate.
Pull the thread up along the left channel.
eThread guide plate
rLeft channel
vFirmly draw the thread up and to the back of the take-
up lever. Draw the thread forward to pass it into the
take-up lever eye.
tTake-up lever eye
bPull the thread down along the left channel and pass
the thread through the lower thread guide.
yLower thread guide
nSlide the thread behind the needle bar thread guide
on the left.
uNeedle bar thread guide
mThread the needle from front to back, or use the
needle threader.
iNeedle
