Neheme NH525 User manual

FORBIDDEN: Special design for indoor&outdoor, keep it far from obstacles
This product is suitable for indoor(the wind grade should be no more than 4), please choose a place
without obstacles, and keep a distance from the crowd and pets. Don't play it under unsafety, for
instance, heat source, wire or electric power source, avoid being damaged by collision landing,
entanglement, electric shock or causing unnecessary loss of lives and property.
WARNING: Obtain the assistance of an experienced pilot
The products are suitable for more than 14 years old, at the beginning it will have some certain
difficulties in learning, suggestions or guidance by the experienced is needed before playing.
NH525
[email protected]
www.neheme.com

Replacing damaged blades: Your set comes with 2 replacement rotors, A and B type.
You will see the 'A' and 'B' letter typed on the blade. Put the rotor on the motor accordingly.
*If the replacement of wind blades is incorrect, the drone will not be able to control.
1. IMPORTANT NOTES
• This product is NOT A TOY. It may cause damage by using incorrectly.
Please use this it following this instruction. And do not disassemble this product by yourself.
• This flying model requires practice before you use it.
Please follow this instruction and practice patiently or guided by the experienced pilot.
Otherwise, the manufacturer shall not be responsible for any damage to the product or injury
to any person.
2. SAFETY NOTES
Fly only in safe areas away from other people. Do not operate R/C drone within the vicinity of
crowds. R/C drone is prone to accidents, failures, or damage and injury because of operation
error, or radio interference. Pilots should be responsible for their behaviors for possible damage
or injury that may occur during the operation or causing R/C drone models broken.
1
1
2
2
Propeller guards Installation:
Unfold the drone, and then push the propeller shields upwards from below.
Foldable Design
Main Body
Motor
Rotor Blade
WIFI Camera
Power Switch
CHANGE BLADES
DRONE

• Open the battery cover on the back of the remote controller.
• Insert 2*AAA batteries in accordance with the instructions on the battery box.
(Battery should be purchased separately, old and new or different types of batteries shouldn’t be mixed.)
A
A
One Key Return
(One Key Come Back)
3D Roll
Headless Mode
Take Photo
Record Video
Right Joystick
Press down to hear the
tone can be fine-tuning
left and right, fine-tuning
up and down
One Key Start / Landing
Emergency Stop
*Open the right arm to turn
on the transmitter
1. RECHARGING: While battery is charging, LED light on USB is on; When fully charged, LED light goes off.
The whole recharge time will be around 60 minutes.
2. SAFETY: Different types of batteries or old and new batteries should not be mixed.
• Only use the provided charger line to charge.
• Follow the polarity correctly installed batteries power
and ensure terminals shall not be short-circuited.
• Rechargeable batteries can only be charged under the
supervision of the adult.
• Do not use rechargeable battery overcharging.
• Exhausted batteries should be taken out of the remote control.
• Use batteries according to the environmental protection agency.
NOTE: The right arm of the transmitter is Power ON / OFF.By extending the right arm, the controller
will automatically Power ON and make a beep sound. The Power Indicator will turn ON. Also, closing
the right controller arm will turn off the controller.
TRANSMITTER
ASSEMBLED REMOTE CONTROLLER
BATTERY INSTRUCTIONS
Speed
Left Joystick
(Up / down left / right turn)

READY TO FLY: Make sure the propeller is installed correctly and fastened
2. Push the throttle lever up and
down. The controller connects to
the drone.
TAKEOFF METHOD 1
2. Push two rockers at the
same time as shown in
Figure for 2-3s to unlock the
drone .
3. Slowly push the throttle stick
to take off the drone.
LANDING METHOD 1 LANDING METHOD 2
EMERGENCY LANDING
Press the throttle down slowly
and hold it on the button for
2-3 seconds until the blade
stop spinning.
Press the One Key Landing
button, the drone will land
slowly.
In the case of the emergency
situation, press the Emergency
Stop button, and the drone will fall
down immediately. This is only
for urgent situations using.
1. Turn the right remote control
leg support to turn on the remote
control.
1. Put the drone at a level position,
push two levers down to 45-degree
for 2-3s as picture shows, the light
on drone keeps flashing, after
2-3s, the light remains on .
TAKEOFF METHOD 2
1. Place the drone at a level
position, push two levers down
to 45-degree for 2-3s as
picture shows,the light on
drone keeps flashing, after
2-3s, the light remains on.
2. Press the one key taking
off button,the drone starts to
take off.
OPERATION AND CONTROL

Headless Mode: Press the button on the controller, you will hear beep sounds, then you get
into compass mode. When the drone is taking off, the direction, which the drone is headed, will
be the front side. The left/right/backside are also be recognized by geographic direction. During
headless mode, the LED light will be flashing all the time.
One Key Come Back:When the drone is taking off, we put the drone on the floor, and the
backside points to the player. During flying, we press one key come back, the drone will fly back
to the player. Pls kindly make sure there's enough distance when you are using one key come
back function. Otherwise, it might hurt the player.
3D Action Operation:
Fly your drone in the height of more than
3 meters, press the 3D Roll button on the
top right of controller. Then immediately
push the right controller stick to left/right/
forward/backward side to flip your drone.
Push the left stick up or down to
make the drone ascend or descend.
Push the left stick to left/right,
the drone will rotate to left/right.
Push the right stick up and down to
make the drone fly forward and
backward.
Push the right stick to left/right,
the drone will fly to the left/right.
Pull down the right stick, you will
hear ‘bi bi’ from the drone, push
the right stick to left/right for
trimming.
Pull down the right stick, you will
hear ‘bi bi’ from the drone, push the
right stick forward/backword for
trimming.
FLYING CONTROLLED AND FINE TUNING

1. Install mobile phone client
Please scan the corresponding QR code to download APP
APP OPERATING GUIDE
2. Add a device
• Turn on the product power switch
• Enter the phone "settings"and open WIFI
• Find the WIFI (WIFI_1080P**** / WIFI_4K **** / FLOW_4K_****) from the WIFI
list, click on the connection directly without using password
• Open APP,click the start icon to enter the real-time interface
• Click on the "Album"icon to enter the real-time interface
3. Operating instructions
From icon meaning of each operating and player interface, please see below.
CAMERA ADJUSTMENT
The angle of camera could be adjusted 45° up and down by hand before flight.

COMMON PROBLEM AND SOLUTION INSTRUCTION
Main blade does not rotate Main blade is assembled too
tight from motor
Pull up the main blade and make it
stay in an appropriate state from motor
Battery of drone is depleted
in
Battery of drone is depleted
Motors do not respond to throttle
stick, receiver LED keeps flashing
Motor stops working
Get stuck by outer stuff Take the stuff out
Motor damaged or motor line
broken
Transmitter fails to connect the
drone
is
The throttle stick hasn't been
pulled to the end while completing
revising frequency and the Drone
automatically rises
The throttle trimmer accidentally
upwards during flight.
Confirm the throttle trimmer in the
middle place or slightly below.
The drone still moves forward
after the trimmer adjusted when
hovering
After turning on the Drone, fine-tuning
it to return-to-Zero(Refresh Drone)
Drone rotates during left/right
pirouette after trimming

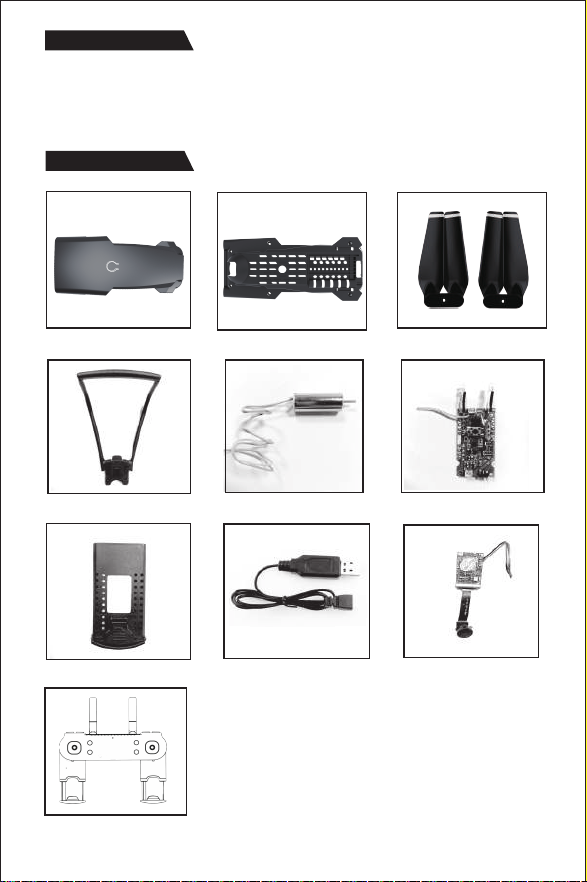

01.Top Cover 02.Lower Lid
04.Escort
03.Paddles
09.WIFI Camera
07.Battery 08.USB
06.Receiver Board05.Motor
10.Remote Controller
ACCESSORIES
PRECAUTION
1. The remote-controlled distance will be shortened when the power(drone or transmitter) is insufficient.
2. It is difficult to take off or fly high when the power of the drone is insufficient.
3. When the drone is damaged, please stop operating and repair it in time, or it may lead to injury.
4. If you don't use the transmitter for a long time, please remove the batteries to avoid battery leakage.
5. Do not drop the transmitter from a high altitude or crash it badly, otherwise, it will shorten its using life.
