Neilsen CT2207 Operation instructions

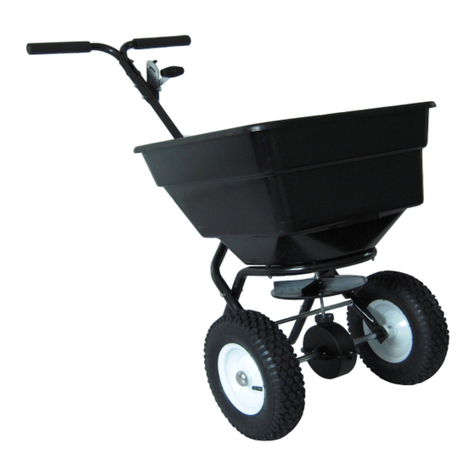

60LB WALK-BEHIND SPREADER CT2207
ORIGINAL MANUAL
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

2
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety
and health requirements of the EC Directive based on its design and type, as
brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration
will lose its validity.
Product description: WALK-BEHIND SPREADER
Model: CT2207
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
Harmonized standards
EN ISO 12100, EN 349, EN 953, EN ISO 13857
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD

3
IMPORTANT INSTRUCTIONS
2. Remove and identify loose parts from carton and bag.
1. HELPFUL HINTS:
READ THE DIRECTIONS BEFORE ASSEMBLY
WHEN ALL ELSE FAILS, READ THE DIRECTIONS AGAIN
If your spreader does not spread evenly, be sure the FRONT on the gear box
points to the front of the spreader. The impeller must turn clockwise. Reversing
the gear box will cause the impeller to turn counter clockwise. Clean the
impeller plate after each use. Fertilizer stuck on the impeller blades will cause
uneven spreading.
Your spreader is designed to be pushed at three miles per hour, which is a
brisk walking speed. Slower or faster speeds will change the spread patterns.
Wet fertilizer will also change the spread pattern and flow rate. Clean your
spreader thoroughly after each use. Wash between the shut off plate and
bottom of the hopper.
Gears are permanently lubricated at the factory. Do not open the gear box or
dirt may enter.

4
3. ASSEMBLY INSTRUCTIONS
STEP 1. Install impeller onto the Gear Box & Axle Assembly. Insert Screw M4x20 through
impeller then through Gear BoxAxle.

5
STEP 2. Insert the support leg into the hole of the Support Leg Assembly, then insert 4
pieces of Hex Bolt M6x45 to each hole on the Support Leg Assembly.
STEP 3:
1. Connect the Wheel Assembly Frame and Support Leg by inserting the Hex Bolts.
2. Locked by 4 Lock Nuts M6.

6
STEP 4:
1. Attach the Wheel Assembly Frame on each side of the Gear Box Axle.
2. Make sure the hole on Axle of Gear Box is to be on the right side when assembly as
shown. Tighten all the bolts and nuts.
3. Swivel the wheel enable the hole on the wheel is in alignment with the hole on the axle.
4. Assembly the tube cover on the wheel.

7
STEP 5:
1: Insert the Hopper into the Axle of Gear Box.
2: Insert 4pcs Bolt M6X35 into the holes in the bottom of the hopper with 4 flat washers
bolts through the holes on the Wheel Assembly Frame. locked by 4pcs lock nut M6.

8
STEP 6: Connect the Gauge and Handle Assembly by inserting the Hex Bolt M6x30 and
Lock Nut M6.
STEP 7: Connect the Handle Assembly and the Support leg by inserting the Carriage Bolt.

9
STEP 8:ADJUSTABLE. When you finished all above steps, if you find the three big holes at
the bottom of hopper just match the three holes of adjustable plate. You don't need to do
the following steps. If they are not match neatly, you may need to do the following steps.
(1)Release two bolts M5x10 on clamp as shown.
(2). Push the handle to the lowest position <downwards>, use your hand to adjust the
adjustable plate so as to make sure three big holes at the bottom of hopper just match the
threes holes of adjustable plate neatly.
(3). And then tight the bolts and nuts on clamp again.
(4)To operate this spreader, push the handle to the top position (upwards). You may move
the position of Wing nut on Gauge & Lever to adjust the spacer of three holes between
hopper and adjustable plate as per your need when spreading.

10
OPERATING INSTRUCTIONS
Before filling hopper, become familiar with the operation of this spreader.
1- Move stop bolt on rate gauge assembly to the proper setting.
2- While pushing spreader forward, pull control lever back to stop bolts.
3- Top stop, push lever forward to close flow holes before you stop moving.
4- When finished, empty any remaining material from hopper.
5- Thoroughly wash spreader and allow to dry before storing.
6- No oiling is necessary.
7- Stay clear while spinner is turning.

11
PARTS DRAWING

12
PARTS LIST
Ref#
Description
Qty
Ref#
Description
Qty
1
Carriage Bolt M6x25
1
25
Lock Nut M6
12
2
Outside Teeth Lock Washer Ø8
1
26
Support Leg
1
3
Gauge and Lever Assembly
1
27
Cotter Pin Ø5x45
1
4
Adjust Handle Pole
1
28
Thin Washer
1
5
Adjust Handle A
1
29
Plastic Wheel
2
6
Adjust Handle B
1
30
Tube Cover Ø30
2
7
Screw ST4x18
1
31
Wheel Axle
1
8
Handle Grip
1
32
Bushing Ø12
2
9
Spacer
1
33
Screw M4X20
1
10
Wing Nut M6
3
34
Gear Box & Axle Assemble
1
11
Hopper
1
35
Hex Bolt M5x25
1
12
R Pin Ø2x60
1
36
Flat Washer Ø6
2
13
The Bushing of Hopper
1
37
Line Clamp Press Plate
1
14
Bolt M6x45
4
38
Control Wire
1
15
Adjustable Plate
1
39
Screw M5x10
2
16
Big Flat Washer Ø4
3
40
Nylon Washer
1
17
Screw ST4x12
3
41
Big Flat Washer Ø6
5
18
Wheel Assembly Frame
2
42
Screw ST5X15
1
19
Square Impeller
1
43
Line Clamp A
1
20
Bolt M6x35
4
44
Carriage Bolt M6X40
2
21
Lock Nut M5
3
45
Connect Tube
2
22
Line Clamp Bottom Plate
1
46
Flat Washer Ø12
2
23
End Cap
4
47
Lock Washer Ø6
1
24
Bolt M6x30
3
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B650JU.U.K.
Made in China
