Ness W1-B User manual

User manual
.9..10.
1
2
3
4
5
6
7
8
9
0
#
For a PINuser
To unlock the door
10.2 Door Relay, Door Open Detection, Alarm, Facility code Settings
Door relay time setting
To disable door open detection.
(Factory default setting)
6 0 #
To enable door open detection
6 2 #
Keypad Lockout
Alarm Output
To remove the alarm
To reset the Door Forced Open warning
Normal status: No keypad lockout
or alarm
7 0 # (Factory default setting)
7 1 #
7 2 #
Read valid cardor Master Code #
To add and delete users in card and PIN mode ( 3 1 # )
.7..8.
To exit from the programming mode
To change the master code
To add a PINuser
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
The master code is any 6 digits
The ID number is any number between 1 ~ 2500.
The PIN is any four digits between 0000 ~ 9999
with the exception of 1234 which is reserved.
Users can be added continuously without exiting
programming mode
W1/W3-B Quick Reference Programming Guide
To add a carduser Cards can be added continuously without
exiting from programming mode
To delete aPINor a carduser
Users can be deleted continuously without
exiting from programming mode
1 Read Card #
Present the card
To Unlock the door
Waterproof
Keypad/Reader/Controller
To Add a cardand Pinuser
(The PIN is any four digits between
0000 ~ 9999 with the exception of
1234 which is reserved.)
To change a PINin card and PIN
mode (Method 1) Note that this is
done outside programming mode
so the user can undertake this
themselves
To change a PINin card and PIN
mode (Method 2) Note that this is
done outside programming mode
so the user can undertake this
themselves
To delete a Card andPINuser just
delete the card
* Read Card Old PIN # New PIN# New PIN #
* ID number# Old PIN # New PIN# New PIN #
2 User ID #
To add a card user in card only mode ( 3 0 # )
ToAdd and Delete a carduserThe operating is the same asadding and deleting
a card user in 3 2 #
To deleteAll users
To add and delete card users by Manager cards
To deleteALL users. Note that
this is a dangerousoption so use
with care
Toadd card userby ManagerAddCard
To delete card User by Manager
Delete Card
2 0000 #
Manager add card Read card Manager add card
Cards can be added continuously.
Manager delete card Read Card Manager delete card
Cards can bedeleted continuously.
Enter the PIN then press #
For a carduserRead card
For a card and PINuserRead card then enter PIN #
Door relay time setting
4 0~99 #
The door relay time is between 0~99 seconds,
the factory default setting is 5 seconds.
Door Open Detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic contact
or built-in magnetic contact of the lock, if the door is opened normally, but not closed
after 1 minute, the inside buzzer will beep automatically to remind people to close
the door and continue for 1 minute before switching off automatically.
Door Forced Open warning. When used with an optional magnetic contact or built-in
magnetic contact of the lock, if the door is forced open, or if the door is opened after
20 seconds of the electro-mechanical lock not closed properly, the inside buzzer
and alarm output will both operate. The Alarm Output time is adjustable between 0-3
minutes with the default being 1 minute.
Alarm output time
To set the alarm output time (0~3
minutes) Factory default is 1 minute
9 0 3 #
Keypad Lockout & Alarm Output options. If there are 10 invalid cards or 10
incorrect PIN numbers in a 10 minute period either the keypad will lockout for 10
minutes or the alarm will operate for 10 minutes, depending on the option selected
below.
Toreset the Door Open Too Long warning
To set the facility code
Close the dooror Read valid cardor Master Code #
To set the facility code of W1/W3-
B
(This operation might be required
when W1/W3-B is acting as
wiegand reader and connecting to
8 Facility code # Repeat Facility code #
Facility Code can be any number between
1~255 (Default: 0)

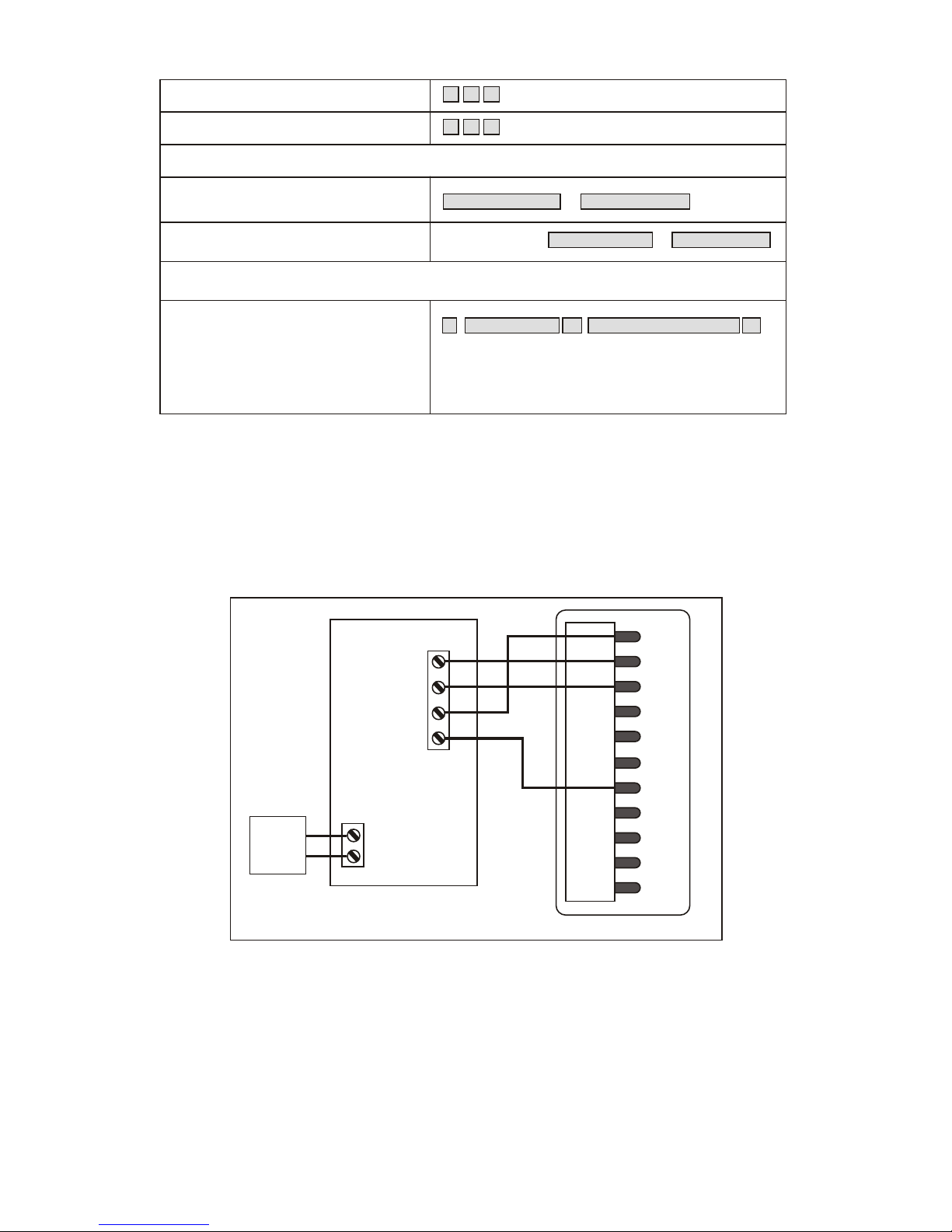

11 Interconnecting Two Devices
11.1 W1/W3-B operating as a Wiegand Output Reader
In this mode the W1/W3-B supports a Wiegand 26 bit output so the Wiegand data lines
can be connected to any controller which supports a Wiegand 26 bit input. See figure 1.
• •
• •
••••••
••••
••••
W1/W3-B
•••
•••••
•••••
• •
•••
• •
Controller
• •
• •
•••
•••
• •
• •
Power
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
(With Wiegand 26 inPut)
Transmission Format:
1: Keypad Transmission
The Reader will transmit the PIN data when it receives the last key (#) press after
PIN code.
Format:Facility Code + PIN Code
(Facility code is any digits between 0~255, factory default is 0; Pin code is any 1~4
digits between 0~9999)
Example:Facility code: 1
PIN code: 5678
Press 5678 #, then the output format will be: 00105678
2: Proximity Card Transmission
The Reader will transmit the card data when it reads the Card.
Format:Card Number (the last 8 digits of Card Number)
Remarks:No matter the card or pin is valid or invalid, the data will be transmitted

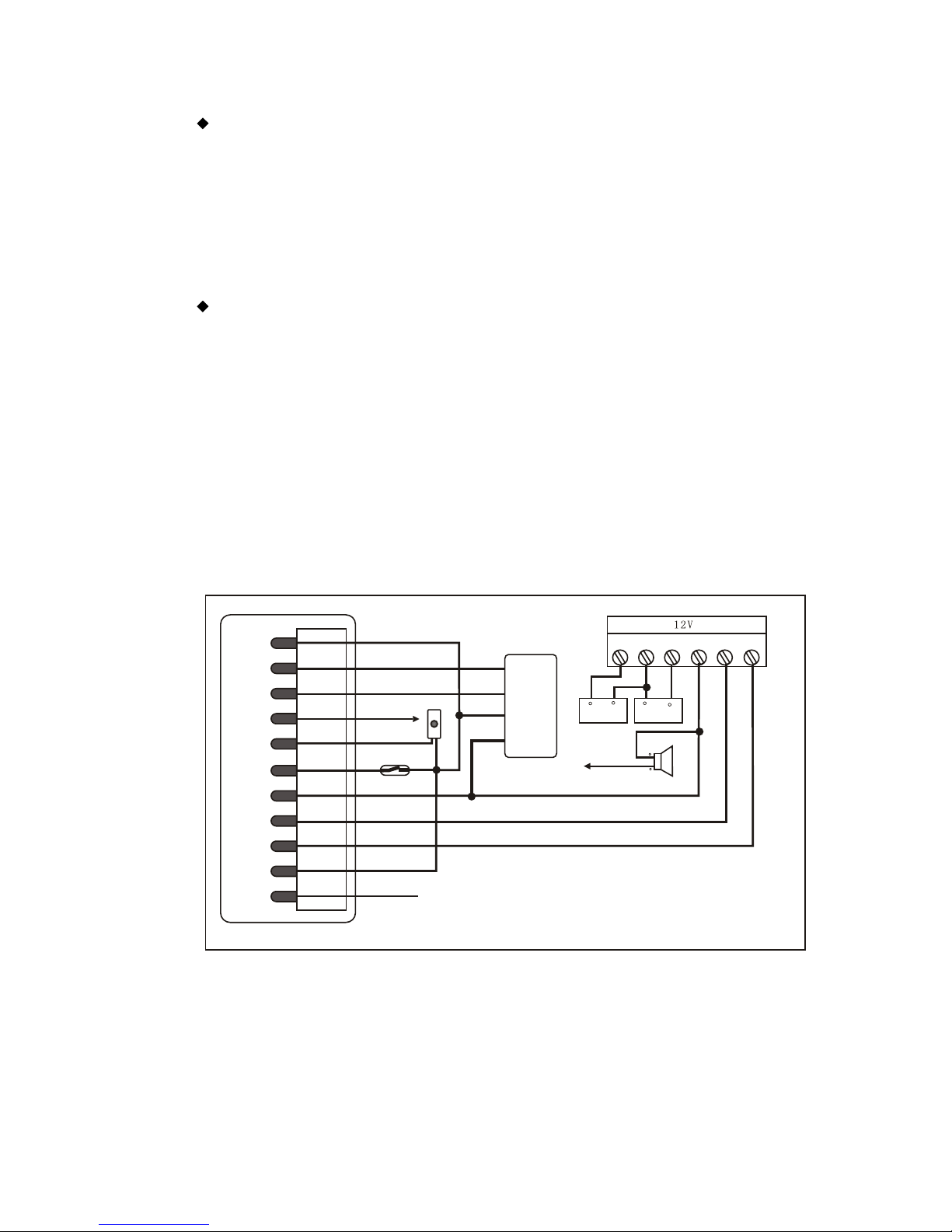

11.2 W1/W3-B operating as a Controller
In this mode the W1/W3-B supports a Wiegand 26 bit input so an external Wiegand
device with a 26 bit output can be connected to the Wiegand input terminals on the
W1/W3-B. Either an ID card reader (125KHZ) or an IC card reader (13.56MHZ) can
be connected to the W1/W3-B. Cards are required to be added at the external reader,
except where an external EM reader is used, in this case cards can be added at either
reader or controller. See figure 2.
• • • •
• • • •
••••••
••••
••••
•• •••
W1/W3-B
Door detecting switch
••
••
•
•
Special Power Supply
Alarm
•••
•••••
•••••
• •
•••
• •
• • • •• • • • • • • • ••
• •
•••
• •• •
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Exit button
Wiegand reader
Fail-Secure lo ck
Fail-Secure lo ck
1 User ID number # PIN #
Add the card as for a card user
Press* to exit from theprogramming mode
Then allocate the card a PIN as follows:
* Read Card 1234 # PIN # PIN#
W1-B

“Australia’s largest
designer and
manufacturer of
high quality security
products”
INSTALLATION & PROGRAMMING MANUAL
For products:
101-095 Ness W1-B Ultraprox Reader/Controller
COPYRIGHT NOTICE
All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Ness.
Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of
ongoing product development and improvement.
© 2011 Ness Corporation Pty Ltd ABN 28 069 984 372
www.ness.com.au
HEAD OFFICE:
Ness Corporation Pty Ltd
ABN 28 069 984 372
Ph [phone] Fax [phone]
[email protected]
SYDNEY
Ph 02 8825 9222 Fax [phone]
[email protected]
MELBOURNE
Ph 03 9875 6400 Fax [phone]
[email protected]
BRISBANE
Ph 07 3399 4910 Fax [phone]
[email protected]
PERTH
Ph 08 9328 2511 Fax [phone]
[email protected]
ADELAIDE
Ph 08 8152 0000 Fax [phone]
[email protected]
N55

3
1. Packing list
Name
Digital Keypad W1/W3-B
Quantity Remark
Screw driver
Rubber bungs
Self TappingScrews
Manager Card
1
4
4
2
6*27mm, used for fixing
3.5*27mm, used for fixing
Manager Add Card & Manager Delete Card
User Manual 1
1
Please ensure that all the above contents are correct. If any are missing please notify
the supplier of the W1/W3-B.
2. Description
3. Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2500 users, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Programmable one relay output
Backlight keypad
Wiegand 26 input & output
Adjustable Door Output time, Alarm time, Door Open time
Block enrollment, can enroll maximum 2500 consecutive card within 3 minutes
Very low power consumption (60Ma)
Fast operating speed, <20ms with 2500 users
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper

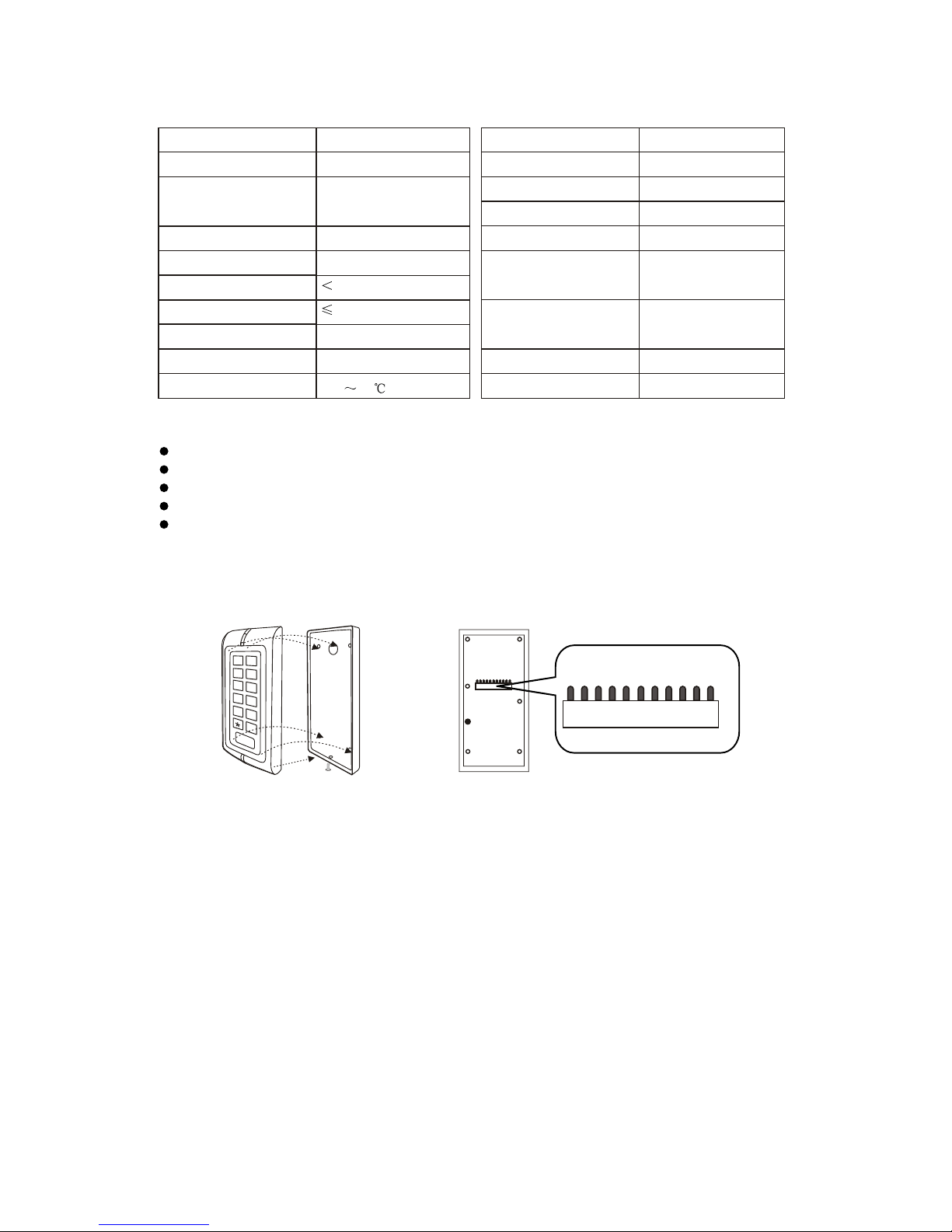

4. Specifications
12VDC
2500
12 keys, 2 x 6 digits(W1-B)
12 keys, 3 x 4 digits(W3-B)
EM 125 KHZ card/Tag
3~6 cm
80mA
40mA
Max 2A
Max 20A
Operating Humidity
Environment
Adjustable Door Relay time
Adjustable Alarm Time
Wiring Connections
Dimensions
Net Weight
Gross Weight
5%~ 95% RH
Conforms to IP68
0~99 seconds
0~3 minutes
Electric Lock,Exit Button,
DOTL, External Alarm
550 g
700 g
Operating Voltage
User Capacity
Keypad
Card Type
Card Reading Distance
Active Current
Idle Current
Lock Output Load
Alarm Output Load
5. Installation
Remove the back cover from the keypad using the supplied security screwdriver
Drill 4 holes on the wall for the screws and I hole for the cable
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole
Attach the keypad to the back cover.

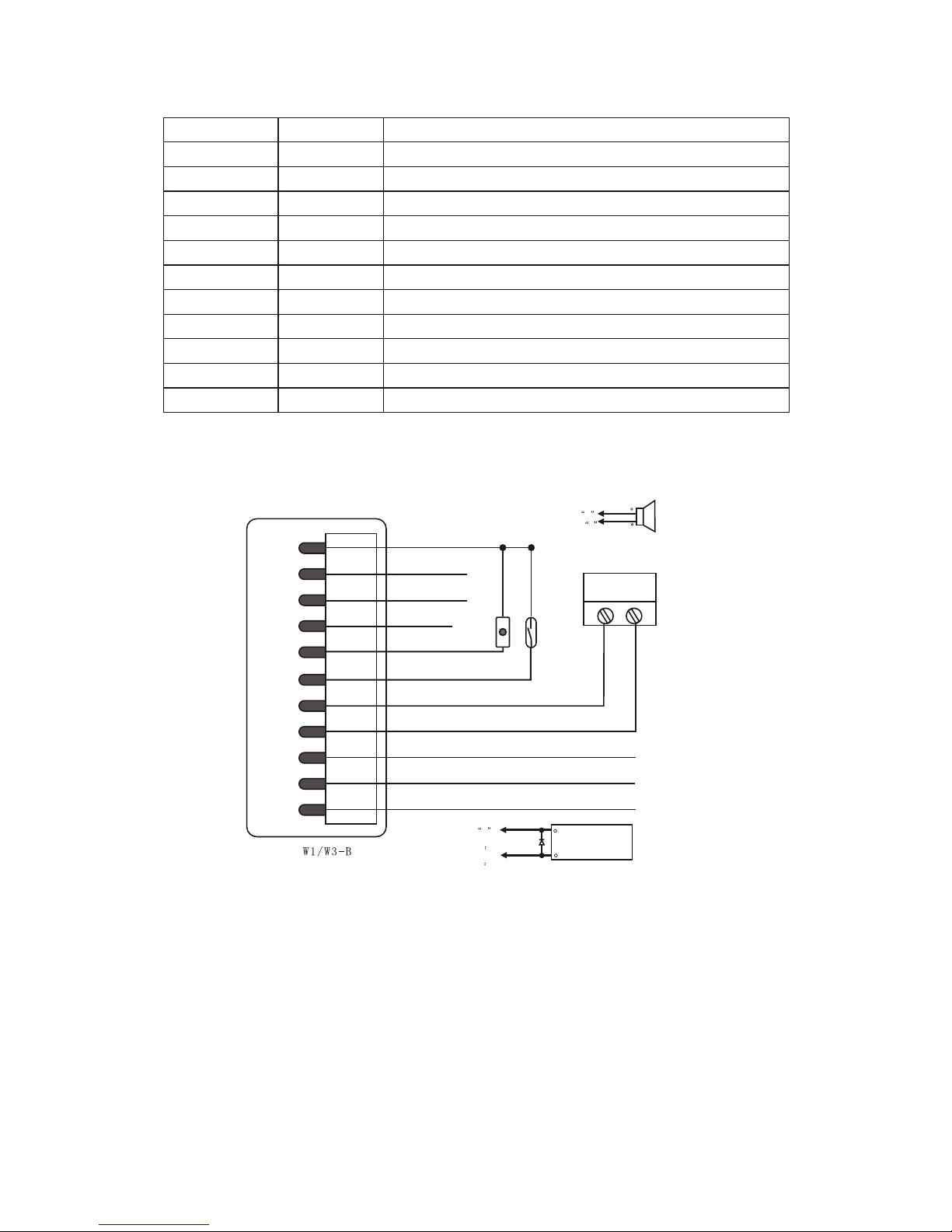

6. Wiring
Colour
Grey
Yellow
Brown
Red
Black
Blue
Purple
Function
D0
Alarm -
OPEN
D-IN
+12V DC
NO
COM
Description
Wiegand Output D0
White Wiegand Output D1
Request to Exit Button
Door Contact
Power Input
Power Input
Connection Diagram
8. Anti Tamper Alarm
The W1/W3-B uses a LDR (light dependent resistor) as an anti tamper alarm. If the
keypad is removed from the cover then the tamper alarm will operate.
9. Sound and Light indication
Operation Status
Power on
Operation successful
Operation failed
Enter into programming mode
Red Light
Bright
Bright
-
-
-
Bright
Green Light
-
-
-
Bright
-
-
Blue Light
-
-
-
-
-
-
Buzzer
Short Ring
-
Short Ring
Short Ring
3 Short Ring
Short Ring
-
Short Ring
-
Press keypad
-
-
-
-
Bright
10. W1/W3-B Detailed Programming Guide
10.1 User Settings
To exit from the programming mode
To change the master code
Set valid card only users
Set valid card and PIN users
Set valid card or PIN users
*Master code #
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
0 New code # New code #
The master code is any 6 digits.
To add a PIN users
1 User ID number # PIN #
The ID number is any number between 1 ~
2500. The PIN is any four digits between 0000
~ 9999 with the exception of 1234 which is
reserved. Users can be added continuously
without exiting from programming mode as
follows:
1 User ID No 1 # PIN # UserID No 2 # PIN #
Operating Temperature -25 60
Alarm Negative
Orange NC
Pink GND
Stand by
Setting the working mode:
3 0 #
3 1 #
3 2 # Entry is byeither Card or PIN (default)
.2.
1
2
3
4
5
6
7
8
9
0
#
In the programming mode
Exit from the programmingmode
Open the door
.4. .6.
.5.
To Delete a PIN user
To change the PIN of a PIN user
(Note:This step must be done out of
programming mode)
* ID number # OldPIN # New PIN# New PIN #
2 User ID number #
Users can be deleted continuously without
exiting programming mode
7. To Reset to Factory Default
Bright
-
-
Bright Alarm
.1.
To add a card user (Method 1)
This is a fast way to enter cards
using ID number auto generation.
1 Read Card #
Cards can be added continuously without exiting
programming mode
1 ID number # Card #
To add a card user (Method 2)
This is the second way to enter
cards using User ID Allocation.
In this method a User ID is allocated
to a card. Only one user ID can be
allocated to a single card.
Built in buzzer
Red, Yellow and Green LEDs display the working status
12VDC Operation
Two- year warranty
W1/W3-B is single door multifunction access controller or a Wiegand output keypad or
card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It
is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.
The electronics are fully potted so the W1/W3-B is waterproof and conforms to IP68.
The W1/W3-B supports up to 2500 users in either a Card, 4 digit PIN, or a Card + PIN
option. The inbuilt card reader supports EM, 125KHZ frequency card/Tag. The W1/W3-
B has m any extra features including block enrollment,wiegand 26 bits interface,and backlit
keypad...etc.
These features make the W1/W3-B an ideal choice for door access not only for small
shops and domestic households but also for commercial and industrial applications
such as factories, warehouses, laboratories, banks and prisons.
Wiegand Interface
Wiegand 26 input & output
PCB connect diagram
Anti-demolition alarm
• •
• •
••••••
••••
••••
•••
•••••
•••••
• •
•••
• •
J1
••
••
•• • • • •
••• •
••••
•• •
•• • • •
••• ••
••
•• •
••
J1
Green
D1
-12V DC
Relay NO
Relay COM
Relay NC
W1/W3-B Negative
• •
• •
••••••
••••
••••
DC
12VDC 3A
Door
Switch
Exit
Button
Door
Switch
Exit
Button
•
•
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Power
Alarm
•••
•••••
•••••
• •
•••
• •
Pink
•
•
Lock
••••••
Power +
Electric boltNC
Electric strikeNO
Power +
Alarm -
Common PowerSupply
• •
• •
••••••
••••
••••
• • •••
•
•
••••••• •• •
••••••• •• •
•••
•••••
•••••
• •
•••
• •
• • ••• • • ••••••• ••••
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Alarm
Power
•
•
•
•
Fail-secure lock
Alarm-
SpecialPowerSupply
Notes:
Connect the negative pole of the lock to NC is for Failsafe lock.
Connect the negative pole of the lock to NO is for Fail-secure lock.
To reset to factory default, power off, press * , hold it and power on, release it until
hear two beeps and the LED shines in orange, then read any two EM cards, the LED will
turn in red, means reset to factory default setting successfully. Of the two EM cards
read, the first one is Manager Add card, the second one is Manager Delete card.
-
-
-
-
Alarm
Bright
-
-
-
Short Ring
Entry is byCard only
Entry is byCard and PIN together
To add and delete users in either card or PIN mode ( 3 2 #) (Default setting)
Card quantity is between 1~2500.
The 8 digits card number is the last 8 digits on
the card.
Maximum 2500 cards can be enrolled at a stretch
within 3 minutes.
To add card user (Method 3)
Add a series cards users
Block Enrollment
To delete card user by card
number.
Note Users can be deleted
continuously without exiting
from programming mode.
2 Read Card #
5ID number# 8 digits Card numbe r# Card q uant ity #
To delete a card user by user ID.
This option can be used when a
user has lost their card
2 User ID #
.3.
Remarks: Reset to factory default, the user's information is still retained.
(W1-B&W3-B are in the same function, only different in shape . )
L135 xW58 xH26 mm(W1-B)
L128 xW82 xH28 mm(W3-B)
W1-B
1. Packing list
Name
Digital Keypad W1/W3-B
Quantity Remark
Screw driver
Rubber bungs
Self TappingScrews
Manager Card
1
4
4
2
6*27mm, used for fixing
3.5*27mm, used for fixing
Manager Add Card & Manager Delete Card
User Manual 1
1
Please ensure that all the above contents are correct. If any are missing please notify
the supplier of the W1/W3-B.
2. Description
3. Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2500 users, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Programmable one relay output
Backlight keypad
Wiegand 26 input & output
Adjustable Door Output time, Alarm time, Door Open time
Block enrollment, can enroll maximum 2500 consecutive card within 3 minutes
Very low power consumption (60Ma)
Fast operating speed, <20ms with 2500 users
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
4. Specifications
12VDC
2500
12 keys, 2 x 6 digits(W1-B)
12 keys, 3 x 4 digits(W3-B)
EM 125 KHZ card/Tag
3~6 cm
80mA
40mA
Max 2A
Max 20A
Operating Humidity
Environment
Adjustable Door Relay time
Adjustable Alarm Time
Wiring Connections
Dimensions
Net Weight
Gross Weight
5%~ 95% RH
Conforms to IP68
0~99 seconds
0~3 minutes
Electric Lock,Exit Button,
DOTL, External Alarm
550 g
700 g
Operating Voltage
User Capacity
Keypad
Card Type
Card Reading Distance
Active Current
Idle Current
Lock Output Load
Alarm Output Load
5. Installation
Remove the back cover from the keypad using the supplied security screwdriver
Drill 4 holes on the wall for the screws and I hole for the cable
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole
Attach the keypad to the back cover.
6. Wiring
Colour
Grey
Yellow
Brown
Red
Black
Blue
Purple
Function
D0
Alarm -
OPEN
D-IN
+12V DC
NO
COM
Description
Wiegand Output D0
White Wiegand Output D1
Request to Exit Button
Door Contact
Power Input
Power Input
Connection Diagram
8. Anti Tamper Alarm
The W1/W3-B uses a LDR (light dependent resistor) as an anti tamper alarm. If the
keypad is removed from the cover then the tamper alarm will operate.
9. Sound and Light indication
Operation Status
Power on
Operation successful
Operation failed
Enter into programming mode
Red Light
Bright
Bright
-
-
-
Bright
Green Light
-
-
-
Bright
-
-
Blue Light
-
-
-
-
-
-
Buzzer
Short Ring
-
Short Ring
Short Ring
3 Short Ring
Short Ring
-
Short Ring
-
Press keypad
-
-
-
-
Bright
10. W1/W3-B Detailed Programming Guide
10.1 User Settings
To exit from the programming mode
To change the master code
Set valid card only users
Set valid card and PIN users
Set valid card or PIN users
*Master code #
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
0 New code # New code #
The master code is any 6 digits.
To add a PIN users
1 User ID number # PIN #
The ID number is any number between 1 ~
2500. The PIN is any four digits between 0000
~ 9999 with the exception of 1234 which is
reserved. Users can be added continuously
without exiting from programming mode as
follows:
1 User ID No 1 # PIN # UserID No 2 # PIN #
Operating Temperature -25 60
Alarm Negative
Orange NC
Pink GND
Stand by
Setting the working mode:
3 0 #
3 1 #
3 2 # Entry is byeither Card or PIN (default)
.2.
1
2
3
4
5
6
7
8
9
0
#
In the programming mode
Exit from the programmingmode
Open the door
.4. .6.
.5.
To Delete a PIN user
To change the PIN of a PIN user
(Note:This step must be done out of
programming mode)
* ID number # OldPIN # New PIN# New PIN #
2 User ID number #
Users can be deleted continuously without
exiting programming mode
7. To Reset to Factory Default
Bright
-
-
Bright Alarm
.1.
To add a card user (Method 1)
This is a fast way to enter cards
using ID number auto generation.
1 Read Card #
Cards can be added continuously without exiting
programming mode
1 ID number # Card #
To add a card user (Method 2)
This is the second way to enter
cards using User ID Allocation.
In this method a User ID is allocated
to a card. Only one user ID can be
allocated to a single card.
Built in buzzer
Red, Yellow and Green LEDs display the working status
12VDC Operation
Two- year warranty
W1/W3-B is single door multifunction access controller or a Wiegand output keypad or
card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It
is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.
The electronics are fully potted so the W1/W3-B is waterproof and conforms to IP68.
The W1/W3-B supports up to 2500 users in either a Card, 4 digit PIN, or a Card + PIN
option. The inbuilt card reader supports EM, 125KHZ frequency card/Tag. The W1/W3-
B has m any extra features including block enrollment,wiegand 26 bits interface,and backlit
keypad...etc.
These features make the W1/W3-B an ideal choice for door access not only for small
shops and domestic households but also for commercial and industrial applications
such as factories, warehouses, laboratories, banks and prisons.
Wiegand Interface
Wiegand 26 input & output
PCB connect diagram
Anti-demolition alarm
• •
• •
••••••
••••
••••
•••
•••••
•••••
• •
•••
• •
J1
••
••
•• • • • •
••• •
••••
•• •
•• • • •
••• ••
••
•• •
••
J1
Green
D1
-12V DC
Relay NO
Relay COM
Relay NC
W1/W3-B Negative
• •
• •
••••••
••••
••••
DC
12VDC 3A
Door
Switch
Exit
Button
Door
Switch
Exit
Button
•
•
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Power
Alarm
•••
•••••
•••••
• •
•••
• •
Pink
•
•
Lock
••••••
Power +
Electric boltNC
Electric strikeNO
Power +
Alarm -
Common PowerSupply
• •
• •
••••••
••••
••••
• • •••
•
•
••••••• •• •
••••••• •• •
•••
•••••
•••••
• •
•••
• •
• • ••• • • ••••••• ••••
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Alarm
Power
•
•
•
•
Fail-secure lock
Alarm-
SpecialPowerSupply
Notes:
Connect the negative pole of the lock to NC is for Failsafe lock.
Connect the negative pole of the lock to NO is for Fail-secure lock.
To reset to factory default, power off, press * , hold it and power on, release it until
hear two beeps and the LED shines in orange, then read any two EM cards, the LED will
turn in red, means reset to factory default setting successfully. Of the two EM cards
read, the first one is Manager Add card, the second one is Manager Delete card.
-
-
-
-
Alarm
Bright
-
-
-
Short Ring
Entry is byCard only
Entry is byCard and PIN together
To add and delete users in either card or PIN mode ( 3 2 #) (Default setting)
Card quantity is between 1~2500.
The 8 digits card number is the last 8 digits on
the card.
Maximum 2500 cards can be enrolled at a stretch
within 3 minutes.
To add card user (Method 3)
Add a series cards users
Block Enrollment
To delete card user by card
number.
Note Users can be deleted
continuously without exiting
from programming mode.
2 Read Card #
5ID number# 8 digits Card numbe r# Card q uant ity #
To delete a card user by user ID.
This option can be used when a
user has lost their card
2 User ID #
.3.
Remarks: Reset to factory default, the user's information is still retained.
(W1-B&W3-B are in the same function, only different in shape . )
L135 xW58 xH26 mm(W1-B)
L128 xW82 xH28 mm(W3-B)
W1-B

4
1. Packing list
Name
Digital Keypad W1/W3-B
Quantity Remark
Screw driver
Rubber bungs
Self TappingScrews
Manager Card
1
4
4
2
6*27mm, used for fixing
3.5*27mm, used for fixing
Manager Add Card & Manager Delete Card
User Manual 1
1
Please ensure that all the above contents are correct. If any are missing please notify
the supplier of the W1/W3-B.
2. Description
3. Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2500 users, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Programmable one relay output
Backlight keypad
Wiegand 26 input & output
Adjustable Door Output time, Alarm time, Door Open time
Block enrollment, can enroll maximum 2500 consecutive card within 3 minutes
Very low power consumption (60Ma)
Fast operating speed, <20ms with 2500 users
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
4. Specifications
12VDC
2500
12 keys, 2 x 6 digits(W1-B)
12 keys, 3 x 4 digits(W3-B)
EM 125 KHZ card/Tag
3~6 cm
80mA
40mA
Max 2A
Max 20A
Operating Humidity
Environment
Adjustable Door Relay time
Adjustable Alarm Time
Wiring Connections
Dimensions
Net Weight
Gross Weight
5%~ 95% RH
Conforms to IP68
0~99 seconds
0~3 minutes
Electric Lock,Exit Button,
DOTL, External Alarm
550 g
700 g
Operating Voltage
User Capacity
Keypad
Card Type
Card Reading Distance
Active Current
Idle Current
Lock Output Load
Alarm Output Load
5. Installation
Remove the back cover from the keypad using the supplied security screwdriver
Drill 4 holes on the wall for the screws and I hole for the cable
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole
Attach the keypad to the back cover.
6. Wiring
Colour
Grey
Yellow
Brown
Red
Black
Blue
Purple
Function
D0
Alarm -
OPEN
D-IN
+12V DC
NO
COM
Description
Wiegand Output D0
White Wiegand Output D1
Request to Exit Button
Door Contact
Power Input
Power Input
Connection Diagram
8. Anti Tamper Alarm
The W1/W3-B uses a LDR (light dependent resistor) as an anti tamper alarm. If the
keypad is removed from the cover then the tamper alarm will operate.
9. Sound and Light indication
Operation Status
Power on
Operation successful
Operation failed
Enter into programming mode
Red Light
Bright
Bright
-
-
-
Bright
Green Light
-
-
-
Bright
-
-
Blue Light
-
-
-
-
-
-
Buzzer
Short Ring
-
Short Ring
Short Ring
3 Short Ring
Short Ring
-
Short Ring
-
Press keypad
-
-
-
-
Bright
10. W1/W3-B Detailed Programming Guide
10.1 User Settings
To exit from the programming mode
To change the master code
Set valid card only users
Set valid card and PIN users
Set valid card or PIN users
*Master code #
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
0 New code # New code #
The master code is any 6 digits.
To add a PIN users
1 User ID number # PIN #
The ID number is any number between 1 ~
2500. The PIN is any four digits between 0000
~ 9999 with the exception of 1234 which is
reserved. Users can be added continuously
without exiting from programming mode as
follows:
1 User ID No 1 # PIN # UserID No 2 # PIN #
Operating Temperature -25 60
Alarm Negative
Orange NC
Pink GND
Stand by
Setting the working mode:
3 0 #
3 1 #
3 2 # Entry is byeither Card or PIN (default)
.2.
1
2
3
4
5
6
7
8
9
0
#
In the programming mode
Exit from the programmingmode
Open the door
.4. .6.
.5.
To Delete a PIN user
To change the PIN of a PIN user
(Note:This step must be done out of
programming mode)
* ID number # OldPIN # New PIN# New PIN #
2 User ID number #
Users can be deleted continuously without
exiting programming mode
7. To Reset to Factory Default
Bright
-
-
Bright Alarm
.1.
To add a card user (Method 1)
This is a fast way to enter cards
using ID number auto generation.
1 Read Card #
Cards can be added continuously without exiting
programming mode
1 ID number # Card #
To add a card user (Method 2)
This is the second way to enter
cards using User ID Allocation.
In this method a User ID is allocated
to a card. Only one user ID can be
allocated to a single card.
Built in buzzer
Red, Yellow and Green LEDs display the working status
12VDC Operation
Two- year warranty
W1/W3-B is single door multifunction access controller or a Wiegand output keypad or
card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It
is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.
The electronics are fully potted so the W1/W3-B is waterproof and conforms to IP68.
The W1/W3-B supports up to 2500 users in either a Card, 4 digit PIN, or a Card + PIN
option. The inbuilt card reader supports EM, 125KHZ frequency card/Tag. The W1/W3-
B has m any extra features including block enrollment,wiegand 26 bits interface,and backlit
keypad...etc.
These features make the W1/W3-B an ideal choice for door access not only for small
shops and domestic households but also for commercial and industrial applications
such as factories, warehouses, laboratories, banks and prisons.
Wiegand Interface
Wiegand 26 input & output
PCB connect diagram
Anti-demolition alarm
• •
• •
••••••
••••
••••
•••
•••••
•••••
• •
•••
• •
J1
••
••
•• • • • •
••• •
••••
•• •
•• • • •
••• ••
••
•• •
••
J1
Green
D1
-12V DC
Relay NO
Relay COM
Relay NC
W1/W3-B Negative
• •
• •
••••••
••••
••••
DC
12VDC 3A
Door
Switch
Exit
Button
Door
Switch
Exit
Button
•
•
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Power
Alarm
•••
•••••
•••••
• •
•••
• •
Pink
•
•
Lock
••••••
Power +
Electric boltNC
Electric strikeNO
Power +
Alarm -
Common PowerSupply
• •
• •
••••••
••••
••••
• • •••
•
•
••••••• •• •
••••••• •• •
•••
•••••
•••••
• •
•••
• •
• • ••• • • ••••••• ••••
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Alarm
Power
•
•
•
•
Fail-secure lock
Alarm-
SpecialPowerSupply
Notes:
Connect the negative pole of the lock to NC is for Failsafe lock.
Connect the negative pole of the lock to NO is for Fail-secure lock.
To reset to factory default, power off, press * , hold it and power on, release it until
hear two beeps and the LED shines in orange, then read any two EM cards, the LED will
turn in red, means reset to factory default setting successfully. Of the two EM cards
read, the first one is Manager Add card, the second one is Manager Delete card.
-
-
-
-
Alarm
Bright
-
-
-
Short Ring
Entry is byCard only
Entry is byCard and PIN together
To add and delete users in either card or PIN mode ( 3 2 #) (Default setting)
Card quantity is between 1~2500.
The 8 digits card number is the last 8 digits on
the card.
Maximum 2500 cards can be enrolled at a stretch
within 3 minutes.
To add card user (Method 3)
Add a series cards users
Block Enrollment
To delete card user by card
number.
Note Users can be deleted
continuously without exiting
from programming mode.
2 Read Card #
5ID number# 8 digits Card numbe r# Card q uant ity #
To delete a card user by user ID.
This option can be used when a
user has lost their card
2 User ID #
.3.
Remarks: Reset to factory default, the user's information is still retained.
(W1-B&W3-B are in the same function, only different in shape . )
L135 xW58 xH26 mm(W1-B)
L128 xW82 xH28 mm(W3-B)
W1-B

5
1. Packing list
Name
Digital Keypad W1/W3-B
Quantity Remark
Screw driver
Rubber bungs
Self TappingScrews
Manager Card
1
4
4
2
6*27mm, used for fixing
3.5*27mm, used for fixing
Manager Add Card & Manager Delete Card
User Manual 1
1
Please ensure that all the above contents are correct. If any are missing please notify
the supplier of the W1/W3-B.
2. Description
3. Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2500 users, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Programmable one relay output
Backlight keypad
Wiegand 26 input & output
Adjustable Door Output time, Alarm time, Door Open time
Block enrollment, can enroll maximum 2500 consecutive card within 3 minutes
Very low power consumption (60Ma)
Fast operating speed, <20ms with 2500 users
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
4. Specifications
12VDC
2500
12 keys, 2 x 6 digits(W1-B)
12 keys, 3 x 4 digits(W3-B)
EM 125 KHZ card/Tag
3~6 cm
80mA
40mA
Max 2A
Max 20A
Operating Humidity
Environment
Adjustable Door Relay time
Adjustable Alarm Time
Wiring Connections
Dimensions
Net Weight
Gross Weight
5%~ 95% RH
Conforms to IP68
0~99 seconds
0~3 minutes
Electric Lock,Exit Button,
DOTL, External Alarm
550 g
700 g
Operating Voltage
User Capacity
Keypad
Card Type
Card Reading Distance
Active Current
Idle Current
Lock Output Load
Alarm Output Load
5. Installation
Remove the back cover from the keypad using the supplied security screwdriver
Drill 4 holes on the wall for the screws and I hole for the cable
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole
Attach the keypad to the back cover.
6. Wiring
Colour
Grey
Yellow
Brown
Red
Black
Blue
Purple
Function
D0
Alarm -
OPEN
D-IN
+12V DC
NO
COM
Description
Wiegand Output D0
White Wiegand Output D1
Request to Exit Button
Door Contact
Power Input
Power Input
Connection Diagram
8. Anti Tamper Alarm
The W1/W3-B uses a LDR (light dependent resistor) as an anti tamper alarm. If the
keypad is removed from the cover then the tamper alarm will operate.
9. Sound and Light indication
Operation Status
Power on
Operation successful
Operation failed
Enter into programming mode
Red Light
Bright
Bright
-
-
-
Bright
Green Light
-
-
-
Bright
-
-
Blue Light
-
-
-
-
-
-
Buzzer
Short Ring
-
Short Ring
Short Ring
3 Short Ring
Short Ring
-
Short Ring
-
Press keypad
-
-
-
-
Bright
10. W1/W3-B Detailed Programming Guide
10.1 User Settings
To exit from the programming mode
To change the master code
Set valid card only users
Set valid card and PIN users
Set valid card or PIN users
*Master code #
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
0 New code # New code #
The master code is any 6 digits.
To add a PIN users
1 User ID number # PIN #
The ID number is any number between 1 ~
2500. The PIN is any four digits between 0000
~ 9999 with the exception of 1234 which is
reserved. Users can be added continuously
without exiting from programming mode as
follows:
1 User ID No 1# PIN # UserID No 2 # PIN #
Operating Temperature -25 60
Alarm Negative
Orange NC
Pink GND
Stand by
Setting the working mode:
3 0 #
3 1 #
3 2 # Entry is byeither Card or PIN (default)
.2.
1
2
3
4
5
6
7
8
9
0
#
In the programming mode
Exit from the programmingmode
Open the door
.4. .6.
.5.
To Delete a PIN user
To change the PIN of a PIN user
(Note:This step must be done out of
programming mode)
* ID number # OldPIN # New PIN# New PIN #
2 User ID number #
Users can be deleted continuously without
exiting programming mode
7. To Reset to Factory Default
Bright
-
-
Bright Alarm
.1.
To add a card user (Method 1)
This is a fast way to enter cards
using ID number auto generation.
1 Read Card #
Cards can be added continuously without exiting
programming mode
1 ID number # Card #
To add a card user (Method 2)
This is the second way to enter
cards using User ID Allocation.
In this method a User ID is allocated
to a card. Only one user ID can be
allocated to a single card.
Built in buzzer
Red, Yellow and Green LEDs display the working status
12VDC Operation
Two- year warranty
W1/W3-B is single door multifunction access controller or a Wiegand output keypad or
card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It
is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.
The electronics are fully potted so the W1/W3-B is waterproof and conforms to IP68.
The W1/W3-B supports up to 2500 users in either a Card, 4 digit PIN, or a Card + PIN
option. The inbuilt card reader supports EM, 125KHZ frequency card/Tag. The W1/W3-
B has m any extra features including block enrollment,wiegand 26 bits interface,and backlit
keypad...etc.
These features make the W1/W3-B an ideal choice for door access not only for small
shops and domestic households but also for commercial and industrial applications
such as factories, warehouses, laboratories, banks and prisons.
Wiegand Interface
Wiegand 26 input & output
PCB connect diagram
Anti-demolition alarm
• •
• •
••••••
••••
••••
•••
•••••
•••••
• •
•••
• •
J1
••
••
•• • • • •
••• •
••••
•• •
•• • • •
••• ••
••
•• •
••
J1
Green
D1
-12V DC
Relay NO
Relay COM
Relay NC
W1/W3-B Negative
• •
• •
••••••
••••
••••
DC
12VDC 3A
Door
Switch
Exit
Button
Door
Switch
Exit
Button
•
•
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Power
Alarm
•••
•••••
•••••
• •
•••
• •
Pink
•
•
Lock
••••••
Power +
Electric boltNC
Electric strikeNO
Power +
Alarm -
Common PowerSupply
• •
• •
••••••
••••
••••
• • •••
•
•
••••••• •• •
••••••• •• •
•••
•••••
•••••
• •
•••
• •
• • ••• • • ••••••• ••••
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Alarm
Power
•
•
•
•
Fail-secure lock
Alarm-
SpecialPowerSupply
Notes:
Connect the negative pole of the lock to NC is for Failsafe lock.
Connect the negative pole of the lock to NO is for Fail-secure lock.
To reset to factory default, power off, press * , hold it and power on, release it until
hear two beeps and the LED shines in orange, then read any two EM cards, the LED will
turn in red, means reset to factory default setting successfully. Of the two EM cards
read, the first one is Manager Add card, the second one is Manager Delete card.
-
-
-
-
Alarm
Bright
-
-
-
Short Ring
Entry is byCard only
Entry is byCard and PIN together
To add and delete users in either card or PIN mode ( 3 2 #) (Default setting)
Card quantity is between 1~2500.
The 8 digits card number is the last 8 digits on
the card.
Maximum 2500 cards can be enrolled at a stretch
within 3 minutes.
To add card user (Method 3)
Add a series cards users
Block Enrollment
To delete card user by card
number.
Note Users can be deleted
continuously without exiting
from programming mode.
2 Read Card #
5ID number# 8 digits Card numbe r# Card q uant ity #
To delete a card user by user ID.
This option can be used when a
user has lost their card
2 User ID #
.3.
Remarks: Reset to factory default, the user's information is still retained.
(W1-B&W3-B are in the same function, only different in shape . )
L135 xW58 xH26 mm(W1-B)
L128 xW82 xH28 mm(W3-B)
W1-B

6
1. Packing list
Name
Digital Keypad W1/W3-B
QuantityRemark
Screw driver
Rubber bungs
Self TappingScrews
Manager Card
1
4
4
2
6*27mm, used for fixing
3.5*27mm, used for fixing
Manager Add Card & Manager Delete Card
User Manual1
1
Please ensure that all the above contents are correct. If any are missing please notify
the supplier of the W1/W3-B.
2. Description
3. Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2500 users, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Programmable one relay output
Backlight keypad
Wiegand 26 input & output
Adjustable Door Output time, Alarm time, Door Open time
Block enrollment, can enroll maximum 2500 consecutive card within 3 minutes
Very low power consumption (60Ma)
Fast operating speed, <20ms with 2500 users
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
4. Specifications
12~24V AC/DC
2500
12 keys, 2 x6 digits(W1-B)
12 keys, 3 x4 digits(W3-B)
EM 125 KHZ card/Tag
3~6 cm
80mA
40mA
Max 2A
Max 20A
Operating Humidity
Environment
Adjustable Door Relay time
Adjustable Alarm Time
Wiring Connections
Dimensions
Net Weight
Gross Weight
5%~ 95% RH
Conforms to IP68
0~99 seconds
0~3 minutes
Electric Lock,Exit Button,
DOTL, External Alarm
550 g
700 g
Operating Voltage
User Capacity
Keypad
Card Type
Card Reading Distance
Active Current
Idle Current
Lock Output Load
Alarm Output Load
5. Installation
Remove the back cover from the keypad using the supplied security screwdriver
Drill 4 holes on the wall for the screws and I hole for the cable
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole
Attach the keypad to the back cover.
6. Wiring
Colour
Grey
Yellow
Brown
Red
Black
Blue
Purple
Function
D0
Alarm -
OPEN
D-IN
12~24V AC&DC
NO
COM
Description
Wiegand Output D0
WhiteWiegand Output D1
Request to Exit Button
Door Contact
12~24V AC&DC Power Input
12~24V AC&DC Power Input
Connection Diagram
8. Anti Tamper Alarm
The W1/W3-B uses a LDR (light dependent resistor) as an anti tamper alarm. If the
keypad is removed from the cover then the tamper alarm will operate.
9. Sound and Light indication
Operation Status
Power on
Operation successful
Operation failed
Enter into programming mode
Red Light
Bright
Bright
-
-
-
Bright
Green Light
-
-
-
Bright
-
-
Blue Light
-
-
-
-
-
-
Buzzer
Short Ring
-
Short Ring
Short Ring
3 Short Ring
Short Ring
-
Short Ring
-
Press keypad
-
-
-
-
Bright
10. W1/W3-B Detailed Programming Guide
10.1 User Settings
To exit from the programming mode
To change the master code
Set valid cardonly users
Set valid cardand PIN users
Set valid card or PIN users
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programmingthemaster user mustbe logged in
0 New code # New code #
The master code is any 6 digits.
To add a PINusers
1 User ID number # PIN #
The ID number is any number between 1 ~
2500. The PIN is any four digits between 0000
~ 9999 with the exception of 1234 which is
reserved. Users can be addedcontinuously
without exiting fromprogrammingmode as
follows:
1 User ID No 1 #PIN #UserID No 2 #PIN #
Operating Temperature-25 60
Alarm Negative
OrangeNC
PinkGND
Stand by
Setting the working mode:
3 0 #
3 1 #
3 2 # Entry is byeither Cardor PIN (default)
.2.
1
2
3
4
5
6
7
8
9
0
#
In the programming mode
Exit from the programmingmode
Open the door
.4..6.
.5.
To Deletea PINuser
To change the PINof a PIN user
(Note:This step must be done out of
programming mode)
* ID number # OldPIN # New PIN# New PIN #
2 User ID number #
Users can be deleted continuously without
exiting programming mode
7. To Reset to Factory Default
Bright
-
-
BrightAlarm
.1.
To add a carduser (Method 1)
This is a fast way to enter cards
using ID number auto generation.
1 Read Card #
Cards can be added continuously without exiting
programming mode
1 ID number # Card #
To add a carduser (Method 2)
This is the second way to enter
cards using User ID Allocation.
In this method a User IDis allocated
to a card. Only one user ID can be
allocated to a single card.
Built in buzzer
Red, Yellow and Green LEDs display the working status
12~24V AC/DC
Two- year warranty
W1/W3-B is single door multifunction access controller or a Wiegand output keypad or
card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It
is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.
The electronics are fully potted so the W1/W3-B is waterproof and conforms to IP68.
The W1/W3-B supports up to 2500 users in either a Card, 4 digit PIN, or a Card + PIN
option. The inbuilt card reader supports EM, 125KHZ frequency card/Tag. The W1/W3-
B has m any extra features including block enrollment,wiegand 26 bits interface,and backlit
keypad...etc.
These features make the W1/W3-B an ideal choice for door access not only for small
shops and domestic households but also for commercial and industrial applications
such as factories, warehouses, laboratories, banks and prisons.
Wiegand Interface
Wiegand 26 input & output
PCB connect diagram
Anti-dem oli tio n ala rm
• •
• •
••••••
••••
••••
•••
•••••
•••••
• •
•••
• •
J1
••
••
•••• • •
••• •
•• • •
•• •
•••• • •••••
••
•• •
••
J1
Green
D1
12~24V AC&DC
Relay NO
Relay COM
Relay NC
W1/W3-B Negative
• •
• •
••••••
••••
••••
AC&DC
12 24V/3A
Door
Switch
Exit
Button
Door
Switch
Exit
Button
•
•
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Power
Alarm
•••
•••••
•••••
• •
•••
• •
Pink
•
•
Lock
••••••
Power +
Electric boltNC
Electric strikeNO
Power +
Alarm -
Common Power Supply
• •
• •
••••••
••••
••••
•• •••
•
•
••••••••• •
••••••••• •
•••
•••••
•••••
• •
•••
• •
• • • • • • • •••• ••• ••••
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Alarm
Power
•
•
•
•
Fail-secure lock
Alarm-
Special Power Supply
Notes:
Connect the negative pole of the lock to NC is for Fail safe lock.
Connect the negative pole of the lock to NO is for Fail-secure lock.
To reset to factory default, power off, press *, hold it and power on, release it until
hear two beeps and the LED shines in orange, then read any two EM cards, the LED will
turn in red, means reset to factory default setting successfully. Of the two EM cards
read, the first one is Manager Add card, the second one is Manager Delete card.
-
-
-
-
Alarm
Bright
-
-
-
Short Ring
Entry is byCardonly
Entry is byCard and PIN together
To add and delete users in either card or PIN mode ( 3 2 # ) (Default setting)
Card quantity is between 1~2500.
The 8 digitscard number is the last 8 digits on
the card.
Maximum 2500 cards can be enrolled at a stretch
within 3 minutes.
To addcarduser (Method 3)
Add a series cardsusers
Block Enrollment
To deletecarduser by card
number.
Note Users can be deleted
continuously without exiting
from programming mode.
2 Read Card #
5ID number #8 digits Card numbe r#Card q uant ity #
To delete a carduser by user ID.
This option can be used when a
user has lost theircard
2 User ID #
.3.
Remarks:Reset to factory default, the user's information is still retained.
(W1-B&W3-B are in the same function, only different in shape . )
L135 xW58 xH26 mm(W1-B)
L128 xW82 xH28 mm(W3-B)
W1-B

7
1. Packing list
Name
Digital Keypad W1/W3-B
QuantityRemark
Screw driver
Rubber bungs
Self TappingScrews
Manager Card
1
4
4
2
6*27mm, used for fixing
3.5*27mm, used for fixing
Manager Add Card & Manager Delete Card
User Manual1
1
Please ensure that all the above contents are correct. If any are missing please notify
the supplier of the W1/W3-B.
2. Description
3. Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2500 users, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Programmable one relay output
Backlight keypad
Wiegand 26 input & output
Adjustable Door Output time, Alarm time, Door Open time
Block enrollment, can enroll maximum 2500 consecutive card within 3 minutes
Very low power consumption (60Ma)
Fast operating speed, <20ms with 2500 users
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
4. Specifications
12~24V AC/DC
2500
12 keys, 2 x6 digits(W1-B)
12 keys, 3 x4 digits(W3-B)
EM 125 KHZ card/Tag
3~6 cm
80mA
40mA
Max 2A
Max 20A
Operating Humidity
Environment
Adjustable Door Relay time
Adjustable Alarm Time
Wiring Connections
Dimensions
Net Weight
Gross Weight
5%~ 95% RH
Conforms to IP68
0~99 seconds
0~3 minutes
Electric Lock,Exit Button,
DOTL, External Alarm
550 g
700 g
Operating Voltage
User Capacity
Keypad
Card Type
Card Reading Distance
Active Current
Idle Current
Lock Output Load
Alarm Output Load
5. Installation
Remove the back cover from the keypad using the supplied security screwdriver
Drill 4 holes on the wall for the screws and I hole for the cable
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole
Attach the keypad to the back cover.
6. Wiring
Colour
Grey
Yellow
Brown
Red
Black
Blue
Purple
Function
D0
Alarm -
OPEN
D-IN
12~24V AC&DC
NO
COM
Description
Wiegand Output D0
WhiteWiegand Output D1
Request to Exit Button
Door Contact
12~24V AC&DC Power Input
12~24V AC&DC Power Input
Connection Diagram
8. Anti Tamper Alarm
The W1/W3-B uses a LDR (light dependent resistor) as an anti tamper alarm. If the
keypad is removed from the cover then the tamper alarm will operate.
9. Sound and Light indication
Operation Status
Power on
Operation successful
Operation failed
Enter into programming mode
Red Light
Bright
Bright
-
-
-
Bright
Green Light
-
-
-
Bright
-
-
Blue Light
-
-
-
-
-
-
Buzzer
Short Ring
-
Short Ring
Short Ring
3 Short Ring
Short Ring
-
Short Ring
-
Press keypad
-
-
-
-
Bright
10. W1/W3-B Detailed Programming Guide
10.1 User Settings
To exit from the programming mode
To change the master code
Set valid cardonly users
Set valid cardand PIN users
Set valid card or PIN users
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programmingthemaster user mustbe logged in
0 New code # New code #
The master code is any 6 digits.
To add a PINusers
1 User ID number # PIN #
The ID number is any number between 1 ~
2500. The PIN is any four digits between 0000
~ 9999 with the exception of 1234 which is
reserved. Users can be addedcontinuously
without exiting fromprogrammingmode as
follows:
1 User ID No 1 #PIN #UserID No 2 #PIN #
Operating Temperature-25 60
Alarm Negative
OrangeNC
PinkGND
Stand by
Setting the working mode:
3 0 #
3 1 #
3 2 # Entry is byeither Cardor PIN (default)
.2.
1
2
3
4
5
6
7
8
9
0
#
In the programming mode
Exit from the programmingmode
Open the door
.4..6.
.5.
To Deletea PINuser
To change the PINof a PIN user
(Note:This step must be done out of
programming mode)
* ID number # OldPIN # New PIN# New PIN #
2 User ID number #
Users can be deleted continuously without
exiting programming mode
7. To Reset to Factory Default
Bright
-
-
BrightAlarm
.1.
To add a carduser (Method 1)
This is a fast way to enter cards
using ID number auto generation.
1 Read Card #
Cards can be added continuously without exiting
programming mode
1 ID number # Card #
To add a carduser (Method 2)
This is the second way to enter
cards using User ID Allocation.
In this method a User IDis allocated
to a card. Only one user ID can be
allocated to a single card.
Built in buzzer
Red, Yellow and Green LEDs display the working status
12~24V AC/DC
Two- year warranty
W1/W3-B is single door multifunction access controller or a Wiegand output keypad or
card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It
is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.
The electronics are fully potted so the W1/W3-B is waterproof and conforms to IP68.
The W1/W3-B supports up to 2500 users in either a Card, 4 digit PIN, or a Card + PIN
option. The inbuilt card reader supports EM, 125KHZ frequency card/Tag. The W1/W3-
B has m any extra features including block enrollment,wiegand 26 bits interface,and backlit
keypad...etc.
These features make the W1/W3-B an ideal choice for door access not only for small
shops and domestic households but also for commercial and industrial applications
such as factories, warehouses, laboratories, banks and prisons.
Wiegand Interface
Wiegand 26 input & output
PCB connect diagram
Anti-dem oli tio n ala rm
• •
• •
••••••
••••
••••
•••
•••••
•••••
• •
•••
• •
J1
••
••
•••• • •
••• •
•• • •
•• •
•••• • •••••
••
•• •
••
J1
Green
D1
12~24V AC&DC
Relay NO
Relay COM
Relay NC
W1/W3-B Negative
• •
• •
••••••
••••
••••
AC&DC
12 24V/3A
Door
Switch
Exit
Button
Door
Switch
Exit
Button
•
•
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Power
Alarm
•••
•••••
•••••
• •
•••
• •
Pink
•
•
Lock
••••••
Power +
Electric boltNC
Electric strikeNO
Power +
Alarm -
Common Power Supply
• •
• •
••••••
••••
••••
•• •••
•
•
••••••••• •
••••••••• •
•••
•••••
•••••
• •
•••
• •
• • • • • • • •••• ••• ••••
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Alarm
Power
•
•
•
•
Fail-secure lock
Alarm-
Special Power Supply
Notes:
Connect the negative pole of the lock to NC is for Fail safe lock.
Connect the negative pole of the lock to NO is for Fail-secure lock.
To reset to factory default, power off, press *, hold it and power on, release it until
hear two beeps and the LED shines in orange, then read any two EM cards, the LED will
turn in red, means reset to factory default setting successfully. Of the two EM cards
read, the first one is Manager Add card, the second one is Manager Delete card.
-
-
-
-
Alarm
Bright
-
-
-
Short Ring
Entry is byCardonly
Entry is byCard and PIN together
To add and delete users in either card or PIN mode ( 3 2 # ) (Default setting)
Card quantity is between 1~2500.
The 8 digitscard number is the last 8 digits on
the card.
Maximum 2500 cards can be enrolled at a stretch
within 3 minutes.
To addcarduser (Method 3)
Add a series cardsusers
Block Enrollment
To deletecarduser by card
number.
Note Users can be deleted
continuously without exiting
from programming mode.
2 Read Card #
5ID number #8 digits Card numbe r#Card q uant ity #
To delete a carduser by user ID.
This option can be used when a
user has lost theircard
2 User ID #
.3.
Remarks:Reset to factory default, the user's information is still retained.
(W1-B&W3-B are in the same function, only different in shape . )
L135 xW58 xH26 mm(W1-B)
L128 xW82 xH28 mm(W3-B)
W1-B

8
1. Packing list
Name
Digital Keypad W1/W3-B
QuantityRemark
Screw driver
Rubber bungs
Self TappingScrews
Manager Card
1
4
4
2
6*27mm, used for fixing
3.5*27mm, used for fixing
Manager Add Card & Manager Delete Card
User Manual1
1
Please ensure that all the above contents are correct. If any are missing please notify
the supplier of the W1/W3-B.
2. Description
3. Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2500 users, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Programmable one relay output
Backlight keypad
Wiegand 26 input & output
Adjustable Door Output time, Alarm time, Door Open time
Block enrollment, can enroll maximum 2500 consecutive card within 3 minutes
Very low power consumption (60Ma)
Fast operating speed, <20ms with 2500 users
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
4. Specifications
12~24V AC/DC
2500
12 keys, 2 x6 digits(W1-B)
12 keys, 3 x4 digits(W3-B)
EM 125 KHZ card/Tag
3~6 cm
80mA
40mA
Max 2A
Max 20A
Operating Humidity
Environment
Adjustable Door Relay time
Adjustable Alarm Time
Wiring Connections
Dimensions
Net Weight
Gross Weight
5%~ 95% RH
Conforms to IP68
0~99 seconds
0~3 minutes
Electric Lock,Exit Button,
DOTL, External Alarm
550 g
700 g
Operating Voltage
User Capacity
Keypad
Card Type
Card Reading Distance
Active Current
Idle Current
Lock Output Load
Alarm Output Load
5. Installation
Remove the back cover from the keypad using the supplied security screwdriver
Drill 4 holes on the wall for the screws and I hole for the cable
Fix the back cover firmly on the wall with 4 flat head screws
Thread the cable through the cable hole
Attach the keypad to the back cover.
6. Wiring
Colour
Grey
Yellow
Brown
Red
Black
Blue
Purple
Function
D0
Alarm -
OPEN
D-IN
12~24V AC&DC
NO
COM
Description
Wiegand Output D0
WhiteWiegand Output D1
Request to Exit Button
Door Contact
12~24V AC&DC Power Input
12~24V AC&DC Power Input
Connection Diagram
8. Anti Tamper Alarm
The W1/W3-B uses a LDR (light dependent resistor) as an anti tamper alarm. If the
keypad is removed from the cover then the tamper alarm will operate.
9. Sound and Light indication
Operation Status
Power on
Operation successful
Operation failed
Enter into programming mode
Red Light
Bright
Bright
-
-
-
Bright
Green Light
-
-
-
Bright
-
-
Blue Light
-
-
-
-
-
-
Buzzer
Short Ring
-
Short Ring
Short Ring
3 Short Ring
Short Ring
-
Short Ring
-
Press keypad
-
-
-
-
Bright
10. W1/W3-B Detailed Programming Guide
10.1 User Settings
To exit from the programming mode
To change the master code
Set valid cardonly users
Set valid cardand PIN users
Set valid card or PIN users
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programmingthemaster user mustbe logged in
0 New code # New code #
The master code is any 6 digits.
To add a PINusers
1 User ID number # PIN #
The ID number is any number between 1 ~
2500. The PIN is any four digits between 0000
~ 9999 with the exception of 1234 which is
reserved. Users can be addedcontinuously
without exiting fromprogrammingmode as
follows:
1 User ID No 1 #PIN #UserID No 2 #PIN #
Operating Temperature-25 60
Alarm Negative
OrangeNC
PinkGND
Stand by
Setting the working mode:
3 0 #
3 1 #
3 2 # Entry is byeither Cardor PIN (default)
.2.
1
2
3
4
5
6
7
8
9
0
#
In the programming mode
Exit from the programmingmode
Open the door
.4..6.
.5.
To Deletea PINuser
To change the PINof a PIN user
(Note:This step must be done out of
programming mode)
* ID number # OldPIN # New PIN# New PIN #
2 User ID number #
Users can be deleted continuously without
exiting programming mode
7. To Reset to Factory Default
Bright
-
-
BrightAlarm
.1.
To add a carduser (Method 1)
This is a fast way to enter cards
using ID number auto generation.
1 Read Card #
Cards can be added continuously without exiting
programming mode
1 ID number # Card #
To add a carduser (Method 2)
This is the second way to enter
cards using User ID Allocation.
In this method a User IDis allocated
to a card. Only one user ID can be
allocated to a single card.
Built in buzzer
Red, Yellow and Green LEDs display the working status
12~24V AC/DC
Two- year warranty
W1/W3-B is single door multifunction access controller or a Wiegand output keypad or
card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It
is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case.
The electronics are fully potted so the W1/W3-B is waterproof and conforms to IP68.
The W1/W3-B supports up to 2500 users in either a Card, 4 digit PIN, or a Card + PIN
option. The inbuilt card reader supports EM, 125KHZ frequency card/Tag. The W1/W3-
B has m any extra features including block enrollment,wiegand 26 bits interface,and backlit
keypad...etc.
These features make the W1/W3-B an ideal choice for door access not only for small
shops and domestic households but also for commercial and industrial applications
such as factories, warehouses, laboratories, banks and prisons.
Wiegand Interface
Wiegand 26 input & output
PCB connect diagram
Anti-dem oli tio n ala rm
• •
• •
••••••
••••
••••
•••
•••••
•••••
• •
•••
• •
J1
••
••
•••• • •
••• •
•• • •
•• •
•••• • •••••
••
•• •
••
J1
Green
D1
12~24V AC&DC
Relay NO
Relay COM
Relay NC
W1/W3-B Negative
• •
• •
••••••
••••
••••
AC&DC
12 24V/3A
Door
Switch
Exit
Button
Door
Switch
Exit
Button
•
•
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Power
Alarm
•••
•••••
•••••
• •
•••
• •
Pink
•
•
Lock
••••••
Power +
Electric boltNC
Electric strikeNO
Power +
Alarm -
Common Power Supply
• •
• •
••••••
••••
••••
•• •••
•
•
••••••••• •
••••••••• •
•••
•••••
•••••
• •
•••
• •
• • • • • • • •••• ••• ••••
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Alarm
Power
•
•
•
•
Fail-secure lock
Alarm-
Special Power Supply
Notes:
Connect the negative pole of the lock to NC is for Fail safe lock.
Connect the negative pole of the lock to NO is for Fail-secure lock.
To reset to factory default, power off, press *, hold it and power on, release it until
hear two beeps and the LED shines in orange, then read any two EM cards, the LED will
turn in red, means reset to factory default setting successfully. Of the two EM cards
read, the first one is Manager Add card, the second one is Manager Delete card.
-
-
-
-
Alarm
Bright
-
-
-
Short Ring
Entry is byCardonly
Entry is byCard and PIN together
To add and delete users in either card or PIN mode ( 3 2 # ) (Default setting)
Card quantity is between 1~2500.
The 8 digitscard number is the last 8 digits on
the card.
Maximum 2500 cards can be enrolled at a stretch
within 3 minutes.
To addcarduser (Method 3)
Add a series cardsusers
Block Enrollment
To deletecarduser by card
number.
Note Users can be deleted
continuously without exiting
from programming mode.
2 Read Card #
5ID number #8 digits Card numbe r#Card q uant ity #
To delete a carduser by user ID.
This option can be used when a
user has lost theircard
2 User ID #
.3.
Remarks:Reset to factory default, the user's information is still retained.
(W1-B&W3-B are in the same function, only different in shape . )
L135 xW58 xH26 mm(W1-B)
L128 xW82 xH28 mm(W3-B)
W1-B

9
User manual
.9..10.
1
2
3
4
5
6
7
8
9
0
#
For a PINuser
To unlock the door
10.2 Door Relay, Door Open Detection, Alarm, Facility code Settings
Door relay time setting
To disable door open detection.
(Factory default setting)
6 0 #
To enable door open detection
6 2 #
Keypad Lockout
Alarm Output
To remove the alarm
Toreset the Door Forced Open warning
Normal status: No keypad lockout
or alarm
7 0 # (Factory default setting)
7 1 #
7 2 #
Read valid cardor Master Code #
To add and delete users in card and PIN mode ( 3 1 # )
.7..8.
To exit from the programming mode
To change the master code
To add a PINuser
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
The master code is any 6 digits
The ID number is any number between 1 ~ 2500.
The PIN is any four digits between 0000 ~ 9999
with the exception of 1234 which is reserved.
Users can be added continuously without exiting
programming mode
W1/W3-B Quick Reference Programming Guide
To add a carduser Cards can be added continuously without
exiting from programming mode
To delete aPINor a carduser
Users can be deleted continuously without
exiting from programming mode
1 Read Card #
Present the card
To Unlock the door
Waterproof
Keypad/Reader/Controller
To Add a cardand Pinuser
(The PIN is any four digits between
0000 ~ 9999 with the exception of
1234 which is reserved.)
To change a PINin card and PIN
mode (Method 1) Note that this is
done outside programming mode
so the user can undertake this
themselves
To change a PINin card and PIN
mode (Method 2) Note that this is
done outside programming mode
so the user can undertake this
themselves
To delete a Card andPINuser just
delete the card
* Read Card Old PIN # New PIN# New PIN #
* ID number# Old PIN # New PIN# New PIN #
2 User ID #
To add a card user in card only mode ( 3 0 # )
To Add and Delete a carduserThe operating isthe same asadding and deleting
a card user in 3 2 #
To deleteAll users
To add and delete card users by Manager cards
To deleteALL users. Note that
this is a dangerousoption so use
with care
Toadd card userby ManagerAddCard
To delete card User by Manager
Delete Card
2 0000 #
Manager add card Read card Manager add card
Cards can be added continuously.
Manager delete card Read Card Manager delete card
Cards can bedeleted continuously.
Enter the PIN then press #
For a carduserRead card
For a card and PINuserRead card then enter PIN #
Door relay time setting
4 0~99 #
The door relay time is between 0~99 seconds,
the factory default setting is 5 seconds.
Door Open Detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic contact
or built-in magnetic contact of the lock, if the door is opened normally, but not closed
after 1 minute, the inside buzzer will beep automatically to remind people to close
the door and continue for 1 minute before switching off automatically.
Door Forced Open warning. When used with an optional magnetic contact or built-in
magnetic contact of the lock, if the door is forced open, or if the door is opened after
20 seconds of the electro-mechanical lock not closed properly, the inside buzzer
and alarm output will both operate. The Alarm Output time is adjustable between 0-3
minutes with the default being 1 minute.
Alarm output time
To set the alarm output time (0~3
minutes) Factory default is 1 minute
9 0 3 #
Keypad Lockout & Alarm Output options. If there are 10 invalid cards or 10
incorrect PIN numbers in a 10 minute period either the keypad will lockout for 10
minutes or the alarm will operate for 10 minutes, depending on the option selected
below.
Toreset the Door Open Too Long warning
To set the facility code
Close the dooror Read valid cardor Master Code #
To set the facility code of W1/W3-
B
(This operation might be required
when W1/W3-B is acting as
wiegand reader and connecting to
8 Facility code # Repeat Facility code #
Facility Code can be any number between
1~255 (Default: 0)
11 Interconnecting Two Devices
11.1 W1/W3-B operating as a Wiegand Output Reader
In this mode the W1/W3-B supports a Wiegand 26 bit output so the Wiegand data lines
can be connected to any controller which supports a Wiegand 26 bit input. See figure 1.
• •
• •
••••••
••••
••••
W1/W3-B
•••
•••••
•••••
• •
•••
• •
Controller
• •
• •
•••
•••
• •
• •
Power
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
(With Wiegand 26 inPut)
Transmission Format:
1: Keypad Transmission
The Reader will transmit the PIN data when it receives the last key (#) press after
PIN code.
Format:Facility Code + PIN Code
(Facility code is any digits between 0~255, factory default is 0; Pin code is any 1~4
digits between 0~9999)
Example:Facility code: 1
PIN code: 5678
Press 5678 #, then the output format will be: 00105678
2: Proximity Card Transmission
The Reader will transmit the card data when it reads the Card.
Format:Card Number (the last 8 digits of Card Number)
Remarks:No matter the card or pin is valid or invalid, the data will be transmitted
11.2 W1/W3-B operating as a Controller
In this mode the W1/W3-B supports a Wiegand 26 bit input so an external Wiegand
device with a 26 bit output can be connected to the Wiegand input terminals on the
W1/W3-B. Either an ID card reader (125KHZ) or an IC card reader (13.56MHZ) can
be connected to the W1/W3-B. Cards are required to be added at the external reader,
except where an external EM reader is used, in this case cards can be added at either
reader or controller. See figure 2.
• • • •
• • • •
••••••
••••
••••
•• •••
W1/W3-B
Door detecting switch
••
••
•
•
Special Power Supply
Alarm
•••
•••••
•••••
• •
•••
• •
• • • •• • • • • • • • ••
• •
•••
• •• •
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Exit button
Wiegand reader
Fail-Secure lock
Fail-Secure lock
1 User ID number # PIN #
Add the card as for a card user
Press* to exit from theprogramming mode
Then allocate the card a PIN as follows:
* Read Card 1234 # PIN # PIN #
W1-B

10
User manual
.9..10.
1
2
3
4
5
6
7
8
9
0
#
For a PINuser
To unlock the door
10.2 Door Relay, Door Open Detection, Alarm, Facility code Settings
Door relay time setting
To disable door open detection.
(Factory default setting)
6 0 #
To enable door open detection
6 2 #
Keypad Lockout
Alarm Output
To remove the alarm
Toreset the Door Forced Open warning
Normal status: No keypad lockout
or alarm
7 0 # (Factory default setting)
7 1 #
7 2 #
Read valid cardor Master Code #
To add and delete users in card and PIN mode ( 3 1 # )
.7..8.
To exit from the programming mode
To change the master code
To add a PINuser
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
The master code is any 6 digits
The ID number is any number between 1 ~ 2500.
The PIN is any four digits between 0000 ~ 9999
with the exception of 1234 which is reserved.
Users can be added continuously without exiting
programming mode
W1/W3-B Quick Reference Programming Guide
To add a carduser Cards can be added continuously without
exiting from programming mode
To delete aPINor a carduser
Users can be deleted continuously without
exiting from programming mode
1 Read Card #
Present the card
To Unlock the door
Waterproof
Keypad/Reader/Controller
To Add a cardand Pinuser
(The PIN is any four digits between
0000 ~ 9999 with the exception of
1234 which is reserved.)
To change a PINin card and PIN
mode (Method 1) Note that this is
done outside programming mode
so the user can undertake this
themselves
To change a PINin card and PIN
mode (Method 2) Note that this is
done outside programming mode
so the user can undertake this
themselves
To delete a Card andPINuser just
delete the card
* Read Card Old PIN # New PIN# New PIN #
* ID number# Old PIN # New PIN# New PIN #
2 User ID #
To add a card user in card only mode ( 3 0 # )
To Add and Delete a carduserThe operating isthe same asadding and deleting
a card user in 3 2 #
To deleteAll users
To add and delete card users by Manager cards
To deleteALL users. Note that
this is a dangerousoption so use
with care
Toadd card userby ManagerAddCard
To delete card User by Manager
Delete Card
2 0000 #
Manager add card Read card Manager add card
Cards can be added continuously.
Manager delete card Read Card Manager delete card
Cards can bedeleted continuously.
Enter the PIN then press #
For a carduserRead card
For a card and PINuserRead card then enter PIN #
Door relay time setting
4 0~99 #
The door relay time is between 0~99 seconds,
the factory default setting is 5 seconds.
Door Open Detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic contact
or built-in magnetic contact of the lock, if the door is opened normally, but not closed
after 1 minute, the inside buzzer will beep automatically to remind people to close
the door and continue for 1 minute before switching off automatically.
Door Forced Open warning. When used with an optional magnetic contact or built-in
magnetic contact of the lock, if the door is forced open, or if the door is opened after
20 seconds of the electro-mechanical lock not closed properly, the inside buzzer
and alarm output will both operate. The Alarm Output time is adjustable between 0-3
minutes with the default being 1 minute.
Alarm output time
To set the alarm output time (0~3
minutes) Factory default is 1 minute
9 0 3 #
Keypad Lockout & Alarm Output options. If there are 10 invalid cards or 10
incorrect PIN numbers in a 10 minute period either the keypad will lockout for 10
minutes or the alarm will operate for 10 minutes, depending on the option selected
below.
Toreset the Door Open Too Long warning
To set the facility code
Close the dooror Read valid cardor Master Code #
To set the facility code of W1/W3-
B
(This operation might be required
when W1/W3-B is acting as
wiegand reader and connecting to
8 Facility code # Repeat Facility code #
Facility Code can be any number between
1~255 (Default: 0)
11 Interconnecting Two Devices
11.1 W1/W3-B operating as a Wiegand Output Reader
In this mode the W1/W3-B supports a Wiegand 26 bit output so the Wiegand data lines
can be connected to any controller which supports a Wiegand 26 bit input. See figure 1.
• •
• •
••••••
••••
••••
W1/W3-B
•••
•••••
•••••
• •
•••
• •
Controller
• •
• •
•••
•••
• •
• •
Power
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
(With Wiegand 26 inPut)
Transmission Format:
1: Keypad Transmission
The Reader will transmit the PIN data when it receives the last key (#) press after
PIN code.
Format:Facility Code + PIN Code
(Facility code is any digits between 0~255, factory default is 0; Pin code is any 1~4
digits between 0~9999)
Example:Facility code: 1
PIN code: 5678
Press 5678 #, then the output format will be: 00105678
2: Proximity Card Transmission
The Reader will transmit the card data when it reads the Card.
Format:Card Number (the last 8 digits of Card Number)
Remarks:No matter the card or pin is valid or invalid, the data will be transmitted
11.2 W1/W3-B operating as a Controller
In this mode the W1/W3-B supports a Wiegand 26 bit input so an external Wiegand
device with a 26 bit output can be connected to the Wiegand input terminals on the
W1/W3-B. Either an ID card reader (125KHZ) or an IC card reader (13.56MHZ) can
be connected to the W1/W3-B. Cards are required to be added at the external reader,
except where an external EM reader is used, in this case cards can be added at either
reader or controller. See figure 2.
• • • •
• • • •
••••••
••••
••••
•• •••
W1/W3-B
Door detecting switch
••
••
•
•
Special Power Supply
Alarm
•••
•••••
•••••
• •
•••
• •
• • • •• • • • • • • • ••
• •
•••
• •• •
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Exit button
Wiegand reader
Fail-Secure lock
Fail-Secure lock
1 User ID number # PIN #
Add the card as for a card user
Press* to exit from theprogramming mode
Then allocate the card a PIN as follows:
* Read Card 1234 # PIN # PIN #
W1-B

11
User manual
.9..10.
1
2
3
4
5
6
7
8
9
0
#
For a PINuser
To unlock the door
10.2 Door Relay, Door Open Detection, Alarm, Facility code Settings
Door relay time setting
To disable door open detection.
(Factory default setting)
6 0 #
To enable door open detection
6 2 #
Keypad Lockout
Alarm Output
To remove the alarm
Toreset the Door Forced Open warning
Normal status: No keypad lockout
or alarm
7 0 # (Factory default setting)
7 1 #
7 2 #
Read valid cardor Master Code #
To add and delete users in card and PIN mode ( 3 1 # )
.7..8.
To exit from the programming mode
To change the master code
To add a PINuser
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
The master code is any 6 digits
The ID number is any number between 1 ~ 2500.
The PIN is any four digits between 0000 ~ 9999
with the exception of 1234 which is reserved.
Users can be added continuously without exiting
programming mode
W1/W3-B Quick Reference Programming Guide
To add a carduser Cards can be added continuously without
exiting from programming mode
To delete aPINor a carduser
Users can be deleted continuously without
exiting from programming mode
1 Read Card #
Present the card
To Unlock the door
Waterproof
Keypad/Reader/Controller
To Add a cardand Pinuser
(The PIN is any four digits between
0000 ~ 9999 with the exception of
1234 which is reserved.)
To change a PINin card and PIN
mode (Method 1) Note that this is
done outside programming mode
so the user can undertake this
themselves
To change a PINin card and PIN
mode (Method 2) Note that this is
done outside programming mode
so the user can undertake this
themselves
To delete a Card andPINuser just
delete the card
* Read Card Old PIN # New PIN# New PIN #
* ID number# Old PIN # New PIN# New PIN #
2 User ID #
To add a card user in card only mode ( 3 0 # )
To Add and Delete a carduserThe operating isthe same asadding and deleting
a card user in 3 2 #
To deleteAll users
To add and delete card users by Manager cards
To deleteALL users. Note that
this is a dangerousoption so use
with care
Toadd card userby ManagerAddCard
To delete card User by Manager
Delete Card
2 0000 #
Manager add card Read card Manager add card
Cards can be added continuously.
Manager delete card Read Card Manager delete card
Cards can bedeleted continuously.
Enter the PIN then press #
For a carduserRead card
For a card and PINuserRead card then enter PIN #
Door relay time setting
4 0~99 #
The door relay time is between 0~99 seconds,
the factory default setting is 5 seconds.
Door Open Detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic contact
or built-in magnetic contact of the lock, if the door is opened normally, but not closed
after 1 minute, the inside buzzer will beep automatically to remind people to close
the door and continue for 1 minute before switching off automatically.
Door Forced Open warning. When used with an optional magnetic contact or built-in
magnetic contact of the lock, if the door is forced open, or if the door is opened after
20 seconds of the electro-mechanical lock not closed properly, the inside buzzer
and alarm output will both operate. The Alarm Output time is adjustable between 0-3
minutes with the default being 1 minute.
Alarm output time
To set the alarm output time (0~3
minutes) Factory default is 1 minute
9 0 3 #
Keypad Lockout & Alarm Output options. If there are 10 invalid cards or 10
incorrect PIN numbers in a 10 minute period either the keypad will lockout for 10
minutes or the alarm will operate for 10 minutes, depending on the option selected
below.
Toreset the Door Open Too Long warning
To set the facility code
Close the dooror Read valid cardor Master Code #
To set the facility code of W1/W3-
B
(This operation might be required
when W1/W3-B is acting as
wiegand reader and connecting to
8 Facility code # Repeat Facility code #
Facility Code can be any number between
1~255 (Default: 0)
11 Interconnecting Two Devices
11.1 W1/W3-B operating as a Wiegand Output Reader
In this mode the W1/W3-B supports a Wiegand 26 bit output so the Wiegand data lines
can be connected to any controller which supports a Wiegand 26 bit input. See figure 1.
• •
• •
••••••
••••
••••
W1/W3-B
•••
•••••
•••••
• •
•••
• •
Controller
• •
• •
•••
•••
• •
• •
Power
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
(With Wiegand 26 inPut)
Transmission Format:
1: Keypad Transmission
The Reader will transmit the PIN data when it receives the last key (#) press after
PIN code.
Format:Facility Code + PIN Code
(Facility code is any digits between 0~255, factory default is 0; Pin code is any 1~4
digits between 0~9999)
Example:Facility code: 1
PIN code: 5678
Press 5678 #, then the output format will be: 00105678
2: Proximity Card Transmission
The Reader will transmit the card data when it reads the Card.
Format:Card Number (the last 8 digits of Card Number)
Remarks:No matter the card or pin is valid or invalid, the data will be transmitted
11.2 W1/W3-B operating as a Controller
In this mode the W1/W3-B supports a Wiegand 26 bit input so an external Wiegand
device with a 26 bit output can be connected to the Wiegand input terminals on the
W1/W3-B. Either an ID card reader (125KHZ) or an IC card reader (13.56MHZ) can
be connected to the W1/W3-B. Cards are required to be added at the external reader,
except where an external EM reader is used, in this case cards can be added at either
reader or controller. See figure 2.
• • • •
• • • •
••••••
••••
••••
•• •••
W1/W3-B
Door detecting switch
••
••
•
•
Special Power Supply
Alarm
•••
•••••
•••••
• •
•••
• •
• • • •• • • • • • • • ••
• •
•••
• •• •
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Exit button
Wiegand reader
Fail-Secure lock
Fail-Secure lock
1 User ID number # PIN #
Add the card as for a card user
Press* to exit from theprogramming mode
Then allocate the card a PIN as follows:
* Read Card 1234 # PIN # PIN #
W1-B

12
User manual
.9..10.
1
2
3
4
5
6
7
8
9
0
#
For a PINuser
To unlock the door
10.2 Door Relay, Door Open Detection, Alarm, Facility code Settings
Door relay time setting
To disable door open detection.
(Factory default setting)
6 0 #
To enable door open detection
6 2 #
Keypad Lockout
Alarm Output
To remove the alarm
Toreset the Door Forced Open warning
Normal status: No keypad lockout
or alarm
7 0 # (Factory default setting)
7 1 #
7 2 #
Read valid cardor Master Code #
To add and delete users in card and PIN mode ( 3 1 # )
.7..8.
To exit from the programming mode
To change the master code
To add a PINuser
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
The master code is any 6 digits
The ID number is any number between 1 ~ 2500.
The PIN is any four digits between 0000 ~ 9999
with the exception of 1234 which is reserved.
Users can be added continuously without exiting
programming mode
W1/W3-B Quick Reference Programming Guide
To add a carduser Cards can be added continuously without
exiting from programming mode
To delete aPINor a carduser
Users can be deleted continuously without
exiting from programming mode
1 Read Card #
Present the card
To Unlock the door
Waterproof
Keypad/Reader/Controller
To Add a cardand Pinuser
(The PIN is any four digits between
0000 ~ 9999 with the exception of
1234 which is reserved.)
To change a PINin card and PIN
mode (Method 1) Note that this is
done outside programming mode
so the user can undertake this
themselves
To change a PINin card and PIN
mode (Method 2) Note that this is
done outside programming mode
so the user can undertake this
themselves
To delete a Card andPINuser just
delete the card
* Read Card Old PIN # New PIN# New PIN #
* ID number# Old PIN # New PIN# New PIN #
2 User ID #
To add a card user in card only mode ( 3 0 # )
To Add and Delete a carduserThe operating isthe same asadding and deleting
a card user in 3 2 #
To deleteAll users
To add and delete card users by Manager cards
To deleteALL users. Note that
this is a dangerousoption so use
with care
Toadd card userby ManagerAddCard
To delete card User by Manager
Delete Card
2 0000 #
Manager add card Read card Manager add card
Cards can be added continuously.
Manager delete card Read Card Manager delete card
Cards can bedeleted continuously.
Enter the PIN then press #
For a carduserRead card
For a card and PINuserRead card then enter PIN #
Door relay time setting
4 0~99 #
The door relay time is between 0~99 seconds,
the factory default setting is 5 seconds.
Door Open Detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic contact
or built-in magnetic contact of the lock, if the door is opened normally, but not closed
after 1 minute, the inside buzzer will beep automatically to remind people to close
the door and continue for 1 minute before switching off automatically.
Door Forced Open warning. When used with an optional magnetic contact or built-in
magnetic contact of the lock, if the door is forced open, or if the door is opened after
20 seconds of the electro-mechanical lock not closed properly, the inside buzzer
and alarm output will both operate. The Alarm Output time is adjustable between 0-3
minutes with the default being 1 minute.
Alarm output time
To set the alarm output time (0~3
minutes) Factory default is 1 minute
9 0 3 #
Keypad Lockout & Alarm Output options. If there are 10 invalid cards or 10
incorrect PIN numbers in a 10 minute period either the keypad will lockout for 10
minutes or the alarm will operate for 10 minutes, depending on the option selected
below.
Toreset the Door Open Too Long warning
To set the facility code
Close the dooror Read valid cardor Master Code #
To set the facility code of W1/W3-
B
(This operation might be required
when W1/W3-B is acting as
wiegand reader and connecting to
8 Facility code # Repeat Facility code #
Facility Code can be any number between
1~255 (Default: 0)
11 Interconnecting Two Devices
11.1 W1/W3-B operating as a Wiegand Output Reader
In this mode the W1/W3-B supports a Wiegand 26 bit output so the Wiegand data lines
can be connected to any controller which supports a Wiegand 26 bit input. See figure 1.
• •
• •
••••••
••••
••••
W1/W3-B
•••
•••••
•••••
• •
•••
• •
Controller
• •
• •
•••
•••
• •
• •
Power
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
(With Wiegand 26 inPut)
Transmission Format:
1: Keypad Transmission
The Reader will transmit the PIN data when it receives the last key (#) press after
PIN code.
Format:Facility Code + PIN Code
(Facility code is any digits between 0~255, factory default is 0; Pin code is any 1~4
digits between 0~9999)
Example:Facility code: 1
PIN code: 5678
Press 5678 #, then the output format will be: 00105678
2: Proximity Card Transmission
The Reader will transmit the card data when it reads the Card.
Format:Card Number (the last 8 digits of Card Number)
Remarks:No matter the card or pin is valid or invalid, the data will be transmitted
11.2 W1/W3-B operating as a Controller
In this mode the W1/W3-B supports a Wiegand 26 bit input so an external Wiegand
device with a 26 bit output can be connected to the Wiegand input terminals on the
W1/W3-B. Either an ID card reader (125KHZ) or an IC card reader (13.56MHZ) can
be connected to the W1/W3-B. Cards are required to be added at the external reader,
except where an external EM reader is used, in this case cards can be added at either
reader or controller. See figure 2.
• • • •
• • • •
••••••
••••
••••
•• •••
W1/W3-B
Door detecting switch
••
••
•
•
Special Power Supply
Alarm
•••
•••••
•••••
• •
•••
• •
• • • •• • • • • • • • ••
• •
•••
• •• •
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Exit button
Wiegand reader
Fail-Secure lock
Fail-Secure lock
1 User ID number # PIN #
Add the card as for a card user
Press* to exit from theprogramming mode
Then allocate the card a PIN as follows:
* Read Card 1234 # PIN # PIN #
W1-B

13
User manual
.9..10.
1
2
3
4
5
6
7
8
9
0
#
For a PINuser
To unlock the door
10.2 Door Relay, Door Open Detection, Alarm, Facility code Settings
Door relay time setting
To disable door open detection.
(Factory default setting)
6 0 #
To enable door open detection
6 2 #
Keypad Lockout
Alarm Output
To remove the alarm
Toreset the Door Forced Open warning
Normal status: No keypad lockout
or alarm
7 0 # (Factory default setting)
7 1 #
7 2 #
Read valid cardor Master Code #
To add and delete users in card and PIN mode ( 3 1 # )
.7..8.
To exit from the programming mode
To change the master code
To add a PINuser
*Master code#
888888 is the default factory master code
To enter the programming mode
*
Note that to undertake the following programming the master user must be logged in
The master code is any 6 digits
The ID number is any number between 1 ~ 2500.
The PIN is any four digits between 0000 ~ 9999
with the exception of 1234 which is reserved.
Users can be added continuously without exiting
programming mode
W1/W3-B Quick Reference Programming Guide
To add a carduser Cards can be added continuously without
exiting from programming mode
To delete aPINor a carduser
Users can be deleted continuously without
exiting from programming mode
1 Read Card #
Present the card
To Unlock the door
Waterproof
Keypad/Reader/Controller
To Add a cardand Pinuser
(The PIN is any four digits between
0000 ~ 9999 with the exception of
1234 which is reserved.)
To change a PINin card and PIN
mode (Method 1) Note that this is
done outside programming mode
so the user can undertake this
themselves
To change a PINin card and PIN
mode (Method 2) Note that this is
done outside programming mode
so the user can undertake this
themselves
To delete a Card andPINuser just
delete the card
* Read Card Old PIN # New PIN# New PIN #
* ID number# Old PIN # New PIN# New PIN #
2 User ID #
To add a card user in card only mode ( 3 0 # )
To Add and Delete a carduserThe operating isthe same asadding and deleting
a card user in 3 2 #
To deleteAll users
To add and delete card users by Manager cards
To deleteALL users. Note that
this is a dangerousoption so use
with care
Toadd card userby ManagerAddCard
To delete card User by Manager
Delete Card
2 0000 #
Manager add card Read card Manager add card
Cards can be added continuously.
Manager delete card Read Card Manager delete card
Cards can bedeleted continuously.
Enter the PIN then press #
For a carduserRead card
For a card and PINuserRead card then enter PIN #
Door relay time setting
4 0~99 #
The door relay time is between 0~99 seconds,
the factory default setting is 5 seconds.
Door Open Detection
Door Open Too Long (DOTL) warning. When used with an optional magnetic contact
or built-in magnetic contact of the lock, if the door is opened normally, but not closed
after 1 minute, the inside buzzer will beep automatically to remind people to close
the door and continue for 1 minute before switching off automatically.
Door Forced Open warning. When used with an optional magnetic contact or built-in
magnetic contact of the lock, if the door is forced open, or if the door is opened after
20 seconds of the electro-mechanical lock not closed properly, the inside buzzer
and alarm output will both operate. The Alarm Output time is adjustable between 0-3
minutes with the default being 1 minute.
Alarm output time
To set the alarm output time (0~3
minutes) Factory default is 1 minute
9 0 3 #
Keypad Lockout & Alarm Output options. If there are 10 invalid cards or 10
incorrect PIN numbers in a 10 minute period either the keypad will lockout for 10
minutes or the alarm will operate for 10 minutes, depending on the option selected
below.
Toreset the Door Open Too Long warning
To set the facility code
Close the dooror Read valid cardor Master Code #
To set the facility code of W1/W3-
B
(This operation might be required
when W1/W3-B is acting as
wiegand reader and connecting to
8 Facility code # Repeat Facility code #
Facility Code can be any number between
1~255 (Default: 0)
11 Interconnecting Two Devices
11.1 W1/W3-B operating as a Wiegand Output Reader
In this mode the W1/W3-B supports a Wiegand 26 bit output so the Wiegand data lines
can be connected to any controller which supports a Wiegand 26 bit input. See figure 1.
• •
• •
••••••
••••
••••
W1/W3-B
•••
•••••
•••••
• •
•••
• •
Controller
• •
• •
•••
•••
• •
• •
Power
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
(With Wiegand 26 inPut)
Transmission Format:
1: Keypad Transmission
The Reader will transmit the PIN data when it receives the last key (#) press after
PIN code.
Format:Facility Code + PIN Code
(Facility code is any digits between 0~255, factory default is 0; Pin code is any 1~4
digits between 0~9999)
Example:Facility code: 1
PIN code: 5678
Press 5678 #, then the output format will be: 00105678
2: Proximity Card Transmission
The Reader will transmit the card data when it reads the Card.
Format:Card Number (the last 8 digits of Card Number)
Remarks:No matter the card or pin is valid or invalid, the data will be transmitted
11.2 W1/W3-B operating as a Controller
In this mode the W1/W3-B supports a Wiegand 26 bit input so an external Wiegand
device with a 26 bit output can be connected to the Wiegand input terminals on the
W1/W3-B. Either an ID card reader (125KHZ) or an IC card reader (13.56MHZ) can
be connected to the W1/W3-B. Cards are required to be added at the external reader,
except where an external EM reader is used, in this case cards can be added at either
reader or controller. See figure 2.
• • • •
• • • •
••••••
••••
••••
•• •••
W1/W3-B
Door detecting switch
••
••
•
•
Special Power Supply
Alarm
•••
•••••
•••••
• •
•••
• •
• • • •• • • • • • • • ••
• •
•••
• •• •
Green
White
Grey
Yellow
Brown
Red
Black
Blue
Purple
Orange
Pink
Exit button
Wiegand reader
Fail-Secure lock
Fail-Secure lock
1 User ID number # PIN #
Add the card as for a card user
Press* to exit from theprogramming mode
Then allocate the card a PIN as follows:
* Read Card 1234 # PIN # PIN #
W1-B
