Dometic PERFECTWALL PW1100 User manual

PW1100
Awning
Operating manual . . . . . . . . . . . . . . . . . . . . 11
Markise
Bedienungsanleitung . . . . . . . . . . . . . . . . .20
Store extérieur
Notice d’utilisation . . . . . . . . . . . . . . . . . . .29
Toldo
Instrucciones de uso . . . . . . . . . . . . . . . . . .38
Toldo
Manual de instruções . . . . . . . . . . . . . . . . .47
Tenda da sol e
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .56
Zonnescherm
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . .65
Markise
Betjeningsvejledning . . . . . . . . . . . . . . . . .74
Markis
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . .82
Markise
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . . 91
Markiisi
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . .100
Маркиза
Инструкция по эксплуатации . . . . . . . . . 109
Markiza
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 119
Markíza
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 128
Markýza
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 137
Előtető
Használati utasítás. . . . . . . . . . . . . . . . . . . 146
Markiza
Navodilo za uporabo . . . . . . . . . . . . . . . . 155
Τέντα
Οδηγίες χειρισμού . . . . . . . . . . . . . . . . . . 164
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
SL
EL
AWNINGS
PERFECTWALL
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 1 Freitag, 19. Februar 2021 1:09 13

© 2021 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 2 Freitag, 19. Februar 2021 1:09 13

PW1100
3
4x
1
1.5 m
2.
1.
1/4
3.
2
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 3 Freitag, 19. Februar 2021 1:09 13

PW1100
4
1.
2.
3.
5.
4.
CLICK
3
0,5 m
5.
H
1. 2. 4.
3.
4
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 4 Freitag, 19. Februar 2021 1:09 13

PW1100
5
5
H
H-10 cm
1. 3.
2.
10 cm
5.
4.
6
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 5 Freitag, 19. Februar 2021 1:09 13

PW1100
6
2.
1.
3.
4.
7
H
H-10 cm
1. 3.
2. 5.
4.
8
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 6 Freitag, 19. Februar 2021 1:09 13

PW1100
7
9
1.
2.
1.
0
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 7 Freitag, 19. Februar 2021 1:09 13

PW1100
8
a
AB
4.
1. 2. 3.
b
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 8 Freitag, 19. Februar 2021 1:09 13

PW1100
9
0,5 m
1.5 m
2.
1.
c
4.
1. 2. 3.
d
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 9 Freitag, 19. Februar 2021 1:09 13

PW1100
10
3.
4.
6.
2.
1.
5.
e
15 – 20 Nm
f
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 10 Freitag, 19. Februar 2021 1:09 13

EN
PW1100 Explanation of symbols
11
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit docu-
ments.dometic.com, dometic.com.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Operating the awning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
1 Explanation of symbols
!
A
I
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 11 Freitag, 19. Februar 2021 1:09 13

EN
Safety instructions PW1100
12
2 Safety instructions
Please observe the safety instructions and stipulations issued by the
vehicle manufacturer and service workshops.
2.1 General safety
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Health hazard
• The awning must be installed in accordance with the Dometic installa-
tion manual by a qualified technician with sufficient technical knowl-
edge for installing components in vehicles.
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children must be supervised to ensure that they do not play with the
device.
2.2 Operating the awning safely
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Health hazard
• Do not touch moving parts while operating the awning. There is a dan-
ger of injuries from moving parts.
• Before starting your journey, check that the awning is fully retracted.
Never move the vehicle when the awning is open.
• Never drive with the crank inserted. Remove the crank before starting
your journey.
• Do not drive the vehicle if the fabric is damaged or torn, even if the
awning has been properly retracted. The awning arms are held in
place by the fabric. If the fabric rips while driving, the awning will
suddenly shoot out. This can lead to serious injury. Secure the awning
so that it cannot extend suddenly and unexpectedly while driving.
•Donot open the awning while driving.
•Donot open the awning in strong winds or snowfall.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 12 Freitag, 19. Februar 2021 1:09 13

EN
PW1100 Safety instructions
13
• Retract the awning if strong winds, heavy rain or snowfall are
imminent.
• Make sure that water or snow does not accumulate on the fabric.
Otherwise this could damage the awning or the awning arms could
collapse and cause severe injury or fatality.
• Do not approach the awning
– if it was left open during heavy winds
– if pools of water have formed on it
– if snow has accumulated on it
– if any debris is on the awning fabric.
The awning may move unexpectedly, become unstable and bend or
break.
• Do not leave the extended awning unattended. Retract the awning
before leaving your location.
• Keep a safe distance away from the awning when having barbecues or
open fires. The fabric can be damaged by heat or catch fire.
ANOTICE! Damage hazard
• Park the motorhome or caravan so that no debris (branches, leaves or
similar) can get onto the fabric.
• The fabric of the awning should not hang down at the edges but must
be taut at all times. If the fabric hangs down, it could rub on the arms
and get damaged.
The fabric should not sag in the middle with long awnings.
• Only retract the awning, when the fabric is free of debris (branches,
leaves or similar). Otherwise the awning can be damaged when it is
retracted.
• Keep the awning free of dirt to prevent abrasions, stains and mildew.
• Only retract the awning if it is wet for safety reasons. Extend it again as
soon as possible. Otherwise, mildew or stains can form or the color
may fade.
• Never bend an awning arm or the cover down to drain water off the
awning. This can bend the awning and impair its function.
• Do not hang any objects on the awning, on the front cover or the
awning arms.
• Do not use any sprays (e. g. insect repellent, hairspray) near the
awning. This will soil the fabric or the water-repellent effect of the
fabric will be lost.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 13 Freitag, 19. Februar 2021 1:09 13

EN
Scope of delivery PW1100
14
• If there is insufficient space above the door after the awning is
mounted, the door must remain closed when retracting or extending
to avoid the door making contact with the arms or the front panel.
The required space depends on the design of the door (door width,
swing or sliding door) as well as the set awning angle of inclination.
3Scopeofdelivery

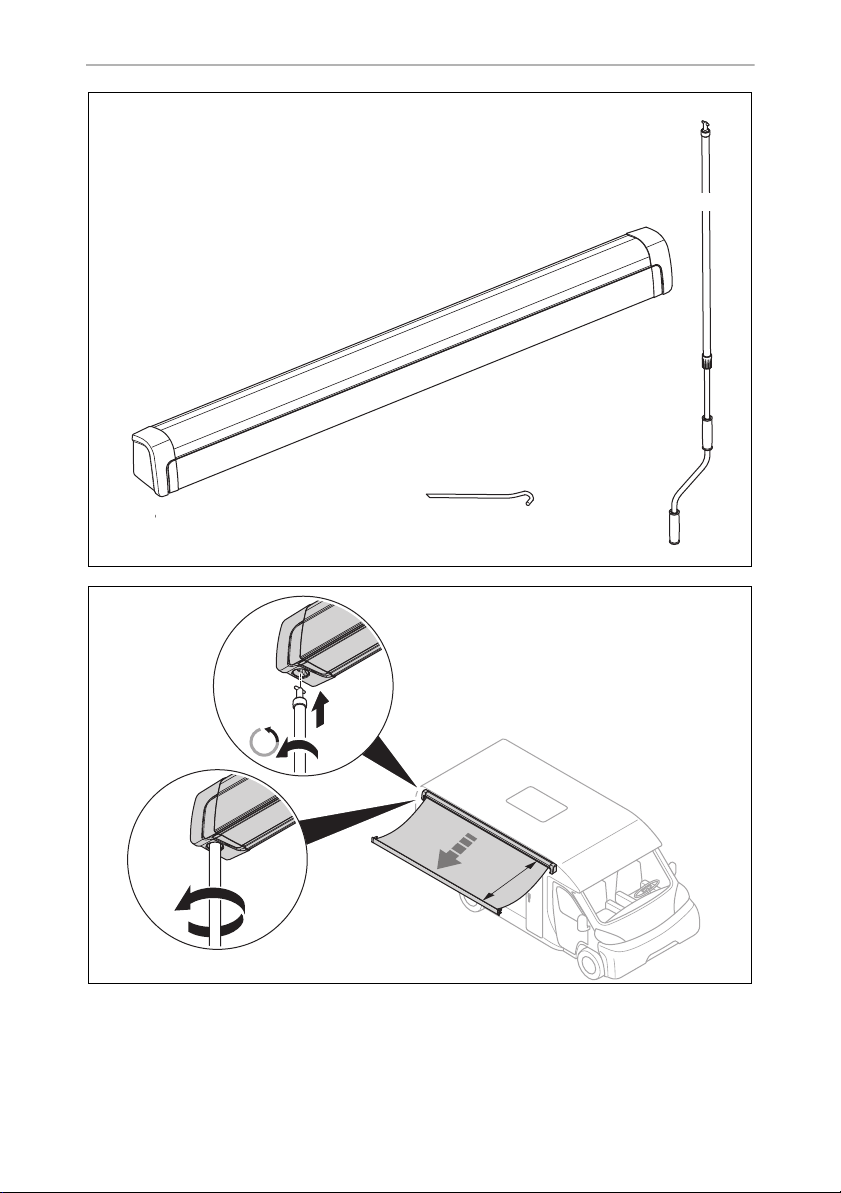

See fig. 1, page 3.
4 Intended use
The PW1100 awning is suitable for installation on motor homes or caravans.
The awning may only be used while the vehicle is stationary.
This product is only suitable for the intended purpose and application in accordance
with these instructions.
This manual provides information that is necessary for proper installation and/or
operation of the product. Poor installation and/or improper operating or mainte-
nance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
5 Technical description
The PW1100 awning can be extended and retracted using a hand crank.
The awning is secured on the side of the vehicle or on the ground using support legs.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 14 Freitag, 19. Februar 2021 1:09 13

EN
PW1100 Operating the awning
15
6 Operating the awning
Observe the safety instructions in chapter “Safety instructions” on page 12.
6.1 Note on the vehicle location
A
6.2 Extending the awning
!

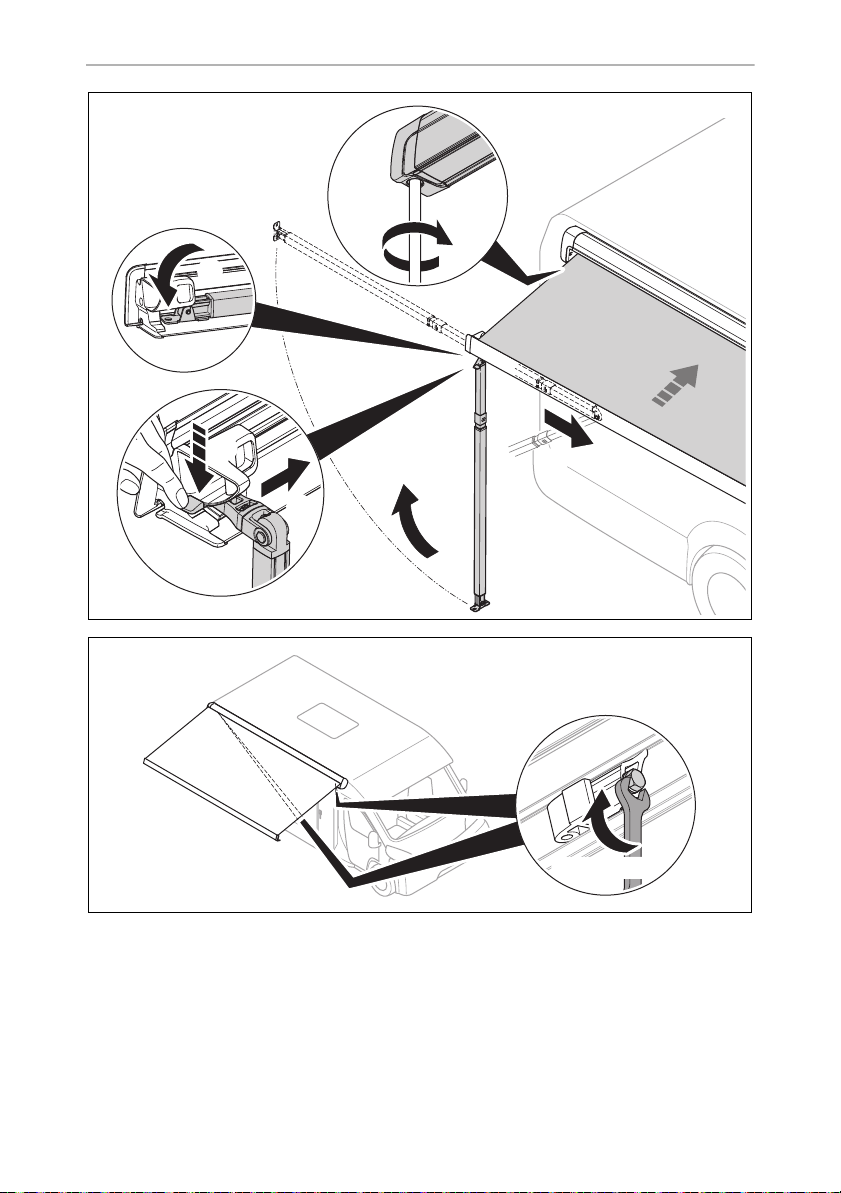

➤Proceed as shown (fig. 2, page 3 to fig. 4, page 4).
A
Positioning the support legs on the ground
!

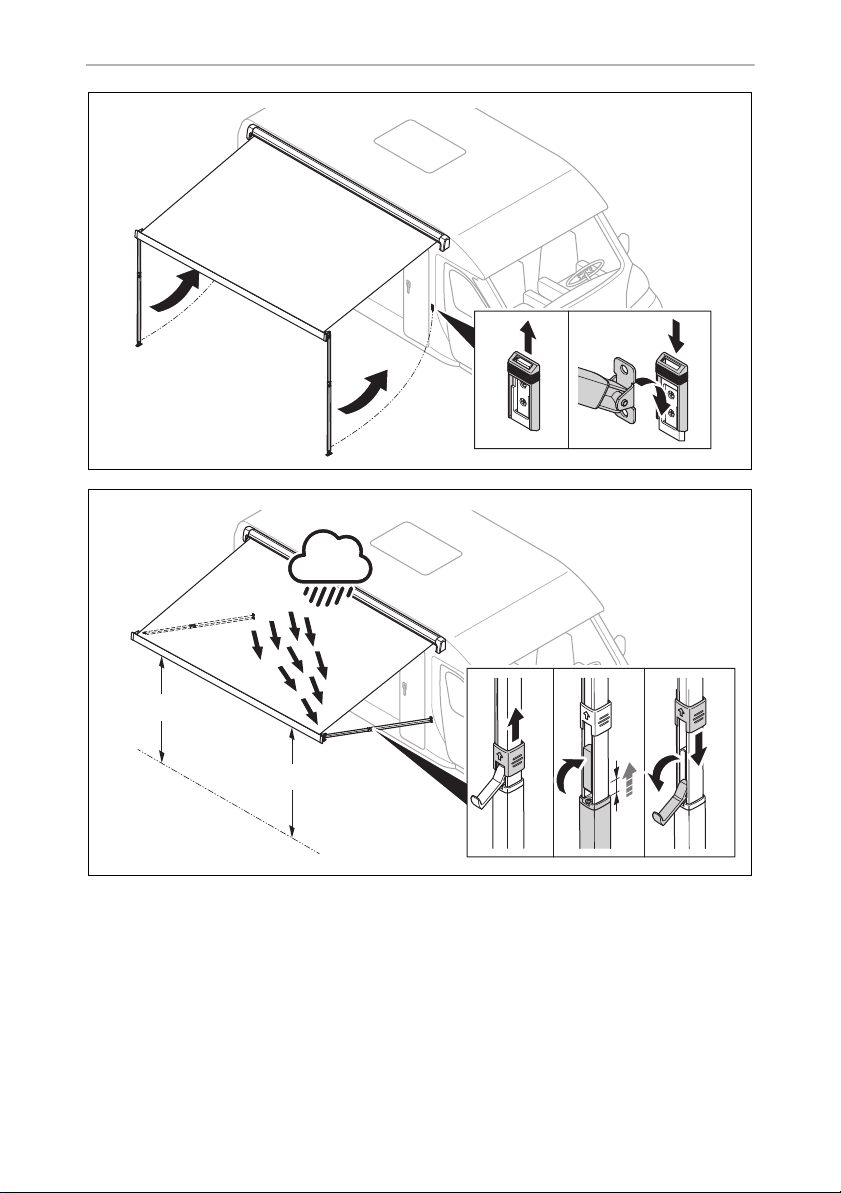

➤Proceed as shown (fig. 5, page 5 and fig. 6, page 5).
Securing the support legs on the vehicle
You can secure the awning on your vehicle directly if you have already mounted the
latches for the support legs.

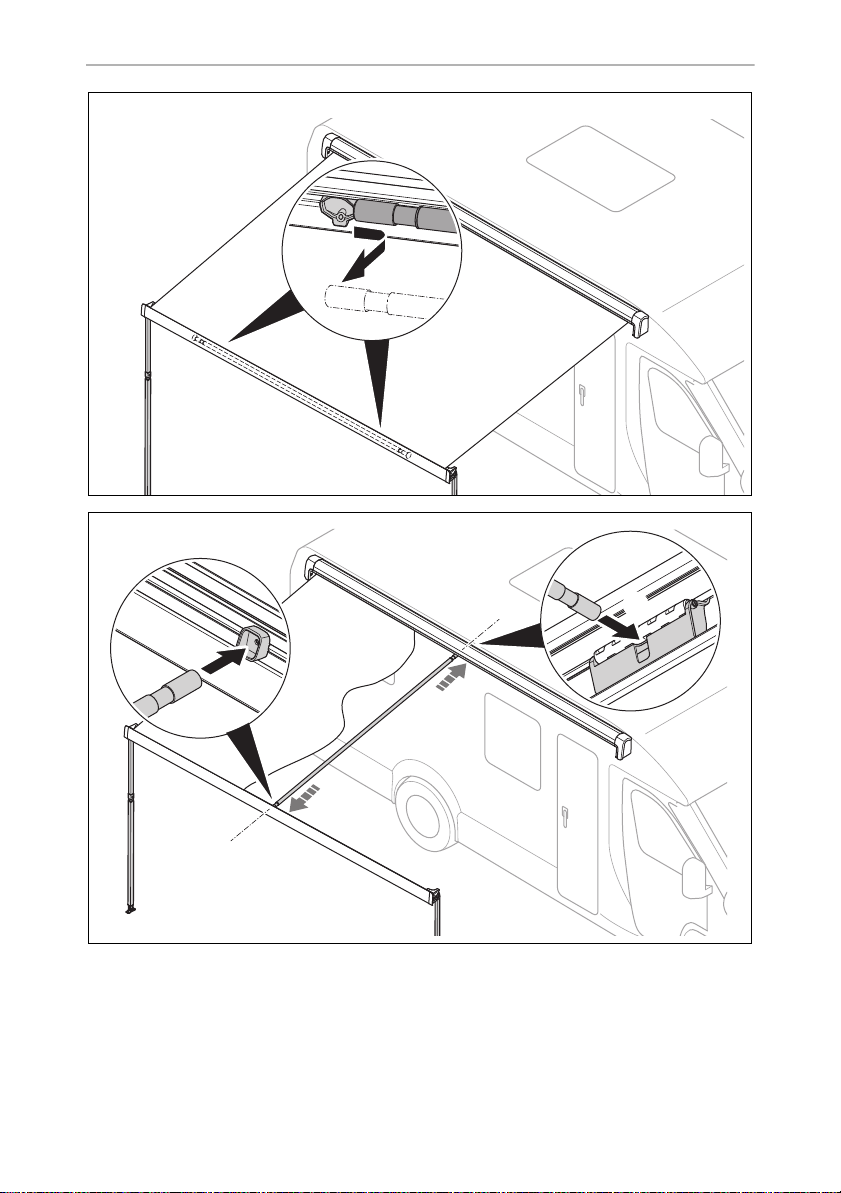

➤Proceed as shown (fig. 7, page 6 and fig. 8, page 6).
NOTICE!
• Park the vehicle so that no debris (branches, leaves or similar) gets on
to the fabric.
• Keep the awning free of dirt to prevent abrasions, stains and mildew.
WARNING! Beware of injury
Keep a sufficient distance from objects or other vehicles. Once it is
retracted, it should be at least 40 cm away from other objects and
vehicles on all sides.
NOTICE! Beware of damage
The fabric of the awning should not hang down at the edges, and must
remain taut at all times. If the fabric hangs down, it could rub against the
arms and become damaged.
The fabric used for long awnings may sag in the middle.

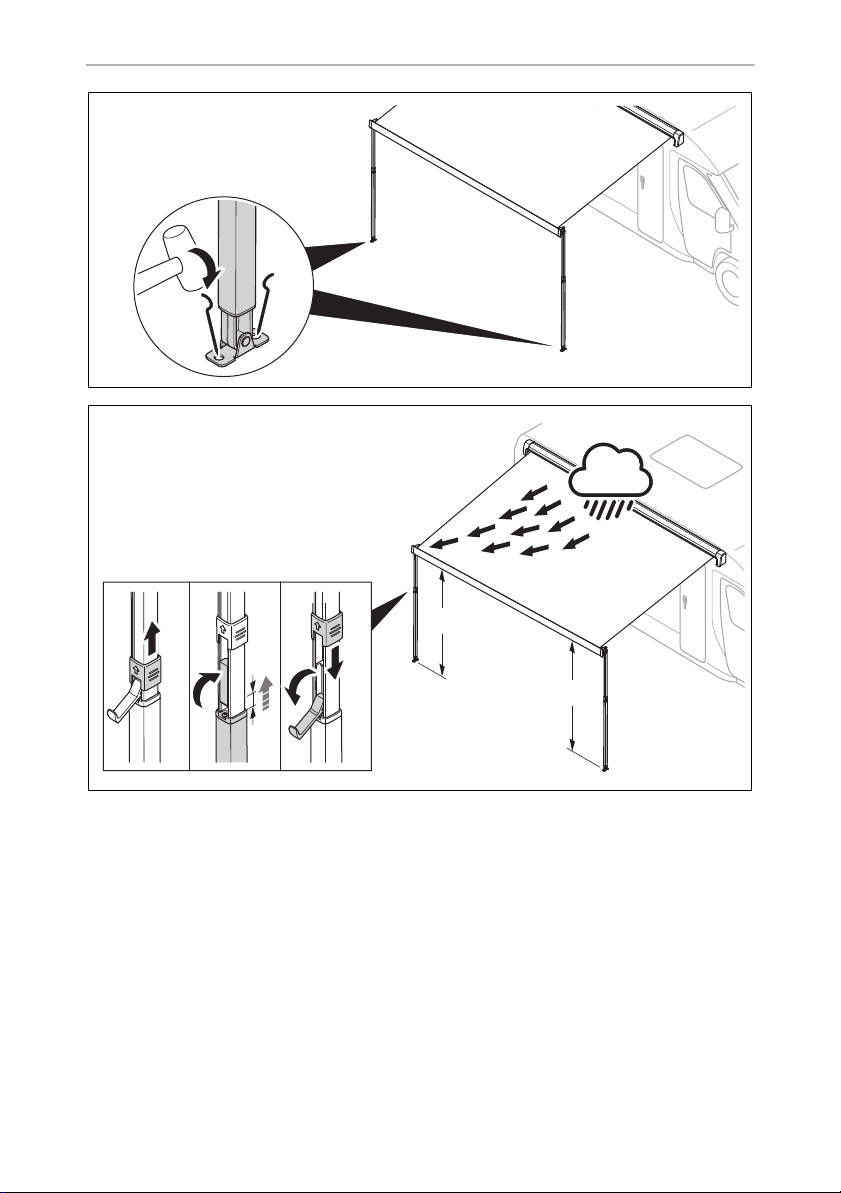

WARNING! Beware of injury
• Only position the support legs on solid ground.
• Secure the support legs from slipping.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 15 Freitag, 19. Februar 2021 1:09 13

EN
Cleaning and maintenance PW1100
16
Mounting the tension rafter
Awnings with a length of 4 metres or more need to have a tension rafter fitted in the
middle of the awning. This prevents the awning from sagging.
➤Proceed as shown (fig. 9, page 7 and fig. 0, page 7).

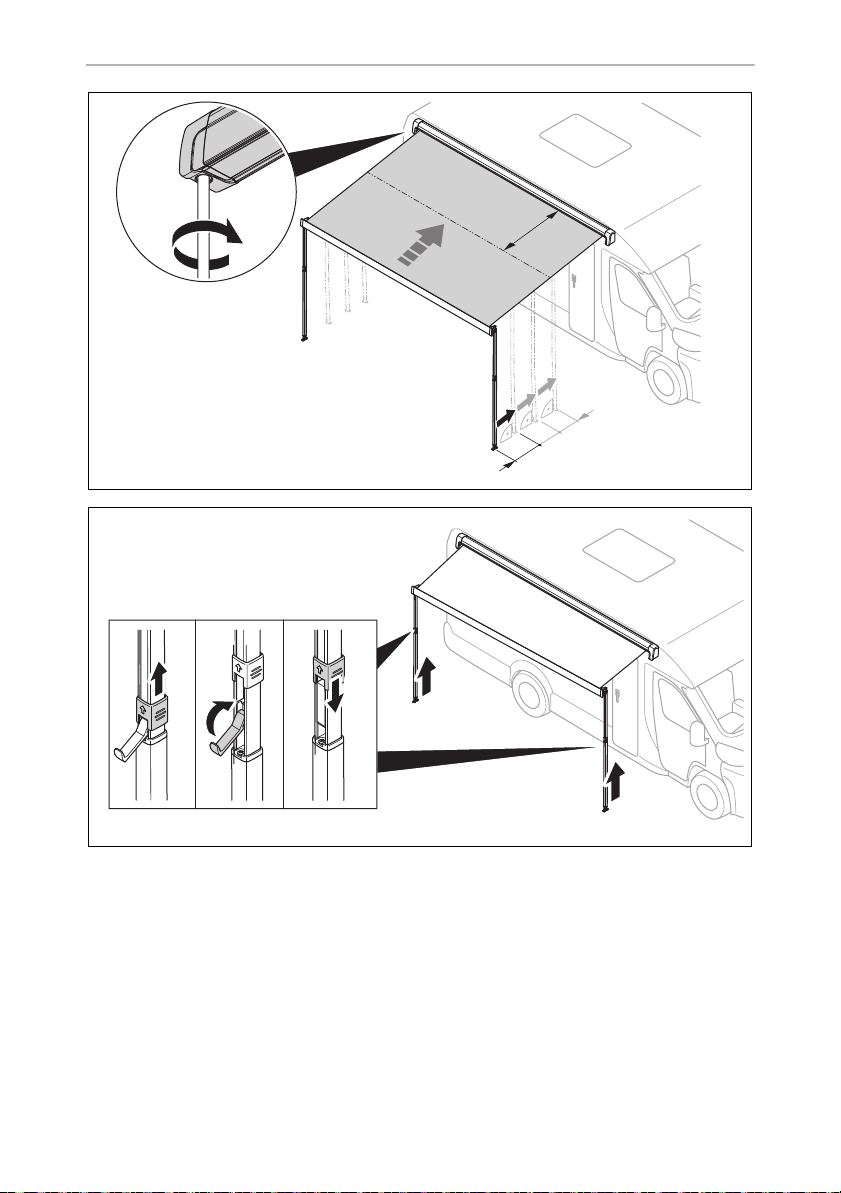

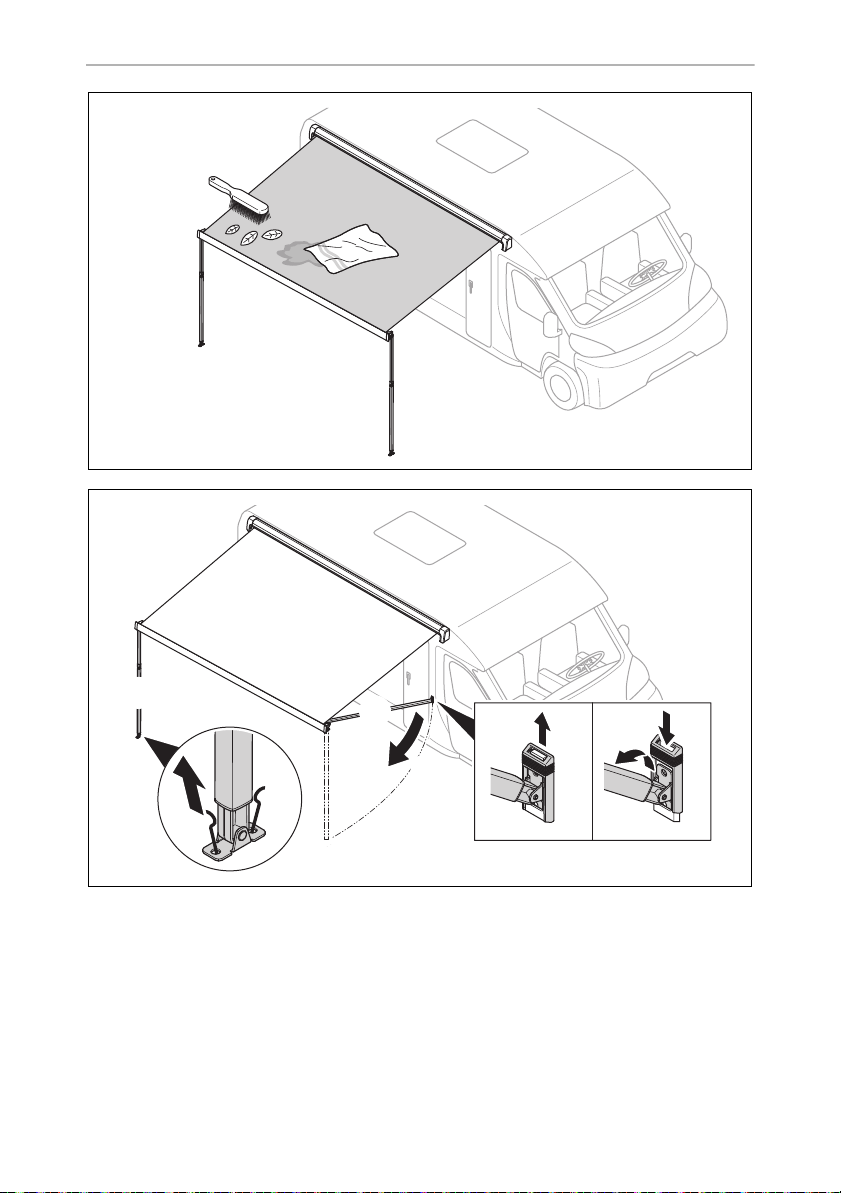

6.3 Retracting the awning
A
➤Proceed as shown (fig. a, page 8 to fig. e, page 10).
7 Cleaning and maintenance
7.1 Cleaning
A
➤Remove any debris (twigs, leaves or similar) lying on the awning fabric to prevent
abrasions, stains and mildew. The awning can also be damaged when it is
retracted.
NOTICE!
• Only retract the awning when the fabric is free of debris (branches,
leaves or similar). Otherwise the awning may be damaged when it is
retracted.
• Keep the awning free of dirt to prevent abrasions, stains and mildew.
• When retracting the awning, make sure that no branches or other
objects are trapped in it.
• If the awning is retracted when wet, extend it again and let the fabric
dry out at the next opportunity. If the wet fabric stays rolled up for a
long time, mildew will form and the fabric can fade.
NOTICE! Beware of damage
•Never clean the awning with a high-pressure cleaner.
• Do not use abrasive cleaning agents or hard objects during cleaning,
as these can damage the product.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 16 Freitag, 19. Februar 2021 1:09 13

EN
PW1100 Cleaning and maintenance
17
➤Clean the awning fabric regularly to remove any dirt and dust:
– To do this, use water with 30 ml detergent and 30 ml bleach for 10 l of water.
– Soap down the fabric and leave the liquid to soak in for five minutes.
– Rinse thoroughly with clean water.
Make sure that the detergent with the bleach is completely washed off.
Otherwise it can damage the fabric.
– Leave the fabric to dry.
I
7.2 Lubricating
➤If required, lubricate the joints of the awning with paraffin wax, teflon oil or
silicone oil.
7.3 Checking
!
1. Check the awning regularly for any imbalance and wear, as well as damage to
major parts.
2. Check the awning regularly:
– Is the fabric free of damage?
– Are the arms and lead rail free of damage with no signs of wear?
– Does the awning close properly?
I
NOTE
The manufacturer recommends:
To clean the cloth use the Dometic awning cleaner
(ref. no. 9600000165, available from your service partner).
WARNING!
Do not use the awning if any settings or maintenance work are required.
If you discover any damage, please contact a service partner in the
respective country (see addresses on the back of the manual).
NOTE
Dometic accessories such as sealing joints or foam strips are subject to
environmental wear and tear. This is not an evidence of poor quality.
To ensure the function of these parts, Dometic recommends replacing
rubber seals and foam strips every 5 years.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 17 Freitag, 19. Februar 2021 1:09 13

EN
Warranty PW1100
18
7.4 Tighten up the screws on the rear hinge
The screws on the rear hinge must be re-tightened after being subjected to a load for
the first time:
• after the first holiday using the awning
• after driving 20000 km or six months after the awning was installed
(whichever occurs first)
The screws on the rear hinge also need to be checked during the routine vehicle
inspection.
Contact your service partner to re-tighten the screws (fig. f, page 10).
7.5 Patching small holes in the fabric
You can patch any small holes in the fabric or parts where the coating has come off:
➤Use a cotton cloth to rub around the damaged area with a small amount of liquid
vinyl plaster (ref. no. 9103104018, available from your service partner).
✔The liquid vinyl plaster dissolves the coating. The coating seals the hole when it
dries.
➤Wait until the area is dry before you retract the awning again.
8Warranty
The statutory warranty period applies. If the product is defective, please contact your
retailer or the manufacturer's branch in your country (see dometic.com/dealer).
For repair and warranty processing, please include the following documents when
you send in the product:
• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 18 Freitag, 19. Februar 2021 1:09 13

EN
PW1100 Disposal
19
9Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
10 Technical data
PerfectWall PW1100
Width: 2.6 m 3 m 3.5 m 4 m 4.5 m
Extended: 2 m 2.5 m 2.5 m 2.5 m 2.5 m
Weight: 17kg 20kg 23kg 25.5kg 28.5kg
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 19 Freitag, 19. Februar 2021 1:09 13

DE
Erklärung der Symbole PW1100
20
Lesen und befolgen Sie bitte alle Anweisungen, Richtlinien und Warnhinweise in diesem Produkthandbuch sorgfältig, um sicherzustellen,
dass Sie das Produkt ordnungsgemäß installieren und stets ordnungsgemäß betreiben und warten. Diese Anleitung MUSS bei dem Produkt
verbleiben.
Durch die Verwendung des Produktes bestätigen Sie hiermit, dass Sie alle Anweisungen, Richtlinien und Warnhinweise sorgfältig gelesen
haben und dass Sie die hierin dargelegten Bestimmungen verstanden haben und ihnen zustimmen. Sie erklären sich damit einverstanden,
dieses Produkt nur für den angegebenen Verwendungszweck und gemäß den Anweisungen, Richtlinien und Warnhinweisen dieses Pro-
dukthandbuchs sowie gemäß allen geltenden Gesetzen und Vorschriften zu verwenden. Eine Nichtbeachtung der hierin enthaltenen Anwei-
sungen und Warnhinweise kann zu einer Verletzung Ihrer selbst und anderer Personen, zu Schäden an Ihrem Produkt oder zu Schäden an
anderem Eigentum in der Umgebung führen. Dieses Produkthandbuch, einschließlich der Anweisungen, Richtlinien und Warnhinweise,
sowie die zugehörige Dokumentation können Änderungen und Aktualisierungen unterliegen. Aktuelle Produktinformationen finden Sie
unter documents.dometic.com, dometic.com.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Markise bedienen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7 Reinigung und Pflege . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Garantie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
1 Erklärung der Symbole
!
A
I
WARNUNG!
Sicherheitshinweis auf eine Gefahrensituation, die zum Tod oder zu
schwerer Verletzung führen kann, wenn sie nicht vermieden wird.
ACHTUNG!
Hinweis auf eine Situation, die zu Sachschäden führen kann, wenn sie
nicht vermieden wird.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
DometicPW1100_OPM_4445102591_EMEA18_20xx-xx-xx.book Seite 20 Freitag, 19. Februar 2021 1:09 13
