netvox RA0716 User manual

Model：RA0716_R72616_RA0716Y
Wireless PM2.5/Temperature/Humidity Sensor
Wireless PM2.5 / Temperature /
Humidity Sensor
User Manual
Copyright©Netvox Technology CO.., Ltd.
This document contains proprietary technical information which is the property of
NETVOX Technology. It shall be maintained in strict confidence and shall not be
disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

1
Table of Content
1. Introduction.................................................................................................................2
2.Appearance..................................................................................................................3
3. Main Features .............................................................................................................4
4. Set up Instruction........................................................................................................5
5. Data Report.................................................................................................................7
6. Installation ..................................................................................................................9
7. Important Maintenance Instruction ..........................................................................11

2
1. Introduction
RA0716_R72616_RA0716Y is a ClassA type device based on the LoRaWAN open protocol of
Netvox and is compatible with the LoRaWAN protocol.
RA0716_R72616_RA0716Y can be connected to a variety of sensors. A variety of sensor
combinations are required.
As detectors for PM2.5, temperature and humidity, the values collected by the sensor are reported to
the corresponding gateway.
LoRa Wireless Technology:
LoRa is a wireless communication technology dedicated to long distance and low power
consumption. Compared with other communication methods, LoRa spread spectrum modulation
method greatly increases to expand the communication distance. Widely used in long-distance,
low-data wireless communications. For example, automatic meter reading, building automation
equipment, wireless security systems, industrial monitoring. Main features include small size, low
power consumption, transmission distance, anti-interference ability and so on.
LoRaWAN:
LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure
interoperability between devices and gateways from different manufacturers.

3
Temperature & Humidity sensor
Indicator
DC in
PM2.5 sensor
Button
Waterproof cover
Built-in battery pack
Built-in PM2.5, Temperature & Humidity
Solar panel

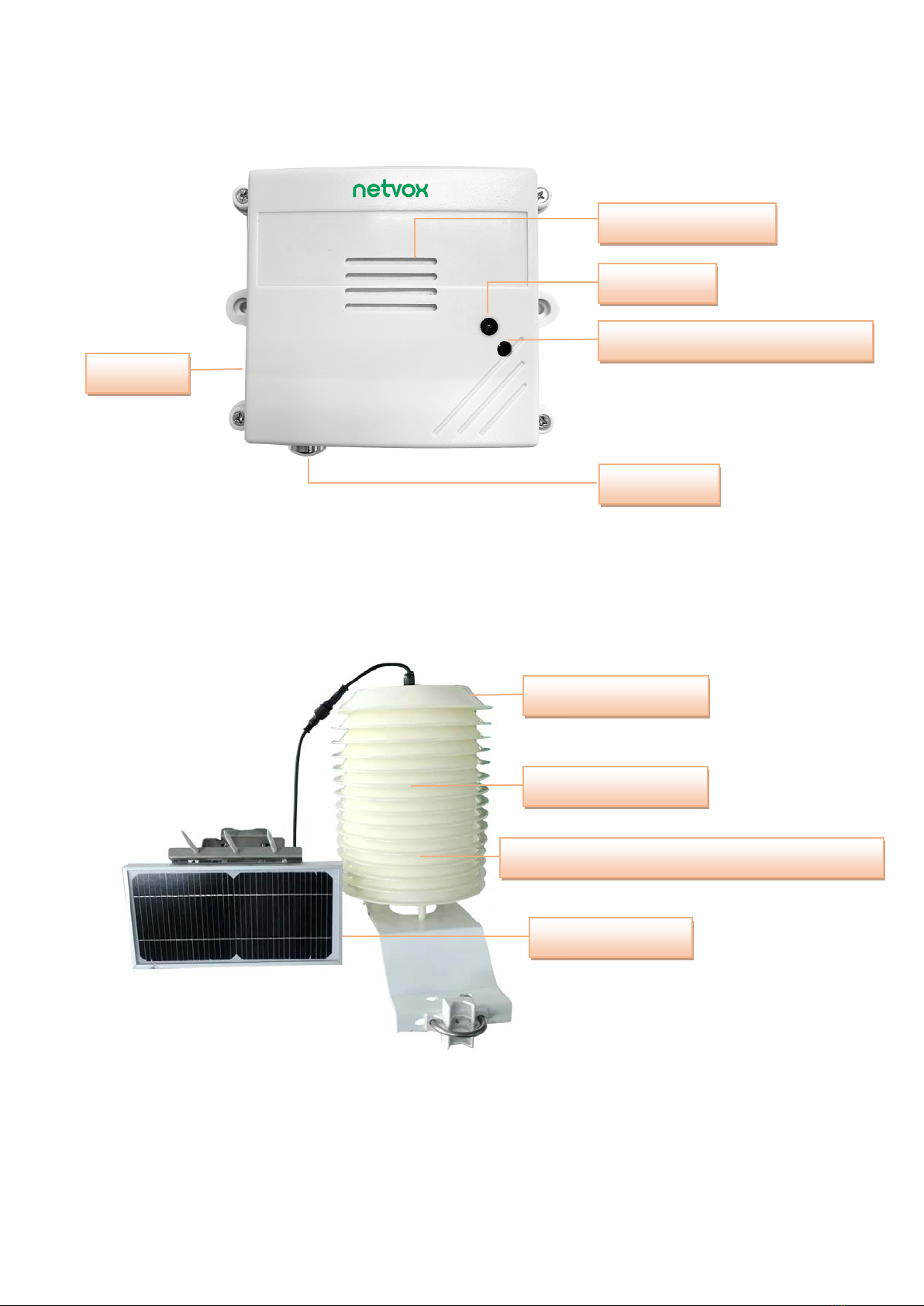

2. Appearance
Figure 1 RA0716
Figure 2 R72616

4
Built-in PM2.5, Temperature & Humidity
Power Cable
Figure 3 RA0716Y
3. Main Features
Compatible with LoRaWAN
RA0716 and RA0716Y powered by DC 12V adapters
R72616 powers solar and rechargeable lithium batteries
Easy set up and installation
PM2.5, Temperature and Humidity detection
Adopt SX1276 wireless communication module

5
4. Set up Instruction
On/Off
Power on RA0716 and RA0716Y are connected to the DC 12V adapter for power-
on;
R72616 applies solar and rechargeable lithium batteries.
Turn on
Power on to turn on.
Power off Remove power
Note:
1. Engineering test modes require the program engineering test software.
2. On/off interval is suggested to be about 10 seconds to avoid the
interference of capacitor inductance and other energy storage
components.
Network Joining
Never joined the network
(Or at factory setting )
Turn on the device to search the network.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Had joined the network
(Not at factory setting.)
Turn on the device to search the previous network.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Fail to join the network
(when the device is on)
First two mins: wake up every 15 seconds to send request.
After two mins: enter sleeping mode and wake up every 15 minutes to send
request.
Note: Suggest to remove batteries if the device is not used to save power.
Suggest to check the device verification information on the gateway
or consult your platform server provider.
Function Key
Press and hold for 5
seconds
Restore to factory setting
The green indicator flashes for 20 times: success
The green indicator remains off: fail
Press once
The device is in the network: the green indicator flashes once and the
device sends a data report
The device is not in the network: green indicator remains off
Low Voltage Threshold
Low Voltage Threshold 10.5 V (R72616)

6
Restore to Factory Setting
Description
RA0716_R72616_RA0716Y has the power-down save network information memory
function.
This feature is turned off by default, that is, it will be re-joined every time it is powered
back on.
It can be turned on by the ResumeNetOnOff command.
At this time, each time the power is rewritten, the last networking information will be
recorded (including saving the network address information assigned to it, etc., if users
want to join a new network, they need to perform a factory reset operation before that.),
will not re-join.
Operation 1. Press and hold the function key for 5 seconds to release and the LED flashes 20 times.
2. The device automatically restarts to start re-join.

7
5. Data Report
The device will immediately send a version packet report along with an uplink packet including
temperature, humidity, voltage and PM2.5 value.
The device sends data in the default configuration before any configuration is done.
ReportMaxTime:
RA0716 / RA0716Y is 180s
R72616 is 900s (subject to factory settings)
Value must be greater than ReportMinTime ≧ ReportType count *ReportMinTime + 10 ,units: seconds
ReportMinTime: 30s;
ReportChange: 0;
ReportType count = 1;
Note:
(1) The device report interval will be programmed base on the default firmware which may vary.
(2) The interval between two reports must be the Maxtime
(3) ReportChange is not supported by RA0716_R72616_RA0716Y (Invalid configuration)
(4) Report cycle will be based on ReportMaxTime period when sending data packet (beginning to
the end of the first data as a period).
(5) Data packet: temperature,humidity,voltage and PM2.5
(6) It would take about 35 seconds for the PM2.5 sensor to sample and process the collected PM2.5
value after being powered
(7) The device also supports Cayenne's TxPeriod cycle configuration instructions. Therefore, the
device can also perform a report according to the cycle time of the TxPeriod value; and
whether the report period is ReportMaxTime or TxPeriod will be depending on which cycle
time is configured last time;
(8) It would take about 35 seconds for the PM2.5 sensor to sample and process the collected PM2.5
value if you were to manually trigger the device by pressing the button, please be patient.
The device reported data parsing please refer to
Netvox LoraWAN Application Command document and Netvox Lora Command Resolver
http://www.netvox.com.cn:8888/page/index

8
Report Configuration
(1) Configure RA0716 device parameters MinTime = 30s, MaxTime = 120s (120>30*1+10)
Downlink: 0135001E00780000000000
Device returns:
8135000000000000000000 (configuration is successful)
8135010000000000000000 (configuration failed)
(2) Read RA0716 device parameters
Downlink: 0235000000000000000000
Device returns:
8235001E00780000000000 (device current parameter)
Description Device CmdID DeviceType NetvoxPayLoadData
Config
ReportReq
RA0716
R72616
RA0716Y
0x01
0x35
0x36
0x37
MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
Reserved
(5Bytes,Fixed 0x00)
Config
ReportRsp 0x81 Status
(0x00_success)
Reserved
(8Bytes,Fixed 0x00)
Read Config
ReportReq 0x02 Reserved
(9Bytes,Fixed 0x00)
ReadConfig
ReportRsp 0x82 MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
Reserved
(5Bytes,Fixed 0x00)

9
6. Installation
1. The RA0716 does not have a waterproof function. After the network joining is completed, please
place it indoor.
2. The R72616 product is waterproof. After the network-joining is completed, please leave it
outdoors.
(1) In the position to be installed, loosen the U-shaped screw of the bottom of the R72616 and the
mating washer nut, and fix the U-shaped screw through the appropriate size cylinder on the
R72616 fixed strut piece. Install the washer nut in order, lock the nut till R72616 body is stable
and does not shake.
(2) At the upper side of the fixed position of R72616, loosen the two U-shaped screws on the side of
the solar panel and the mating washer nut.
Fix the U-shaped screw through the appropriate size cylinder on the main bracket of the solar
panel, and install the gasket in sequence. Lock nut till the solar panel is stable and does not shake.
(3) Adjust the angle of the solar panel. After the adjustment is completed, lock the nut.
(4) Connect the R72616 top waterproof cable to the solar panel wiring and lock it tight.
(5) R72616 has a battery pack inside, users can buy and install rechargeable 18650 lithium battery, a
total of 3 sections, a single rechargeable lithium \ battery voltage 3.7V, capacity recommended
5000mah, the installation of rechargeable lithium battery steps are as follows:
1: Remove the four screws around battery cover
2: Insert three 18650 lithium batteries. (Please make sure the battery positive and negative)
3: Press the activation button on the battery pack for the first time.
4: After activation, close the battery cover and lock the screws around battery cover.
activation button

10

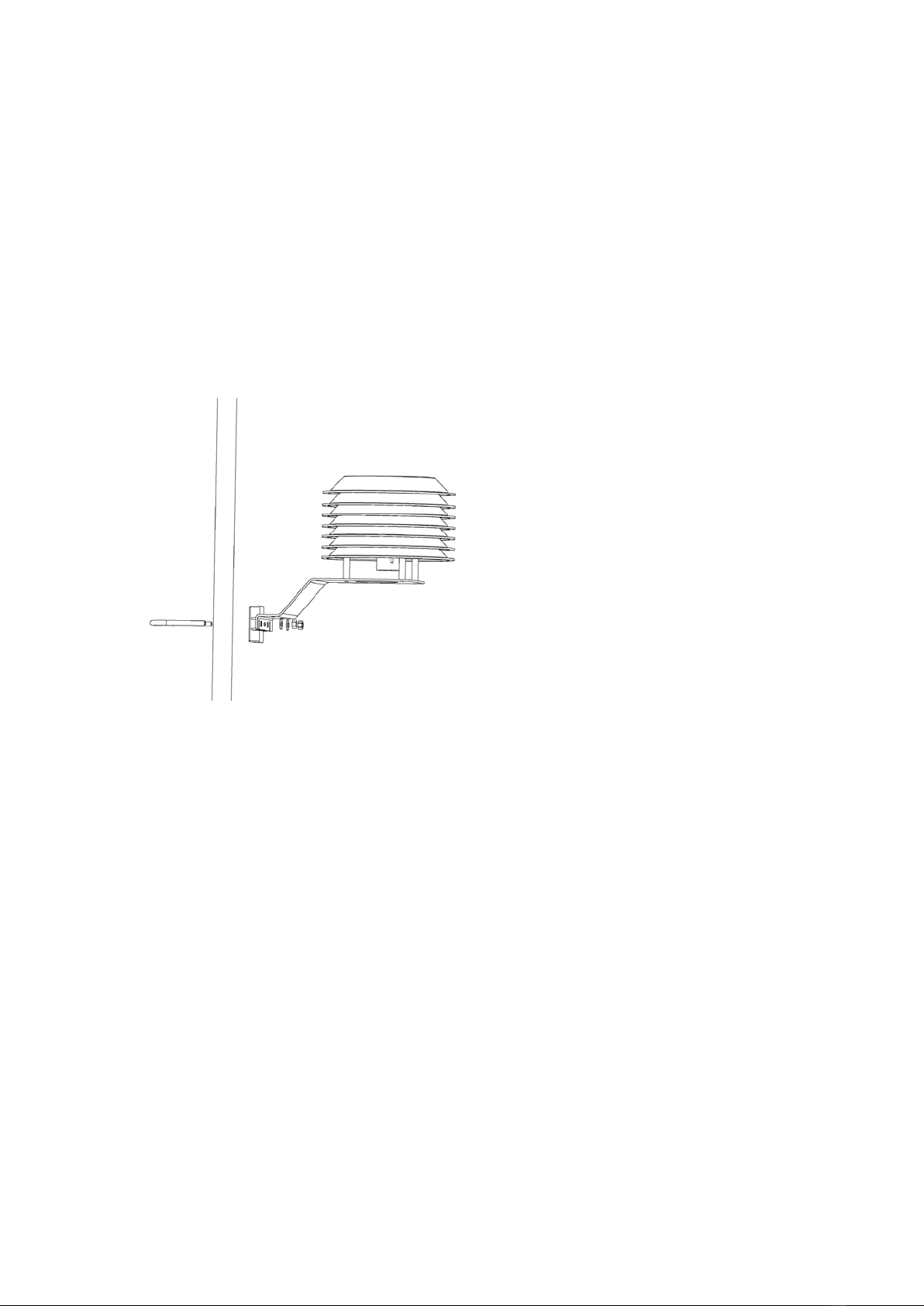

3. The RA0716Y product is waterproof and can be placed outdoors after the network-joining is
completed.
(1) In the position to be installed, loosen the bottom U-shaped screw of the RA0716Y and the mating
washer nut, and fix the U-shaped screw through the appropriate size cylinder on the RA0716Y
fixed strut piece. Install the washer nut in order, lock the nut till RA0716Y body is stable and does
not shake.
(2) Loosen the M5 nut at the bottom of the RA0716Y matte and take the matte together with the
screw.
(3) Plug the DC adaptor from the center through hole of the RA0716Y bottom cover, insert it into
the RA0716Y DC socket, and then return the mating screw to the original position and lock the
M5 nut tight.

11
7. Important Maintenance Instruction
Your device is a product of superior design and craftsmanship and should be used with care. The
following suggestions will help you use the warranty service effectively.
• Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that
can corrode electronic circuits. In case the device is wet, please dry it completely.
• Do not use or store in dusty or dirty areas. This can damage its detachable parts and electronic
components.
• Do not store in excessive heat. High temperatures can shorten the life of electronic devices, destroy
batteries, and deform or melt some plastic parts.
• Do not store in a cold place. Otherwise, when the temperature rises to normal temperature,
moisture will form inside, which will destroy the board.
• Do not throw, knock or shake the device. Rough handling of equipment can destroy internal circuit
boards and delicate structures.
• Do not wash with strong chemicals, detergents or strong detergents.
• Do not apply with paint. Smudges can block debris in detachable parts and affect normal operation.
• Do not throw the battery into a fire to prevent the battery from exploding. Damaged batteries may
also explode.
All of the above suggestions apply equally to your device, battery and accessories. If any device is
not working properly.
Please take it to the nearest authorized service facility for repair.
