netvox RA0730 User manual

Model: RA0730_R72630_RA0730Y
Wireless Wind speed sensor &Wind direction sensor &Temperature/Humidity Sensor
Wireless Wind speed sensor
& Wind direction sensor
& Temperature/Humidity Sensor
RA0730_R72630_RA0730Y
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

1
Table of Content
1.Introduction.................................................................................................2
2.Appearance..................................................................................................3
3.Main Feature ...............................................................................................3
4.Set up Instruction........................................................................................4
5.Data Report .................................................................................................5
6.Installation...................................................................................................7
6-1 The output value of Wind direction corresponds to wind direction ..7
6-2 Installation Method of Wind Direction Sensor..................................7
6-3 Installation..........................................................................................8
6-4 Rechargeable lithium battery ...........................................................10
7. Important Maintenance Instruction..........................................................11

2
1.Introduction
RA0730_R72630_RA0730Y is a ClassAtype device based on the LoRaWAN open protocol of Netvox and is compatible with the
LoRaWAN protocol.
RA0730_R72630_RA0730Y can be connected with the sensor of the wind speed, wind direction, temperature and humidity, the
values collected by the sensor are reported to the corresponding gateway.
LoRa Wireless Technology:
LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other
communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.
Widely used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation
equipment, wireless security systems, industrial monitoring. Main features include small size, low power consumption,
transmission distance, anti-interference ability and so on.
LoRaWAN:
LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and
gateways from different manufacturers.

3

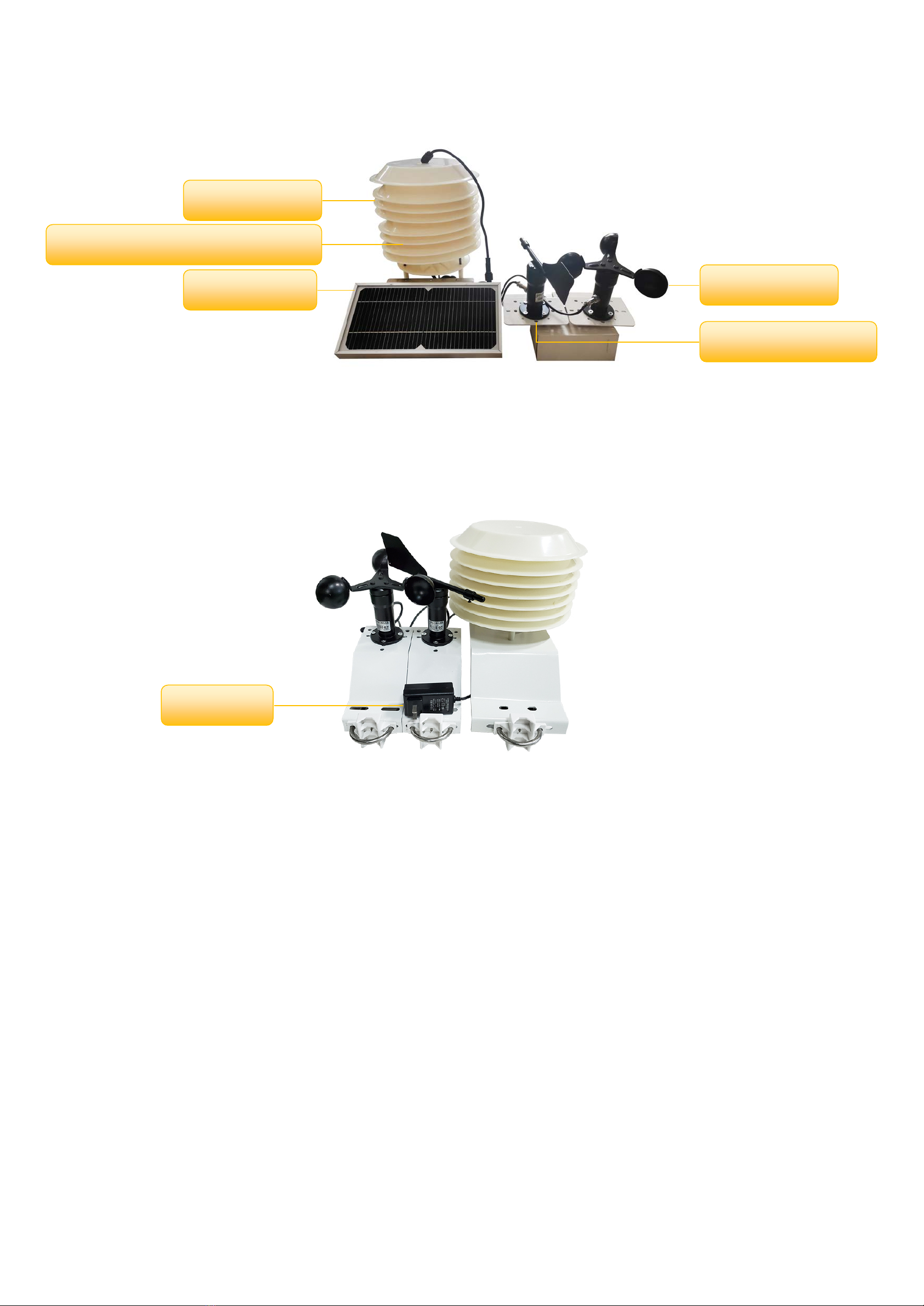

2.Appearance
R72630 Appearance
RA0730Y Appearance
3.Main Feature
Compatible with LoRaWAN
RA0730 and RA0730Y applies DC 12V adapters
R72630 applies solar and rechargeable lithium batteries
Simple operation and setting
Wind speed, wind direction, temperature and humidity detection
Adopt SX1276 wireless communication module
Solar panel
Built-in temperature and humidity sensor
Wind speed sensor
Wind direction Sensor
Waterproof cover
Adaptor

4
4.Set up Instruction
O
n/Off
Power On RA0730 and RA0730Y are connected to DC 12V adapter for power on.
R72630 applies solar and rechargeable lithium batteries.
Turn On Connect with power on to turn on
Restore to Factory Setting Press and hold the function key for 5 seconds till green indicator flashes for 20 times.
Power Off Disconnect from the power supply
*The engineering test requires to write the engineering testing software separately.
Network Joining
Note The interval between on and off is suggested to be about 10 seconds to avoid the interference
of capacitor inductance and other energy storage components.
Never Join the Network
Turn on the device to search the network.
The green indicator keeps on for 5 seconds: success.
The green indicator remains off: fail
Had joined the network
(Not in the original setting)
Turn on the device to search the previous network.
The green indicator keeps on for 5 seconds: success.
The green indicator remains off: fail.
Fail to Join the Network Suggest checking the device registration information on the gateway or consulting your
platform server provider if the device fails to join the network.
Function Key
Press and Hold for 5 Seconds
Restore to the original setting / Turn off
The green indicator flashes 20 times: success
The green indicator remains off: fail
Press once
The device is in the network: the green indicator flashes once and the device sends a data
report
The device is not in the network: the green indicator remains off
Low Voltage Threshold
Low Voltage Threshold 10.5 V

5
5.Data Report
After power on, the device will immediately send a version packet report and two data reports.
The device sends data according to the default configuration before any other configuring.
ReportMaxTime:
RA0730_ RA0730Y is 180s, R72630 is 1800s (subject to original setting)
ReportMinTime: 30s
ReportChange: 0
* The value of the ReportMaxTime should be greater than (ReportType count *ReportMinTime+10). (unit: second)
* ReportType count = 2
* The default of EU868 frequency is ReportMinTime=120s, and ReportMaxTime=370s.
Note:
(1) The cycle of the device sending the data report is according to the default.
(2) The interval between two reports must be the MaxTime.
(3) ReportChange is not supported by RA0730_R72630_RA0730Y (Invalid configuration).
The data report is sent according to ReportMaxTime as a cycle (the first data report is the start to the end of a cycle).
(4) Data pocket: wind speed, wind direction, temperature and humidity.
(5) The device also supports the TxPeriod cycle configuration instructions of Cayenne. Therefore, the device can
perform the report according to the TxPeriod cycle. The particular report cycle is ReportMaxTime or TxPeriod
depending on which report cycle was configured last time.
(6) It would take a while for the sensor to sample and process the collected value after pressing the button, please be patient.
The device reported data parsing please refer to Netvox LoraWAN Application Command document and Netvox Lora
Command Resolver http://loraresolver.netvoxcloud.com:8888/page/index
Threshold Restore to Factory Setting
Description
RA0730_R72630_RA0730Y has the function of the power-down saving the memory
of network-joining information. This function acquiesces in turn off, that is, it will
rejoin every time when it is power on. If the device is turned on by the
ResumeNetOnOff command, the last network-joining information will be recorded
when every time it is power on. (including saving the network address information
that it is assigned, etc.) If users want to join a new network, the device needs to
perform the original setting, and it will not rejoin the last network.
Operation Method
1. Press and hold the binding button for 5 seconds and then release
(release the binding button when the LED flashes), and the LED flashes 20 times.
2. The device automatically restarts to rejoin the network.

6
Example of ConfigureCmd
FPort：0x07
Bytes 1 1 Var (Fix =9 Bytes)
CmdID DeviceType NetvoxPayLoadData
CmdID– 1 byte
DeviceType– 1 byte – Device Type of Device
NetvoxPayLoadData– var bytes (Max=9bytes)
（1）Configure RA0730 device parameter MinTime = 30s, MaxTime = 3600s (3600>30*2+10)
Downlink: 0105001E0E100000000000
Device returns:
8105000000000000000000 (configuration success)
8105010000000000000000 (configuration failure)
（2）Read RA0730 device parameter
Downlink: 0205000000000000000000
Device return:
8205001E0E100000000000 (device current parameter)
Description Device CmdI
D
Device
Type NetvoxPayLoadData
ConfigRepo
rtReq
RA07 Series
R726 Series
RA07**Y Series
0x01
0x05
0x09
0x0D
MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit: s)
Reserved
(5Bytes, Fixed 0x00)
ConfigRepo
rtRsp 0x81 Status (0x00_success)
Reserved
(8Bytes, Fixed 0x00)
ReadConfig
ReportReq 0x02 Reserved (9Bytes, Fixed 0x00)
ReadConfig
ReportRsp 0x82 MinTime (2bytes Unit: s)
MaxTime
(2bytes Unit: s)
Reserved
(5Bytes, Fixed 0x00)

7
6.Installation
6-1 The output value corresponds to wind direction
Wind direction The output value
North-northeast 0x0000
Northeast 0x0001
East-northeast 0x0002
East 0x0003
East-southeast 0x0004
Southeast 0x0005
South-southeast 0x0006
South 0x0007
South-southwest 0x0008
Southwest 0x0009
West-southwest 0x000A
West 0x000B
West-northwest 0x000C
Northwest 0x000D
North-northwest 0x000E
North 0x000F
6-2 Installation Method of Wind Direction Sensor
Flange installation is adopted. The threaded flange connection makes the lower components of the wind direction sensor
firmly fixed on the flange plate. Four installation holes of Ø6mm are on the circumference of the chassis. The bolts are used to
tightly fix the chassis on the bracket to make the whole device keep in the best horizontal position to ensure the accuracy of the
wind direction data. The flange connection is convenient to use, can withstand greater pressure, and ensures that the aviation
connector is facing the direction of the north.
Aviation connector
N
S
EW
NE
SE
SW
NW NNE
ENE
ESE
SSE
SSW
WSW
WNW
NNW
0x0000
0x0001
0x0002
0x0003
0x0008 0x0007
0x0006
0x0005
0x0004
0x0009
0x000A
0x000B
0x000C
0x000D
0x000E
0x000F

8

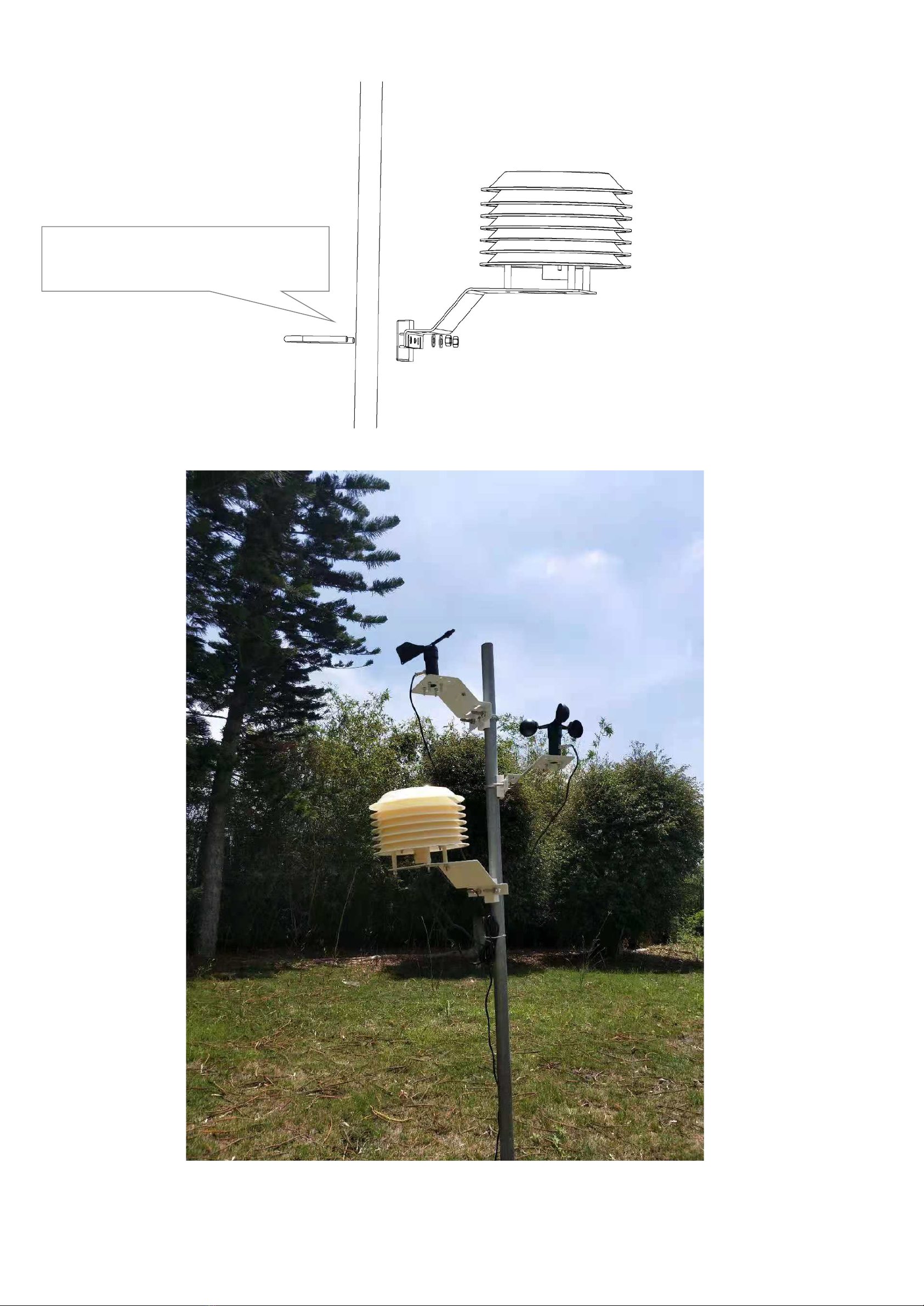

6-3 Installation
1．The RA0730 does not have the waterproof function. After the device completes joining the network, please place it indoor.
2．The R72630 has a waterproof function. After the device completes joining the network, please place it outdoors.
(1)In the installed position, loosen the U-shaped screw, the mating washer and the nut at the bottom of R72630, and
then make the U-shaped screw pass through the appropriate size cylinder and fix it on the fixing strut flap of R72630.
Install the washer and the nut in order and lock the nut till R72630 body is stable and does not shake.
(2)At the upper side of the fixed position of R72630, loosen the two U-shaped screws, the mating washer and nut on
the side of the solar panel. Make the U-shaped screw pass through the appropriate size cylinder and fix them on the
main bracket of the solar panel and install the washer and the nut in sequence. Lock nut till the solar panel is stable and
does not shake.
(3) After adjusting the angle of the solar panel completely, lock the nut.
(4) Connect the top waterproof cable of R72630 with the wiring of the solar panel and lock it tight.
3．RA0730Yis waterproof and can be placed outdoors after the device completes joining the network..
(1) In the installed position, loosen the U-shaped screw, the mating washer and the nut at the bottom of RA0730Y, and then
make the U-shaped screw pass through the appropriate size cylinder and fix it on the fixing strut flap of RA0730Y. Install
the washer and the nut in order and lock the nut till RA0730Y body is stable and does not shake.
(2) Loosen the M5 nut at the bottom of the RA0730Y matte and take the matte together with the screw.
(3) Make the DC adaptor pass through the central hole of the bottom cover of RA0730Y and insert it into the RA0730Y DC
socket, and then put the mating screw to the original position and lock the M5 nut tight.

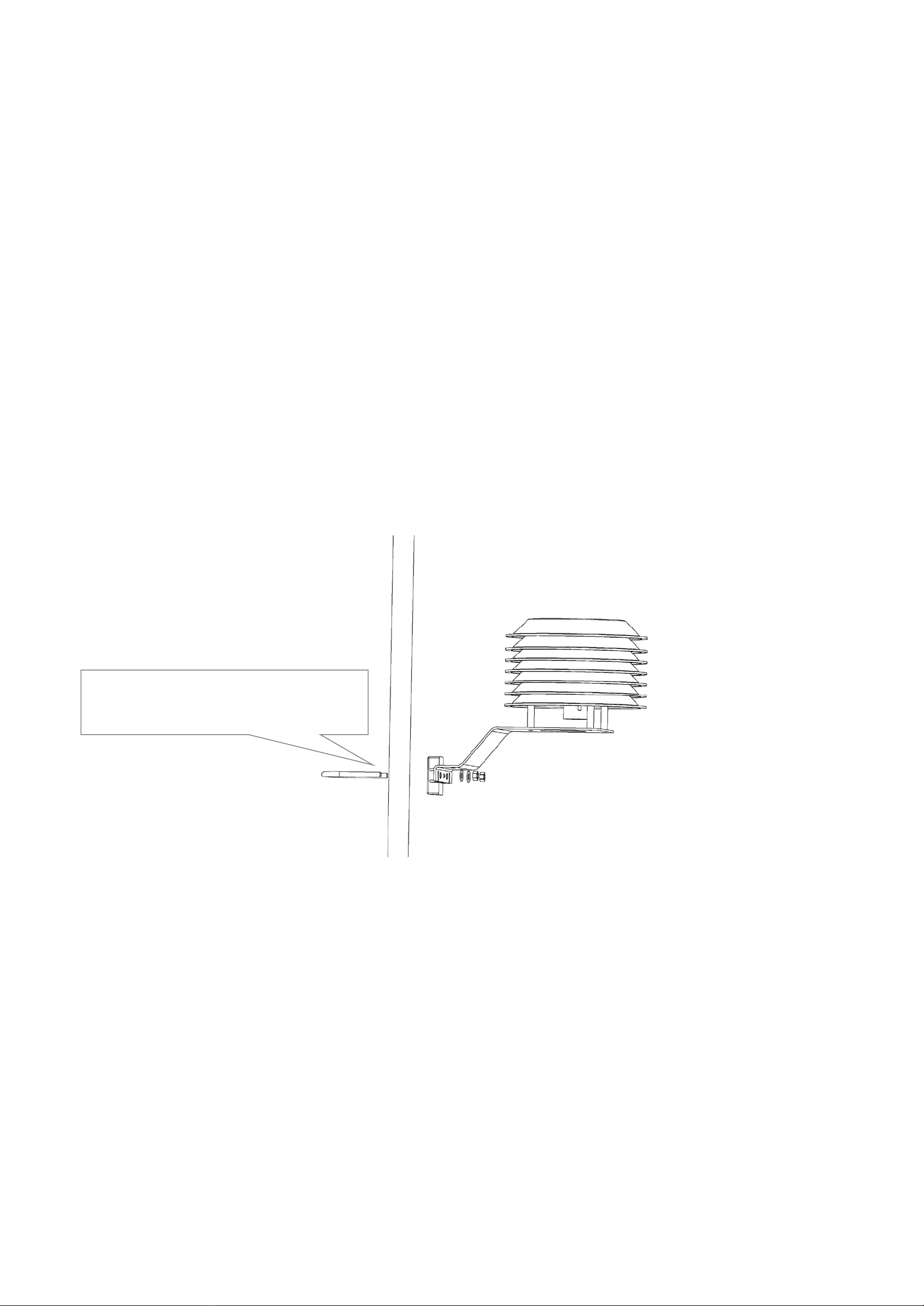

Range of diameter of post for mounting
Ø25~ Ø 50(mm)

9
Range of diameter of post for mounting
Ø25~ Ø 50(mm)

10

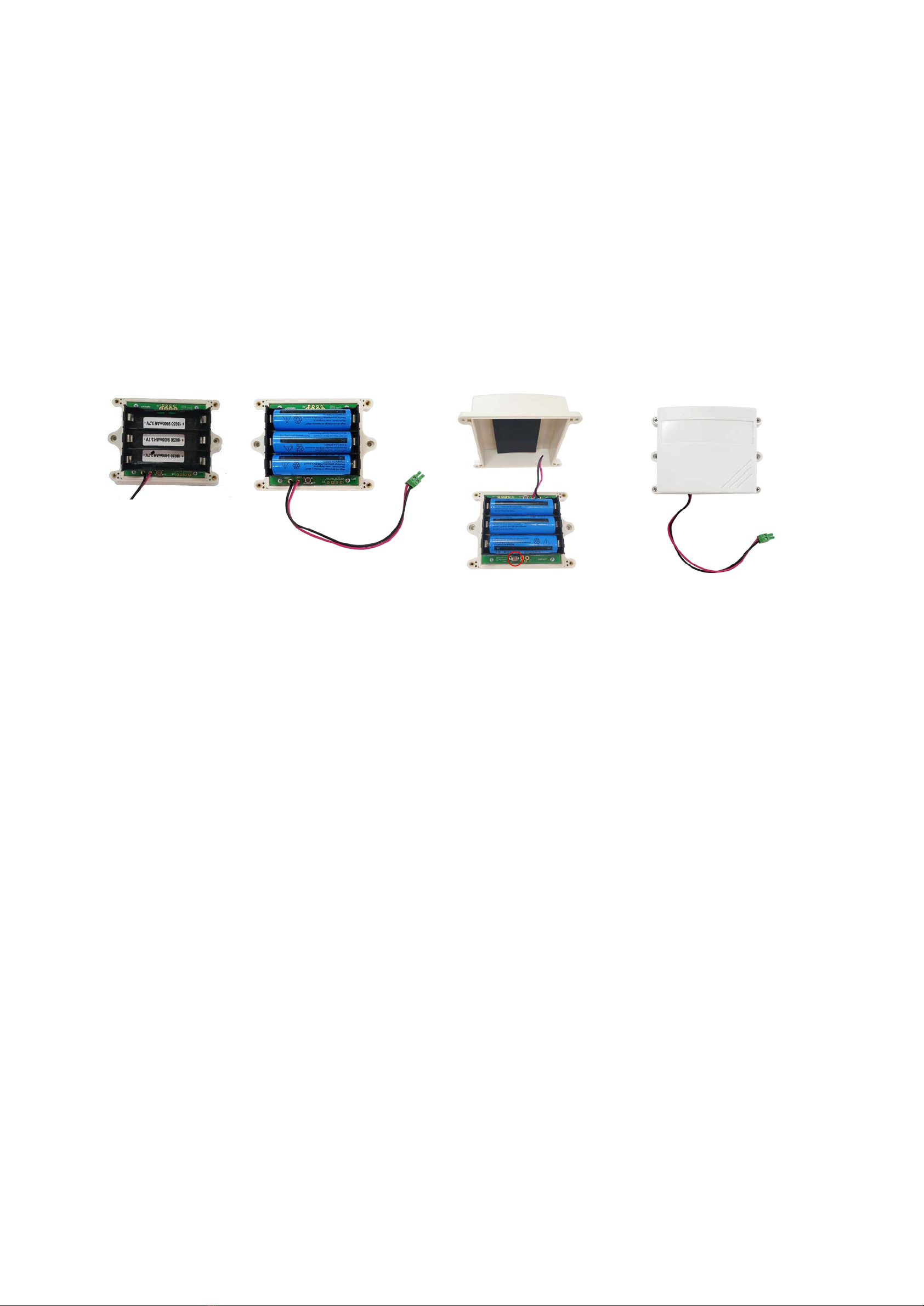

6-4 Rechargeable lithium battery
R72630 has a battery pack inside. Users can buy and install rechargeable 18650 lithium battery, a total of 3 sections, voltage 3.7V/
every single rechargeable lithium battery, recommended capacity 5000mah. The installation of rechargeable lithium battery steps
are as follows:
1: Remove the four screws around battery cover.
2: Insert three 18650 lithium batteries. (Please make sure the positive and negative level of the battery)
3: Press the activation button on the battery pack for the first time.
4: After activation, close the battery cover and lock the screws around battery cover.
Fig. Rechargeable Lithium Battery
activation button

11
7. Important Maintenance Instruction
The device is a product with superior design and craftsmanship and should be used with care.
The following suggestions will help you use the warranty service effectively.
• Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic
circuits. In case the device is wet, please dry it completely.
• Do not use or store in dusty or dirty areas. This way can damage its detachable parts and electronic components.
• Do not store in excessive heat place. High temperatures can shorten the life of electronic devices, destroy batteries, and
deform or melt some plastic parts.
• Do not store in excessive cold place. Otherwise, when the temperature rises to normal temperature, moisture will form
inside which will destroy the board.
• Do not throw, knock or shake the device. Treating equipment roughly can destroy internal circuit boards and delicate
structures.
• Do not wash with strong chemicals, detergents or strong detergents.
• Do not paint the device. Smudges can make debris block detachable parts up and affect normal operation.
• Do not throw the battery into the fire to prevent the battery from exploding. Damaged batteries may also explode.
All the above suggestions apply equally to your device, batteries and accessories.
If any device is not operating properly.
Please take it to the nearest authorized service facility for repairing.
