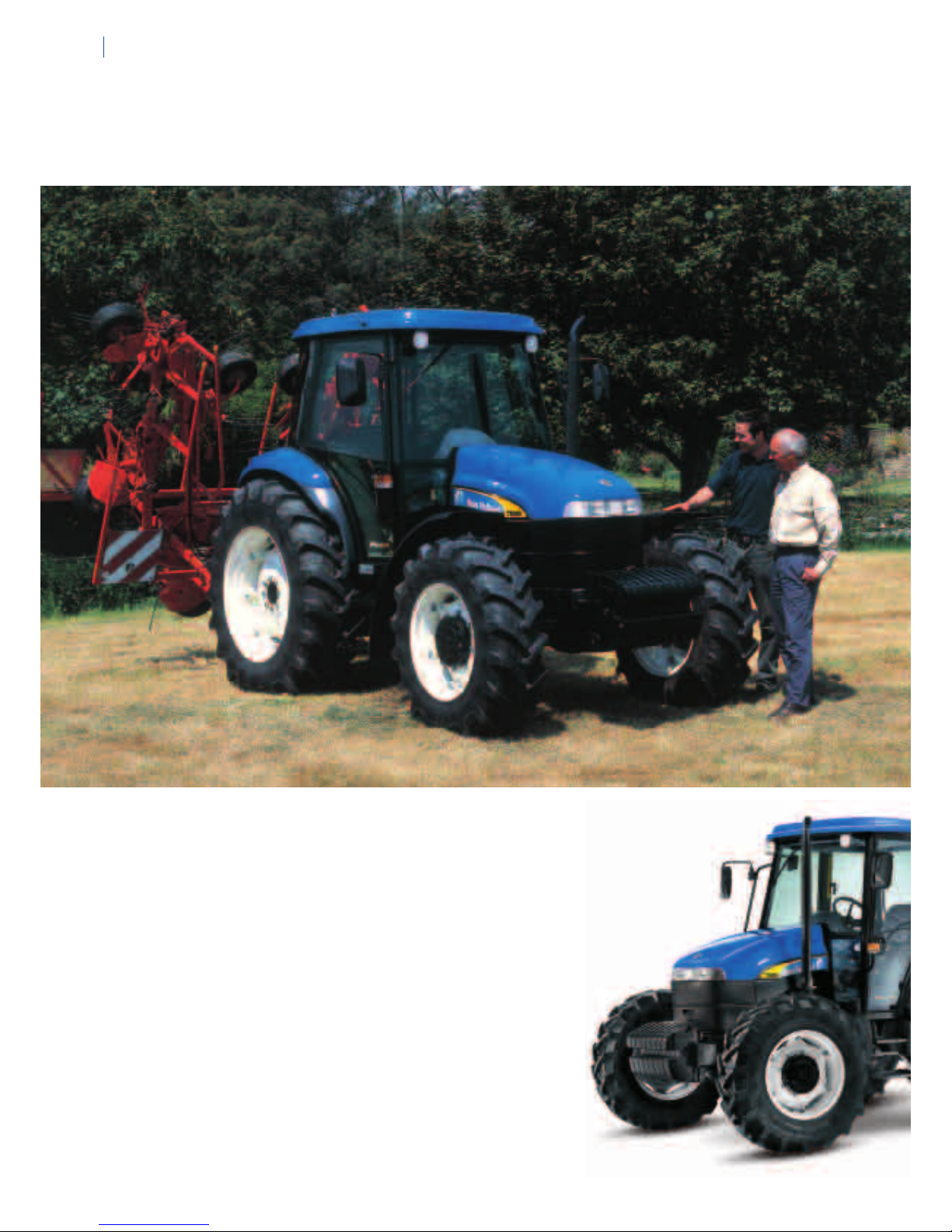

NEW HOLLAND TDD PLUS
TD60D Plus TD70D Plus TD80D Plus TD90D Plus TD95D Plus

COMMON SENSE TRACTORS
WITH HEAD TURNING LOOKS
Series TDD Plus tractors match great looks with class leading ergonomics, low noise,
excellent comfort, brilliant service access and superb all-round visibility. Take a look
at the operating environment. Low effort suspended pedals are fitted, reducing noise
coming up through the suspended floor platform. The Lift-O-Matic and hydraulic
controls are positioned so they are easy to reach. The gear levers are shaped to
make them easier to use. The PTO control is also more easy to operate without any
button to push. No other tractor in its class can match the ergonomic excellence of
a TDD Plus.
Then take a look at the specifications offered. Synchro Shuttle™ transmissions, with
creep speeds, plus a choice of 2WD with 30kph or 4WD with 40kph transport speeds
are available. Consider the design detail. The engine air filter and exhaust muffler
are mounted under the single-piece engine hood to provide a clear view over
the front of the tractor. The stylish cab features large glazed doors to make
getting in and out easier and offer an excellent field of vision to the sides.
There is even space for documents in a purpose made holder.
With Series TDD Plus tractors, beauty is more than skin deep.
2 3 TDD Plus

MODERN STYLE,TRADITIONAL SIMPLICITY
New Holland Series TDD Plus tractors combine simple
operation and maintenance with the benefits of modern
comfort, attractive styling and a choice of features.
The transmission covers all type of applications with the
Synchro Shuttle™ 20x12 30 or 40kph, with the creeper
option as standard. Series TDD Plus can be specified
with 2WD or 4WD.

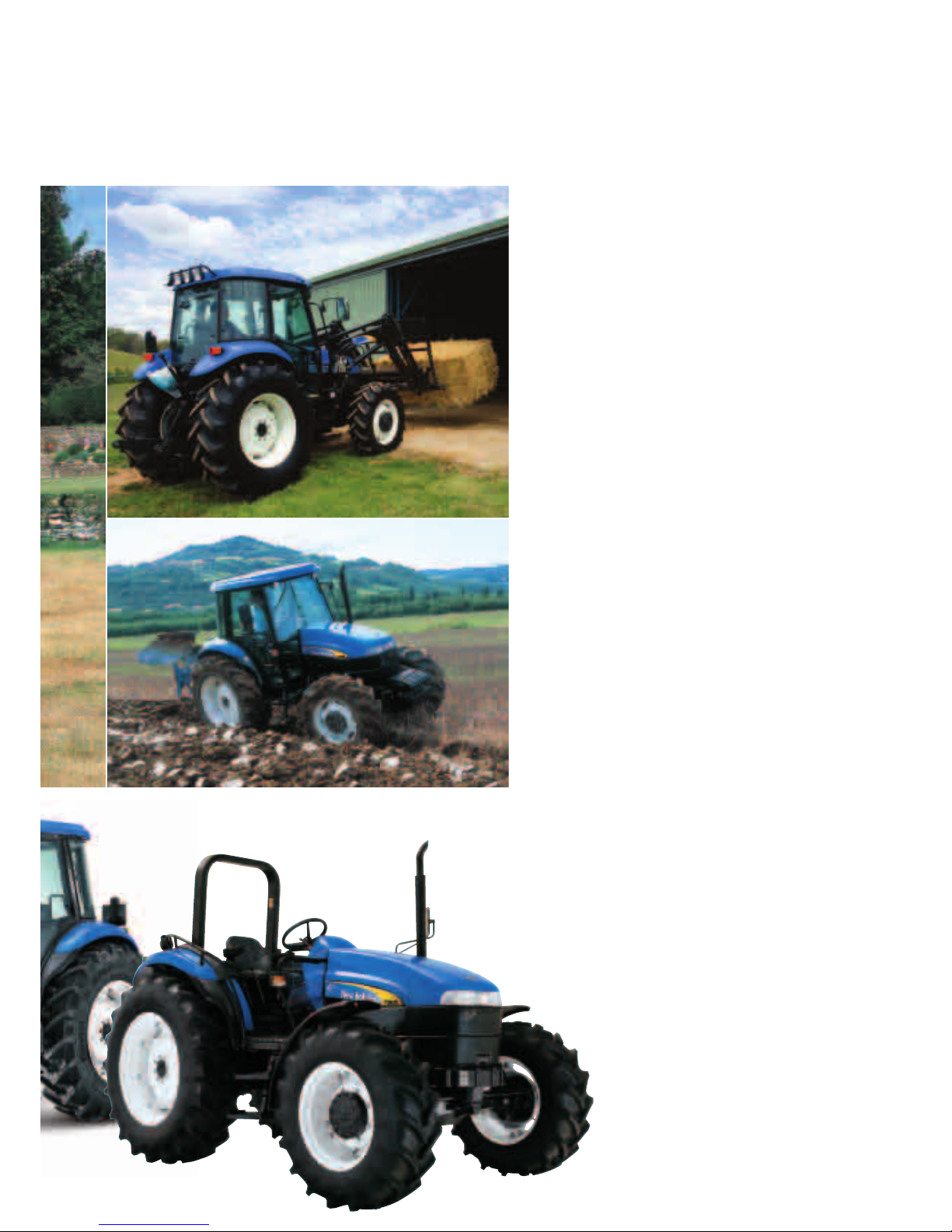

TRACTORS TO MATCH YOUR NEEDS
The New Holland Series TDD Plus tractor
range offers a choice of specification to meet
the diverse needs of customers. A suspended,
flat floor platform is standard on less cab
models for improved levels of comfort
and reduced vibration.
The cabbed models offer an excellent
field of vision and class leading levels
of comfort. Air conditioning is standard.
PROVEN EffICIENCY
The rugged hydraulics are extremely
efficient, offering best in class rear
linkage lift capacity and proven
features that include the Lift-O-Matic™
and Flexion Bar systems. Up to four
rear and two mid-mount couplers can
be specified.

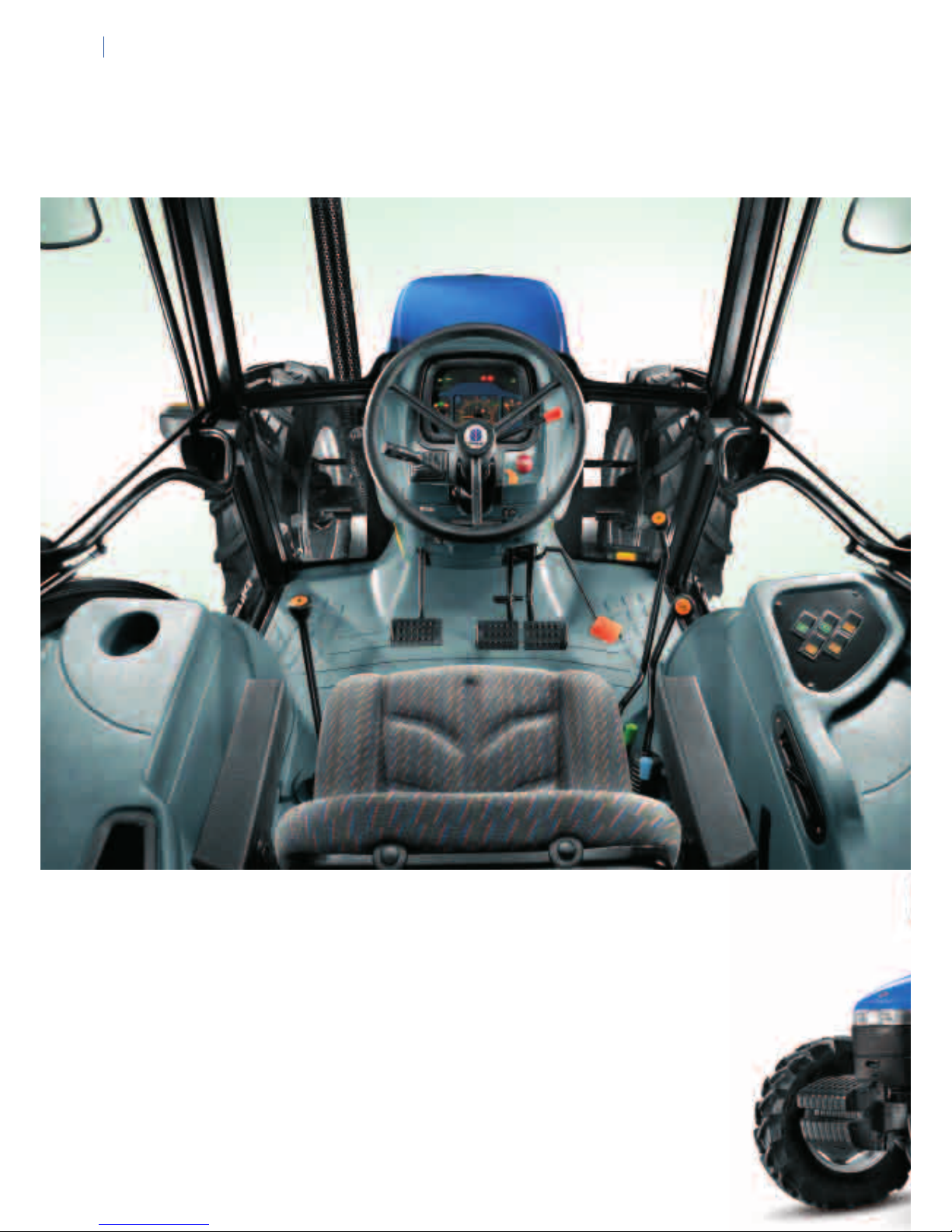

CAB.
PUTTING THE OPERATOR
IN COMfORTABLE CONTROL
New Holland puts operator comfort high on its list of design priorities.
The control levers have comfortable, hand-friendly grips. The features that are
used frequently, such as Lift-O-Matic, are positioned so they are easy to
reach. The flat floor is mounted on isolation blocks and the foot pedals are
suspended; two features that combine to reduce heat, noise and vibration
penetrating the operating area. A high quality seat, that adjusts quickly
and easily to suit all sizes and weights of operator, comes as standard.
Then there is the excellent visibility to the sides, front and rear.
With TDD Plus, First Class accommodation comes as standard.
4 5 TDD Plus

EVERY CONTROL WITHIN EASY REACH
It does not take long to become familiar
with the control layout of TDD Plus tractors.
Every function, from the PTO and gear
levers to the rear linkage and Lift-O-Matic
controls, are positioned in a logical and
easy to reach position. Within a short space
of time, operators new to a TDD Plus tractor
will work with familiar ease. Of equal
importance, New Holland quality ensures
everything moves with well oiled precision.
LESS-CAB VERSATILITY
Less cab models are specified with a sun
canopy. Designed to deflect direct sunlight,
heat and noise from the operator, the canopy
can be removed when access to low buildings
is necessary.
A CABBED TRACTOR WITH LESS-CAB VISIBILITY
Series TDD Plus cabbed tractors benefit from a
modern stylish cab with fully glazed doors and
opening curved rear side windows. By combining
narrow pillars with a large glazed area, the cab
offers an excellent all-round field of vision.
Air conditioning is standard.

Specifically developed for agriculture by New Holland, the 2.9 litre three-
cylinder and 3.9 litre four-cylinder engines powering Series TDD Plus
tractors are all new designs and can utilise biodiesel fuel B20 (EN12214
standard). Smooth, quiet and compliant with Tier II emission regulations,
these engines offer excellent power and torque characteristics.
Low fuel consumption and long service intervals help reduce whole life
operating costs.
ENGINE.
MODERN AND ECONOMICAL ENGINES
6 7 TDD Plus

POWER AND TORqUE
fOR VERSATILE PERfORMANCE
With maximum power developed
at 2500rpm and torque reserves
as high as 33%, Series TDD Plus
tractors are extremely versatile.
For demanding draft and PTO
applications, there is always
power in reserve.
LOW LEVEL fUEL fILLING
Series TDD Plus tractors are more than
just good looking. Advanced features
include a low level fuel tank that is
easily filled. The tank has sufficient
capacity for a full working day, even
in the most demanding applications.

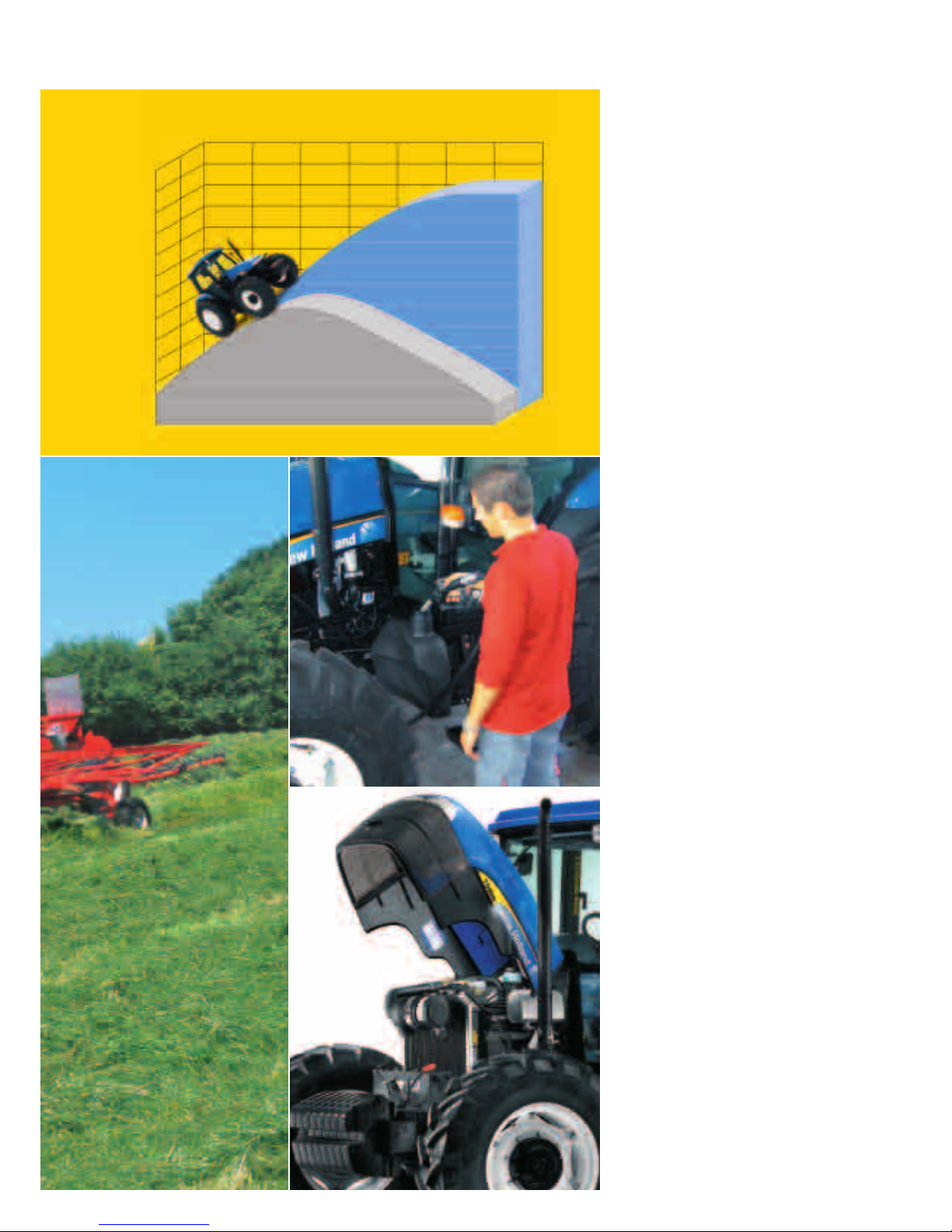

EASY SERVICING
Daily maintenance and routine
servicing are easier on Series TDD Plus.
The narrow engine hood opens on gas
struts to provide full engine access.
All service filters are easy to reach and
change. Looking after a TDD Plus tractor
takes less time for lower whole life costs.
Nm
350
325
300
275
250
225
200 [kW/hp(CV)]
74/100
70/95
66/90
62/85
59/80
55/75
51/70
48/65
44/60
40/55
37/50
33/45
rpm 1000 1250 1500 1750 2000 2250 2500
TORqUE
POWER

TRANSMISSION.
EffICIENT, EASY
TO USE AND VERSATILE.
THE RIGHT SPEED fOR THE jOB
The Synchro Command™ transmission
has three ranges of four speeds plus two
creeper ranges.
The transmission design enables the
operator to select a working ratio and then
choose the right speed to match the job.
If conditions change, the overlap between
the speeds enables a different gear to be
selected within the same ratio. Up to eight
gears can be selected in the main working
speeds between 4 - 12kph.
Developed around proven transmission, hydraulic and axle
modules, TDD tractors offer proven dependability.
Matched to modern manufacturing, all components benefit from
exacting quality control at each production stage. This ensures
every part of a TDD tractor has to pass stringent tests before it is
built into the tractor.
Specified with a Synchro Shuttle™ transmission with matched
forward and reverse speeds and additional creep speeds. Low
power loss through the transmission is a key New Holland
feature. This is achieved by careful design, reducing the number
of gears that are engaged to produce a given operating speed.
For durability, the constant mesh gears are helically cut. This
feature helps reduce noise and vibration and is a key feature in
ensuring maximum durability. The standard transmission features
at 30kph transport ratio. Where local conditions allow, a 40kph
transmission is available (Standard with 4WD Cab Units).
8 9 TDD Plus

MATCHED fORWARD AND REVERSE
SPEEDS
The 12x12 Synchro Shuttle™ transmission
features a synchromesh reverse lever.
Changing direction is fast and easy, with
matched forward and reverse speeds.
This enables turns to be made faster
at the end of the field or when working
with a front loader.
0 10 20 30 4040 30 20 10
CREEP SPEEDS AS LOW AS 250m/h
For low speed work, a 20x12 creeper transmission is standard.
This increases the choice of forward ratios to suit the work
in hand. A key Series TDD Plus feature is ease of operation.
Selecting a low speed ratio is simple, enabling the operator
to select the right speed quickly and easily.
REVERSE
CREEPER NORMAL
fORWARD
kph
36.5 36.4
25.5 25.4
17.7 17.6
12.2 12.1
15.5 15.5
10.8 10.8
7.5 7.5
5.2 5.1
6.6 6.6
4.6 4.6
3.2 3.2
2.2 2.2
2.8
2.0
1.4
1.2
0.8
0.6
0.35
0.9

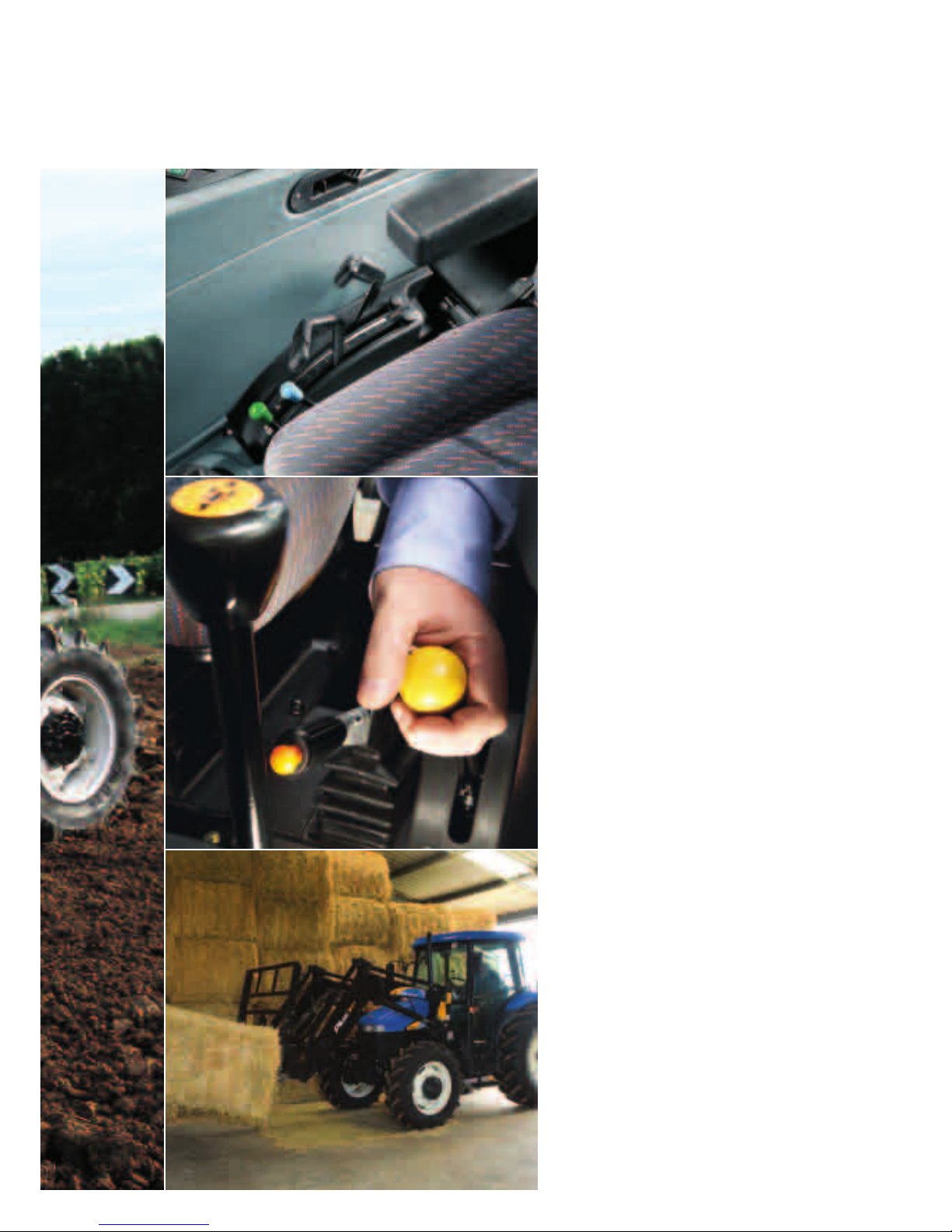

HYDRAULICS AND PTO.
SIMPLY THE BEST
Series TDD Plus offer easy to use performance. The powerful hydraulic
system is simple to operate, with the linkage levers and colour coded
remote valve levers mounted within easy reach of the operator.
The fully independent PTO has a choice of operating speeds.
Standard features include Lift-O-Matic™ rear linkage management
system and a choice of up to four rear and two mid-mount remote valves.
10 11 TDD Plus

PROVEN LINKAGE CONTROL
All Series TDD Plus tractors feature
New Holland’s proven Flexion Bar™ lower
link draft sensing. The system is simple to
operate.
It incorporates the Lift-O-Matic™ rear
linkage control, which can be set by the
operator to raise and lower an implement
to pre-set heights via a single control, as
standard. This reduces the number of
operations that need to be made when
turning at the end of the field and also
ensures preset lift and lower heights are
maintained.
EffICIENT AND EASY TO USE
TDD tractors have a direct drive PTO
system. This reduces power losses and
the number of wearing parts within the
transmission.
Operated by a simple hand lever, the
PTO clutch allows the operator to feed
power to a driven implement gradually.
This reduces wear and tear.
PTO speeds available include ground
speed, 540/540E or 540/1000rpm.
MORE fLOW, GREATER CONTROL
All TDD models have independent power
steering and hydraulic service pumps. This
ensures full hydraulic power is always
available especially for demanding
applications such as front end loader work.

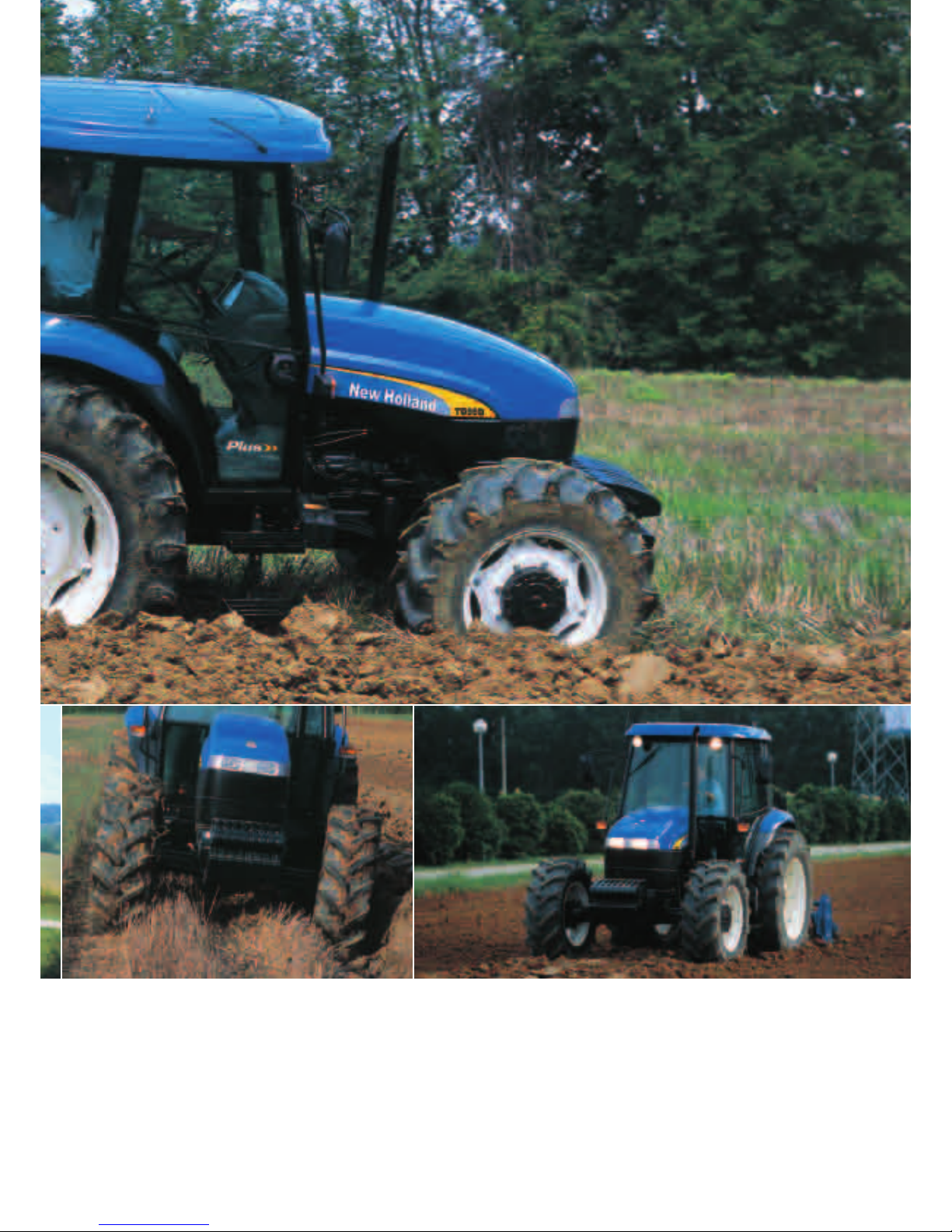

TRACTION.
SLIGHT AND MANOEUVRABLE,
TOUGH AND DEPENDABLE

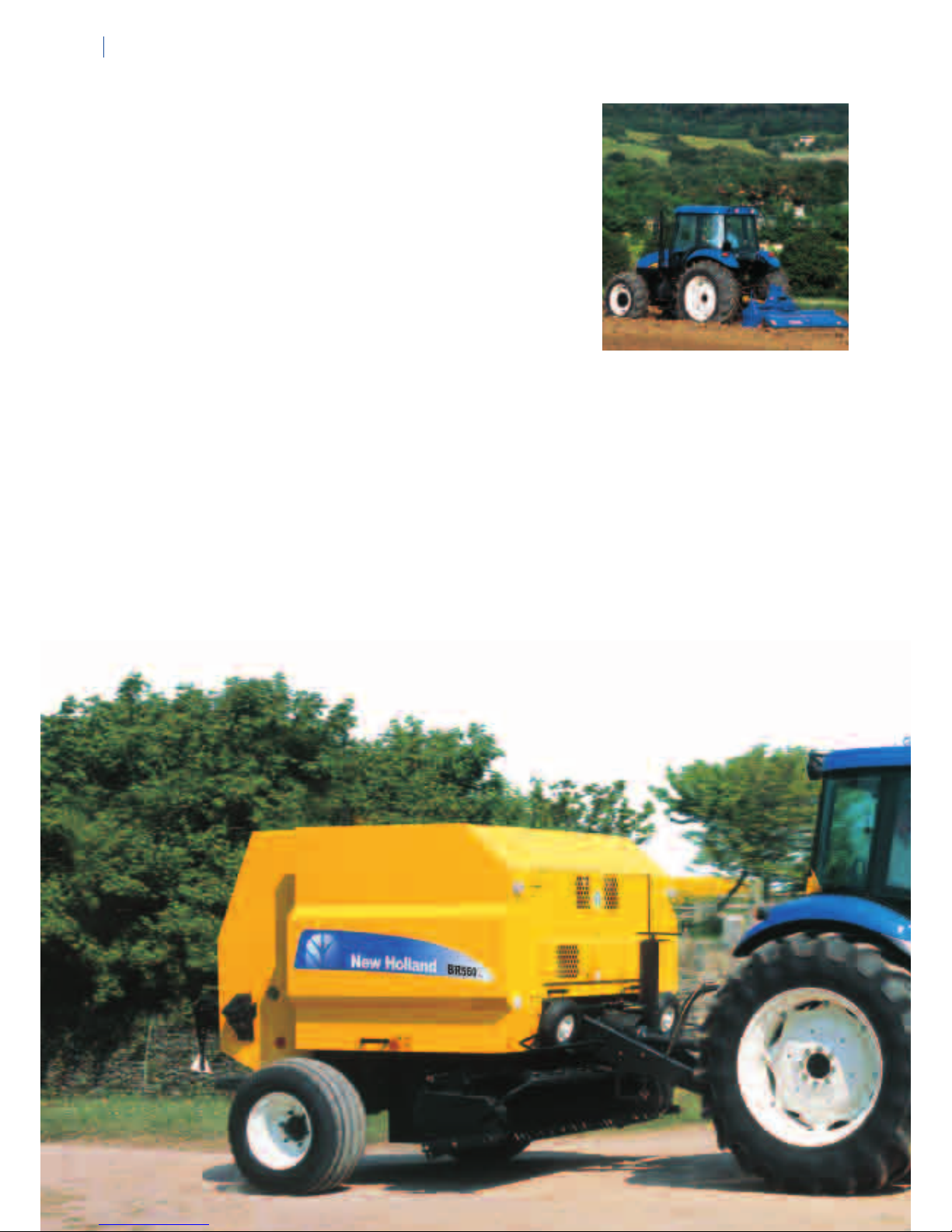

Light and manoeuvrable, Series TDD Plus tractors are well suited to
applications such as baling and spraying. Models with 4WD also
benefit from excellent traction.
In adverse conditions, power can be directed to all wheels for
optimum traction.
fOUR WHEEL DRIVE fOR fIELD AND TRANSPORT
Four wheel drive models feature a high clearance, central differential front axle. Two steering cylinders and an
extremely robust tracking rod are standard. This ensures the front wheels retain their alignment, even when
operating in harsh environments. These heavy-duty front axles with double steering rams have been specially
designed to withstand the stresses of front loader applications. Front brakes are standard on 4WD models.
12 13 TDD Plus

BEST TRACTION fOR OPTIMUM PERfORMANCE
In adverse conditions, the rear axle differential can
be fully locked by the operator. The front differential
lock is an automatic version, which engages and
disengages automatically.
ExCELLENT WEIGHT DISTRIBUTION
New Holland expertise in tractor design ensures the overall weight
of a Series TDD Plus tractor is evenly distributed between the front
and rear axles. For light tillage and operations such as baling, the
tractor causes minimum soil compaction. In draft work, a
combination of excellent traction, precise rear linkage control and
excellent balance ensure optimum productivity.

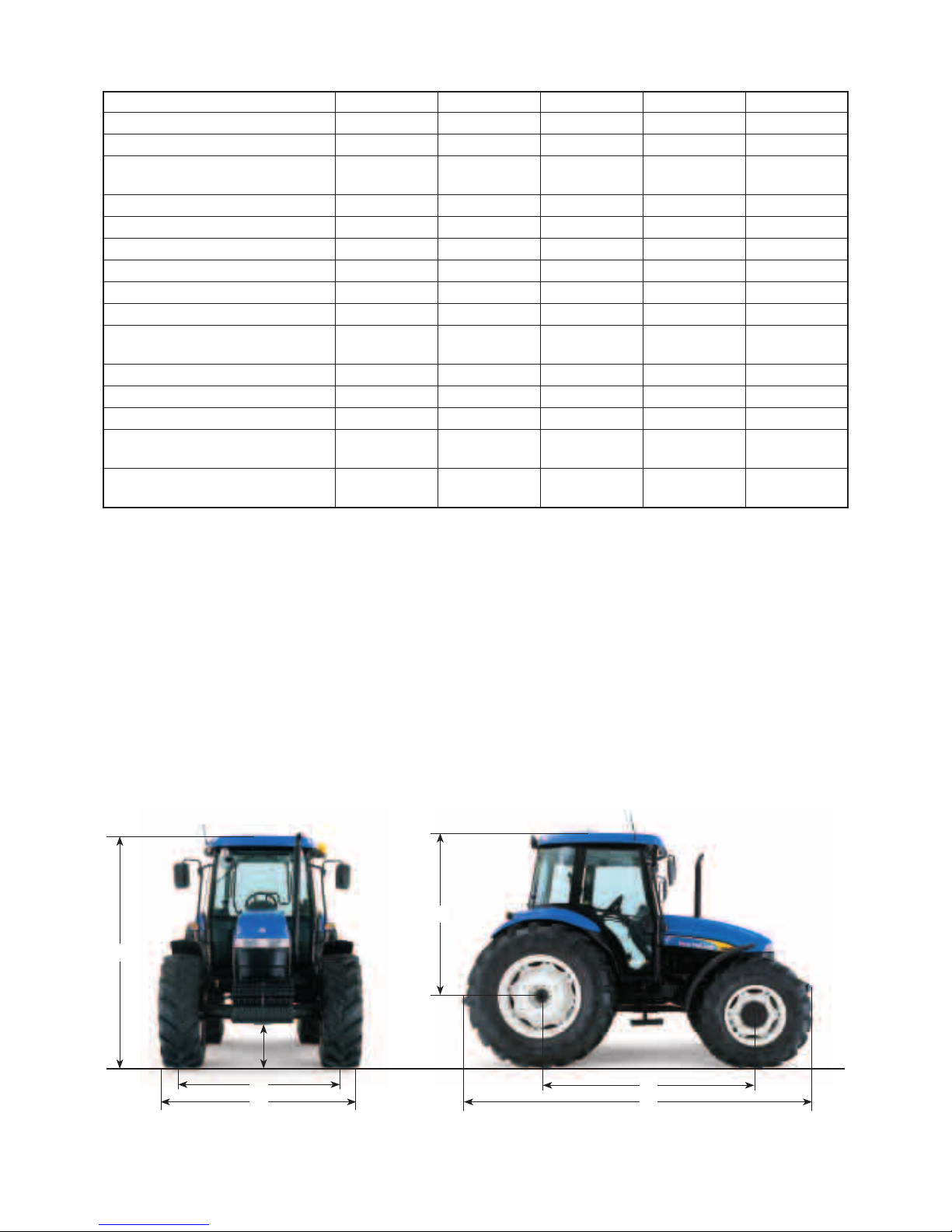

MODELS TD60D Plus TD70D Plus TD80DPlus TD90D Plus TD95D Plus
Engine*
No. of cylinders / aspiration / emission level 3 / naturally 3 / turbocharged 4 / naturally 4 / turbocharged 4 / turbocharged
/ Tier II / Tier II / Tier II / Tier II / Tier II
Capacity (cm3) 2930 2930 3908 3908 3908
Bore x stroke (mm) 104x115 104x115 104x115 104x115 104x115
Rated engine power ISO TR14396
– 2000/25/EC [kW/hp(cv)] 59 / 43,5 69 / 50,5 58.5 / 80 65.5 / 89 69 / 94
Rated engine speed (rpm) 2500 2500 2500 2500 2500
Max. torque at 1500rpm (Nm) 206 255 279 320 337
Torque rise (%) 32 38 30 33 33
Fuel tank capacity (l) 92L 92L 92 92 92
Synchro Shuttle™ transmission - 30kph
Number of gears / with creeper (F - R) 20x12 20x12 20x12 20x12 20x12
Speed range / with creeper (kph) 0.25 - 30 0.25 - 30 0.25-30 0.25-30 0.25-30
Synchro Shuttle™ transmission - 40kph
Number of gears / with creeper (F - R) 20x12 20x12 20x12 20x12 20x12
Speed range / with creeper (kph) 0.35-40 0.35-40 0.35-40 0.35-40 0.35-40
Axles
2WD front axle OOO O O
4WD front axle ●●● ● ●
Hydraulics
Flexion Bar™ lower link draft sensing ●●● ● ●
Rear linkage category II II II II II
Mechanical lift with Lift-O-Matic™ ●●● ● ●
Position, draft, mixed and float controls ●●● ● ●
Main Pump flow - MegaFlow™ (lpm) 52 52 52 52 52
Steering pump flow (lpm) 26.5 26.5 26.5 26.5 26.5
Remote valves
Max. number 4 4 4 4 4
Mid mount couplers OOO O O
Linkage
Maximum lift capacity at ball ends with
arms horizontal (kg) 3000 3000 3565 3565 3565
Continuous lift capacity through the range
(610mm behind bar ends) (kg) 2245 2245 2700 2700 2700
PTO
Engine speed at:
540rpm (rpm) 2200 2200 2200 2200 2200
540 Economy rpm (rpm) 1715 1715 1715 1715 1715
1000rpm (optional) (rpm) 2380 2380 2380 2380 2380
PTO activation mechanical mechanical mechanical mechanical mechanical
Cab
Comfort driver seat ●●● ● ●
Air re-circulation filters ●●● ● ●
Turnaround diameter at narrowest
track setting
Turn angle (°) 50 50 50 50 50
Min. turn radius (mm) 3800 3800 4100 4100 4100
SPECIFICATIONS14 15

MODELS TD60D Plus TD70D Plus TD80DPlus TD90D Plus TD95D Plus
Dimensions**
AOverall length 2WD / 4WD (mm) 3933 / 3933 3933 / 3933 4032 / 3976 4032 / 3976 4115 / 4059
BMinimum width (mm) 1808 1808 1808 1808 1808
CHeight at centre of rear axle to top of
Cab / ROPS (mm) 1875 / 1896 1875 / 1896 1878 / 1896 1878 / 1896 1878 / 1896
DTotal height Cab / ROPS (mm) 2550 / 2570 2550 / 2570 2540 / 2558 2566 / 2584 2618 / 2636
EWheelbase 2WD / 4WD 2175 / 2119 2175 / 2119 2305 / 2249 2305 / 2249 2388 / 2332
FTrack width
Front 2WD (mm) 1410 - 1910 1410 - 1910 1410 - 1910 1410 - 1910 1410 - 1910
Front 4WD (mm) 1445 - 1875 1445 - 1875 1550 - 1980 1550 - 1980 1550 - 1980
Rear Min. / Max. (all axle types) (mm) 1425 - 1925 1425 - 1925 1420 - 2025 1420 - 2025 1420 - 2025
GGround clearance under drawbar
2WD / 4WD (mm) 285 / 292 285 / 292 285 / 292 346 / 333 390 / 375
Weights**
Minimum weight cab 2WD / 4WD (kg) 2840 / 3080 2840 / 3080 3170 / 3600 3170 / 3600 3340 / 3770
Minimum weight ROPS 2WD / 4WD (kg) 2650 / 2920 2650 / 2920 2940 / 3420 2940 / 3420 3150 / 3580
Max. permissible weight on the front axle
2WD / 4WD (kg) 2400 / 2650 2400 / 2650 2000 / 2800 2000 / 2800 2000 / 2800
Max. permissible weight on the
rear axle (kg) 4000 4000 4000 4000 4000
* New Holland Engine developed by FPT - Fiat Powertrain Technologies ** National restrictions apply.
●Standard OOptional at extra cost – Not available
D
C
Ef
AB
G

AT YOUR OWN DEALER
The data indicated in this folder are approximate. The models described here can be subjected to modifications without any notice by the manufacturer.
The drawings and photos may refer to equipment that is either optional or intended for other countries. Please apply to our Sales Network for any further
information. Published by New Holland Brand Communications. Bts Adv. - Printed in Australia - TDD Plus 05/09
Safety begins with a thorough understanding of the
equipment. Always make sure you and your operators
read the Operator’s Manual before using the
equipment. Pay close attention to all safety and
operating decals and never operate machinery
without all shields, protective devices and
structures in place.
Visit our web site at: www.newholland.com - tel: [phone]
31-53 Kurrajong Road, St Marys NSW 2760
NEW HOLLAND.
A REAL SPECIALIST IN YOUR
AGRICULTURAL BUSINESS.
YOUR SUCCESS - OUR SPECIALTY
