New Image FITT ROW User manual

ASSEMBLY AND USER GUIDE
To help you get started visit:
newimagefitness.co.uk
DOWNLOAD THE
NEW IMAGE FITNESS
APP TODAY
DOWNLOAD THE
NEW IMAGE FITNESS
APP TODAY
COMPACT MAGNETIC ROWER

We’re passionate about helping you be fit, strong and active!
Whatever your fitness goal, New Image has a range of unique
and easy-to-use fitness solutions to help you be your best.
We know getting started is sometimes the hardest part so we
design all our products to be simple, fun to use and effective.
We hope you enjoy your new FITT Row and would love to hear
your experiences. Check out our social channels and take a look
at YouTube for videos, tips and workouts.
to New Image
WELCOME
• Watch exclusive workout videos
• Ask questions to our thriving community
• Check out our nutritional tips and tricks
To find out more about the New Image range of fitness
equipment, tools and accessories to help you achieve your
goals, visit newimagefitness.co.uk
Join the conversation...
Track your fitness & access all your
workout videos for our New Image range
wherever & whenever you want!
Download the app...

Congratulations on purchasing
your new FITT Row!
QUICK-START GUIDE:
1. Remove the square neck bolts (9), arc washers (10), spring washers (11) and M8 Nut (12)
from the front stabiliser tube (6) using wrench (B).
2. Fix front stabiliser tube (6) to main frame (27) with square neck bolts (9), arc washers
(10), spring washer (11), and M8 Nut (12) using multi wrench (B).
Step 1
9
11
10
12
27
6
(9) M8 Square neck bolt 2pcs
(10) M8 Arc washer 2pcs
(11) M8 Spring washer 2pcs
(#B) Multi Wrench 1pc
(12)M8 Nut 2pcs

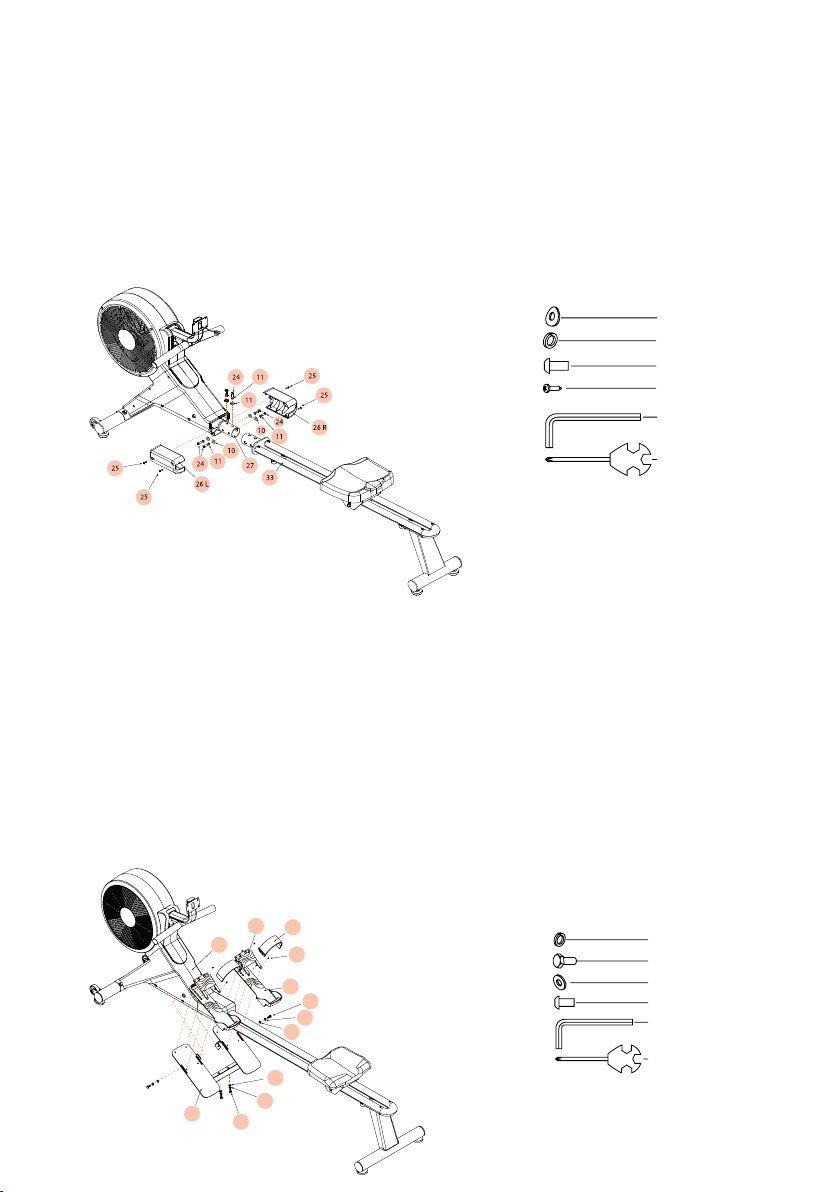

1. Remove the M4 screw (25) from the upper and lower rail covers (36&37)
2. Slot the upper and lower rail cover (36&37) together around the end of the guide
rail (33). Fix in place using the M4 screw (25) and Multi wrench (B).
3. Fix rear stability leg (38) to the bottom of the guide rail (33) with washers (3), spring
washers (11) and M8 Screw (24) using the Allen Key (A).
Step 3
1. Remove 2x M5 screws (31) from the runner rail (33) using Multi wrench (B).
2. Slide the seat (40) on to the runner rail (33) and move to the centre of the rail.
3. Replace the 2 x M5 screws (31) using the Multi wrench (B).
4. Fix the limiters (34) to the runner rail (33) with cross head screws (35) using the
Multi wrench (B).
Step 2
24
11
3
33
36
37
38
25
31
32
40
33
35
34
34
(B) Multi Wrench 1pc
(35) M6x16mm 2pcs
(34) 2pcs
(31) M5x10mm 2pcs
(11) M8 Spring washer 4pc
(24) 4pc
(A) #5 1pc
(B) Multi Wrench 1pc
(25) 1pc
(3) M8 Flat washer 4pc
M8 screw
M4 screw

1. Remove arc washers (10), spring washers (11) and M8 screw (24) from main frame (27)
using the supplied Allen Key (A). Then remove the M4 screw (25) from the decoration
cover (26L & 26R) using the Multi Wrench (B)
2. Attach runner rail (33) onto the main frame (27), then fasten them with arc washers
(10), spring washers (11) and M8 screw (24) by Allen Key (A);
3. Fix the decoration cover (26L/R) to the main frame (27) M4 screw (25) by wrench (B).
Step 4
1. Remove the M8 spring washers (11), M8 (22) and M8 washer (23) from main frame
(27) using the Multi wrench (B)
2. Fix the pedal bracket (30) to main frame (27) with spring washers (11), M8 Bolt (22)
and M8 washers (23) by Multi wrench (B)
3. Fix the foot holders (29A) and Foot holder mounts (29B) on to the pedal bracket (30)
with M8 screws (24) using Allen Key (A)
4. The strap (28) should then be placed in the long slot on the pedal bracket (30) and
looped round and secured. Adjust the tightness to suit foot preference.
Step 5
(10) Arc Washer 6pc
(11) Spring Washer 6pc
(24) M8 Screw 6pc
(25) M4 Screw 4pc
(A) #5 Allen Key
(B) Multi wrench
(11) M8 Spring Washer 4pc
(22)M8 Bolt 4pc
(23)M8 Washer 4pc
(24)M8 screw 4pc
(A) Allen Key 1pc
(B) Multi Wrench 1pc
22
11
23
27
22
11
23
24
30
29A
28
29B

1. Pull out the extension wire (16A) from display post (67), then connect extension wire
(16A) with Display wires (15A), and put back these wires into the Display post (16A)
2. Remove the M5 Screw (13) from display (15), then fix Tablet holder (98) and display
(15) on the display post (67) with M5 Screw (13) using the Multi wrench (B)
3. Insert the adapter line (92) to power hole on the front of main frame, then plug the
adapter into an outlet.
The assembly is now complete!
Step 6
15A
15A
16A
92
98
67
13
15
16A
(13) M5 Screw 4pc
(B) Multi Wrench 1pc

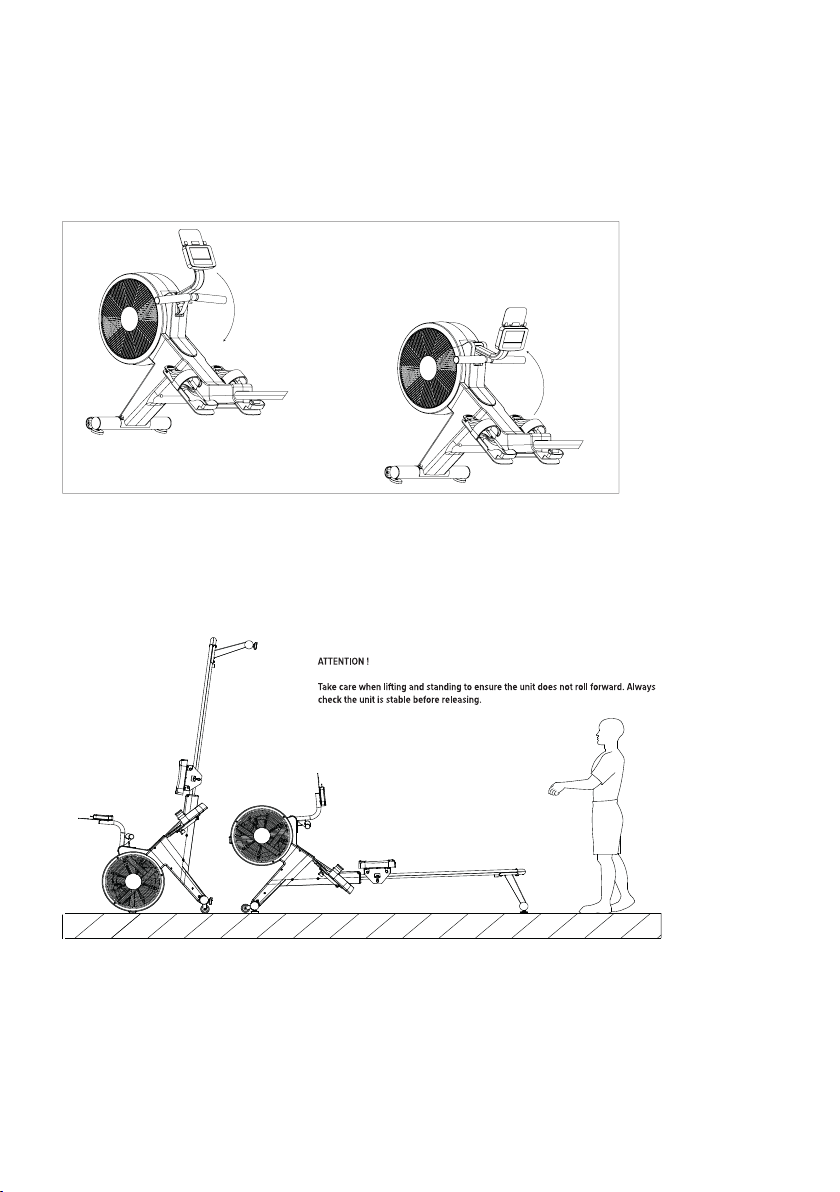

To move the machine, stand behind the unit and lift up by the Rear support leg until
the transportation wheels on the Front support leg touches the ground. With the
wheels on the ground, you can transport the bike to the desired location with ease.
MOVING THE MACHINE

The angle of the computer display should be adjusted for the optimum viewing
position before starting exercise. To adjust simply move the angle of the monitor arm
until the computer is in your eye-line whilst remaining with your head upright during
exercise.
ANGLE OF THE COMPUTER
When not in use, you can stand up the machine to save the space.
STORAGE

DESCRIPTION OF INSTRUMENT WINDOW

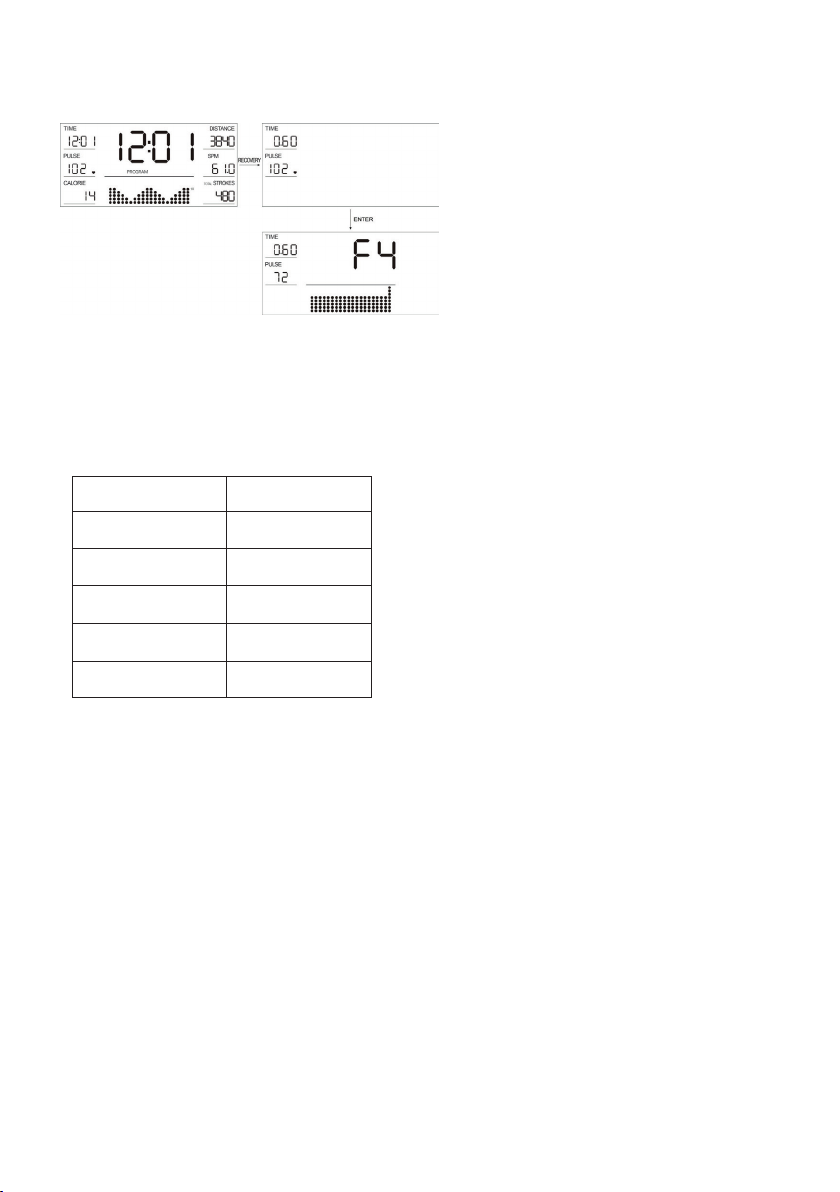

Display mode of main window during exercise:
1. Scanning mode: Display in the following order successively every 6 seconds:
TIME → TIME/500m → DISTANCE → PULSE → SPM → WATT → CALORIE →
STROKES → TOTAL STROKES
2. Use the button to select and fix a certain function, and then display it on
the main window.
Display mode of left/right small window during exercise: Use the button to
switch the display between “TIME → TIME/500M”, “SPM → WATT”, and
“STROKES → TOTAL STROKES”.
Display 16 levels of resistance

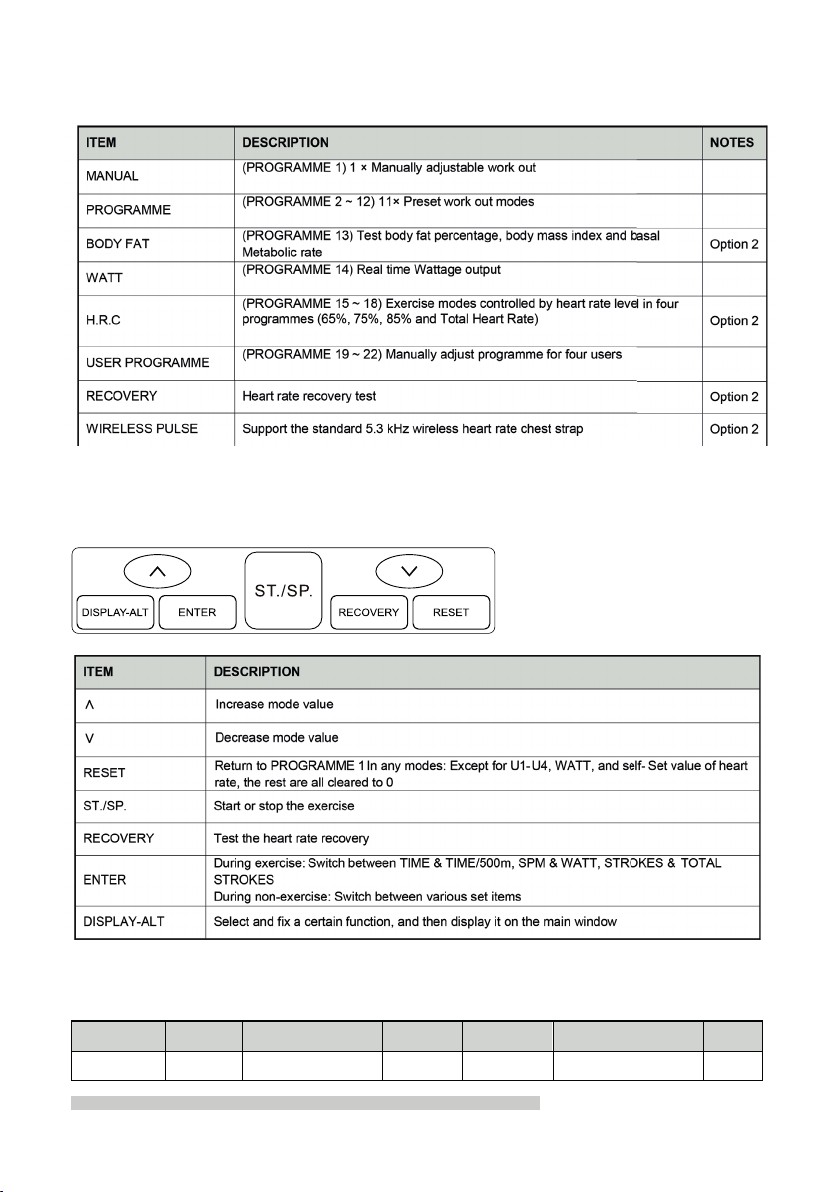

DESCRIPTION OF INSTRUMENT FUNCTIONS
DESCRIPTION OF BUTTON FUNCTIONS
DESCRIPTION OF BUTTON FUNCTIONS
Metres S
HEIGHT WEIGHT PULSE CALORIE DISTANCE SPM WATT
Beats per minute Kcal trokes per minute w
Note: it is unable to switch between metric and imperial by display operation.
Cm Kg

MANUAL (PROGRAMME 1 )
1. Press the to start the exercise or
press the button to enter the
setting mode.
2. In the settings mode, press the
button to select and set the items in
order. To highlight the current setting,
the relevant function will flash (TIME,
DISTANCE, CALORIE, STROKES and
AGE)
3. Use the or buttons to toggle
through each function
4. The functions will automatically
exit after all functions are selected.
Alternatively, pressing the will
start the exercise whilst in the current
function.
5. During exercise, the resistance force will adjust automatically in accordance with
the setting mode (whilst in programmes 2-12). Or this can be adjusted manually
using the or buttons.
6. When any item (TIME, DISTANCE, CALORIE and STROKES) is set, this will be
displayed as a downward count during exercise. Once the count reaches zero, the
exercise will automatically stop with a sound prompt of a double beep.
7. During exercise, you can press the to stop the function of the device.

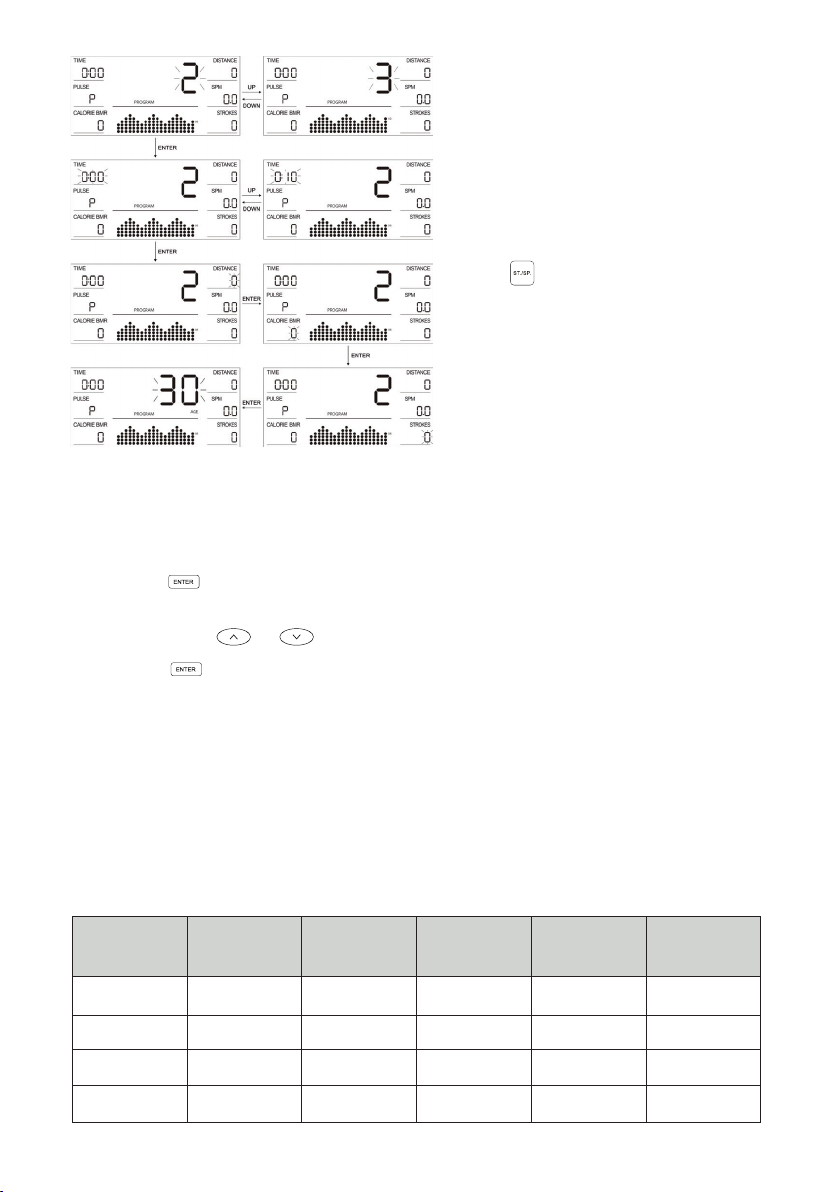

PROGRAM (PROGRAMME 2-12)
1. Press the or button to select the programme mode.
2. Press the to start the exercise or press the button to enter settings mode.
3. In the settings mode, press the button to select and set the items in order.
To highlight the current setting, the relevant function will flash (TIME, DISTANCE,
CALORIE, STROKES and AGE).
4. Press the or to manually adjust the function.
5. The functions will automatically exit after all functions are selected. Alternatively,
pressing the will start the exercise whilst in the current function.
6. During exercise, the resistance force will adjust automatically in accordance with
the setting mode (whilst in programmes 2-12). Or this can be adjusted manually
using the or buttons.

7. When any item (TIME, DISTANCE,
CALORIE and STROKES) is
set, this will be displayed as a
downward count during exercise.
Once the count reaches zero, the
exercise will automatically stop
with a sound prompt of a double
beep.
8. During exercise, you can press
the to stop the function of the
device.
BODYFAT (PROGRAMME 13)
REQUIRES NEW IMAGE HEART RATE MONITOR TO OPERATE
1. Press the button to enter the setting mode.
2. In the settings mode, the setting order is as follows: GENDER > HEIGHT > WEIGHT
> AGE. Use the or buttons to toggle through adjustments.
3. Press the to start the test: After 8 seconds, it will display the following data.
• BMI (Body Mass index)
• FAT % (Body fat percentage)
• BMR (Basal metabolic rate)
4. Before the test, ensure to have the New Image Heart Rate turned on and
connected. For further information how to connect, see page 18.
5. The test should be conducted with a resting heart rate.

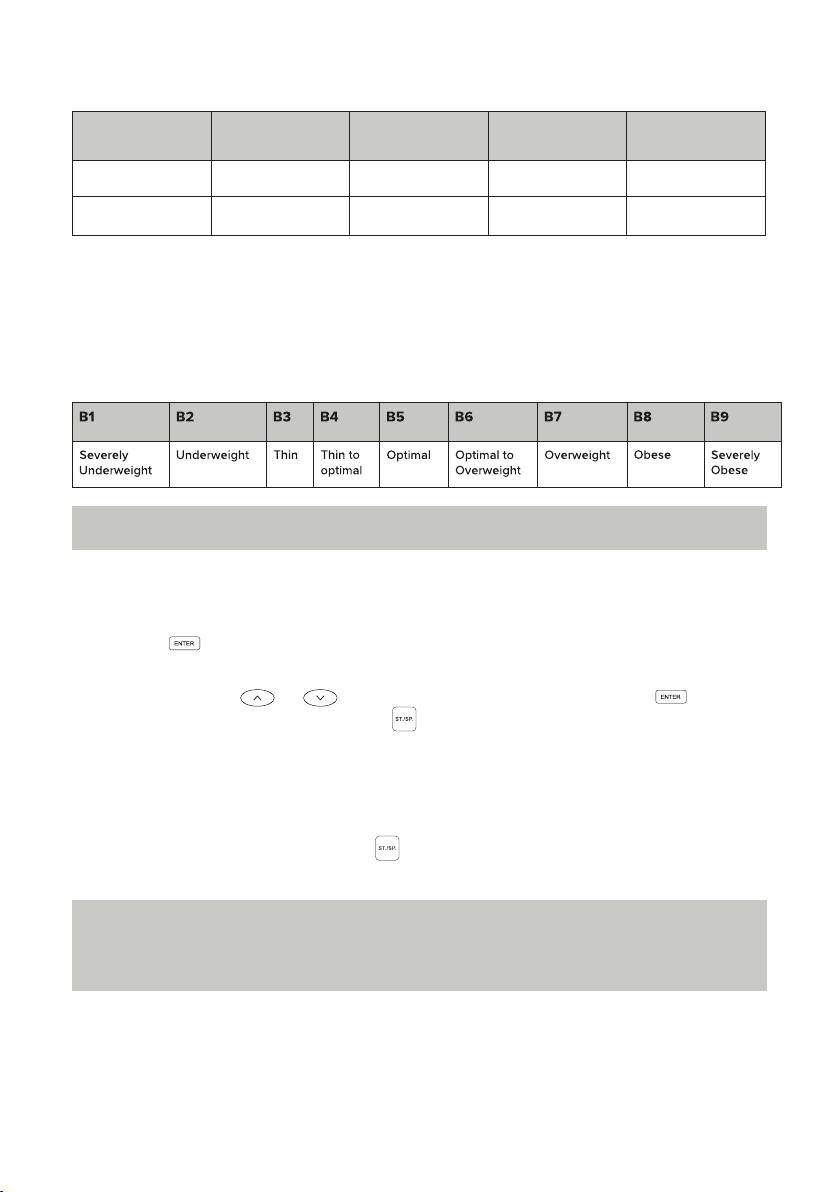

6. BMI (Body mass index)
GENDER/
AGE
THIN OPTIMAL OPTIMAL TO
OVERWEIGHT
OVERWEIGHT OBESE
Male ≤ 30 < 14 14 ~ 20 20.1 ~ 25 25.1 ~ 35 > 35
Male > 30 < 17 17 ~ 23 23.1 ~ 28 28.1 ~ 38 > 38
Female ≤ 30 < 17 17 ~ 24 24.1 ~ 30 30.1 ~ 40 > 40
Female > 30 < 20 20 ~ 27 27.1 ~ 33 33.1 ~ 43 > 43

WATT (PROGRAMME 14)
BODY FAT (BODY FAT PERCENTAGE)
BODY TYPE (COMPREHENSIVE TYPE)
1. Press the button to enter the setting mode.
2. In the settings mode, the setting order is as follows: TIME > DISTANCE > STROKES
> WATT. Press the or to toggle through functions. Press the button
to select the next item and press the to start the exercise. During exercise, the
resistance will adjust automatically to match the WATT value set.
3. If any item (TIME, DISTANCE) is set, this item will be displayed as a countdown
during exercise. Once the count reaches zero, the exercise will automatically stop
with a sound prompt of a double beep.
4. During exercise, you can press the button to stop running the device at any time.
BMR (Basal Metabolic Rate, i.e., the average amount of calories consumed to maintain
the basic living condition every day)
Reference value: 1,300 ± 100 (22~40 years old)
Note: Readings provided by this device should only be used as guidance only and
not for medical indication.
Note: The watt value is determined by both torque and speed. In this programme,
the watt value will remain constant, which means that if the stroke speed is high, the
load resistance will decrease, and if the stroke speed is low, the load resistance will
increase, to ensure that the watt value be constant.
GENDER LOW MEDIUM MEDIUM/HIGH HIGH
Male < 13% 13% - 25.9% 26% - 30% > 30%
Female < 23% 23% - 35.9% 36% - 40% > 40%

HRC (PROGRAMME 15-18)
REQUIRES NEW IMAGE HEART RATE MONITOR TO OPERATE

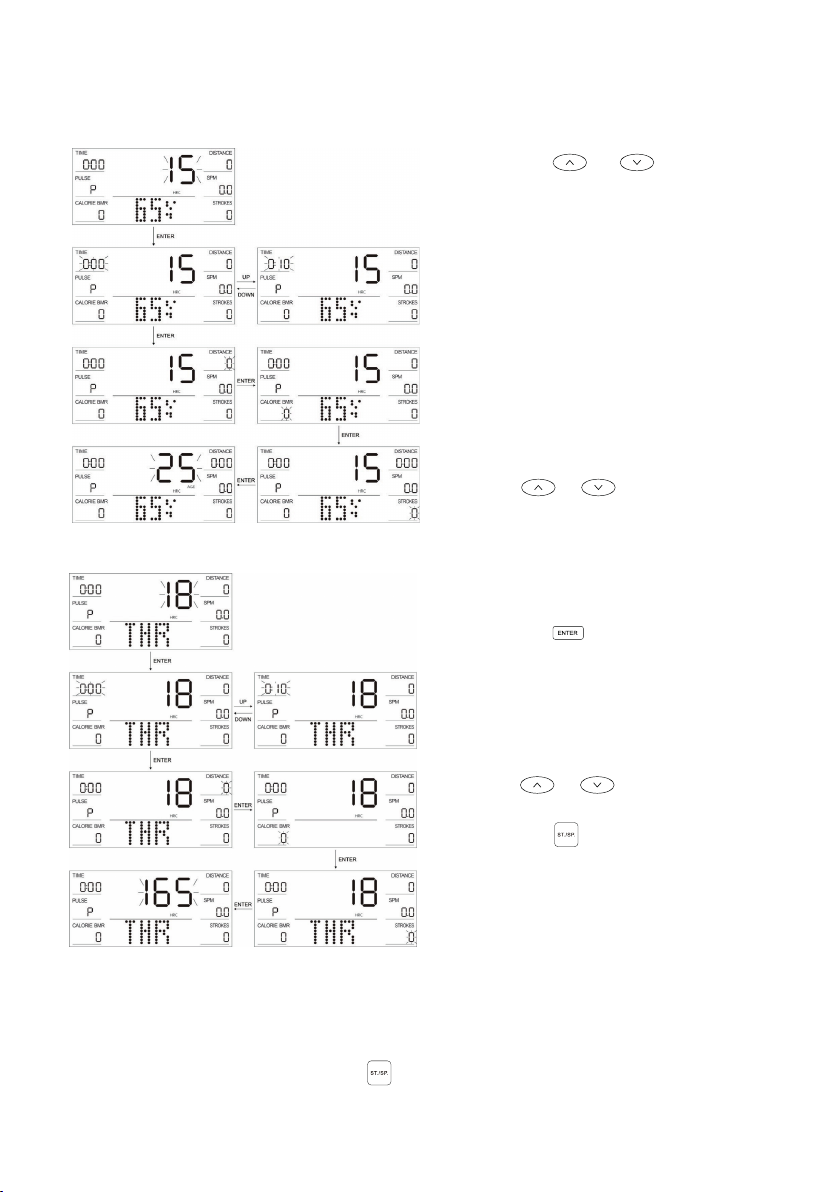

1. Press the or to select the
mode of target heart rate
2. PROGRAM 15 - 17:
a) Press the button enter the setting
mode.
b) In the setting mode, the setting order
is as follows: TIME → DISTANCE
→ CALORIE→ STROKES → AGE.
The standard value of heart rate is
set automatically according to age.
“65%”, “75%”, and “85%” indicates
the users target percentage of
maximum heart rate.
c) Press or buttons to toggle
through adjustments.
3. PROGRAMME 18:
a) Press the to enter the setting
mode.
b) In the setting mode, the setting order
is as follows: TIME → DISTANCE →
CALORIE → STROKES → TARGET
HEART RATE.
c) Press or buttons to toggle
through adjustments.
d) Press the button to start the
exercise. During exercise, the
resistance will adjust automatically
in accordance with the target value
of the heart rate.
e) When any item (TIME, DISTANCE, CALORIE and STROKES) is set, this will be
displayed as a downward count during exercise. Once the count reaches zero, the
exercise will automatically stop with a sound prompt of a double beep.
f) During exercise, you can press the button to stop running the device at any time.

USER PROGRAMME (PROGRAMME 19-22)
1. Use or buttons to toggle between U1 ~ U4 (users 1-4).
2. Press the button to start the exercise or press the button to enter settings
mode.
3. In the setting mode, the setting order is as follows: TIME → DISTANCE → CALORIE
→STROKES → AGE → RESISTANCE FORCE OF EACH COLUMN.
4. Use or to toggle up/down through functions and press to select the
next item.
5. Press the button to start the exercise. During exercise, the resistance will adjust
automatically in accordance with the target value of the heart rate.
6. When any item (TIME, DISTANCE, CALORIE and STROKES) is set, this will be
displayed as a downward count during exercise. Once the count reaches zero, the
exercise will automatically stop with a sound prompt of a double beep.
7. During exercise, you can press button to stop the device at any time.

RECOVERY - REQUIRES NEW IMAGE HEART RATE MONITOR TO OPERATE
1. During exercise, when the
instrument displays the heartbeat
value, press the button to keep the
heartbeat monitoring.
2. When TIME displays “0:60”
(seconds), it will begin counting
down in 60 seconds; at which time,
the system will start the test.
3. When the TIME display counts down to “0:00”, the main window will display F1 ~
F6, indicating the level of heartbeat recovery.
4. It is recommended that during exercise, the heart rate is assessed within an aerobic
heart rate range, so not to affect the test results if the value is too high or too low.
F1 = 1.0 Best
1.0 < F2 < 2.0 Better
2.0 < F3 < 2.9 Good
3.0 < F4 < 3.9 Normal
4.0 < F5 < 5.9 Slightly poor
F6 = 6.0 Poor
SAFETY INFORMATION
• Please read this user guide before first using your Fitt Row training equipment. It is
important to keep these instructions for future reference.
• Assemble and operate the equipment on a stable and level surface.
• Ensure the equipment is stable before use.

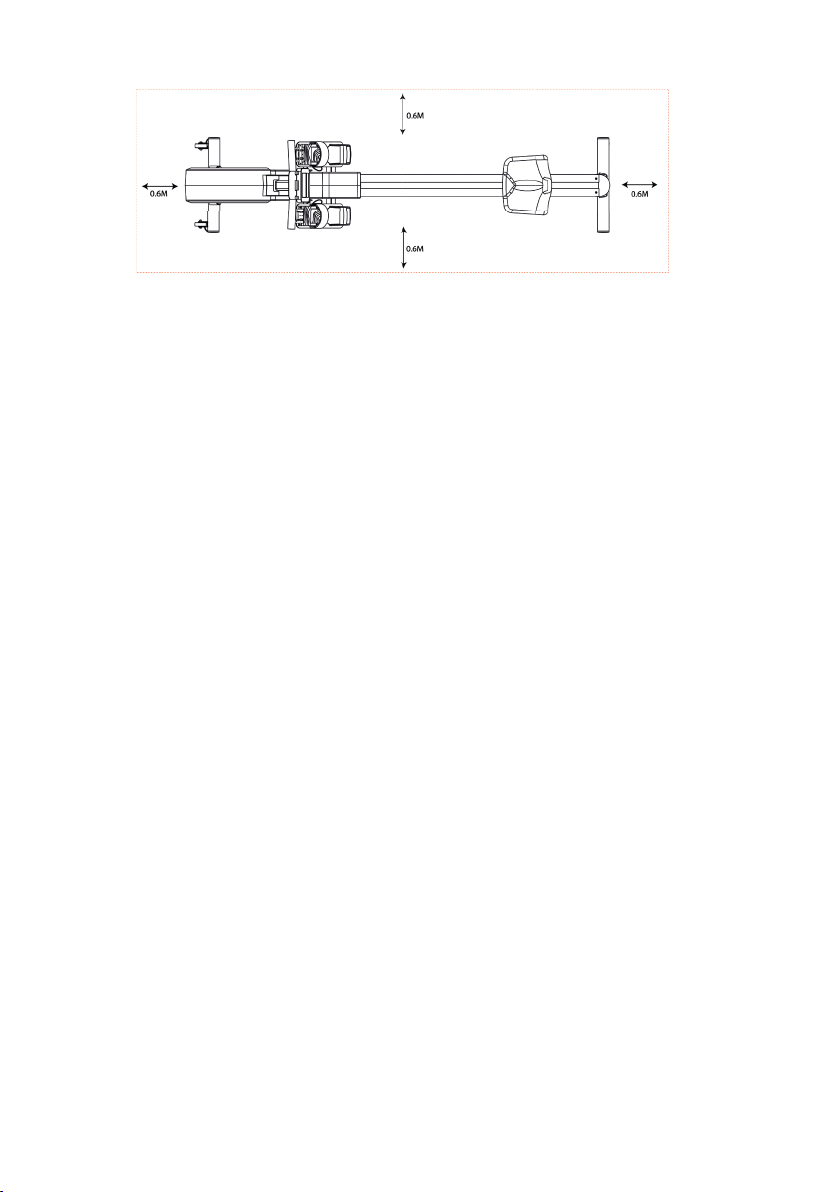

• Always ensure you have adequate space on all sides when performing exercises, at
least 0.6m on each side.
• The safety level of the equipment can only be maintained if it is regularly examined
for wear and tear e.g. ropes, pulleys, handles and connections.
• Replace defective components immediately and keep the equipment out of use until
it is required.

• Use only the adjustment setting as described in the instructions. Always use the
correct adjustment plug / fixing. Note any adjustment devices left projecting
could interfere with the user’s movement during use.
• Keep hair, fingers and loose clothing away from hinges and other moving parts to
avoid serious injury.
• Always consult your GP before undertaking any exercise programme.
• Always wear suitable clothing and footwear e,g. tracksuit, shorts and training
shoes.
• Remove all personal jewellery before exercising.
• Ensure you warm up well before using the equipment as this will help to reduce
muscle strain.
• After eating, allow 1-2 hours before exercising as this help to prevent strain.
• Never overload the equipment: MAX USER WEIGHT 120kgs.
• Never use the equipment in any other manner other than the ways explained in
these instructions.
• If you feel faint, stop exercising immediately.
• Injuries to health may result from incorrect form / technique or excessive training.
• Care should be taken at all times when getting on and off the equipment. Falling
off the equipment could result in injury. Mount and dismount the equipment
safely.
• Ensure your feet are securely strapped onto the foot-plates using the Velcro
straps when using your rower.
• Children should not be allowed on or around the equipment, especially when it is
not in use and unsupervised.
• Parents and others in charge of children should be aware of their responsibility
because the natural play instinct and the fondness of experimenting of children
can lead to situations and behaviour for which the training equipment is not
intended.
• This product is not intended for use by persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instructions concerning the use of the appliance by a person
responsible for their safety.

MAINTENANCE AND STORAGE
• Wipe clean only with a clean, damp cloth. DO NOT use detergents. Always
disconnect from the power supply before cleaning.
• This equipment should not be stored outside, in a garage or outbuilding. Keep the
equipment in a dry place with as little temperature variation as possible.
• We recommend placing a mat beneath the equipment to protect both the equipment
and flooring. New Image mat can be purchased at newimagefitness.co.uk
• The safety level of the equipment can only be maintained if it is regularly examined
for wear and tear. This includes any ropes, pulleys, handles, nuts, bolts, moving
parts, bushes, chains, wheels, bearings and connections.
Made in China
Please read all instructions carefully and retain for future reference.
Model number: YK-R1901P
Class: HC
• This product is not suitable for therapeutic purposes.
• This product is intended for home use only.
• Only use accessory items recommended by the manufacturer.
• CAUTION the instructions must be followed carefully in the assembly, use and
maintenance of the equipment.
• Assembly: It is important you assemble the product in a clean and uncluttered
space.
• Keep away from fire.
• This product is not a toy. Do not stand or jump on it.
• Do not leave the rower unattended when it is connected to the power supply.
• The rower is only to be used with the power supply unit supplied.
• If the power supply unit cord is damaged , it must be replaced. Please contact
Customer Services.
• Product weight: 33.1kgs.
• Product dimensions: Length 2120mm x Width 495mm x Height 885mm.
• WARNING! - This stationary training equipment is not suitable for high accuracy
purposes.
• WARNING! - Heart rate monitoring systems may be inaccurate. If you feel faint
stop exercising immediately
• Wipe clean only with a clean, damp cloth. DO NOT use detergents. Always
• This equipment should not be stored outside, in a garage or outbuilding. Keep the
• We recommend placing a mat beneath the equipment to protect both the equipment
• The safety level of the equipment can only be maintained if it is regularly examined
for wear and tear. This includes any ropes, pulleys, handles, nuts, bolts, moving
• Do not leave the rower unattended when it is connected to the power supply.
• If the power supply unit cord is damaged , it must be replaced. Please contact
- This stationary training equipment is not suitable for high accuracy
- Heart rate monitoring systems may be inaccurate. If you feel faint

connected tness
NEW IMAGE FITNESS APP
DOWNLOAD THE NEW
IMAGE FITNESS APP TODAY
Track your fitness & access all your
workout videos for our New Image range
wherever & whenever you want!

Distributed by:
High Street TV, PO Box 7903,
CORBY, NN17 9HY
Version 1 04/22 CR3830
newimagefitness.co.uk
DOWNLOAD THE NEW IMAGE
FITNESS APP TODAY!
To access all your workout videos
wherever & whenever you want!
