Newland NQuire 1000 Manta II User manual

SCANNING MADE SIMPLE
NQuire 1000 Manta II
customer information terminal
user guide

1
Revision History
Version
Description
Date
V0.1
Initial release.
August 4th, 2016
V0.2
Fine-tuned for NQuire1000 specific features
January 5th, 2017
V0.3
1) Revised home page
2) Added hardware & accessory installation & operation
January 31st, 2017
V1.0
Updated all the screenshots.
November 23, 2018
V1.1
Updated the “12. Control I/O Ports & Cover” section.
January 8, 2019

2
Table of Content
Disclaimer...........................................................................................................................................................4
Device Instruction & Installation......................................................................................................................5
Hardware Instruction.....................................................................................................................................5
1. LED Indicator ....................................................................................................................................6
2. SD Card Slot / Cover ........................................................................................................................6
3/4/5. Push Buttons...............................................................................................................................7
7. Expansion Slots & Add-on modules.................................................................................................7
8. Speaker.............................................................................................................................................8
9. Vesa Mount Holes.............................................................................................................................8
10. DC-In Jack ......................................................................................................................................9
11. Barcode Scanner............................................................................................................................9
12. Control I/O Ports & Cover...............................................................................................................9
13. Generic I/O Port Covers................................................................................................................12
14/15/16 Generic I/O Ports.................................................................................................................13
17. Power Switch ................................................................................................................................13
18. Headphone Audio Jack.................................................................................................................13
Accessory & Installation .................................................................................................................................14

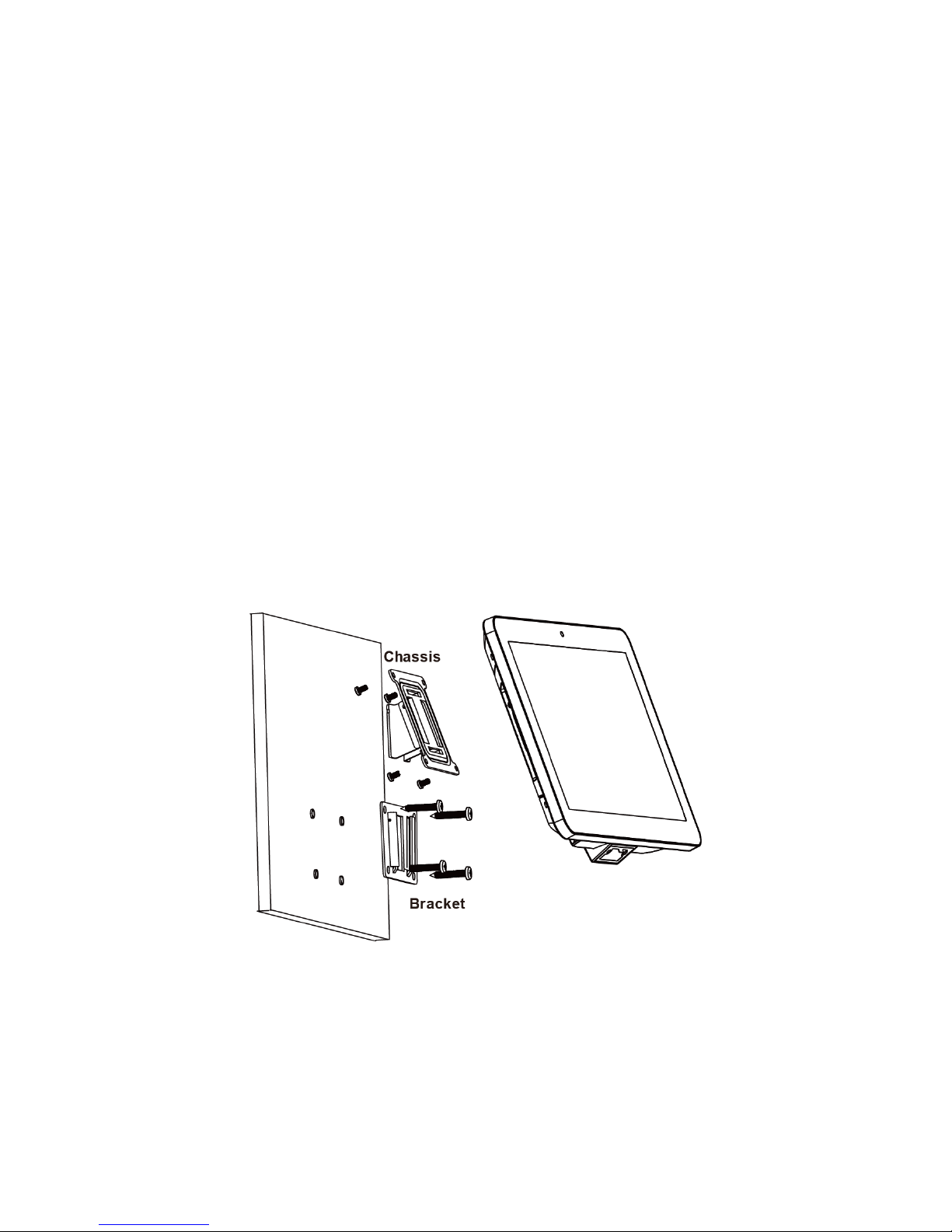

VESA Wall Mount.......................................................................................................................................14
Installation & Operation.......................................................................................................................14
Feature Programming......................................................................................................................................15

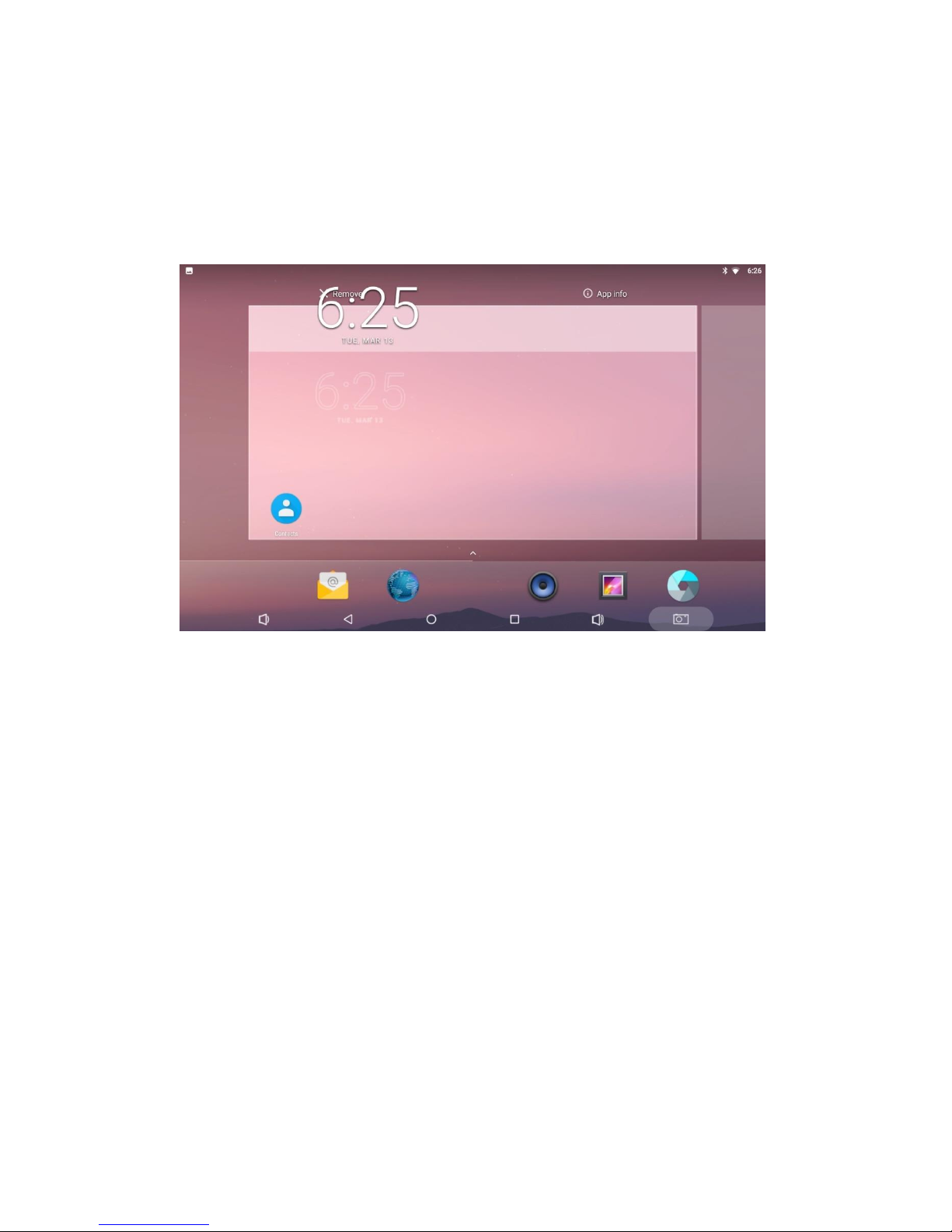

Home Screen..............................................................................................................................................15

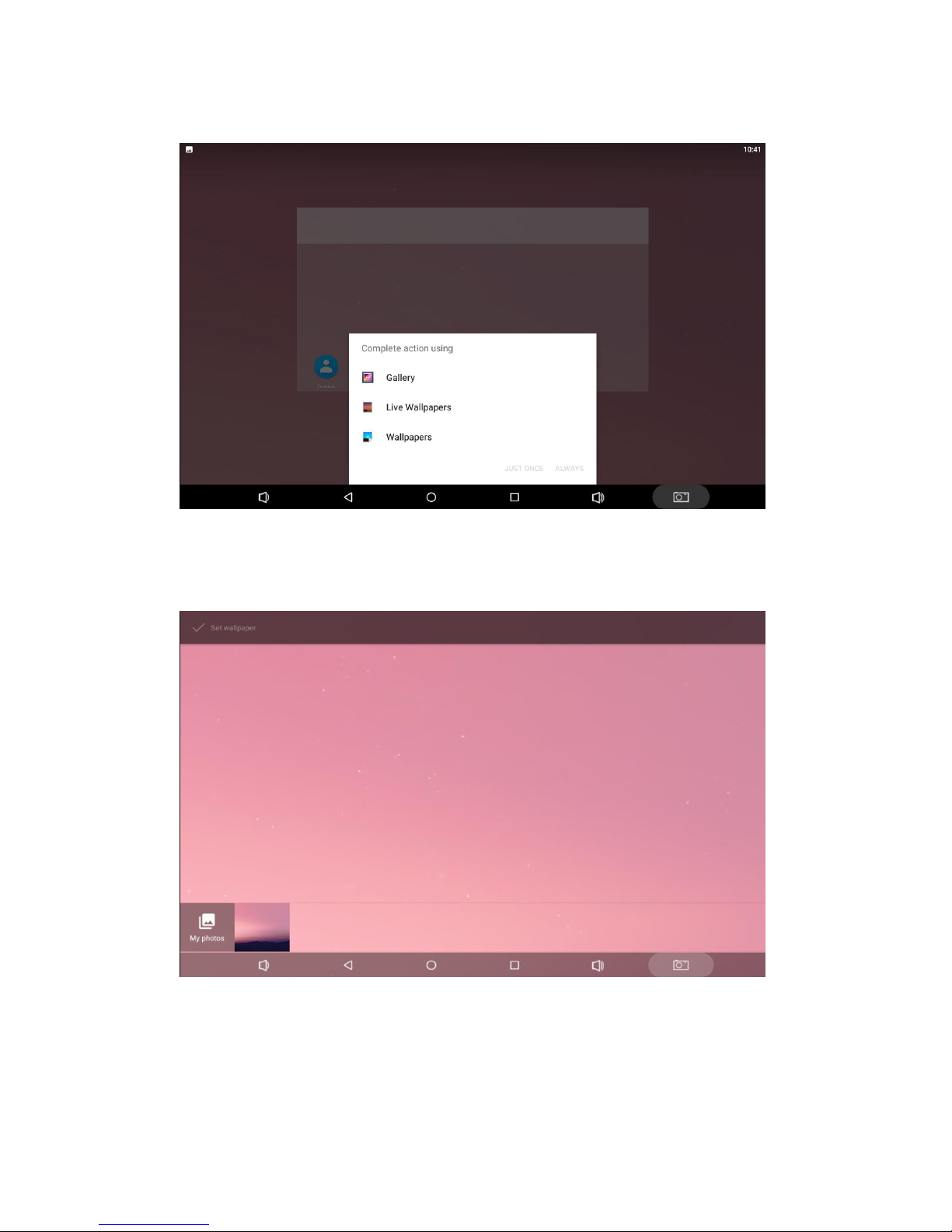

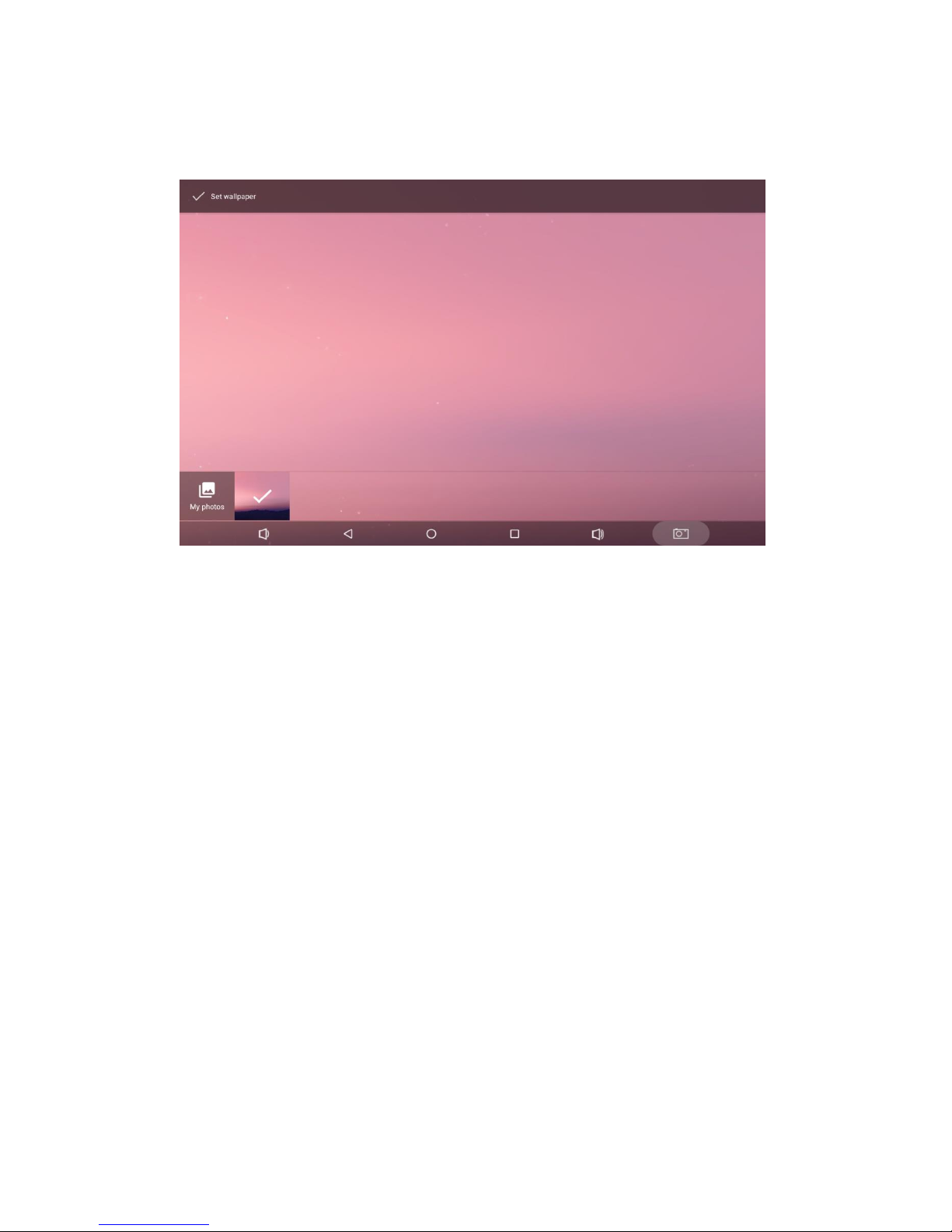

Change Wallpaper..............................................................................................................................15
Add Widgets........................................................................................................................................18
System Bar .................................................................................................................................................20
Navigation Buttons..............................................................................................................................20
Status Notifications .............................................................................................................................21
Applications.................................................................................................................................................22
Language & Input Method..........................................................................................................................23
Date & Time................................................................................................................................................24
Volume........................................................................................................................................................25
Brightness...................................................................................................................................................26
Schedule Power On/Off..............................................................................................................................27
Wi-Fi............................................................................................................................................................29
Ethernet ......................................................................................................................................................29

3
Bluetooth.....................................................................................................................................................31
Virtual Keyboard.........................................................................................................................................32
Take Photos................................................................................................................................................34
Surf Online..................................................................................................................................................35
Browse Files...............................................................................................................................................36
Play Media..................................................................................................................................................37
Install & Uninstall Apps...............................................................................................................................38
Install Apps..........................................................................................................................................38
Uninstall Apps.....................................................................................................................................41
Reset to Factory Default.............................................................................................................................43

4
Disclaimer
✓Please read the instructions carefully before equipment installation
and using the device.
✓Do not put the product in high temperature, humid or dusty environment.
✓Do not drop, crash or break down this product.
✓Do not power off the device when it’s formatting or upgrading,
otherwise it will cause operation system error.
✓This product is IP54 certified in waterproof and dustproof on front panel (only).
✓Use only approved add-on enhancements.

5
Device Instruction & Installation
Hardware Instruction
1.
LED Indicator
2. SD Card Slot / Cover: support external SD card
3. Exit Button: return to the previous page
4. Up / Down Buttons: navigate up/down to select an item
5. Vol+ / Vol- Buttons: adjust the system volume
6. Front Camera: embedded 2M pixels (& 5MP or 8MP) optional
7. Expansion Slot: install optional add-on modules
8. Speakers: dual audio output
9. VESA75 Mounting Holes: max. screw depth 4.5mm from mounting surface
10. DC-In Jack: powered by 12V/2A DC input
11. Barcode Scanner: 2D barcode scanner to scan barcode
12. Control I/O Port Cover: cover for GPIO and RS-232 ports
13. Generic I/O Port Covers (left and right pieces):
cover for frequently used I/O ports

6
14. 10/100Mbps Ethernet Port: RJ45 connector supporting Ethernet connection
15. USB Host Port: support USB 2.0 Host type A
16. Micro-USB OTG Port: USB 2.0, Micro-USB type B jack, OTG
17. Power Switch: switch power ON/OFF
18. Headphone Audio Jack
Hardware Instruction & Operations
(Installation & Uninstallation)

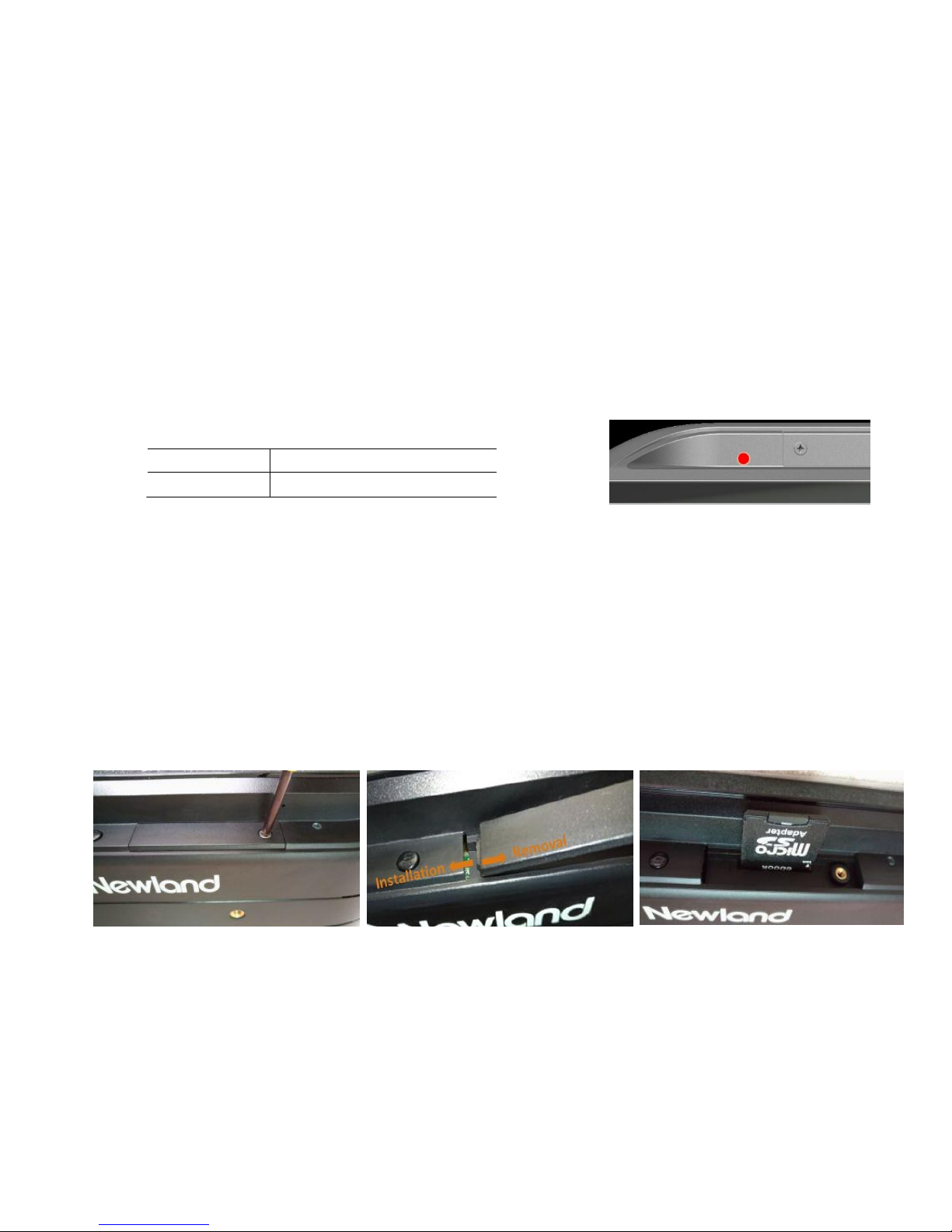

1. LED Indicator
2. SD Card Slot / Cover
Support external SD card up to 32GB (/ 64GB)
I NSTALLATION :
1) Release the screw on SD card cover
2) Remove SD card cover
3) Insert SD card into the push-push SD card slot
R EMOVAL :
1) Push SD card inside the slot, release press force suddenly to let SD
cardpopped out from the slot
2) Insert cover and fix it by screw
Red
Power supply is on.
Light Off
Power supply is off.

7
MSR M ODULE
NFC MODULE

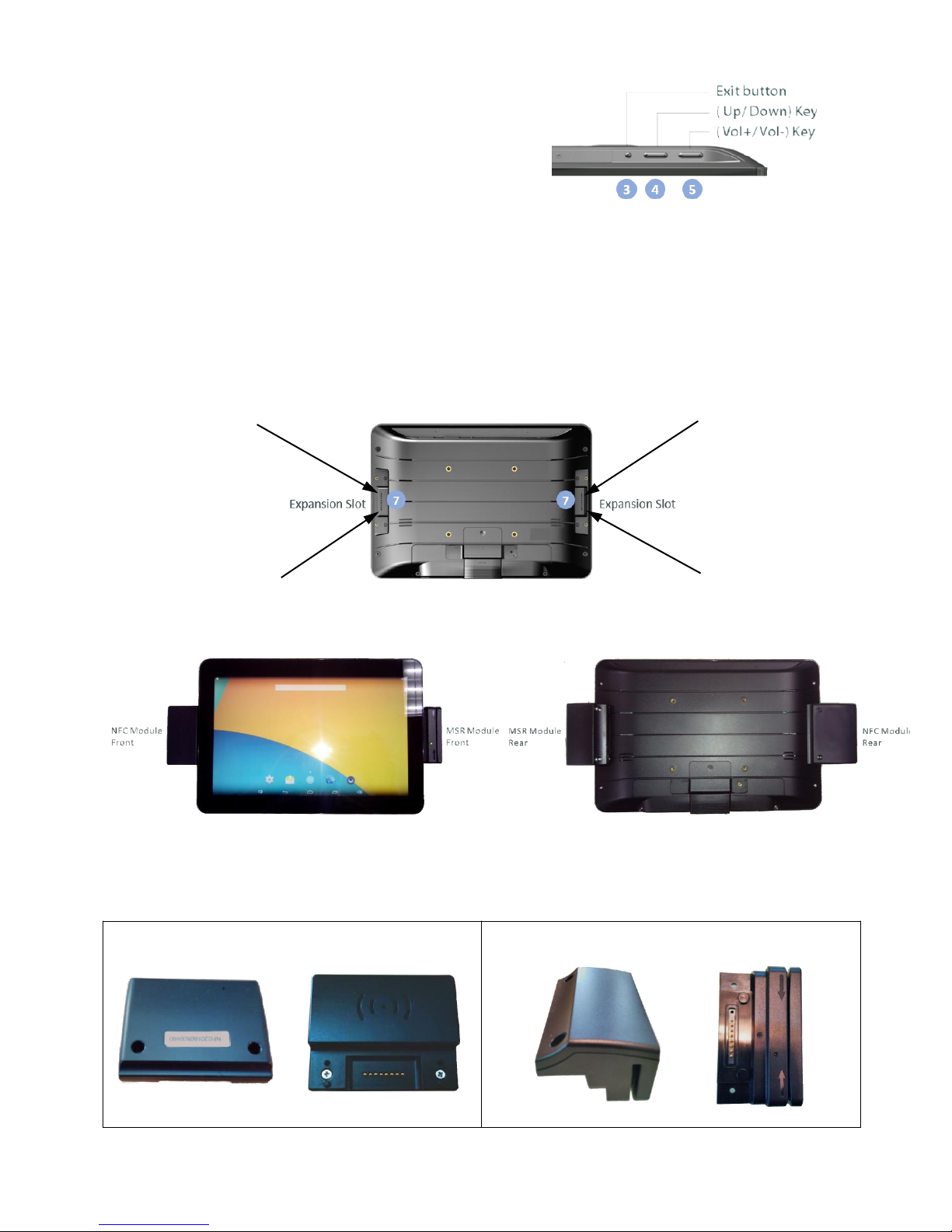

3/4/5. Push Buttons
7. Expansion Slots & Add-on modules
For add-on modules like existing barcode
scanner, MSR and NFC.
A DD - ON M ODULES
1 5V
2D-
3D+
4GND
5RXD
6TXD
7GPI01
8GPI02
1 GPI02
2GPI01
3TXD
4RXD
5GND
6D+
7D-
85V
Availability for the modules - TBA (to be announced)

8
8. Speaker
Dual audio output.
9. Vesa Mount Holes
I NSTALLATION
1.
Align the positioning bumps on module with the pits on main device and gently press down
until they are fully inserted.
2. Fix module on main device by screws.

9

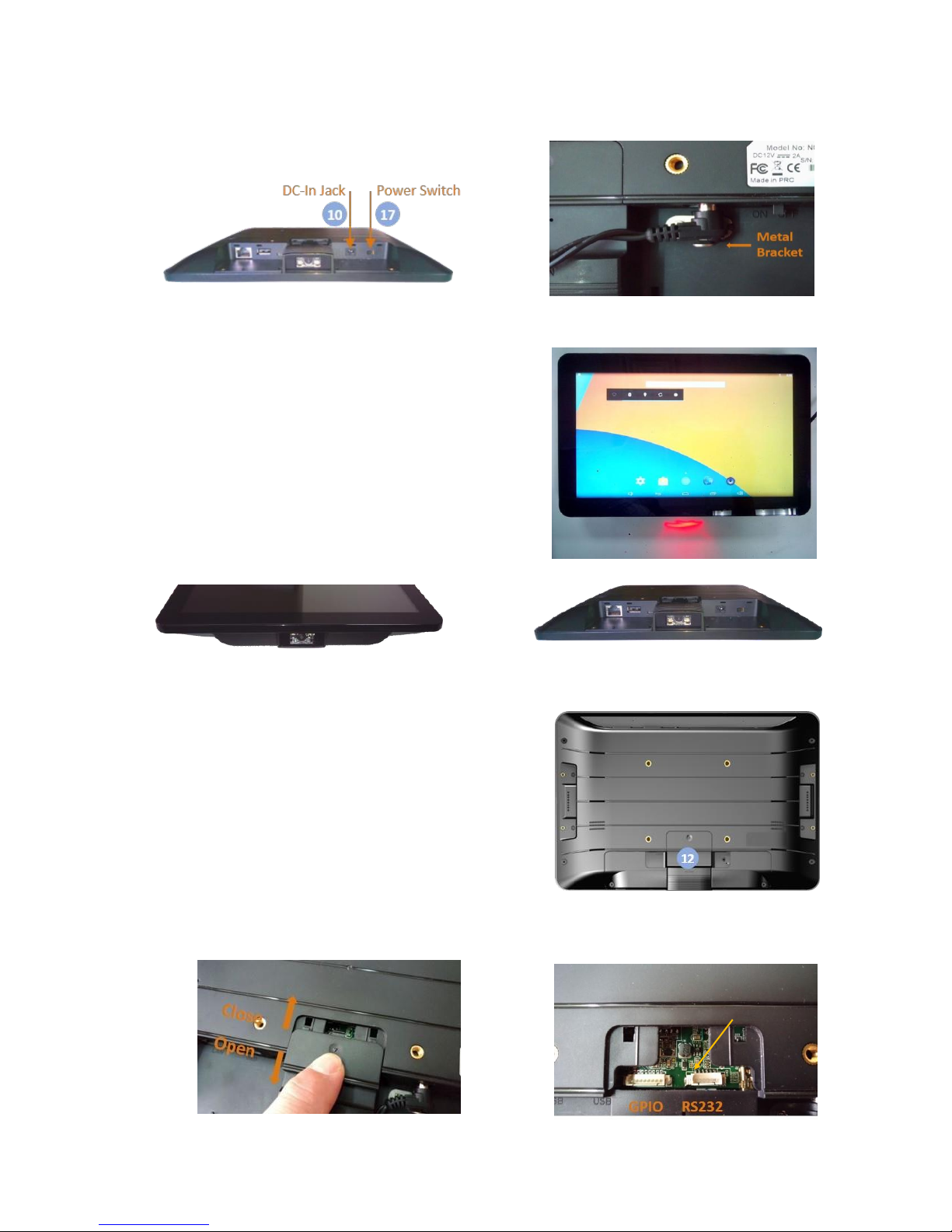

10. DC-In Jack
Plug the power adapter into the power jack, and fix the position by a small metal
bracket to prevent it from loosening.
11. Barcode Scanner
Barcode engine is set up in auto mode
as default setting. LED will light up
when any object showsin front of
barcode scanner within proper
distance, and barcode engine will
automatically scan whena barcode
showed within proper distance.

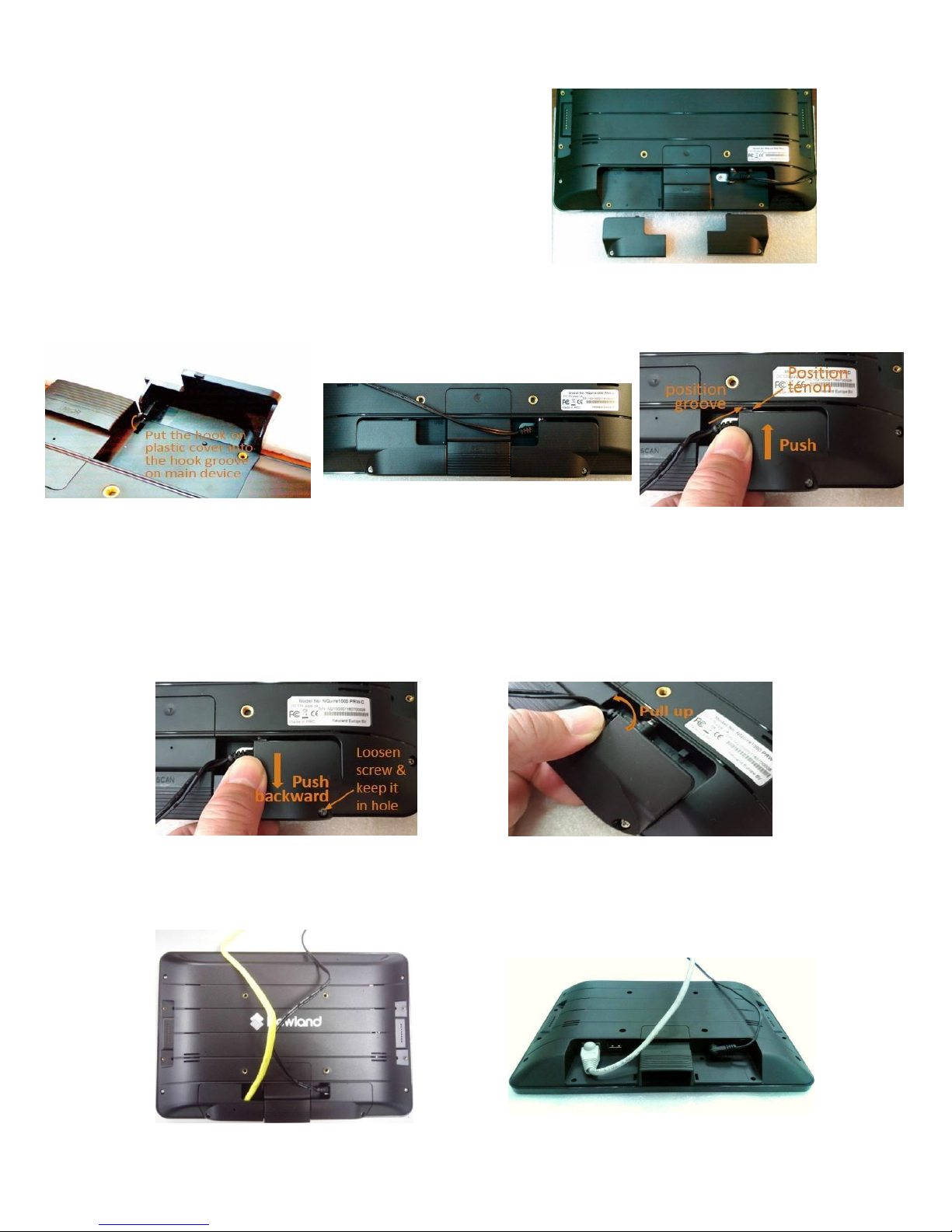

12. Control I/O Ports & Cover
There are control IO ports (RS-232 &
GPIO) under the Control IO cover (#12
in Device Instruction). Press the cover
to slide backward to open the cover, or
slide forward to close the cover.
RS-232 port pinout (PIN1-PIN6):
GND, RX, TX, GND, 5V, 5V.
PIN1
