Nexcom Neu-X100 Series User manual

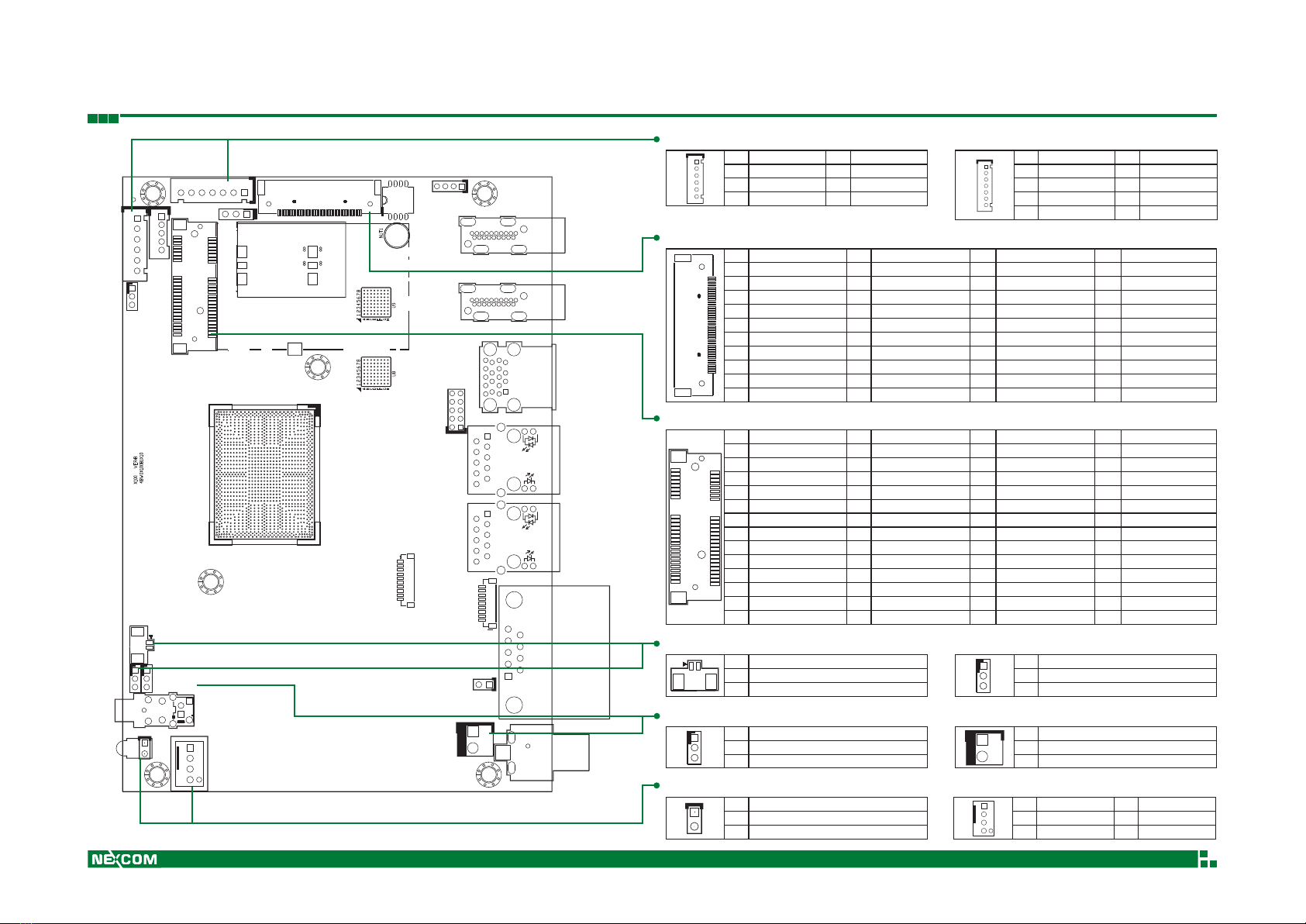

Neu-X100 Quick Reference Guide Ver B.
H2 1
1
1
1
9
1
2
1
1
1
11
1
11
H4
U6
H5
H6
H3
1
1 3
7
1
1
1
1
1
1
1
1
1
33
2
1
H1
1
51
52
10
13
14
10 9
2
2
9
9
LAN2 LAN1 USB1
HDD_LED
PWR_SW
HDMI2 HDMI1
SIM
COM1
DC_PWR
RESET
COM2
NXM_DEBUG
FAN1
JP1
CLRCT
ATX_AT
BATTERY1
J1
LINE_OUT
SW1
LVDS
LVDS_PWR
MINI_CARD
INV
J2
CON1
BTL_PWM
LED_CON
W_USB
CLRTC: Clear CMOS
1
3
Pin Function
1-2* Normal
2-3 Clear CMOS
CON1: DC Power Input
1
Pin Function
01 GND
02 DC IN +19V
JP1: HDD LED Connector
1
2
Pin Function
01 HDD_LED+
02 HDD_LED-
ATX_AT: ATX/AT Mode Select
1
3
Pin Function
1-2* ATX
2-3 AT
BATTERY1: Battery Connector
12
Pin Function
01 BAT
02 GND
INV: LVDS Invertor Connector
1
7
Pin Function Pin Function
01 5V 05 GND
02 12V 06 GND
03 12V 07 Back light Enable
04 Back light Control
W_USB: Touch USB
1
6
Pin Function Pin Function
01 +5V_USB2_P2 04 S_USB2DN6
02 S_USB2DN2 05 S_USB2DP6
03 S_USB2DP2 06 GND
MINI_CARD
1
51 52
Pin Function Pin Function Pin Function Pin Function
01 WAKE# 02 +3VSB 27 GND 28 +1.5V
03 NC 04 GND 29 GND 30 SMB_CLK
05 NC 06 +1.5V 31 PETn0 32 SMB_DATA
07 NC 08 SIM_PWR 33 PETp0 34 GND
09 GND 10 SIM_DATA 35 GND 36 USB_D-
11 REFCLK- 12 SIM_CLK 37 GND 38 USB_D+
13 REFCLK+ 14 SIM_RESET 39 +3VSB 40 GND
15 GND 16 SIM_VPP 41 +3VSB 42 NC
17 NC 18 GND 43 GND 44 NC
19 NC 20 WLAN_DISABLE# 45 NC 46 NC
21 GND 22 RESET# 47 NC 48 +1.5V
23 PERn0 24 +3VSB 49 NC 50 GND
25 PERp0 26 GND 51 NC 52 +3VSB
LVDS: LVDS Panel Connector
1
40
Pin Function Pin Function Pin Function Pin Function
01 LVDS0_D3+ 11 LVDS1_D2+ 21 GND 31 SMBUS_CLK
02 LVDS0_D3- 12 LVDS1_D2- 22 3.3V 32 Back Light Enable
03 LVDS0_D2+ 13 LVDS1_D1+ 23 GND 33 Back Light Control
04 LVDS0_D2- 14 LVDS1_D1- 24 GND 34 LVDS1_CLK+
05 LVDS0_D1+ 15 LVDS1_D0+ 25 GND 35 LVDS1_CLK-
06 LVDS0_D1- 16 LVDS1_D0- 26 LVDS0_CLK+ 36 +12V
07 LVDS0_D0+ 17 GND 27 LVDS0_CLK- 37 +12V
08 LVDS0_D0- 18 +V_PANEL (3.3V or 5V) 28 GND 38 +12V
09 LVDS1_D3+ 19 +V_PANEL (3.3V or 5V) 29 GND 39 NC
10 LVDS1_D3- 20 +V_PANEL (3.3V or 5V) 30 GND 40 SMBUS_DAT
FAN1: FAN Connector
1
4
Pin Function Pin Function
01 GND 03 FAN Speed Detect
02 +12V 04 FAN Speed Control

Neu-X100 Quick Reference Guide Ver B.
H2 1
1
1
1
9
1
2
1
1
1
11
1
11
H4
U6
H5
H6
H3
1
1 3
7
1
1
1
1
1
1
1
1
1
33
2
1
H1
1
51
52
10
13
14
10 9
2
2
9
9
LAN2 LAN1 USB1
HDD_LED
PWR_SW
HDMI2 HDMI1
SIM
COM1
DC_PWR
RESET
COM2
NXM_DEBUG
FAN1
JP1
CLRCT
ATX_AT
BATTERY1
J1
LINE_OUT
SW1
LVDS
LVDS_PWR
MINI_CARD
INV
J2
CON1
BTL_PWM
LED_CON
W_USB
COM2: COM Port Connector
1
10
Pin Function Pin Function
01 DCD 06 DSR
02 RXD 07 RTS
03 TXD 08 CTS
04 DTR 09 RI
05 GND
COM1: COM Port Connector
1
9
Pin Function Pin Function
01 DCD 06 DSR
02 RXD 07 RTS
03 TXD 08 CTS
04 DTR 09 RI
05 GND
LED_CON: LED Connector
1
Pin Function Pin Function
01 HDD_LED- 04 Standby LED
02 HDD_LED+ 05 PWR LED
03 GND
J1: System Power Button
1
Pin Function Pin Function
01 GND 02 PWRBTN#
RESET: System RESET Button
1
2
Pin Function Pin Function
01 RESET# 02 GND
LINE_OUT: Audio Line-out Connector
1
4
Pin Function Pin Function
01 LOUT_L 03 LOUT_JD
02 GND 04 LOUT_R
J2: USB Connector
1
10 9
2
Pin Function Pin Function
01 +5V_USB2_P45 02 GND
03 S_USB2DN4 04 GND
05 S_USB2DP4 06 S_USB2DP5
07 GND 08 S_USB2DN5
09 GND 10 +5V_USB2_P45
NXM_DEBUG: DEBUG Port/LPC Bus
Connector/TPM Module Connecotr
1
10
Pin Function Pin Function
01 +3V 06 LAD3
02 SERIRQ 07 LFRAME#
03 LAD0 08 25MHZ
04 LAD1 09 PLTRST#
05 LAD2 10 GND
SW1: LVDS Resolution Select
SW1[0]
SW1[3]
GPIO[3:0] SW1[3] SW1[2] SW1[1] SW1[0] HA VA CD(bit) port
0000 ON ON ON ON 800 600 6 single
0001 ON ON ON OFF 1024 768 6 single
0010 ON ON OFF ON 1024 768 8 single
0011 ON ON OFF OFF 1280 1024 6 single
0100 ON OFF ON ON 1280 800 6 single
0101 ON OFF ON OFF 1280 800 8 single
0110 ON OFF OFF ON 1280 1024 8 dual
0111 ON OFF OFF OFF 1366 768 6 single
1000 OFF ON ON ON 1366 768 8 single
1001 OFF ON ON OFF 1440 900 8 dual
1010 OFF ON OFF ON 1400 1050 8 dual
1011 OFF ON OFF OFF 1600 900 8 dual
1100 OFF OFF ON ON 1680 1050 8 dual
1101 OFF OFF ON OFF 1600 1200 8 dual
1110 OFF OFF OFF ON 1920 1080 8 dual
1111 OFF OFF OFF OFF 1920 1200 8 dual
LVDS_PWR: LVDS Panel Voltage Select
1
3
Pin Function
1-2* 3.3V
2-3 5V
BLT_PWM: Back Light Control Voltage
(Dimming) Voltage Select
1
3
Pin Function
1-2 3.3V
2-3* 5V

Neu-X100 Quick Reference Guide Ver B.
1
74
75
M2M LVDS
SIO
DIMM
Quick reference guide is subject to change without prior notice. For any update,
please visit our website: www.nexcom.com
=Pin1 [ * ]=Default setting
M2M
1
74
75
Pin Function Pin Function Pin Function Pin Function
01 GND 18 +3VSB 35 NC 52 NC
02 +3VSB 19 NC 36 NC 53 NC
03 GND 20 NC 37 NC 54 NC
04 +3VSB 21 GND 38 DEVSLP 55 NC
05 NC 22 NC 39 GND 56 NC
06 NC 23 NC 40 NC 57 GND
07 NC 24 NC 41 SATA_RXP 58 NC
08 NC 25 NC 42 NC 67 NC
09 GND 26 NC 43 SATA_RXN 68 NC
10 M2M_LED# 27 GND 44 NC 69 NC
11 NC 28 NC 45 GND 70 +3VSB
12 +3VSB 29 NC 46 NC 71 GND
13 NC 30 NC 47 SATA_TXN 72 +3VSB
14 +3VSB 31 NC 48 NC 73 GND
15 GND 32 NC 49 SATA_TXP 74 +3VSB
16 +3VSB 33 GND 50 RESET# 75 GND
17 NC 34 NC 51 GND
Note: Quick reference guide is for Neu-X100 series model and there is different design for each main board.
‧Main Board with LVDS function: INV, LVDS, SW1, LVDS_PWR, W_USB, BLT_PWM, J1
‧Main Board with dual HDMI function: HDMI 2
