PXI ExpressTM
NI PXIe-1082 User Manual
NI PXIe-1082 User Manual
March 2016
372752C-01
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Support
Worldwide Technical Support and Product Information
ni.com
Worldwide Offices
Visit ni.com/niglobal to access the branch office websites, which provide up-to-date
contact information, support phone numbers, email addresses, and current events.
National Instruments Corporate Headquarters
11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: [phone]
For further support information, refer to the NI Services appendix. To comment on NI
documentation, refer to the NI website at ni.com/info and enter the Info Code feedback.
©2009–2016 National Instruments. All rights reserved.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Legal Information
Limited Warranty
This document is provided ‘as is’ and is subject to being changed, without notice, in future editions. For the latest version,
refer to ni.com/manuals. NI reviews this document carefully for technical accuracy; however, NI MAKES NO EXPRESS
OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND
SHALL NOT BE LIABLE FOR ANY ERRORS.
NI warrants that its hardware products will be free of defects in materials and workmanship that cause the product to fail to
substantially conform to the applicable NI published specifications for one (1) year from the date of invoice.
For a period of ninety (90) days from the date of invoice, NI warrants that (i) its software products will perform substantially
in accordance with the applicable documentation provided with the software and (ii) the software media will be free from
defects in materials and workmanship.
If NI receives notice of a defect or non-conformance during the applicable warranty period, NI will, in its discretion: (i) repair
or replace the affected product, or (ii) refund the fees paid for the affected product. Repaired or replaced Hardware will be
warranted for the remainder of the original warranty period or ninety (90) days, whichever is longer. If NI elects to repair or
replace the product, NI may use new or refurbished parts or products that are equivalent to new in performance and reliability
and are at least functionally equivalent to the original part or product.
You must obtain an RMA number from NI before returning any product to NI. NI reserves the right to charge a fee for
examining and testing Hardware not covered by the Limited Warranty.
This Limited Warranty does not apply if the defect of the product resulted from improper or inadequate maintenance,
installation, repair, or calibration (performed by a party other than NI); unauthorized modification; improper environment;
use of an improper hardware or software key; improper use or operation outside of the specification for the product; improper
voltages; accident, abuse, or neglect; or a hazard such as lightning, flood, or other act of nature.
THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND THE CUSTOMER’S SOLE REMEDIES, AND SHALL
APPLY EVEN IF SUCH REMEDIES FAIL OF THEIR ESSENTIAL PURPOSE.
EXCEPT AS EXPRESSLY SET FORTH HEREIN, PRODUCTS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF
ANY KIND AND NI DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE
PRODUCTS, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE OR NON-INFRINGEMENT, AND ANY WARRANTIES THAT MAY ARISE FROM
USAGE OF TRADE OR COURSE OF DEALING. NI DOES NOT WARRANT, GUARANTEE, OR MAKE ANY
REPRESENTATIONS REGARDING THE USE OF OR THE RESULTS OF THE USE OF THE PRODUCTS IN TERMS
OF CORRECTNESS, ACCURACY, RELIABILITY, OR OTHERWISE. NI DOES NOT WARRANT THAT THE
OPERATION OF THE PRODUCTS WILL BE UNINTERRUPTED OR ERROR FREE.
In the event that you and NI have a separate signed written agreement with warranty terms covering the products, then the
warranty terms in the separate agreement shall control.
Copyright
Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical,
including photocopying, recording, storing in an information retrieval system, or translating, in whole or in part, without the
prior written consent of National Instruments Corporation.
National Instruments respects the intellectual property of others, and we ask our users to do the same. NI software is protected
by copyright and other intellectual property laws. Where NI software may be used to reproduce software or other materials
belonging to others, you may use NI software only to reproduce materials that you may reproduce in accordance with the
terms of any applicable license or other legal restriction.
End-User License Agreements and Third-Party Legal Notices
You can find end-user license agreements (EULAs) and third-party legal notices in the following locations:
• Notices are located in the <National Instruments>\_Legal Information and <National Instruments>
directories.
• EULAs are located in the <National Instruments>\Shared\MDF\Legal\license directory.
•Review
<National Instruments>\_Legal Information.txt for information on including legal information in
installers built with NI products.
U.S. Government Restricted Rights
If you are an agency, department, or other entity of the United States Government (“Government”), the use, duplication,
reproduction, release, modification, disclosure or transfer of the technical data included in this manual is governed by the
Restricted Rights provisions under Federal Acquisition Regulation 52.227-14 for civilian agencies and Defense Federal
Acquisition Regulation Supplement Section 252.227-7014 and 252.227-7015 for military agencies.
Trademarks
Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on NI trademarks.
ARM, Keil, and µVision are trademarks or registered of ARM Ltd or its subsidiaries.
LEGO, the LEGO logo, WEDO, and MINDSTORMS are trademarks of the LEGO Group.
TETRIX by Pitsco is a trademark of Pitsco, Inc.
FIELDBUS FOUNDATION™and FOUNDATION™are trademarks of the Fieldbus Foundation.
EtherCAT®is a registered trademark of and licensed by Beckhoff Automation GmbH.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CANopen®is a registered Community Trademark of CAN in Automation e.V.
DeviceNet™and EtherNet/IP™are trademarks of ODVA.
Go!, SensorDAQ, and Vernier are registered trademarks of Vernier Software & Technology. Vernier Software & Technology
and vernier.com are trademarks or trade dress.
Xilinx is the registered trademark of Xilinx, Inc.
Taptite and Trilobular are registered trademarks of Research Engineering & Manufacturing Inc.
FireWire®is the registered trademark of Apple Inc.
Linux®is the registered trademark of Linus Torvalds in the U.S. and other countries.
Handle Graphics®, MATLAB®, Simulink®, Stateflow®, and xPC TargetBox®are registered trademarks, and
Simulink Coder™, TargetBox™, and Target Language Compiler™are trademarks of The MathWorks, Inc.
Tektronix®, Tek, and Tektronix, Enabling Technology are registered trademarks of Tektronix, Inc.
The Bluetooth®word mark is a registered trademark owned by the Bluetooth SIG, Inc.
The ExpressCard™word mark and logos are owned by PCMCIA and any use of such marks by National Instruments is under
license.
The mark LabWindows is used under a license from Microsoft Corporation. Windows is a registered trademark of Microsoft
Corporation in the United States and other countries.
Other product and company names mentioned herein are trademarks or trade names of their respective companies.
Members of the National Instruments Alliance Partner Program are business entities independent from NI and have no
agency, partnership, or joint-venture relationship with NI.
Patents
For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software,
the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents.
Export Compliance Information
Refer to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance
policy and how to obtain relevant HTS codes, ECCNs, and other import/export data.
WARNING REGARDING USE OF NATIONAL INSTRUMENTS PRODUCTS
YOU ARE ULTIMATELY RESPONSIBLE FOR VERIFYING AND VALIDATING THE SUITABILITY AND
RELIABILITY OF THE PRODUCTS WHENEVER THE PRODUCTS ARE INCORPORATED IN YOUR SYSTEM OR
APPLICATION, INCLUDING THE APPROPRIATE DESIGN, PROCESS, AND SAFETY LEVEL OF SUCH SYSTEM
OR APPLICATION.
PRODUCTS ARE NOT DESIGNED, MANUFACTURED, OR TESTED FOR USE IN LIFE OR SAFETY CRITICAL
SYSTEMS, HAZARDOUS ENVIRONMENTS OR ANY OTHER ENVIRONMENTS REQUIRING FAIL-SAFE
PERFORMANCE, INCLUDING IN THE OPERATION OF NUCLEAR FACILITIES; AIRCRAFT NAVIGATION; AIR
TRAFFIC CONTROL SYSTEMS; LIFE SAVING OR LIFE SUSTAINING SYSTEMS OR SUCH OTHER MEDICAL
DEVICES; OR ANY OTHER APPLICATION IN WHICH THE FAILURE OF THE PRODUCT OR SERVICE COULD
LEAD TO DEATH, PERSONAL INJURY, SEVERE PROPERTY DAMAGE OR ENVIRONMENTAL HARM
(COLLECTIVELY, “HIGH-RISK USES”). FURTHER, PRUDENT STEPS MUST BE TAKEN TO PROTECT AGAINST
FAILURES, INCLUDING PROVIDING BACK-UP AND SHUT-DOWN MECHANISMS. NI EXPRESSLY DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS OF THE PRODUCTS OR SERVICES FOR HIGH-RISK
USES.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Compliance
Electromagnetic Compatibility Information
This hardware has been tested and found to comply with the applicable regulatory requirements and limits
for electromagnetic compatibility (EMC) as indicated in the hardware’s Declaration of Conformity (DoC)1.
These requirements and limits are designed to provide reasonable protection against harmful interference
when the hardware is operated in the intended electromagnetic environment. In special cases, for example
when either highly sensitive or noisy hardware is being used in close proximity, additional mitigation
measures may have to be employed to minimize the potential for electromagnetic interference.
While this hardware is compliant with the applicable regulatory EMC requirements, there is no guarantee
that interference will not occur in a particular installation. To minimize the potential for the hardware to
cause interference to radio and television reception or to experience unacceptable performance degradation,
install and use this hardware in strict accordance with the instructions in the hardware documentation and
the DoC1.
If this hardware does cause interference with licensed radio communications services or other nearby
electronics, which can be determined by turning the hardware off and on, you are encouraged to try to correct
the interference by one or more of the following measures:
• Reorient the antenna of the receiver (the device suffering interference).
• Relocate the transmitter (the device generating interference) with respect to the receiver.
• Plug the transmitter into a different outlet so that the transmitter and the receiver are on different branch
circuits.
Some hardware may require the use of a metal, shielded enclosure (windowless version) to meet the EMC
requirements for special EMC environments such as, for marine use or in heavy industrial areas. Refer to
the hardware’s user documentation and the DoC1for product installation requirements.
When the hardware is connected to a test object or to test leads, the system may become more sensitive to
disturbances or may cause interference in the local electromagnetic environment.
Operation of this hardware in a residential area is likely to cause harmful interference. Users are required to
correct the interference at their own expense or cease operation of the hardware.
Changes or modifications not expressly approved by National Instruments could void the user’s right to
operate the hardware under the local regulatory rules.
1 The Declaration of Conformity (DoC) contains important EMC compliance information and instructions
for the user or installer. To obtain the DoC for this product, visit ni.com/certification, search by
model number or product line, and click the appropriate link in the Certification column.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |vii
Contents
Chapter 1
Getting Started
Unpacking......................................................................................................................... 1-1
What You Need to Get Started ......................................................................................... 1-1
Key Features ..................................................................................................................... 1-2
Chassis Description .......................................................................................................... 1-3
Optional Equipment.......................................................................................................... 1-4
EMC Filler Panels .................................................................................................... 1-4
Rack Mount Kit ........................................................................................................ 1-4
Slot Blockers............................................................................................................. 1-5
NI PXIe-1082 Chassis Backplane Overview.................................................................... 1-5
Interoperability with CompactPCI............................................................................ 1-5
System Controller Slot.............................................................................................. 1-6
Hybrid Peripheral Slots ............................................................................................ 1-6
PXI Express Peripheral Slots.................................................................................... 1-6
System Timing Slot .................................................................................................. 1-7
PXI Local Bus .......................................................................................................... 1-8
PXI Trigger Bus........................................................................................................ 1-8
System Reference Clock........................................................................................... 1-9
PXIe_SYNC_CTRL ................................................................................................. 1-11
Chapter 2
Installation and Configuration
Safety Information............................................................................................................ 2-1
Chassis Cooling Considerations ....................................................................................... 2-2
Providing Adequate Clearance ................................................................................. 2-2
Chassis Ambient Temperature Definition ................................................................ 2-3
Setting Fan Speed ..................................................................................................... 2-4
Installing Filler Panels .............................................................................................. 2-4
Installing Slot Blockers ............................................................................................ 2-4
Rack Mounting ................................................................................................................. 2-4
Connecting Safety Ground ............................................................................................... 2-4
Connecting to Power Source ............................................................................................ 2-5
Installing a PXI Express System Controller ..................................................................... 2-5
Installing Peripheral Modules........................................................................................... 2-7
Power Inhibit Switch LED Indicator ................................................................................ 2-9
Remote Voltage Monitoring and Control......................................................................... 2-10
Inhibit Mode Switch ......................................................................................................... 2-11
PXI_CLK10 Rear Connectors .......................................................................................... 2-11
PXI Express System Configuration with MAX ............................................................... 2-12
PXI-1 System Configuration .................................................................................... 2-12
Using System Configuration and Initialization Files ....................................................... 2-13
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents
viii |ni.com
Chapter 3
Maintenance
Service Interval .................................................................................................................3-1
Preparation ........................................................................................................................3-1
Cleaning ............................................................................................................................3-1
Interior Cleaning ....................................................................................................... 3-1
Exterior Cleaning ...................................................................................................... 3-2
Cleaning the Fan Filters.................................................................................................... 3-2
Resetting the AC Mains Circuit Breaker .......................................................................... 3-2
Replacing the Modular Power Supply ..............................................................................3-3
Removal .................................................................................................................... 3-3
Installation ................................................................................................................ 3-3
Configuration ............................................................................................................ 3-4
Connecting Safety Ground........................................................................................3-4
Connecting to Power Source.....................................................................................3-4
Appendix A
Specifications
Appendix B
Pinouts
Appendix C
NI Services
Glossary
Index
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |1-1
1
Getting Started
This chapter describes the key features of the NI PXIe-1082 chassis and lists the kit contents and
optional equipment you can order from National Instruments.
Unpacking
Carefully inspect the shipping container and the chassis for damage. Check for visible damage
to the metal work. Check to make sure all handles, hardware, and switches are undamaged.
Inspect the inner chassis for any possible damage, debris, or detached components. If damage
appears to have been caused during shipment, file a claim with the carrier. Retain the packing
material for possible inspection and/or reshipment.
What You Need to Get Started
The NI PXIe-1082 chassis kit contains the following items:
NI PXIe-1082 chassis
Filler panels
AC power cable—refer to Table 1-1 for AC power cables
NI PXIe-1082 User Manual
Software media with PXI Platform Services 2.0 or higher
Read Me First: Safety and Electromagnetic Compatibility
Chassis number labels
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-2 |ni.com
Chapter 1 Getting Started
If you are missing any of the items listed in Table 1-1, or if you have the incorrect AC power
cable, contact National Instruments.
Key Features
The NI PXIe-1082 chassis combines a high-performance 8-slot PXI Express backplane with a
high-output power supply and a structural design that has been optimized for maximum usability
in a wide range of applications. The chassis’ modular design ensures a high level of
maintainability, resulting in a very low mean time to repair (MTTR). The NI PXIe-1082 chassis
fully complies with the PXI-5 PXI Express Hardware Specification, offering advanced timing
and synchronization features.
The key features of the NI PXIe-1082 chassis include the following:
• High Performance for Instrumentation Requirements
– Up to 2 GB/s (single direction) per PXI Express slot dedicated bandwidth (x4 PCIe)
– 38 W per slot cooling meets increased PXIe cooling requirements
– Low-jitter internal 10 MHz reference clock for PXI slots with ± 25 ppm stability
– Low-jitter internal 100 MHz reference clock for PXIe slots with ± 25 ppm stability
– Quiet operation for 0 to 30 °C at 43.6 dBA
– Variable speed fan controller optimizes cooling and acoustic emissions
– Remote power-inhibit control
– Complies with PXI and CompactPCI Specifications
• High Reliability
– 0 to 55 °C extended temperature range
– Power supply, temperature, and fan monitoring
– HALT tested for increased reliability
– Field replaceable power supply shuttle
Table 1-1. AC Power Cables
Power Cable Reference Standards
Standard 120 V (USA) ANSI C73.11/NEMA 5-15-P/IEC83
Switzerland 220 V SEV
Australia 240 V AS C112
Universal Euro 230 V CEE (7), II, IV, VII IEC83
North America 120 V ANSI C73.20/NEMA 5-15-P/IEC83
United Kingdom 230 V BS 1363/IEC83
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |1-3
NI PXIe-1082 User Manual
• Multi-Chassis Support
– PXIe System Timing Slot for tight synchronization across chassis
– Rear CLK10 I/O connectors
– Switchless CLK10 routing
• Optional Features
– Front and rear rack-mount kits
– Replacement power supply shuttle
– EMC filler panels
– Slot blockers for improved cooling performance
– System Assurance Plans
Chassis Description
Figures 1-1 and 1-2 show the key features of the NI PXIe-1082 chassis front and back panels.
Figure 1-1 shows the front view of the NI PXIe-1082. Figure 1-2 shows the rear view of the
NI PXIe-1082.
Figure 1-1. Front View of the NI PXIe-1082 Chassis
1 Power Inhibit Switch
2 Power Inhibit Switch LED
3 Removable Feet
4 Chassis Carry Handle
5 Chassis Model Name
6 Backplane Connectors
7 System Controller Expansion Slots
8 PXI Express System Controller Slot
9 PXI Express Hybrid Peripheral Slots
10 PXI Express System Timing Slot
11 PXI Express Peripheral Slot
NI PXIe-1082
8101
2
3
4
711 9
3
5
6
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-4 |ni.com
Chapter 1 Getting Started
Figure 1-2. Rear View of the NI PXIe-1082 Chassis
Optional Equipment
Contact National Instruments to order the following options for the NI PXIe-1082 chassis.
EMC Filler Panels
Optional EMC filler panel kits are available from National Instruments.
Rack Mount Kit
There are two optional kits for mounting the PXIe-1082 chassis into a rack. The first option is a
pair of mounting brackets for use on the front of the chassis. The second option is a rear rack
mount kit. The rear rack mount kit differs from the front kit to allow for easier installation into
the rack. For more information, refer to Figure A-3, NI Chassis Rack Mount Kit Components.
1 Power Supply Shuttle
2 Push-Reset Circuit Breaker
3 Universal AC Input
4 Chassis Ground Screw
5 10 MHz REF OUT BNC
6 10 MHz REF IN BNC
7 Remote Inhibit and Voltage Monitoring Connector
8 Air Filter Retainer
9 Air Filter Retainer Screw
10 Power Supply Shuttle ID Label
11 Fan Speed Selector Switch
12 Inhibit Mode Selector Switch
13 Power Supply Shuttle Handle (2x)
14 Power Supply Shuttle Mounting Screws (8x)
865
1211 732 910
4
14
13
1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |1-5
NI PXIe-1082 User Manual
Slot Blockers
Optional slot blocker kits are available from National Instruments for improved thermal
performance when all slots are not used.
NI PXIe-1082 Chassis Backplane Overview
This section provides an overview of the backplane features for the NI PXIe-1082 chassis.
Interoperability with CompactPCI
The design of the NI PXIe-1082 provides you the flexibility to use the following devices in a
single PXI Express chassis:
• PXI Express compatible products
• CompactPCI Express compatible 4-Link system controller products
• CompactPCI Express compatible Type-2 peripheral products
• PXI peripheral products
• Standard CompactPCI peripheral products
Refer to Figure 1-3 for an overview of the NI PXIe-1082 architecture.
Figure 1-3. NI PXIe-1082 Backplane Architecture
Link #2
HHHH
1234 5 6 7 8
PCIe/PCI
Bridge
PLX
PEX8612
PCIe Switch
0
1
5
x4
x4
x4
Link #3
Link #4
Link #1
PLX
PEX8612
PCIe Switch
0
5
1
x4
x4
PLX
PEX8616
PCIe Switch
0
6
1
x4
x4
5
x4 x4 x4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-6 |ni.com
Chapter 1 Getting Started
System Controller Slot
The system controller slot is Slot 1 of the chassis and is a 4-Link configuration system slot as
defined by the CompactPCI Express and PXI Express specifications. It has three system
controller expansion slots for system controller modules that are wider than one slot. These slots
allow the system controller to expand to the left to prevent the system controller from using
peripheral slots.
The backplane routes three of the system slot’s x4 PCI Express (PCIe) links to a PCIe switch.
The three PCIe switches have x4 PCIe links routed to each peripheral slot as well as a x1 link to
a PCIe-to-PCI bridge providing a 32-bit/33 MHz PCI bus to the hybrid slots. Slot 2 directly
connects to the remaining link of the system slot. Refer to Figure 1-3 for the connectivity of PCIe
and PCI.
By default, the system controller will control the power supply with the PS_ON# signals. A logic
low on this line will turn the power supply on.
Note The Inhibit Mode switch on the rear of the chassis must be in the Default
position for the system controller to have control of the power supply. Refer to the
Inhibit Mode Switch section of Chapter 2, Installation and Configuration, for details
about the Inhibit Mode switch.
Hybrid Peripheral Slots
The chassis provides four hybrid peripheral slots as defined by the PXI-5 PXI Express Hardware
Specification: slots 5 to 8. A hybrid peripheral slot can accept the following peripheral modules:
• A PXI Express Peripheral with x4 or x1 PCI Express link to the system slot
• A CompactPCI Express Type-2 Peripheral with x4 or x1 PCI Express link to the system slot
• A hybrid-compatible PXI Peripheral module that has been modified by replacing the J2
connector with an XJ4 connector installed in the upper eight rows of J2. Refer to the
PXI Express Specification for details. The PXI Peripheral communicates through the
backplane’s 32-bit PCI bus.
• A CompactPCI 32-bit peripheral on the backplane’s 32-bit PCI bus
The hybrid peripheral slots provide full PXI Express functionality and 32-bit PXI functionality
except for PXI Local Bus. The hybrid peripheral slot only connects to PXI Local Bus 6 left and
right.
PXI Express Peripheral Slots
There are two PXI Express peripheral slots: slot 2 and slot 3. PXI Express peripheral slots accept
the following modules:
• A PXI Express Peripheral with x4 or x1 PCI Express link to the system slot
• A CompactPCI Express Type-2 Peripheral with x4 or x1 PCI Express link to the system slot
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |1-7
NI PXIe-1082 User Manual
System Timing Slot
The System Timing Slot is slot 4. The system timing slot will accept the following peripheral modules:
• A PXI Express System Timing Module with x4 or x1 PCI Express link to the system slot
• A PXI Express Peripheral with x4 or x1 PCI Express link to the system slot
• A CompactPCI Express Type-2 Peripheral with x4 or x1 PCI Express link to the system slot
The system timing slot has 3 dedicated differential pairs (PXIe_DSTAR) connected from the
TP2 connector to the XP3 connector for each hybrid peripheral slot, as well as routed back to the
XP3 connector of the system timing slot as shown in Figure 1-4. The PXIe_DSTAR pairs can be
used for high-speed triggering, synchronization and clocking. Refer to the PXI Express
Specification for details.
The system timing slot also has a single-ended (PXI Star) trigger connected to every slot. Refer
to Figure 1-4 for details.
The system timing slot has a pin (PXI_CLK10_IN) through which a system timing module may
source a 10MHz clock to which the backplane will phase-lock. Refer to the System Reference
Clock section for details.
The system timing slot has a pin (PXIe_SYNC_CTRL) through which a system timing module
can control the PXIe_SYNC100 timing. Refer to the PXI Express Specification and the
PXIe_SYNC_CTRL section of this chapter for details.
Figure 1-4. PXIe_DSTAR and PXI Star Connectivity Diagram
123
H
5
H
6
H
7
H
8
4
PXIe_DSTAR0
PXIe_DSTAR1PXIe_DSTAR1 PXIe_DSTAR2 PXIe_DSTAR1
PXIe_DSTAR8
PXIe_DSTAR9
PXIe_DSTAR10
PXIe_DSTAR11
PXI_STAR1
PXI_STAR0
PXI_STAR2
PXI_STAR3
PXI_STAR4
PXI_STAR5
PXI_STAR6
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-8 |ni.com
Chapter 1 Getting Started
PXI Local Bus
The PXI backplane local bus is a daisy-chained bus that connects each peripheral slot with
adjacent peripheral slots to the left and right.
The backplane routes PXI Local Bus 6 between adjacent PXI slots. The left Local Bus 6 from
slot 1 is not routed anywhere. The right Local Bus 6 from slot 8 is also not routed anywhere.
Local bus signals may range from high-speed TTL signals to analog signals as high as 42 V.
Initialization software uses the configuration information specific to each adjacent peripheral
module to evaluate local bus compatibility.

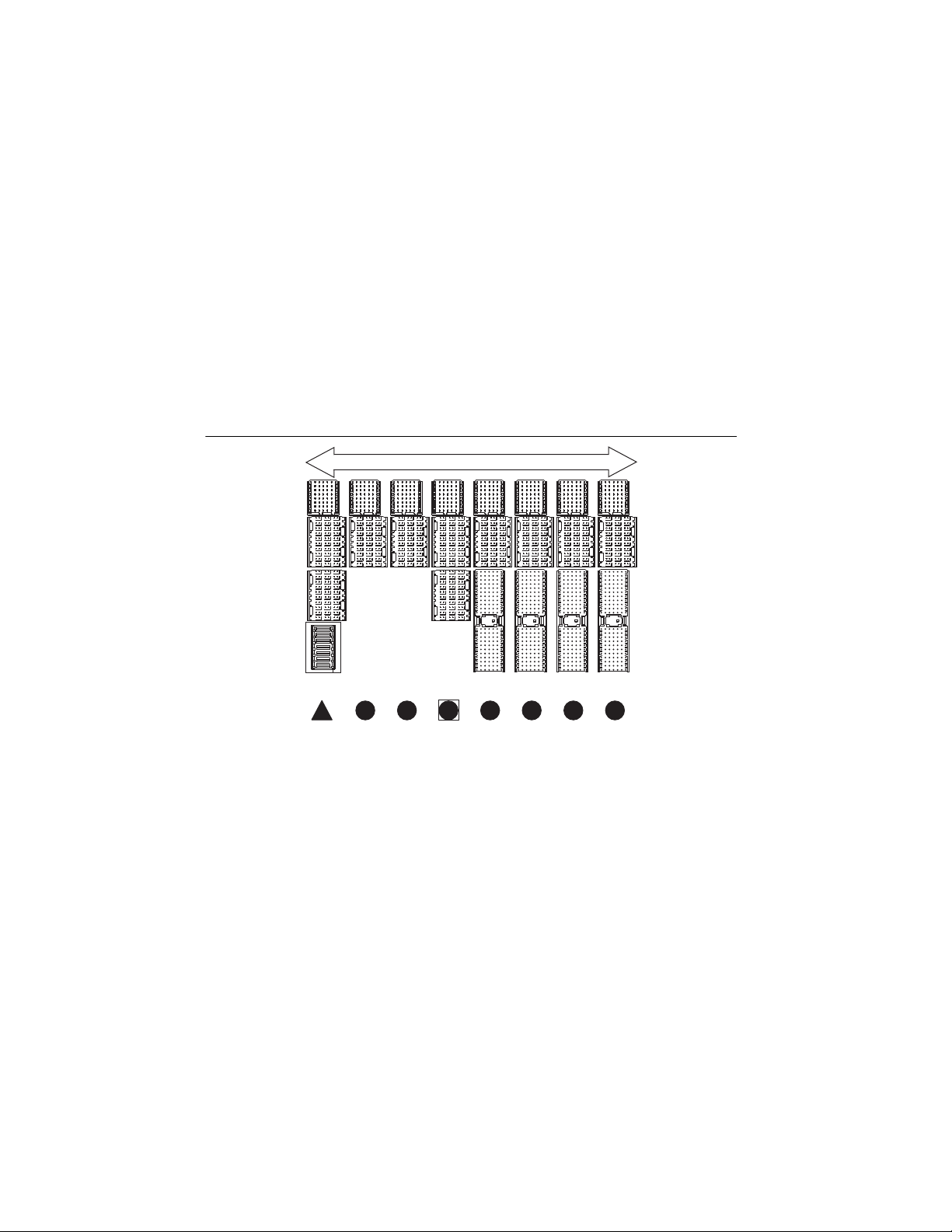

Figure 1-5. PXI Trigger Bus Connectivity Diagram
PXI Trigger Bus
All slots share eight trigger lines.You can use these trigger lines in a variety of ways. For
example, you can use triggers to synchronize the operation of several different PXI peripheral
modules. In other applications, one module can control carefully timed sequences of operations
performed on other modules in the system. Modules can pass triggers to one another, allowing
precisely timed responses to asynchronous external events the system is monitoring or
controlling.
HHHH
1234 5 6 7 8
PXI Trigger Bus
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |1-9
NI PXIe-1082 User Manual
System Reference Clock
The PXIe-1082 chassis supplies PXI_CLK10, PXIe_CLK100, and PXIe_SYNC100 to every
peripheral slot with an independent driver for each signal.
An independent buffer (having a source impedance matched to the backplane and a skew of less
than 500 ps between slots) drives PXI_CLK10 to each peripheral slot. You can use this common
reference clock signal to synchronize multiple modules in a measurement or control system.
An independent buffer drives PXIe_CLK100 to each peripheral slot. These clocks are matched
in skew to less than 100 ps. The differential pair must be terminated on the peripheral with
LVPECL termination for the buffer to drive PXIe_CLK100 so that when there is no peripheral
or a peripheral that does not connect to PXIe_CLK100, there is no clock being driven on the pair
to that slot.
An independent buffer drives PXIe_SYNC100 to each peripheral slot. The differential pair must
be terminated on the peripheral with LVPECL termination for the buffer to drive
PXIe_SYNC100 so that when there is no peripheral or a peripheral that does not connect to
PXIe_SYNC100, there is no clock being driven on the pair to that slot.
PXI_CLK10, PXIe_CLK100 and PXIe_SYNC100 have the default timing relationship
described in Figure 1-6.

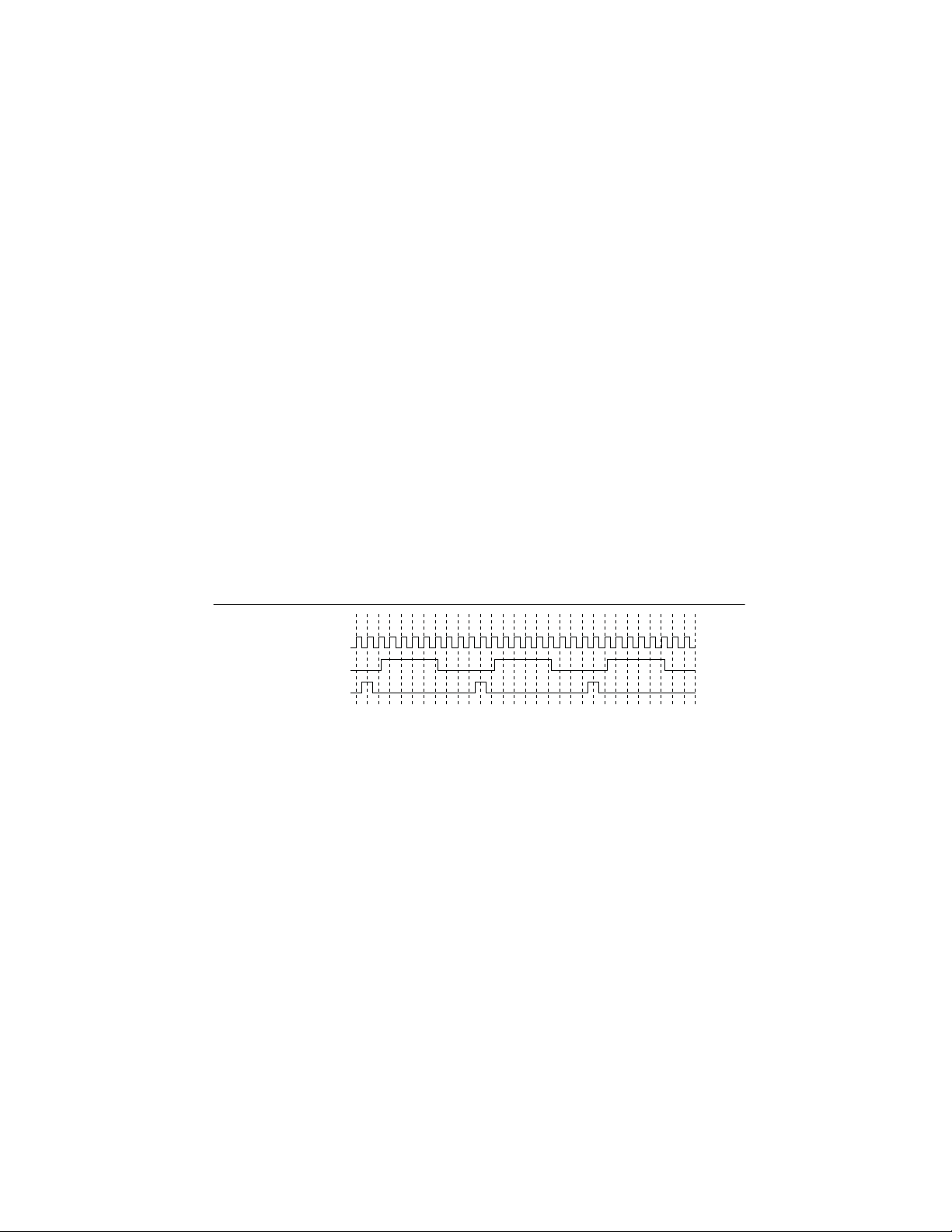

Figure 1-6. System Reference Clock Default Behavior
To synchronize the system to an external clock, you can drive PXI_CLK10 from an external
source through the PXI_CLK10_IN pin on the System Timing Slot. Refer to Table B-7, XP4
Connector Pinout for the System Timing Slot, for the pinout. When a 10MHz clock is detected
on this pin, the backplane automatically phase-locks the PXI_CLK10, PXIe_CLK100, and
PXIe_SYNC100 signals to this external clock and distributes these signals to the slots. Refer to
Appendix A, Specifications, for the specification information for an external clock provided on
the PXI_CLK10_IN pin of the system timing slot.
You also can drive a 10MHz clock on the 10 MHz REF IN connector on the rear of the chassis.
Refer to Figure 1-2 for the location of this connector. When a 10MHz clock is detected on this
connector, the backplane automatically phase-locks the PXI_CLK10, PXIe_CLK100, and
PXIe_SYNC100 signals to this external clock and distributes these signals to the slots. Refer to
Appendix A, Specifications, for the specification information for an external clock provided on
the 10 MHz REF IN connector on the rear panel of the chassis.
If the 10 MHz clock is present on both the PXI_CLK10_IN pin of the System Timing Slot and
the 10 MHz REF IN connector on the rear of the chassis, the signal on the System Timing Slot
PXIe_CLK100
PXI_CLK10
PXIe_SYNC100
012345678901234567890123456789
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1-10 |ni.com
Chapter 1 Getting Started
is selected. Refer to Table 1-2 which explains how the 10 MHz clocks are selected by the
backplane.
A copy of the backplane’s PXI_CLK10 is exported to the 10 MHz REF OUT connector on the
rear of the chassis. Refer to Figure 1-2 for the location of this connector. This clock is driven by
an independent buffer. Refer to Appendix A, Specifications, for the specification information for
the 10 MHz REF OUT signal on the rear panel of the chassis.
Table 1-2. Backplane External Clock Input Truth Table
System Timing Slot
PXI_CLK10_IN
Rear Chassis Panel
10 MHz REF IN
Backplane PXI_CLK10,
PXIe_CLK100 and PXIe_SYNC100
No clock present No clock present Backplane generates its own clocks
No clock present 10 MHz clock present PXI_CLK10, PXIe_CLK100 and
PXIe_SYNC100 all phase-locked to
Rear Chassis Panel—10 MHz REF IN
10 MHz clock present No clock present PXI_CLK10, PXIe_CLK100 and
PXIe_SYNC100 all phase-locked to
System Timing Slot—PXI_CLK10_IN
10 MHz clock present 10 MHz clock present PXI_CLK10, PXIe_CLK100 and
PXIe_SYNC100 all phase-locked to
System Timing Slot—PXI_CLK10_IN
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |1-11
NI PXIe-1082 User Manual
PXIe_SYNC_CTRL
PXIe_SYNC100 is by default a 10 ns pulse synchronous to PXI_CLK10. The frequency of
PXIe_SYNC100 is 10/nMHz, where nis a positive integer. The default for nis 1, giving
PXIe_SYNC100 a 100 ns period. However, the backplane allows nto be programmed to other
integers. For instance, setting n= 3 gives a PXIe_SYNC100 with a 300 ns period while still
maintaining its phase relationship to PXI_CLK10. The value for nmay be set to any positive
integer from 1 to 255.
The system timing slot has a control pin for PXIe_SYNC100 called PXIe_SYNC_CTRL for use
when n > 1. Refer to Table B-6, XP3 Connector Pinout for the System Timing Slot, for system
timing slot pinout. Refer to Appendix A, Specifications, for the PXIe_SYNC_CTRL input
specifications.
By default, a high-level detected by the backplane on the PXIe_SYNC_CTRL pin causes a
synchronous restart for the PXIe_SYNC100 signal. On the next PXI_CLK10 edge the
PXIe_SYNC100 signal will restart. This will allow several chassis to have their
PXIe_SYNC100 in phase with each other. Refer to Figure 1-7 for timing details with this
method.

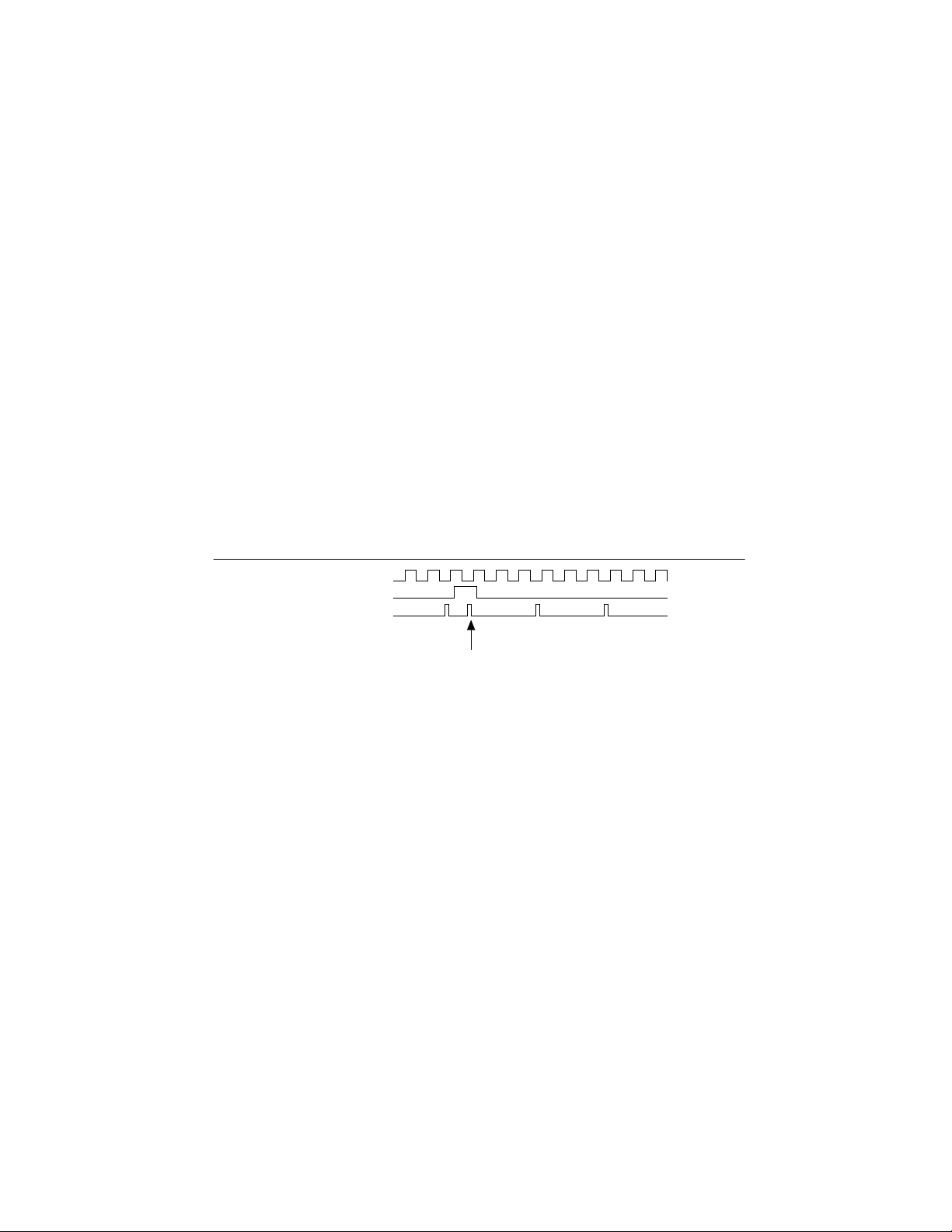

Figure 1-7. PXIe_SYNC100 at 3.33 MHz Using PXIe_SYNC_CTRL as Restart
PXI_CLK10
PXIe_SYNC_CTRL
PXIe_SYNC100
SYNC100 Divider
Restarted Here
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© National Instruments |2-1
2
Installation and Configuration
This chapter describes how to prepare and operate the NI PXIe-1082 chassis.
Beforeconnecting the chassis to apower source, readthischapter and the Read Me First: Safety and
Electromagnetic Compatibility document included with your kit.
Safety Information
Caution Before undertaking any troubleshooting, maintenance, or exploratory
procedure, carefully read the following caution notices.
This equipment contains voltage hazardous to human life and safety, and is capable of inflicting
personal injury.
•Chassis Grounding—The chassis requires a connection from the premise wire safety
ground to the chassis ground. The earth safety ground must be connected during use of this
equipment to minimize shock hazards. Refer to the Connecting Safety Ground section for
instructions on connecting safety ground.
•Live Circuits—Operating personnel and service personnel must not remove protective
covers when operating or servicing the chassis. Adjustments and service to internal
components must be undertaken by qualified service technicians. During service of this
product, the mains connector to the premise wiring must be disconnected. Dangerous
voltages may be present under certain conditions; use extreme caution.
•Explosive Atmosphere—Do not operate the chassis in conditions where flammable gases
are present. Under such conditions, this equipment is unsafe and may ignite the gases or gas
fumes.
•Part Replacement—Only service this equipment with parts that are exact replacements,
both electrically and mechanically. Contact National Instruments for replacement part
information. Installation of parts with those that are not direct replacements may cause
harm to personnel operating the chassis. Furthermore, damage or fire may occur if
replacement parts are unsuitable.
•Modification—Do not modify any part of the chassis from its original condition.
Unsuitable modifications may result in safety hazards.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
