Nikon R1 User manual

En
Instruction Manual
R1C1
R1
Nikon Close-up Speedlight Commander Kit
Nikon Close-up Speedlight Remote Kit
SU-800
SB-R200
Wireless Speedlight Commander
Wireless Remote Speedlight

2
For your safety
Before using your product, please read the following safety precautions
carefully and thoroughly to ensure correct and safe use and to help
prevent damage to your Nikon product or injury to yourself or others.
For quick reference by those who use the product, please keep these
safety instructions near the product.
In this manual, safety instructions are indicated with these symbols:
WARNINGS for the Wireless Speedlight Commander
SU-800 and the Wireless Remote Speedlight SB-R200
1If corrosive liquids seep from the batteries and get in your eyes,
immediately wash your eyes with running water and consult with a
doctor. Your eyes could be seriously damaged if they are not treated
quickly.
2If corrosive liquids seep from the batteries and come in contact with
your skin or clothes, wash immediately with running water. Prolonged
contact could injure your skin.
3Never attempt to disassemble or repair the flash unit by yourself, as this
could result in you receiving an electric shock and could also cause the unit
to malfunction; such malfunction could lead to personal injury.
4If the flash unit is dropped and damaged, do not touch any exposed
interior metal parts. Such parts, especially the speedlight’s capacitor and
associated parts, could be in a high-charge state and if touched could
cause an electric shock. Disconnect the power or remove the batteries and
be sure that you do not touch any of the product’s electrical components,
and then bring the flash unit to your local Nikon dealer or authorized service
center for repair.
5If you detect heat, smoke or notice a burning smell, immediately stop
operation and remove the batteries to prevent the unit from catching on
fire or melting. Allow the flash unit to cool down so that you can safely touch
it and remove the batteries. Then bring the unit to your local Nikon dealer or
authorized service center for repair.
WARNING Disregarding instructions marked with this symbol could result
in personal injury, or death and property damage.
CAUTION Disregarding instructions marked with this symbol could result
in property damage.

3
Preparation
6The flash unit should never be submerged in liquid or exposed to rain,
saltwater or moisture unless it is properly protected from the liquids
and moisture. Underwater use requires a certified underwater housing.
If water or moisture gets inside the unit, this could cause the unit to catch on
fire or cause an electric shock. In such instances you should immediately
remove the batteries from the speedlight and then bring the unit to your
local Nikon dealer or authorized service center for repair.
Note: electronic devices that are penetrated by water or moisture are often
not economically repairable.
7Do not use the unit in the presence of flammable or explosive gas.
If the flash unit is operated in areas where there is a flammable gas,
including propane, gasoline and dust, it could cause an explosion or fire.
8Do not fire the flash unit directly at the driver of a moving car, as this
could temporarily impair the driver’s vision and cause an accident.
9Do not fire the flash unit directly into the eyes of someone that is at
close range, as it could damage their eyes’ retinas. Never fire the flash unit
closer than 1 meter from infants.
10 Do not fire the unit while the flash head is touching a person or object.
Such use can result in the person being burned, and/or their clothes
igniting from the heat of the flash’s firing.
11 Keep small accessories out of the reach of children to avoid the
possibility of the accessory being swallowed. If an accessory is
accidentally swallowed, immediately consult with a doctor.
12 Use only the batteries specified in this instruction manual. Batteries
other than those specified could leak corrosive liquids, explode or catch on
fire or otherwise not perform satisfactorily.
13 Non-rechargeable batteries such as manganese, alkaline-manganese
and lithium batteries should never be charged in a battery charger
because they could leak corrosive liquids, explode or catch on fire.

For your safety
4
CAUTIONS for the Wireless Speedlight Commander
SU-800 and the Wireless Remote Speedlight SB-R200
1Do not touch the flash unit with wet hands, as this could cause an
electric shock.
2Keep the flash unit away from children to prevent them from putting the
unit in or near their mouth, or otherwise touching a dangerous part of
the product; as such contact could cause an electric shock.
3Do not apply strong physical shocks to the unit, as this could cause a
malfunction that could cause the unit to explode or catch on fire.
4Never use active agents that contain flammable substances such as
paint thinner, benzene or paint remover to clean the unit, and never
store the unit in locations containing chemicals such as camphor and
naphthalene, as this could damage the plastic case, cause a fire or cause
an electric shock.
5Remove any batteries from the unit before storing the unit for a long
time to prevent the unit from catching on fire or leaking corrosive liquids.
6Do not point the Commander SU-800’s commander transmit window
directly into the eyes of someone at close range, as this can cause
serious eye damage.
WARNINGS for Lithium Batteries
1Never heat or throw batteries into a fire, as this could cause the batteries
to leak corrosive liquids, generate heat or explode.
2Do not short-circuit or disassemble the batteries because this could
cause the batteries to leak corrosive liquids, generate heat or explode.
3Do not install batteries in the reverse direction as this could cause the
batteries to leak corrosive liquids, generate heat or explode.
4Do not carry or store batteries along with metallic materials such as
necklaces and hair pins because such materials could cause the batteries
to short-circuit, leading to battery leakage, heat generation or an explosion.
In addition, specially when carrying a quantity of batteries, place them
carefully in a storage case that prevents the battery terminals from
touching another battery’s terminals because if they touch in reverse
order it could also cause the batteries to short-circuit, leading to battery
leakage, heat generation or an explosion.
5If corrosive liquids seep from the batteries and get in your eyes,
immediately wash your eyes with running water and consult with a
doctor. Your eyes could be seriously damaged if they are not treated
quickly.

5
Preparation
6If corrosive liquids seep from the batteries and come in contact with
your skin or clothes, wash immediately with running water. Prolonged
contact could injure your skin.
7Always follow the warnings and instructions printed on the batteries to
avoid activities that could cause the batteries to leak corrosive liquids,
generate heat or catch on fire.
8Be sure to use only batteries specified in this instruction manual, to
avoid the possibility of batteries leaking corrosive liquids, generating heat
or exploding.
9Never open the casing surrounding batteries or use batteries whose
casing has been breached as such batteries could leak corrosive liquids,
generate heat or explode.
10 Keep batteries out of the reach of children to help avoid the possibility of
them being swallowed. If a battery is accidentally swallowed, immediately
consult with a doctor.
11 Batteries should not be submerged in water, exposed to rain, moisture
or saltwater unless they are properly protected from the wet
environment. If water or moisture gets inside the batteries, this could cause
them to leak corrosive liquids or generate heat.
12 Do not use any battery that appears abnormal in any way, including a
change in color or shape. Such batteries could leak corrosive liquids or
generate heat.
13 When recycling or disposing of batteries, be sure to insulate their
terminals with tape. If the battery’s positive and negative terminals
shortcircuit after coming into contact with metallic objects, it could cause
fire, heat generation or an explosion. Dispose of used batteries in
accordance with local government regulations.
14 Non-rechargeable batteries should never be charged in a battery
charger because they could leak corrosive liquids or generate heat.
15 Remove dead batteries from your equipment immediately, as they could
leak corrosive liquids, generate heat or explode.
CAUTION for Lithium Batteries
Do not throw or apply strong physical shocks to the batteries as this
could cause batteries to leak corrosive liquids, generate heat or explode.
WARNING for TTL Cord SC-30
Never attempt to disassemble or repair the cord by yourself, as this
could result in an electric shock and could also cause the unit to
malfunction, which could lead to injury.

6
Foreword
Thank you for purchasing the Nikon Wireless Speedlight system. To get
the most out of your Speedlight system, please read this instruction
manual thoroughly before use. Also read “Close-up Speedlight
Photography Examples,” a separate booklet that provides an overview of
Speedlight flash-shooting capabilities and contains photographic
examples. Keep your camera and Speedlight instruction manuals handy
for quick reference.
Main features and functions
This Speedlight system, which features the Nikon Creative Lighting System
(CLS), provides a variety of wireless multiple flash and close-up flash operations.
The Speedlight system mainly consists of the Wireless Speedlight Commander
SU-800, which controls flash output when mounted on CLS-compatible cameras;
the Wireless Remote Speedlight SB-R200, which has a guide number of 10/33
(ISO 100, m/ft.) or 14/46 (ISO 200, m/ft.); and the Attachment Ring SX-1, which is

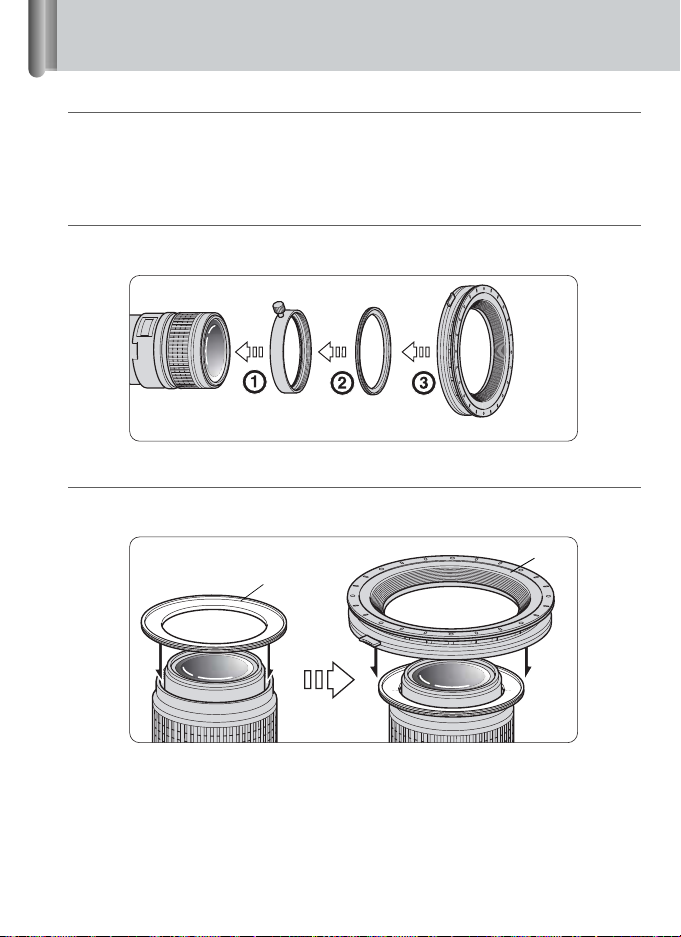

used to attach the SB-R200 to the front of the lens.
• When using CLS-compatible cameras, you can divide the Speedlight units into
three groups and control the flash output independently for each group.
• Wireless close-up flash operation is possible when the SU-800 is mounted on
a CLS-compatible camera to control the SB-R200 (p. 65).
• The SB-R200 can be attached to the front of the lens, held in your hand, or
freely positioned by using the Speedlight Stand AS-20, which comes with
the unit.
• The SU-800 features a Commander function that can trigger wirelessly remote
flash units such as the SB-R200 and SB-600 without firing itself (p. 79).

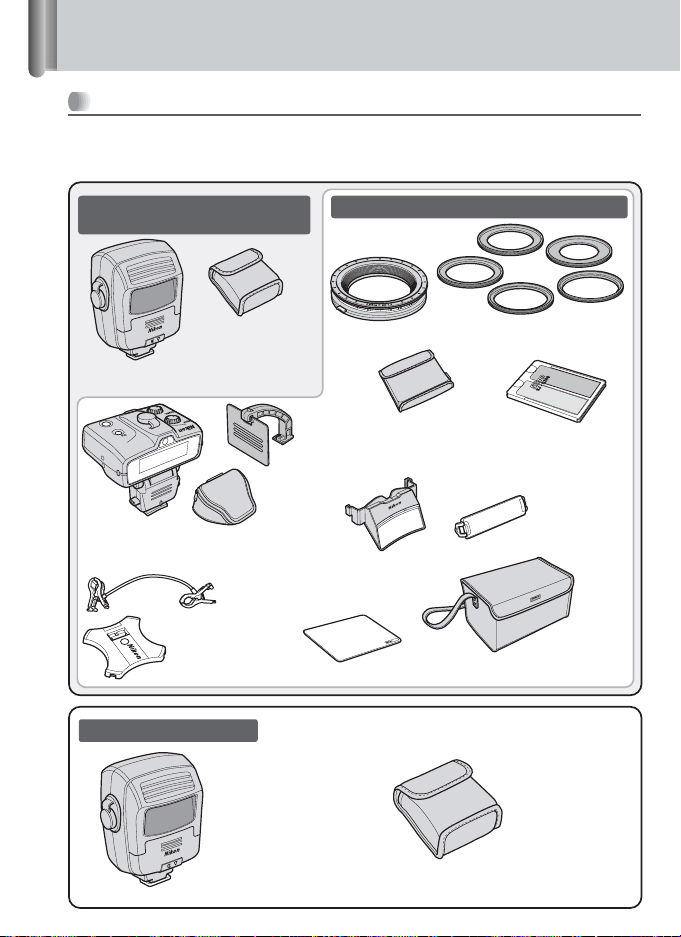

• Included with the kit are a variety of accessories to help you enjoy close-up
flash shooting, such as the Extreme Close-Up Positioning Adapter SW-11,
Color Filter Set SJ-R200, Diffuser SW-12, and Flexible Arm Clip SW-C1.
• When using the SU-800 with cameras not compatible with CLS, only close-up
flash operation (using cords) is possible in use with the optional TTL Cord
SC-30 (p. 109).

7
Preparation
CLS offers various flash shooting possibilities by taking advantage of the
improved digital data communication capabilities of Nikon Speedlights and
cameras.
The major features are as follows:
• i-TTL Mode
This is a TTL auto flash mode in CLS. When using the i-TTL auto flash mode,
Monitor Preflashes are fired at all times. The flash output level is adjusted by
measuring the flash illumination that is reflected back from the subject,
resulting in an exposure that is less affected by ambient light (p. 116).
• Advanced Wireless Lighting
The wireless multiple flash operation in TTL (i-TTL) mode can be accomplished
with CLS-compatible cameras. The remote flash units can be divided into
three groups and flash output can be independently controlled for each group,
expanding the range of creative multiple flash shooting techniques (p. 26).
• Flash Value Lock
Flash Value, or “FV,” is the amount of flash exposure for the subject. Using FV
Lock with compatible cameras, you can lock in the appropriate flash exposure
for the main subject. This flash exposure is locked in, even if you change the
aperture or composition, or zoom the lens in and out (p. 98).
• Auto FP High-Speed Sync
High-Speed flash synchronization at your camera’s highest shutter speed is
now possible. This is useful when you want to use a wider aperture to ensure a
shallow depth of field blurs the background (p. 96).
See your CLS-compatible camera instruction manual for details on the Nikon
Creative Lighting System (CLS).
Nikon Creative Lighting System (CLS)

Foreword
8
Life-long learning
As part of Nikon’s “Life-long learning” commitment to ongoing product support
and education, continually updated information is available online at the
following sites:
• For users in the U.S.A.: http://www.nikonusa.com/
• For users in Europe and Africa: http://www.europe-nikon.com/support/
• For users in Asia, Oceania and the Middle East: http://www.nikon-asia.com/
Visit these sites to keep up-to-date with the latest product information, tips,
answers to frequently asked questions, and to receive general advice on digital
imaging and photography. Additional information may be available from the
Nikon representative in your area. See the URL below for contact information:
http://nikonimaging.com/
Notes
•Default: Functions and flash modes preset before being shipped from the
factory are referred to as “Default” settings in this manual.
•CLS: Hereafter, Nikon Creative Lighting System is abbreviated to CLS.
• “Cameras compatible with Nikon Creative Lighting System” are abbreviated as
“CLS-compatible cameras.”
• In this manual, the Wireless Speedlight Commander SU-800 is called the
“Commander SU-800” or “SU-800” and the Wireless Remote Speedlight
SB-R200, the “Remote Speedlight SB-R200” or “SB-R200.”
Symbols used in this manual
•: Denotes important points to prevent malfunction or shooting failure.
•: Useful points that should be remembered to better enjoy the Speedlight.
•: Provides convenient reference information for using the Speedlight
system.
Symbol for separate collection applicable in European countries
This symbol indicates that this product is to be collected
separately. The following apply only to users in European
countries.
• This product is designated for separate collection at an
appropriate collection point. Do not dispose of as household
waste.
• For more information, contact the retailer or the local authorities
in charge of waste management.

9
Preparation
Flash operation
using the R1C1
Flash operation
using the R1
Functions and use
of the SU-800
Functions and use
of the SB-R200
Details on close-up
flash operation and
shooting procedures
Details on
Commander flash
operation and
shooting procedures
Other functions
Flash operation
using various
accessories
Flash shooting using
SLRs not compatible
with CLS
Reference
information
Contents
Preparation
• For your safety ..................................................................... 2
• Foreword..............................................................................6
• Tips on using the Speedlight............................................. 12
• Recommended cameras and lenses ................................13

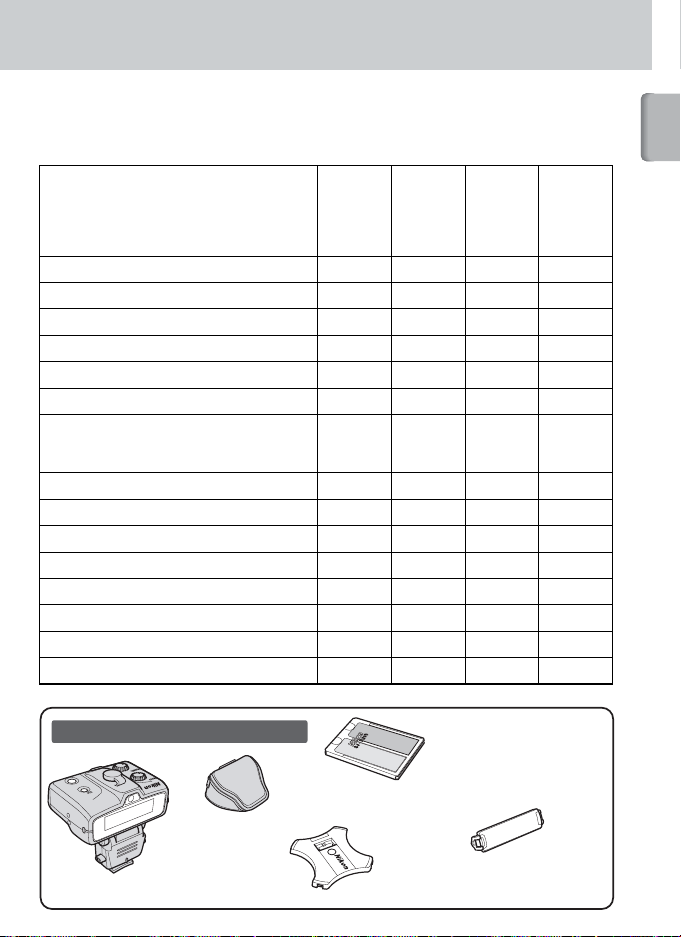

• Confirm receipt of contents in your kit............................... 15
Available flash operations depending on each kit
Contents vary according to each kit

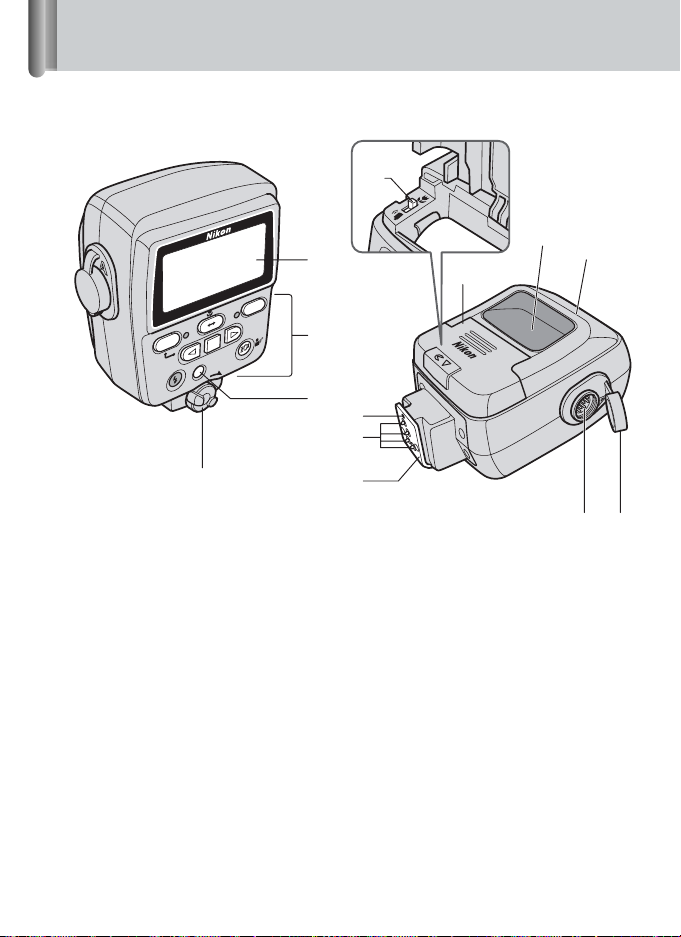

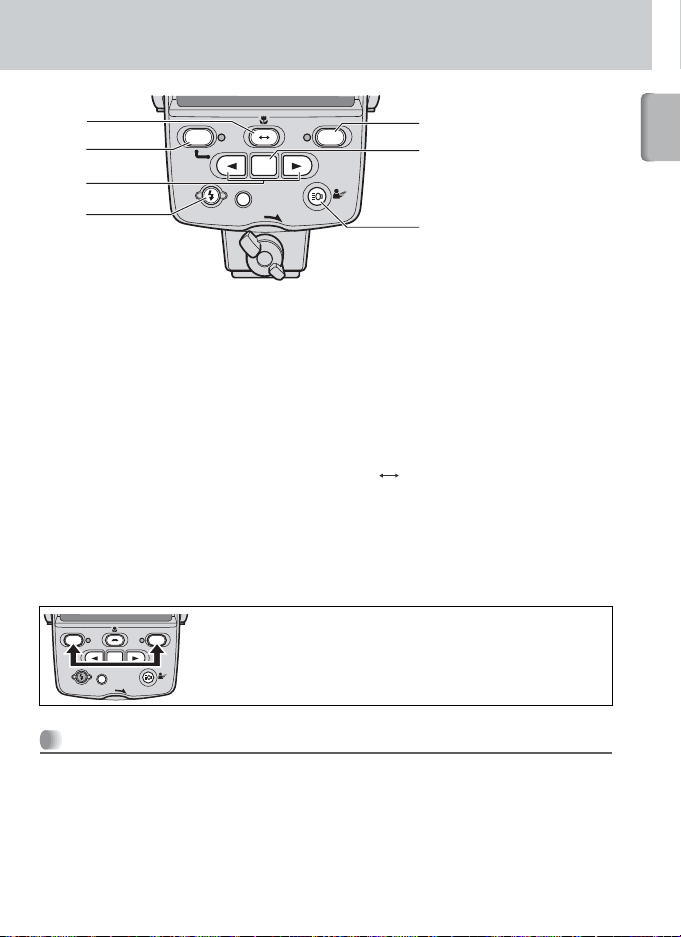

• Speedlight parts, their functions, and accessories ...........18

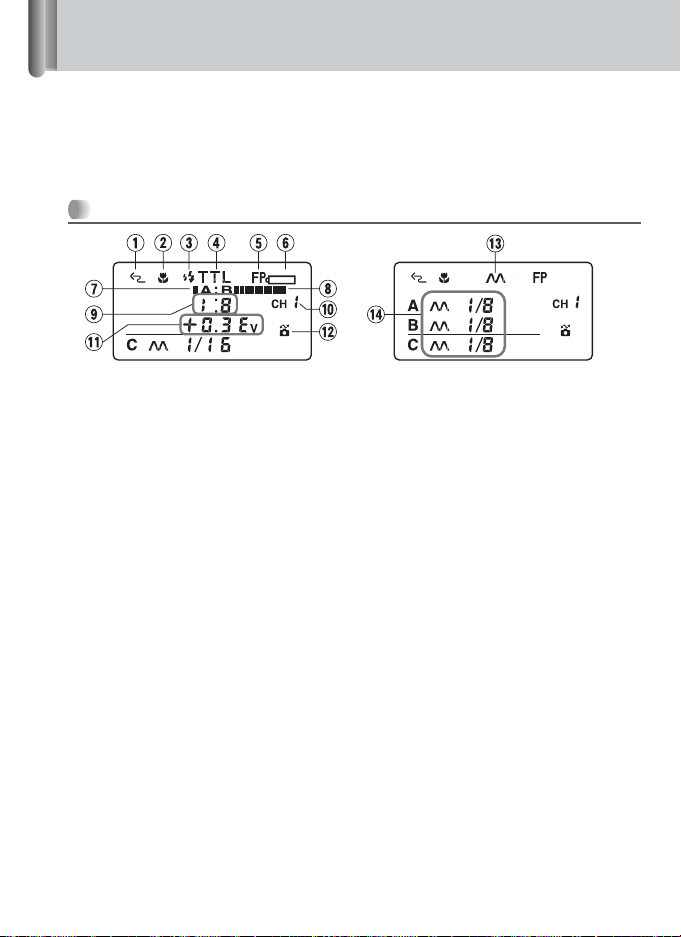

SU-800’s LCD panel and icons ..................................... 20
• Wireless multiple flash operation in the Nikon Creative
Lighting System (CLS) .................................................... 26
Flash operation using the Nikon Close-up Speedlight
Commander Kit R1C1
(Used with Nikon CLS-compatible cameras) .................... 27
• Procedures for close-up flash operation ........................... 28
• Procedures for Commander flash operation ..................... 38
Flash operation using the Nikon Close-up Speedlight
Remote Kit R1
(Used with Nikon CLS-compatible cameras) .................... 45
Functions and use of the SU-800
• SU-800’s available flash operations ..................................54
• Using the SU-800 .............................................................. 55
• Functions of the SU-800 .................................................... 58
Functions and use of the SB-R200
• SB-R200’s available flash operations ................................60
• Using the SB-R200 ............................................................ 61
• Functions of the SB-R200 .................................................. 64

Contents
10
Details on close-up flash operation and shooting
procedures
(Used with CLS-compatible cameras)
• Close-up flash operation ................................................... 66
• Overview of close-up flash operation ................................ 68
• Procedures for close-up flash operation ........................... 70
Details on Commander flash operation and shooting
procedures
(Used with CLS-compatible cameras)
• Commander flash operation.............................................. 80
• Overview of Commander flash operation .......................... 82
• Procedures for Commander flash operation ..................... 84
Other functions
• Test firing to confirm exposure .......................................... 88
• Checking illumination before taking pictures
(modeling illumination).................................................... 89
• Using the Target Light (focus-assist illuminator) ............... 90
• Autofocus flash operation in low light................................ 91
• Flash output level compensation....................................... 92
• Repeating (RPT) flash operation ....................................... 93
• Auto FP High-Speed Sync................................................. 96
• Flash Value Lock (FV Lock)............................................... 98
Flash operation using various accessories
• Flash shooting with colored gel filters ............................. 100
• Flash shooting with the Extreme Close-Up Positioning
Adapter SW-11 ............................................................. 103
• Flash shooting with the Diffuser SW-12 and Flexible
Arm Clip SW-C1 ............................................................ 105
• Flash shooting with Speedlight Stand AS-20 .................. 107
Flash shooting using SLR cameras not compatible
with CLS
• Overview of close-up flash operation (using cords) ....... 110
• Procedures for close-up flash operation (using cords)... 112
