Nilfisk Egholm City Ranger 2200 Snow V-Blade User manual

City Ranger 2200
OperatOr’smanual
SNOW V-BLADE

2
Dear Customer
Congratulations with your Nilsk-Egholm product.
The City Ranger 2200 is a Danish-designed and manufactured product, which oers a very
exible way of maintaining outdoor areas.
Optimal use of your City Ranger 2200 Snow V-Blade
To ensure the optimal performance of your City Ranger 2200 Snow V-Blade, please read this
operator’s manual carefully before using the machine. Failure to do so can result in personal
injury and damage to the machine.
Safety:
The Snow V-Blade is equipped with various devices to ensure optimal operational safety, both for
the user and the surroundings. We ask you to pay particular attention to section 1.1 Safety. The
machine must only be serviced by professionals.
The Snow V-Blade is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator.
Do not lend to anyone who has not been thoroughly trained and who has not read this manual
carefully.
The operator’s manual should be considered as a permanent part of the machine and must
remain with it if the machine is sold.
Warnings:
Some items in this operator’s manual are marked with this warning symbol. The
warning indicates areas where extra care must be taken to avoid personal injury
or damage to the machine and its accessories. The warning also shows what you
should pay special attention to.
Reservations:
As it is the Nilsk-Egholm policy to make continuous improvements, we reserve the right to alter
the specications and equipment at any time without notice.
Nilsk-Egholm A/S accepts no liability for errors or omissions in the operator’s manual.
Contact us:
Should you have questions of any kind regarding your new Nilsk-Egholm product, do not
hesitate to contact Nilsk-Egholm A/S.
Best regards
Nilsk-Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.nilsk-egholm.com
Operator’s Manual City Ranger 2200 Snow V-Blade
Introduction

3
The Snow V-Blade uses the tip of the ‘V’ to cut through
heavy and encrusted snow, separating and pushing it to
both sides. Even large amounts of snow are removed with
ease.
The V-Blade can also be congured as a ‘Y’ to allow
snow to be transported away – very useful in car parks,
markets, enclosed courtyards and other locations where
snow needs to be gathered in one place.
The Snow V-Blade is equipped as standard with a safety
tilt system to protect paths and the machine.
The V-Blade support has sideways suspension, so that the
Snow V-Blade always adjusts to ground conditions.
Useful tips
Adjust the skids to suit ground conditions. If there are a lot
of raised edges, set the skids high so they do not cut into
the edges.
Use the Snow V-Blade for big drifts. The Snow V-Blade
removes most of the snow and then the Snow Sweeper
nishes o the job.
Ensure the snap couplings are clean before tting, as this
protects the hydraulic system.
Daily cleaning and maintenance will extend the lifetime of
both the machine and the attachment.
Operator’s Manual City Ranger 2200 Snow V-Blade
Contents
Content
General information..............................................................................4
1.1 Safety ....................................................................................4
1.2 EU Declaration of Conformity.................................................................5
1.3 Technical data .............................................................................6
Operator's manual ...............................................................................7
2.1 Assembly / Disassembly .....................................................................7
2.2 Important before start-up ...................................................................8
2.3 Start-up...................................................................................8
2.4 Adjustment................................................................................9
Service and maintenance ........................................................................10
3.1 Cleaning .................................................................................10
3.2 Maintenance .............................................................................10
Conditions .....................................................................................12
4.1 Warranty .................................................................................12
4.2 Complaints ...............................................................................13
4.3 Disposal..................................................................................13
Spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5.1 Spare parts – City Ranger 2200 Snow V-Blade .................................................14
Notes .........................................................................................15

1
2
3
4
Max. 10°

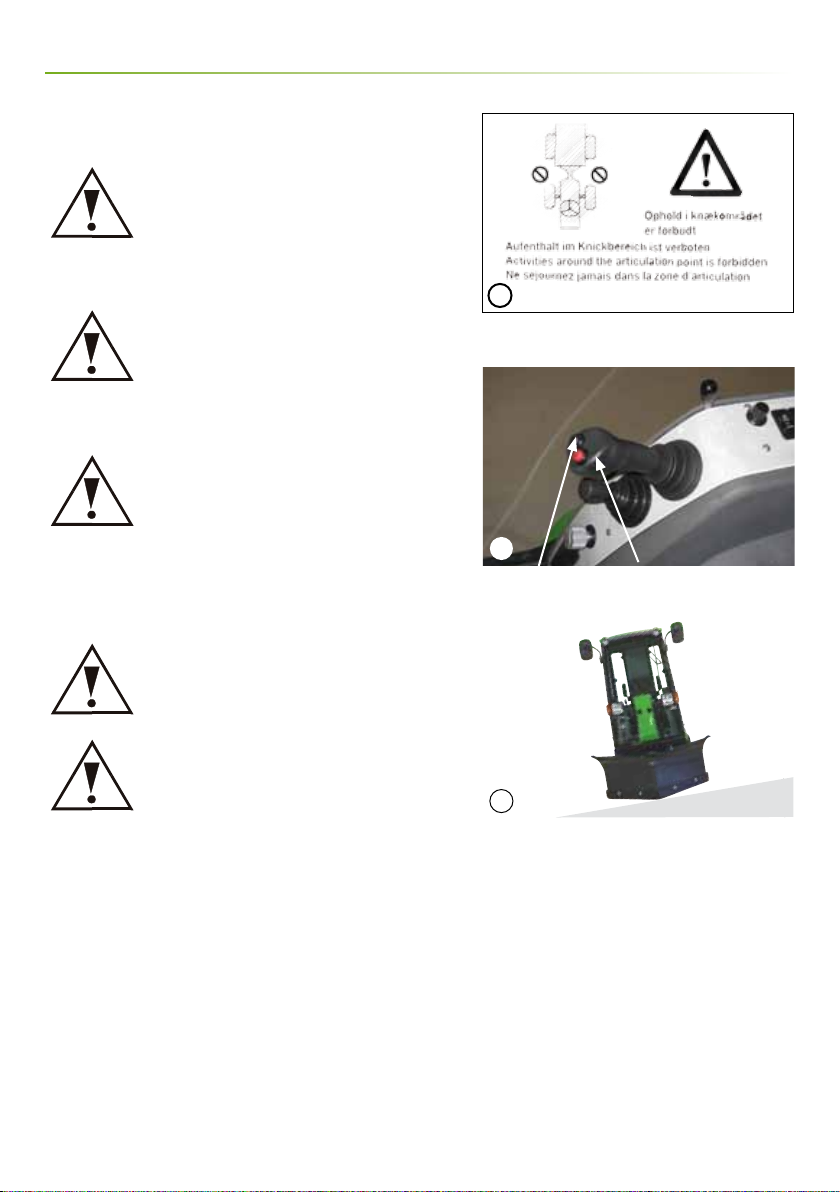

1.1 Safety
Make sure no one is standing close to
the machine while it is in use.
Make sure that no one is near the machine
while it is in use as there is a danger of
crushing.
Attention:
As it is articulated, the rear end of the
machine swings out when turning. Make
sure that no one is standing near the
machine while it is in use. (Picture 1)
The Snow V-Blade left blade swings to the
side when the joystick is moved left or right.
The right blade swings to the side when
the black joystick button is pressed and the
joystick is moved left or right. Make sure that
no one is standing near the machine while it
is in use. (Picture 2)
Avoid crushing ngers:
Keep your hands and ngers away from
areas where there is a danger of crushing.
Avoid roll-overs:
Do not drive the machine in a place where it
can slide, tip or roll. Do not drive on slopes
with an incline of more than 10°. (Picture 3)
General information
Do not drive on slopes with an incline of more than 10°
Operator’s Manual City Ranger 2200 Snow V-Blade
Prevent people from standing in the working area.
Black button Joystick

5
General information
Operator’s Manual City Ranger 2200 Snow V-Blade
1.2 EU Declaration of Conformity
Manufacturer: GMR maskiner a/s
Address: Saturnvej 17 · DK-8700 Horsens
Telephone: [phone]
herby declares that
Machine: Snow V-Blade 2200
· has been manufactured in conformity with:
European Parliament and Council directive 2006/42/EC of 17 June 2006 on
approximation of the laws of the Member States on machinery.
Place: Lemvig
Date:
Signature:
Poul Møller Rasmussen

6
1.3 Technical data
Dimensions:
Length (L):
Width (W):
Height with cab (H):
Fitted
3,000 mm
1,400 mm
1,960 mm
Storage dimensions:
500 mm
1,400 mm
600 mm
Technical data:
Type description
Weight on Snow V-Blade
Clearing width:
Ground clearance below scraping edge, lifted
Ground clearance below skids, lifted
22VP
118 kg
1,200 -1,400 mm
240 mm
215 mm
Attention:
Specications may be changed without prior notice
General information
Operator’s Manual City Ranger 2200 Snow V-Blade

7
1
2
3
2.1 Assembly / Disassembly
1. The locking handle on the A-frame of the basic machine
must be in the unlocked position. (Picture 1)
2. Drive the base machine right up to the A-frame of the
Snow V-Blade, so the A-frames t into each other.
(Picture 2)
3. Raise the A-frame by pulling the joystick back until the
Snow V-Blade is suspended and free of the ground.
4. Stop the machine.
5. Lock the Snow V-Blade in place with the locking handle
on the A-frame. (Picture 3) The locking handle can only be
engaged when the machine has been stopped.
Disassembly:
Follow the procedure for tting in reverse order.
To make attachment and removal easier, set the left and
right blades evenly.
Locking handle
Attaching
Locking
Operator’s Manual City Ranger 2200 Snow V-Blade
U
n
l
o
c
k
e
d
Operator's manual
L
o
c
k
e
d

1
2
3
4
8
2.2 Important before start-up
During transport:
Lock the Snow V-Blade in the raised position using
the transport lock. This prevents the attachment from
lowering during transport.
How to use the transport lock:
Move the handle to the uppermost position. Lift the
A-frame by moving the joystick up. As the A-frame lifts
the transport lock is automatically activated. (Picture 1)
How to use the transport lock:
Unhitch the handle and lift the A-frame to the uppermost
position. The attachment can now be lowered again. (Picture 2)
2.3 Start-up
1. Start the machine.
2. Lower the Snow V-Blade by moving the joystick down.
(Picture 3)
3. Activate the weight distribution with the red button on
the joystick (Picture 4). The Snow V-Blade will now adjust
to ground conditions. To adjust the weight distribution
read the operator’s manual for the basic City Ranger 2200
machine.
4. Turn the left blade of the Snow V-Blade by moving the
joystick to the left or to the right. When the joystick is
moved to the right, the blade swings forwards.
5. Turn the right blade Snow V-Blade by pressing the
black joystick button and moving the joystick left or right.
(Picture 4) When the joystick is moved to the right, the
blade swings forwards.
Operator's manual
Transport lock in locked position
Transport lock
Joystick
Locked
Black button Weight distribution
Operator’s Manual City Ranger 2200 Snow V-Blade
Unlocked

1
2
3
9
Transport lock
Locked
Attention!
Make sure no one is standing close to the
machine while it is in use.
N.B!
When turning, the rear of the machine
swings out so there is a risk of crushing or
collision.
Warning!
Collision with solid obstacles – such as
kerbstones – may damage the Snow
V-Blade. This damage may cause bolts
to snap or parts of the Snow V-Blade to
bend. Damage of this type is not covered
by the warranty.

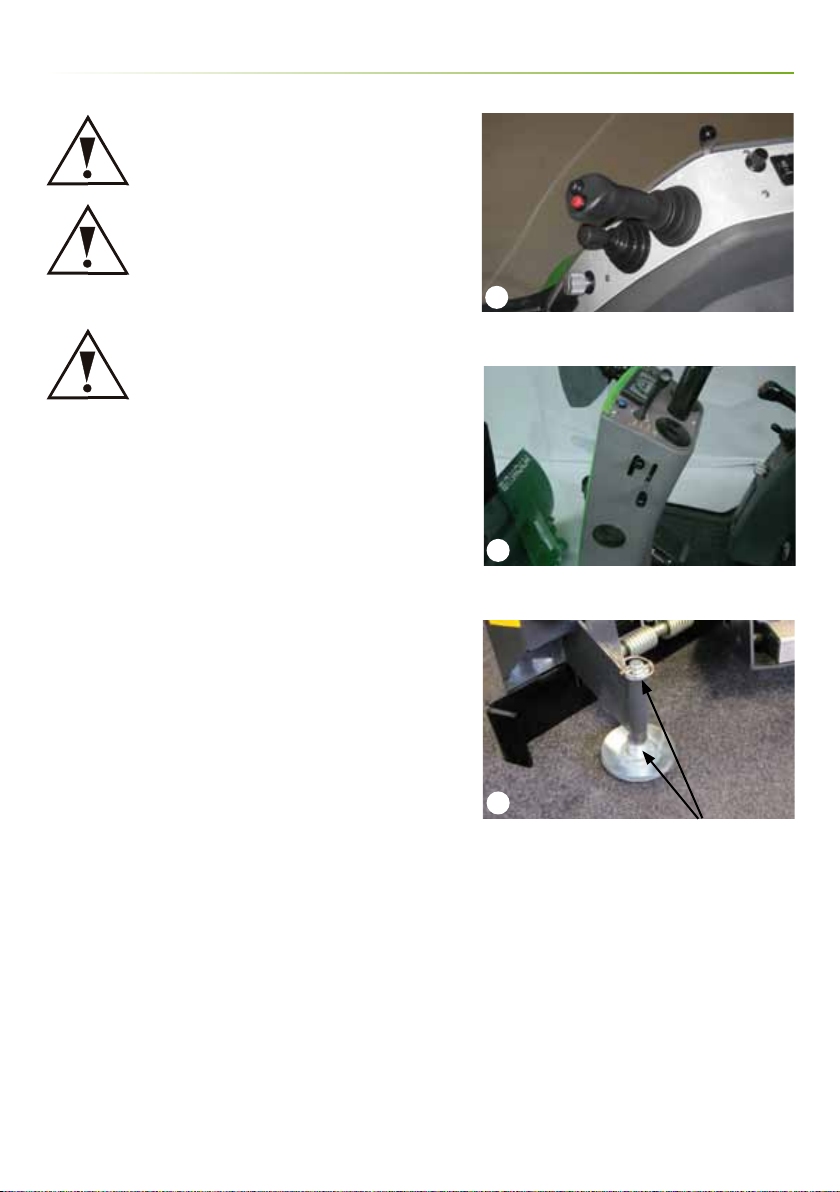

2.4 Adjustment
Adjust the skids to the ground conditions.
If there are a lot of raised edges set the skids high so they
do not cut into the edges.
Adjusting the scraping height:
1. Raise the Snow V-Blade by pulling the joystick up.
(Picture 1)
2. Lock the Snow V-Blade in the raised position using the
transport lock. (Picture 2)
3. Stop the machine.
4. Remove the locking ring on the skid. (Picture 3)
Adjust the skid height by moving washers up or down.
Skid
Operator's manual
Operator’s Manual City Ranger 2200 Snow V-Blade
The Snow V-Blade is raised using the joystick

2
1
10
2
3
Location of lubrication nipples
3.1 Cleaning
Daily cleaning and maintenance will extend the lifetime of
both the machine and the attachment.
After use clean the Snow V-Blade with clean water.
Avoid high pressure cleaning of the snap couplings.
Open the ap over the snap couplings. Use pressurised air
to clean around the snap couplings. The couplings can be
dried with a cloth (Picture 1). It is important the couplings
are intact before the attachment is tted.
3.2 Maintenance
Lubricating the bearings:
The bearings in the pivot joint of the Snow V-Blade should
be greased regularly with good quality grease.
1. Stop the machine.
2. Clean the lubricating nipples and lubricate the bearings
until the grease starts to come out of the bearing.
(Picture 2)
There are ve lubrication nipples in the centre swivel.
There are four lubrication nipples on the cylinder.
(Picture 3)
Snap couplings
Location of lubrication nipples
Operator’s Manual City Ranger 2200 Snow V-Blade
Service and maintenance

11
1

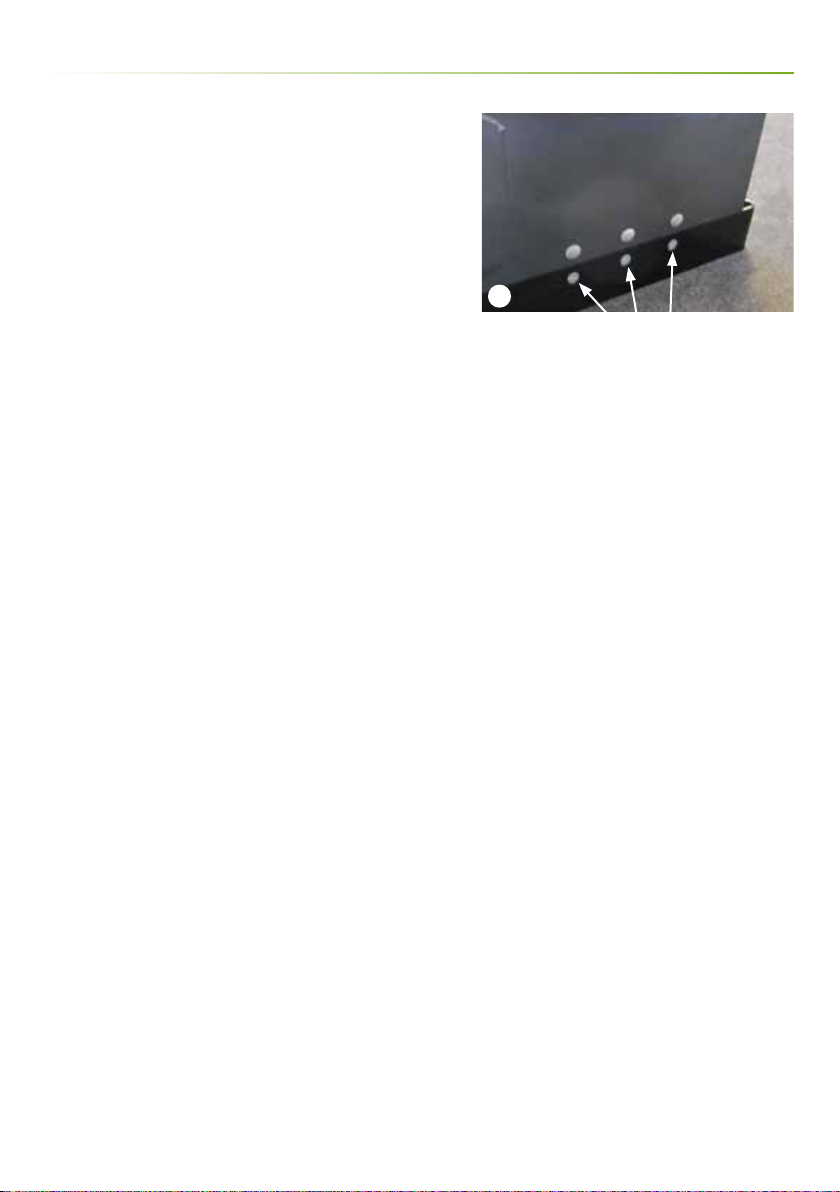

Replacing the scraping edges:
The scrapers at most can be worn down to the scraper
guard.
1. Lift the Snow V-Blade to the uppermost position and
lock with the transport lock. (See Section 2.2)
2. Stop the machine.
3. Remove the nuts and bolts holding the scraper edges
and remove the scraper edges. (Picture 1)
4. Fit the new scraper edges by reversing the procedure.
New scraper edges and skids can be ordered from an
authorised Nilsk-Egholm distributor.
Storage outside the season:
When the Snow V-Blade is to be stored outside the season,
it is recommended to remove any loose paint and to
repaint any damaged areas.
It is recommended the attachment is greased / sprayed
with protective lubricant.
Service and maintenance
Operator’s Manual City Ranger 2200 Snow V-Blade
Nuts that hold the scraper

12
4.1 Warranty
The warranty period for the materials and manufacture of this Snow V-Blade is 12 months from
the date of purchase. In case of errors or defects on the machine within the warranty period,
Nilsk-Egholm A/S will carry out the necessary repairs at no charge to the customer, including
materials and working hours, in accordance with the terms and conditions listed below.
The scope of warranty:
1. The Nilsk-Egholm warranty is only valid on presentation of the original receipt supplied with
model description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the warranty.
3. All inquiries concerning the warranty are to be addressed to the distributor from whom the
machine was purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Nilsk-Egholm reserves the right to reject any claim made within the warranty
period.
7. Nilsk-Egholm A/S reserves the right to make improvements and design-related alterations to
the machine without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover:
· Wear and tear, accidents, damage to the equipment caused by operating errors, improper
utilization of the machine, changes to the construction of the machine or use of non-Nilsk-
Egholm spare parts or implements.
· Machines with illegible serial numbers.
· Damage caused by force majeure such as lightning, ood, re, war, civil disturbance, etc. or
other causes over which Nilsk-Egholm A/S has no control.
Operator’s Manual City Ranger 2200 Snow V-Blade
Conditions

13
4.2 Complaints
All inquiries regarding the machine should be made to the distributor from whom the machine
was purchased. This applies to inquiries concerning normal use, service, maintenance and spare
parts as well as complaints (if any).
If there are questions that the distributor cannot answer, please do not hesitate to contact
Nilsk-Egholm A/S directly. Also feel free to contact us with suggestions or requests for special
implements and/or features for the machine.
We wish you many years of safe and satised use of your machine.
Best regards
Nilsk-Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
4.3 Disposal
When — many years from now — your Snow V-Blade has reached the end of its working life, it
should be disposed of in a responsible manner that conforms with relevant disposal regulations.
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site.
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable
environmental legislation.
3. After the parts mentioned have been removed, the machine is ready to be handed over to an
approved scrap merchant.
Operator’s Manual City Ranger 2200 Snow V-Blade
Conditions

14 Operator’s Manual City Ranger 2200 Snow V-Blade
Spare parts
5.1 Spare parts – City Ranger 2200 Snow V-Blade
09722135 Rubber scraping edge for
V-Blade
01108090 Rubber scraping edge for
V-Blade
01905020 Safety split pin for skids
01108080 Skid for Snow V-Blade
01108110 Back plate for rubber scraping edge
01108120 Spacer proles for steel scraper
01108130 Front plate for rubber scraping
edge, V-Blade
01108100 Rubber scraping edge kit, for
switch from steel scraper

15
Operator’s Manual City Ranger 2200 Snow V-Blade
Notes

70101291-01 UK
Nilsk-Egholm A/S
Transportvej 27
DK-7620 Lemvig
T. [phone]
F. [phone]
www.nilsk-egholm.com
[e-mail]
