EN Drying Cabinet User manual

Dear NIMO customer,
Congratulations on making an excellent choice and welcome to the NIMO family.
NIMO is a global family with its roots in Sweden.
NIMO thanks you for your condence and hopes that you will enjoy using your
new drying cabinet.
A good drying cabinet should be well designed, dry clothes well, have a low en-
vironmental impact, be user friendly, save time, have a long life and be reliable.
NIMO offers you all of these features.
When you buy a NIMO product you can be sure that the inside is as good as
the outside and that the ethics and morale that go into building this product are
just as high as the quality and functionality you are getting. That’s what Swedish
quality is all about.
Before using the product for the rst time, please read the user instructions and
the advice on caring for the product. This will help you get the best possible results
from your product and all its functions.
If you have any questions, don’t hesitate to call us or contact us via our website.
Best wishes from Sweden and the NIMO team.
Doc. No: 427000546 Rev. 06
MANUFACTURER:NIMOVERKEN AB BOX124
S548 22 HOVA
SWEDEN
PH +46 0 506 488 00
FAX +46 0 506 488 10
[email protected]
www.nimoverken.com

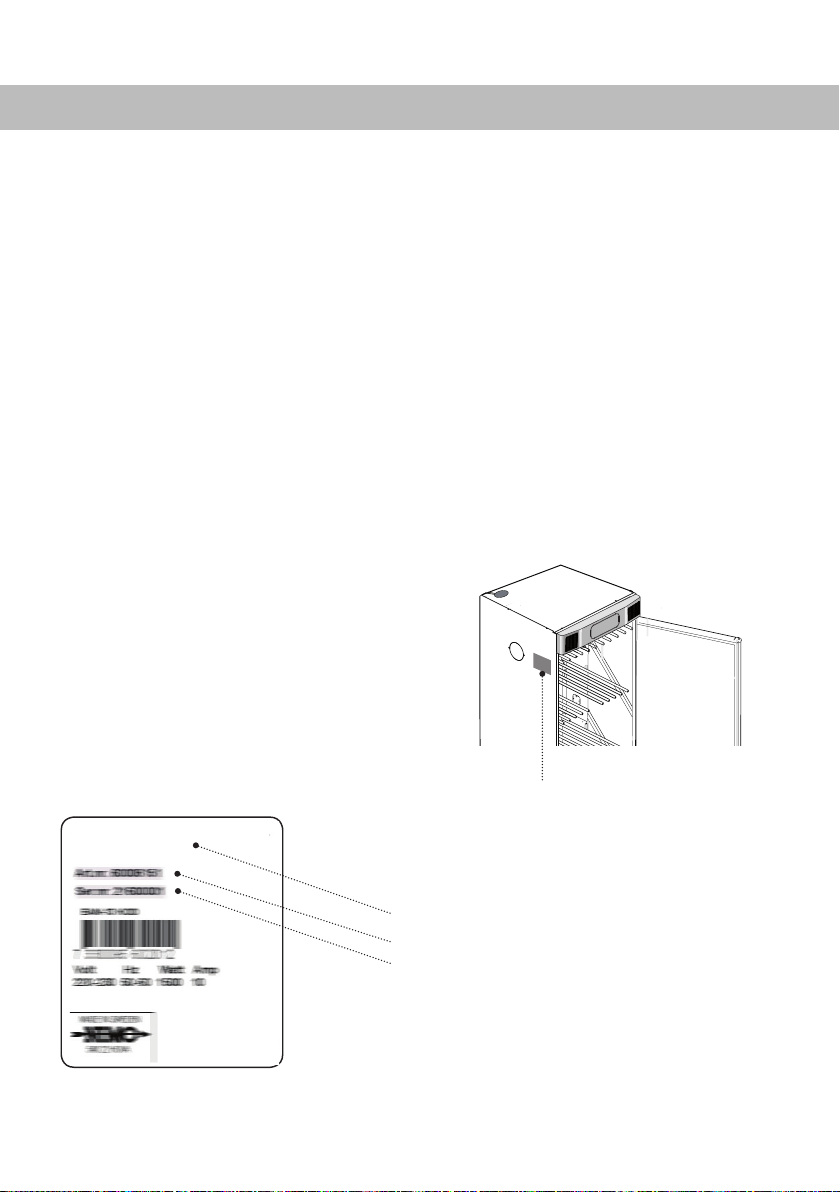

ARTICLE AND SERIAL NUMBER
See page 20

3
CONTENTS
ABOUT THIS USER MANUAL
The contents of this user manual describe
the dryer functions and how it should be
used. The manual also includes instructions
for installation and maintenance.
IMPORTANT SAFETY INFORMATION 4
AREA OF USE 4
TECHNICAL SAFETY 5
FOR A GOOD ENVIRONMENT 6
PACKING MATERIAL 6
MANAGEMENT OF ENDOFLIFE
DRYING CABINET 6
INSTALLATION 7
UNPACKING 7
FITTING THE DOOR HANDLE 8
REHANGING THE DOOR 8
POSITIONING 9
EXHAUST 10
EXHAUST CONNECTION,
MODEL ETS 1500E 10
EXHAUST, MODEL ETS 1500EF 12
ELECTRICAL CONNECTIONS 13
USING FOR THE FIRST TIME 14
USING THE DRYING CABINET 15
POSITIONING THE WASHING 15
USER TIPS 15
AIRFLOW 15
OPERATING CONTROL PANEL 16
DISPLAY 16
DRYING PROGRAMME 17
DRYING FUNCTION 17
OPERATIONAL DISTURBANCES 19
AUTOMATIC PROGRAMMES
 SETTING THE PARAMETERS 19
CARE 20
CLEANING 20
SERVICE 20
REPLACEMENT PARTS 20
TECHNICAL DATA 21
PARAMETER ADJUSTMENT 22
INTRODUCTION 22
PARAMETER ADJUSTMENT 23

4
IMPORTANT SAFETY INFORMATION
AREA OF USE
CAUTION This equipment is intended only to be used to dry fabrics
washed in water.
pApplicable to installation in the EU
This drying cabinet can be used by children over the age of 8 and
persons (including children) with various disabilities or inadequate
experience and knowledge, provided they are kept under supervi-
sion or are given instructions on how to use the appliance in a safe
way and understand the risks that use entails.
Children must not play with the appliance.
pApplicable to installation in countries outside the EU
The appliance is not intended for use by persons (including children)
with various disabilities or inadequate experience and knowledge.
They may use the appliance only under supervision or if they have
received instructions on how to use the appliance from a person
who is responsible for their safety.
Children must be supervised to ensure that they do not play with
the appliance.
This drying cabinet meets applicable safety requirements. Incorrect use
may, however, lead to injuries and damage to property.
The advice and caution notices in this manual have been written to en-
able you to avoid incorrect use and unnecessary risks of accidents, and
should be read before installing and using the drying cabinet.

5
TECHNICAL SAFETY
pCheck the drying cabinet for visible signs of damage before install-
ing it. A damaged drying cabinet must not be used as it may pose a
hazard.
pThe drying cabinet must be installed and kept indoors.
pThe drying cabinet may only be connected to an earthed power
socket installed in accordance with applicable safety instructions.The
wall socket must be accessible after installation so that the power
supply to the drying cabinet can be disconnected at any time.
pMake sure that the data on the drying cabinet identication plate
(fuse, voltage and frequency) agrees with that of the mains power
supply at the site of installation.
pDo not connect the drying cabinet to the power supply with an
extension lead as the necessary safety cannot be guaranteed (risk
of overheating).
pIf the power cord is damaged, it must be immediately replaced, and
this must be done only by the manufacturer, the manufacturer's
service agent or similarly qualied persons in order to avoid danger.
IMPORTANT SAFETY INFORMATION

6
PACKING MATERIAL
The packaging that protects the drying cabinet
against damage in transit has been chosen with
concern for the environment in mind and is
therefore recyclable.
Recycled packaging means reduced consump-
tion of raw materials and lower levels of waste.
MANAGEMENT OF END-OF-LIFE
DRYING CABINET
When the drying cabinet has reached the end
of its life, it must be taken to a recycling centre
for disposal. Many parts can be re-used, but the
cabinet also contains other material that must
be handled correctly.You should therefore never
dispose of a drying cabinet or parts of a cabinet
with the domestic refuse as this can lead to health
risks and harm the environment.
Take the end-of-life drying cabinet to a recycling
station instead. Check with your dealer if neces-
sary.
All the plastic parts of the drying cabinet are
marked with internationally standardised sym-
bols. The parts can therefore be recycled in an
environmentally friendly way by waste separation.
FOR A GOOD ENVIRONMENT

7
2
3
4
1
5
2
5
6
3
7
14
8
6
9
UNPACKING
______________________________________
Check that the goods have not been damaged in
transit. Any damage should be reported to your
dealer within 7 days.
After unpacking, check that the goods are in good
condition. Damage, faults and any missing parts
should be immediately reported to your carrier.
______________________________________
INSTALLATION
Complete delivery should include:
pA cabinet with a fan unit installed
pAssembly kit
pUser manual
______________________________________
Check that all transportation aids have been
removed before connecting the dryer.
______________________________________
______________________________________
Packaging materials such as plastic and styro-
foam should be kept out of the reach of children.
______________________________________
Qty.
1. Draft stabilizer 1
2. Hose 1
3. Spigot 1
4. Screw TRX 5x70 fzk 7
5. Washer NB 5x25 4
6. Plastic plug 7
7. Spacer 8.2x12x15 4
8. Door handle incl. screws 1
9. Supporting bracket 1
Qty.
1. Screw TRX 5x70 fzk 7
2. Washer NB 5x25 4
3. Plastic plug 7
4. Spacer 8.2x12x15 4
5. Supporting bracket 1
6. Door handle incl. screws 1
Assembly kit model ETS 1500E Assembly kit model ETS 1500EF

8
1
MAN
60°
40° -+
MAN40° 2:30
C
START
STOPP
ON
OFF
ECODRYER
MAN
60°
40° -+
MAN40° 2:30
C
START
STOPP
ON
OFF
ECODRYER

2

MAN
60°
40° -+
MAN40° 2:30
C
START
STOPP
ON
OFF
ECODRYER
1
3
4

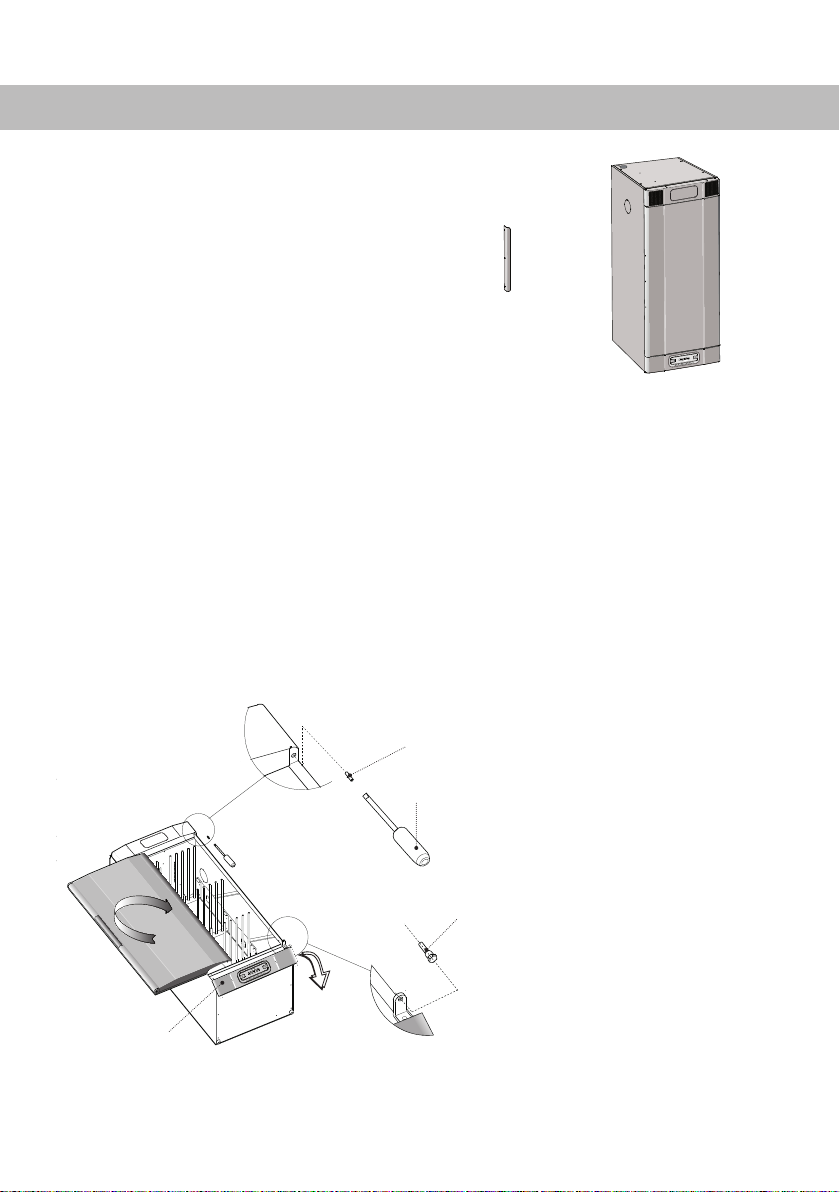

REHANGING THE DOOR
The door can be hinged on the left or the right.
1Lay the dryer down on its back.
2
Open the door fully and support it in its open
position using a chair or similar. The door must
not be opened more than 180°.
3Release the four screws retaining the control
module. The screws are on the top of the
control module.
4Slant the module out so as to gain access to
the lower hinge pivot pin.
5Close the door.
6Release the lower pivot pin using a set
spanner and remove the door.
7Release the upper pivot pin with a
screwdriver and move the pin over to the
opposite side. First release the plastic plug
and press it in on the opposite side.
8Rotate the door,oer up the door and screw
it in place with the lower pivot pin.
9Ret and retighten the screws on the control
module.
The illustration shows
model ETS 1500EF
______________________________________
WARNING! The plug must be unplugged from
the wall socket.
______________________________________
FITTING THE DOOR HANDLE
Fit the door handle with the xing screws supp-
lied.
The illustration shows
model ETS 1500E
INSTALLATION

9
5
47
6
3
MAN
60°
40° -+
MAN40° 2:30
C
START
STOPP
ON
OFF
ECODRYER
230 mm
1
2
1450 mm
MAN
60°
40° -+
MAN40° 2:30
C
START
STOPP
ON
OFF
ECODRYER
1. Supporting bracket
2. Pre-drilled holes
3. Attachment screw with washer
4. Plastic plug
POSITIONING
______________________________________
The drying cabinet must be installed and kept
indoors..
_________________________________________________
______________________________________
The drying cabinet must not be installed where
high-pressure water jets are used for cleaning.
______________________________________
The drying cabinet can conveniently be instal-
led above a front-loading washing machine.
______________________________________
However, it must hang on the wall and not placed
directly on top of the washing machine. This is to avoid
vibration when the washing machine is running. A
supporting bracket is supplied with the drying cabinet.
______________________________________

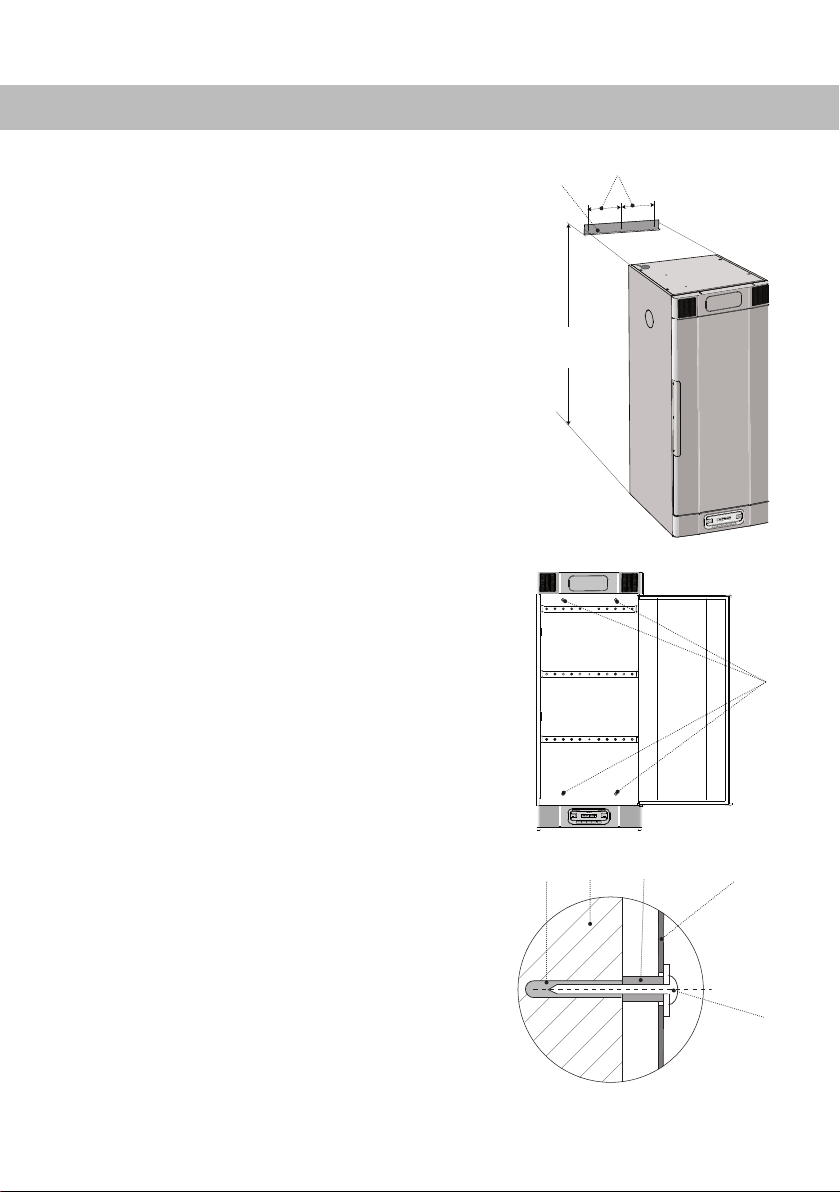

1 Mark up for the
supporting bracket and secure
it to the wall with screws. Screws are supplied
in the installation kit.
2 Hang up the cabinet.
The cabinet must be secured to the wall to
prevent it tipping forward.
3 Open the door and drill 8 mm holes in the
wall through the four pre-drilled holes in the
rear of the drying cabinet.
4 Insert plastic plugs in to the holes in the wall.
Place a spacer on the screw and install with a
washer as shown in the illustration. Screws
are supplied in the installation kit.
______________________________________
WARNING! The drying cabinet must not be used
unless it is xed to the wall, due of the
risk of tipping forward.
______________________________________
The illustration
shows model ETS
1500 EF
5. Wall behind the
drying cabinet
6. Spacer
7. Drying cabinet back
wall
INSTALLATION

10
12
3
Air intake
___________________________________
The air intake must not be blocked.
___________________________________

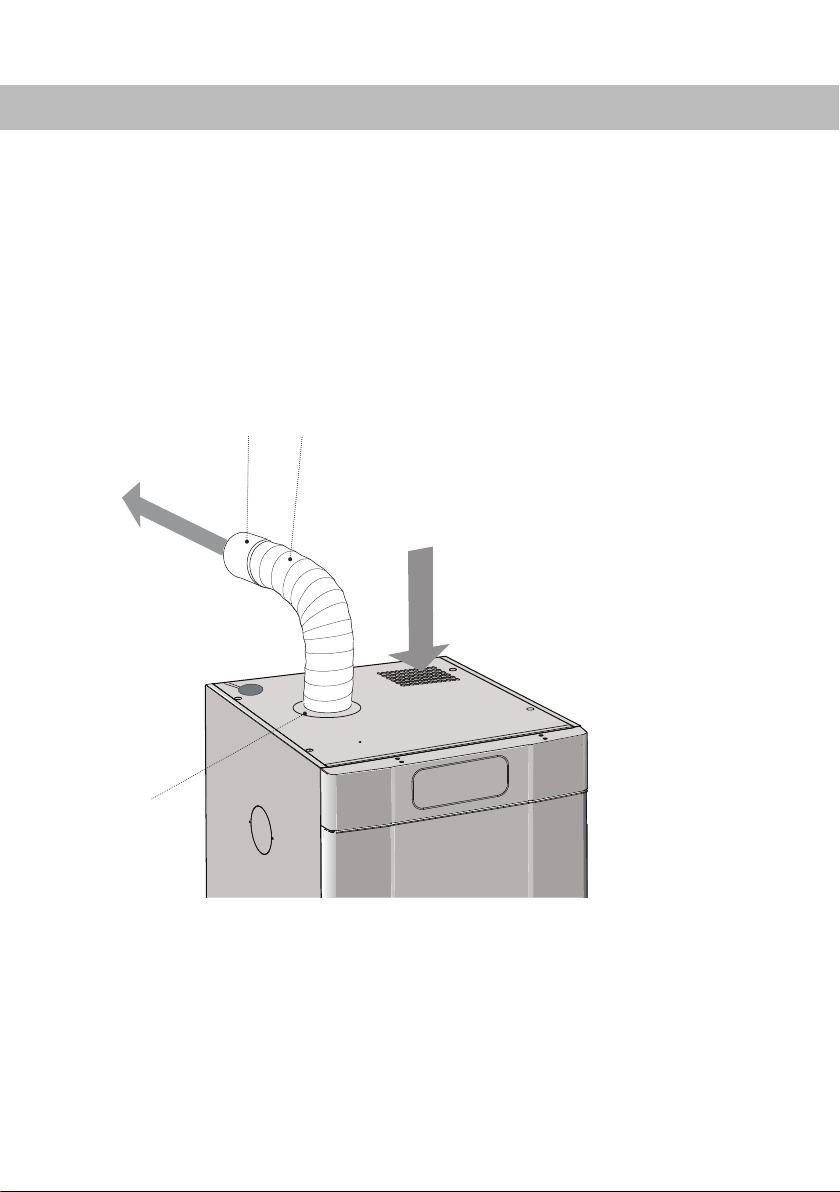

1. Draft stabilizer
2. Hose
3. Spigot
EXHAUST CONNECTION, MODEL ETS 1500E
___________________________________
The drying cabinet must not be connected to
a replace chimney.
___________________________________
pFit the spigot supplied to the hose. Ax
the spigot and hose to the dryer top.
Connect the other end of the hose to the
draft stabilizer which should then be
rmly attached to the exhaust air valve.
EXHAUST
When the drying cabinet is working, 45 m of moist air are evacuated per hour. This air is taken
from the room where the dryer is sited. Hence make sure air can enter the room to replace the
moist air leaving.
1. BY MEANS OF A DRAFT STABILIZER
The drying cabinet should be connected to a standard register.
The drying cabinet can be connected to an exhaust duct in two ways: either with a draught inter-
rupter or rigidly connected to an exhaust air ventilation system.
If the drying cabinet is to be connected to an existing ventilation system, a draught interrupter must
always be used, so that the general ventilation in the room is not aected.
Only use a rigid connection when a separate exhaust air duct has been provided for the drying cabinet.
The air ow in the exhaust duct should be adjusted to 45 m/hour.
The drying cabinet has been tested and set at the factory for connection with a draught interrupter.
Humid air out
INSTALLATION

11
12
3
2. PERMANENTLY INSTALLED AND CONNECTED TO THE EVACUATION DUCT
When the drying cabinet is permanently con-
nected to the evacuation duct, the whole room
is ventilated by way of the drying cabinet.
pFit the spigot supplied to the hose. Ax the
spigot and hose to the dryer top.
Air intake
1. Insert
2. Hose
3. Spigot
___________________________________
The insert is not included.
___________________________________
Humid air out
___________________________________
The air intake must not be blocked.
___________________________________
INSTALLATION

12
MAN
60°
40° -+
MAN 40° 2:30
C
START
STOPP
ON
OFF
ECO DRYER
Air intake
EXHAUST, MODEL ETS 1500EF
Humid air out
___________________________________
The air intake must not be blocked.
___________________________________
INSTALLATION

13
1
2
MAN
60°
40° -+
MAN 40° 2:30
C
START
STOPP
ON
OFF
ECO DRYER
ELECTRICAL CONNECTIONS
The drying cabinet should be connected to a 230
V 1-phase 50 - 60 Hz grounded socket.
The drying cabinet is supplied ready for connec-
tion with a cable with a grounded plug.
______________________________________
The drying cabinet should be connected using
the plug supplied to a grounded wall socket, and
should not be in the form of a xed connection!
______________________________________
______________________________________
The socket should be placed so that the plug can
be easily removed when required.
______________________________________
______________________________________
Appliance must be connected to a dedicated
circuit.
______________________________________
______________________________________
The drying cabinet must not be connected using
an extension cable as the necessary safety cannot
be guaranteed (risk of overheating).
______________________________________
______________________________________
Check that the supply current matches that sta-
ted on the name plate and that the mains lead
is grounded correctly according to standards in
force. We recommend that the mains lead be tted
with a residual current device (RCD).
______________________________________
______________________________________
The manufacturer shall not be held liable if the
electrical connections are not carried out as
prescribed in this manual.
______________________________________

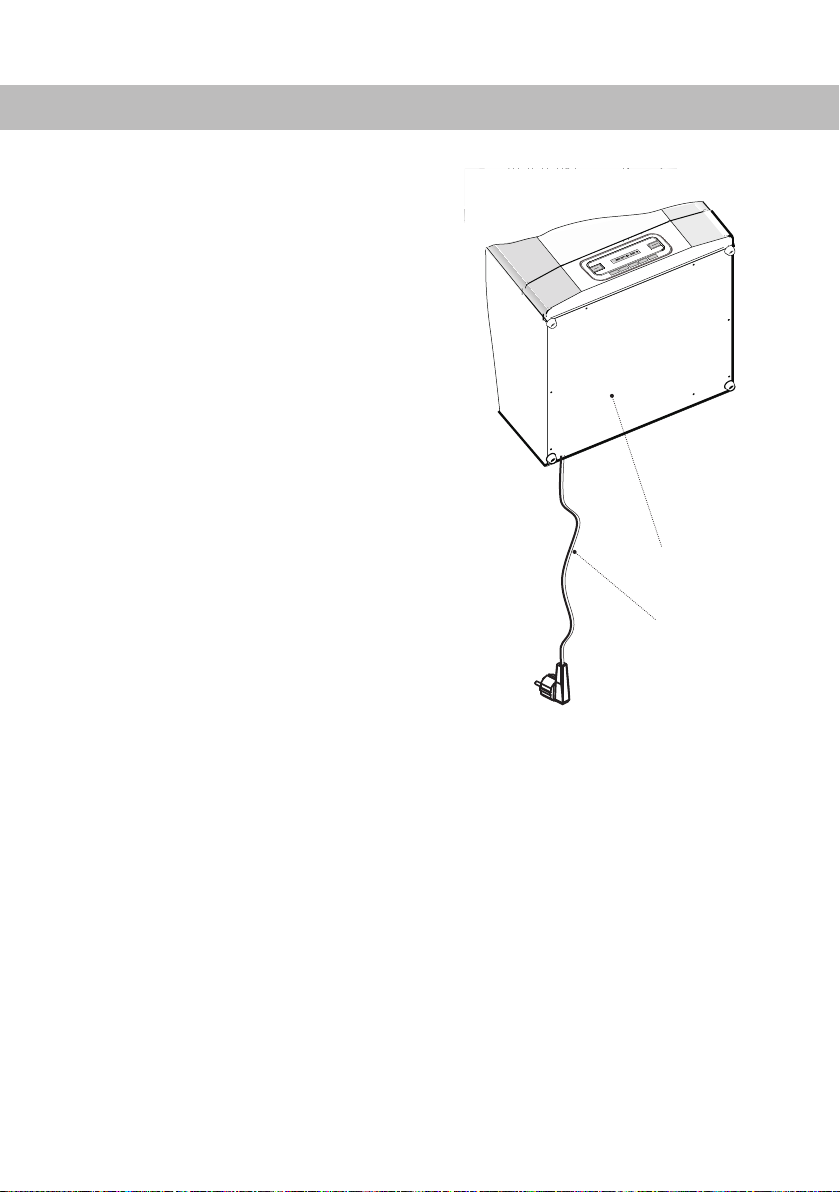

1. The dryer from underneath
2. Fixed exible connection cord
INSTALLATION

14
_____________________________________
Read these directions for use before
using the drying cabinet for the rst
time.
_____________________________________
_______________________________________
CAUTION! Read the safety instructions on page
4 and 5 before using the cabinet.
_________________________________________________
1Check that the cabinet is rmly secured to
the wall. See page 9.
2Check that no packaging material has been
left in place.
3Use a mild detergent and warm water to wash
the inside and outside of the drying cabinet.
Dry carefully. See also the section headed
’Care’later in the manual.
USING FOR THE FIRST TIME

15
USING THE DRYING CABINET
In the cabinet there are three sections with hang-
ers. Every section has a number of rods on which
to hang the washing.
The optimised hanging system has extendable
hangers.
p
Hang the articles in the drying cabinet according
to how much room they require - not according
to their weight.
pFor optimum eciency - do not lay articles
at on the upper hanging section.
pPlace long clothes nearest to the walls of the
cabinet and shorter ones towards the centre.
By hanging the washing in this way the most
ecient drying results are attained.
pDo not overload the drying cabinet. The
washing will become creased and dry
unevenly. Instead, leave a certain distance
between items of washing, if this is possible.
pTo avoid the transferring of colours make sure
materials do not contact each other.
pAvoid drying thick clothes at the same time
as lighter articles as they hold more moisture
and have completely dierent drying times.
p
Remember not to hang knitted articles.These can
be stretched when they are heavy with water.
POSITIONING THE WASHING USER TIPS
pAlways follow the washing instructions on
clothes if such instructions are available.
pIf a softening agent or antistatic substance is
used, the manufacturer’s instructions concer-
ning the utilisation of the product should be
followed.
p
Take out washing that is already dry. This re-
duces drying time for the washing that is left.
______________________________________
NOTE: The sealing strip in the door may not
function satisfactorily when cabinet is
cold, however as soon as cabinet warms
up, it will once again function.
______________________________________

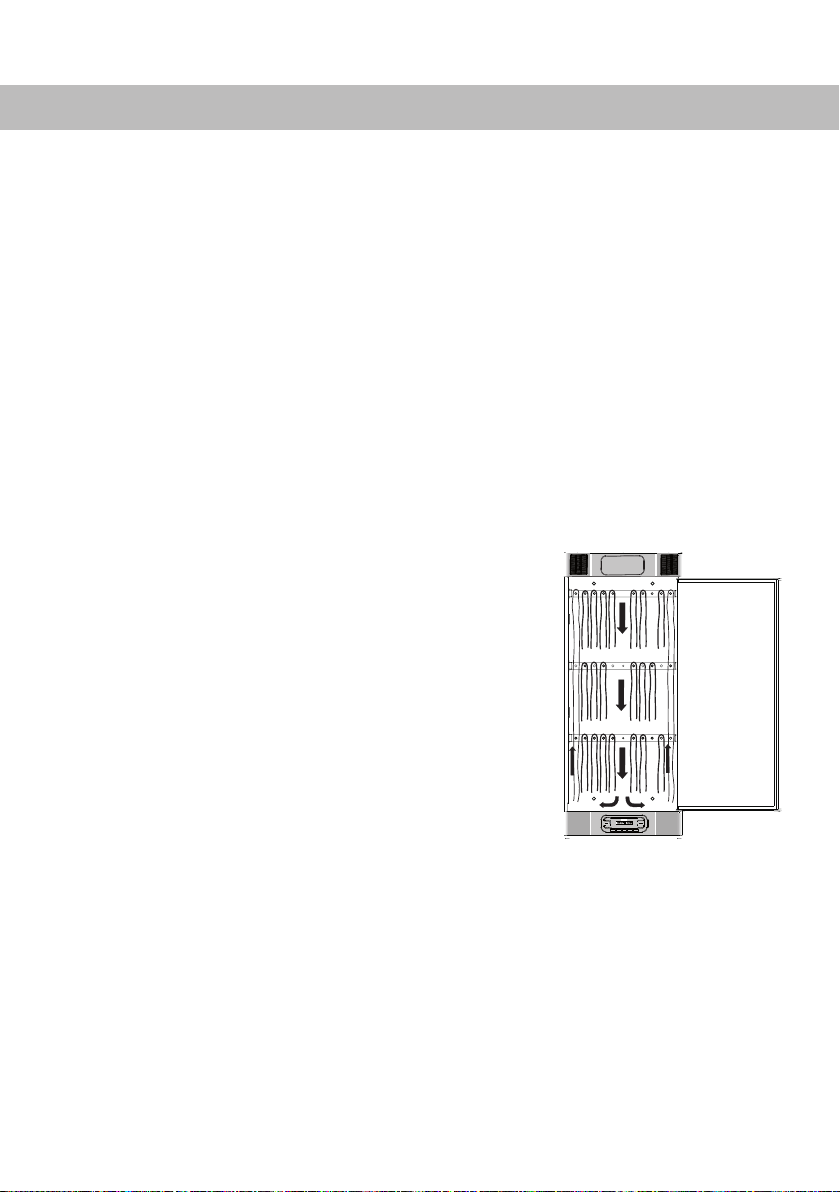

AIRFLOW
The gure shows the airow in the drying
cabinet.
Keep the area
around the
evacuation
duct clear of
dust and dirt.
Make sure
that the air
intake and
exhaust air
duct are not
blocked.
The illustration shows model ETS 1500EF
MAN
60°
40° -+
MAN40° 2:30
C
START
STOPP
ON
OFF
ECODRYER

16
MAN
60°
40° -+
MAN 40° 2:30
C
START
STOPP
ON
OFF
ECO DRYER
MAN
60°
40° -+
MAN 40° 2:30
C
START
STOPP
ON
OFF
ECO DRYER
1234
56 7 8 9
MAN
60°
40° -+
MAN 40° 2:30
C
START
STOPP
ON
OFF
ECO DRYER
MAN
60°
40° -+
MAN 40° 2:30
C
START
STOPP
ON
OFF
ECO DRYER
10 11 12
OPERATING CONTROL PANEL
1. Main power switch
2. Main power indicator on - ON
3. Display
4. Programme Start/Stop
5. Automatic programme 40°
6. Automatic programme 60°
7. Manual time control command - Step function
8. Reduces standard time for time control command
9. Increases standard time for time control
command
10. Present programme selection
11. Revolving symbol - indicating that the drying
process is in progress
12. With manually commanded programmes:
pProgrammed drying time
pTime remaining - when the drying
programme has started
12. With automatic programme:
pTime remaining - N.B.! Only during
the cooling down period
USING THE DRYING CABINET
DISPLAY

17
DRYING PROGRAMME
The drying cabinet is equipped with two automatic programmes:
pAUT 40°
pAUT 60°
In addition, the drying cabinet has four time-controlled programmes:
pMAN 30°
pMAN 40°
pMAN 60°
pMAN --° Only the fan is used during the drying process – No heat
The automatic programmes shut o the drying process automatically when the fabrics
are dry.
The manually time-controlled programmes come to an end after the set time has been
counted down.
All the 30°, 40° and 60° programmes nish with a cooling down period of 10 minutes.
DRYING FUNCTION
START THE DRYING PROGRAMME:
pLast used drying programme.
Press the main power switch (1) to the ON position - Indicated by a green light (2)
The display shows the latest run programme – If this is the one wanted, press the
START/STOP button (4)
Or select another drying programme as set out below
pAutomatic programmes.
Automatic programme 40°- Press the ” 40°”button (5), then START/STOP (4)
Automatic programme 60°- Press the ”60°”button (6), then START/STOP (4)
pManual time control command.
Using the MAN button (7) go step by step to the desired temperature, 30°, 40°, 60°
or only fan.The display shows the standard drying time for the respective programme.
The standard time can, if desired, be increased or decreased with the ”+”(8) or ”-” (9)
buttons.
After that, the drying programme is started with the START/STOP button (4).
USING THE DRYING CABINET

18
DOOR OPEN
If the door is open when the drying programme is started and the START/STOP
button (4) is activated, the display shows ”CLOSE DOOR”. Close the door and the
selected drying program will start.
DURING OPERATION
The revolving symbol on the display indicates that the drying process is in progress.
COOLING DOWN
During the cooling down period, the display shows the text ”COOL” in the programme
selection eld.
The time is counted down in the remaining time eld (10 minutes).
END PROGRAMME
When the cooling down period is complete, the drying process is nished.The display
shows the text ”END” (ashing).
Thus when the START/STOP button (4) is pressed or the door is opened, the pro-
gramme presently running ends and the display shows the last programme used.
_____________________________________________________________________
NOTE! In waiting state the display is turned o after 10 minutes and lights up when any
of the buttons on the control panel are activated or the door is opened.
______________________________________________________________________________
STOP
To interrupt the drying process in progress, press START/STOP (4)
THE DOOR OPENS
Should the door open while the drying process is in progress, the heat is shut o (if the
interrupted programme uses heat).The fan continues to work for a further 5 minutes.
The display shows ”CLOSE DOOR” and, at the same time, the 5 minute period count
down.
If the door is shut within this 5 minute period, the drying process continues, as set
out below.
Automatic programme:
Starts all over again from the beginning = longer drying time.
Manual time control command:
Goes back and starts from the interrupted count down sequence.
Should the door be left open, the drying process is interrupted after 5 minutes and
must be started again manually.
If you wish to interrupt the drying process directly, without the 5 minute period, press
START/STOP (4)
USING THE DRYING CABINET

19
OPERATIONAL DISTURBANCES
PROTECTION AGAINST OVERHEATING
The drying cabinet is equipped with an overheating protection device
which trips if the temperature in the cabinet becomes too high.When the
protection device trips, the voltage feed to the drying cabinet main power
switch (1) is interrupted and the green luminous indicator (2) goes o. In
this case the drying cabinet will not start.
When the temperature in the drying cabinet has sunk to an acceptable
level, the overheating protection device is reset automatically and the
green indicator (2) lights up (N.B.! If the main power switch (1) is at the
ON position - pressed in).
It takes about 15-20 minutes for the temperature to sink to an acceptable
level.
Therefore,if the drying cabinet has recently been used and if the green
indicator (2) will not light up with the main power switch (1),always wait
a minimum of 20 minutes. Then make a new attempt to start it before
reporting the fault.
In the case of repeated operational disturbances, contact your supp-
lier.
The two automatic programs of the drying cabinet can be optimised to
match the installation conditions.
To do this, use the control panel to adjust the parameter values for the
relevant automatic programme.
Only do this if you think that:
pThe washing is not being suciently dried
pThe washing is being over-dried – excessive drying time.
See the parameter adjustment instructions.
AUTOMATIC PROGRAMMES – SETTING THE
PARAMETERS
USING THE DRYING CABINET

20
MAN
60°
40° -+
MAN40° 2:30
C
START
STOPP
ON
OFF
ECODRYER
ETS 1500E/1500EF
______________________________________
NOTE! High-pressure cleaning should not be
used!
____________________________________
pThe walls of the cabinet should be cleaned
with a mild soap solution on a damp cloth.
pDust frequently gathers around the air intake
under and on top of the cabinet.This can
cause disturbances in the way the cabinet
functions which can, in turn, lead to a shut-
down.
To avoid this problem, the dust should be
removed by suction from the air intake and
the top of the cabinet at least once a year or
more often depending on the environment
the cabinet is placed in.
CARE
CLEANING REPLACEMENT PARTS
If the power cord is damaged, it must be im-
mediately replaced, and this must be done only
by the manufacturer, the manufacturer’s service
agent or similarly qualied persons in order to
avoid danger.
SERVICE
Before contacting Service, you should nd out
the name, article and serial number of the cabinet.
This information can be found on the data plate
located inside the cabinet.
Data plate (inside)
Name of the drying cabinet
Article number
Serial number (12 digits)
______________________________________
Follow NIMO instructions when carrying out
repairs or replacing parts.
______________________________________
______________________________________
NB:
A power cord must be replaced only by
NIMO or authorised service personnel.
______________________________________
