NIMO Easy Dryer 1900 User manual

Easy Dryer 1900
EN Drying cabinet User manual
Keep this manual so that it will always
be on hand for future reference.
427001348

Dear NIMO customer,
Congratulations on making an excellent choice of product, and welcome to the
NIMO family, a global family with its roots in Sweden.
We at NIMO thank you for your trust and hope that you will enjoy using
your new drying cabinet.
A good drying cabinet should be well designed, dry clothes well, have a low
environmental impact, be user-friendly, save time and energy, have a long service
life and be reliable. NIMO oers you all these features.
When you buy a NIMO product you can be sure that the inside is just as
good as the outside and that the ethics and morals that go into building this
product are just as high as the quality and function you are getting. That's what
Swedish quality is all about.
Before using the product for the rst time, please read the user instructions and
the advice on caring for the product. This will help you get the best possible
results from your product and all its functions.
Ifyouhaveanyquestions,donot hesitatetocallus orto contactusthrough
our website.
Best wishes from Sweden and the NIMO team.

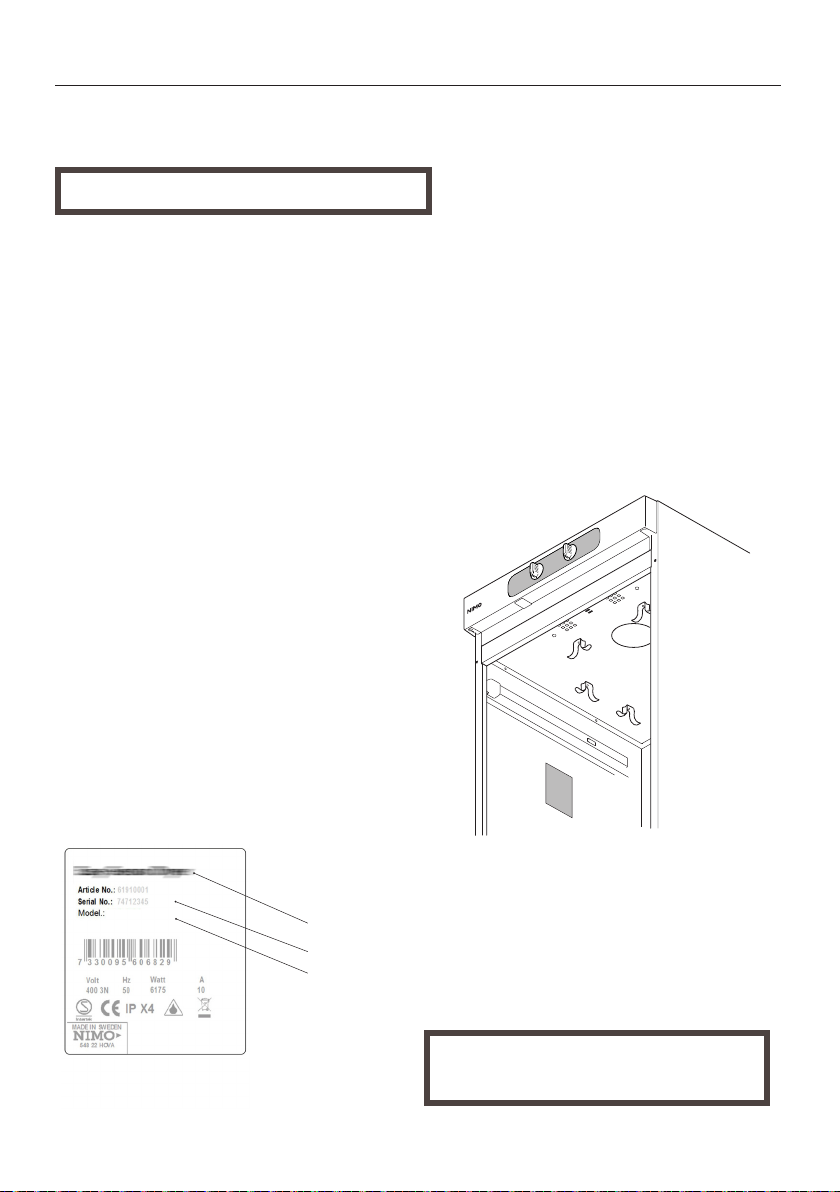

Article and serial number
Manufacturer: NIMO-VERKEN AB
Box 288
542 23 Mariestad
Sweden
[email protected]
www.nimoverken.com
Doc. No: 427001348 / 02
See page 20

3
THIS USER MANUAL 4
SAFE OPERATION 5
DESCRIPTION OF THE DRYING CABINET 6
AIR FLOW IN THE DRYING CABINET 7
UNPACKING 8
PACKAGING MATERIALS 8
ASSEMBLY KIT 9
REHANGING OF DOOR 10
POSITIONING/ATTACHMENT 11
EVACUATION / SUPPLY AIR 12
CONNECTION TO EVACUATION 12
ELECTRICAL CONNECTION 14
STARTUP 15
ARRANGING LAUNDRY FOR DRYING 16
USER TIPS 16
AIR FLOW 16
BREAKDOWNS 17
OVERHEAT CUTOUT 17
OPERATION EASY DRYER 1900 19
CONTROL PANEL 19
CHOICE OF SETTINGS 19
CARE 20
CLEANING 20
SERVICING 20
MANAGEMENT OF ENDOFLIFE DRYING
CABINET 21
HANDLING THE PACKAGING GERMANY 23
TECHNICAL DATA
EASY DRYER 1900 25
TROUBLESHOOTING 26
EASY DRYER 26
DIMENSIONAL DRAWING 27
CONTENTS

4
The contents of this user manual describe
the drying cabinet’s function and opera-
tion and instructions for installation and
maintenance.
THIS USER MANUAL
Note: Keep this user
manual so that it is always
to hand for future use

5
SAFE OPERATION
This advice on safe operation has been compiled to enable you to avoid
incorrect use and unnecessary risks for accidents, and should be read
before the drying cabinet is installed and used.
CAUTION This equipment is intended only to be used to dry fabrics
washed in water.
pApplicable to installation in the EU
This drying cabinet can be used by children over the age of 8 and
persons (including children) with various disabilities or inadequate
experience and knowledge, provided they are kept under supervi-
sion or are given instructions on how to use the appliance in a safe
way and understand the risks that use entails.
Children must not play with the appliance.
pApplicable to installation in countries outside the EU
The appliance is not intended for use by persons (including
children) with various disabilities or inadequate experience and
knowledge.
They may use the appliance only under supervision or if they have
received instructions on how to use the appliance from a person
who is responsible for their safety.
Children must be supervised to ensure that they do not play with
the appliance.
pApplicable to all installation
CAUTION To avoid danger due to accidental resetting of the over-
heat cut-out, this product must not be connected to an external
switching device such as a timer or to a circuit that regularly turns
the product on and o.
pIf the power cord is damaged, it must be immediately replaced, and
this must be done by the manufacturer only, the manufacturer's
service agent or similarly qualied persons in order to avoid danger.

6

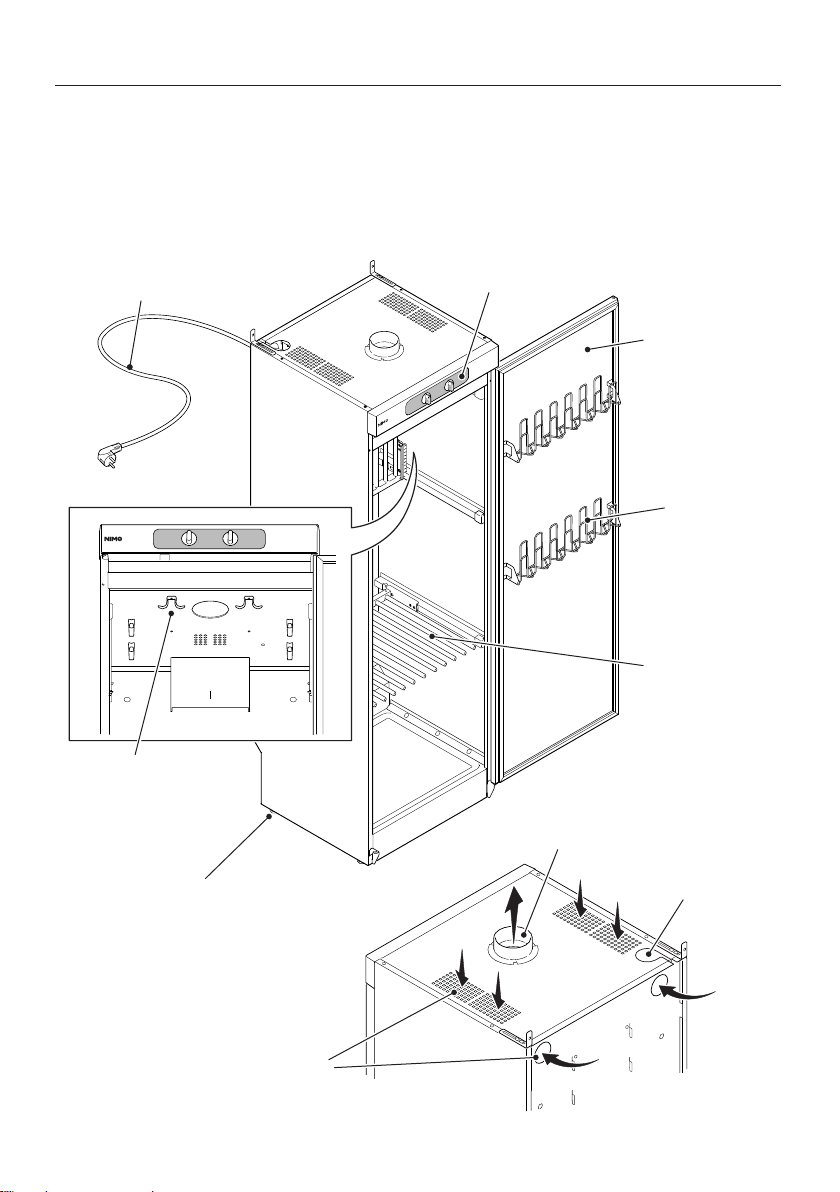

DESCRIPTION OF THE DRYING CABINET
The drying cabinet operates with hot air that removes moisture from the laundry. Heating
and fan components are combined in the upper part of the drying cabinet behind the con-
trol panel.
Easy Dryer, the cabinet is controlled by two knobs, one for setting power modes and the
other for regulating drying time.
Hole for
power cord
Air intake
Connecting lead
Adjusting feet (4x)
Moist air outlet
6 hooks
Door, right or left-
hand version
Two extendible
hanging sections,
depending on choice
of interior ttings.
The hanging sections
can be folded up.
Door hangers
Control panel

7

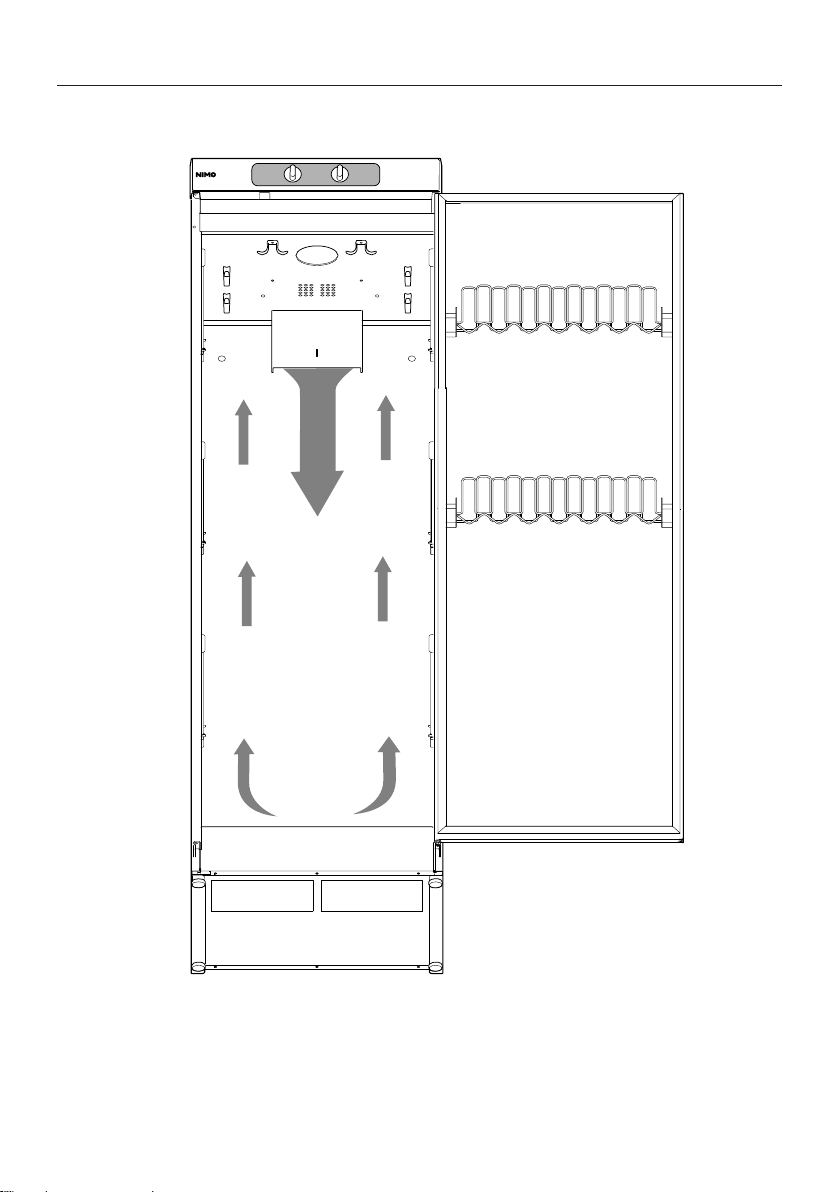

AIR FLOW IN THE DRYING CABINET
Note the direction of air ow inside the cabinet
when positioning laundry. See also this section.

8
UNPACKING
A complete delivery must in-
clude:
Packaging materials such as plastic
and Styrofoam must be kept out of the
reach of children.
Check that all transport securing devices
have beenremovedbefore connectingthe
drying cabinet.
After unpacking, check that the product
is intact. Damage, defects and any
missing parts must be reported to the
dealer immediately.
Check that the product has not been
damaged in transit. Any damage
incurred in transit must be reported to
the dealer within 7 days.
The drying cabinet must be installed and
kept indoors.
pCabinet with installed fan unit
pAssembly kit
pUser manual
The drying cabinet must
be handled carefully if it
is standing unsupported
on its pallet. RISK OF
TIPPING OVER
PACKAGING MATERIALS
The packaging that protects the drying cabinet against damage in transit, has been
chosen with concern for the environment and is therefore recyclable.
Packaging that is recycled means reduced consumption of raw materials and a
smaller volume of waste.

9
Qty
Draught stabiliser 1
Hose, Ø 100 x 1000 mm 1
Spigot 1
Screw TRX 5x70 fzk 2
Washer NB 5x25 2
ASSEMBLY KIT
Qty
Plastic plug 8 Ø 2
Spacer 8.2x12x15 2
UNPACKING

10
1
2
3
The door may be right-hung or left-hung.
1Lay the drying cabinet down on its side.
2Loosen the hinge pin at the lower hinge
(1) and lift o the door. Retain the washer
(3).
3Detach the hinge pin at the upper hinge
(2) and install it on the opposite side.The
pin has a slot for a screwdriver.
4Rotate the door, t and screw in the door
with the lower hinge pin (1) and the
washer (3).
REHANGING OF DOOR
Illustration shows Easy Dryer drying cabinet

11
2
14
3
5

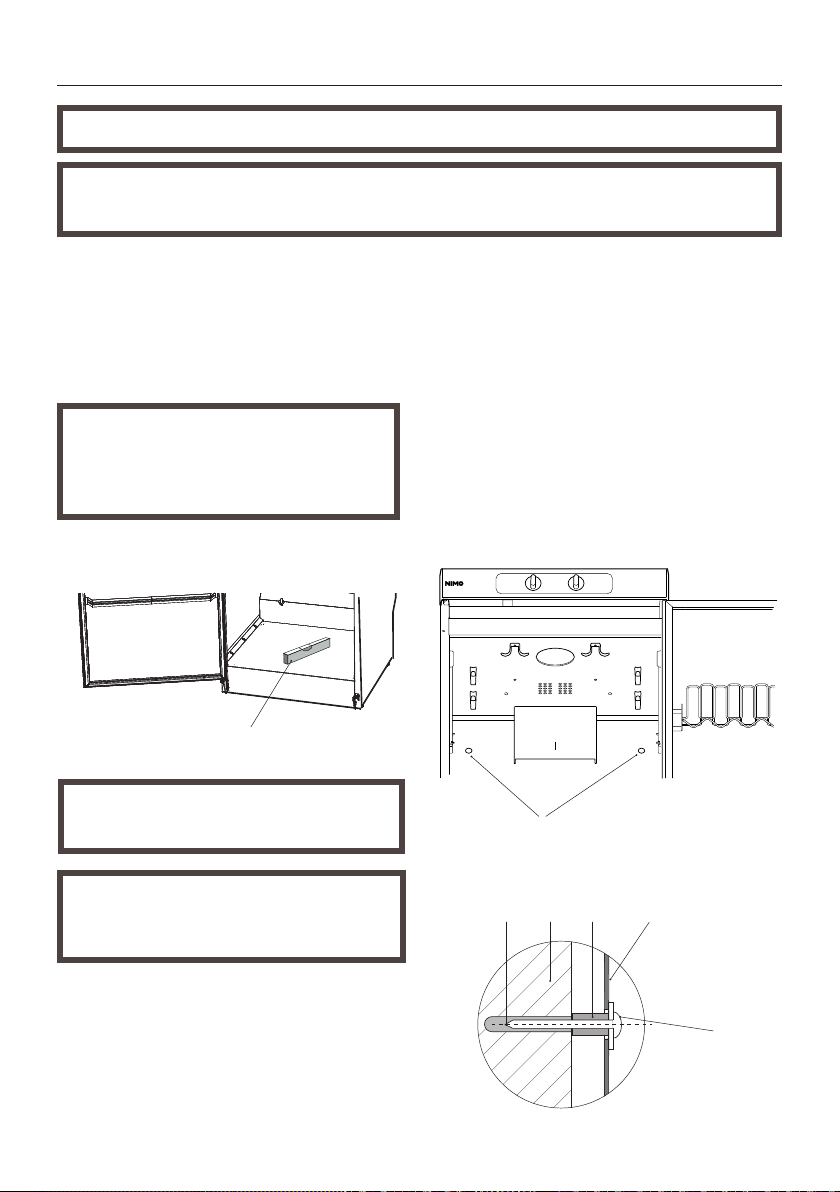

POSITIONING/ATTACHMENT
The drying cabinet must be level on a at
surface,resting on all four feet.
If there is a need for adjustment, lean the
cabinet and adjust the adjusting feet. Check
with a spirit level that the cabinet is level.
1. Plastic plug
2. Wall behind drying cabinet
3. Spacer
4. Rear wall of drying cabinet
5. Fixing screw with washer
The drying cabinet must not be placed in an environment in which high-pressure water
is used for cleaning.
The drying cabinet is intended only for location indoors in a dry place and secured to a wall.
CAUTION The drying cabinet must not
be used without being secured to a wall,
due to the risk of tipping over.
Bear in mind that the cabinet is top-
heavy and there is a risk of it tipping over.
This adjustment should be carried out by
two people.
The cabinet must be attached to a wall to
prevent tipping over.
1Open the door and drill 8 mm holes in the
wall through the two pre-drilled holes in
the rear of the drying cabinet.
2Fit the plastic plugs in the wall. Thread the
spacer onto the screw and t with washer
as illustrated. Screws are contained in the
assembly kit.
Spirit level
Pre-drilled holes
Attaching to a wall also means a better
door seal.

12
1
EVACUATION / SUPPLY AIR
When the cabinet is on, approx. 95 m³ moist air per hour is evacuated. It must therefore
be ensured that air can enter the room to replace the moist air that is vented out.
CONNECTION TO EVACUATION
The drying cabinet is connected to exhaust air ventilation in accordance with standard.
The drying cabinet can be connected to the evacuation duct in two ways, either
with a draft stabiliser or permanently tted to a mechanical exhaust vent.
If the drying cabinet is to be connected to an existing vent system, a draught stabiliser
must always be used, so the general ventilation in the room is not aected.
Permanent tting must only be carried out when a separate exhaust-air duct is
routed to the drying cabinet. The air ow in the exhaust-air duct being adjusted to
95 m³ per hour.
The drying cabinet has been tested and factory-set for connection with a draught
stabiliser.

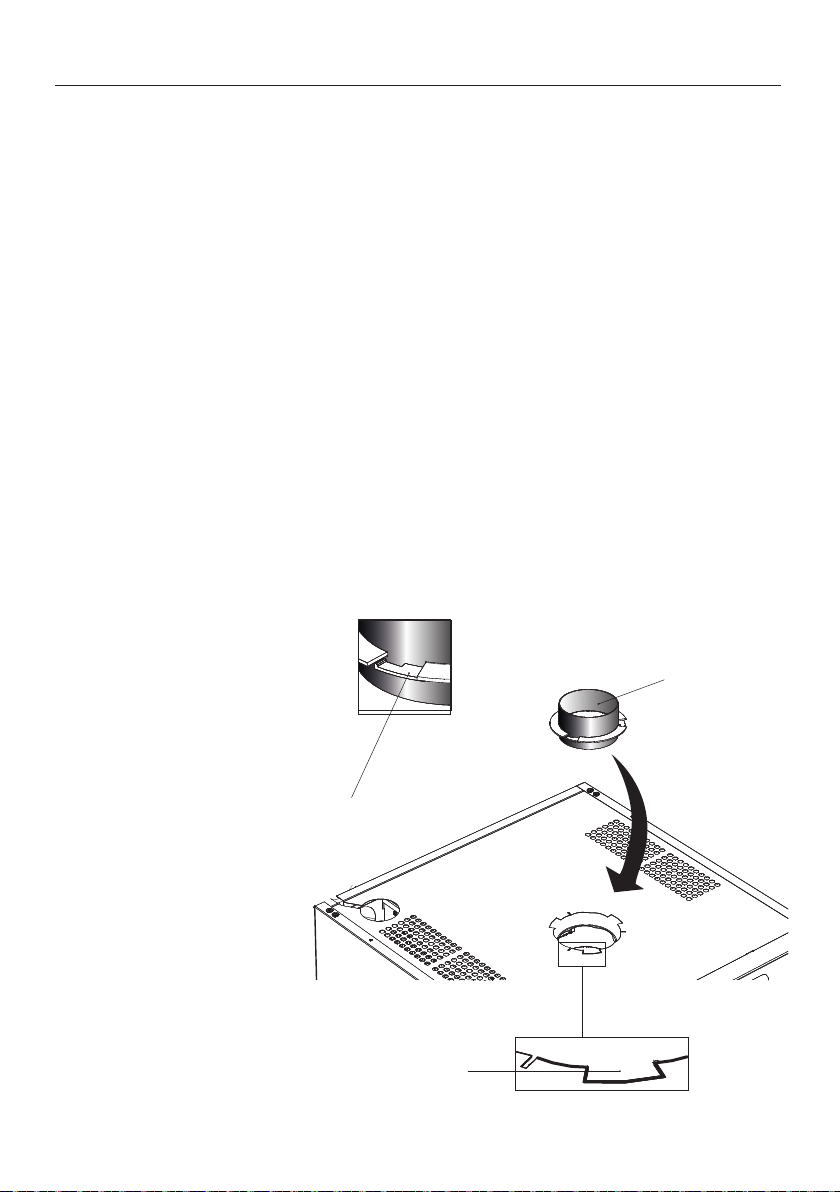

Air connection on the cabinet
Position and t the supplied
spigot (1) over the hole on
the top of the drying cabi-
net. Rotate clockwise until
the spigot clicks into place
in the slots in the roof.
Fixing hook in
spigot
Slot in roof for
xing hook

13
297
348
297
348
2
4
2
3
Adapter is not supplied.
The air intake must not be blocked.
Permanently tted to mechanical exhaust vent
EVACUATION / SUPPLY AIR
Moist air out
Connect the exible hose (2) to
the spigot. Connect the other end
of the hose to the adapter (4)and
then mount it on the exhaust vent
in the room.
The air intake must not be blocked.
The drying cabinet must not be
connected to a flue.
Connect the exible hose (2) to the
spigot. Connect the other end of
the hose to the draught stabiliser
(3) which is then mounted on the
exhaust vent in the room.
With draught stabiliser
Moist air out
1. Spigot (page 12)
2. Hose, Ø 100 x 1000 mm
3. Draught stabiliser
4. Adapter

14
The drying cabinet must be connected to a
230V single-phase 50-60 Hz and protectively
earthed wall socket.
Fuse 10A.
The drying cabinet is supplied with a cable
and an earthed plug, ready for connection.
ELECTRICAL CONNECTION
The manufacturer disclaims all liability
if the electrical connection has not been
carried out in the way described in this
user manual.
The drying cabinet must be connected to
a dedicated circuit.
Check that the connection current agrees
with the data on the identification plate
and that the power cord is earthed
correctly in accordance with applicable
standard. We recommend that the power
cord be fitted with a residual current
device (RCD).
The socket should be located so that the
plug can be easily pulled out if necessary.
The drying cabinet should be connected
to an earthed wall socket using the
connecting cable supplied and must not
be permanently wired.
Note: A replacement cord must only
be fitted by a qualified electrician.
If the mains lead for any reason is dam-
aged, it must be replaced. A genuine
spare part can be obtained from the
dealer who supplied the cabinet.

15
STARTUP
CAUTION Read the safety instructions
on page 5 before using the cabinet.
1Make sure that the cabinet is rmly
attached to the wall. See page 11.
2Make sure that no packaging material
has been left behind.
3Use a mild detergent with hot water
and wash the inside and outside
of the drying cabinet. Dry carefully.
See also the ‘Care’ section later in the
manual.
Read these operating
instructions before using
the drying cabinet for the
first time.

16
ARRANGING LAUNDRY FOR DRYING
p Hang the items in the drying cabinet
according to how much space they require
- not according to their weight.
p For most ecient drying, do not place
items at on the upper hanger section.
pPosition long items closest to the walls
of the cabinet and shorter items towards
the centre of the cabinet. The most ef-
ficient drying results are achieved by
hanging the items in this way.
pFold up the two bottom hanger sections
if long items are to be dried.
p Hang gloves, caps, scarves and similar
items on the hanger strips on the inside
of the door.
p All the hanger sections are extendible to
make it easier to hang laundry. The hanger
sections must be in their inner position when
the door is closed.
pDo not overload the drying cabinet. If
you do, the laundry will become creased
and dry unevenly. Instead, leave a space
between the items if possible.
pIf there is a risk of particular items shed-
ding colour, free space should be left
around them.
pAvoid drying heavy items of clothing
together with lighter items as they have
very dierent drying times.
pDry knitted products at.These are heavy
when wet and stretch unnecessarily if
they are hung on a peg.
USER TIPS
pAlways following the laundry instructions
on the item of clothing if present.
pIf a fabric conditioner or anti-static agent
is used, follow the manufacturer's instruc-
tions for use of this product.
pAdapt the drying temperature in the
cabinet for products that contain foam
rubber or similar material. Follow the
manufacturer's instructions closely for the
washing and drying of such products.
Note: When the cabinet is cold it may
happen that the door's sealing strip does
not close completely. However, this is
fully compensated when the cabinet is
operating with heat as the sealing strip
expands.
AIR FLOW
The illustration shows the air ow in the
drying cabinet.
Keep the area
around the evacu-
ation duct clear of
dust and dirt.
Make sure that the
air intake and ex-
haust duct are not
blocked.
See page 6.
There are three sections with hangers in the cabinet, depending on choice of interior
ttings. Each section has a number of rails for hanging laundry.

17
OVERHEAT CUTOUT
The cabinet is equipped with an overheat cut-out. This trips when the temperature
in the fan unit exceeds 120 °C.
Easy Dryer
When the overheat cut-out has tripped, the cabinet is closed and the timer stops for
example at 2 hours with the laundry wet. The user can now reset the overheat cut-
out by turning o the power supply with the switch inside the roof of the cabinet.
See illustration.
Alternatively, resetting can be done by turning the timer to zero.
The user has to wait for 10 to 15 minutes so that the overheat cut-out has time to
reclose. The power supply to the cabinet is then turned back on using the same
switch or by turning the timer back on.
BREAKDOWNS

18

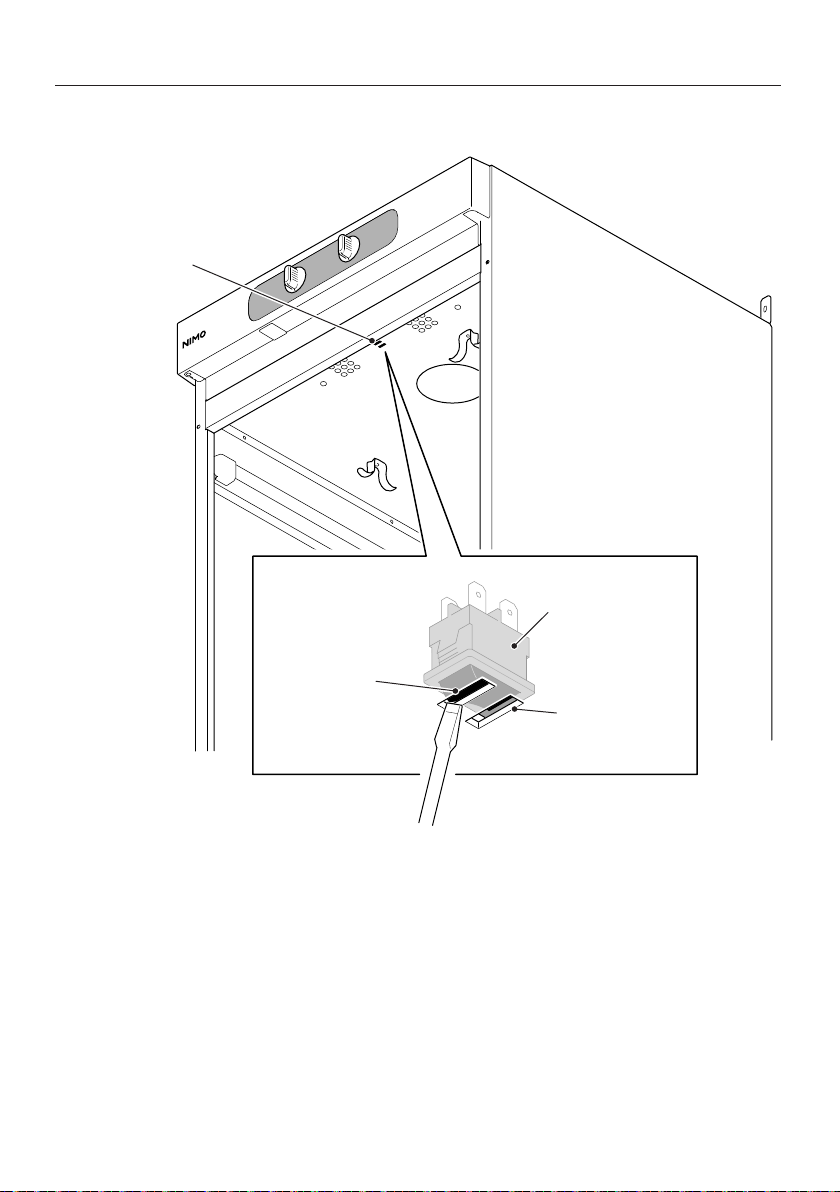

Toggle switch
behind inner panel
Hole in inner panel for
operation of the toggle
switch with a screwdriver
or similar tool
BREAKDOWNS
ON - press the
switch in the
front hole OFF - press the
switch in the
rear hole

19
6
5
43
2
1
00
OPERATION EASY DRYER 1900
CONTROL PANEL
HEAT DRYING TIME
The cabinet is equipped with two knobs
for setting dierent power modes.
The left-hand knob regulates heat with
power modes on a stepless scale.
The right-hand knob regulates drying
time steplessly up to six hours.
If you want a fast drying result, and the
item of clothing copes with HIGH heat,
turn the heat knob to max and set the
drying time at 1.5 to 2 hours.
To dry at LOW heat, turn the heat knob
to just after the start of the semi-circle
and the drying time to between three
and four hours.
For drying without heat, turn the heat
knob to zero and set drying time to 6h.
6
5
43
2
1
00
6
5
43
2
1
00
6
5
43
2
1
00
CHOICE OF SETTINGS
High heat
Low heat
Fan only

20
CARE
Note: Do not use high-pressure cleaning.
CLEANING
pClean the walls of the cabinet with a
mild soap solution on a damp cloth.
pDust tends to collect around the
air intake on the top of the cabinet.
This can cause disturbance, in turn
leading to breakdowns in operation.
Follow NIMO instructions in repair and
replacement of parts.
Name of the drying cabinet
Article number
Serial number (12 digits)
SERVICING
Before contacting Service, you
should nd out the name, article
number and serial number of the
drying cabinet.
This information can be found on
the identification plate located
inside the cabinet.
Identication plate (inside)
To avoid these problems, the air
intake and the roof of the cabinet
should be vacuumed at least once a
year, or more often depending on the
environment the cabinet is located
in.
