Nokia RM-590 User manual

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
1 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
SERVICE MANUAL
Level 1&2
RM-590 / RM-591
Transceiver characteristics
Band:
EGSM 900/1800 (RM-590)
GSM 850/1900 (RM-591)
Display:
1.8” 128x160 TFT 65k color display
128x160 pixel resolution
Camera:
VGA camera with still imaging and video recording
Operating System:
ISA S40 SPR7.2
Connections:
3.5mm stereo headphone plug
Transceiver with BL-4C battery pack
Talk time Standby
GSM:
Up to 3.47 hours
GSM:
Up to 400 hours
Note:
Talk times are dependant on network parameters and
phone settings

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
2 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
Table of contents
1. Change history........................................................................................................................................................................... 3
2. Copyright..................................................................................................................................................................................... 4
3. Warnings and cautions........................................................................................................................................................... 5
3.1 Warnings............................................................................................................................................................................ 5
3.2 Cautions.............................................................................................................................................................................. 5
4. ESD protection ........................................................................................................................................................................... 6
5. Care and maintenance............................................................................................................................................................ 7
6. Battery information................................................................................................................................................................. 8
7. Exploded view ........................................................................................................................................................................... 9
8. Service devices ........................................................................................................................................................................10
9. Software update .....................................................................................................................................................................11
10. Disassembly instructions.................................................................................................................................................12
11. Assembly hints....................................................................................................................................................................19
12. Solder components ...........................................................................................................................................................20

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
3 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
1. CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 2.11.2009 First approved version
The purpose of this document is to help Nokia service levels 1 and 2 workshop technicians to
carry out service to Nokia products. This Service Manual is to be used only by authorized Nokia
service suppliers, and the content of it is confidential. Please note that Nokia provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify Nokia using the
address below:
Nokia Care Academy
mailto:[email protected]
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
4 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
2. COPYRIGHT
Copyright © 2009 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
5 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
3. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
3.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
3.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
and alignment.
5. Ensure all cables and wires are repositioned correctly

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
6 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
4. ESD PROTECTION
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
7 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
5. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
Keep the phone and all its parts and accessories out of the reach of small children.
Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
8 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
6. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
9 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0

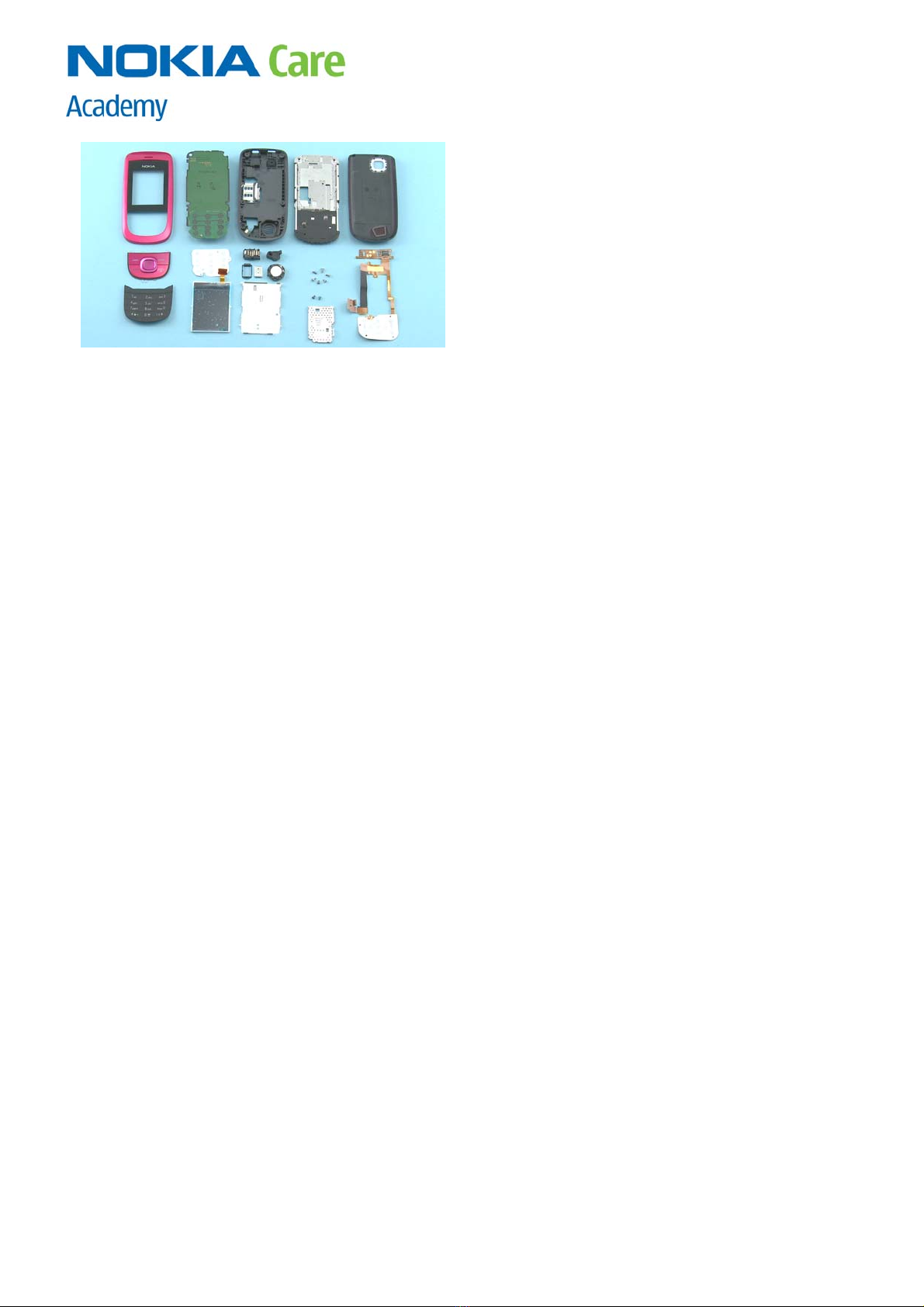

7. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
EARPIECE HOLDER
I0006
A-COVER ASSY
I0001
SLIDER MODULE
I0102
SCREW TORX+ 4
I0007
SPEAKER FRONT GASKET
I0211
LIGHT SWAP PWB
I0203
EARPIECE
I0005
D-COVER
I0213
AUDIO JACK
I0209
SCREW TORX+ 4
I0214
B-COVER ASSY
I0216
FUNCTIONAL KEYMAT ASSY
I0002
LCD MODULE
I0003
UI FLEX ASSY
I0101
NUMERICAL KEYMAT ASSY
I0201
BB SHIELDING LID
I0204
IHF SPEAKER
I0210
MIC RUBBER FRAME
I0212
TYPE LABEL
I0205
SCREW TORX+ 4
I0215
NUMERICAL KEYMAT
DOME SHEET
I0202
LCD SHIELDING
I0004
LIGHT SWAP PACKAGE
(I0202 - I0205, I9998)
A1
D-COVER ASSY
(I0209 - I0213)
A2

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
10 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
8. SERVICE DEVICES
FLS-5 Flash Device
CA-149DS Service Cable
BL-4C Battery
AC-3 Travel Charger
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on Nokia
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on Nokia
Online.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
11 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
9. SOFTWARE UPDATE
Flash concept – Point of Sale (POS)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package.
Please check always for the latest version of flash software available on Nokia Online (NOL).

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
12 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
10. DISASSEMBLY INSTRUCTIONS
1) Nokia 2220 Slide disassembly. 2) For disassembling, you need the Nokia Standard
Tool kit version 2. You will also need an AV plug.
3) Use the opening notch to release the BATTERY
COVER.
4) Remove the BATTERY COVER. If there is a battery
inserted, remove it also.
5) Unscrew the six TORX+ size 4 screws in the order
shown. Do not use them again. Discard them.
6) Insert the SRT-6 between the NUMERICAL KEYMAT
ASSY and the D-COVER. Slide the SRT-6 in the
direction shown.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
13 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
7) Remove the NUMERICAL KEYMAT ASSY. 8) Using the SS-93, detach the two clips holding the
SLIDER MODULE.
9) The SLIDER MODULE can be separated from the D-
COVER.
10) Lift up the IHF SPEAKER with the sharp end of
the SS-93. Remove the IHF SPEAKER.
11) Use the tweezers to separate the IHF SPEAKER
and the SPEAKER FRONT GASKET. Discard them. Do
not use them again.
12) Use the tweezers to remove the MIC RUBBER
FRAME from the D-COVER.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
14 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0

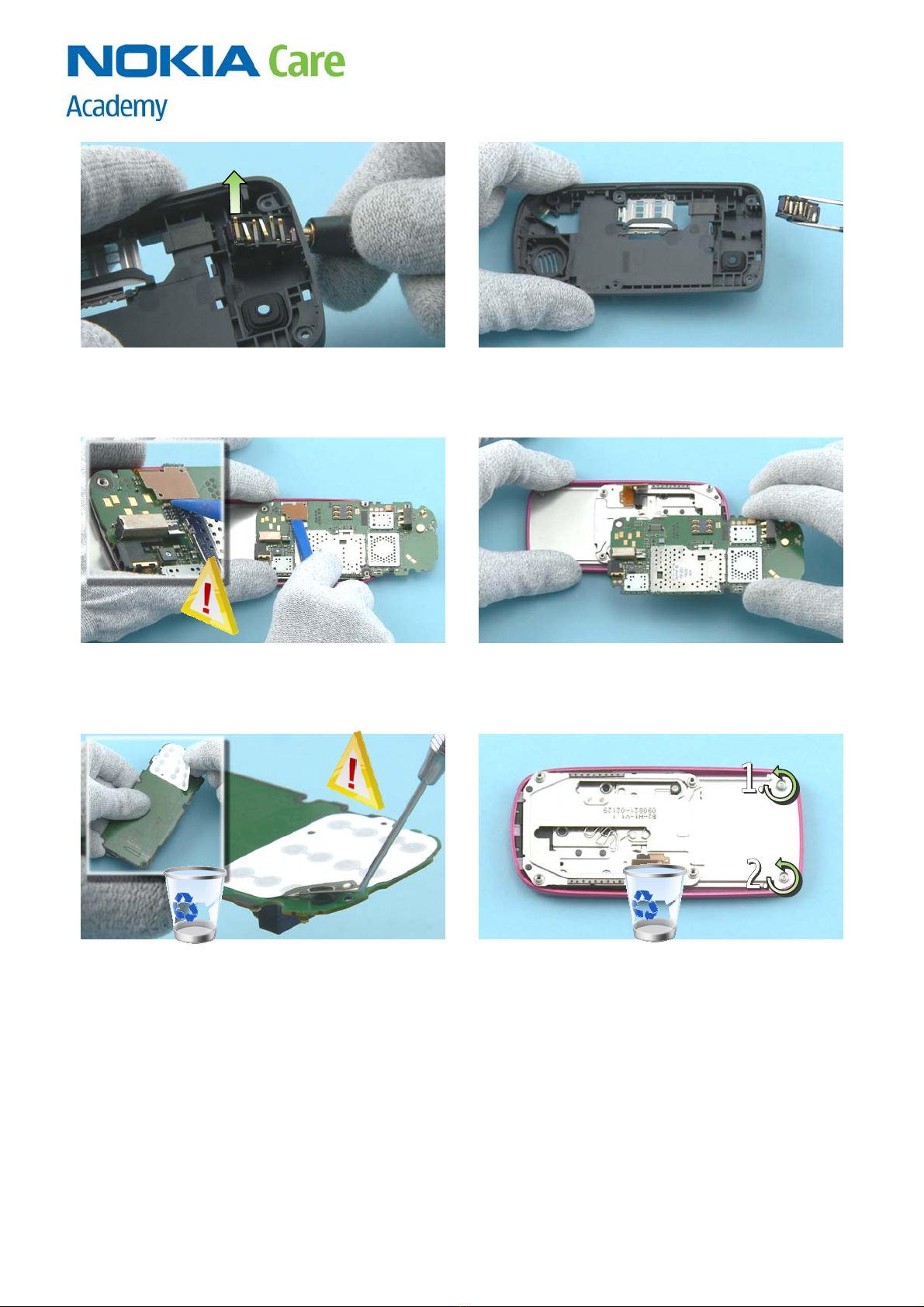

13) Lift up the AUDIO JACK from the D-COVER with an
AV plug.
14) Remove the AUDIO JACK with the tweezers.
15) Use the SS-93 to open the UI FLEX CONNECTOR.
While opening the connector, be careful not to
damage the connector or components nearby!
16) Remove the PWB from the SLIDER MODULE.
17) Use the dental tool to lift up one corner of the
DOMESHEET. Peel off and remove the
DOMESHEET ASSY with fingers. Do not use it again.
Discard it. Be aware of the sharp point of the dental
tool – be careful not to injure yourself!
18) Unscrew the two TORX+ size 4 screws in the
order shown. Do not use them again. Discard them.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
15 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
19) Slide the SRT-6 between the SLIDER MODULE and
the A-COVER in the direction shown.
20) Remove the A-COVER.
21) Protect the LCD with a protective film. 22) Detach the FUNCTIONAL KEYMAT ASSY from the
A-COVER by pressing it down.
23) Remove the FUNCTIONAL KEYMAT ASSY. 24) Using the sharp end of the SS-93, lift up the
EARPIECE HOLDER.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
16 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
25) Remove the EARPIECE HOLDER. Separate the
EARPIECE from the EARPIECE HOLDER by pushing it
out.
26) Use the SS-93 to open the LCD CONNECTOR. Be
careful not to damage the connector!
27) Using the SS-93, lift up the LCD MODULE from the
SLIDER MODULE.
28) Remove the LCD MODULE.
29) Use the SS-93 to release the two hooks holding
the LCD SHIELDING.
30) Also, release the two hooks on the other side.
The LCD SHIELDING can be separated from the LCD
MODULE. Discard the LCD SHIELDING. Do not use it
again.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
17 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
31) Release the top side of the UI FLEX ASSY from
the SLIDER MODULE with the SS-93. Slide the SS-93 in
the direction shown.
32) Continue to release the UI FLEX ASSY in the
directions shown.
33) Release the bottom side of the UI FLEX ASSY
using a dental tool.
34) Turn over the phone and detach the remaining
part of the UI FLEX ASSY using the SS-93.
35) Carefully, push the UI FLEX ASSY through the gap
of the SLIDER MODULE.
36) Remove the UI FLEX ASSY. Discard the UI FLEX
ASSY. Do not use it again.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
18 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
37) Nokia 2220 Slide disassembly is now complete.
-END OF DISASSEMBLY -

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
19 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0
11. ASSEMBLY HINTS
1) Tighten the two TORX+ size 4 screws to the
torque of 14 Ncm in the order shown.
2) Tighten the four TORX+ size 4 screws to the
torque of 15 Ncm in the order shown.
3) Tighten the two TORX+ size 4 screws to the
torque of 14 Ncm in the order shown.

Nokia 2220 slide
RM-590 / RM-591
Service Manual Level 1&2
20 Confidential | Copyright © 2009 Nokia | All rights reserved Version 1.0

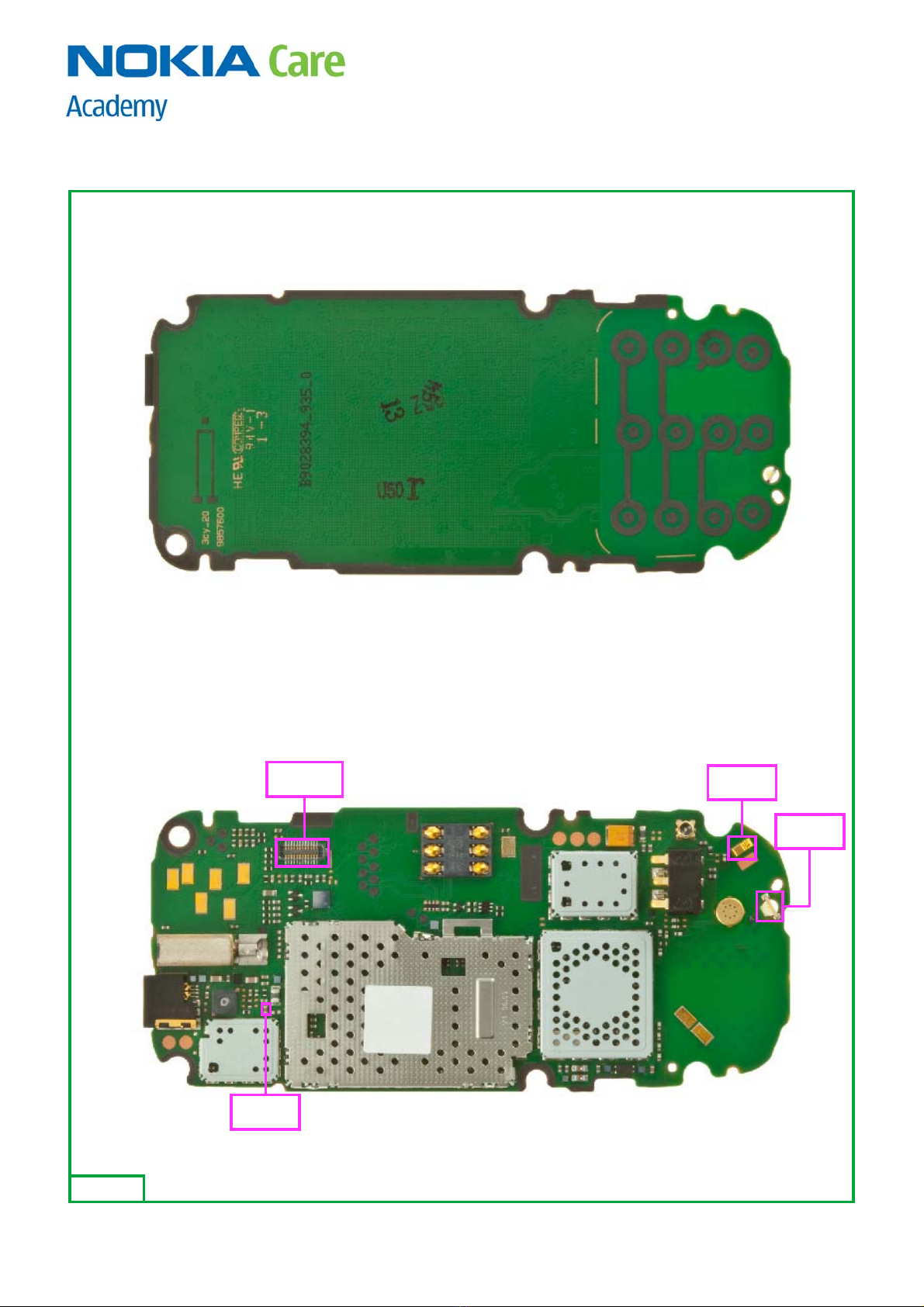

12. SOLDER COMPONENTS
X2400 X7801
V2411
F2000
Ver. 1.0
BOTTOM
TOP
