Nokia 7020 User manual

Nokia 7020 User Guide
Issue 1

Contents
Safety 5
General
information 7
About your device 7
Network services 8
Shared memory 9
Access codes 9
Support 10
Software updates over
the air 11
Get started 11
Insert SIM card and
battery 11
Charge the battery 12
Antenna 13
Headset 14
Magnets and magnetic
fields 14
Keys and parts 15
Switch the phone on and
off 16
Tapping 16
Display 17
Functions without a SIM
card 18
Applications running in
background 18
Calls 18
Make and answer a
call 18
Loudspeaker 19
Dialling shortcuts 19
Write text 20
Text modes 20
Traditional text input 20
Predictive text input 21
Navigate the
menus 22
Messaging 22
Text and multimedia
messages 22
Nokia Xpress audio
messages 26
2Contents

Nokia Mail 26
Voice messages 29
Message settings 29
Contacts 30
Call log 32
Settings 32
Profiles 32
Tones 32
Display 33
Date and time 33
Shortcuts 33
Synchronisation and
backup 34
Connectivity 34
Calls and phone 37
Accessories 38
Configuration 38
Restore factory
settings 39
Gallery 39
Media 40
Camera and video 40
FM radio 41
Voice recorder 42
Music player 43
Maps 43
About Maps 44
Nokia Map Loader 45
About GPS 46
GPS receiver 46
Navigate to your
destination 47
Applications 49
Organiser 50
Alarm clock 50
Calendar and to-do
list 51
Web or Internet 52
Connect to a web
service 53
SIM services 53
Green tips 53
Contents 3

Save energy 54
Recycle 54
Learn more 55
Accessories 56
Battery 56
Battery and charger
information 56
Nokia battery
authentication
guidelines 57
Care and
maintenance 59
Recycle 60
Additional safety
information 60
Small children 60
Operating
environment 60
Medical devices 61
Vehicles 61
Potentially explosive
environments 62
Emergency calls 62
Certification information
(SAR) 63
Index 65
4Contents

Safety
Read these simple guidelines. Not following them may be
dangerous or illegal. Read the complete user guide for
further information.
SWITCH ON SAFELY
Do not switch the device on when wireless
phone use is prohibited or when it may cause
interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free
to operate the vehicle while driving. Your first
consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to
interference, which could affect performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in
aircraft, near medical equipment, fuel,
chemicals, or blasting areas.
Safety 5

QUALIFIED SERVICE
Only qualified personnel may install or repair
this product.
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do
not connect incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
6Safety

General information
About your device
The wireless device described in this guide is approved for
use on the GSM 850, 900, 1800, 1900 MHz networks. Contact
your service provider for more information about
networks.
Your device may have preinstalled bookmarks and links for
third-party internet sites and may allow you to access
third-party sites. These are not affiliated with Nokia, and
Nokia does not endorse or assume liability for them. If you
access such sites, take precautions for security or content.
Warning:
To use any features in this device, other than the alarm
clock, the device must be switched on. Do not switch the
device on when wireless device use may cause interference
or danger.
When using this device, obey all laws and respect local
customs, privacy and legitimate rights of others, including
copyrights. Copyright protection may prevent some
images, music, and other content from being copied,
modified, or transferred.
General information 7

Make back-up copies or keep a written record of all
important information stored in your device.
When connecting to any other device, read its user guide
for detailed safety instructions. Do not connect
incompatible products.
The images in this guide may differ from your device
display.
Refer to the user guide for other important information
about your device.
Network services
To use the device you must have service from a wireless
service provider. Some features are not available on all
networks; other features may require that you make
specific arrangements with your service provider to use
them. Network services involve transmission of data. Check
with your service provider for details about fees in your
home network and when roaming on other networks. Your
service provider can explain what charges will apply. Some
networks may have limitations that affect how you can use
some features of this device requiring network support
such as support for specific technologies like WAP 2.0
protocols (HTTP and SSL) that run on TCP/IP protocols and
language-dependent characters.
8 General information

Your service provider may have requested that certain
features be disabled or not activated in your device. If so,
these features will not appear on your device menu. Your
device may also have customized items such as menu
names, menu order, and icons.
Shared memory
The following features in this device may share memory:
multimedia messaging (MMS), e-mail application, instant
messaging, remote. Use of one or more of these features
may reduce the memory available for the remaining
features. If your device displays a message that the
memory is full, delete some of the information stored in
the shared memory.
Access codes
The security code helps to protect your phone against
unauthorised use. You can create and change the code, and
set the phone to request the code. Keep the code secret
and in a safe place separate from your phone. If you forget
the code and your phone is locked, your phone will require
service and additional charges may apply. For more
information, contact a Nokia Care point or your phone
dealer.
The PIN code supplied with the SIM card protects the card
against unauthorized use. The PIN2 code supplied with
some SIM cards is required to access certain services. If you
General information 9

enter the PIN or PIN2 code incorrectly three times in
succession, you are asked for the PUK or PUK2 code. If you
do not have them, contact your service provider.
The module PIN is required to access the information in the
security module of your SIM card. The signing PIN may be
required for the digital signature. The barring password is
required when using the call barring service.
To set how your phone uses the access codes and security
settings, select Menu > Settings > Security.
Support
When you want to learn more about how to use your
product or you are unsure how your device should
function, see the user guide or see the support pages at
www.nokia.com/support or your local Nokia website, or
with a mobile device, www.nokia.mobi/support.
If this does not resolve your issue, do one of the following:
•Restart the device: switch off the device, and remove
the battery. After about a minute, replace the battery,
and switch on the device.
•Restore the original factory settings as explained in the
user guide.
10 General information

•Update your device software regularly for optimum
performance and possible new features, as explained
in the user guide.
If your issue remains unsolved, contact Nokia for repair
options. See www.nokia.com/repair. Before sending your
device for repair, always back up the data in your device.
Software updates over the air
If software updates over the air are supported by your
network, you may also be able to request updates through
the device.
Downloading software updates may involve the
transmission of large amounts of data (network service).
Make sure that the device battery has enough power, or
connect the charger before starting the update.
Get started
Insert SIM card and battery
Always switch the device off and disconnect the charger
before removing the battery.
The SIM card and its contacts can be easily damaged by
scratches or bending, so be careful when handling,
inserting, or removing the card.
Get started 11

1 With the back of the device facing you, lift and remove
the back cover (1).
2 Remove the battery if inserted (2).
3 Slide the SIM card holder to unlock it (3), and swing it
open (4).
4 Insert the SIM card into the holder with the contact
surface facing down (5), and close it (6).
5 Slide the card holder back to lock it (7).
6 Insert the battery (8), and replace the back cover (9).
Charge the battery
Your battery has been partially charged at the factory. If
the device indicates a low charge, do the following:
12 Get started

1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
3 When the device indicates a full charge, disconnect the
charger from the device, then from the wall outlet.
You do not need to charge the battery for a specific length
of time, and you can use the device while it is charging. If
the battery is completely discharged, it may take several
minutes before the charging indicator appears on the
display or before any calls can be made.
Antenna
Get started 13

Your device may have internal and external antennas.
Avoid touching the antenna area unnecessarily while the
antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may
cause a higher power level during operation and may
reduce the battery life.
The figure shows the antenna area marked in grey.
Headset
Warning:
When you use the headset, your ability to hear outside
sounds may be affected. Do not use the headset where it
can endanger your safety.
When connecting any external device or any headset, other
than those approved by Nokia for use with this device, to
the Nokia AV Connector, pay special attention to volume
levels.
Do not connect products that create an output signal as
this may cause damage to the device. Do not connect any
voltage source to the Nokia AV Connector.
Magnets and magnetic fields
Keep your device away from magnets or magnetic fields.
14 Get started

Keys and parts
1Earpiece
2Display
3Selection keys
4Call key
5Navi™ key (scroll key)
6Microphone
7Middle selection key
8End/Power key
9Keypad
Get started 15

10 USB port
11 Charger
connector
12 Secondary
display
13 Wrist strap
eyelet
14 Camera
15 Headset
connector
Switch the phone on and off
To switch the phone on or off, press and hold the power
key.
Tapping
The tapping function allows you to quickly see
notifications, and to display a clock just by tapping twice
the secondary display with the fold closed.
16 Get started

Select Menu > Settings > Phone > Sensor settings to
activate or deactivate the tapping function and vibration
feedback.
If you have missed calls or received new messages, you
must view them before you can see the clock.

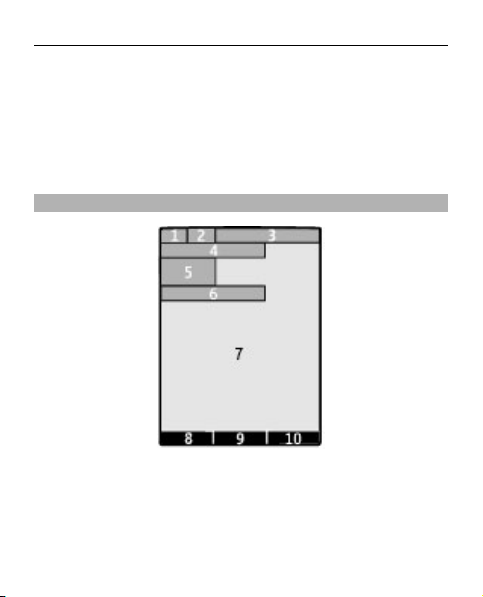

Display
1Signal strength of the cellular network
2Battery charge status
3Indicators
4Name of the network or the operator logo
5Clock
Get started 17

6Date (only if the enhanced home screen is deactivated)
7Display
8Function of the left selection key
9Function of the scroll key
10 Function of the right selection key
You can change the function of the left and right selection
key. See "Shortcuts", p. 33.
Functions without a SIM card
Some functions of your phone may be used without
inserting a SIM card, such as Organiser functions and
games. Some functions appear dimmed in the menus and
cannot be used.
Applications running in background
Leaving applications running in the background increases
the demand on battery power and reduces the battery life.
Calls
Make and answer a call
To make a call, enter the phone number, including the
country code and area code if necessary. Press the call key
to call the number. Scroll up to increase or down to
18 Calls

decrease the volume of the earpiece or headset during the
phone call.
To answer an incoming call, press the call key. To reject the
call without answering, press the end key.
Loudspeaker
If available, you may select Loudsp. or Handset to use the
loudspeaker or the earpiece of the phone during a call.
Dialling shortcuts
To assign a phone number to one of the number keys, 2 to
9, select Menu > Contacts > Speed dials, scroll to a
desired number, and select Assign. Enter the desired
phone number, or select Search and a saved contact.
To switch the speed dialling function on, select Menu >
Settings > Call > Speed dialling > On.
To make a call using speed dialling, in the standby mode,
press and hold the desired number key.
Calls 19

Write text
Text modes
To enter text (for example, when writing messages) you
can use traditional or predictive text input.
When you write text, press and hold Options to switch
between traditional text input, indicated by , and
predictive text input, indicated by . Not all languages
are supported by predictive text input.
The character cases are indicated by , , and .
To change the character case, press #. To change from the
letter to number mode, indicated by , press and hold
#, and select Number mode. To change from the number
to the letter mode, press and hold #.
To set the writing language, select Options > Writing
language.
Traditional text input
Press a number key, 2-9, repeatedly until the desired
character appears. The available characters depend on the
selected writing language.
20 Write text
