Nokia X2-01 User manual

Nokia X2–01 User Guide
Issue 1.0

Contents
Safety 4
Your Nokia X2-01 in brief 5
Key features 5
Keys and parts 5
Get started 7
Insert the SIM card and battery 7
Remove the SIM card 8
Switch on or off 9
Antennas 9
Charge the battery 9
Connect a headset 10
Insert a memory card 10
Remove the memory card 11
Connect a USB data cable 11
Attach a wrist strap 12
Access codes 12
PUK codes 13
Home screen 13
Keypad lock 16
Use your device without a SIM card 16
Applications running in background 16
Calls 16
Make and answer a call 16
Loudspeaker 17
Dialing shortcuts 17
Write text 17
Write using the keyboard 17
Predictive text input 18
Navigate the menus 19
Messaging 19
Text and multimedia messages 19
Flash messages 21
Nokia Xpress audio messages 21
Mail and Chat 22
Voice messages 22
Message settings 22
Contacts 22
Music 23
Music player 23
FM radio 24
Photos 25
Capture images and record videos 25
View your images and videos 26
Applications 26
Alarm clock 26
Gallery 26
Extras 26
Voice recorder 27
To-do list 27
Calendar 27
Settings 28
Profiles 28
Themes 28
Tones 28
Display settings 29
Date and time 29
Shortcuts 29
Synchronization and backup 30
Connectivity 30
Call 31
Device 32
Accessories 32
Configuration 33
Security 33
Browser security 34
Restore factory settings 34
Web or Internet 34
About Web 34
2Contents

Connect to a web service 35
Operator menu 35
SIM services 35
Find more help 35
Support 35
About device software updates 36
Update device software using your
device 36
Update device software using your
PC 37
Protect the environment 38
Save energy 38
Recycle 38
Product and safety information 38
Index 45
Contents 3

Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH OFF IN RESTRICTED AREAS
Switch the device off when cellular phone use is not allowed or when it may
cause interference or danger, for example, in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle while
driving. Your first consideration while driving should be road safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
KEEP YOUR DEVICE DRY
Your device is not water-resistant. Keep it dry.
PROTECT YOUR HEARING
Listen to a headset at a moderate level, and do not hold the device near your
ear when the loudspeaker is in use.
4Safety

Your Nokia X2-01 in brief
Key features
•Enjoy the messaging features with the full QWERTY keyboard.
•Manage your social networking profiles and music with dedicated keys.
•Read and reply to your mail when out and about.
•See an overview of your correspondence with someone in the conversational
messaging view.
Keys and parts
1Earpiece
2Selection keys
3Call key
4Navi™ key (scroll key)
5End/Power key
6Backspace key
7Enter key
Your Nokia X2-01 in brief 5

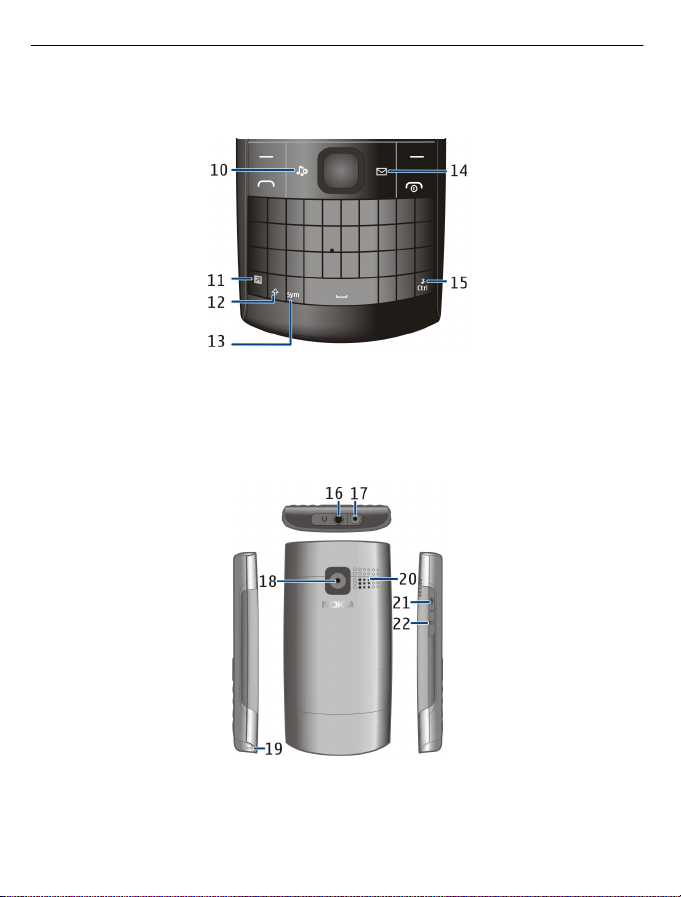

8Microphone
9Space key
10 Music key
11 Function key
12 Shift key
13 Sym key
14 Messaging key
15 Ctrl key
16 Headset connector/Nokia AV connector (3.5 mm)
17 Charger connector
18 Camera lens
19 Wrist strap hole
20 Loudspeaker
6 Your Nokia X2-01 in brief

21 Micro USB connector
22 Memory card slot
To access some messaging or music features, press the messaging or music key. You
can assign different functions to the keys.
Get started
Insert the SIM card and battery
Note: Switch the device off and disconnect the charger and any other device
before removing any covers. Avoid touching electronic components while changing any
covers. Always store and use the device with any covers attached.
The SIM card and its contacts can be easily damaged by scratches or bending, so be
careful when handling, inserting, or removing the card.
Important: Do not use a mini-UICC SIM card, also known as a micro-SIM card, a
micro-SIM card with an adapter, or a SIM card that has a mini-UICC cutout (see figure)
in this device. A micro-SIM card is smaller than the standard SIM card. This device does
not support the use of micro-SIM cards and use of incompatible SIM cards may damage
the card or the device, and may corrupt data stored on the card.
Get started 7

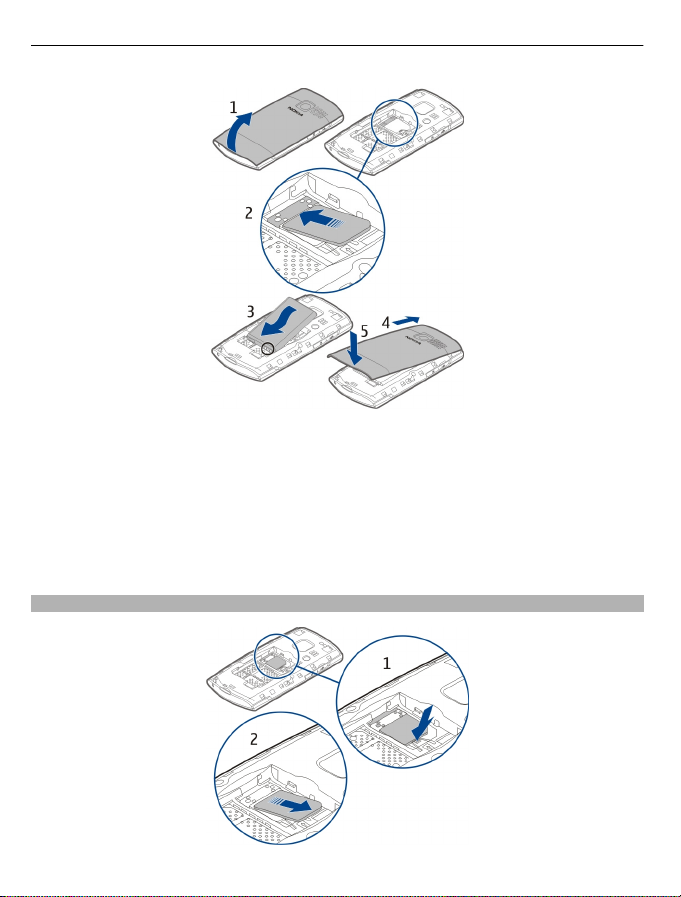

1 Place your finger in the recess at the bottom of the device, and carefully lift and
open the back cover (1).
2 Insert the SIM card. Make sure the contact area of the card is facing down (2).
3 Line up the contacts of the battery and the battery compartment, and insert the
battery (3).
4 To replace the back cover, direct the top locking catches toward their slots (4), and
press down until the cover locks into place (5).
Remove the SIM card
8Getstarted

Press the release spring (1), and slide out the SIM card (2).
Switch on or off
Press and hold the power key.
Antennas
Avoid touching the antenna area unnecessarily while the antenna is transmitting or
receiving. Contact with antennas affects the communication quality and may cause a
higher power level during operation and may reduce the battery life.
Charge the battery
Your battery has been partially charged at the factory, but you may need to recharge it
before you can switch on your device for the first time. If the device indicates a low
charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
Get started 9

3 When the device indicates a full charge, disconnect the charger from the device,
then from the wall outlet.
You do not need to charge the battery for a specific length of time, and you can use the
device while it is charging.
If the battery is completely discharged, it may take several minutes before the charging
indicator appears on the display or before any calls can be made.
If the battery has not been used for a long time, to begin charging, you may need to
connect the charger, then disconnect and reconnect it.
Connect a headset
Do not connect products that create an output signal as this may cause damage to the
device. Do not connect any voltage source to the Nokia AV connector. If you connect an
external device or headset, other than those approved by Nokia for use with this device,
to the Nokia AV connector, pay special attention to volume levels.
Insert a memory card
Use only compatible memory cards approved by Nokia for use with this device.
Incompatible cards may damage the card and the device and corrupt data stored on the
card.
Your phone supports microSD cards with a capacity of up to 8 GB.
A compatible memory card may be supplied with the device, and may already be
inserted in the device. If not, do the following:
10 Get started
