Nokia HS-21W User manual

User Guide for the
Wireless Clip-on Headset
(HS-21W)
9236329
Issue 1
9236329_HS-21W_1_en.fm Page 1 Monday, November 1, 2004 1:54 PM

2
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that
the product HS-21W is in conformity with the provisions of the
following Council Directive: 1999/5/EC. A copy of the Declaration of
Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
Copyright ©2004 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the
contents in this document in any form without the prior written
permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia
Corporation. Other product and company names mentioned herein
may be trademarks or tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the
right to make changes and improvements to any of the products
described in this document without prior notice.
9236329_HS-21W_1_en.fm Page 2 Monday, November 1, 2004 1:54 PM

3
English
Under no circumstances shall Nokia be responsible for any loss of data
or income or any special, incidental, consequential or indirect damages
howsoever caused.
The contents of this document are provided "as is". Except as required
by applicable law, no warranties of any kind, either express or implied,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the
right to revise this document or withdraw it at any time without prior
notice.
The availability of particular products may vary by region. Please check
with the Nokia dealer nearest to you.
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
Unauthorized changes or modifications to this device may void the
user's authority to operate the equipment.
This device may contain commodities, technology or software subject
to export laws and regulations from the US and other countries.
Diversion contrary to law is prohibited.
9236329
Issue 1
9236329_HS-21W_1_en.fm Page 3 Monday, November 1, 2004 1:54 PM

Contents
4
Contents
1. Introduction .............................................................. 6
Bluetooth wireless technology ........................................................... 6
2. Getting started.......................................................... 8
Overview.................................................................................................... 9
Chargers and batteries....................................................................... 12
Removing and installing the battery.............................................. 12
Charging the battery .......................................................................... 15
Switching the headset on or off...................................................... 17
Pairing the headset with a compatible phone ............................ 17
Disconnecting the headset............................................................ 19
Connecting the paired headset .................................................... 20
Troubleshooting.................................................................................... 20
3. Using the headset................................................... 22
Making a call ........................................................................................ 23
Redialing the last dialed number.................................................... 23
Voice dialing.......................................................................................... 23
Answering and ending a call............................................................ 24
9236329_HS-21W_1_en.fm Page 4 Monday, November 1, 2004 1:54 PM

Contents
5
English
Rejecting a call..................................................................................... 24
Automatic answer ............................................................................... 24
Adjusting the earphone volume ...................................................... 25
Muting a call......................................................................................... 25
Switching the call between phone and headset ........................ 25
Using the headset with several phones......................................... 26
Resetting the headset ........................................................................ 27
4. Battery information................................................ 28
Care and maintenance................................................. 31
9236329_HS-21W_1_en.fm Page 5 Monday, November 1, 2004 1:54 PM

Introduction
6
1. Introduction
The Wireless Clip-on Headset HS-21W can be connected to
a compatible mobile phone that supports Bluetooth
wireless technology. This allows you freedom to make and
receive calls while on the move or in the office.
Read this user guide carefully before using the headset. In
addition to this user guide, read also the user guide for
your phone, which provides important safety and
maintenance information. Keep the headset out of reach of
small children.
■Bluetooth wireless technology
The Bluetooth wireless technology makes it possible to
connect compatible communication devices without using
cables. A Bluetooth connection does not require that the
phone and the headset be in line of sight, but both devices
9236329_HS-21W_1_en.fm Page 6 Monday, November 1, 2004 1:54 PM

Introduction
7
English
should be within 10 meters of each other. Connections can
be subject to interference from obstructions, such as walls,
or other electronic devices.
The HS-21W headset is specially designed for compatible
Nokia mobile phones that support Bluetooth wireless
technology. The headset can, however, be used with any
compatible devices that support the compatible Handsfree
or Headset profiles. (Here, a profile is a set of Bluetooth
wireless technology commands that the phone uses to
control the headset).
The HS-21W headset is compliant with the Bluetooth
Specification 1.1 supporting the following profiles:
Headset Profile 1.1, Handsfree Profile 1.0. However,
interoperability between the HS-21W headset and other
Bluetooth-enabled products is not guaranteed because it
depends on compatibility. Check with the manufacturers of
other devices to determine their compatibility with this
device.
9236329_HS-21W_1_en.fm Page 7 Monday, November 1, 2004 1:54 PM

Getting started
8
2. Getting started
Note that there may be restrictions using Bluetooth
wireless technology in some locations. Check with your
local authorities or service provider.
9236329_HS-21W_1_en.fm Page 8 Monday, November 1, 2004 1:54 PM

Getting started
9
English
■Overview
The headset contains the following parts, as shown in
Figure 1.
Figure 1
9236329_HS-21W_1_en.fm Page 9 Monday, November 1, 2004 1:54 PM

Getting started
10
Note: Parts of the headset are magnetic. Metallic
materials may be attracted to the headset, and
persons with a hearing aid or a pacemaker should
not hold the headset to the ear with the hearing
aid or close to the pacemaker. Always secure the
ear piece in its holder, because materials may be
attracted by the earpiece. Do not place credit
cards or other magnetic storage media near the
headset, because information stored on them may
be erased.
Power key (1): Switches the headset on and off. Press the
power key briefly to mute or unmute the ongoing call.
Answer/end key (2): Answers or ends the call. This key can
also be used for voice dialing, redialing, and switching an
active call between the headset and the compatible phone.
Indicator light (3): Displays the current status of the
headset.
9236329_HS-21W_1_en.fm Page 10 Monday, November 1, 2004 1:54 PM

Getting started
11
English
Volume up (4): Increases the earphone volume during a
call.
Volume down (5): Decreases the earphone volume during
a call.
Earphone (6): Relays the caller’s voice.
Microphone (7): Picks up your voice.
Charger connector (8)
Battery cover (9)
Before you can start using the headset, you must do the
following:
• Install and charge the battery.
• Pair a compatible phone with the headset.
9236329_HS-21W_1_en.fm Page 11 Monday, November 1, 2004 1:54 PM

Getting started
12
■Chargers and batteries
Check the model number of any charger before using it
with this device. The headset HS-21W is intended for use
with the following chargers: AC-1, ACP-12, and LCH-12.
Warning: Use only batteries and chargers
approved by Nokia for use with this particular
enhancement. The use of any other types may
invalidate any approval or warranty, and may be
dangerous.
For availability of approved enhancements, please check
with your dealer. When you disconnect the power cord of
any enhancement, grasp and pull the plug, not the cord.
■Removing and installing the battery
Before removing the back cover, always switch off the
power, and disconnect the charger from the device. Always
store and use the device with the back cover attached.
9236329_HS-21W_1_en.fm Page 12 Monday, November 1, 2004 1:54 PM

Getting started
13
English

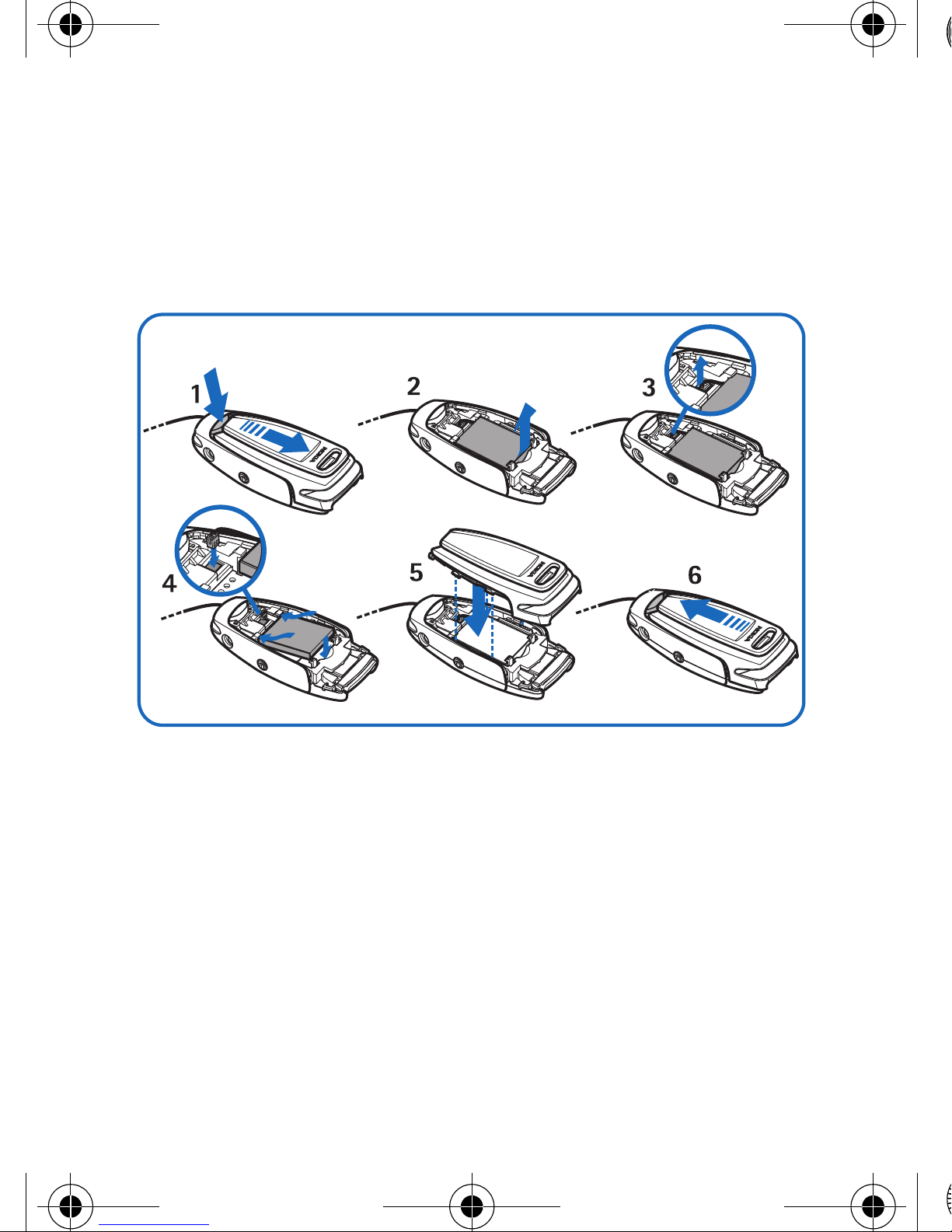

The headset has a rechargeable LiPo battery. To change it:
1. To open the battery cover, gently push the release
button and slide the battery cover backwards. See
Figure 2.1.
2. Remove the battery. See Figure 2.2.
3. Detach the connector from its space, and detach the
battery from the connector. See Figure 2.3.
4. Replace the battery. Place the connector in the space
reserved for it, and set the battery in place. See Figure
2.4.
5. Close the battery cover. See Figure 2.5.
9236329_HS-21W_1_en.fm Page 13 Monday, November 1, 2004 1:54 PM

Getting started
14
6. Make sure that the cover is properly locked in place. See
Figure 2.6.
Figure 2
9236329_HS-21W_1_en.fm Page 14 Monday, November 1, 2004 1:54 PM

Getting started
15
English
■Charging the battery
1. Connect the charger cable to the headset as shown in
Figure 3.
Figure 3
9236329_HS-21W_1_en.fm Page 15 Monday, November 1, 2004 1:54 PM

Getting started
16
2. Connect the charger to a wall outlet. The red indicator
light is displayed during charging. If the battery is
completely discharged, it may take a few minutes
before the red indicator is shown. Charging the battery
fully may take up to 2 hours depending on the charger.
3. When the battery is fully charged, the green indicator
light is displayed. Disconnect the charger from the wall
outlet and the headset.
The fully charged battery has power for up to 7 hours of
talk-time or up to 180 hours of standby time. (In the
standby mode, the paired headset is switched on but no
call is in progress.)
When the battery is running out of power, the headset
beeps, and the red indicator light starts to blink. Charge
the battery as described above.
9236329_HS-21W_1_en.fm Page 16 Monday, November 1, 2004 1:54 PM

Getting started
17
English
■Switching the headset on or off
To switch on, press and hold the power key for 2 seconds.
The headset beeps and the green indicator light starts
blinking fast. The blinking continues slower after the
headset is connected to your phone.
To switch off, press and hold the power key for 2 seconds.
The headset beeps, and the red indicator light is displayed
briefly.
■Pairing the headset with a compatible
phone
1. Switch on your phone.
2. Switch on the headset.
3. Enter the Bluetooth menu of your phone, and make sure
that the Bluetooth feature is activated.
4. Enter the submenu where you can set the phone to
search for Bluetooth devices, and start the search.
9236329_HS-21W_1_en.fm Page 17 Monday, November 1, 2004 1:54 PM

Getting started
18
5. Select the headset from the list.
6. Enter the passcode 0000 to associate ("pair") and
connect the headset to your phone. In some phones you
may need to make the connection separately. See the
user guide of your phone for details.
Once you have entered the passcode, your phone
becomes the default phone for the headset, if the
headset was not previously paired with another phone.
See also ”Using the headset with several phones” on
page 26.
The headset beeps and appears in the phone menu
where you can view the Bluetooth devices that are
currently paired with your phone.
7. Start using the headset (see page 22).
9236329_HS-21W_1_en.fm Page 18 Monday, November 1, 2004 1:54 PM

Getting started
19
English
Disconnecting the headset
You can disconnect the headset from your phone when, for
example, you want to connect another device with your
phone using the Bluetooth wireless technology.
The headset can be disconnected in the following ways:
• Switch off the headset.
• Disconnect the headset in the Bluetooth menu of your
phone.
• Move the headset more than 10 meters away from the
phone.
The headset is also disconnected if its battery becomes
discharged.
Note that you do not need to delete the pairing with the
headset to disconnect it. When you reconnect a paired
headset, you are not asked for its passcode.
9236329_HS-21W_1_en.fm Page 19 Monday, November 1, 2004 1:54 PM

Getting started
20
Connecting the paired headset
To connect the headset to your phone, switch on the
headset, make the connection in the Bluetooth menu of
your phone, or press and hold the answer/end key of the
headset.
You can set your phone to accept Bluetooth connection
requests from your paired headset. In this case, the headset
can connect to your phone automatically when it is
switched on. In Nokia phones this can be done by changing
your paired devices settings in the Bluetooth menu.
■Troubleshooting
If you cannot connect the headset to your phone, do as
follows:
• Make sure that the headset is charged, switched on (the
green indicator light blinks) and paired with your
phone.
9236329_HS-21W_1_en.fm Page 20 Monday, November 1, 2004 1:54 PM
