Nokia BH-501 User manual

Nokia Bluetooth Headset BH-501
User Guide

DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this HS-71W product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the
Declaration of Conformity can be found at http://www.nokia.com/phones/
declaration_of_conformity/.
The crossed-out wheeled bin means that within the European Union the product must be taken
to separate collection at the product end-of-life. Do not dispose of these products as unsorted
municipal waste.
© 2006 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form
without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other product and
company names mentioned herein may be trademarks or tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes and
improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of
any kind, either express or implied, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or

contents of this document. Nokia reserves the right to revise this document or withdraw it at any time
without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer nearest to
you.
Unauthorized changes or modifications to this device may void the user's authority to operate the
equipment.
Export Controls
This device may contain commodities, technology or software subject to export laws and regulations from
the US and other countries. Diversion contrary to law is prohibited.
9249883 / Issue 1 EN

4© 2006 Nokia. All rights reserved.
Contents
1. Introduction...................................................................................................... 5
Bluetooth wireless technology ............................................................................................................... 5
2. Get started ........................................................................................................ 7
Chargers ........................................................................................................................................................ 7
Charge the battery ..................................................................................................................................... 8
Switch the headset on or off .................................................................................................................. 9
Pair the headset.......................................................................................................................................... 9
Pair with a phone with music player feature ................................................................................. 9
Pair with a phone and a music player............................................................................................. 10
Disconnect the headset....................................................................................................................... 11
Reconnect the headset........................................................................................................................ 11
3. Basic use......................................................................................................... 12
Place the headset over the ears ........................................................................................................... 12
Adjust the volume .................................................................................................................................... 12
Call handling.............................................................................................................................................. 12
Listen to music .......................................................................................................................................... 13
Clear the settings ..................................................................................................................................... 14
4. Battery information....................................................................................... 15
Care and maintenance ...................................................................................... 16

5© 2006 Nokia. All rights reserved.
1. Introduction
You can use the Nokia Bluetooth Headset BH-501 to listen to music with your
compatible music player and make and answer calls with your compatible mobile
phone. The music player can be the music player feature of your phone or a
separate music playing device.
Read this user guide carefully before using the headset. Read also the user guide
for your phone, which provides important safety and maintenance information,
and the user guide for your music playing device. Keep the headset out of reach of
small children.
■Bluetooth wireless technology
The headset can be connected to a compatible mobile phone or music player that
supports Bluetooth wireless technology. This technology makes it possible to
connect compatible communication devices without cables. In a Bluetooth
connection, the headset and the other device should be within 10 meters (30 feet)
of each other. Connections can be subject to interference from obstructions, such
as walls, or other electronic devices.
This headset is compliant with Bluetooth Specification 1.2 supporting the
following profiles: Headset Profile 1.1, Handsfree Profile 1.0, and Advanced Audio
Distribution Profile 1.0. Check with the manufacturers of other devices to
determine their compatibility with this device.

6© 2006 Nokia. All rights reserved.
There may be restrictions on using Bluetooth technology in some locations. Check
with your local authorities or service provider.

7© 2006 Nokia. All rights reserved.
2. Get started

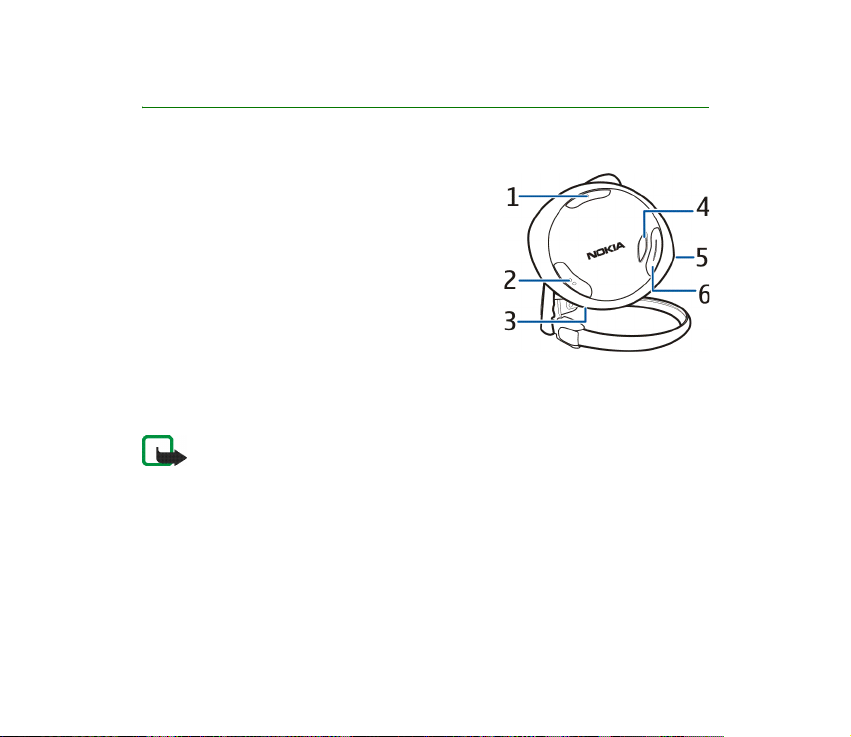

The headset contains the following parts:
• Volume down key (1)
• Volume up key (2)
• Charger socket (3)
• Indicator light (4)
• Microphone (5)
• Multifunction key (6)
Before using the headset, you must charge the
battery and pair the headset with a compatible
phone. If your phone does not have a music player feature, you also need to pair
the headset with your music player.
Note: Parts of the headset are magnetic. Metallic materials may be attracted to
the headset. Do not place credit cards or other magnetic storage media near the
headset, because information stored on them may be erased.
■Chargers
Check the model number of any charger before use with this device. The headset is intended
for use with the AC-3, AC-4, and DC-4 chargers.

8© 2006 Nokia. All rights reserved.
Warning: Use only chargers approved by Nokia for use with this particular
enhancement. The use of any other types may invalidate any approval or warranty,
and may be dangerous.
For availability of approved enhancements, please check with your dealer. When you
disconnect the power cord of any enhancement, grasp and pull the plug, not the cord.
■Charge the battery
This headset has an internal, nonremovable, rechargeable battery. Do not attempt
to remove the battery from the device as you may damage the headset.
1. Connect the charger to a wall outlet.
2. Connect the charger cable to the headset.
The indicator light is red during charging. If the
indicator light is not red, check the charger
connection. If charging does not start, disconnect
the charger, plug it in again, and retry.
Charging the battery fully may take up to 4 hours.
When the battery is fully charged, the indicator
light turns blue.
3. Disconnect the charger from the headset and wall outlet.
The fully charged battery has power for up to 11 hours of talk-time and music
playing time, and up to 150 hours of standby time. However, the times may vary
when used with different mobile phones or other compatible Bluetooth devices,
usage settings, usage styles, and environments.

9© 2006 Nokia. All rights reserved.
When battery power is low, the headset beeps each minute, and the indicator
light flashes red. Recharge the battery.
■Switch the headset on or off
To switch on, press and hold the multifunction key until you hear a beep and the
indicator light starts to flash blue. To connect the headset to the paired phone or
music player that you have last used with it, press the multifunction key. For more
information, see Reconnect the headset, p. 11.
To switch off, press and hold the multifunction key until you hear a long beep.
■Pair the headset
Pair with a phone with music player feature
If your phone has a compatible music player feature, you can use the headset to
make and answer calls and listen to music from the phone.
1. Switch on your phone.
2. Ensure that the headset is off. If it is on, switch it off.
3. Press and hold the multifunction key until the indicator light alternately
flashes blue and red.
4. Activate the Bluetooth feature on the phone, and set the phone to search for
Bluetooth devices. See the user guide of your phone for instructions.
5. Select the headset (Nokia BH-501) from the list of found devices.

10© 2006 Nokia. All rights reserved.
6. Your phone should ask for a Bluetooth passcode. Enter the passcode (0000) on
your phone. In some phones you may need to make the Bluetooth connection
separately after pairing. You only need to pair the headset with your phone
once.
If the pairing is successful and the headset is connected with your phone, the
indicator light of the headset flashes blue slowly.
Pair with a phone and a music player
If your phone does not have a compatible music player feature, you can separately
pair the headset with your phone and a compatible music player. After pairing and
connecting the headset with your phone, do as follows:
1. Switch off the headset.
2. Switch on the music player.
3. Press and hold the multifunction key until the indicator light alternately
flashes blue and red.
4. Follow the pairing instructions in the user guide for your music player. When
the music player asks for a device to pair, select Nokia BH-501 from the list. If
you are asked for a Bluetooth passcode, enter 0000 on the music player.
If your music player does not have a keypad, the device may use the Bluetooth
passcode 0000 by default. If this is not the case, see the user guide of your
music player to change the default Bluetooth passcode to 0000.
If the pairing is successful and the headset is connected with your music player,
the indicator light of the headset flashes blue slowly.

11© 2006 Nokia. All rights reserved.
Disconnect the headset
To disconnect the headset from your phone or music player, switch off the
headset, or follow the instructions in the user guide for your phone or music
player. You do not need to delete the pairing with the headset to disconnect it. To
connect the headset also to your phone, make the connection from your phone as
described in its user guide.
Reconnect the headset
You can pair the headset with up to ten phones and music players in total but
connect it to only one device at a time.
To connect the headset to the paired phone or music player that you have last
used with it, switch on the headset and press the multifunction key. To connect
the headset to some other paired phone or music player, follow the instructions in
the user guide for the phone or music player.
If you have a Nokia phone, you can set it to connect with the headset
automatically when the headset is switched on. On your Nokia phone, change
your paired device settings in the Bluetooth menu.

12© 2006 Nokia. All rights reserved.
3. Basic use

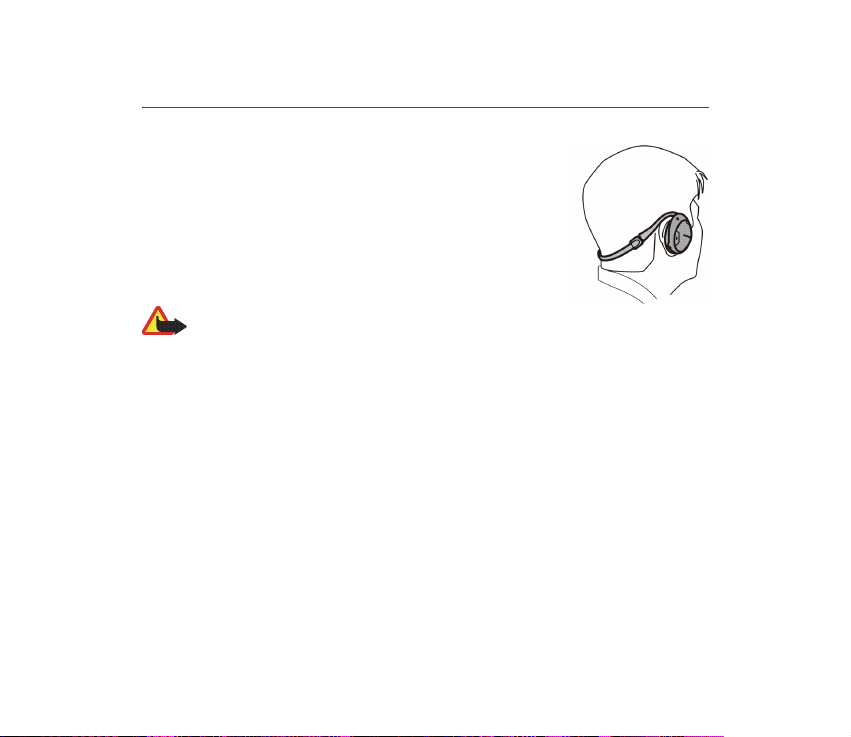

■Place the headset over the ears
Lower the headband behind your head. Place the headset
over your ears so that the speaker pads fit comfortably.
Warning: When using the headset your ability to hear
outside sounds may be affected. Do not use the headset where it can endanger
your safety.
■Adjust the volume
Press the volume up key to increase or the volume down key to decrease the
volume during a call or while listening to music.
■Call handling
To make a call when the headset is connected to the phone, use your phone in the
normal way.
If your phone supports last number redialing with this device, press the
multifunction key twice briefly while no call is in progress.

13© 2006 Nokia. All rights reserved.
If your phone supports voice dialing with this device, press the multifunction key
when no call is in progress, and proceed as instructed in the user guide of your
phone.
To answer a call, press the multifunction key, or use the phone keys. To reject the
call, press and hold either volume key until the headset beeps twice.
To end a call, press the multifunction key, or use the phone keys.
To switch the call from the headset to the phone, press and hold either volume
key. The switch the call back from the phone to the headset, press the
multifunction key, or use the respective function in your phone.
■Listen to music
To listen to music, the headset must be connected to a phone that has a
compatible music player feature or to a separate music player.
When the headset is connected to a phone but not to a music player, the headset
can only be used to make and answer calls if the phone does not have a
compatible music player feature.
The available music functions depend on your music player.
If you answer or make a call while listening to the music player, the music pauses
until you end the call.
To start and control the music playback, use the keys in your music player. For
details, see the user guide for your music player.
Warning: Listen to music at a moderate level. Continuous exposure to high
volume may damage your hearing.

14© 2006 Nokia. All rights reserved.
■Clear the settings
To clear the pairing and volume settings, switch off the headset, and press and
hold either volume key until the indicator light starts to alternately flash blue and
red. Press and hold the volume key until the headset beeps twice. Recharge the
headset for a few seconds.

15© 2006 Nokia. All rights reserved.
4. Battery information
Your device is powered by a rechargeable battery. The battery can be charged and
discharged hundreds of times, but it will eventually wear out. Recharge your battery only
with Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do not leave the
device connected to a charger, since overcharging may shorten the battery lifetime. If left
unused, a fully charged battery will lose its charge over time.
Use the battery only for its intended purpose. Never use any charger or battery that is
damaged.
Leaving the device in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not
work temporarily, even when the battery is fully charged. Battery performance is particularly
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Dispose of batteries according to local regulations. Please recycle when possible.
Do not dispose as household waste.

16© 2006 Nokia. All rights reserved.
Care and maintenance
Your device is a product of superior design and craftsmanship and should be treated with
care. The suggestions below will help you protect your warranty coverage.
• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits. If your device does get wet, allow
the device to dry completely.
• Do not attempt to remove the battery from the device. Nokia recommends to take it to
the nearest authorized service facility for replacement of the battery.
• Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal temperature,
moisture can form inside the device and damage electronic circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards
and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
• Use chargers indoors.

17© 2006 Nokia. All rights reserved.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest authorized service
facility for service.
