Nokia HS-12W User manual

Nokia Bluetooth Stereo Headset
(HS-12W)
User Guide
9240474
Issue 1 EN, draft 0.74
HS_12W_UG_draft7-4.fm Page 1 Tuesday, May 17, 2005 1:10 PM

2
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product
HS-12W is in conformity with the provisions of the following Council Directive:
1999/5/EC. A copy of the Declaration of Conformity can be found at http://
www.nokia.com/phones/declaration_of_conformity/.
The crossed-out wheeled bin means that within the European Union the product
must be taken to separate collection at the product end-of-life. Do not dispose of
these products as unsorted municipal waste.
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document
in any form without the prior written permission of Nokia is prohibited.
Nokia and Nokia Connecting People are registered trademarks of Nokia Corporation. Other
product and company names mentioned herein may be trademarks or tradenames of their
respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without prior
notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia dealer
nearest to you.
There may be restrictions on using Bluetooth technology in some locations. Check with your
local authorities or service provider.
Unauthorized changes or modifications to this device may void the user's authority to
operate the equipment.
This device may contain commodities, technology or software subject to export laws and
regulations from the US and other countries. Diversion contrary to law is prohibited.
9240474 / Issue 1 EN, draft 0.74
HS_12W_UG_draft7-4.fm Page 2 Tuesday, May 17, 2005 1:10 PM

3
Contents
1. Introduction ......................... 4
RDS (radio data system) ...................... 4
Bluetooth wireless technology .......... 4
2. Get started............................ 6
Charge the battery................................ 7
Switch the headset on or off ............. 7
Pair the headset with
a compatible phone .............................. 8
Disconnect the headset
from the phone................................... 8
Reconnect the headset..................... 8
Use the headset with
several phones .................................... 8
3. Operation............................ 10
Carry the headset with you .............. 10
Adjust the earpiece volume.............. 10
Call handling......................................... 10
Make a call......................................... 10
Answer a call..................................... 10
End a call............................................ 11
Mute or unmute
the microphone ................................ 11
Switch the call between
headset and phone .......................... 11
Listen to the audio player................. 11
Listen to the radio............................... 12
Lock or unlock the keys ..................... 13
View the time ....................................... 13
See missed calls and received
messages................................................ 13
Reset the headset................................ 13
Troubleshooting ................................... 13
4. Battery information ........... 14
Care and maintenance ........... 15
FCC notice—Nokia Bluetooth
Stereo Headset HS-12W........ 16
HS_12W_UG_draft7-4.fm Page 3 Tuesday, May 17, 2005 1:10 PM

Introduction
4
1. Introduction
The Nokia Bluetooth Stereo Headset (HS-12W) allows you to make and
receive phone calls, and listen to FM radio and music tracks or other
audio files.
Read this user guide carefully before using the headset. Read also the
user guide for your phone, which provides important safety and
maintenance information. Keep the headset out of reach of small
children.
■RDS (radio data system)
The FM radio of the headset supports the RDS (radio data system)
technology. The RDS feature allows you to view the name of the
selected radio channel on the headset display. The RDS feature also
keeps the headset automatically tuned into the selected radio channel
as long as the channel is available in your location. The RDS feature may
not work with all radio channels or in all countries.
■Bluetooth wireless technology
The HS-12W headset can be connected to a compatible mobile phone or
other device that supports Bluetooth wireless technology. This
technology makes it possible to connect compatible communication
devices without cables. A Bluetooth connection does not require that
the phone and the headset be in line of sight, but both devices should be
within 10 meters of each other. Connections can be subject to
interference from obstructions, such as walls, or other electronic
devices.
The HS-12W headset is compliant with Bluetooth Specification 1.2
supporting the following profiles: Headset Profile 1.1, Handsfree Profile
1.0, Advanced Audio Distribution Profile (A2DP) 1.0, Audio/Video
Remote Control Profile (AVRCP) 1.0, General Audio/Video Distribution
Profile (GAVDP) 1.0. Check with the manufacturers of other devices to
determine their compatibility with this device.
HS_12W_UG_draft7-4.fm Page 4 Tuesday, May 17, 2005 1:10 PM

Introduction
5
There may be restrictions on using Bluetooth technology in some
locations. Check with your local authorities or service provider.
HS_12W_UG_draft7-4.fm Page 5 Tuesday, May 17, 2005 1:10 PM

Get started
6
2. Get started
The headset contains the following parts:
• Display (1)
• Call/play key (2)
• Volume down key (3)
• Volume up key (4)
• Power key (5)
• Stop key (6)
• Strap clip (7) to attach
the strap to your clothing.
The strap clip can be removed.
• Clip (8) to attach the headset to your clothing.
• Key lock switch (9)
• Music key (10)
• Fast forward key (11)
• Rewind key (12)
• Strap lock (13) to fasten the neck strap.
• Microphone (14) to pick up your voice. You can press the key on the
microphone to answer or end a call, or to play a music track.
• Earphones (15) to relay the caller's voice and the sounds from the
radio or audio player.
Before you can start to use the headset, you must charge the battery,
and pair the headset with a compatible phone.
Note: Parts of the headset are magnetic. Metallic materials
may be attracted to the headset, and persons with a hearing aid
or a pacemaker should not hold the headset to the ear with the
hearing aid or close to the pacemaker. Do not place credit cards
or other magnetic storage media near the headset, because
information stored on them may be erased.
HS_12W_UG_draft7-4.fm Page 6 Tuesday, May 17, 2005 1:10 PM

Get started
7

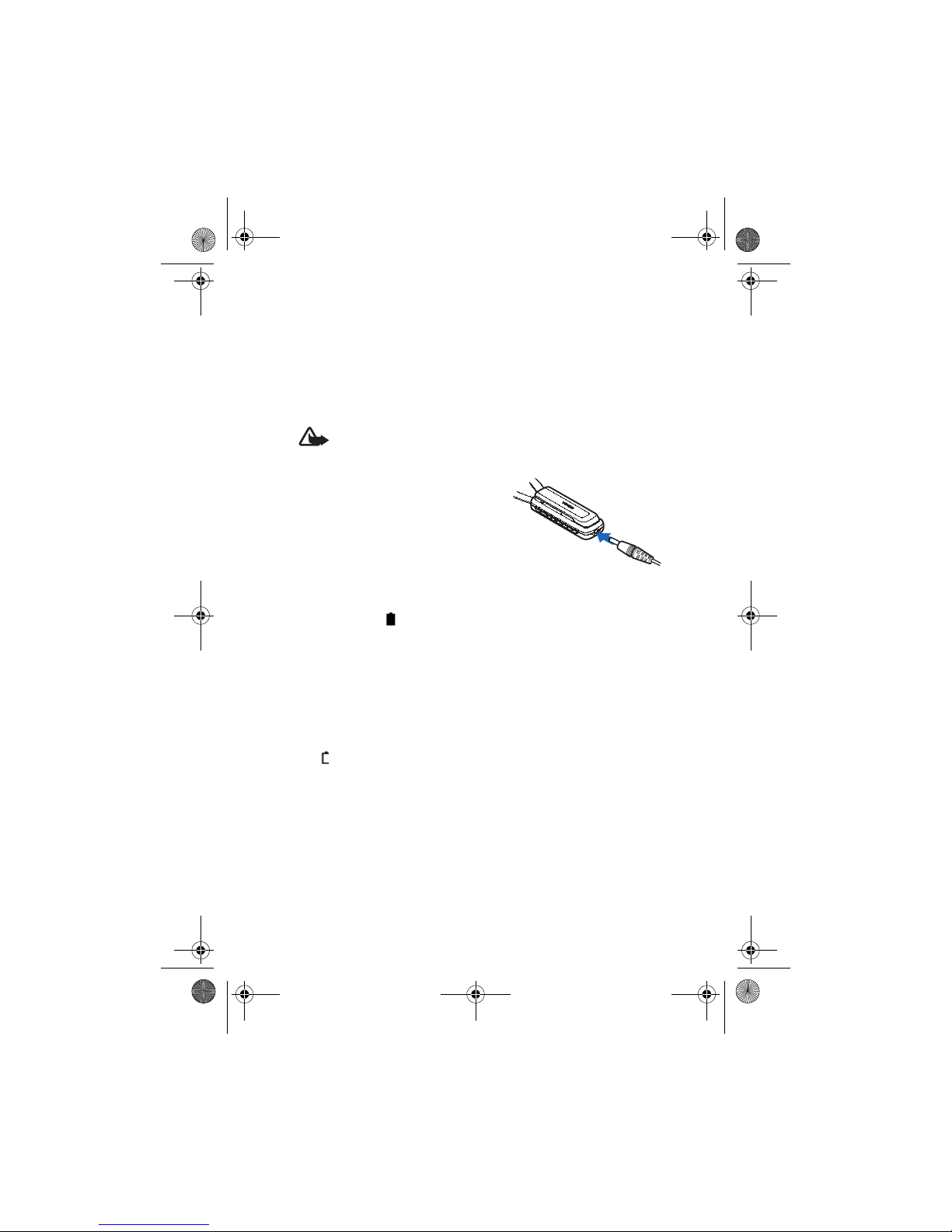

■Charge the battery
This headset has an internal, nonremovable, rechargeable battery. Do
not attempt to remove the battery from the device as you may damage
the headset.
The headset HS-12W is intended for use with the following chargers:
AC-1, ACP-12, and LCH-12.
Warning: Use only chargers approved by Nokia for use with this
particular enhancement. The use of any other types may
invalidate any approval or warranty, and may be dangerous.
1. Connect the charger cable to the
headset.
2. Connect the charger to a wall outlet.
The battery indicator scrolls on the
display during charging. Charging
the battery fully may take up to 2
hours depending on the charger.
3. When the battery is fully charged, the battery indicator stops
scrolling, and and a note are displayed. Disconnect the charger
from the wall outlet and the headset. When you disconnect the
power cord of the charger, grasp and pull the plug, not the cord.
The fully charged battery has power for up to 8 hours of talk-time or up
to 200 hours of standby time. However, the talk and standby times may
vary when used with different mobile phones, other Bluetooth enabled-
products, usage settings, usage style, and environments.
When the battery is running out, the headset beeps and displays a note
and .
■Switch the headset on or off
To switch the headset on, press and hold the power key. The headset
beeps and displays a welcome note.
To switch the headset off, press and hold the power key. The headset
beeps.
HS_12W_UG_draft7-4.fm Page 7 Tuesday, May 17, 2005 1:10 PM

Get started
8
■Pair the headset with a compatible phone
1. Switch on your phone and the headset.
2. Activate the Bluetooth feature on the phone, and set the phone to
search for Bluetooth devices. See the user guide of your phone for
instructions.
3. Select the headset (Nokia HS-12W) from the list of found devices.
4. Enter the passcode 0000 to pair and connect the headset to your
phone. In some phones you may need to make the connection
separately after pairing. See the user guide of your phone for details.
You only need to pair the headset with your phone once.
5. If the pairing was successful, appears on the display, and you can
start to use the headset.
You can set your phone to connect with the headset automatically
when the headset is switched on. To do this in Nokia phones, change
your paired device settings in the Bluetooth menu.
Disconnect the headset from the phone
To disconnect the headset from your phone, for example, to connect the
phone to another Bluetooth device, switch off the headset, disconnect
the headset in the Bluetooth menu of your phone, or move the headset
more than 10 meters away from the phone.
When you disconnect the headset from your phone, disappears from
the display.
You do not need to delete the pairing with the headset to disconnect it.
Reconnect the headset
If you want to reconnect the paired headset to your phone, switch on
the headset and make the connection in the Bluetooth menu of your
phone, or press and hold the call/play key of the headset until
Connecting is shown on the headset display.
Use the headset with several phones
The headset can be paired with up to eight phones but connected to
only one phone at a time. The phone that was first paired with the
HS_12W_UG_draft7-4.fm Page 8 Tuesday, May 17, 2005 1:10 PM

Get started
9
headset is the default phone. If the headset is switched on within 10
meters of several paired phones, the headset tries to connect to the
default phone.
If the headset cannot connect to the default phone, the headset tries to
connect to the last used phone. If the headset cannot connect to this
phone, either, initiate the connection from the desired phone.
HS_12W_UG_draft7-4.fm Page 9 Tuesday, May 17, 2005 1:10 PM

Operation
10
3. Operation
■Carry the headset with you
You can attach the headset to your clothing or belt. You can also wear
the headset around your neck using the neck strap.
The headset is supplied with three pairs of ear pads. Attach the pads to
the earphones for enhanced audio quality.
Warning: When using the stereo headset your ability to hear outside
sounds may be affected. Do not use the stereo headset where it can
endanger your safety.
■Adjust the earpiece volume
Press the volume up or volume down key to adjust the earpiece volume.
To adjust the volume quickly, press and hold either key. The volume level
is shown on the display.
■Call handling
Make a call
When the headset is connected to your phone, make a call by using your
phone in the normal way.
To redial the last dialed number, press the call/play key twice, if your
phone supports the use of this feature with the headset.
To make a call by voice dialing, press and hold the call/play key until
appears on the display. Say the voice tag. The phone dials the related
phone number. Voice dialing is only available with phones that support
this feature.
The redial and voice dialing features are not available when you are
listening to the radio or music, or when a call is in progress.
Answer a call
When you receive a call, the ringing tone selected on your phone
sounds, and and the caller’s name are shown on the display, if your
HS_12W_UG_draft7-4.fm Page 10 Tuesday, May 17, 2005 1:10 PM

Operation
11
Nokia phone supports the transfer of this information into the headset.
If the caller’s name is unknown, the caller’s number or Call is shown
instead.
To answer a call, press the call/play key, press the key on the
microphone, or use the phone keys.
If the automatic answer function is set on in your phone, the phone
automatically answers the call after one ring.
If you want to reject the call, press the call/play key twice.
If you receive a new call during a call, flashes on the display. To end
the current call and answer the new call, press the call/play key twice.
End a call
To end a call, press the call/play key, press the key on the microphone, or
use the phone keys.
Mute or unmute the microphone
To mute or unmute the microphone during a call, press the power key
briefly.
Switch the call between headset and phone
To switch the call between the headset and a compatible Nokia phone,
press and hold the call/play key of the headset for 2 seconds, or use the
respective function in your phone.
■Listen to the audio player
You can listen to the audio player of your phone or a compatible music
playing device.
If you receive a call when listening to the player, the player is paused
until the call ends.
Warning: Listen to music at a moderate level. Continuous
exposure to high volume may damage your hearing.
To switch on the audio player when the headset is on, press the music
key if your phone supports the General Audio/Video Distribution Profile
HS_12W_UG_draft7-4.fm Page 11 Tuesday, May 17, 2005 1:10 PM

Operation
12
Bluetooth profile. If your phone does not support this profile, start the
playing in the audio player function on your phone.
To play a specific track, select it in the audio player of your phone. See
the user guide of your phone for details.
To select the next track, press the fast forward key. To select the
previous track, press the rewind key once if the player is stopped or
twice if a track is playing.
To pause the audio player, press the stop key. To restart it, press the call/
play key.
To stop the audio player, press the stop key twice.
To listen to the radio, press the music key.
■Listen to the radio
The FM radio of the headset can be used even without connecting the
headset to a phone.
If you receive a call while listening to the radio, the radio is muted until
the call ends.
To switch on the radio when the headset is on, press the music key
twice, if your phone supports the General Audio/Video Distribution
profile. If your phone does not support this profile or the headset is not
connected to a phone, press the music key once. When the radio is on,
is shown on the headset display.
To search for radio channels, press and hold the fast forward or rewind
key for a few seconds. To stop searching for new channels, press the stop
key. To fine tune a found channel, press the fast forward or rewind key.
To save a found channel in the headset memory, press the call/play key.
To select a saved channel and listen to it, press the fast forward or
rewind key.
To switch off the radio, press the music key or stop key.
To change from the default FM radio frequency range (87.5 to 108 MHz)
to the 76 to 91 MHz range (used in Japan), press and hold the fast
forward and rewind keys for 3 seconds.
HS_12W_UG_draft7-4.fm Page 12 Tuesday, May 17, 2005 1:10 PM

Operation
13
■Lock or unlock the keys
Slide the key lock switch towards the music key to lock or towards the
top of the headset to unlock the headset keys. A note and are shown
on the display. When the keys are locked, all key presses are ignored. If
you receive a call, the keys are unlocked until you end the call.
■View the time
When the headset is connected to a compatible phone, the headset
receives the current time from the phone and shows it in the standby
mode, if your Nokia phone supports the transfer of this information into
the headset. (In the standby mode, the headset is switched on but it is
not used.) To adjust the time, use the clock function in your phone.
■See missed calls and received messages
When you miss a call, is shown on the headset display.
indicates that you have at least one unread text or multimedia
message that you can view on the phone.
You are notified of new messages and missed calls only if your Nokia
phone supports the transfer of this information into the headset.
■Reset the headset
You can reset the headset to clear all settings. Press and hold the power
key and the volume up key for 10 seconds. The headset display indicates
when the headset has been reset.
■Troubleshooting
If you cannot connect the headset to your phone, do as follows:
• Make sure that the headset is charged, switched on, and paired with
your phone.
• Make sure that the Bluetooth feature is activated on your phone.
• Check that the headset is within 10 meters of your phone and that
there are no obstructions between the headset and the phone, such
as walls or other electronic devices.
HS_12W_UG_draft7-4.fm Page 13 Tuesday, May 17, 2005 1:10 PM

Battery information
14
4. Battery information
Your device is powered by a rechargeable battery. The full performance
of a new battery is achieved only after two or three complete charge
and discharge cycles. The battery can be charged and discharged
hundreds of times but it will eventually wear out. Recharge your battery
only with Nokia approved chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in
use. Do not leave the device connected to a charger, since overcharging
may shorten the battery lifetime. If left unused, a fully charged battery
will lose its charge over time. Temperature extremes can affect the
ability of your battery to charge.
Never use any battery or charger that is damaged.
Leaving the device in hot or cold places, such as in a closed car in
summer or winter conditions, will reduce the capacity and lifetime of
the battery. Always try to keep the battery between 15°C and 25°C (59°F
and 77°F). A device with a hot or cold battery may not work temporarily,
even when the battery is fully charged. Battery performance is
particularly limited in temperatures well below freezing.
HS_12W_UG_draft7-4.fm Page 14 Tuesday, May 17, 2005 1:10 PM

Care and maintenance
15
Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep all accessories and enhancements out of the reach of small children.
• Keep the device dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, allow the device to dry completely before replacing it.
• Do not attempt to remove the battery from the device. Nokia recommends to
take it to the nearest authorized service facility for replacement of the
battery.
• Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the device other than as instructed in this guide.
• Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean
the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest
authorized service facility for service.
HS_12W_UG_draft7-4.fm Page 15 Tuesday, May 17, 2005 1:10 PM

FCC notice—Nokia Bluetooth Stereo Headset HS-12W
16
FCC notice—Nokia Bluetooth Stereo
Headset HS-12W
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: 1. This device may not cause harmful
interference; and 2. This device must accept any interference received,
including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna. Increase the
separation between the equipment and receiver. Connect the
equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced radio/TV
technician for help. NOTE: FCC Radiation Exposure Statement: This
equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
HS_12W_UG_draft7-4.fm Page 16 Tuesday, May 17, 2005 1:10 PM
