norbar Pro-Test 60 SERIES 2 User manual

OPERATOR’S MANUAL
PROFESSIONAL TORQUE TESTER
PRO-TEST 60, 400 & 1500 SERIES 2
FOR USE WITH PRO-TEST’S FITTED WITH VERSION
37701.305 SOFTWARE
Part Number 34299 | Issue 5 | Original Instructions (English)
NORBAR TORQUE TOOLS LTD
Wildmere Road, Banbury,
Oxfordshire, OX16 3JU
UNITED KINGDOM
Tel + 44 (0)1295 270333
Email enquir[email protected]
NORBAR TORQUE TOOLS
45–47 Raglan Avenue, Edwardstown,
SA 5039
AUSTRALIA
Tel + 61 (0)8 8292 9777
Email enquir[email protected]
NORBAR TORQUE TOOLS INC
36400 Biltmore Place, Willoughby,
Ohio, 44094
USA
Tel + 1 866 667 2279
Email inquir[email protected]
NORBAR TORQUE TOOLS PTE LTD
194 Pandan Loop
#07-20 Pantech Business Hub
SINGAPORE 128383
Tel + 65 6841 1371
Email [e-mail]
NORBAR TORQUE TOOLS (SHANGHAI) LTD
91 Building-7F, No.1122 North Qinzhou Rd,
Xuhui District, Shanghai
CHINA 201103
Tel + 86 21 6145 0368
Email [e-mail]
NORBAR TORQUE TOOLS INDIA PVT. LTD
Plot No A-168, Khairne Industrial Area,
Thane Belapur Road, Mahape,
Navi Mumbai –400 709
INDIA
Tel + 91 22 2778 8480
Email enquir[email protected]
www.norbar.com
© Norbar Torque Tools Ltd 2017

1
CONTENTS
Introduction 2
Part Numbers Covered by This Manual 2
Assembly Diagram 2
Parts Included 3
Accessories 3
Features and Functions 4
Operating Instructions 5
Mounting Positions 5
Locating Display Housing 6
Connecting Power Supply 6
Switching ON 6
Selecting Measurement Units 7
Selecting Measurement Mode 7
Fitting Hex Drive Adapter 7
Operating Tool to be Calibrated / Tested 7
Set Up 8
Language 8
Limits 8
Units 9
Serial Port 9
Thresholds 9
Modes 9
Limits 10
ISO 6789-1:2017 10
NON ISO 6789-1:2017 11
Operation 11
Status Indication 11
Serial Port 12
Parameters 12
Hyper Terminal12
Limit Output 13
Pin Connections 13
Data Output Example 13
Connector Type 13
Connecting Lead 13
Maintenance 14
Pro-Test Calibration 14
Cleaning 14
Disposal (Recycling considerations) 14
Specifications 15

2
INTRODUCTION
The Professional Torque Tester (Pro-Test) has been designed as an accurate, cost effective and easy to
operate instrument for calibrating and testing all types of torque wrenches.
Part Numbers Covered By This Manual
•43218 –PRO-TEST 60 series 2 TRANSDUCER & DISPLAY
•43219 –PRO-TEST 400 series 2 TRANSDUCER & DISPLAY
•43220 –PRO-TEST 1500 series 2 TRANSDUCER & DISPLAY
Assembly Diagram
Part
Number
Description
29034
¼” sq to 10 mm hex socket.
29067
⅜” sq to 10 mm hex socket.
29120
½” sq to 10 mm hex socket.
29079
⅜” sq to 22 mm hex socket.
29134
½” sq to 22 mm hex socket.
29189
¾” sq to 22 mm hex socket.
29179
¾” sq to 36 mm hex socket.
Part Number
Model
43218
Pro-Test 60
43219
Pro-Test 400
43220
Pro-Test 1500
DIAL & ELECTRONIC
59999
.
N∙m
LO
5 9. 9 9 5 5 9. 9 9 6 5 9. 9 9 7 5 9. 9 9 8 5 9. 9 9 9
TARGET
59.9
UNITS
PRINT
-
+
100%
ZERO
%
(Optional
accessory)
62198
38877
39264
25492
70
2 Holes Ø10
2 Holes M10

3
Parts Included
Pro-Test Instrument
Part Number
Pro-Test 60
Pro-Test 400
Pro-Test 1500
2 off M10 x 100mm long screw.
25492
✓
✓
✓
6 mm hex key.
24937
✓
✓
✓
¼” sq to 10 mm hex socket.
29034
✓
-
-
⅜” sq to 10 mm hex socket.
29067
✓
-
-
½” sq to 10 mm hex socket.
29120
✓
-
-
⅜” sq to 22 mm hex socket.
29079
-
✓
-
½” sq to 22 mm hex socket.
29134
-
✓
-
¾” sq to 22 mm hex socket.
29189
-
✓
-
¾” sq to 36 mm hex socket.
29179
-
-
✓
Operators Manual.
34299
✓
✓
✓
Calibration certificate.
✓
✓
✓
Quick reference card(s).
34302
✓
✓
✓
Serial data lead.
39264
✓
✓
✓
Power supply.
38877
✓
✓
✓
Power cable.
✓
✓
✓
Carry case.
60249
✓
✓
✓
Accessories
Part Number
Description
62198
Mounting bracket.
60253
12v DC power supply (in vehicle power adapter).
29190
1” to 36mm socket (for use with Pro-Test 1500).
60248
Serial Data Lead Kit.

4
FEATURES AND FUNCTIONS
•3 sizes available covering the calibration ranges of:
1.2 to 60 N∙m.
8 to 400 N∙m.
30 to 1500 N∙m.
•5 digit resolution.
•ISO 6789-1:2017 limit mode with single press selection for 20%, 60% & 100% target values.
•NON ISO 6789-1:2017 limit mode with user defined tolerances.
•The pictorial keys allow direct access to measurement modes.
•Serial Port Connector for data output to PC’s or printers.
•PRINT/NO PRINT (PRINT/X PRINT) feature for control of serial port output.
•The last 5 readings taken are memorised on the display.
•SET UP menu’s for:
1. Language of operation,
2. Limits mode required,
3. Units of measurement enabled/disabled,
4. Serial port communication parameters,
5. Thresholds for ‘CLICK & CAM’ mode,
6. Modes of measurement enabled/disabled.

5
OPERATING INSTRUCTIONS
NOTE: If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
1. Mounting Positions
Securely mount the Pro-Test transducer in the plane of
operation required with the 2 fixing bolts supplied. This can
be to a bench top, wall, or the mounting bracket part number
62198 (not included).
IMPORTANT: THE WHOLE OF THE TRANSDUCER
MUST ALWAYS BE IN CONTACT WITH
THE SUPPORTING SURFACE.
Clockwise Only Calibrating / Testing
Torque tighten to 20 N∙m. (or hand tighten bolts with hex key provided)
Anti-Clockwise Only Calibrating / Testing
Torque tighten to 20 N∙m. (or hand tighten bolts with hex key provided)
Clockwise and Anti-Clockwise Calibrating / Testing
IMPORTANT: BOLTS MUST BE TORQUE TIGHTENED TO 50 N∙m.
REPLACE BOLTS (PART NUMBER 25492) IF REMOVED.
Horizontal
Testing

6
2. Locating Display Housing
Locate Pro-Test Display housing on to the bolt heads securing the transducer housing. The display housing
and transducer housing can also be secured on to a mounting bracket part number 62198 (not included).
3. Connecting Power Supply
Plug Power Supply into back of display housing then plug power cable into Power Supply.
TIP: If the power cable has no plug fitted, wire as follows:
BROWN-LIVE BLUE-NEUTRAL GREEN / YELLOW-EARTH
If in doubt consult a qualified electrician.
4. Switching On
Switch ON Pro-Test (‘I’ in the down position).
WARNING: ALLOW PRO-TEST TO EQUALISE TO THE AMBIENT TEMPERATURE/
HUMIDITY BEFORE SWITCHING ON. WIPE OFF ANY MOISTURE BEFORE
USE.
TIP: If there is no display when power is switched on:
a) Check the Power Supply output connector is correctly plugged into the mating part on the
back of the display housing.
b) Check the fuse in the power cable plug.
c) Check that the green LED is illuminated on the power supply.

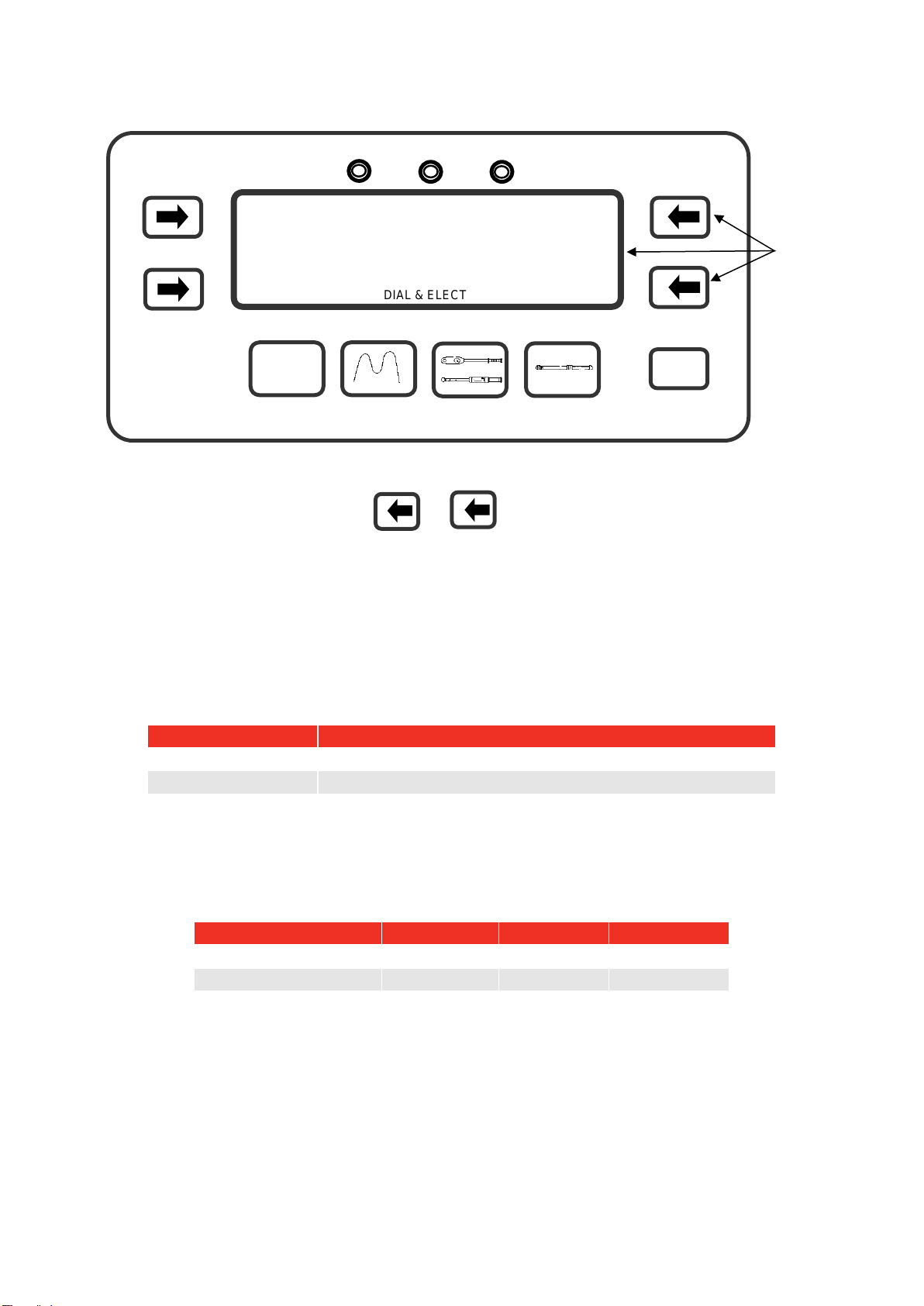

Mode
Use
How it works.
Visual representation
TRACK
Allow 5 minutes for the
instrument to warm up and
stabilise, then press
Follows signal.
TIP: For maximum accuracy exercise the transducer in the direction of use before pressing
‘ZERO’.
ZERO

7
5. Selecting Measurement Units
Select required units of measurement. Pressing and releasing the ‘UNITS’ button will step onto the next
available unit of measurement.
TIP: Required units of measurement are not selectable.
a) Conversion cannot be displayed within available digits on display, thus conversion is not
allowed.
b) Units required have been disabled. See SET UP.
6. Selecting Measurement Mode
Press required button, see below:
Button
Use
How it works
Visual representation
DIAL & ELECTRONIC
Bending beam
wrenches &
Dial type
wrenches.
Hold highest signal.
Reset by pressing
CLICK & CAM
Preset
(click type)
wrenches.
Captures the FIRST
PEAK of torque and
displays this for the
selected AUTO RESET
HOLD TIME before
automatically resetting.
AUTO RESET HOLD TIME
TIP: Readings in CLICK & CAM mode are inconsistent.
Change FIRST PEAK SENSITIVITY to be less sensitive, see THRESHOLDS menu in SET UP.
7. Fitting Hex Drive Adapter
Fit adapter supplied to hex drive of transducer. Fit the tool to be calibrated / tested to the square drive of the
adapter.
8. Operate Tool to Be Calibrated / Tested
Apply force to tool smoothly (do not snatch). Follow instructions for torque tool being tested.
ZERO

8
SET UP
To enter SET UP, press ‘UNITS’ & ‘PRINT’ buttons simultaneously upon which the ‘SOFTWARE VERSION
NUMBER’ will be displayed for 2 seconds.
1. Language
2. Limits
TIP: If NON ISO 6789-1:2017 limit mode is enabled, ‘OK’ or ‘EXIT’ will go to the SET LIMITS
menu (shown below).
Press ‘‘ to select.
Press ‘OK’ for next menu.
Press ‘EXIT’ to end set up.
LANGUAGE
OK EXIT
ENGLISH DANSK
FRANCAIS NEDERLANDS
DEUTSCH SUOMI
ITALIANO NORSK
ESPANOL SVENSKA
PORTUGUES
LIMITS
OK EXIT
X ISO 6789-1:2017
X NON ISO 6789-1:2017

/X
SET LIMITS
OK +
UPPER LIMIT = TARGET + 4 %
LOWER LIMIT = TARGET –4 %

-
TRACK
0.000
.
N∙m
UNITS
PRINT
+
-
ZERO
%
Press ‘‘ to select.
Press ‘/X’ to enable/disable.
Press ‘OK’ for next menu.
Press ‘EXIT’ to end set up.
Press ‘‘ to select.
Press ‘+’ or ‘-‘ to change the value
displayed.
Press ‘OK’ for next menu.
Press ‘EXIT’ to end set up.

9
This menu consists of 2 screens: Press
‘‘ to select.
Press to change setting.
Press ‘OK’ for next menu.
Press ‘EXIT’ to end set up.
Press ‘‘ to select.
Press ‘/X’ to enable/disable.
Press ‘OK’ or ‘EXIT’ to end set up.
3. Units
4. Serial Port
5. Thresholds
TIP: These settings only apply to ‘CLICK & CAM’ mode.
6. Modes
UNITS
OK EXIT
N∙m ozf∙in Kgf∙cm
dN∙m ft∙lb gf∙m
cN∙m in∙lb gf∙cm
lbf∙ft in∙oz
lbf∙in Kgf∙m
/X
MODES
OK EXIT
DIAL & ELECTRONIC
CLICK & CAM

/X
SERIAL PORT
OK EXIT
PARITY OFF
DATA/STOP BITS 8-2
BAUD RATE 9600
OUTPUT LIMITS YES

EVEN/ODD/OFF
SERIAL PORT
OK EXIT
OUTPUT LINE FEED NO
FIRST CHARACTER -
OUTPUT UNITS YES
SET TO FACTORY DEFAULTS

YES/NO
Press ‘‘ to select.
Press ‘/X’ to enable/disable.
Press ‘OK’ for next menu.
Press ‘EXIT’ to end set up.
Press ‘‘ to select.
Press to change setting.
Press ‘OK’ for next menu.
Press ‘EXIT’ to end set up.
THRESHOLDS
OK EXIT
AUTO RESET HOLD TIME 1 SECONDS
FIRST PEAK SENSITIVITY MED

1/2/3/4
-

10
LIMITS
ISO 6789-1:2017
A. To change the limit target value, use or in any measurement mode. The target value set
is shown on the display. Keep either key depressed for fast target value change.
B. The three calibration points (20%, 60% & 100%) are selected by pressing .
The percentage value selected is shown on the display.
To adjust a calibration point percentage value (e.g. change the first calibration point from 20% to 10%)
use or whilst holding down .
The Pro-Test automatically calculates the limits to ISO 6789-1:2017 by the following method:
Deviation
=
(Displayed reading –Target value)
x
100
Target value
If the 100% target value is set above 10 N∙m, the deviation must be within ± 4%. For a 100% target value of
10 N∙m or below, the deviation must be within ± 6%.
Example: For a 100 N∙m target value
Lower Limit = 96.0 N∙m
Upper Limit = 104.0 N∙m
TIP: For Indicating torque tools (Type I), the Pro-Test is designed for class B, C and E tools. Tools
of class A and D should only be used with capacities of 10 N∙m or below.
For Setting torque tools (Type II), the Pro-Test is programmed for Class A, B and C tools.
Tools of class D, E, F and G should only be used with capacities of 10 N∙m or below.
TIP: The maximum target value in lbf∙ft (ft∙lb) is 50 lbf∙ft for the Pro-Test 60 and 300 lbf∙ft for the
Pro-Test 400.
DIAL & ELECTRONIC
0000
.
N∙m
TARGET
59.9
UNITS
PRINT
-
+
100%
ZERO
%
A.
B.
+
-
%
+
-
%

11
NON ISO 6789-1:2017
NON ISO 6789-1:2017 limit mode allows the user to set upper and lower limits from 0% to 99% of the target
value.
A. To change the limit target value, use or in any measurement mode. The target value set
is shown on the display. Keep either key depressed for fast target value change.
UPPER LIMIT = TARGET + % OF TARGET
LOWER LIMIT = TARGET - % OF TARGET
The default % OF TARGET is set to 4%. See the SET UP section to change the default value.
Operation
Measurement Mode
Limit Operation
Track
Limits follow signal and are not held.
Dial & Electronic
Limits status is held until ‘ZERO’ is pressed.
Click & Cam
Limit status is held until after the auto reset timer has operated.
Limits are enabled to work in both the Clockwise and Counter clockwise directions.
Status Indication
Torque Signal
Display
LED’s
Serial Port
Under lower limit
LO
Yellow
LO
Within limits
OK
Green
OK
Above upper limit
HI
Red
HI
DIAL & ELECTRONIC
0000
.
N∙m
TARGET
59.9
UNITS
PRINT
-
+
ZERO
%
A.
+
-

12
SERIAL PORT
The serial port is for sending data to a PC or serial printer.
Measurement Mode
Data Output Operation
Track
When ‘PRINT’ is pressed.
Dial & Electronic
When ‘ZERO’ is pressed after a peak has been captured.
Click & Cam
Automatically after a first peak has been captured.
The data can include direction indication, limit status, measured value, units of measurement and line feed.
Parameters
Parameter
Options
Factory Defaults
Comments
Parity
ODD, EVEN or OFF.
‘OFF’
The Parity Bit used for Parity Error.
Data-Stop bits
8-2, 8-1, 7-2, 7-1.
‘8-2’
The format per character.
Baud rate
1200, 2400, 4800, 9600 or 19200.
‘9600’
The speed of data output.
Output Limits
YES or NO.
‘YES’
Limit status sent before data.
Output line feed
YES or NO.
‘NO’
Line feed sent after data.
First character
- /+ & - /NONE.
‘-‘
Character sent before the data.
Output units
YES or NO.
‘YES’
Torque units sent after data.
SET TO FACTORY DEFAULTS.
Reset all settings.
Maximum number of characters per line = 24.
Transmitted data voltage levels are between +5 to +9 volts and –5 to -9 volts.
Configured as DTE (Data Terminal Equipment) and conforms to RS-232-C specifications.
TIP: If the serial port is not communicating with other equipment:
a) Check that control word on the Pro-Test and the equipment receiving data match.
b) Check that the baud rate is set to the same as the equipment receiving data.
c) Check that the connecting lead is wired correctly at both ends if not using the lead
supplied.
d) Check if the equipment receiving data requires the units of measurement inhibited or a
leading character.
TIP: If the serial output is being overwritten set ‘OUTPUT LINE FEED’ to YES.
Hyper Terminal
The standard Hyper Terminalprogram found in Microsoft®Windows allows the user to view and store serial
port output data.

13
Limit Output
The serial port will output LO / OK / HI before the torque value when the limits are being used.
Some software, including the Norbar ‘Torque Wrench Calibration Software’ (Part 37705.XXX), will not accept
LO / OK / HI characters.
The following table gives all options for the FIRST CHARACTER setting and the OUTPUT LIMITS setting:
First
Character
Direction
Limits Disabled
Output Limits = NO
Limits Enabled
Output Limits = YES
-
Clockwise
1.0335 N∙m
LO 1.0335 N∙m
Anti Clockwise
-1.0335 N∙m
LO -1.0335 N∙m
+ & -
Clockwise
+1.0335 N∙m
LO +1.0335 N∙m
Anti Clockwise
-1.0335 N∙m
LO -1.0335 N∙m
NONE
Clockwise
1.0335 N∙m
LO 1.0335 N∙m
Anti Clockwise
1.0335 N∙m
LO 1.0335 N∙m
Pin Connections
Pin No
Function
1
Not Connected.
2
Received data (to Pro-Test).
3
Transmitted data (from Pro-Test).
4
Not Connected.
5
Signal ground 0V.
6
Not Connected.
7
Not Connected.
8
Not Connected.
9
Not Connected.
Data Output Example
Code : DP=Decimal Point. CR=Carriage Return. SP=Space.
Pro-Test with the serial port set to the factory defaults. Reading 1068.4 lbf∙ft (clockwise):
1
0
6
8
DP
4
SP
l
b
f
DP
f
t
CR
Connector Type
9 way male ‘D’ type connector.
Connecting Lead
A 9 way female to 9 way female null modem connecting cable is included with the Pro-Test for connection to
PC’s with a 9 way male connector. Alternatively use the Serial Data Lead Kit (part number 60248).

14
MAINTENANCE
Pro-Test Calibration
Your Pro-Test has been supplied with a certificate of calibration. To maintain the specified accuracy it is
recommended that the Pro-Test is recalibrated at least once per year. Re-calibration should be carried out at
Norbar or by a Norbar approved agent, where all the facilities to ensure the instrument is functioning at
maximum accuracy are available.
Cleaning
Do not use abrasives or solvent based cleaners.
Disposal (Recycling Considerations)
Component
Material
Back Panel
Stainless Steel
Transducer Shaft
Stainless Steel
Transducer Housing
Aluminium
Display Housing
Aluminium
This symbol on the product indicates that it must not be disposed of in the general waste.
Please dispose of according to your local recycling laws and regulations.
Contact your distributor or see the Norbar web site (www.norbar.com) for further recycling information.

15
SPECIFICATIONS
Calibration range: 1.2 to 60 N∙m (Pro-Test 60).
(2–100% of transducer capacity) 8 to 400 N∙m (Pro-Test 400).
30 to 1500 N∙m (Pro-Test 1500).
Resolution: 5 digits.
Torque conversions: To ‘BS 350:2004 Conversion factors for units’.
Display: 240 x 64 pixel dot matrix display.
Update rate of three times per second (3Hz) in ‘TRACK’.
Accuracy: See calibration certificate.
Zero suppression: ± 1 LSD in ‘TRACK’ mode for Pro-Test 60.
No suppression for Pro Test 400 & 1500.
’DIAL & ELECTRONIC’ and ‘CLICK & CAM’ mode suppressed from 0
to approximately 0.5% of transducer capacity.
Units of measurement: N∙m, dN∙m, cN∙m, lbf∙ft, lbf∙in, ozf∙in, ft∙lb, in∙lb, in∙oz, kgf∙m, kgf∙cm &
gf∙m. PRO-TEST 60 also has gf∙cm available.
First peak sensitivity: 2.5%(High), 5%(Med), or 10%(Low) of reading.
Auto reset hold time: 1, 2, 3 or 4 seconds.
Trigger from setting: 1.55% of transducer capacity.
Limit hysteresis: 0.5% of transducer capacity.
Operating temperature range: +5°C to +40°C.
Storage temperature range: -20°C to +70°C.
Maximum operating humidity: 85% Relative Humidity at 30°C.
Power supply: 90 to 264 Volts a.c. at 50-60 Hz input.
9V, 300 mA D.C. output (centre positive).
Power consumption: 2.25 W - maximum.
Power cable: 2 meters (6 ft 6 ins) long minimum.
Power cable plug fuse (if fitted): 1 Amp.
Case materials / finish: Display and Transducer housings engineered in aluminium castings
and finished in powder coated paint.
Environment: IP 40. Indoor use within a light industrial environment.
Electromagnetic Compatibility: In conformance with EN 61326 : 1997.
(EMC) Directive
Low voltage directive: In conformance with EN 61010-1 : 2001.
To environmental conditions Pollution Degree 2 & Installation
Category (Over voltage Category) II.
Mechanical overload: 150% of marked transducer capacity.
Dimensions: Transducer 106 (H) x 106 (W) x 185 (D).
Display 128 (H) x 185 (W) x 102 (D).
Weight: Pro-Test 60 = 6.3 kg (13.9 lb).
(Transducer with display) Pro-Test 400 = 6.4 kg (13.12 lb).
Pro-Test 1500 = 7.3 kg (15.11 lb).
NOTE: Due to continuous improvement all specifications are subject to change without prior
notice.

16
NOTES
