WARNING: Allow only qualified personnel to perform the
following tasks. Follow the safety instructions in this document
and all other related documentation.
This section of the manual describes how to
Sinstall the unit, hoses, and guns
Sprogram system settings
Sprepare the unit for operation
If you have purchased optional features with your unit, such as a
low-level indicator or an input/output (I/O) board, refer to the Options
section of this manual for installation instructions.
Besides using normal care, you need no special instructions to unpack
the unit or the equipment you purchased with it. All hoses and guns are
shipped in separate packages.
After unpacking the equipment, inspect it for any damage that may have
occurred during shipping. Look for dents and scratches and make sure
all fasteners are tight. Report any damage to your Nordson
representative.
This part of the installation section gives you the installation requirements
and recommendations that you need to know before installing your unit.
It includes
SLocation Requirements
SWiring Requirements
SHose/Gun Power Requirements
Other requirements and recommendations are provided in the installation
procedures when they are needed.
1. Introduction
2
. Unpacking
3
. Inspection
4
. Installation
Requirements

Installation
A1-2
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
Carefully select the location for the unit and its associated guns and
hoses. Make sure that the location meets the following requirements:
SThere is enough room to open the tank lid, open the electrical
enclosure, remove the filter assembly, remove the pump enclosure,
and make electrical connections for the hoses. For unit dimensions
and recommended clearances, refer to Dimensions in the Description
section of this manual.
SAn operator can reach all controls.
SMaintenance personnel have room to service and repair the unit.
SInstallers can route the hoses without bending them. The minimum
bend radius for hoses is shown in Figure A 1-8.
SThe mounting surface can support the weight of the unit when the unit
is filled with adhesive. Refer to Specifications in the Description
section of this manual.
SThe mounting surface is level.
SThe mounting surface is raised at least 152 mm (6 in.) for draining
adhesive. See Figure A 1-1.
SThe drain valve projects over the edge of the mounting surface.
4130685A
152 mm
(6.0 in.)
Fig. A 1-1 Required Clearance for Draining and Filter Flushing
L
oca
t
i
o
n
R
equ
i
r
e
m
e
n
t
s

Installation A1-3
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
Follow these guidelines when installing wiring to the unit:
SAllow enough room to route your electrical service line to the unit.
You can use either of the two access holes in the base of the unit for
electrical service. One hole is for rear access and the other is for
bottom access.
SRoute any wires away from AC power lines, solenoid output lines,
and electrical equipment such as motors, contacts, and relays.
SMake connections with the minimum length of wire needed. A long
wire can act as an antenna for electrical noise.
The power requirements of your hoses and guns must be determined to
make sure that you do not overload the unit. If your Nordson
representative has not already checked to see that your unit can support
all of the hoses and guns you plan to install, you need to calculate your
hose/gun power requirements now. You also need to check your
calculations if you change your system configuration or add new hoses
and guns.
To determine your hose/gun power requirements, refer to Calculating
Hose/Gun Capacity at the end of this manual. If you need help with this
procedure, contact your Nordson representative.
W
i
r
i
n
g
R
equ
i
r
e
m
e
n
t
s
H
o
s
e
/
Gu
n
P
o
w
e
r
R
equ
i
r
e
m
e
n
t
s

Installation
A1-4
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
This part of the installation section gives you the procedures for installing
the unit mechanically. It includes
SMounting the Unit
SInstalling the Tank Strainer
SConnecting the Air Supply
SInstalling Guns
SInstalling Hoses
On some units, you will not be required to complete all of these
procedures. For electrical installation procedures, refer to Electrical
Installation later in this section.
Use this procedure to mount your unit.
1. Remove the bolts that secure the unit to the shipping pallet. Save the
bolts for later use.
2. For installation within the European Community, find the packet of
adhesive-backed, local-language warning tags that was shipped with
the unit. Overlay the non-English language part of the tags already
on this unit with the tags from the packet in your own language.
Carefully follow the instructions in the packet for the correct
placement of the tags.
WARNING: Take care when lifting the unit. Using inadequate
means to lift the unit can cause equipment damage, personal
injury, or both.
3. Using a suitable lifting device that is capable of lifting the unit, position
the unit on the mounting surface. To determine the weight of your
unit, refer to Specifications in the Description section of this manual.
4. Check to see that the unit is level. Provide shims as needed.
5. Using the unit’s base as a guide, drill four holes in the mounting
surface for 8-mm (5/16-in.) mounting bolts.
5
. Mechanical Installation
M
ou
n
t
i
n
g
t
he
U
n
i
t

Installation A1-5
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
6. See Figure A 1-2. Secure the unit to the mounting surface with the
bolts you removed in step 1.
4130009A
Fig. A 1-2 Securing the Unit to the Mounting Surface

Installation
A1-6
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
This procedure describes how to install the tank strainer on Series 3000V
units that have tank strainers. The following units have tank strainers:
SSeries 3100V
SSeries 3400V
SSeries 3500V
SSeries 3700V
The model number of each unit is listed on the front panel of the unit. If
your unit does not have a strainer, go to the next procedure, Connecting
the Air Supply. If it has a strainer, complete this procedure.
1. Locate the tank strainer that was shipped with your unit. If you have
a Series 3500Vor Series 3700Vunit, you will find two strainers.
2. Series 3500V and 3700V units only: See Figure A 1-3. Determine
the correct strainer to use for your adhesive, the small strainer or the
large strainer. If the solid adhesive form you plan to use is small
enough to pass through the holes in the strainers (both strainers have
the same size holes), use the large strainer. If the solid adhesive is
too large to pass through the holes, use the small strainer.
4130686
Fig. A 1-3 Small Strainer (left) and Large Strainer (right)
3. Remove all wrapping from the strainer. Small pieces of wrapping can
cause blockage in the pump.
4. Open the tank lid.
5. Place the strainer on the fins in the bottom of the tank. Position the
cutout in the strainer around the pump.
6. Close the tank lid.
I
n
s
t
a
l
l
i
n
g
t
he Ta
n
k
S
t
r
a
i
n
e
r

Installation A1-7
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
Follow this procedure to connect the air supply to units with piston
pumps. If your unit has a gear pump, which is motor-driven, you do not
need to connect air to your unit. To determine which kind of pump your
unit has, see Figure A 1-4.
If your unit has a gear pump, go to the next procedure, Installing Guns.If
your unit has a piston pump, complete this procedure.
4130687
Fig. A 1-4 Piston Pump (left) and Gear Pump (right)
Co
n
n
ec
t
i
n
g
t
he
A
i
r
Su
p
p
l
y

Installation
A1-8
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
1. See Figure A 1-5. Install the air pressure regulator, gauge, and filter
that were shipped with your unit.
4130014A
Fig. A 1-5 Installing the Air Pressure Regulator, Gauge, and Filter
2. Turn the regulator fully counterclockwise (off).
NOTE: Nordson recommends installing a shutoff valve with a
lock-out in the air supply line to isolate the unit from the air supply for
maintenance procedures.
3. Connect a supply of clean, dry air to the input air fitting or
shutoff valve.
NOTE: To achieve the rated adhesive output of the unit, you must
connect a plant air supply that is capable of providing the maximum
air pressure specified on the unit. The maximum air pressure is
either 483 kPa (70 psi) or 620 kPa (90 psi), depending upon the type
of pump your unit has. To find the maximum air pressure for your
unit, check the air pressure tag, which is located next to the inlet air
port, above the hose connectors.
Co
n
n
ec
t
i
n
g
t
he
A
i
r
Su
p
p
l
y
(
contd.)

Installation A1-9
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
This part of the installation section refers you to the correct installation
procedure for the type of gun you plan to install. Use Figure A 1-6 to
determine which type of gun you are installing, an air-operated gun, an
electric gun, or a hand-operated gun. Then refer to one of the following
procedures:
STo Install an Air-Operated Gun
STo Install an Electric Gun
STo Install a Hand-Operated Gun
NOTE: Air-operated and electric guns are also referred to as
automatic guns.
4130692

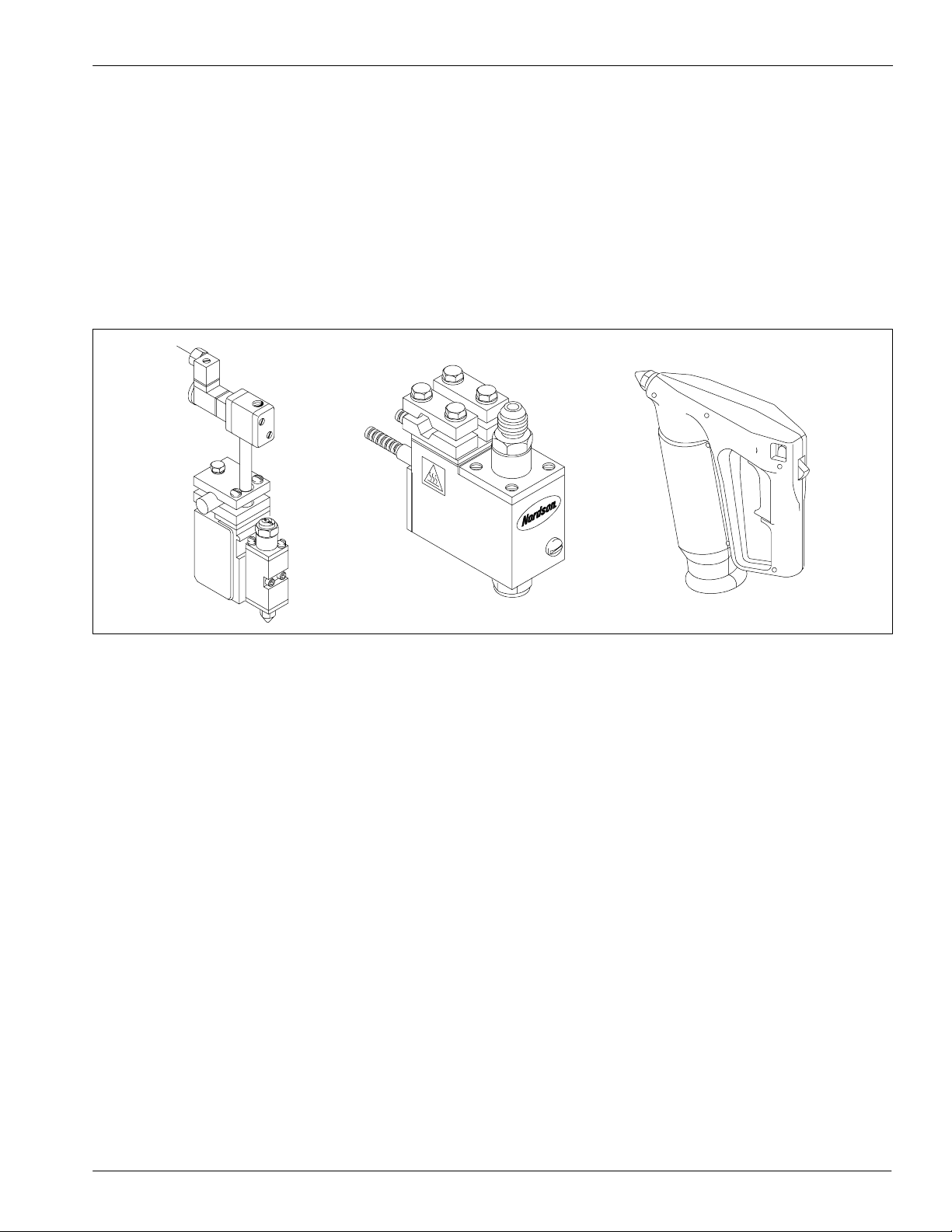

Fig. A 1-6 Air-Operated Gun (left), Electric Gun (center), and Hand-Operated Gun (right)
To Install an Air-Operated Gun
Follow the instructions in the manual shipped with the gun to complete
these procedures:
SMount the gun on the production line.
SInstall the gun solenoid valve.
SConnect air to the solenoid valve.
SConnect a triggering device to the solenoid valve.
SConnect a hose to the gun.
Instructions for connecting the hose and gun cordsets are given later in
this section. Refer to Connecting Gun and Hose Cordsets.
I
n
s
t
a
l
l
i
n
gGu
n
s

Installation
A1-10
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
To Install an Electric Gun
Follow the instructions in the manual shipped with the gun to complete
the following procedures:
SMount the gun on the production line.
SInstall the gun driver.
SConnect power to the driver.
SConnect a triggering device to the driver.
SConnect a hose to the gun.
Instructions for connecting the hose and gun cordsets are given later in
this section. Refer to Connecting Gun and Hose Cordsets.
To Install a Hand-Operated Gun
Follow the instructions in the manual shipped with the gun to connect the
hose to the hand-operated gun. One end of the hose is wired to the gun;
the other end connects to the unit. Instructions for connecting the hose
and gun cordsets are given later in this section. Refer to Connecting Gun
and Hose Cordsets.

Installation A1-11
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
Follow this procedure to route the hoses and connect them to the guns
and the unit.
If your system is designed for external circulation of the adhesive, which
requires both supply and return hoses, you must follow a different
procedure for installing hoses. Go to Installation Procedures for
Externally Circulating Systems at the end of this section.
1. Follow the instructions in the gun manual to connect a hose to each
gun, but do not connect the gun cordsets at this time.
2. Determine whether your unit has a four-port or a six-port manifold.
Figure A 1-7 shows both manifolds and the hose port numbers on
each type of manifold. Note that the first hose port on a six-port
manifold is located on the back side of the unit.
4130688
6543 21
4321
6 5 4 3 2
1
4 3 2 1
65
Fig. A 1-7 Four-Port Manifold (left) and Six-Port Manifold (right)
I
n
s
t
a
l
l
i
n
g
H
o
s
e
s

Installation
A1-12
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
3. Decide where to install the first hose by referring to the following
table. Choose the instructions that apply to the type of manifold on
your unit.
Type of Manifold Instructions
Four-port manifold Use hose port number 1.
Six-port manifold Use hose port number 1 or 2. If
you plan to install six hoses
(either now or in the future), use
hose port number 1 for the first
hose(seeNoteA). Ifyouplanto
install less than six hoses, you
can use hose port number 2 for
the first hose.
NOTE A: To install six hoses, your unit must have the ability to heat
six hoses. Check to see if your unit has six hose electrical
receptacles. Units can be ordered with two, four, or six
receptacles.
CAUTION: Failure to connect the first hose as instructed
creates a dead area where char builds up, causing downtime.
WARNING: Hose ports that are unused must be closed with a
plug. Removing plugs can cause hot adhesive to spray or flow
from the port and injure operators.
4. Route the hose from the gun back to the unit. Make sure the hose
does not contact sharp or abrasive surfaces. Follow the hose-routing
guidelines shown in Figure A 1-8.
I
n
s
t
a
l
l
i
n
g
H
o
s
e
s
(contd.)

Installation A1-13
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
5920010
P/N 111 940
X=13 mm (0.50 in.)
R=203 mm (8.00 in.)
P/N 271 486 -- 8 mm (5/16 in.)
P/N 274 174 -- 16 mm (5/8 in.)
X
P/N 274 174 -- 29 mm (1 1/8 in.)
Fig. A 1-8 Hose Installation Guidelines

Installation
A1-14
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
5. Remove the O-ring plug from the hose port where you plan to install
the first hose. Keep the O-ring plug for later use during maintenance
and servicing procedures.
6. See Figure A 1-9. Take one of the hose-connector fittings that was
shipped with the unit and apply an anti-seize compound to the
threads. Thread the fitting into the hose port.
4103398A
Fig. A 1-9 Threading the Hose Connector Fitting into the Hose Port
7. Tighten the fitting with a wrench.
8. Connect a hose to the gun fitting. Use two wrenches to tighten the
hose as shown in Figure A 1-8.
9. Install any additional hoses by repeating steps 4--8. Be sure to
connect a second hose next to the first, working from right to left.
Depending upon your unit, you can connect a maximum of four or six
hoses this way.
I
n
s
t
a
l
l
i
n
g
H
o
s
e
s
(contd.)

Installation A1-15
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
This part of the installation section includes procedures that require
installing wiring or making electrical connections. Before making any
electrical connections, first make the required mechanical connections.
Refer to Mechanical Installation in this section.
WARNING: Allow only qualified personnel to perform electrical
connections. Observe the safety instructions.
CAUTION: If you are adding hoses and guns to an existing
system, make sure that you do not exceed the maximum power
capabilities of your unit. Refer to the Calculating Hose/Gun
Capacity section of this manual.
Follow this procedure to connect gun and hose cordsets.
1. Determine whether you are installing an automatic gun or a
hand-operated gun. An automatic gun is either air-operated or
electrically operated. A hand-operated gun is manually operated (see
Figure A 1-6).
2. Follow the instructions below that apply to the type of gun you are
installing.
CAUTION: If you are connecting a hand-operated gun, take
care not to connect the heater wires to the resistance
temperature detector (RTD) wires. Otherwise , the control
system or RTD will be destroyed when the system is placed in
operation.
Type of Gun Connection
Automatic Connect the gun cordset to the electrical
connector at the end of the hose.
Hand-operated Follow the instructions in the gun manual to
connect the cordset and wires at the end of the
hose to the gun. Be sure not to connect the
wires for heater power to the RTD. Otherwise,
the control system or RTD will be destroyed
when the system is placed in operation.
6
. Electrical Installation
Co
n
n
ec
t
i
n
gGu
n
a
n
d
H
o
s
e
Co
r
d
s
e
t
s

Installation
A1-16
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
3. If you installed hoses for an externally circulating system, you must
follow a different procedure to connect hose cordsets. Go to
Installation Procedures for Externally Circulating Systems at the end
of this section. Return here and go to step 6.
4. Find the hose plug of the first hose you connected to the manifold.
5. See Figure A 1-10. Connect this hose plug to electrical receptacle
number 1 on the unit.
6. If you have additional guns and hoses, continue connecting gun and
hose cordsets. Connect the cordset of the next hose (the hose
closest to the rear of the unit) to the hose electrical receptacle labeled
number 2 on the unit. Continue connecting gun and hose cordsets,
working from the rear of the unit to the front of the unit, until you have
connected all gun and hose cordsets.

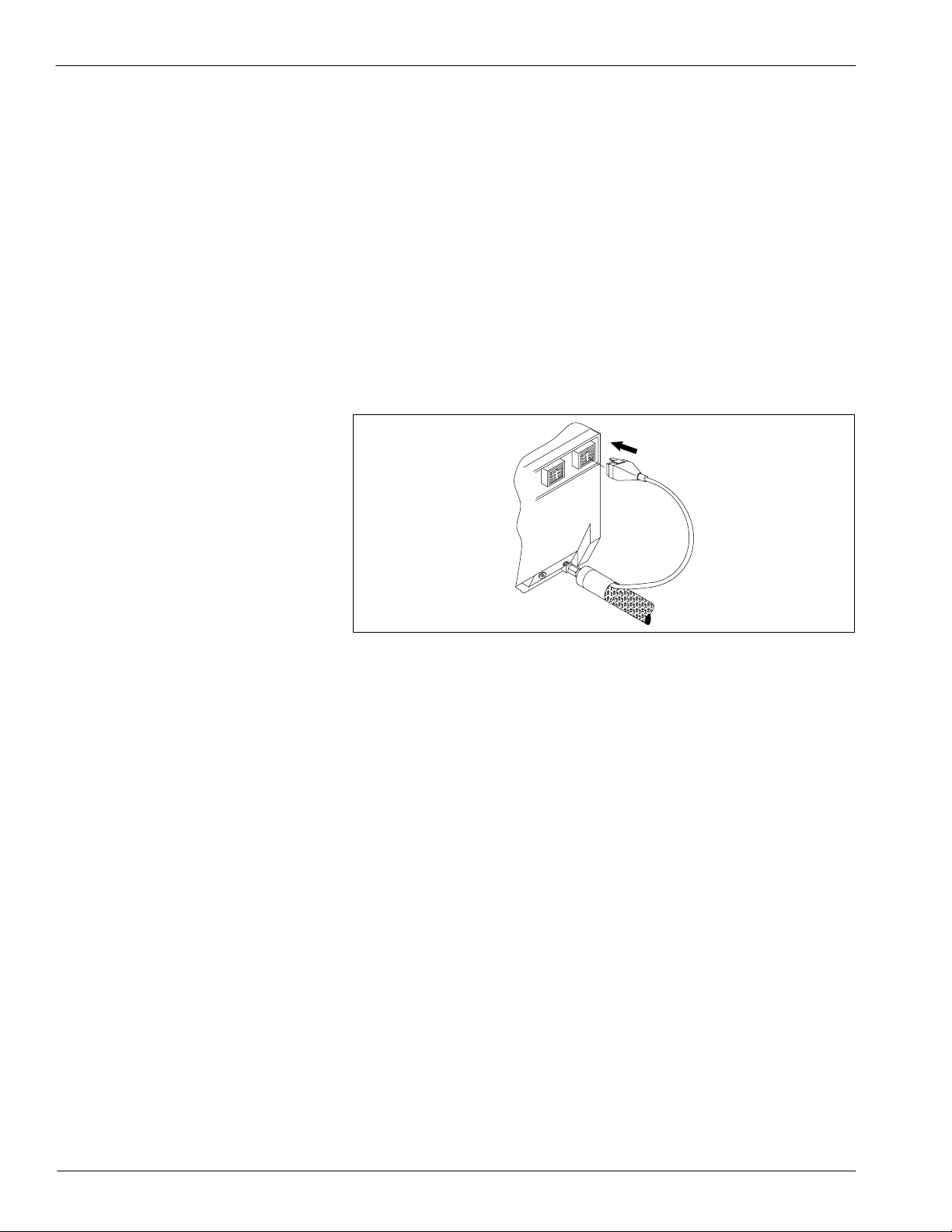

4103958A
Fig. A 1-10 Connecting a Hose Cordset to the Unit
Co
n
n
ec
t
i
n
gGu
n
a
n
d
H
o
s
e
Co
r
d
s
e
t
s
(contd.)

Installation A1-17
E2000 Nordson Corporation
All rights reserved 41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
To make the electrical connections inside the unit, follow this procedure
to open the unit and access the electrical enclosure.
WARNING: Risk of equipment damage, personal injury, or
death. Disconnect and lock out electrical power to the unit.
1. Place the unit’s POWER switch in the off position and disconnect and
lock out electrical power to the unit at the branch circuit disconnect
switch.
2. See Figure A 1-11. Loosen the captive screws on the electrical
enclosure lid, lift the lid from the unit, and prop it against the pump
cover. Take care not to disconnect the ground wire.
3. Make sure the support strap is not wrapped around any board
components. Untangle the strap if necessary.
4. Loosen the two captive screws on either side of the control-end frame
and lower the frame. You may need to pull the front and rear panels
apart to release the frame.
5. Avoid direct contact with internal electrical connections, components,
or wiring.
6. Make sure all ground wires are securely connected.
4130849A
Fig. A 1-11 Opening the Electrical Enclosure
O
p
e
n
i
n
g
t
he
E
l
ec
t
r
i
ca
l
E
n
c
l
o
s
u
r
e

Installation
A1-18
E2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
If your unit has a triggering solenoid valve on the pump, follow this
procedure to connect a 24 VDC triggering device to the center frame
terminal block. See Figure A 1-12 to determine whether your pump has a
triggering solenoid valve (1). If your pump does not have this valve, skip
to the next procedure, Connecting Output Contacts (Optional).
4130879A
1
2
3
4
1
2
3
4
2
3
Fig. A 1-12 Connecting a Triggering Device for the Pump Solenoid Valve
1. Triggering solenoid valve
2. Center frame terminal block
3. Wires from 24 VDC triggering
device
4. Strain relief
Co
n
n
ec
t
i
n
gaT
r
i
gge
r
i
n
g
D
ev
i
ce
f
o
r
t
he
P
u
m
p
So
l
e
n
o
i
d
Va
l
ve
