Nordson Spectrum HD Generation II Reference guide

Spectrum HD Feed Center
Generation II
Customer Product Manual
Part 7192568_03
Issued 05/20
This document is available on the Internet at http://emanuals.nordson.com/finishing
Find your nearest centre at www.nordson.com/directory
For parts and technical support, call your nearest Finishing Customer Support Centre.
NORDSON Deutschland GmbH

Part 7192568-03 E2020 Nordson Corporation
Contact Us
Nordson Corporation welcomes requests for information, comments, and
inquiries about its products. General information about Nordson can be
found on the Internet using the following address:
http://www.nordson.com.
Address all correspondence to:
Nordson GmbH
Heinrich Hertz Strasse 42
40699 Erkrath
Germany
Notice
This is a Nordson Corporation publication which is protected by copyright.
Original copyright date 2014. Nopartofthisdocument may be
photocopied, reproduced, or translated to another language without the
prior written consent of NordsonCorporation. Theinformationcontained
in this publication is subject to change without notice.
Trademarks
Nordson and the Nordson logo are registered trademarks of Nordson
Corporation.

Change Record i
Part 7192568-03
E2020 Nordson Corporation
Change Record
Revision Date Change
02 19/05/2017 Wiring diagrams updated 02−258−424
02 19/05/2017 Parts list to include complete pinch valve assembly
03 25/03/2020 Images
03 27/03/2020 Parts list, also inc. XXL
03 29/04/2020 Troubleshooting, Maintenance, Installation, Operation, E&P Drawings

EC DECLARATION OF CONFORMITY
ACCORDING TO CE DIRECTIVE 2006/42/ EC ANNEX II A
MANUFACTURER Nordson Deutschland GmbH,
Heinrich-Hertz-Strasse 42, 40699 Erkrath
DESCRIPTION PowderFeedCenter
Family/ Models: Spectrum Feed Center
Venus II
Serial number 7070xxx (see Serial-Plate)
Year of manufacturing (see Serial-Plate)
APPLICABLE DIRECTIVES& STANDARDS USED
TO VERIFY COMPLIANCE
2006/42/EC Machinery
2014/34/EU Explosive Atmosphere
2014/30/EU Electromagnetic Compatibility
2014/68/EU Pressure Equipment
EN 60204-1
EN ISO 12100
EN 1127-1
MARKING OF PRODUCT ;
The equipment delivered is generally intended to be part of a powder coating system, and can be
operated on its own or in conjunction with other equipment.
In order to be in full compliance with the CE machinery directive and its amendments, the customer is
obliged to respect the applicable regulations for his powder coating system upon incorporation of the
equipment in the powder coating plant and before starting operation.
We hereby declare that the product specified conforms to the directives and standards described
above and that it has been provided with a CE label. Provided the product is installed and operated in
line with Nordson’s manuals its operation is safe.
Name and address of the responsible person authorized to compile the technical files
Kai Flockenhaus,
Manager - Procurement & Process,
ICS Europe Industrial Coating Systems Europe
Nordson Deutschland GmbH
40699 Erkrath, Heinrich-Hertz-Strasse 42
Erkrath, 13th Nov 2017

Table of Contents
Part 7192568-03
E2020 Nordson Corporation
Table of Contents
Safety 1‐1.................................................
Introduction 1‐1.............................................
Qualified Personnel 1‐1......................................
Intended Use 1‐1...........................................
Regulations and Approvals 1‐1...............................
Personal Safety 1‐2.........................................
Fire Safety 1‐2..............................................
Grounding 1‐3..............................................
Action in the Event of a Malfunction 1‐3........................
Disposal 1‐3...............................................
Description 2‐1............................................
Introduction 2‐1.............................................
Optional Component List 2‐2.................................
HD Hopper System 2‐4......................................
Electrical and Pneumatic Controls 2‐5.........................
Specifications 2‐6...........................................
Size and Weight 2‐6......................................
Electrical and Pneumatic Requirements 2‐7.....................
Electric Requirements 2‐7.................................
Air Requirements 2‐7.....................................
Installation 3‐1.............................................
Unpacking 3‐1..............................................
Preparing for Installation 3‐1..................................
Damper Installation 3‐1......................................
Extraction Duct Connection 3‐1...............................
Electrical Connections 3‐2...................................
Pneumatic Connections 3‐2..................................
Reclaim and Virgin Powder Feed Options 3‐3...................
Checks to Complete Installation & Default Parameters 3‐4.........
Operation 4‐1..............................................
Controls - Stand Alone (Home Screen) 4‐2.....................
Sieve Operation 4‐3.........................................
Reclaim and Virgin Pump Selector Switch Operation 4‐3.........
Reclaim Transfer Pump Operation 4‐3.........................
Virgin Transfer Pump Operation 4‐3...........................
Powder Level Sensor Operation 4‐4...........................
Hopper Operation 4‐4.....................................
Silencing the Low Powder Alarm 4‐4........................
Startup 4‐4.................................................
Color Change Procedure 4‐5.................................
Configuration 4‐8...........................................
Shutdown 4‐9..............................................

Table of Contents
Part 7192568-03 E2020 Nordson Corporation
Maintenance 5‐1...........................................
Sieve Maintenance 5‐2....................................
Encore HD Pump Maintenance 5‐2.........................
Prodigy HDLV Transfer Pump Maintenance 5‐3...............
Cleaning 5‐3.............................................
Dump Valve Sleeve 5‐4....................................
Level Sensors 5‐5.........................................
Sieve Screen 5‐5.........................................
Troubleshooting 6‐1........................................
Troubleshooting Chart 6‐1....................................
Parts 7‐1..................................................
Introduction 7‐1.............................................
Using the Illustrated Parts List 7‐1...........................
HD Hopper and Sieve 7‐3..................................
XXL - HD Hopper and Sieve 7‐5.............................
Transfer Pump 7‐6........................................
Powder Transfer Tubing & Antistatic Grounding Kit 7‐6.........
Fittings for Transfer Pump Air 7‐6............................
Air Filter for Stand Alone Spectrum HD 7‐6...................
System Diagrams 8‐1.......................................

Safety 1‐1
Part 7192568-03
E2020 Nordson Corporation
Section 1
Safety
Introduction
Read and follow these safety instructions. Task‐ and equipment‐specific
warnings, cautions, and instructions are included in equipment
documentation where appropriate.
Make sure all equipment documentation, including these instructions, is
accessible to all persons operating or servicing equipment.
Qualified Personnel
Equipment owners are responsible for making sure that Nordson equipment
is installed, operated, and serviced by qualified personnel. Qualified
personnel are those employees or contractors who are trained to safely
perform their assigned tasks. They are familiar with all relevant safety rules
and regulations and are physically capable of performing their assigned
tasks.
Intended Use
Use of Nordson equipment in ways other than those described in the
documentation supplied with the equipment may result in injury to persons or
damage to property.
Some examples of unintended use of equipment include
Susing incompatible materials
Smaking unauthorized modifications
Sremoving or bypassing safety guards or interlocks
Susing incompatible or damaged parts
Susing unapproved auxiliary equipment
Soperating equipment in excess of maximum ratings
Regulations and Approvals
Make sure all equipment is rated and approved for the environment in which
it is used. Any approvals obtained for Nordson equipment will be voided if
instructions for installation, operation, and service are not followed.
All phases of equipment installation must comply with all federal, state, and
local codes.

Safety
1‐2
Part 7192568-03 E2020 Nordson Corporation
Personal Safety
To prevent injury follow these instructions.
SDo not operate or service equipment unless you are qualified.
SDo not operate equipment unless safety guards, doors, or covers are
intact and automatic interlocks are operating properly. Do not bypass or
disarm any safety devices.
SKeep clear of moving equipment. Before adjusting or servicing any
moving equipment, shut off the power supply and wait until the equipment
comes to a complete stop. Lock out power and secure the equipment to
prevent unexpected movement.
SRelieve (bleed off) hydraulic and pneumatic pressure before adjusting or
servicing pressurized systems or components. Disconnect, lock out, and
tag switches before servicing electrical equipment.
SObtain and read Material Safety Data Sheets (MSDS) for all materials
used. Follow the manufacturer's instructions for safe handling and use of
materials, and use recommended personal protection devices.
STo prevent injury, be aware of less‐obvious dangers in the workplace that
often cannot be completely eliminated, such as hot surfaces, sharp
edges, energized electrical circuits, and moving parts that cannot be
enclosed or otherwise guarded for practical reasons.
SNoise emissions according to EC/2006/42 maximum 85dBA, ear
protection must be worn.
Fire Safety
To avoid a fire or explosion, follow these instructions.
SDo not smoke, weld, grind, or use open flames where flammable
materials are being used or stored.
SProvide adequate ventilation to prevent dangerous concentrations of
volatile materials or vapors. Refer to local codes or your material MSDS
for guidance.
SDo not disconnect live electrical circuits while working with flammable
materials. Shut off power at a disconnect switch first to prevent sparking.
SKnow where emergency stop buttons, shutoff valves, and fire
extinguishers are located. If a fire starts in a spray booth, immediately
shut off the spray system and exhaust fans.
SClean, maintain, test, and repair equipment according to the instructions
in your equipment documentation.
SUse only replacement parts that are designed for use with original
equipment. Contact your Nordson representative for parts information
and advice.

Safety 1‐3
Part 7192568-03
E2020 Nordson Corporation
Grounding
WARNING: Operating faulty electrostatic equipment is hazardous and can
cause electrocution, fire, or explosion. Make resistance checks part of your
periodic maintenance program. If you receive even a slight electrical shock
or notice static sparking or arcing, shut down all electrical or electrostatic
equipment immediately. Do not restart the equipment until the problem has
been identified and corrected.
All work conducted inside the FeedCenter Housing is considered within an
ATEX Zone 22 and inside the Powder Hopper is ATEX Zone 20 Hazardous
location and must comply with EN16985, EN50177 and any local codes
latest conditions.
SAll electrically conductive objects inside the FeedCenter Housing shall be
electrically connected to ground with a resistance of not more than
1megohm as measured with an instrument that applies at least 500volts
to the circuit being evaluated. Personnel working inside the FeedCenter
must be grounded.
SThere is a possible ignition potential from the charged human body.
Personnel standing on a non-conductive surface or wearing
non‐conductive shoes, are not grounded. Personnel must wear shoes
with conductive soles or use a ground strap to maintain a connection to
ground when working with or around electrostatic equipment.
SConnect all disconnected equipment, ground cables, and wires after
servicing equipment.
Action in the Event of a Malfunction
If a system or any equipment in a system malfunctions, shut off the system
immediately and perform the following steps:
SDisconnect and lock out electrical power. Close pneumatic shutoff
valves and relieve pressures.
SIdentify the reason for the malfunction and correct it before restarting the
equipment.
Disposal
Dispose of equipment and materials used in operation and servicing
according to local codes.

Safety
1‐4
Part 7192568-03 E2020 Nordson Corporation

Description 2‐1
Part 7192568-03
E2020 Nordson Corporation
Section 2
Description
Introduction
The Nordson Spectrum HD Generation II Feed Center (SHD II) conditions
and supplies powder for up to 16 automatic powder spray guns in its
standard form, or up to 24 guns with additional Stand Alone HDLV units*.
This can be a combination of automatic and manual guns. It contains a High
Density sieving and powder feed system using the Nordson HDLV
technology along with ultrasonic sieve, level sensors, virgin feed and
electrical / pneumatic controls via a touch screen operator interface.
The SHD II provides quick color changes and automatic purge cleaning. The
HD Hopper is the heart of the SHD II Feed Center; receiving reclaim and
virgin powder, sieving and feeding powder to all guns using Nordson HDLV
pumps.
*If more guns are required, the Spectrum HD XXL offers the capacity of up to
32 Guns.

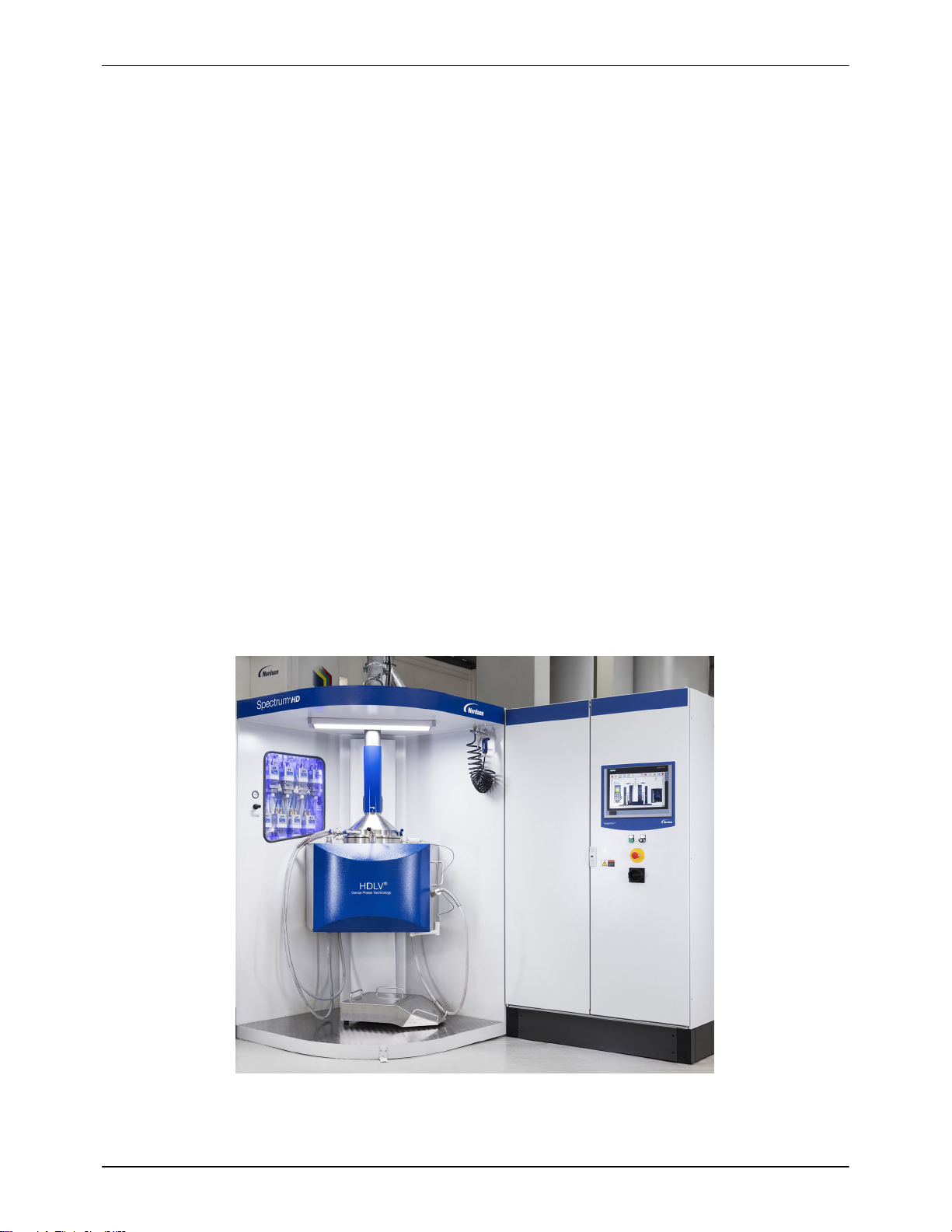

Figure 2‐1 Spectrum HD Powder Feed Center Generation II - Image shows with PPHD Controls (standard)

Description
2‐2
Part 7192568-03 E2020 Nordson Corporation
The feed center controls are designed to accommodate two HDLV transfer
pumps: a reclaim pump to transport over-sprayed powder from the booth
recovery system to the feed center, and a optional bulk feed pump that adds
virgin powder to the system as needed.
Both transfer pumps deliver the powder to the ultrasonic sieve, where it is
conditioned before delivery to the powder spray guns.
The color change operation is semi automatic. During a color change,the HD
Hopper cycles through a number of cleaning processes. High-pressure
purge air is pulsed through the powder feed pumps, hoses, and guns to clean
them of powder. This also cleans the sieve section and hopper itself leaving
minimal cleaning from the operator. The reclaim and virgin powder transfer
pumps can be purged manually, as required.
The Spectrum HD Gen II feed center requires a remote air extraction system
that provides a constant airflow through the enclosure, preventing powder
escaping into the spray room. The typical extraction system consists of an
afterfilter assembly consisting of an exhaust fan, primary cartridge filters,
pulse valves and controls, and final filters. A rectangular duct connection is
provided at the bottom rear of the feed center enclosure.
Optional Component List
Optional components include:
SUltrasonic sieve screens
SHDLV virgin powder bulk feed system
SWeight Cell

Description 2‐3
Part 7192568-03
E2020 Nordson Corporation
6
7
8
11 10
1
2
3
5
9*
4

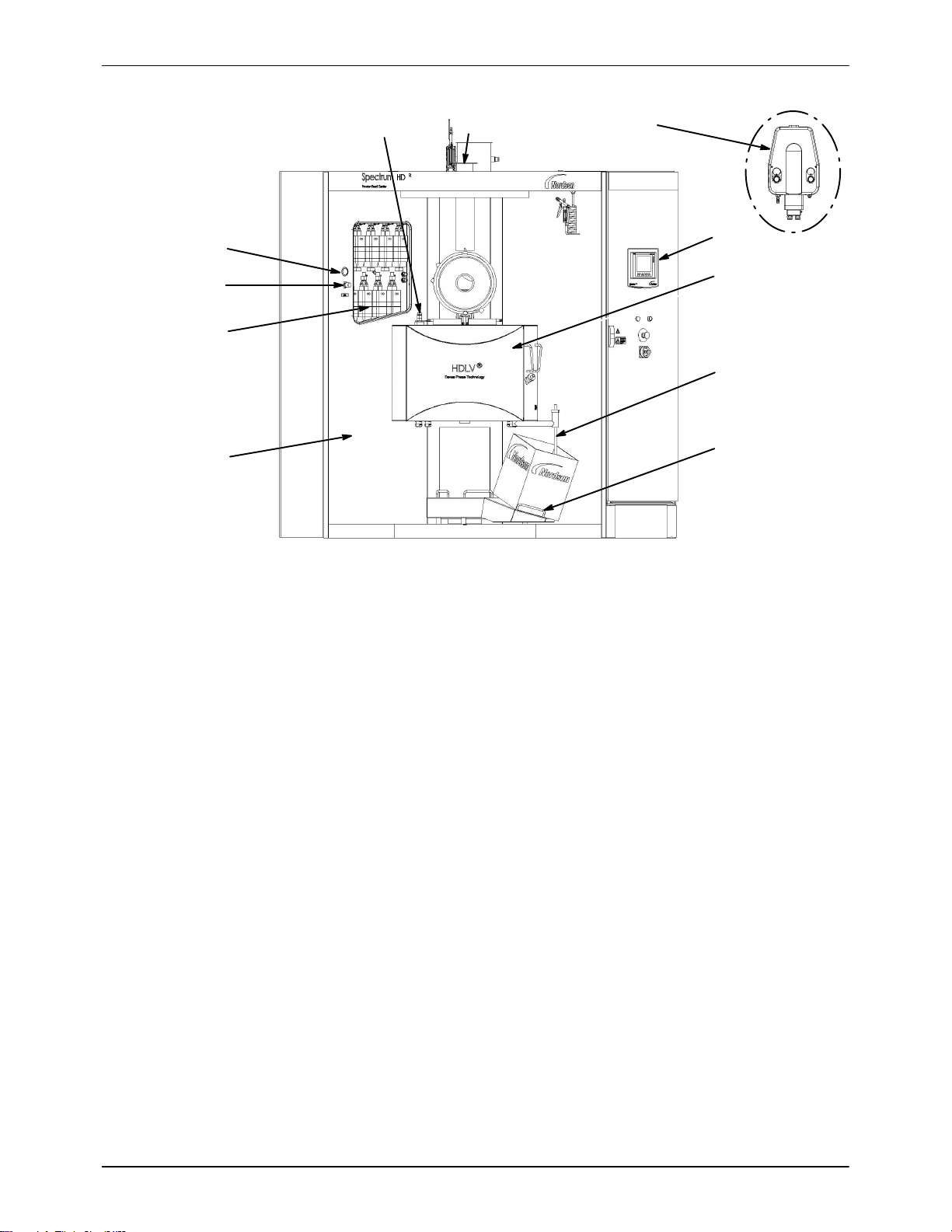

Figure 2‐2 Major Components of Spectrum HD Generation II Feed Center (shown with optional Virgin Feed)
1. Control panel interface*
2. HD hopper
3. Virgin powder feed lance
4. HDLV transfer pump
5. VBF virgin powder feed holder
6. Pneumatic gauge for feed hopper
7. Pneumatic regulator for feed
hopper
8. HDLV pump panel
9. Additional HDLV pump
panel**
10. Extract duct
11. Hose purge positions
Note: * Stand alone version only. As standard, it is controlled via the PPHD (Powder Pilot HD controller)
Note: ** Optional for additional pumps

Description
2‐4
Part 7192568-03 E2020 Nordson Corporation
HD Hopper System
1
2
1
2
3
4
5
7
8
6
9
Figure 2‐3 Spectrum HD Generation II Hopper Assembly
1. Sieve inlet
2. Plug, sieve inlet
3. Sieve screen
4. Ultrasonic probe
5. Handle locking
6. Level sensor
7. Hopper
8. Dump valve
9. Extract duct sleeve

Description 2‐5
Part 7192568-03
E2020 Nordson Corporation
Electrical and Pneumatic Controls
1
7
6
5
43
2

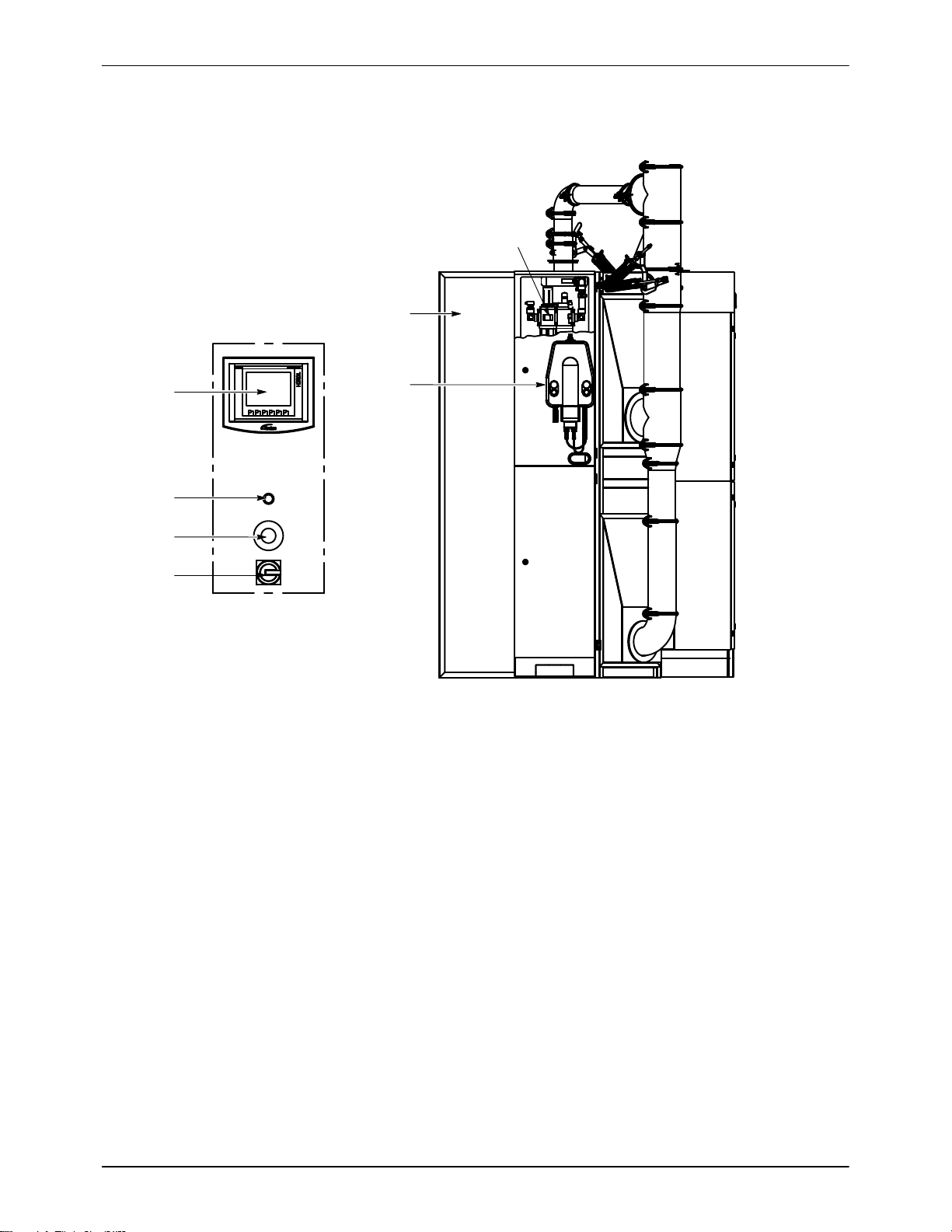

Figure 2‐4 Electrical/Pneumatic Cabinet
1. Air service unit
2. Electric control panel
3. Virgin powder pump
4. Touch screen interface
5. Control reset
6. Emergency stop
7. Main power On/Off
Not Shown: Valve island, Regulator & recovery powder pump (mounted locally to twin cyclone)
Note: The Spectrum HD Generation II Feed Centre in its standard form, is controlled via the Powder Pilot HD but is also
available as a stand alone unit with its own control panel as shown above. For information related to the Pilot Pilot
HD control panel, please refer to the appropriate Powder Pilot HD manual. 7192721_01

Description
2‐6
Part 7192568-03 E2020 Nordson Corporation
Specifications
Size and Weight
Weight: Approximately 612.3 kg (1350 lbs) depending on configuration and
options.
2253
1963
1654 1601
1495

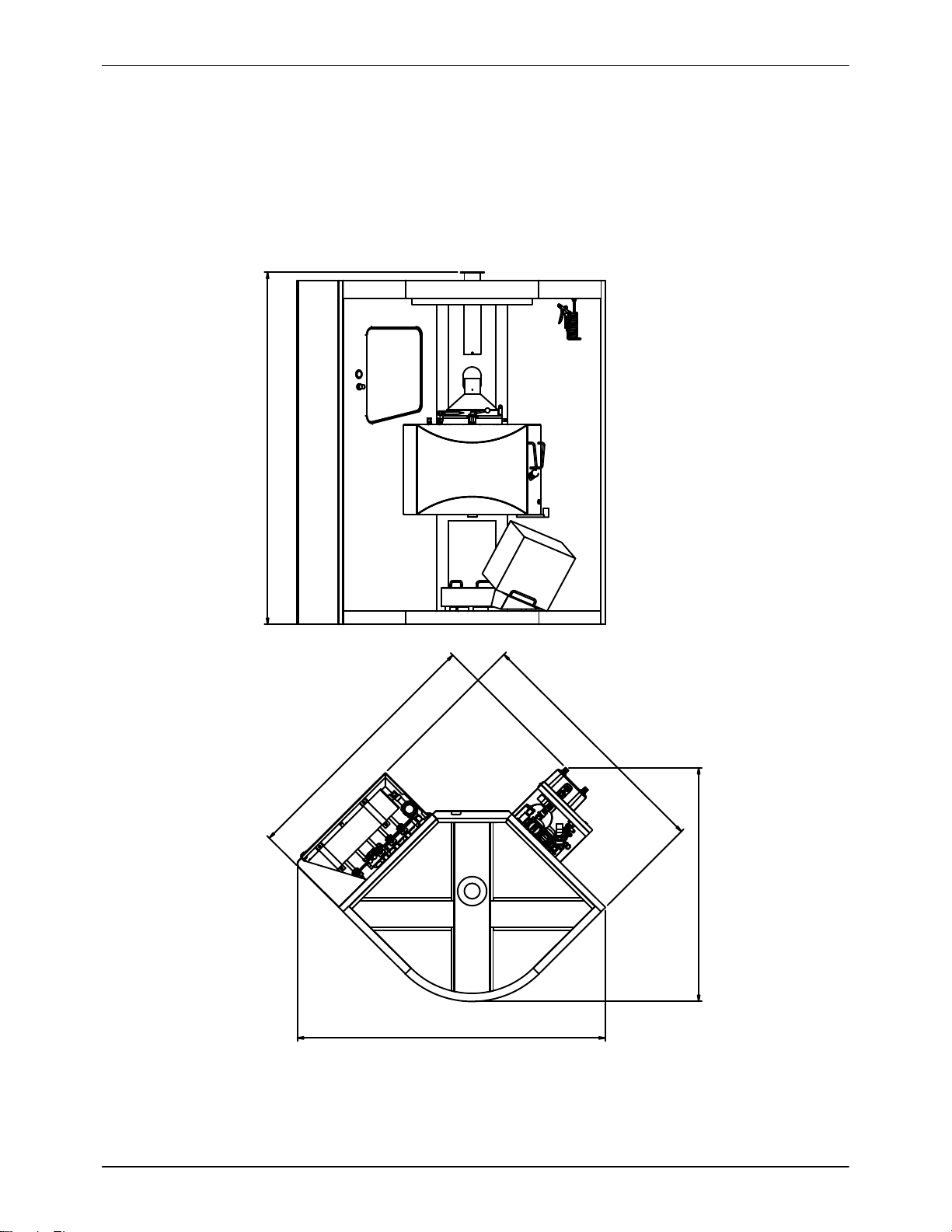

Figure 2‐5 Spectrum HD Gen II Feed Center Dimensions
Note: System shown is without controls as there are 2 versions of control panel available, stand alone version or Powder
Pilot HD. For details of the control panel contact your local Nordson representative.

Description 2‐7
Part 7192568-03
E2020 Nordson Corporation
Electrical and Pneumatic Requirements
Electric Requirements
Electrical supply Amps
380v - 3 phase - 50 Hz 3.6
415v - 3 phase - 50 Hz 3.5
Air Requirements
Exhaust Air Flow Value
During colour change 4535 Nm3/hr / 2825.6 SCFM
During operation 980 Nm3/hr / 577 SCFM
Compressed Air Supply Value
Air input 1” BSP
Minimum dynamic air pressure 6.5 bar
Maximum dynamic air pressure 7 bar
Air consumption at 6.9 bar Value
Normal operation for 2 - 24 gun system 41.6 Nm3/hr (25.9 SCFM) to 94.3 Nm3/hr (58.8 SCFM)
Maximum 73.9 Nm3/hr (46 SCFM) to 295.7 Nm3/hr (184.2 SCFM)
NOTE: Instantaneous flow rate during purge sequence
NOTE: The compressed air quality must be according to ISO 8573.1 Class [3:4:2] Use a dedicated,
refrigerated or regenerative-desiccant air dryer with filter separators with automatic drains.
NOTE: For Spectrum HD Generation II with Powder Pilot HD controls, also refer to the technical manual for
the Powder Pilot HD

Description
2‐8
Part 7192568-03 E2020 Nordson Corporation

Installation 3‐1
Part 7192568-03
E2020 Nordson Corporation
Section 3
Installation
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
Unpacking
WARNING: Allow only authorized Nordson personnel to complete.
Upon receipt, unpack the Spectrum HD Generation II (SHD II) feed center
carefully to avoid damage. Report any damage immediately to the shipper
and to your Nordson representative. Save packing materials for possible
later use, or dispose of properly according to local regulations.
Preparing for Installation
WARNING: Allow only authorized Nordson personnel to complete.
Position the SHD II feed center on a level floor, according to the general
layout drawing supplied by Nordson application engineering. Use the leveling
pads to level the feed center.
Fix the SHD II feed center to the floor using 3 L‐shaped brackets delivered
with the unit.
To ensure easy maintenance, provide a clear operating and access zone of
at least 1m (3 ft) wherever possible.
Damper Installation
A butterfly damper should be installed in the ductwork to the afterfilter. A
damper is supplied with the unit.
Extraction Duct Connection
Connect ductwork from the afterfilter/fan section to the SHD II feed center
with a properly sized transition duct. A rectangular transition duct is supplied
with the unit.

Installation
3‐2
Part 7192568-03 E2020 Nordson Corporation
Electrical Connections
Caution: Equipment damage may occur if the electrical panel is connected
to any line voltage other than that stated on the identification plate.
WARNING: Power to the Spectrum HD Generation II (SHD II) feed center
must be supplied from a locking disconnect switch or breaker. Failure to
observe this warning may result in a severe shock during installation or
repair.
Make sure that all electrical cables are correctly rated and suitable for the
ambient temperature of the installation area. Provide adequate fuse/circuit
protection from the power supply. Refer to the foldout wiring diagrams and
schematics at the end of this manual for more information.
Before starting up the SHD II feed center, turn on the feed center power and
refer to the Setup procedure to program the controls for the application. This
should be performed only by a Nordson field engineer or technician.
Pneumatic Connections
For the connection size, location and volume required please refer to your
Service Requirements drawing or contact your Nordson representative.
Clean, dry, compressed air should be supplied from a refrigerated or
desiccant air dryer and filter/separators. Refer to Specifications in Section 2
for compressed air specifications.
NOTE: For information on the Pump Panel please refer to technical manual
on Nordson emanuals website.
