Nortel 1000E Guide

Nortel Communication Server 1000
Communication Server 1000E
Maintenance
Release: 5.5
Document Revision: 02.07
www.nortel.com
NN43041-700
.

Nortel Communication Server 1000
Release: 5.5
Publication: NN43041-700
Document release date: 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
LEGAL NOTICE
While the information in this document is believed to be accurate and reliable, except as otherwise expressly
agreed to in writing NORTEL PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR CONDITION OF
ANY KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are
subject to change without notice.
Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
All other trademarks are the property of their respective owners.
.

3
.
Contents
New in this release 7
Features 7
Other 7
Revision History 7
How to get help 9
Contents 9
Getting help from the Nortel web site 9
Getting help over the telephone from a Nortel Solutions Center 9
Getting help from a specialist by using an Express Routing Code 10
Getting help through a Nortel distributor or reseller 10
Overview 11
Subject 11
Applicable systems 11
Intended audience 11
Conventions 11
Related information 11
Precautions 13
Contents 13
General precautions 13
Circuit cards 13
Communicating with the system 15
Contents 15
Introduction 15
System terminal access for CP PII and CP PIV Call Servers 16
System terminal access for Media Gateway Controller 18
System terminal access for MG 1000T 18
Telephony Manager 20
Element Manager 22
Accessing the system 22
Hardware maintenance tools 27
Contents 27
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

4
Introduction 27
Alarm/fan module features 27
Compact flash cards 29
Circuit card features 30
NTDW61 CP PM Call Processor 31
NTDW61 CP PM Signaling Server 34
NT4N64 PII and NT4N39 PIV Call Processor features 35
CP PII and CP PIV System Utility card features 36
NTDW60 Media Gateway Controller card 37
NTDW60 Media Gateway Controller LEDs 38
NTDW62 and NTDW64 Media Gateway Controller daughterboards 39
NTDW65 Voice Gateway Media Card 40
NTDW65 Voice Gateway Media Card LEDs 40
Circuit card LEDs 41
Media Card LEDs 42
NTAK10 faceplate LEDs 43
NTAK79 faceplate LEDs 43
NTBK50 faceplate LEDs 45
NTAK09 and NTRB21 faceplate LEDs 46
NTDK20 SSC card faceplate LEDs 47
NTDK83 and NTDK99 IP daughterboard LEDs 50
ELAN network interface LEDs 52
Signaling Server LEDs 52
System alarms 53
Line transfer 54
External power loss 55
Software maintenance tools 57
Contents 57
Introduction 57
Maintenance applications 58
Diagnostic programs 59
Media Gateway Controller Local Diagnostic Shells 63
Media Gateway Controller log file 65
TM alarm management 66
Interactive diagnostics 67
Boot MGC to the Gold Image 68
Compact Flash Formatting with MGC Gold Image 69
Clearing faults 71
Contents 71
Fault clearing process 71
Fault indicators 73
Clearing Core Call Server faults 75
Clearing Signaling Server faults 81
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

5
Clearing MG 1000E faults 82
Clearing MG 1000T faults 90
Monitoring 100BaseT link voice Quality of Service 98
Clearing trunk faults 100
Clearing Terminal Server faults 103
Clearing IP Phone faults 103
Database management 105
Contents 105
Tools to backup and restore customer databases 105
Equipment Data Dump 105
Customer Configuration Backup and Restore 107
Replacing equipment 113
Contents 113
Removing the MG 1000E cover 114
Replacing the NTDW61 CP PM Call Processor card 114
Replacing NTDW61 CP PM Signaling Server equipment 125
CP PM Signaling Server card replacement 125
Replacing the NTDW60 Media Gateway Controller card 147
Replacing the NTDW62 or NTDW64 DSP daughterboard 148
Replacing the NTDW65 Voice Gateway Media Card 149
Replacing the NT4N64 CP PII Call Processor card 150
Replacing the NT4N39AA CP PIV Call Processor card 151
Replacing the NT4N48 System Utility card 153
Replacing the NTDU67 Drive Carrier card (CP PII only) 154
Replacing the NTDU64 alarm/fan module 155
Replacing the NTDU65 power supply module 156
Accessing Media Gateway internal components 159
Replacing the NTAK02 SDI/DCH circuit card 160
Replacing the NTAK03 TDS/DTR circuit card 161
Replacing the NTAK79 or NTBK50 2.0 Mb PRI card 161
Replacing the NTAK09 1.5 Mb DTI/PRI card (PRI applications) 164
Replacing the NTAK09, NTAK10, or NTRB21 circuit cards (DTI applications) 165
Replacing equipment cards 166
Replacing the NT5K21 equipment card 167
Replacing the NTAG26 equipment card 168
Replacing the NTAK92 off-premises protection module 168
Replacing the NTDK20 SSC card 170
Replacing the NTTK25 software daughterboards 171
Replacing IP daughterboards 174
Element Manager 175
Contents 175
Call Server maintenance 175
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

6
Call Server backup, data dump, and restore 177
Signaling Server maintenance 179
Media Card maintenance 180
Remote upgrade 180
LD 36 analog trunk card status 182
Media Card maintenance 183
Contents 183
Introduction 183
Faceplate maintenance display codes 183
Replacing a Media Card 188
Verify Media Card software and firmware 189
IP Line and IP Phone maintenance and diagnostics 189
IP line shell commands 190
Invoking alarm and log files 191
Media Card 32S and DSP daughterboard DSP tests 191
Proactive Voice Quality Management 193
Contents 193
Introduction 193
How voice quality monitoring works 194
Feature packaging 197
Supported system types 197
Feature implementation 197
Diagnosing and isolating voice-quality problems 201
SNMP interface 202
Heterogeneous environments 202
pbxLink connection 205
Contents 205
Introduction 205
pbxLink connection failure detection 205
LD 117 STAT SERV enhancement 207
Technical Assistance service 211
Contents 211
Nortel Technical Assistance Centers 211
Services available 213
Requesting assistance 215
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

7
.
New in this release
Features There are no CS 1000 Release 5.5 feature changes for this NTP.
Other Revision History
December 2009
Standard 02.07. This document is up-issued to support Communication
Server 1000 Release 5.5.
January 2009
Standard 02.06. This document is up-issued to support Communication
Server 1000 Release 5.5.
November 2008
Standard 02.05. This document is issued to support Communication
Server 1000 Release 5.5.
July 2008
Standard 02.04. This document is issued to support Communication
Server 1000 Release 5.5.
June 2008
Standard 02.03. This document is issued to support Communication
Server 1000 Release 5.5.
February 2008
Standard 02.02. This document is issued to support Communication
Server 1000 Release 5.5.
December 2007
Standard 02.01. This document is issued to support Communication
Server 1000 Release 5.5.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

8New in this release
October 2007
Standard 01.03. This document is issued to support Communication
Server 1000 Release 5.0. Changes to address CR Q01766330.
June 2007
Standard 01.02. This document is issued to support Communication
Server 1000 Release 5.0. Procedures for adding and replacing a CP PM
Call Server card and a Media Gateway Controller card are added.
May 2007
Standard 01.01. This document is issued to support Communication
Server 1000 Release 5.0. This document contains information previously
contained in the following legacy documents, now retired: Communication
Server 1000E: Maintenance (553-3041-500) and Communication Server
1000S: Maintenance (553-3031-500)
January 2007
Standard 4.00. This document is up-issued to reflect addition of technical
content due to CR Q01542505.
July 2006
Standard 3.00. This document is up-issued with corrections from CR
Q01324850.
August 2005
Standard 2.00. This document is up-issued for Communication Server
1000 Release 4.5.
September 2004
Standard 1.00. This document is issued for Communication Server 1000
Release 4.0.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

9
.
How to get help
Contents This section contains the following topics:
•“Getting help from the Nortel web site” (page 9)
•“Getting help over the telephone from a Nortel Solutions Center” (page
9)
•“Getting help from a specialist by using an Express Routing Code”
(page 10)
•“Getting help through a Nortel distributor or reseller” (page 10)
Getting help from the Nortel web site
The best way to get technical support for Nortel products is from the Nortel
Technical Support web site:
www.nortel.com/support
This site provides quick access to software, documentation, bulletins, and
tools to address issues with Nortel products. From this site, you can:
•download software, documentation, and product bulletins
•search the Technical Support Web site and the Nortel Knowledge Base
for answers to technical issues
•sign up for automatic notification of new software and documentation
for Nortel equipment
•open and manage technical support cases
Getting help over the telephone from a Nortel Solutions Center
If you do not find the information you require on the Nortel Technical
Support web site, and you have a Nortel support contract, you can also get
help over the telephone from a Nortel Solutions Center.
In North America, call 1-800-4NORTEL (1-800-466-7835).
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

10 How to get help
Outside North America, go to the following web site to obtain the telephone
number for your region:
www.nortel.com/callus
Getting help from a specialist by using an Express Routing Code
To access some Nortel Technical Solutions Centers, you can use an
Express Routing Code (ERC) to quickly route your call to a specialist in
your Nortel product or service. To locate the ERC for your product or
service, go to:
www.nortel.com/erc
Getting help through a Nortel distributor or reseller
If you purchased a service contract for your Nortel product from a
distributor or authorized reseller, contact the technical support staff for that
distributor or reseller.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

11
.
Overview
This document is a global document. Contact your system supplier or your
Nortel representative to verify that the hardware and software described
are supported in your area.
Subject This document describes system maintenance for the CS 1000Esystem.
Note on legacy products and releases
This NTP contains information about systems, components, and features
that are compatible with Nortel Communication Server 1000 Release 5.5
software. For more information about legacy products and releases, click
the Technical Documentation link under Support on the Nortel home
page:
www.nortel.com
Applicable systems
This document applies to the Communication Server 1000E (CS 1000E)
system.
Intended audience
This document is intended for individuals who configure, maintain, and
troubleshoot CS 1000Esystems.
ConventionsIn this document, the CS 1000E system is referred to generically as
"system."
Related information
This section lists information sources that relate to this document.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

12 Overview
NTPs The following NTPs are referenced in this document:
•Converging the Data Network with VoIP Fundamentals (NN43001-260)
•Circuit Card Reference (NN43001-311)
•Signaling Server Installation and Commissioning (NN43001-312)
•IP Phones Fundamentals (NN43001-368)
•Software Input/Output Administration (NN43001-611)
•Element Manager System Reference – Administration (NN43001-632)
•Software Input/Output Reference – Maintenance (NN43001-711)
•Software Input/Output Reference – System Messages (NN43001-712)
•Communication Server 1000 Fault Management – SNMP
(NN43001-719)
•Traffic Measurement: Formats and Outputs Reference (NN43001-750)
•Communication Server 1000E Planning and Engineering
(NN43041-220)
•Communication Server 1000E Installation and Commissioning
(NN43041-310)
•Communication Server 1000E Software Upgrades (NN43041-458)
•Communication Server 1000E Hardware Upgrades (NN43041-464)
•Telephony Manager 3.1 Telemanagement Applications Fundamentals
(NN43050-602)
•IP Line Fundamentals (NN43100-500)
Online To access Nortel documentation online, click the Technical
Documentation link under Support on the Nortel home page:
www.nortel.com
CD-ROM
To obtain Nortel documentation on CD-ROM, contact your Nortel Networks
customer representative.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

13
.
Precautions
Contents This section contains the following topics:
•“General precautions” (page 13)
•“Circuit cards” (page 13)
General precautions
CS 1000 equipment is based on solid state circuitry that is sensitive to
static electricity and environmental conditions. Follow the precautions in
this chapter to avoid personal injury and equipment damage.
DANGER
To avoid the danger of electric shock, be careful when working
with power equipment and connections. Warning notices are
displayed and must be heeded.
Wear an antistatic wrist strap when handling circuit cards to prevent
damage caused by static electricity.
Circuit cardsHandle the circuit cards as follows:
•Wear an antistatic wrist strap before handling circuit cards.
•Handle the cards by the card stiffeners and edges only. Do not touch
the contacts or components.
•Keep the cards installed in the system as much as possible to avoid
dirty contacts and unnecessary wear.
•Set the cards on a protective antistatic bag. If an antistatic bag is
not available, hold the card, or set it in a card slot unseated from the
connectors.
•Unpack or handle the cards away from electric motors, transformers,
or similar machinery.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

14 Precautions
•Store the cards in protective packing. Do not stack cards on top of
each other unless they are packaged.
•Store the cards in a dry dust-free area.
During repair and maintenance procedures:
•Turn off the power switch, if there is one.
•Software-disable the cards, if applicable, before they are removed or
inserted.
•Hardware-disable the cards, whenever there is an enable/disable
switch, before they are removed or inserted.
•Insert the cards into compatible slots only.
•Return defective or heavily contaminated cards to a repair center; do
not try to repair or clean them.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

15
.
Communicating with the system
Contents This section contains the following topics:
•“Introduction” (page 15)
•“System terminal access for CP PII and CP PIV Call Servers” (page
16)
•“System terminal access for Media Gateway Controller” (page 18)
•“System terminal access for MG 1000T” (page 18)
•“Telephony Manager” (page 20)
•“Element Manager” (page 22)
•“Accessing the system” (page 22)
IntroductionSend maintenance commands and receive system messages (status and
error messages) by communicating with the system through one or more
of the following input/output devices or management tools:
•TTY or VDT terminal as an input/output device
•PC running terminal emulation software
•RS-232-C compatible printer as an output-only device
•Telephony Manager (TM)
•Maintenance telephone as an input-only device
•Element Manager
See Communication Server 1000E Installation and Commissioning
(NN43041-310) for information about how to connect these devices and
management tools.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

16 Communicating with the system
System terminal access for CP PII and CP PIV Call Servers
Terminal Server
Because each CS 1000E Core Call Server provides only two ports for
serial devices, the Terminal Server is used to provide the necessary
standard serial ports for applications and devices that require them, such
as printers and Call Detail Recording (CDR). The Terminal Server is also
used to connect maintenance terminals and modems for support staff.
The Terminal Server provides an rlogin service that allows serial devices
to establish dedicated connections to pseudo TTY (PTY) ports on the Call
Server. (The Terminal Server therefore serves the same purpose as Serial
Data Interface [SDI] and Multipurpose Serial Data Link [MSDL] cards in
Large Systems.) You can telnet through the Terminal Server to individual
components on the ELAN subnet, and therefore obtain maintenance
access for each device. You can also access the Terminal Server from a
remote PC by dialing the onboard modem.
As the Terminal Server is configured to automatically log in to the active
Call Server upon startup, only one Terminal Server is required for each
Call Server pair.
While the Terminal Server is needed for serial port access to the Call
Server, it can also be optionally configured to provide access to Media
Gateway 1000T (MG 1000T) serial ports for maintenance purposes.
For more details on installing and configuring the Terminal Server,
see Communication Server 1000E Installation and Commissioning
(NN43041-310).
System terminal
When a system terminal is installed locally, it is typically connected to
a serial port on the Terminal Server. This ensures continued access to
the active Call Server. When a system terminal is installed at a remote
location, a modem and a telephone line are required between the system
terminal and the Terminal Server.

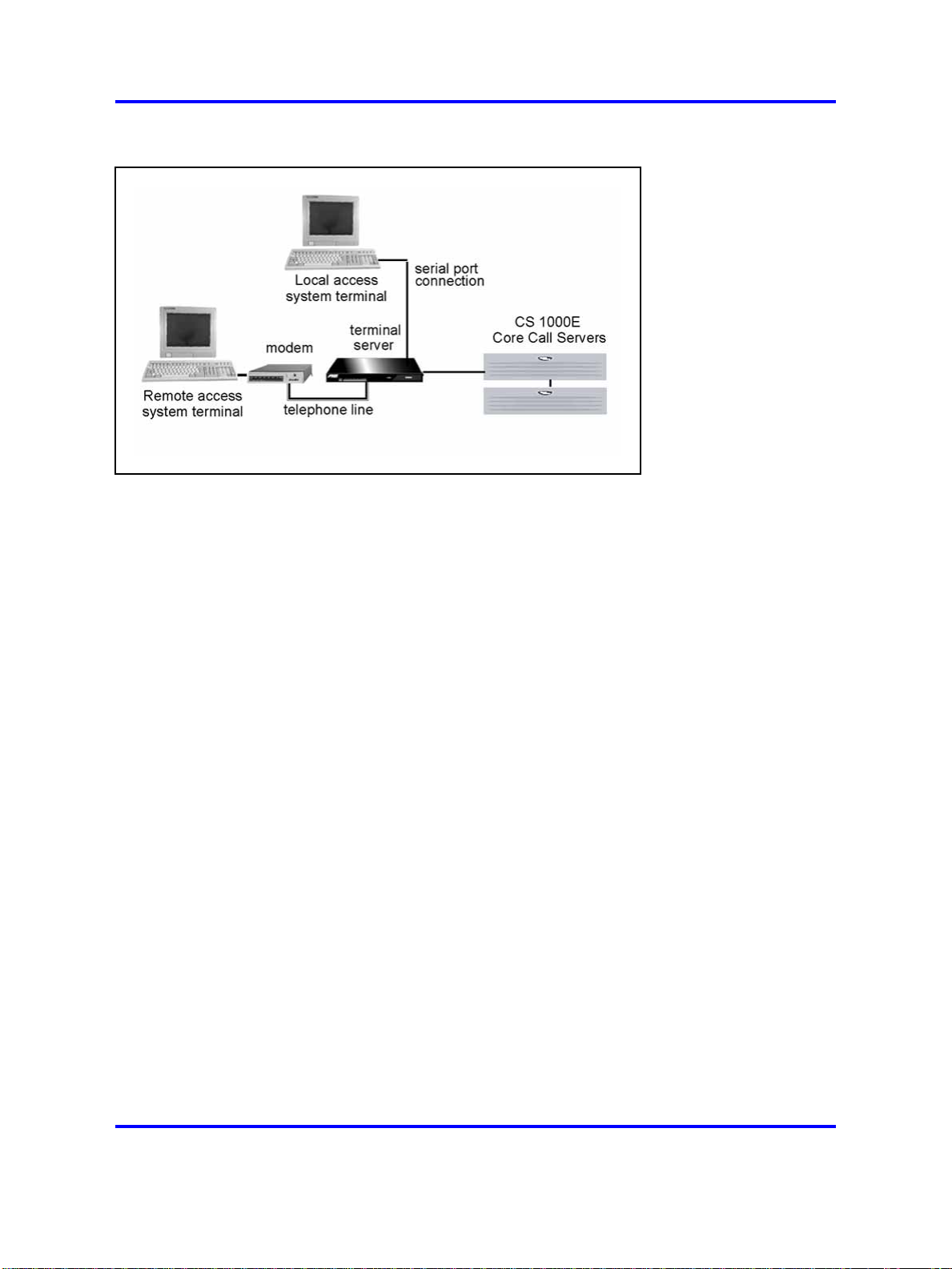

Figure 1 "CS 1000Elocal and remote access system terminals" (page
17) shows a typical system terminal configuration to the Call Servers.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

System terminal access for CP PII and CP PIV Call Servers 17
Figure 1
CS 1000Elocal and remote access system terminals
With the CS 1000E, a system terminal can also connect directly to the Call
Server, Signaling Server, Media Cards, and Media Gateway 1000T (MG
1000T).
When a system terminal is installed directly on the CP PII or CP PIV Call
Server, it connects to the com 1 port.
When a system terminal connection is made to a CP PM Call Server, the
com (SDI) port is routed through the backplane of the shelf to the 50 pin
MDF connector. The NTAK19EC cable ships with the CP PM that adapts
the 50 pin MDF to a 25 pin DB connector for connectivity. A 25 pin null
modem cable is required to adapt the SDI port to a typical PC serial port.
Port0 is used for maintenance access. Port1 is for an external modem
connection.
When a system terminal is installed on the Signaling Server, the rear serial
port is the primary port for maintenance and administration.
When a system terminal connects to an MG 1000E, it connects to the
Small System Controller (SSC) through an SDI port on the rear of the MG
1000E.
The Voice Gateway Media Card faceplate provides a female 8-pin
mini-DIN serial maintenance port for system terminal connection. The
maintenance port on the Shielded 50-pin to Serial/ELAN/TLAN Adapter
(L-Adapter) provides an alternative to the faceplate maintenance port. For
details, see the Voice Gateway Media Card installation in Communication
Server 1000E Installation and Commissioning (NN43041-310).
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

18 Communicating with the system
Remote TTY
If a Media Gateway is using an SSC, the three SDI ports available on the
SSC card can be used as additional system TTYs. All applications on SDI
ports of the Call Server SSC, with the exception of a Low Speed Link
(LSL), are supported on the SDI ports of the MG 1000ESSC.
The purpose of a remote TTY is to access the Call Server from an MG
1000E. However, TTYs configured on the Call Server cannot access the
MG 1000E.
If the MG 1000Eis configured to be survivable, the SDI ports of the MG
1000ESSC can be used during survival mode, and function as a TTY
connected to a standalone CS 1000. However, the TTY has no access
to either LD 43 or LD 143. In survival mode, the SDI ports of the MG
1000Ecannot be used to access the Call Server. Either port on the
Signaling Server can be used for remote access.
System terminal access for Media Gateway Controller
Each Media Gateway Controller (MGC) installed in a CS 1000E has 3
serial ports: SDI0, SDI1, and SDI2. SDI2 is not available during system
initialization and therefore cannot be used to access installation menus.
MGC serial ports can be used for local debug purposes or configured as
system terminals in LD 17. Unlike the Small System Controller (SSC) SDI
ports, all MGC SDI ports are configured through software. The MGC does
not have DIP switches. Furthermore, the remote SDI feature of the MGC
eliminates the need for a terminal server or TTY on a system with MGC
architecture.
See Communication Server 1000E Installation and Commissioning
(NN43041-310) for more detail about configuring MGC serial ports.

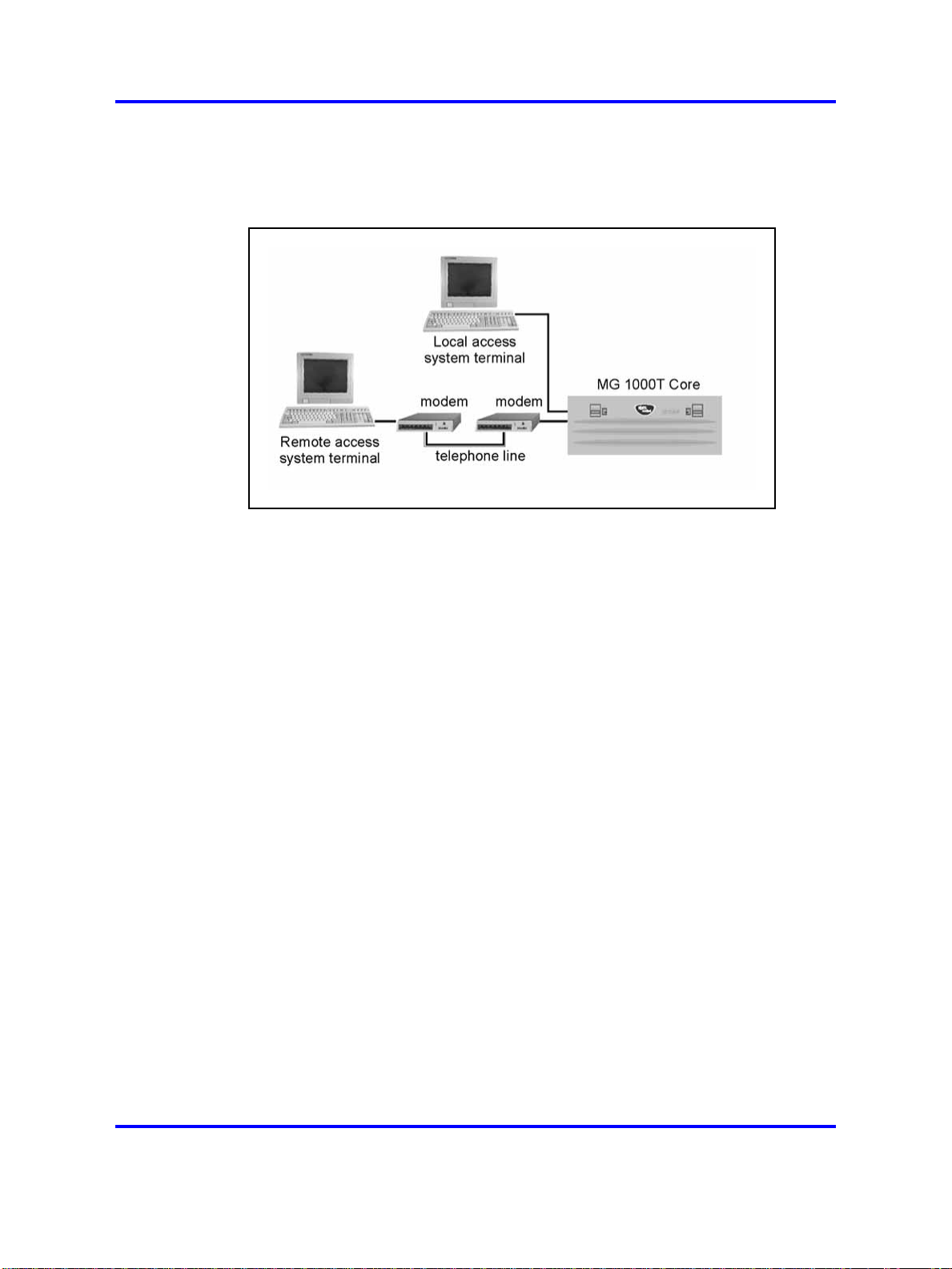

System terminal access for MG 1000T
When a system terminal is installed locally with an MG 1000T, it connects
to the SSC card on the MG 1000T Core through a rear SDI port. The
NTBK48 three-port cable can be connected to the SDI port to provide a
total of three serial connections.
When a system terminal is installed at a location that is remote from
the MG 1000T, modems and a telephone line are required between the
terminal and the SDI port.
System terminals connected to the MG 1000T cannot be used to access
the Call Server or MG 1000E.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

System terminal access for MG 1000T 19
Figure 2 "MG 1000T local and remote access system terminals" (page
19) shows a typical system terminal configuration to the MG 1000T Core.
Figure 2
MG 1000T local and remote access system terminals
With the MG 1000T platform, a system terminal can also connect to the
MG 1000T Expansion, Signaling Server, and Media Cards.
When a system terminal connects to an MG 1000T Expansion, it connects
to the SSC through a rear SDI port, in the same manner as the MG 1000T
Core.
When a system terminal is installed at a remote location, modems and a
telephone line are required between the terminal and the SDI port.
When a system terminal is installed on the Signaling Server, the rear serial
port is the primary port for maintenance and administration.
The Voice Gateway Media Card faceplate provides a female 8-pin
mini-DIN serial maintenance port for system terminal connection. The
maintenance port on the Shielded 50-pin to Serial/ELAN/TLAN Adapter
(L-Adapter) provides an alternative to the faceplate maintenance port. For
details, see the Voice Gateway Media Card installation in Communication
Server 1000E Installation and Commissioning (NN43041-310).
MG 1000E10BaseT port
The MG 1000ESSC 10BaseT Ethernet port defaults to the disabled state.
To use the 10BaseT Ethernet port, assign the port a unique IP address,
and enable the port from the Call Server. The MG 1000E10BaseT
Ethernet port can run in Normal or Survival mode. In Normal mode, the
MG 1000Edoes not provide access to maintenance or alarm management.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.

20 Communicating with the system
MG 1000Ecard slot assignment
The MG 1000Econtains physical card slots numbered 1 to 10. When
configuring the CS 1000 system, the physical card slot numbers must be
transposed to loop, shelf, card.
Connecting to the Media Card RS-232 maintenance port
Connect a serial cable either to the rear P2 connector or to the faceplate
connector, but not both. The card’s hardware cannot support two devices
connected at the same time.
The terminal device should be configured to 9600, 8, N, 1. Configure the
flow control to "None" or a similar setting.
If the hardware flow control is enabled, you see information from the card
but the card does not respond to any keystrokes. If this happens, ensure
the flow control is set to "None", close the session, and reopen it.
Telephony Manager
Telephony Manager (TM) is a management server used to configure and
maintain the system. It collects and processes alarms from the system,
collects call accounting and traffic data, and acts as a terminal server for
multiple devices.
CS 1000 systems can be accessed directly using TM. Each CS 1000
appears as a separate system in the network. The Call Server appears as
one of the following:
•Communication Server 1000M Multi Group CP PIV
•Communication Server 1000E Multi Group CP PIV
•Communication Server 1000M Multi Group CP PII
•Communication Server 1000E Multi Group CP PII
•Communication Server 1000E CP PM
TM provides alarm management and maintenance applications.
Alarm management
TM alarm management provides an alarm collection and a processing
center for multiple systems and devices. TM receives Simple Network
Management Protocol (SNMP) traps from the CS 1000 system, and stores
them in a circular log file on the TM Server. The TM Alarm Notification
application monitors incoming traps and notifies you of important events
and alarms.
Nortel Communication Server 1000
Communication Server 1000E Maintenance
NN43041-700 02.07 22 December 2009
Copyright © 2004-2009 Nortel Networks. All Rights Reserved.
.
