North-Vision Tech Prince-100B User manual

Fingertip Pulse Oximeter
I
North-vision Fingertip Pulse Oximeter
Prince-100B
User Manual
Version: 2.1
Issued by: Sara Lo Date: 5/11/2020
Reviewed by: Albert Huang Date: 5/11/2020
Document No: UM-OX1-201107-01
North-Vision Tech. Inc.
2460

Fingertip Pulse Oximeter
II
Instructions to User
Dear Users,
Thank you very much for purchasing our product.
Please read the manual very carefully before
using this device. If you do not follow these
instructions may cause measuring abnormality or
damage to the oximeter.
The manual is published in English and we have
the right to explain the Manual. No part of this
manual may be photocopied, reproduced or
translated into another language without the
permit from North-vision. We reserve the right to
improve and amend it at any time without prior
notice.
Notes
●The contents contained in this manual are
subject to change without notice.
● Information furnished by our company is
believed to be accurate and reliable. However,
no responsibility is assumed by us for its use,
or any infringements of patents or other rights
of third parties that may result from its use.

Fingertip Pulse Oximeter
III
Instructions for Safe Operations
Check the device to make sure that there is no
visible damage that may affect user’s safety
or measurement performance with regard to
sensors and clips. It is recommended that the
device should be inspected minimally once a
week. When there is obvious damage, stop
using the device.
Necessary maintenance must be performed
only by qualified service technicians. Users
are not permitted to maintain it by
themselves.
The oximeter cannot be used together with
devices not specified in User Manual.
Cautions
Explosive hazard—DO NOT use the oximeter
in environment with inflammable gas such as
some ignitable anesthetic agents.
DO NOT use the oximeter while the testee is
under MRI or CT scanning.

Fingertip Pulse Oximeter
IV
Warnings
An uncomfortable or painful feeling may
appear if using the oximeter continuously on
the same place for a long time, especially for
poor microcirculation patients. It is
recommended that the oximeter should not be
applied to the same location for longer than 2
hours. If any abnormal condition is found,
please change the position of oximeter.
DO NOT clip this device on edema or tender
tissue. 0 The light (the infrared light is
invisible) emitted from the device is harmful
to the eyes, so service technician or testee
should not stare at the light.
The local law must be followed when
disposing of the device.
Attentions
Keep the oximeter away from dust, vibration,
corrosive substances, explosive materials, high
temperature and moisture.
The device should be kept out of the reach of
children.

Fingertip Pulse Oximeter
V
If the oximeter gets wet, please stop using it
and do not resume operation until it is dry.
When it is carried from a cold environment to
a warm and humid environment, please do not
use it immediately.
DO NOT operate the button on the front panel
with sharp materials.
DO NOT use high temperature or high
pressure steam disinfection on the oximeter.
Refer to Chapter 9 for instructions of cleaning
and disinfection.

Fingertip Pulse Oximeter
VI
Table of Contents
1 Overview 1
1.1 Appearance 1
1.2 Name and Model 2
1.3 Feature List 2
1.4 Applications and Scope 3
1.5 Key of Symbols 3
2 Battery Installation 4
3 Quick Guide to Operation 5
4 Display Screen 5
5 Instructions For Operation 6
6 Technical Specifications 7
7 Accessories 10
8 Repair and Maintenance 10
8.1 Maintenance 10
8.2 Cleaning and Disinfecting Instruction 11
9 Troubleshooting 12

Fingertip Pulse Oximeter
- 1 -
1 Overview
1.1 Appearance
Figure 1 Front View
Figure 2 Rear View
Display
Display
Screen
Rubber
Cushions
Nameplate
Battery Cover
Hanging Hole

Fingertip Pulse Oximeter
- 2 -
1.2 Name and Model
Name: Fingertip Pulse Oximeter
Model: Prince-100B
1.3 Feature List
Model Function
Prince-100B
Display screen
OLED
SpO2
√
PR
√
PI
√
Plethysmogram
√
Auto on
√
Auto off
√
Alarm
√
Low voltage
indication
√
Multi-directional
display
√
Note: “√” means the oximeter has this
function, blank means the oximeter doesn’t
have this function. “Optional” indicates that
this function is optional.

Fingertip Pulse Oximeter
- 3 -
1.4 Applications and Scope
Fingertip Oximeter is intended for measuring
the pulse rate and functional oxygen
saturation (SpO2) through the testee’s body
especially on finger. It is designed by using
internal (build-in) sensor and applicable for
spot-check during no motion and well
perfusion condition and can be used in
homes, hospitals and clinics. The device is
used for adult.
1.5 Key of Symbols
Symbol
Description
%Spo2
Pulse oxygen saturation
PR
Pulse rate (beats per minute)
PI%
Perfusion Index(%)
Pulse intensity bargraph
Low battery voltage
With Type BF applied part
Warning ─See User Manual
SN
Serial number
Separate collection for this device.

Fingertip Pulse Oximeter
- 4 -
2 Battery Installation

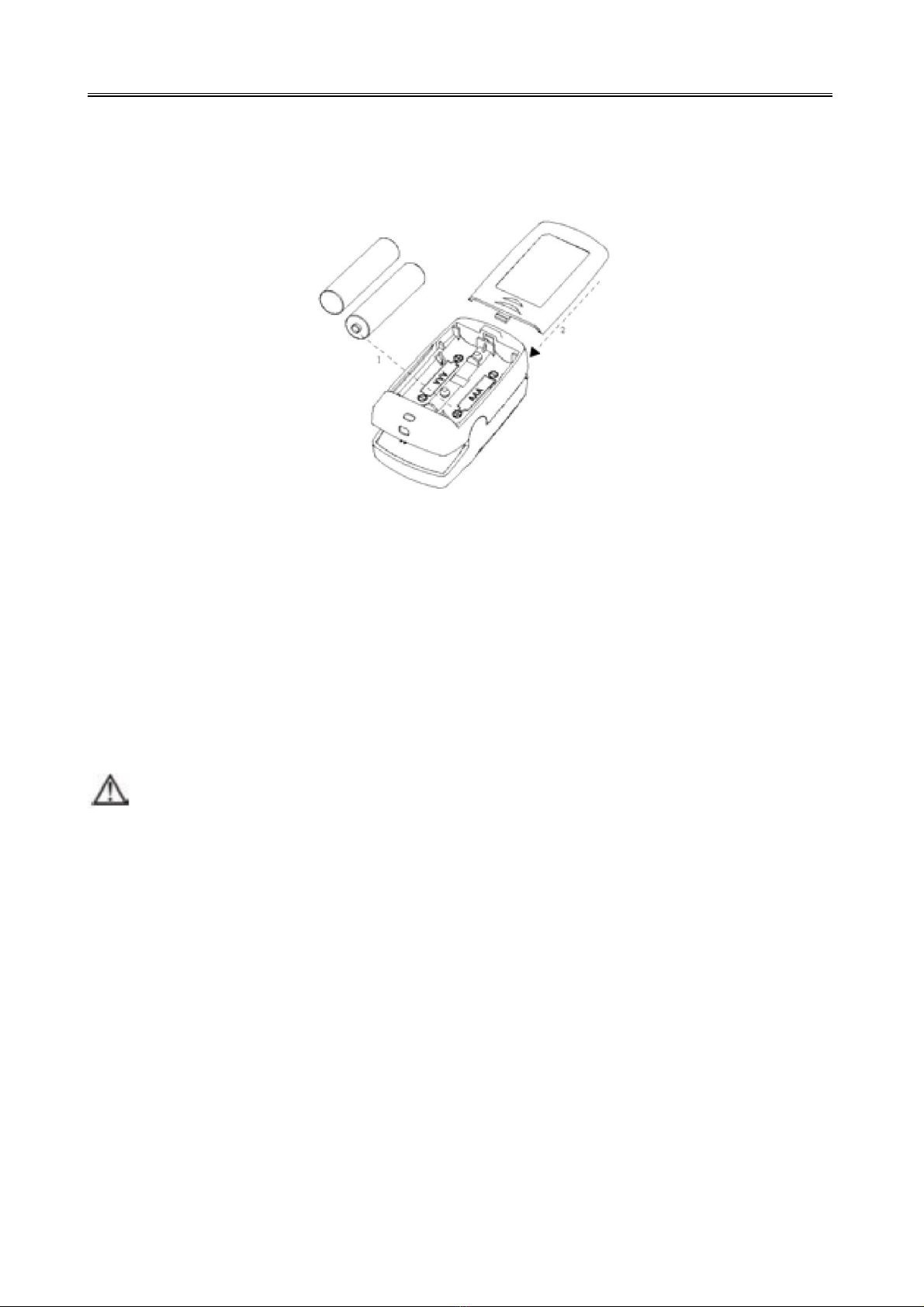

Figure 3 Battery Installation
1Refer to Figure 3, insert two AAA size
batteries into the battery compartment
properly.
2Replace the cover.
Please make sure that the batteries are
correctly installed, or incorrect installation
may cause the device not to work.

Fingertip Pulse Oximeter
- 5 -
3 Quick Guide to Operation
Step
Operation
1
Open the clip and put finger into the
rubber cushions of the clip (make sure the
finger is in the correct position), and then
clip the finger.
2
Wait 2 seconds, the oximeter will power
on automatically and start to measure.
3
Short time press Display Key to
changedisplay direction.
4
Longtime press Display Key to shift the
parameter display between PR and PI.
5
Remove your finger, the oximeter will
poweroff automatically.
4 Display Screen
Default measuring screen SpO2&PI display screen

Fingertip Pulse Oximeter
- 6 -
5 Instructions for Operation
•The finger should be put in properly and
correctly.
•Do not shake the finger. Keep at ease during
measurement.
•Do not put wet finger directly into sensor.
•Avoid placing the device on the same limb
which is wrapped with a cuff for blood
pressure measurement or during venous
infusion.
•Do not let anything block the emitting light
from device.
•Vigorous exercise and electrosurgical
device interference may affect the
measuring accuracy.
•The orientation-sensor works on the basis of
the gravity. A small movable metal ball is
built in the orientation-sensor for detecting
the orientation of the oximeter. When you
want to change the oximeter’s display
direction, if you move the oximeter too
slowly, the movable metal ball will also
move slowly because of not enough
acceleration. Consequently the response of

Fingertip Pulse Oximeter
- 7 -
orientation detection would be delayed.
Please move the oximeter with a bit of force
if you want to change the display
direction(such as bend/extend your finger
quickly), so an acceleration is provided to
the orientation-sensor for quick sensing the
orientation change.
•Using enamel or other makeup on the nail
may affect the accuracy of measurement.
6 Technical Specifications
A. Power supply requirement:
1.5V (AAA size) alkaline battery × 2
Supply voltage: 3VDC
Operating current: ≤40mA
Operation time:20hrs
B. SpO2 Parameter Specifications
Measuring range: 0%~100%
Accuracy: 70%~100% ±2digits
*NOTE: Arms is defined as
root-mean-square value of deviation
according to ISO 80601-2-61.
C. Pulse Rate Parameter Specifications
Measuring range: 30bpm~240bpm
D. Perfusion Index(PI) Display
Range: 0.4%~20%

Fingertip Pulse Oximeter
- 8 -
E. Preset alarm limits
SpO2 alarm: Lower limit: 90%
Pulse Rate alarm: Upper limit: 120bpm
Lower limit: 50bpm
F. Audible&visual alarm function
When measuring, if SpO2 value or pulse
rate value exceeds the preset alarm limit,
the device will alarm automatically and the
value which exceeds limit on the screen
will flash.
G. Environment requirement
Operating Temperature: 5°C ~40°C
Operating Humidity: 15%~93%
Atmospheric pressure: 700hPa~1060hPa
H. The performance under low perfusion
condition
The accuracy of SpO2 and PR
measurement still meet the precision
described above when the modulation
amplitude is as low as 0.6%.
I. Resistance to interference of surrounding
light:
The difference between the SpO2 value
measured in the condition of indoor natural
light and that of
darkroom is less than ±1%.

Fingertip Pulse Oximeter
- 9 -
J. Resistance to 50Hz /60Hz interference:
SpO2 and PR are precise which have been
tested by BIO-TEK pulse oximeter
simulator.
K.Dimensions:
66 mm (L) × 36 mm (W) × 33 mm (H)
Net Weight: 60g (including batteries)
L. Classification
The type of protection against electric
shock: Internally powered equipment.
The degree of protection against electric
shock: Type BF applied part.
The degree of protection against harmful
ingress of liquids: IP22.
Electro-Magnetic Compatibility: Group I,
Class B

Fingertip Pulse Oximeter
- 10 -
7 Accessories
A. A lanyard
B. Two batteries
C. A pouch
D. An External SpO2 Probe (optional)
E. A User Manual
F. Quality Certificate
8 Repair and Maintenance
8.1 Maintenance
The life of this device is 5 years. In order to
ensure its long service life, please pay
attention to the maintenance.
•Please change the batteries when the
low-voltage indicator lightens.
•Please clean the surface of the device before
using. Wipe the device with alcohol first,
and then let it air dry or wipe it dry.
Note：The accessories are subject to change.
Detailed items and quantity see the packing
List.

Fingertip Pulse Oximeter
- 11 -
•Please take out the batteries if the oximeter
will not be used for a long time.
•The best storage environment of the device
is -25ºC to 70ºC ambient temperature and
less than 93% relative humidity.
•The oximeter is calibrated in the factory
before sale, there is no need to calibrate it
during its life cycle. However, if it is
necessary to verify its accuracy routinely,
the user can do the verification by means of
SpO2 simulator, or it can be done by the
local third party test house.
High-pressure sterilization cannot be
used on the device.
Do not immerse the device in liquid.
It is recommended that the device should
be kept in a dry environment. Humidity
may reduce the life of the device, or even
damage it.
8.2 Cleaning and Disinfecting Instruction
•Surface-clean sensor with a soft cloth by
wetting with a solution such as 75%
isopropyl alcohol, if low-level disinfection

Fingertip Pulse Oximeter
- 12 -
is required, use a 1:10 bleach solution.
•Then surface-clean with a cloth saturated
with clean water and dry with a clean, soft
cloth. Caution: Do not sterilize by
irradiation steam, or ethylene oxide. Do not
use the sensor if it is damaged.

Fingertip Pulse Oximeter
- 13 -
9 Troubleshooting
Trouble
Possibe Reason
Solution
Display
direction
doesn’t
change or
changes
insensitively.
Maybe the
oximeter is not
used for a long
time, the movable
metal ball within
the
orientation-sensor
can not move
freely.
Please shake the
oximeter with a
certain force to
make the
movable metal
ball move freely.
If the problem
still exists, maybe
the
orientation-sensor
is not working
properly. Please
contact the local
service center.

Fingertip Pulse Oximeter
- 14 -
Trouble
Possible Reason
Solution
The
SpO2
and
Pulse
Rate
display
instable
1. The finger is not
Placed far
enough inside.
2. The finger is
shaking or the
patient is moving.
1. Place the
finger
correctly
inside and
try again.
2. Let the
patient keep
calm.
Can not
turn on
the
device
1. The batteries are
drained or almost
drained.
2. The batteries are
not inserted
properly.
3. The device is
malfunctioning.
1. Change
batteries.
2. Reinstall
batteries.
3. Please
contact the
local service
center.
No
display
1. The device will
power off
automatically
when it gets no
signal for 8
seconds.
2. The batteries are
almost drained.
1. Norrnal.
2. Change
batteries.
