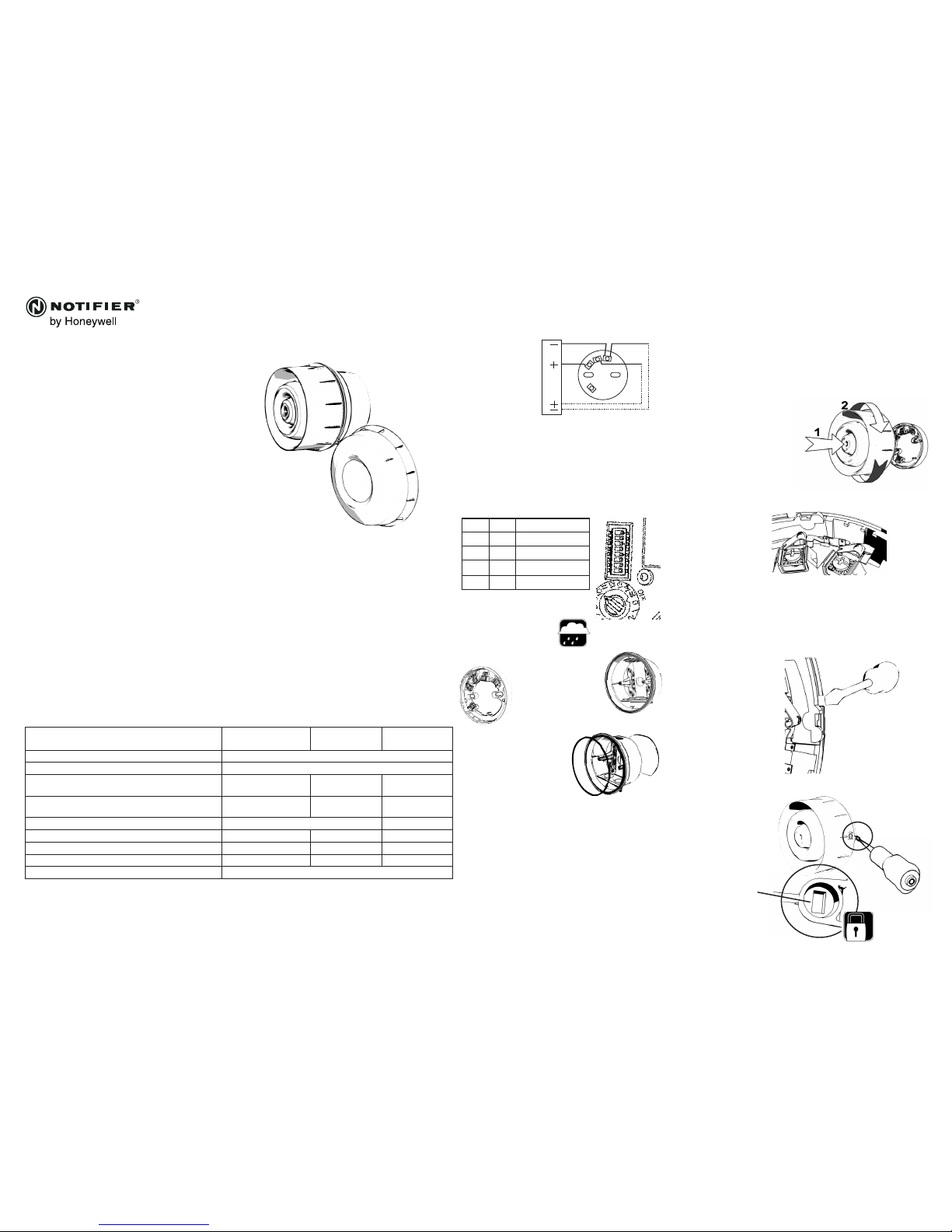

Notifier NFX-WS series User manual

MODELS
NFX-WS-** = Sounder Non Isolation
NFXI-WS-** = Sounder Isolation
NFX-WSF-** = Sounder Strobe Non Isolation
NFXI-WSF-** = Sounder Strobe Isolation
NFX-WF-** = Strobe Non Isolation
NFXI-WF-** = Strobe Isolation
** = Denotes colour
GENERAL
The range of intelligent AV devices are designed to be connected to analogue addressable re
alarm systems.
These devices must only be connected to control panels that use a compatible proprietary
analogue addressable communication protocol.
These devices receive their power from the loop, and can be controlled via the communication
protocol(s).
The sounders have three volume levels and 32 tone sets. Models (NFXI-WS-**, NFXI-WSF-**,
NFXI-WF-**) containing the character ‘I’ prior to the Customer ID code include in built isolation
providing short circuit protection of the loop.
Up to 159 addresses are available. (consult the panel instructions to conrm compatibility)
These are selected via the two rotary switches. The ‘tens’ digits go from 0 to 15 and the ‘units’
from 0 to 9.
Note: if the control equipment is not capable of taking more than 99 module addresses, a fault
condition will be generated for every address over 99.
SPECIFICATIONS
Operating temperature range -25 to +70oC
Relative humidity up to 93% (± 3%) - non condensing
Terminal Size 2.5mm2- maximum
For isolator specication refer to document SP04-2289 available on request
INSTALLATION INSTRUCTIONS FOR WALL MOUNTED LOOP POWERED AD-
DRESSABLE SOUNDERS, SOUNDER STROBES AND STROBE ONLY
NFX-WS-**
NFXI-WS-**
NFX-WSF-**
NFXI-WSF-**
NFX-WF-**
NFXI-WF-**
Signaling Line Supply Voltage (non isolation) 15 to 32VDC (24VDC typical)
Signaling Line Supply Voltage (isolation) 15 to 29VDC (24VDC typical)
Max current consumption (non isolation) (High Volume
Tone 8 @24V) 5.58mA 8.86mA N/A
Max current consumption (isolation) (High Volume Tone
8 @24V) 5.77mA 9.05mA N/A
Sound Output to EN54-3 (High Volume Tone 8 @24V) 95dB(A) ± 3dB N/A
Beacon ash rate N/A 1Hz 1Hz
Max current consumption (non isolation) NFX*-WF-** N/A N/A 3.28mA
Max current consumption (isolation) NFX*-WF-** N/A N/A 3.47mA
Quiescent Current 450uA
TERMINAL
CONNECTIONS
VOLUME SETTINGS
Volume setting is selected by SW6
and SW7 of the 8 way DIP switch. The
appropriate tone set is selected by SW1 to
SW5 of the 8 way DIP switch (see table 1).
The 2nd stage tone (related to the 1st stage
tone) is controlled by the re panel via the
protocol.
BASES/IP RATING
B501AP Base(IP 21C)
Deep Base(IP 44)
Waterproof Base(IP 65)
INSTALLATION
Afx B501AP base to a suitably at wall.
Terminate the cable to the appropriate
terminals. For surface mount wiring the cable
can enter the B501AP base via the break
outs provided. Select
the appropriate Tone and
Volume settings via the
DIP switch.
Locate the main
assembly on to the base
by rotating until it locks
into place.
CONTINUITY
SPRING
The B501AP base
incorporates a
continuity spring
between terminals
2 and 4. This allows the continuity of the eld
wiring to be checked without the need for the
device to be present. Inserting the device will
disengage the spring. Removing the device
will close the loop.
ANTI TAMPER LOCK
The B501AP base
also includes a tamper
resistant feature
that when activated
prevents removal of
the unit without the
use of a special tool.
This method is
consistent with the
anti tamper feature
across all devices
using this base. This
prevents the device
being turned to
enable its release.
SW6 SW7 Volume Setting
OFF OFF HIGH
OFF ON MEDIUM
ON OFF LOW
ON ON LOW
Breakout
If the waterproof option is required then the
wall gasket must be tted behind the deep
base, and the sealing o-ring tted after at-
taching the low prole base.
1
2
3
4
+
_
+
_

D1005 Issue 2
ADDRESS SETTING
To set one of the 159 available addresses for the device
use the two rotary switches located either side of the dip
switch unit. The ‘tens’ digits go from 0 to 15 and the ‘units’
from 0 to 9.
Sounder Output data, in accordance with EN54-3, is available on Document Ref: D 1022.
Note: For CPD Data on all relevant devices please request D974
We reserve the right to amend the content of this document without prior notice.

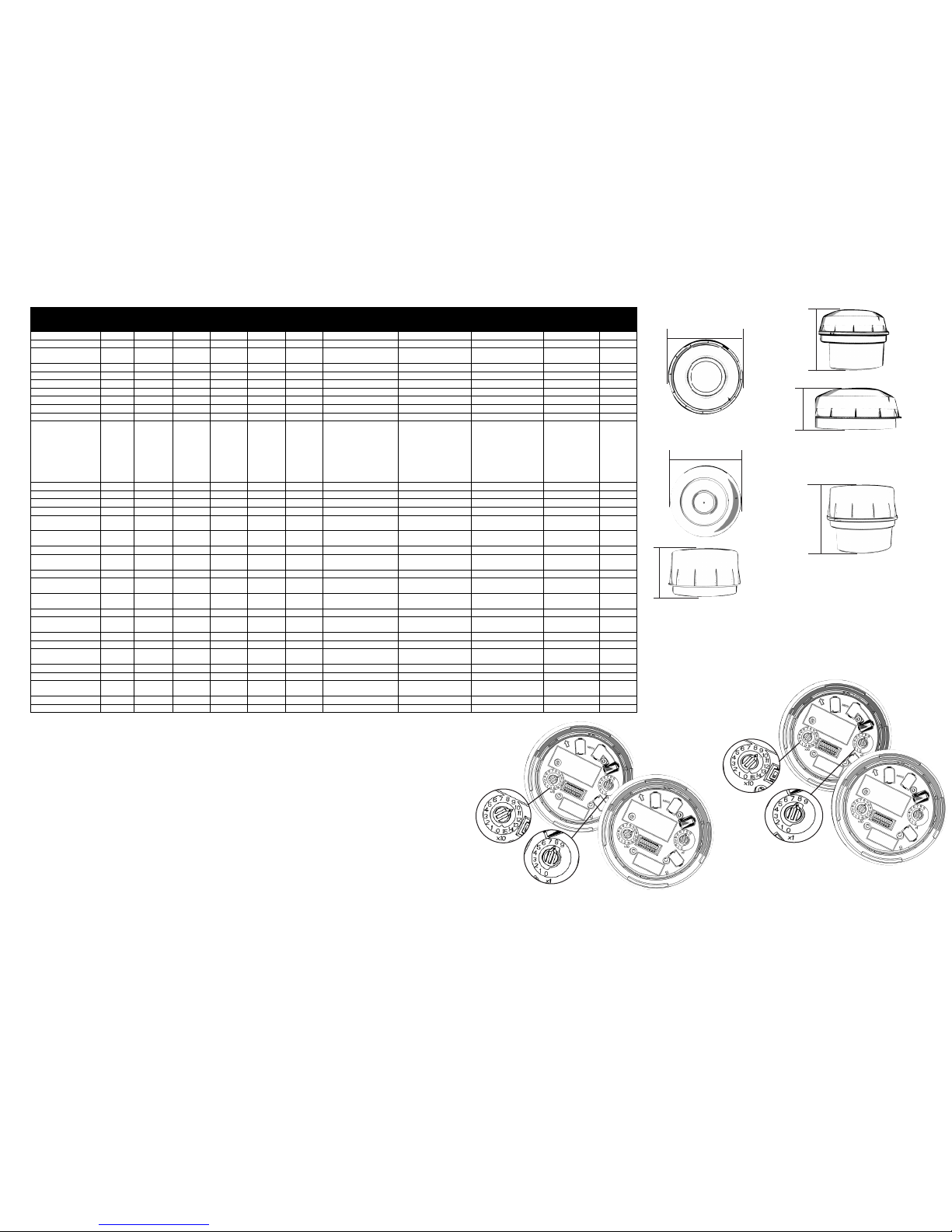

Table 1 - VERSION 8
KAC ALARM COMPANY LIMITED, KAC House, Thornhill Road, Redditch, Worcestershire, England. B98 9ND. www.kac.co.uk
DIMENSIONS
Strobe
Sounder/SounderStrobe
121mm
121mm
106mm
62mm
51mm
94mm
DIP setting Nominal 2nd Stage
O=Off/1=On No Pattern Frequency (WSO-WSS) (WSO-WSS) (WSO-WSS) Switching Frequency Description Market Standard Tone
SW 1,2,3,4,5 High Medium Low
0,0,0,0,0 1
Alternating 554/440 6.0/9.3 2.5/5.8 1.2/4.5 2Hz (100ms/400ms) French Fire Sound AFNOR France NFS 32-001 7
1,0,0,0,0 2
Alternating 800/970 5.4/8.7 2.9/6.2 1.4/4.7 1Hz UK BS5839 Pt1 8
0,1,0,0,0 3
Alternating 800/970 5.3/8.6 2.8/6.1 1.4/4.7 2Hz Alternating tone telecoms UK BS5839 Pt1, FP1063.1 8
1,1,0,0,0 4
Alternating 2400/2900 5.3/8.6 2.6/5.9 1.7/5.0 3Hz Alternating High Frequency 10
0,0,1,0,0 5
Alternating 2500/3100 6.7/10.0 2.6/5.9 1.8/5.1 2Hz Security Alarm 10
1,0,1,0,0 6
Alternating 988/645 5.9/9.2 2.5/5.8 1.4/4.7 2Hz 8
0,1,1,0,0 7
Continuous 660 5.0/8.3 2.5/5.8 1.2/4.7 All clear Sweden 1
1,1,1,0,0 8
Continuous 970 4.8/8.1 2.3/5.6 1.4/4.7 BS 5839 Pt 1 2
0,0,0,1,0 9
Continuous 1200 4.8/8.1 2.2/5.5 1.5/4.8 2
1,0,0,1,0 10
Continuous 2850 5.2/8.5 2.7/6.0 1.5/4.8 HF Continuous 4
0,1,0,1,0 11
Sweep 150-1000 5.5/8.8 2.5/5.8 1.4/4.7
Rising from 150Hz to 1000Hz in
10 seconds, then 40 seconds at
1000Hz, then falling from
1000Hz to 150Hz in 10
seconds, then 20 seconds at
150Hz, then repeating. Total
period 80 seconds.
“Gasalarm” Tone 22
1,1,0,1,0 12 Intermittent 420
6.2/9.5 2.6/5.9 1.1/4.4
0.625s on, 0.625 sec off AS2220 alert tone NZ, Aus AS2220
13
0,0,1,1,0 13 Sweep 500-1200
10.4/13.7 3.6/6.9 1.7/5.0
0.25 sec off, 3.75 sec on AS2220 evacuate tone NZ, Aus AS2220
12
1,0,1,1,0 14
Intermittent 660 5.0/8.3 2.4/5.7 1.2/4.5 3.33Hz 150ms on, 150ms off Swedish alarm tone Sweden 7
0,1,1,1,0 15
Intermittent 970 4.8/8.1 2.3/5.6 1.4/4.7 0.8Hz 0.25s on, 1s off Intermittent Tone UK BS 5839 Pt 1 8
1,1,1,1,0 16
Intermittent 970 4.8/8.1 2.3/5.6 1.4/4.7 0.5Hz 1s on, 1s off Back up alarm LF & BS5839
Pt 1 UK BS5839 Pt 1 8
0,0,0,0,1 17
Intermittent 2850 5.2/8.5 2.7/6.0 1.5/4.8 1Hz Back up alarm HF & BS5839
Pt 1 2nd tone UK BS5839 Pt 1 10
1,0,0,0,1 18
Intermittent 970 4.8/8.1 2.3/5.6 1.4/4.7 1Hz 500ms on, 500ms off LF BS5839 Pt 1 UK BS5839 Pt 1 8
0,1,0,0,1 19
Intermittent 950 4.3/7.6 2.1/5.4 1.3/4.6 0.22Hz (0.5s on, 0.5s off) rptx3,
1.5s off Australia ISO8201 12
1,1,0,0,1 20
Continuous 800 5.2/8.5 2.9/6.2 1.3/4.6 BS 5839 Pt 1 22
0,0,1,0,1 21
Sweep 400-1200 11.1/14.4 3.1/6.4 1.6/4.9 (0.5s on, 0.5s off)*3, 1.5s off Temporal 3 Evacuation tone Australia ISO8201 Temporal 3 12
1,0,1,0,1 22
Sweep 1200 - 500 10.3/13.6 3.3/6.6 1.7/5.0 0.99Hz 1s on, 0.01s off Evacuate, DIN tone & PFEER Germany DIN, PFEER 20
0,1,1,0,1 23
Sweep 2400 - 2850 5.0/8.3 2.6/5.9 1.9/5.2 7Hz Fast sweep VdS Germany VdS 10
1,1,1,0,1 24
Sweep 500 - 1200 10.3/13.6 3.5/6.8 1.7/5.0 (0.5s off, 3.5s on) Slow whoop evacuate
Netherlands Netherlands NEN 2575 8
0,0,0,1,1 25
Sweep 800 - 970 4.0/7.3 2.3/5.6 1.3/4.6 50Hz LF Buzz BS5839 Pt 1 UK BS5839 Pt 1 8
1,0,0,1,1 26
Sweep 800 - 970 4.5/7.8 2.5/5.8 1.4/4.7 7Hz Fast sweep LF BS5839 Pt 1 UK BS5839 Pt 1 8
0,1,0,1,1 27
Sweep 800 - 970 5.1/8.4 2.8/6.1 1.4/4.7 1Hz Medium sweep LF, BS5839 Pt
1, VdS UK, Germany BS5839 Pt 1 VdS 8
1,1,0,1,1 28
Sweep 2400 – 2850 4.9/8.2 2.6/5.9 1.8/5.1 50Hz High frequency buzz 10
0,0,1,1,1 29
Sweep 500 – 1000 5.4/8.7 2.5/5.8 1.3/4.6 7Hz Fast whoop 8
1,0,1,1,1 30
Sweep 500 – 1200 –
500 10.1/13.4 3.4/6.7 1.7/5.0 0.166Hz rise 1s, stable 4s, fall 1s Siren style tone 8
0,1,1,1,1 31
Sweep 800 – 1000 5.3/8.6 2.7/6.0 1.4/4.7 2Hz 8
1,1,1,1,1 32
Sweep 2400 - 2850 5.2/8.5 2.6/5.9 1.9/5.2 1Hz 10
Typical current consumption (mA)
Example B (Address setting 108)
Non-Isolated
Isolated
Note:- For Isolated variants add 0.19mA to high,
medium, low values above.
Isolated
Non-Isolated
Example A (Address setting 98)
