SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
MODELS 161 & 162
INFRARED
BULB HEATERS
Silentwarmthandthechoiceofaddedventilationin
a compact design.
FEATURES
•White-white polymeric grille
•Sturdy steel housing
•Adjustable mounting brackets that span up to 24"
•Housing can be adjusted vertically after ceiling is finished
•Uses 250W BR40-size infrared bulb (not included)
•May be used with the following Broan controls:
Model 59W/V, 60-Minute Time Control
Model 61W/V, 15-Minute Time Control
Model 63W/V, 60-Minute Time Control w/ Toggle Switch
Model 64W/V, Heater-Fan Control w/Off Delay
Model 68W/V, Two-Function Control (Model 162 only)

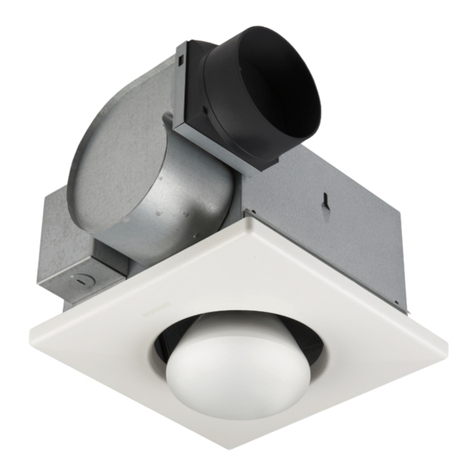

MODEL 162 BULB HEATER/FAN ONLY:
•Plug-in, permanently lubricated motor
•Quiet, polymeric blower wheel
•Polymeric damper/duct connector with 1-5/8" long tapered
sleeve and no metallic clatter
•Heat and Vent functions may be controlled separately or
in combination
•Model 162 suitable for use in insulated ceilings (Type I.C.)
•Model 162H: Rough-in housing for Model 162F. Packed
4 per carton.
•Model 162F: Finish assembly for Model 162H. Packed 4
per carton.
SPECIFICATIONS
50F 99041436K
Model 162Model 161
MODEL VOLTS AMPS WATTS* SONES CFM DUCT
161 120 2.1 250** ---- ---- ----
162 120 2.5 300** 3.5 70 4" Round
* Total Connected Load
** BR40-size Infrared Bulbs. Use house wiring rated 75°C min. for Model
161, 60°C min. for Model 162.
TYPICALSPECIFICATION
Bulb heater shall be Broan Model 161 (Broan Model 162).
Heater shall have corrosion resistant steel housing and
adjustable mounting brackets.
Unit must use a 250W BR40-size infrared bulb. Bulb Heater
to be U.L. Listed.
MODEL 162 BULB HEATER/FAN ONLY:
Motor assembly to be removable and permanently lubricated.
Non-metallic damper/duct connector to be included.
Heater and ventilator to operate separately (or in combination).
Air delivery shall be no less than 70 CFM and sound level no
greater than 3.5 Sones. All air and sound ratings shall be
certified by HVI. Model 162 suitable for use in insulated
ceilings (Type I.C.)
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home Ventilating
Institute, for off-the-shelf products, as they are available to
consumers. Product performance is rated at 0.1 in. static
pressure, based on tests conducted in AMCA’s state-of-the-art
test laboratory. Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
