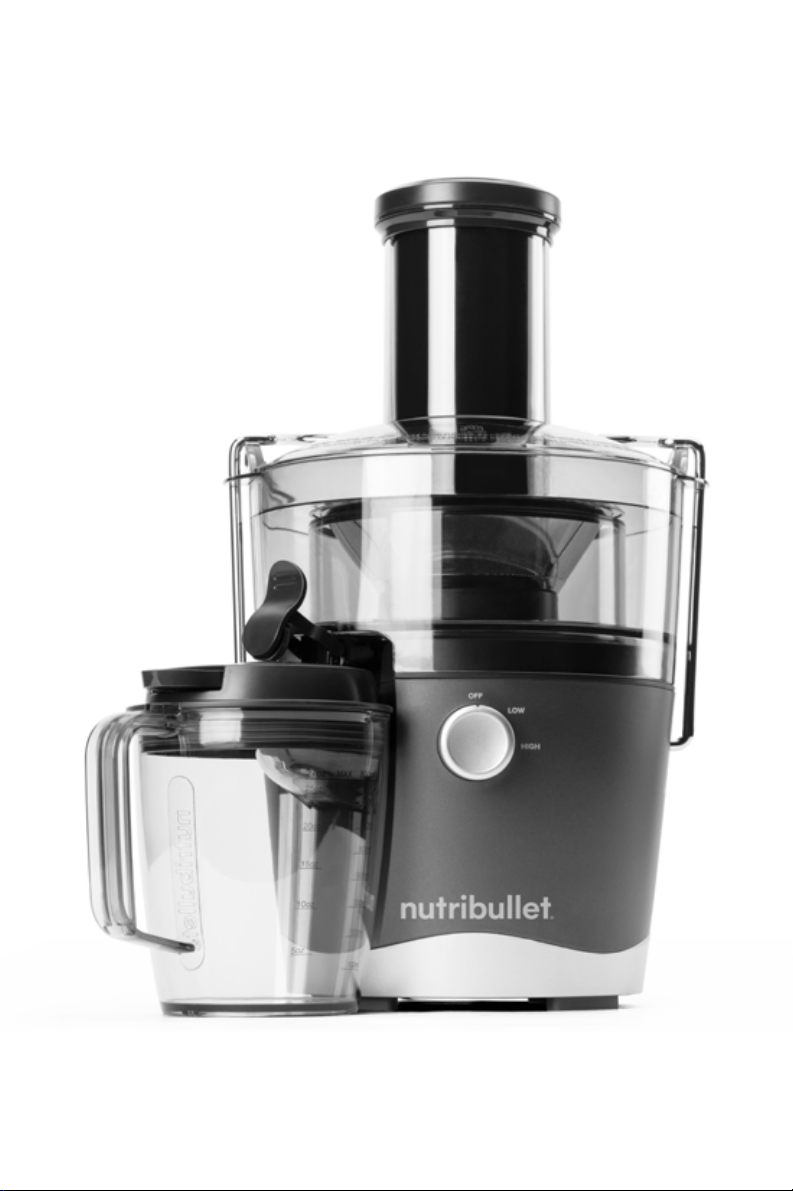

NUTRIBULLET Juicer User manual

User guide.

3
GENERAL SAFETY
INFORMATION
• This juicer system has sharp
blades and moving parts,
and is NOT intended for use
by children or persons with
reduced physical, sensory,
or mental capabilities,
or who lack experience
and knowledge of its safe
operation. Such persons
require close supervision
and thorough instruction
on its proper use and safe
operation. Close supervision is
necessary when any appliance
is used by or near children.
Children should be supervised
to ensure that they do not play
with the appliance.
• To protect against fire,
electrical shock and injury to
persons, do not immerse the
juicer, Motor Base, cord or plug
in water or any other liquid.
• Turn the juicer OFF, then
unplug from the outlet when
not in use, before assembling or
disassembling parts and before
Important safeguards.
Warning! To avoid the risk of serious injury, carefully read all
instructions before operating your NutriBullet Juicer™. When using
any electrical appliance, basic safety precautions should always be
observed, including the following important information.
Save these instructions!
FOR HOUSEHOLD USE ONLY
cleaning. To unplug, grasp the
plug and pull from the outlet.
Never pull from the power cord.
AVOID CONTACT WITH
MOVING PARTS
• Regularly inspect the power
cord, plug and the actual
juicer for any damage.
• Do not operate this or any
appliance with a damaged
cord or plug or after the
appliance malfunctions, or is
dropped or damaged in any
manner. Contact NutriBullet®
Customer Service for
assistance at 1 [phone].
• The use of attachments not
recommended or sold by
NutriBullet®may cause fire,
electric shock or injury.
• This juicer is for household
use only. Do not use this juicer
for anything other than its
intended use. Do not use in
moving vehicles or boats. Do
not use outdoors. Misuse may
cause injury.
!

4
• Do not let the power cord
hang over the edge of a table
or counter-top.
• Do not let the power cord
touch hot surfaces, such as a
stove or let it become tangled
or knotted.
• Always make sure the pulp
basin cover is clamped
securely in place (with locking
handle) before the motor is
turned on. Do not unfasten
the clamps (locking handle)
while the juicer is in operation.
Always ensure the juicer
is turned OFF after
each use. Before
disassembling, make sure
the sieve has stopped
rotating and the motor
has completely stopped.
• Do not push food into the
feed chute with your fingers
or utensils. Always use the
food pusher provided. Do not
place your hand or fingers
into the feed chute when it is
attached to the juicer. If food
becomes lodged in the feed
chute, use the food pusher
provided or another piece
of fruit or vegetable to push
it down. Turn the motor o
and ensure that all moving
parts have stopped before
disassembling the juicer to
remove the remaining pulp.
• Do not use the juicer if the
rotating sieve is damaged.
• Do not use the juicer without
the pulp basin and basin
lid attached to the motor
base. Please see assembly
instructions for proper
placement.
• Do not modify the plug in any
way. This juicer has a polarized
plug. To reduce the risk of
electric shock, this plug will fit
in a polarized outlet only one
way. If the plug does not fit fully
in the outlet, reverse the plug.
If it still does not fit, contact a
qualified electrician.
ADDITIONAL
SAFEGUARDS
Remove and safely
discard any packaging
material or promotional
labels before using the
juicer for the first time.
To eliminate a choking
hazard for young children,
remove and safely discard
the protective cover fitted to
the power plug of this juicer.
Do not touch the small
cutting blades/teeth on the
bottom/ base of the sieve.
BLADES ARE SHARP! HANDLE
WITH EXTREME CARE!
Keep fingers away from the
sharp blade in the feed chute.
WARNING!

5
Always make sure the juicer
is properly and completely
assembled before
connecting to the power
outlet and operating.
Ensure that the surface
where the appliance
operates is stable, level,
clean and dry.
• Vibration can occur during
normal operation.
• If extreme vibration occurs,
discontinue use and call
Customer Service.
• If the juicer leaks or there
is a spill under or around
the juicer, or onto the juicer
itself, clean and dry before
continuing use.
• When using this juicer, make
sure there is adequate air
space around and under it for
proper air circulation.
This juicer is only
designed to juice fruits
and vegetables. Please
refer to the juicing guide
to determine the correct
speed for the fruits and
vegetables selected for
juicing. Do not use any
frozen fruits or vegetables.
• Hard fruits and vegetables
will put excess strain onto
the motor if a low speed
is selected.
• Remove rind from all citrus
fruits before juicing.
• Do not juice stone fruit unless
pits of the seed stone has
been removed.
Do not leave the appliance
unattended when in use.
Keep hands, fingers, hair,
clothing as well as spatulas and
other utensils away from the
appliance during operation.
Keep the juicer clean. Refer to
care and cleaning section for
further information.
Any maintenance other
than cleaning should be
performed by an authorized
electrician. Do not attempt
to repair or service the juicer,
contact Customer Service for
assistance at 1 [phone].
If any of the instructions or
warnings are not understood
please contact Customer
Service for assistance at
1 [phone].
WARNING!
!

6

7
Contents.
Thank you for purchasing the NutriBullet Juicer™.
03 Important safeguards
08 What’s included
09 Assembly guide
10 Assembly & use
12 Usage instructions
15 Control dial
16 Juicing tips
20 Disassembly
22 Care instructions
22 Replacement parts
22 How to store
23 NutriBullet Juicer™
one-year limited warranty
26 Warranty registration

8
What’s included.
800 WATT MOTOR
BASE WITH
LOCKING HANDLE
PULP BASIN COVER
WITH 3" FEED CHUTE
FOOD PUSHER
15L PULP BASIN WITH
NODRIP SPOUT
STAINLESS STEEL SIEVE
CLEANING BRUSH
27 OZ JUICE PITCHER
JUICE PITCHER LID
WITH FROTH SEPARATOR

9
Assembly guide.
food pusher
3” feed chute
locking handle
basin cover
1.5L pulp basin
stainless steel
sieve (inside basin)
juice pitcher lid
no-drip spout
27oz juice
pitcher
dual-speed
control dial
motor base

10
Assembly.
1Place the Motor Base on
a dry, level counter top.
Ensure the dial is set to the
"OFF" position and the unit
is unplugged.
2Place the Pulp Basin on top
of the Motor Base. Align the
Pulp Basin with the Motor
Base so that the spout is
aligned with the dimpled
side of the Motor Base.
3Align the Sieve with the
motor drive coupling and
push down until it clicks into
place. Handle the Sieve
by gripping the top edges
being careful not touch the
sharp teeth on the base of
the Sieve. Ensure the Sieve
is properly seated in place
and securely inside of the
Pulp Basin.
4Place the Basin Cover
over the Sieve and Pulp
Basin. The side “ears” on
the Basin Cover should
align with the “ears” on the
sides of the Pulp Basin.

11

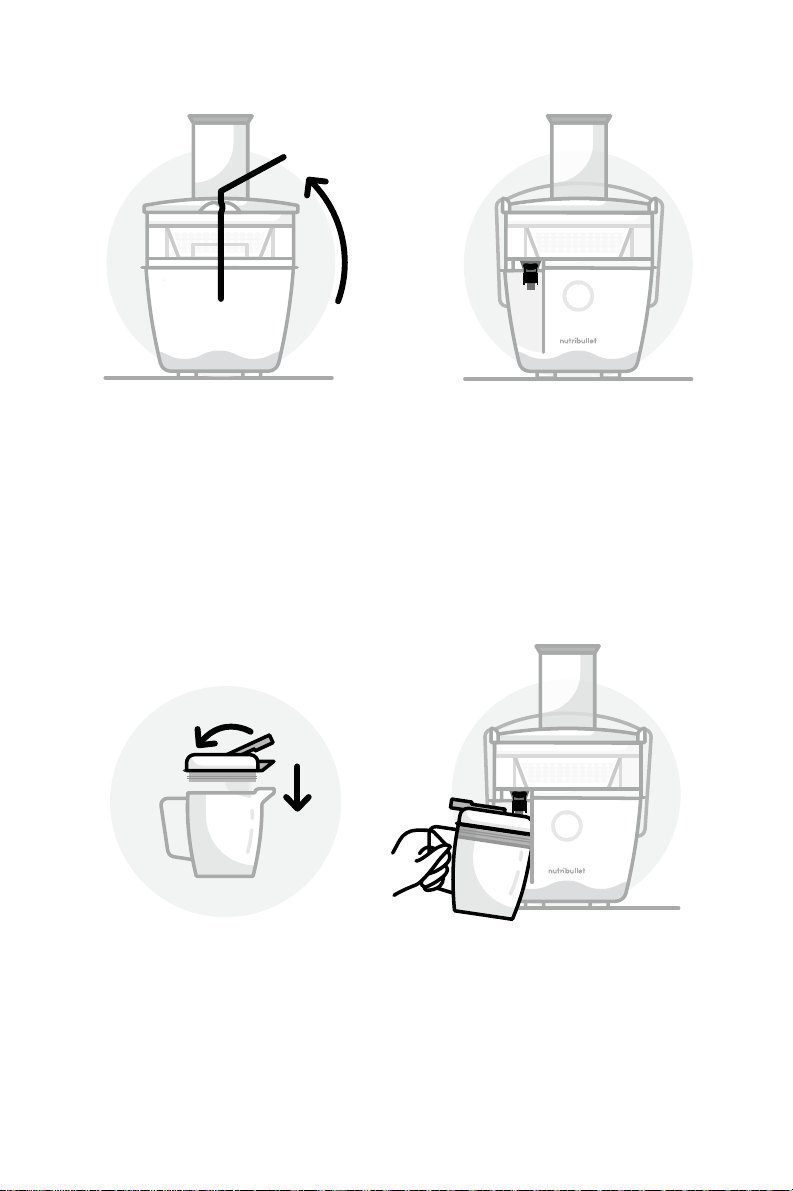

5Raise the Locking Handle
and move it into the "ears" on
each side of the Basin Cover.
The Locking Handle should
be in a vertical position and
locked into place.
NOTE: if the Locking Handle is not
securely in place, the juicer will
not power on.
6Swing the No-Drip Spout
cover up vertically, so that
it is no longer covering the
juice spout.
7Place the Juice Pitcher
Lid on top of the Juice
Pitcher and open the
locking lid latch.
8Slightly angle the Juice
Pitcher and place it under
the juice spout. Align the
spout with the hole in the
Juice Pitcher Lid and level
out the Juice PitcherIt will
fit snuggly into the spout to
hold it in place.

12
Usage instructions.

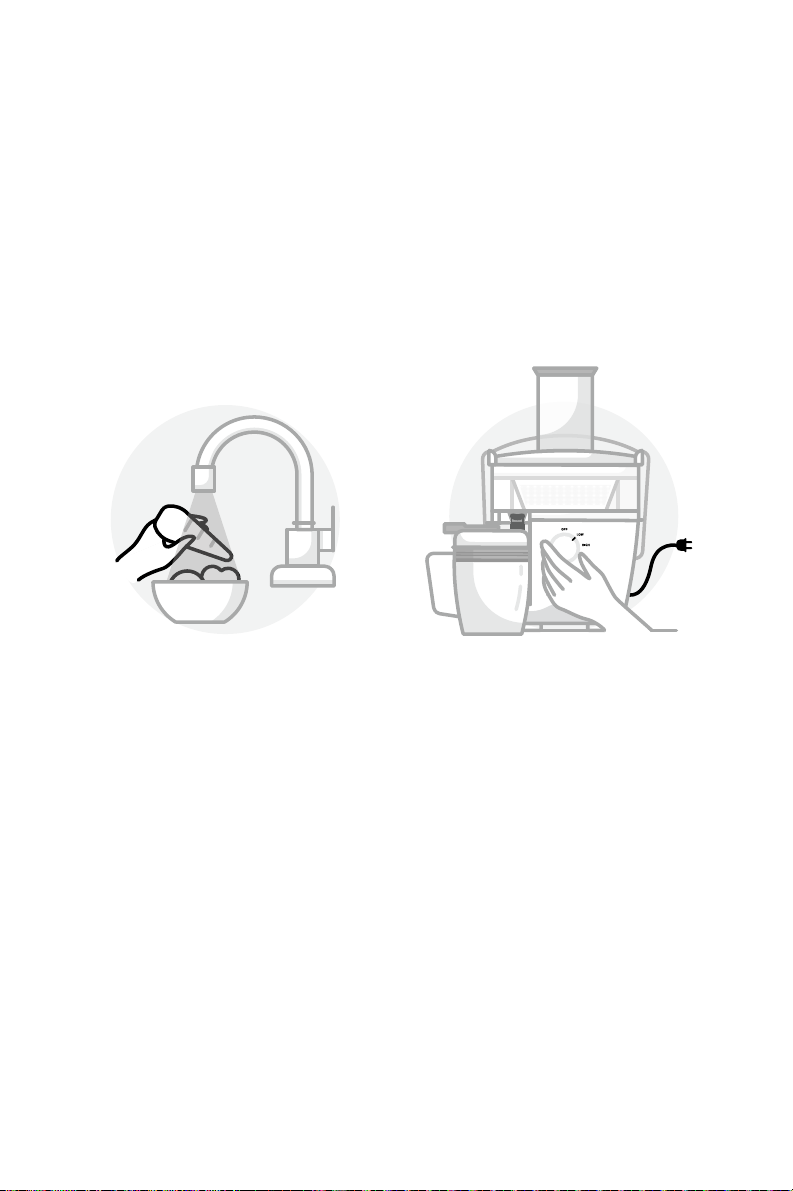

1Gather all of your desired
ingredients and wash them.
Prepare the ingredients
to be juiced by cutting,
skinning, or removing the
rind, stems, or stone seeds.
2After the juicer is fully
assembled, plug the power
cord into an outlet. Use
the Dual-Speed Control
Dial to select a speed to
begin juicing. You can
toggle between speeds as
desired depending on the
type of produce. (Refer to
the chart on page 16 for
recommended speeds for
dierent types of produce).

13
4Juice will begin to flow out
of the spout and into the
Juice Pitcher, while the
pulp will be separated and
stored in the Pulp Basin.
3While the motor is running,
begin gently guiding your
ingredients into the feed
chute using the Food Pusher.
NOTE: Do not use excess force or
speed when pushing food down
with the Food Pusher, as it will not
allow for maximum juice yield.
WARNING: Never use hands/
fingers or other tools to push food
down the feed chute into the Sieve.
Only the Food Pusher should be
used to push down ingredients.

14

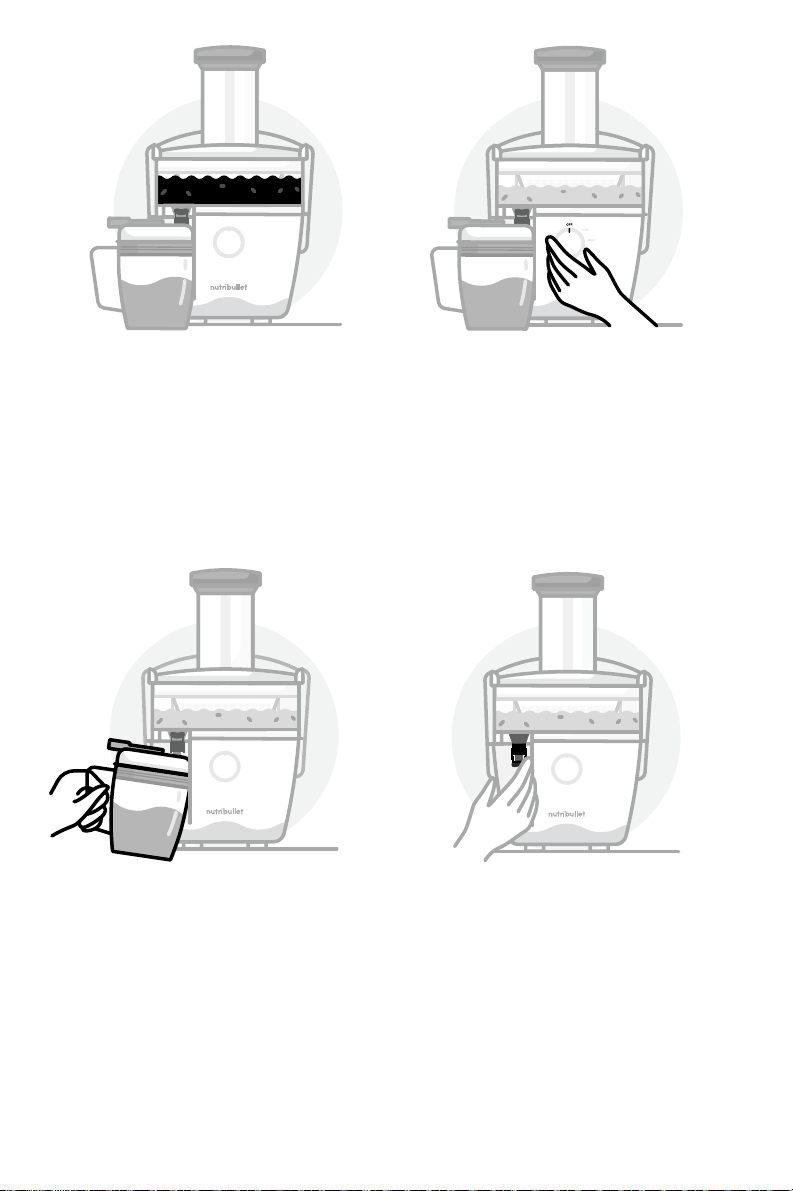

6Always be sure to turn the
Dual-Speed Control Dial
to the "OFF" position and
wait for the Sieve to stop
spinning before removing
the Juice Pitcher from under
the spout. Unplug the unit
after each use.
5When the Pulp Basin is
completely full, it must
be emptied before you
continue juicing. See
disassembly instructions.
7 Remove the Juice Pitcher
from under the spout. You
may close the Juice Pitcher
Lid and store juice in the
Juice Pitcher if desired.
NOTE: To do this, you’ll first need
to tip the Juice Pitcher forward
at a slight angle, so that the lid’s
large hole has some separation
from the spout, then you can slide
out the pitcher. This is the reverse
of what you did during assembly.
8Immediately move the
No-Drip Spout cover
downward over the spout
to avoid any residual drips
onto the unit or onto the
surface below the juicer.
TIP: We recommend using your
left hand to pull the Juice Pitcher
away, while using your right hand
to swing the No-Drip Spout cover
down and over the spout opening.

15
Control dial.
OFF:
Power is OFF, the juicer is
not running.
LOW:
Best for juicing softer fruits
and vegetables.
HIGH:
Best for harder produce like
carrots and beets.
OFF
LOW
HIGH
OFF
LOW
HIGH
OFF
LOW
HIGH
DUALSPEED CONTROL DIAL
& JUICING SETTINGS

16
Juicing tips.
JUICING SPEED SELECTION GUIDE
Apple High All Year
Beets High Summer / Fall / Winter
Blueberry High Summer
Broccoli High Fall / Spring
Brussels Sprouts High Fall / Winter
Cabbage Low Fall / Winter / Spring
Carrots High All Year
Cauliflower High Fall
Celery High All Year
Cucumber Low Summer
Fennel High All Year
Ginger High Fall
Grapes Low Fall
Grapefruit Low Winter
Kale High Fall / Winter / Spring
Kiwi Low Fall / Winter / Spring
Lemon Low All Year
Lime Low All Year
Melons (all) Low Summer
Orange High Winter
Peaches Low Summer
Pears High Fall / Winter
Pineapple High Fall / Winter / Spring
Plums High Summer
Raspberries Low Summer / Fall
Spinach Low Fall / Spring
Sweet Potato (raw) High Fall / Winter
Tomatoes Low Summer
INGREDIENTS SPEEDS SEASONS

17
source of quercetin
excellent source of folate
good source of vitamin C
high in vitamin C, high in folate, good source of potassium
high in vitamin C, good source of folate
high in vitamin C
excellent source of vitamin A, good source of vitamin C
high in vitamin C, good source of folate
good source of vitamin C, good source of vitamin A
good source of vitamin C
good source of vitamin C and potassium
contains vitamin C, magnesium, and potassium
good source of vitamin K
high in vitamin A, high in vitamin C
excellent source of vitamin A and vitamin C, good source of calcium and potassium
high in vitamin C, good source of potassium and vitamin E
high in vitamin C
high in vitamin C
high in vitamin A, high in vitamin C
high in vitamin C
good source of vitamin C
good source of vitamin C
high in vitamin C
good source of vitamin C
high in vitamin C
high in vitamin A, vitamin C, iron, and folate, good source of magnesium
good source of potassium, high in vitamin A and vitamin C
high in vitamin A, high in vitamin C, good source of potassium
VITAMINS / NUTRIENTS

18
PROPER PRODUCE PREP
Prepare fruit and veggies before
inserting them into the juicer:
• Properly clean produce (rinse
with lukewarm water, produce
wash, or water and apple
cider vinegar).
• Peel or remove skin as
needed, and chop food items
down to the right size – just
small enough to fit easily into
the feed chute, without having
to force the pieces down with
the Food Pusher.
• Remove rind from all citrus
fruits before juicing.
• Remove large pits and
seeds from stone fruits
before juicing.
FEED CHUTE
• Never place your hand or
fingers into the feed chute
when it is attached to
the appliance.
• Always start the juicer before
adding food to the feed
chute. The juicer must be
running when items enter it.
• Do not overload the feed
chute. Items must be added
gradually, at a pace the
juicer can keep up with.
• Use only the provided Food
Pusher to push food into
the feed chute. Never use
fingers, utensils, or any
other apparatus.
• Never use excessive
force to push items into
the feed chute.
• When juicing, ensure all
produce has moved through
the feed chute and into the
Sieve before adding more.
• If any food gets stuck in the
feed chute, use the Food
Pusher to move it down the
chute and into the Sieve.

19
CONSUMING JUICE & PULP
Instead of composting or
throwing away the pulp left
over after juicing, you can
choose to consume it. See our
Recipe Guide for some fun tips
on what to do with the pulp. By
using these creative ideas, you
can enjoy pulp in a variety of
delicious (and healthy) ways.
• Whether you prefer sweet or
savory, you can use pulp to
create some tasty treats!
• For best taste,consume fresh
juice and pulp within 48
hours of juicing.
NOGO FOODS
Foods that should NEVER be
used in this juicer:
• Foods that do not contain
juice to extract (for example,
bananas or avocados).
• Frozen fruits or vegetables.
• Stone fruits that have large
pits or seeds that have not
been removed. Stone fruits
may be used only if the seed
or pit has been removed.
OVERHEATING
• If the motor overheats,
the juicer will turn o.
• If the juicer stops working,
unplug it and allow it to cool
down for at least fifteen
minutes before attempting to
use again.

20

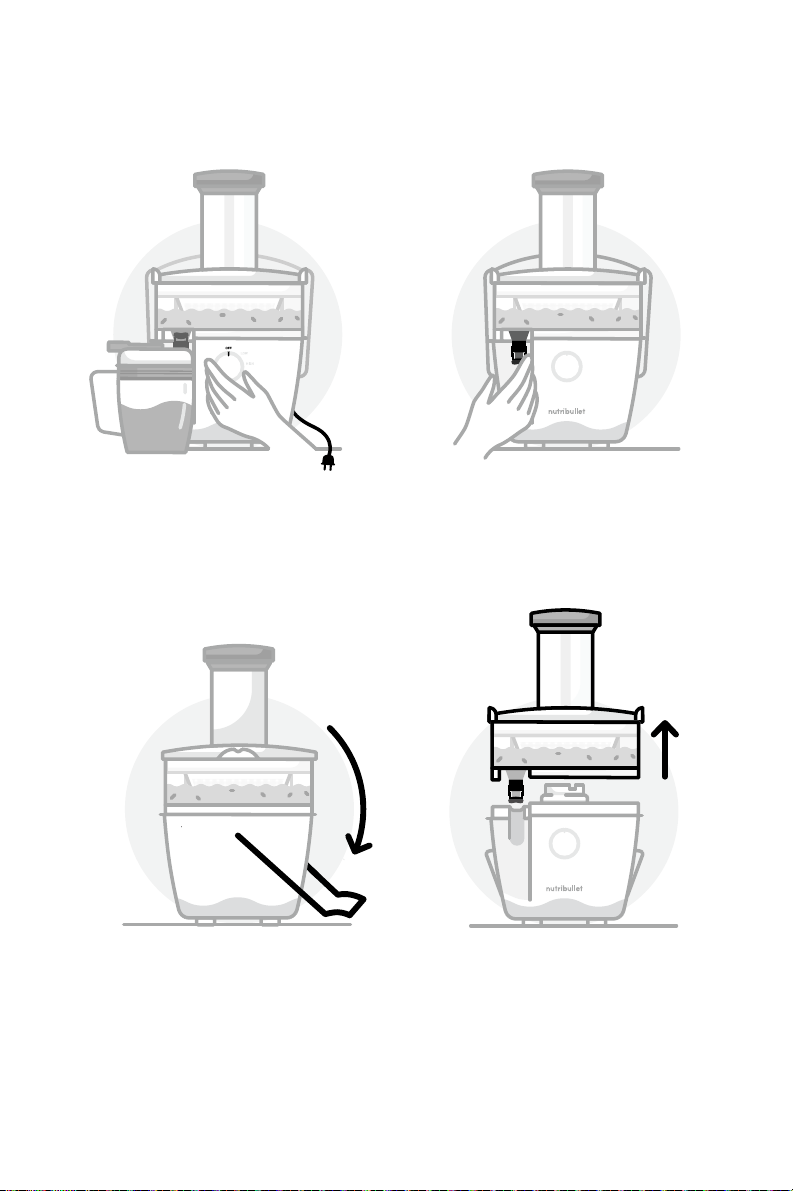

Disassembly.
1Ensure the unit is
powered down, turned
“OFF,” and unplugged.
2Remove the pitcher from
under the spout. To prevent
drips use the No-Drip Spout
cover to close the juice spout.
3Unlock the Locking Handle
from the Basin Cover by
pulling the handle backward
out of the “ears” on either
side of the Basin Cover.
Move the handle down.
4Remove the Pulp Basin
from the Motor Base by
pulling upwards with the
Basin Cover and Sieve still
in place, and take it directly
to your sink.
